Page 1

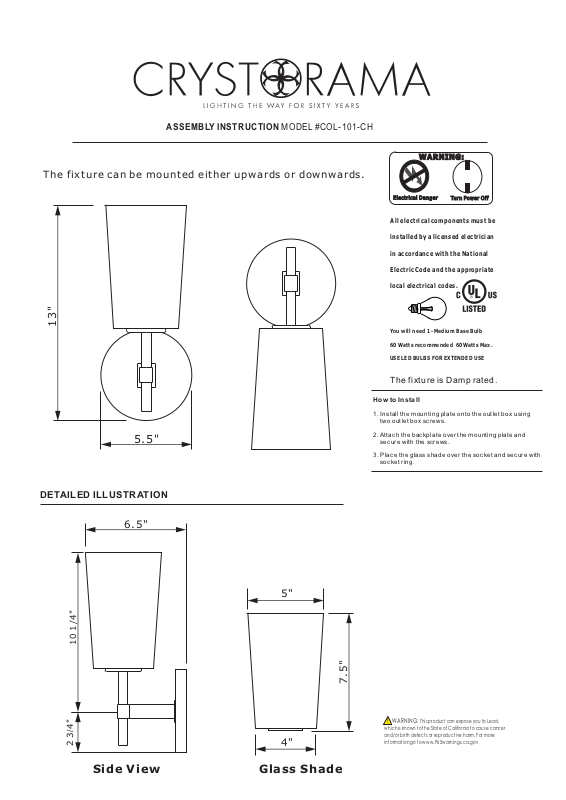

AS SE MB LY INS TR UC TI ON MODEL #COL-101-CH
The fixture can be mou nte d eit her u pwards or downward s.
WA RN IN G:
El ect ric al Da nger
Al l elect ri cal com po nents m us t be
in stall ed b y a licen se d elect ri cian
in a ccord an ce with t he N ation al
El ectri c Co de and th e ap propr ia te
lo cal ele ct rical c od es.
13"
Yo u wil l nee d 1 -M edi um Ba se Bulb
60 W att s rec om men ded 6 0Watt s Max .
US E LED B ULB S FO R EXT END ED USE
Turn P owe r Off
The fixture i s Damp rated.
Ho w to In sta ll
1. Install th e mou nti ng pl ate o nto t he ou tle t box u sing
two outlet bo x scr ews .
5.5"
2. Attach the ba ckp lat e ove r the m oun tin g pla te an d
secure with t he sc rew s.
3. Place the gl ass s had e ove r the s ock et an d sec ure w ith
socket ring .
DE TAILED ILLUSTRATION
6.5"
10 1 /4"
2 3/ 4"
Side View
5"
4"
Glass Shade
7.5"
WARNING: T his produ ct ca n expo se yo u to Le ad,
whi ch is kno wn to t he St ate of C ali for nia to c aus e cancer
and /or bir th de fec ts or re pro duc tive h arm . For more
inf ormat ion g o to ww w.P6 5wa rni ngs. ca. gov
Page 2
PART NUMBER MODEL #COL-101-CH
B
A
Part Number
Part Numb ers
A. ( 2)-Wire Con nector
B. ( 1)-Moun ti ng plat e
C. ( 2)-Scre w
D. (1) -Backpl ate (Ø5.5")
-XSN10 1CHBK5. 5I N
E. ( 1)-Socket R ing
F. (1 )-Glass S hade;W5 ",H7.5"
-XSN10 1SHA
G. ( 1)-Socket
D
Outle t Box
C
E
F
G
