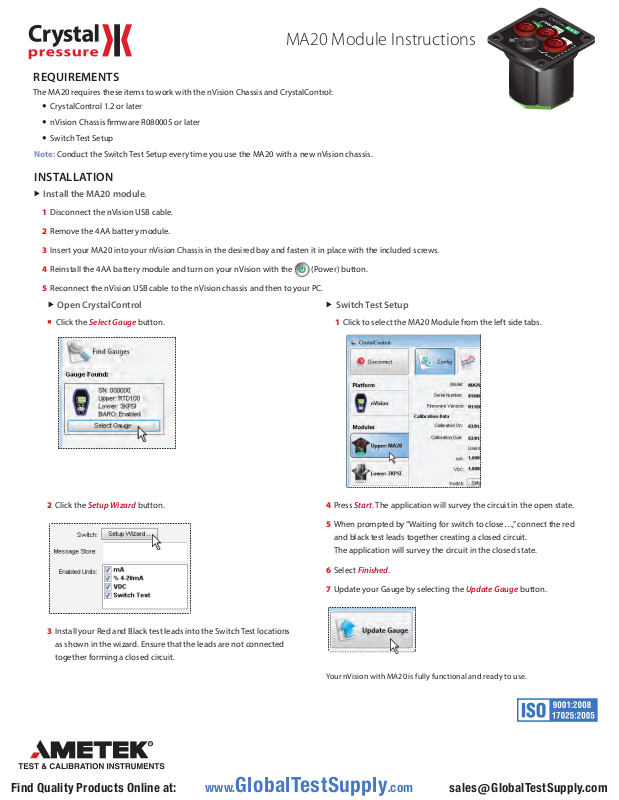

Crystal Pressure MA20-MODULE User manual

MA20 Module Instructions
REQUIREMENTS
The MA20 requires these items to work with the nVision Chassis and CrystalControl:
CrystalControl 1.2 or later
nVision Chassis  rmware R080005 or later
Switch Test Setup
INSTALLATION
Install the MA20 module.
1 Disconnect the nVision USB cable.
2 Remove the 4AA battery module.
3 Insert your MA20 into your nVision Chassis in the desired bay and fasten it in place with the included screws.
4 Reinstall the 4AA battery module and turn on your nVision with the
5 Reconnect the nVision USB cable to the nVision chassis and then to your PC.
Open CrystalControl
Click the Select Gauge button.
2 Click the Setup Wizard button.
(Power) button.
Switch Test Setup
1 Click to select the MA20 Module from the left side tabs.
4 Press Start. The application will survey the circuit in the open state.
5 When prompted by “Waiting for switch to close…,” connect the red
and black t
The application will survey the circuit in the closed state.
est leads together creating a closed circuit.
6 Select Finished.
7 Update your Gauge by selecting the Update Gauge button.
3 Install your Red and Black test leads into the Switch Test locations
as shown in the wizard. Ensure that the leads are not connected
together forming a closed circuit.
Your nVision with MA20 is fully functional and ready to use.
