User Manual
15, 17, 17.3, 19 inch
RMD-151-A Series
Rack Mount Industrial Display Drawer
Options :
- Composite Video input
- HDMI / Display port input
- T
ouchscreen / DC power
- 3G / HD / SD-SDI broadcasting grade
input
- AR Hardness glass
Legal Information
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■
Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■
Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■
When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■
When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■
Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■
If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’
s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■
If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■
Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fi re or electrical shock.
■
Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■
If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service personnel.
What the warranty does not cover
■
Any product, on which the serial number has been defaced, modifi ed or removed.
■
Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi
re, water, lightning, or other acts of nature, unauthorized product modifi cation, or
failure to follow instructions supplied with the product.
□
Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■
Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■
Re-position or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
< Part. 3 >
Options
3.1 Touchscreen : Resistive, Capacitive
3.2 DC power
P.10
P.10
< Part. 2 >
Specifi cations / OSD
2.1 Product Specifi cations
2.2 On-screen Display Operation ( OSD )
P.7 - 8
P.9
< Part. 1 >
RMD
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3
Installation
Contents
P.1
P.1 - 2
P.6
■
It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■
Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately
.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■
To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■
When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty
.
■
Use only cleansers made specifi cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the fi nish.
■
Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■
Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfi ber cloth. Use as little pressure as possible.
1
2
Cleaning T
ough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfi ber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfi ber cloth fi rst, not directly on the parts you are cleaning.
3
4
1
2
4
LCD panel
Rear Mounting Bracket
Audio speaker
1
2
3
4
5
5
LCD OSD Buttons
Handle
2-point lock
< 1.1 > Package Content
P.1
< Part 1 >
RMD unit X 1
- 1.8 M VGA cable X 1
- Power cord X 1
< 1.2 > Structure Diagram
6
3
6
- 1.8 M DVI cable X 1
- 1.8 M Audio cable X 1
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
RMD- 448 x 425 x 44PP 610 x 700 x 170
PP 12NJ 17
The weight is only for the pure models. It varies with accessories & options
such as SDI, HDMI, audio, touchscreen & DC power.

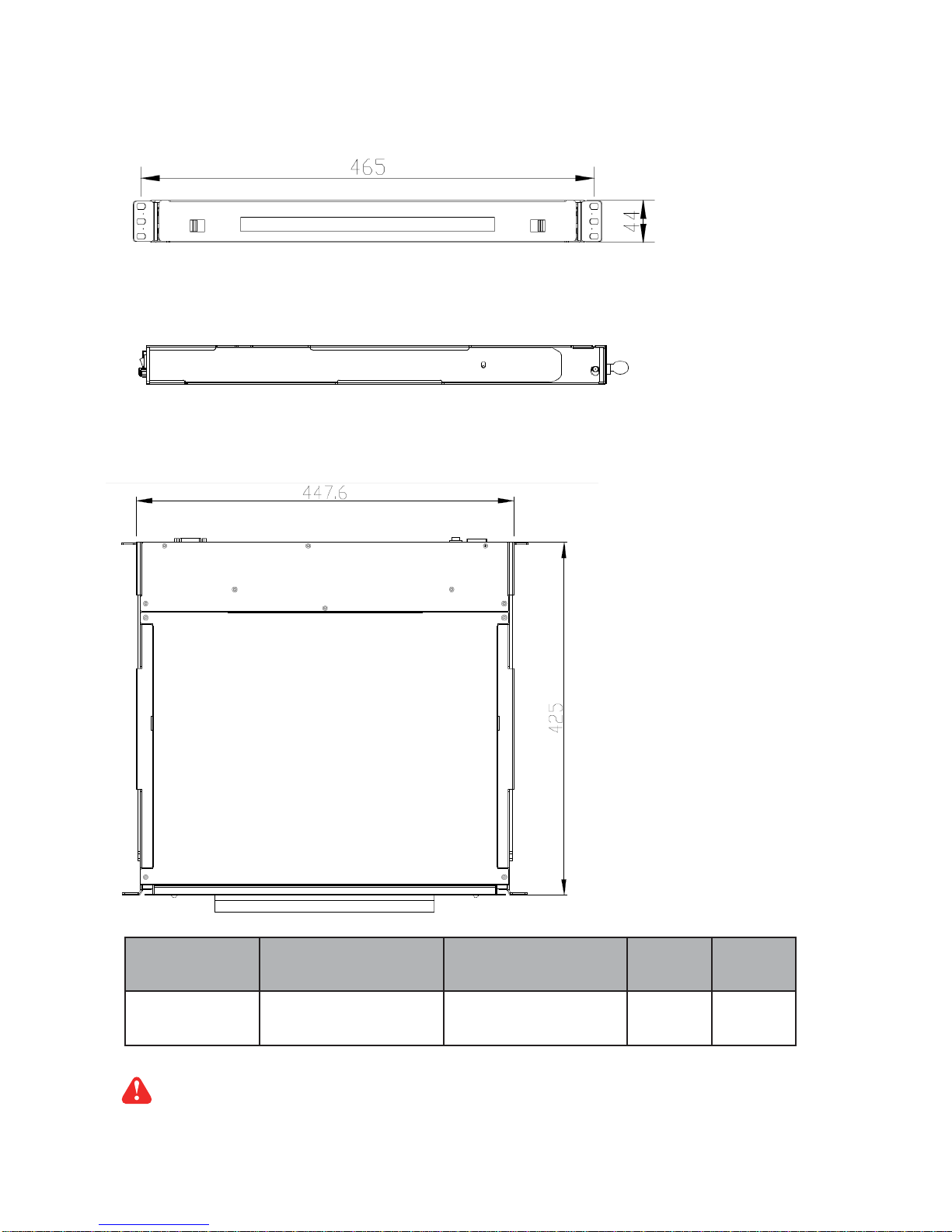

< 1.2 > Dimension-15 inch
P.2
Front View
Side View
UNIT : mm
1mm = 0.03937 inch
T
op V
iew
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
RMD-17A
448 x 500 x 44 mm 790 x 580 x 190 mm 15.5 kg 19 kg
The weight is only for the pure models. It varies with accessories & options
such as SDI, HDMI, audio, touchscreen & DC power.
< 1.2 > Dimension-17 inch
P. 3
Front View
Side View
UNIT : mm
1mm = 0.03937 inch
T
op V
iew
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
RMD-F17A
448 x 425 x 44 mm 610 x 700 x 170 mm 12.5 kg 17 kg
The weight is only for the pure models. It varies with accessories & options
such as SDI, HDMI, audio, touchscreen & DC power.
< 1.2 > Dimension-17.3 inch
P. 4
Front View
Side View
UNIT : mm
1mm = 0.03937 inch
T
op V
iew
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
RMD-19A
448 x 550 x 44 mm 790 x 580 x 190 mm 17.5 kg 21 kg
The weight is only for the pure models. It varies with accessories & options
such as SDI, HDMI, audio, touchscreen & DC power.
< 1.2 > Dimension-19 inch
P. 5
Front View
Side View
UNIT : mm
1mm = 0.03937 inch
T
op V
iew
■
Unlock Buttons A to the inside direction
Step
3
■
Rear mounting bracket, screw M6 *4pcs
Step
1
< 1.3 > Installation
P. 6
Step
2
Back View
Front View
■
Insert the left and right rear mounting brackets into
the display drawer, screw M6 * 4pcs
■ Unlock Buttons A to release rail locker
Step
6
Pull the LCD out by holding handle B
■
■
Fully pull out the LCD
Step
4
■ Lift up the LCD
Step
5
■ Push-in to the suitable position
Audio
Connectivity
Audio Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ / 750mV
Speaker Output Power 2 x 2W
LCD
Panel
Panel Size ( diagonal )
Display pixel ( dots x lines )
Brightness ( typ. )
Contrast Ratio ( typ. )
Color
Viewing Angle ( H/V )
Response Time ( ms )
Backlight Type
MTBF ( hrs )
Video
Connectivity
Digital HDMI HDMI 1.1, CEA-861-D
DVI DVI-D, TMDS single link
Analog VGA Analog 0.7Vp-p
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
< 2.1 > Product Specifi cations
P. 7
< Part 2 >
15''
1024 x 768
450
700:1
16.7M
160/140
8
LED
50,000
LCD
Panel
Panel Size ( diagonal )
Display pixel ( dots x lines )
Brightness ( typ. )
Contrast Ratio ( typ. )
Color
Viewing Angle ( H/V )
Response Time ( ms )
Backlight Type
MTBF ( hrs )
17.3''
1920 x1080(up to 1920 x1200)
300
400:1
262K
140/120
16
LED
10,000
17''
1280 x 1024
250
1000:1
16.7M
170/178
6
LED
50,000
19''
1280 x 1024
350
1000:1
16.7M
170/160
5
LED
50,000
Environmental
Conditions
Operating
T
emperature 0 to 50°C degree
Humidity 5~95%, non-condensing
Storage
Temperature -20 to 60°C degree
Humidity 5~95%, non-condensing
Shock 15G/Peak
(11ms duration)
Vibration 5~500Hz 1G RMS random
Applicable
Format
DVI-D / VGA Input PC Signal 1920 x 1080 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
P. 8
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
DC Power
Range 9~36V DC
Regulatory Safety FCC & CE certifi ed
Environmental RoHS2 & REACH compliant
RMD
P. 9
< 2.2 > On-screen Display Operation ( OSD )
Auto
Menu
Power
Source
press to select video source
■
USB touchscreen package includes 2 x 1.8 M USB cable
■
For detailed information, please refer to the attached CD disc
■
As the touchscreen unit is not made of toughened glass, please handle it carefully
< 3.1 > Options : Touchscreen
Model
Resistive
Capacitive
Technology
5-Wire Resistive Capacitive
Touch Point
Single
Single
Method
Stylus or Finger Finger
Activation Force
≤ 50g / Stylus=R0.8 ≤ 50g
Durability
10 million touches 300 million touches
Response Time
15 ms 20 ms
Optical Transmittance
80% ± 3% 87% ±2%
Surface Hardness
3H 9H
Haze
8% ± 3% 7%
Glass
3.2 ±0.2 mm
2.8 mm ±10%
Connector
USB Type A
Compatibility
Windows 7 / XP / Vista, Linux
P. 10
USB Touchscreen Speci
fi cation
< Part 3 >
< 3.2 > Options : DC power
