dedicated LCD display solutions
User Manual
23” 4K 3480 x 2160 LCD
LCD-AP-K23
Aluminum front bezel
LCD-NAP-K23
Front NEMA4 / IP65
LCD-DP-K23
Aluminum front cover
LCD-OP-K23
Universal open frame
UM-UV-621-K23-Q318V1 www.rackmountsales.com
Legal Information
First English printing, August 2018
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
UM-UV-621-K23-Q318V1 www.rackmountsales.com
Contents
< Part. 1 >
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Mounting Hardware & Installation
< Part. 2 >
2.1 Package Content
2.2 Structure Diagram & Dimension
2.3 Mounting Hardware & Installation
< Part. 3 >
3.1 Package Content
LCD-AP-K23 / NAP-K23
LCD-DP-K23
LCD-OP-K23
P.1
P.2 - 3
P.4 - 5
P.6
P.7 - 8
P.9
P.10
3.2 Structure Diagram & Dimension
3.3 Mounting Hardware & Installation
< Part. 4 >
4.1 Product Specifi cations

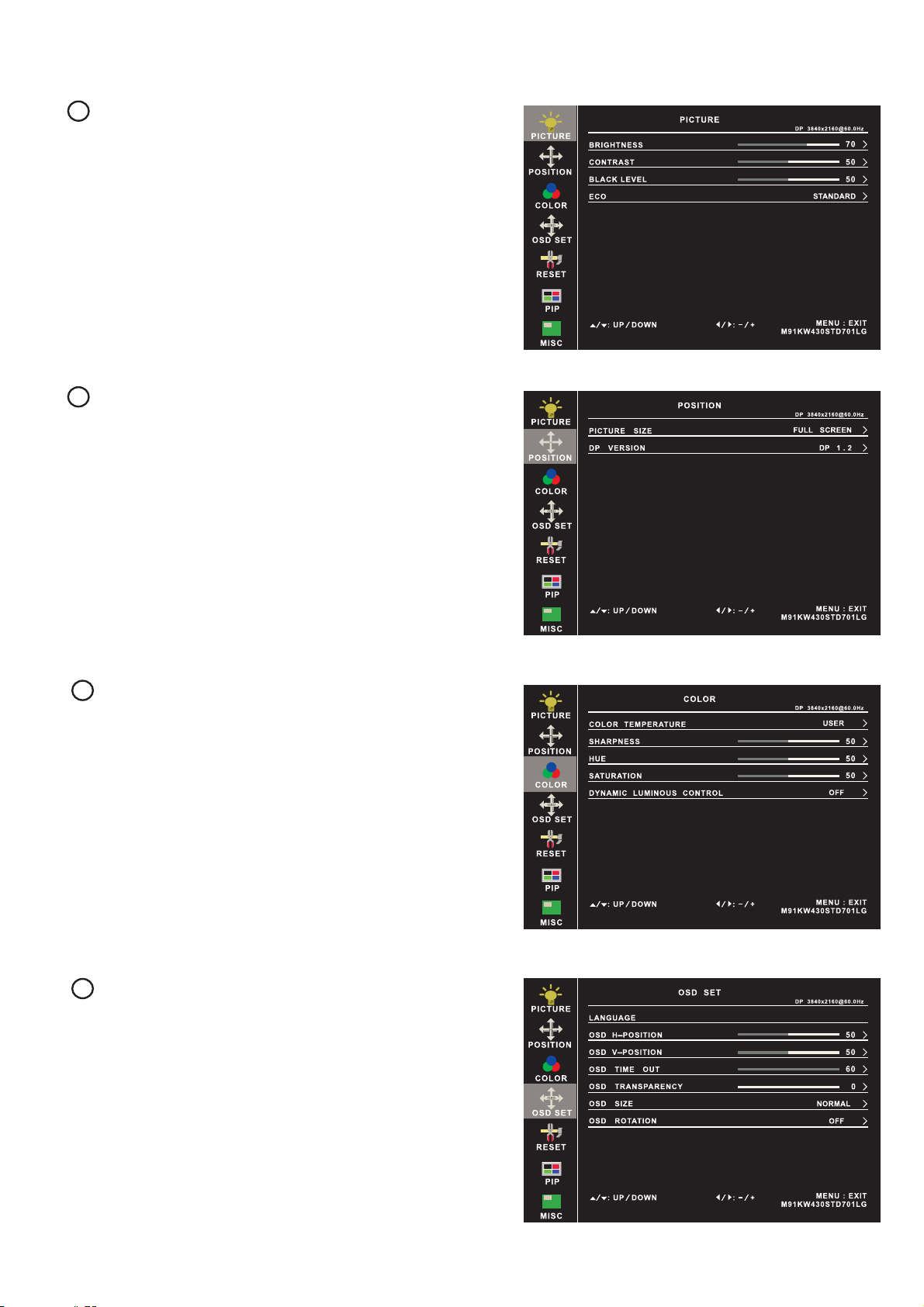

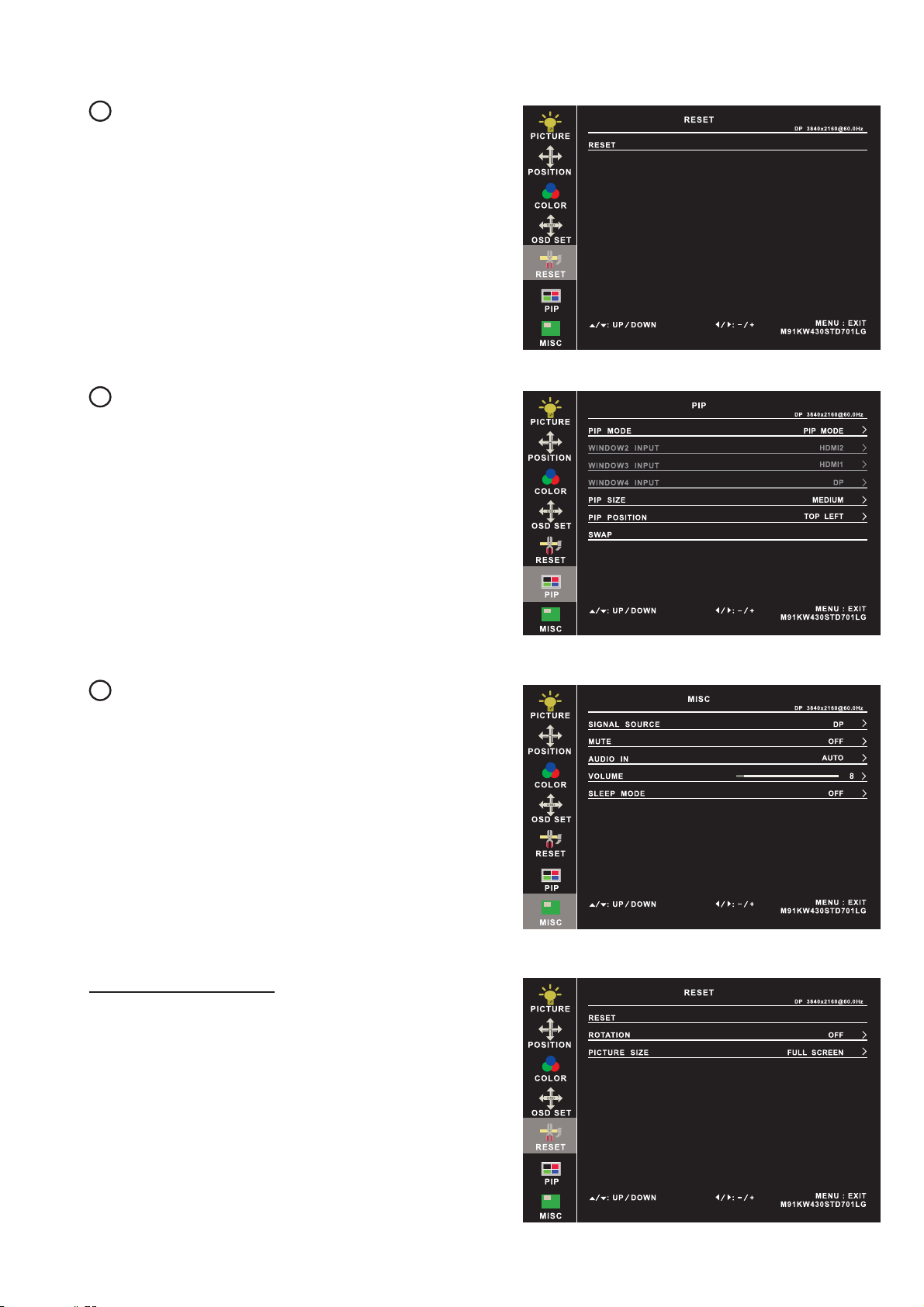

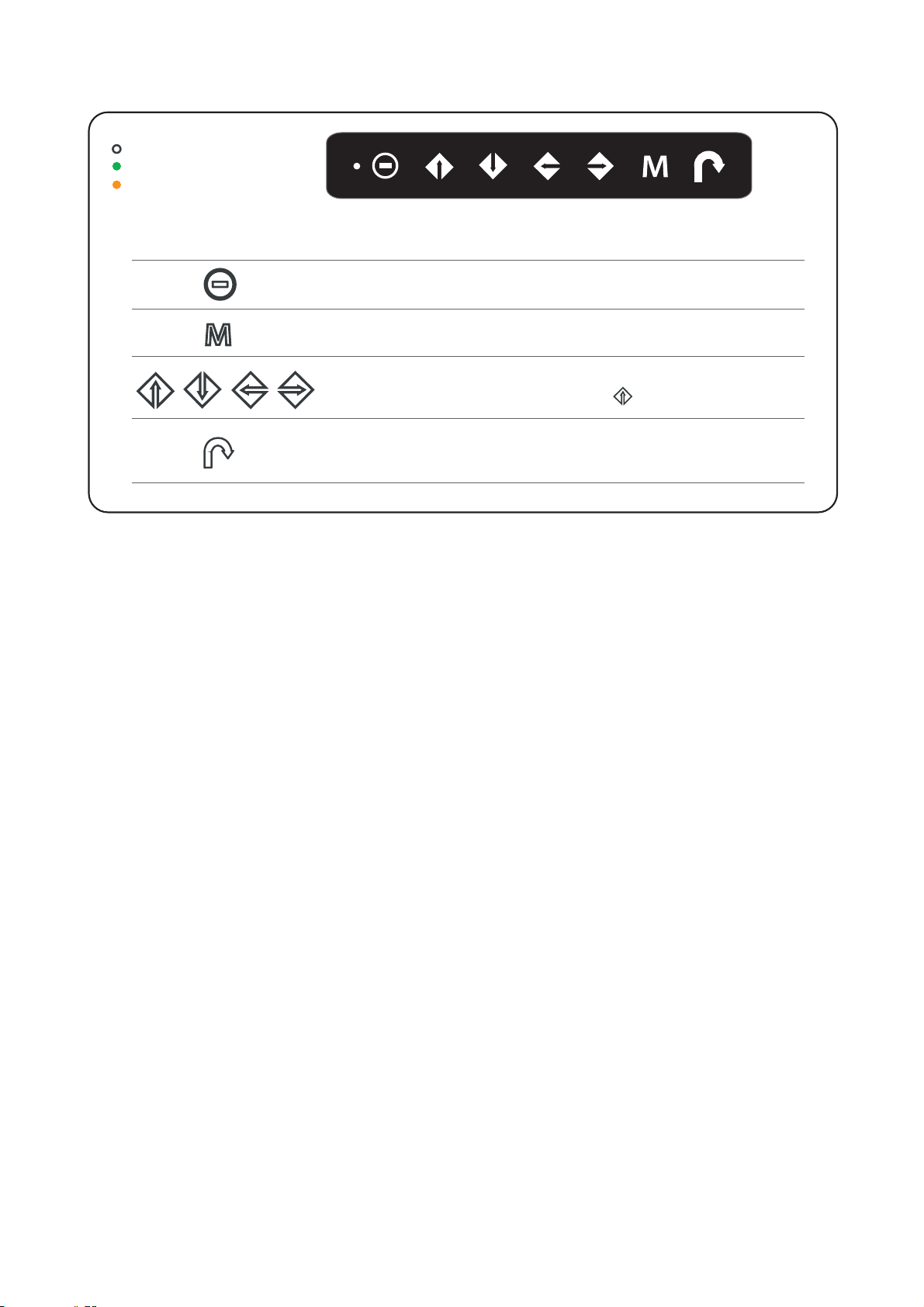

4.2 On-screen Display Operation ( OSD )

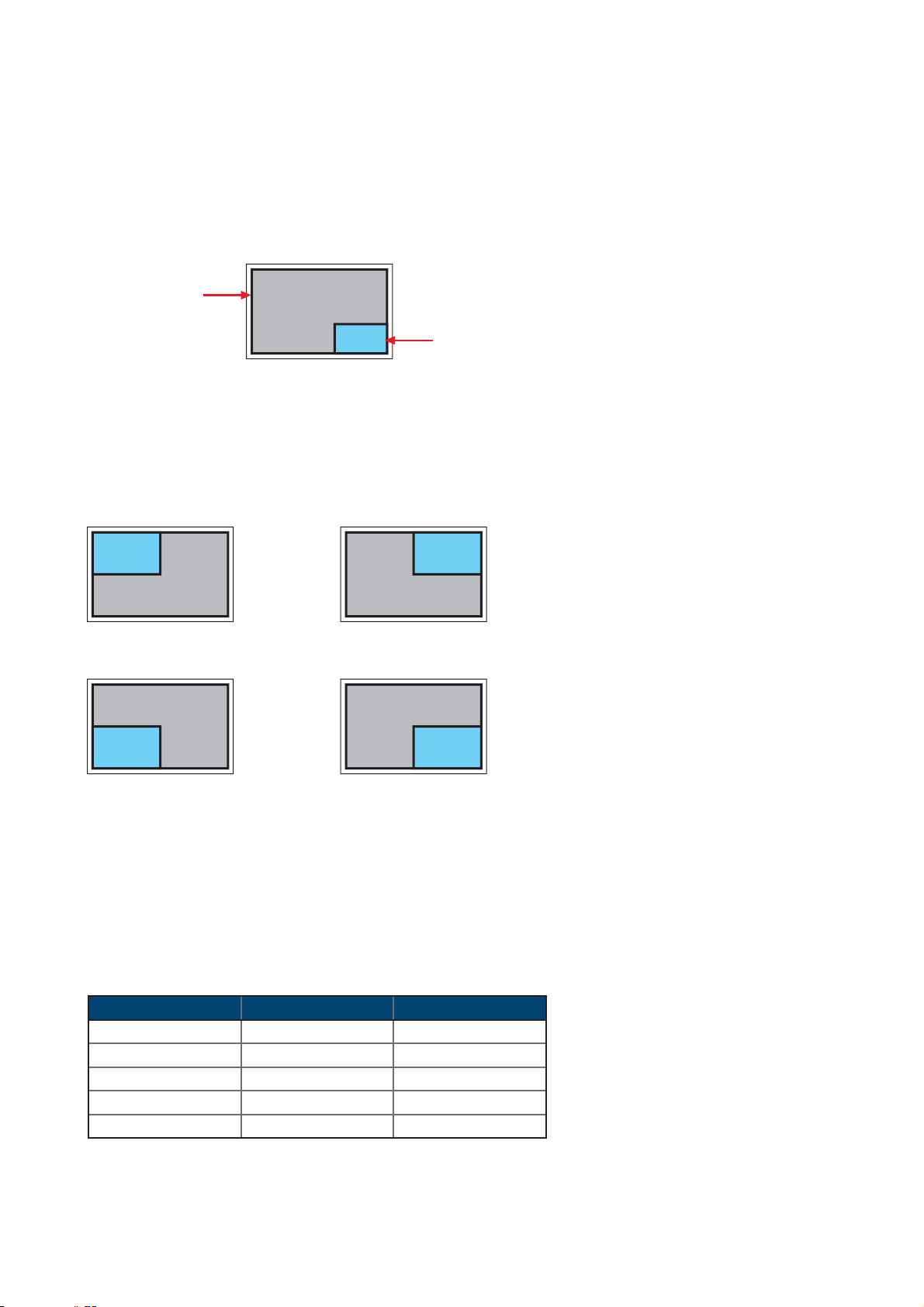

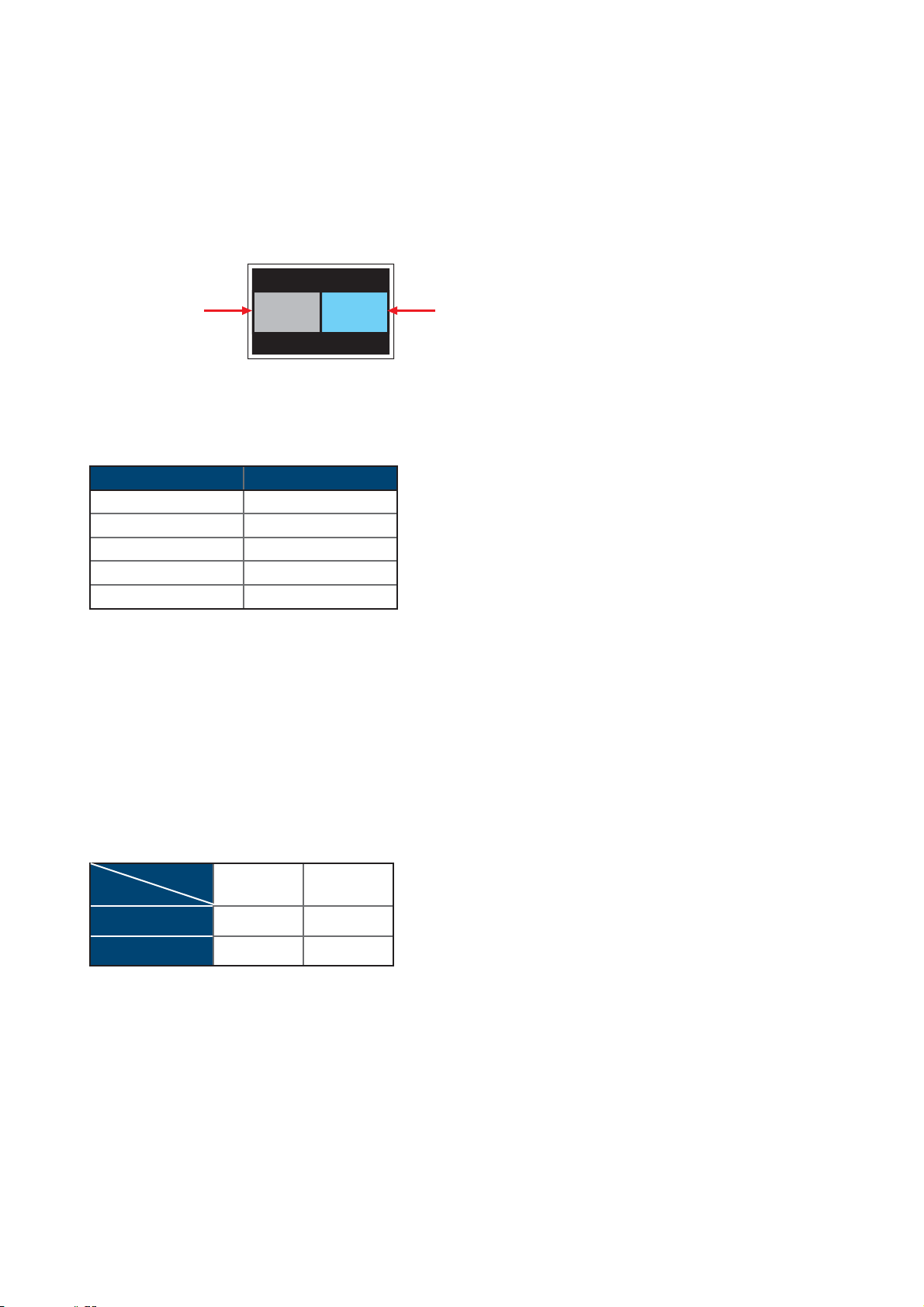

4.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP )
< Part. 5 >
5.1 Option Table
5.2 Remote Controller ( RC-2 )
5.3 3G / HD / SD-SDI Broadcast-grade input
5.4 MCS Multi-display control solution
Specifi cations / OSD
Options
P.11 - 12
P.13
P.14 - 15
P.16 - 18
P.19 - 20
P.21
P.22
P.23
P.24
5.5 Touchscreen & driver
5.6 DC Power
5.7 MIL-type or lockable connector
UM-UV-621-K23-Q318V1 www.rackmountsales.com
P.25 - 26
P.26
P.27
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifi cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the fi nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1
Disconnect the power cord.
2
Gently wipe the surface using a clean, dry microfi ber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1
Disconnect the power cord.
2
Spray a small amount of non-abrasive cleanser on a microfi ber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfi ber cloth fi rst, not directly on the parts you are cleaning.
3
Gently wipe the surface. Use as little pressure as possible.
4
Wait until your monitor is completely dry before plugging it in and powering it up.
UM-UV-621-K23-Q318V1 www.rackmountsales.com
< Part 1 >
< 1.1 > Package Content - LCD-AP / NAP-K23
LCD-AP-K23 / NAP-K23
23” 4K LCD display X 1
6ft DP cable X 1
Power adapter X 1
Power cord X 1
Mounting hardware X 1 pack
- Mounting bracket x 4 pcs
- M4* 6mm screw x 8 pcs
- M4* 50mm screw x 8 pcs
23” 4K LCD Display
Basic I/O
HDMI 2.0HDMI 1.4 DP
Audio
out
Power
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.1
< 1.2 > Structure Diagram - LCD-AP / NAP-K23
1
2
3
Front view
LCD-AP-K23
NAP-K23
1
Rear case
2
LCD panel
6mm aluminum front bazel
3
Audio speaker, pair
4
LCD membrane
5
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Top view
Rear view
Net
Weight
4
5
Gross
Weight
LCD-AP-K23
LCD-NAP-K23
584.2 x 63.6 x 363.6 mm
23 x 2.5 x 14.3 inch
584.2 x 63.6 x 363.6 mm
23 x 2.5 x 14.3 inch
659 x 117 x 640 mm
25.9 x 4.6 x 25.2 inch
659 x 117 x 640 mm
25.9 x 4.6 x 25.2 inch
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.2
9 kg
19.8 lbs
9 kg
19.8 lbs
12.7 kg
27.9 lbs
12.7 kg
27.9 lbs
< 1.2 > Dimension - LCD-AP / NAP-K23
Front View Side View
23” 4K LCD Display
LCD-AP-K23
LCD-NAP-K23
Rear View
UNIT : mm
1mm = 0.03937 inch
Bottom View
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.3
< 1.3 > Panel Mount Installation - LCD-AP / NAP-K23
1
Mounting
bracket
x 4 pcs
Hardware set part no. UV-BK#2
M4*6mm screw
2 3
x 8 pcs
M4*50mm screw
x 8 pcs
Steps
■
Install 4 mounting brackets with 8 x M4*6mm screws
■ Adjust the LCD panel with 8 x M4*50mm screws and fi x it on the surface.
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.4
< 1.3 > VESA mount Installation - LCD-AP / NAP-K23
23” 4K LCD Display
VESA mount ( 100*100mm )
■
Hardware and M6*4 pcs for VESA mount are not provided
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.5
< Part 2 >
< 2.1 > Package Content - LCD-DP-K23
LCD-DP-K23
23” 4K LCD display X 1
6ft DP cable X 1
Power adapter X 1
Power cord X 1
Basic I/O
HDMI 2.0HDMI 1.4 DP
Audio
in out
Power
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.6

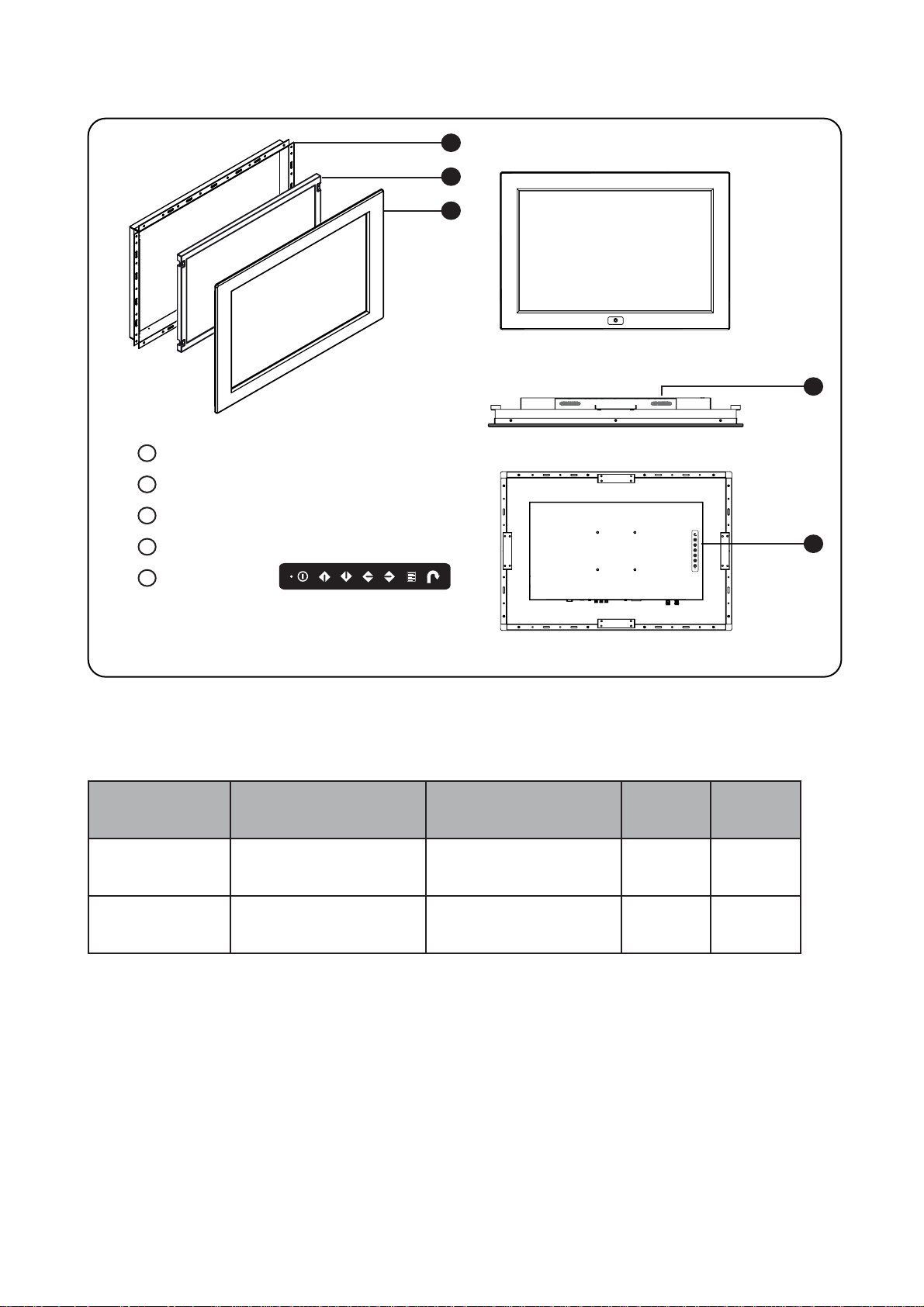

< 2.2 > Structure Diagram - LCD-DP-K23
23” 4K LCD Display
1
Rear case
2
LCD panel
3
Front cover
Audio speaker, pair
4
LCD membrane
5
1
Front view
2
3
LCD-DP-K23
Top view
Rear view
4
5
Model
LCD-DP-K23
Product Dimension
(W x D x H)
562.4 x 59.6 x 341.6 mm
22.1 x 2.3 x 13.4 inch
Packing Dimension
(W x D x H)
659 x 117 x 640 mm
25.9 x 4.6 x 25.2 inch
Net
Weight
7.9 kg
17.4 lbs
Gross
Weight
11.6 kg
25.5 lbs
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.7
< 2.2 > Dimension - LCD-DP-K23
Front View
Side View
LCD-DP-K23
Rear View
UNIT : mm
1mm = 0.03937 inch
Bottom View
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.8

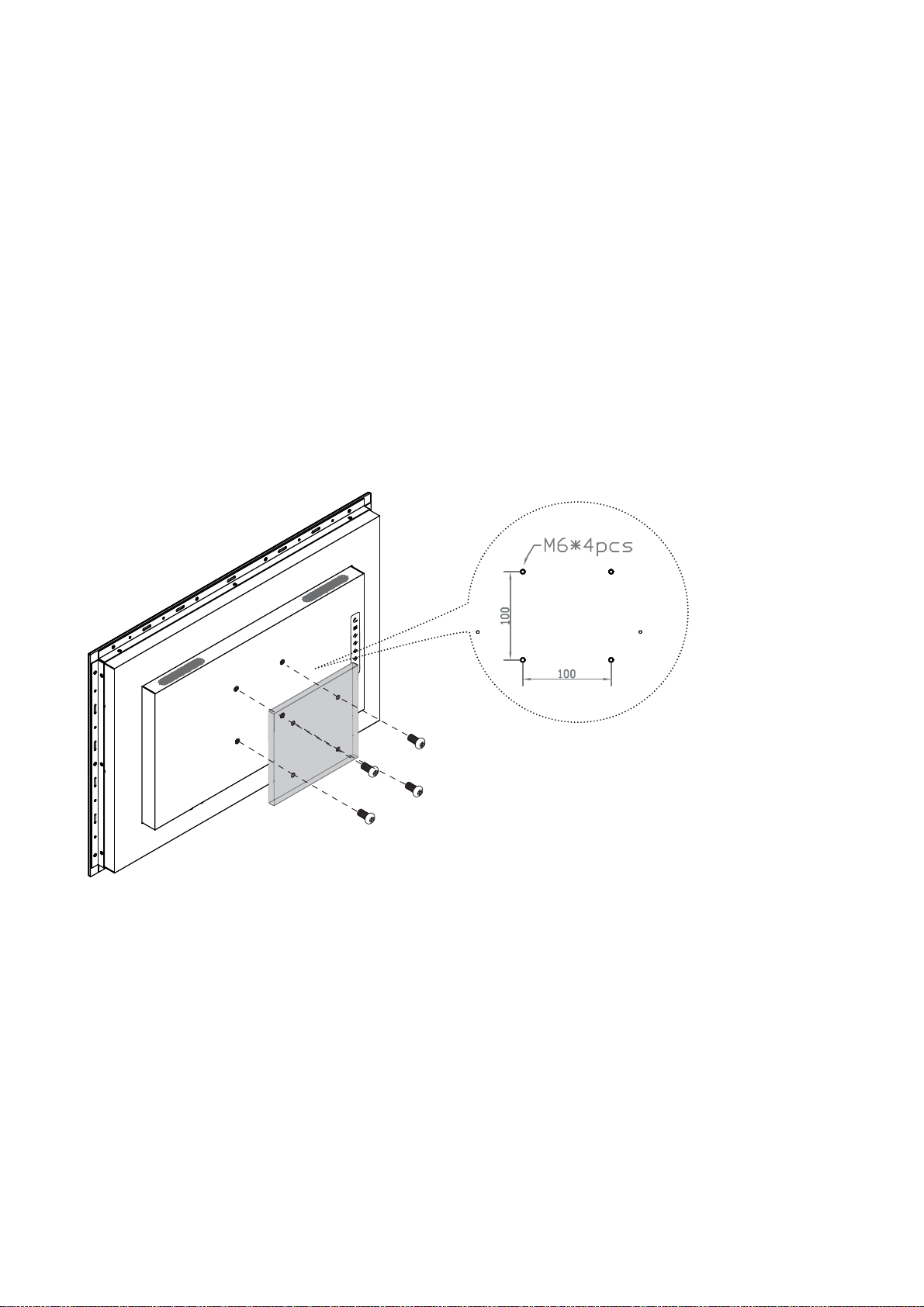

< 2.3 > VESA Installation - LCD-DP-K23
23" 4K LCD Display
VESA mount ( 100*100mm )
■
Hardware and M6*4 pcs for VESA mount are not provided
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.9
< Part 3 >
< 3.1 > Package Content - LCD-OP-K23
LCD-OP-K23
23” 4K LCD Display X 1
6ft DP cable X 1
Power adapter X 1
Power cord X 1
Basic I/O
HDMI 2.0HDMI 1.4 DP
Audio
in out
Power
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.10
< 3.2 > Structure Diagram - LCD-OP-K23
1
2
23” 4K LCD Display
Front view
LCD-OP-K23
1
Rear case
2
LCD panel
3
Audio speaker, pair
4
Universal open frame mounting
5
LCD membrane
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Top view
Rear view
Net
Weight
3
4
5
Gross
Weight
LCD-OP-K23
581.4 x 57.6 x 360.6 mm
22.9 x 2.3 x 14.2 inch
659 x 117 x 640 mm
25.9 x 4.6 x 25.2 inch
UM-UV-621-K23-Q318V1 www.UDFNPRXQWVDOes.comP.11
6.7 kg
14.7 lbs
10.4 kg
22.9 lbs

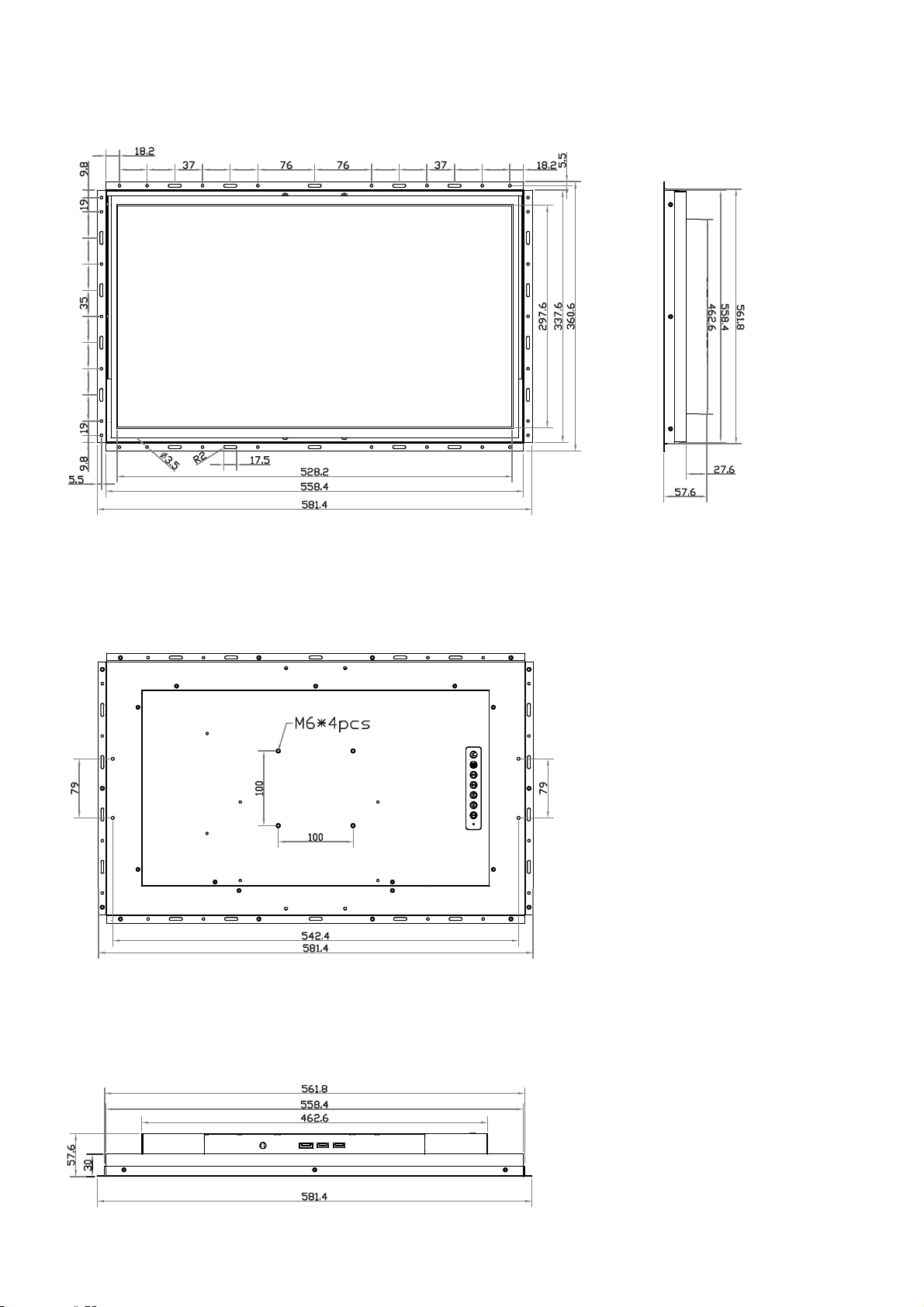

< 3.2 > Dimension - LCD-OP-K23
Front View Side View
LCD-OP-K23
Rear View
Bottom View
UNIT : mm
1mm = 0.03937 inch
UM-UV-621-K23-Q318V1 www.UDFNPRXQWVDOes.comP.12

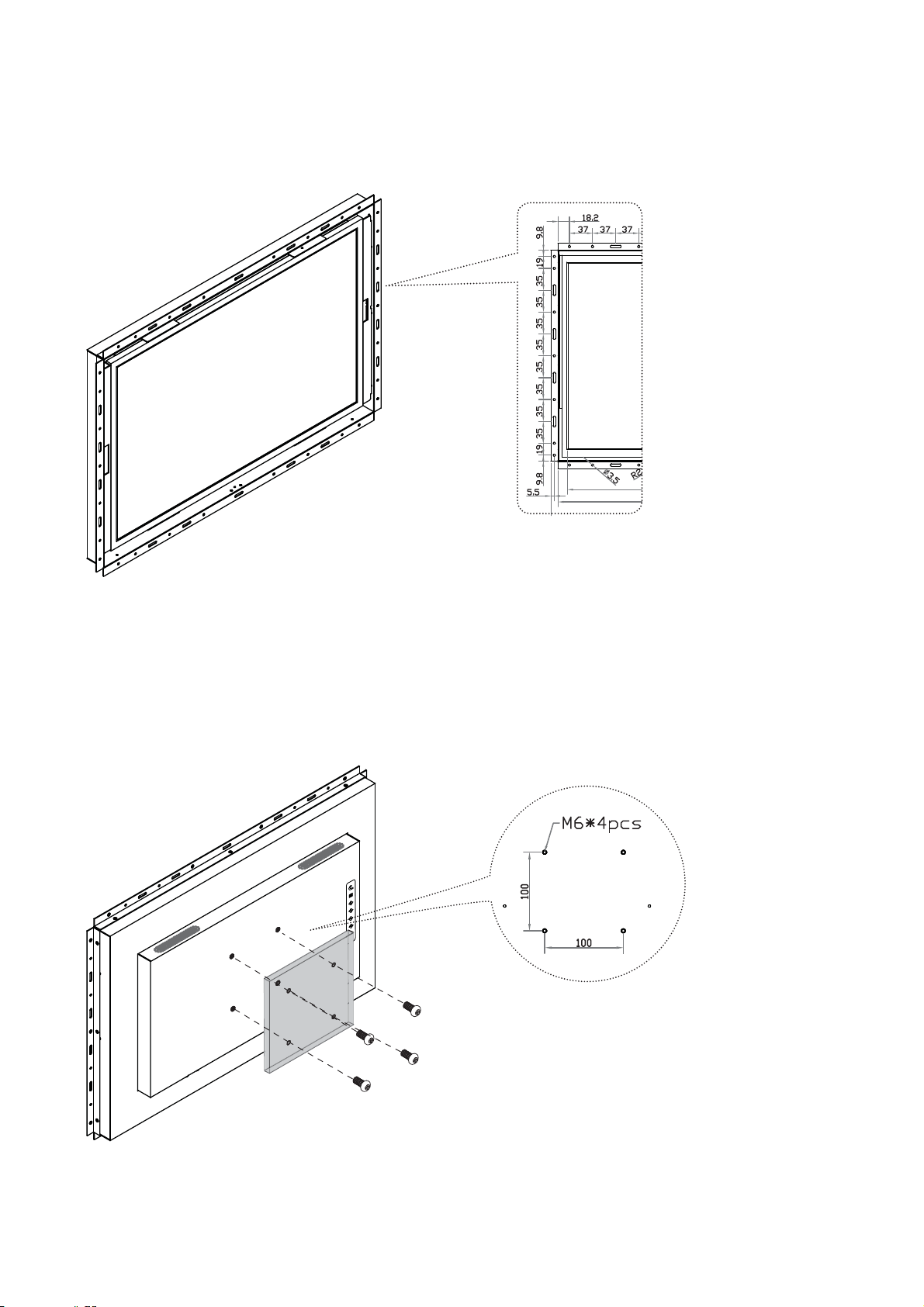

< 3.3 > Installation - LCD-OP-K23
( I ) Universal mount
23” 4K LCD Display
( II ) VESA mount ( 100*100mm )
Hardware and M6*4 pcs for VESA mounting are not provided
UM-UV-621-K23-Q318V1 www.UDFNPRXQWVDOes.comP.13
< Part 4 >
< 4.1 > Product Specifi cations
Mechanical
Design
LCD
Panel
LCDAPK23 NAP-K23 DP-K23 OP-K23
Protection 6mm front cover NEMA 4 / IP 65 front cover open frame
Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005
VESA Mounting 100 x 100mm
Other Mounting Panel mount Panel mount -
Panel Size ( diagonal ) 23-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 3840 x 2160
Brightness ( typ. ) 310
Contrast Ratio ( typ. ) 1000:1
Color 1.07 Billion, 10-bit
Viewing Angle ( L/R/U/D ) 89/89/89/89
Response Time ( ms ) 25
Dot pitch ( mm ) 0.13725
Display Area ( mm ) 527.04H x 296.46V
Surface treatment Anti-glare
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 30,000
Universal
mount
Video Digital Display port DP 1.2 / HDCP 1.3
HDMI HDMI 2.0 / HDCP 2.2
HDMI 1.4 / HDCP 1.4
Audio Audio Output Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
Speaker Dual Stereo Speaker 10W x 2
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Compliance EMC FCC & CE certifi ed
Safety CE / LVD certifi ed
Environment RoHS2 & REACH compliant
Screen ON Max.45W
Power saving mode Max. 9W
Power button OFF Max. 2W
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.14
< 4.1 > Product Specifi cations
23” 4K LCD Display
Environmental
Conditions
Physical
Specifi cation
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage /
Non-operating
Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
LCDAP/NAP-K23 LCD-DP-K23 LCD-OP-K23
Product
( W x D x H )
Packing
( W x D x H )
584.2 x 63.6 x 363.6 mm 562.4 x 59.6 x 341.6 mm 581.4 x 57.6 x 360.6 mm
23 x 2.5 x 14.3 inch 22.1 x 2.3 x 13.4 inch 22.9 x 2.3 x 14.2
659 x 117 x 640 mm 659 x 117 x 640 mm 659 x 117 x 640 mm
25.9 x 4.6 x 25.2 inch 25.9 x 4.6 x 25.2 inch 25.9 x 4.6 x 25.2 inch
Net Weight 9 kg / 19.8 lb 7.9 kg / 17.4 lb 6.7 kg / 14.7 lb
Gross Weight 12.7 kg / 27.9 lb 11.6 kg / 25.5 lb 10.4 kg / 22.9 lb
Applicable
Format
* In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio
signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card
setting on display size to fi x the issue.
Display Port
Input
HDMI Input
PC Signal 3840 x 2160 x 60Hz
1920 x 1080 x 60Hz
1600 x 1200 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 768 x 60Hz
1024 x 768 x 60 / 70 / 75Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
Audio Signal 2ch Linear PCM
HDMI 2.0 3840 x 2160 x 60Hz
HDMI 2.0 / 1.4
Audio Signal 2ch Linear PCM
3840 x 2160 x 30Hz
1920 x 1080 x 50 / 60Hz ( 1080p )
1920 x 1080 x 25 / 30Hz ( 1080i )
1280 x 720 x 50 / 60Hz ( 720p )
720 x 480 x 50 / 60Hz ( 576p / 480p )
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.15
< 4.2 > On-screen Display Operation ( OSD )
Power light
Green = On
Orange = Power saving
Membrane Switch Function
Power on / off LCD
Display the OSD menu
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button for 5 seconds)
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.16
< 4.2 > On-screen Display Operation ( OSD )
1
Brightness : Adjust the screen brightness
Contrast : Adjust the difference between the image background
( black level ) and the foreground ( white level )
Black level : Adjust background black level of the screen
Eco : Screen in power saving mode
2
Position
Picture size : Adjust the image size
- Full Screen / 4:3 / 5:4 / Pixel to Pixel
DP version : Select the DP version
23” 4K LCD Display
3
Color
Color temperature : User / Warm / Cool / 5400k mode and
Red / Green / Blue color balance
Sharpness : Adjust the image from weak to sharp
Hue : Adjust the screen hue value
Saturation :
Dynamic
luminous control : Control the dynamic brightness
4
OSD Set
Language : Select the language in which the OSD menu is
displayed - English
OSD H-Position : Align the screen image left or right
OSD V-Position : Align the screen image up or down
OSD time out :
OSD transparency : Adjust the screen transparency
OSD size : Adjust the screen size - Normal / Small
OSD rotation : Rotate the screen - 90° / 180° / 270°
Adjust the saturation of the image color
Adjust the screen timeout
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.17
< 4.2 > On-screen Display Operation ( OSD )
5
Reset
Reset : Return the adjustment back to factory setting
6
PIP
PIP mode : Enter into PIP / PBP setting - PIP MODE /
PBP 2WIN ( Main screen + 1 sub screen ) /
PBP 3WIN ( Main screen + 2 sub screen ) /
PBP 4WIN ( Main screen + 3 sub screen )
Select the signal input of each sub screen
PIP size : Adjust the size of the Sub screen
- Small / Medium / Large / Huge
PIP position : Adjust the position of the Sub screen
- Top Left / Top Right / Bottom Left / Bottom Right
Swap : Swap the input signal of PIP / PBP sub screen
23” 4K LCD Display
7
MISC
Signal source : Select the signal source - DP / HDMI1 / HDMI2
Mute : Turn off the surrounding sound
Audio in : Auto / Line in / DP
Volume :
Sleep mode :
50 min / 60 min / 120 min / 240 min
Adjust the volume of sound
Set the off time - 10 min / 20 min / 30 min /
Options on Reset page
Rotation : Rotate the image in Full screen or 1:1
- 90° / 180° / 270°
Picture size : Adjust the image size in Full screen or 1:1
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.18
< 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
< 4.3.1 > Picture in Picture ( PIP )
Mode
Display the Sub screen in the Main screen.
OSD Menu → MISC → PIP Mode → Large / Small / OFF
Main screen
Sub screen
Position
Adjust the position of the Sub screen ( top left, bottom left, top right, bottom right )
OSD Menu → MISC → PIP Position → top left / top right / bottom left / bottom right
top left top right
bottom left bottom right
Size
Adjust the size of the Sub screen ( Large / Small )
OSD Menu → MISC → PIP Mode → Large / Small
Size of Sub screen
LCD Monitor Large Sub screen Small Sub screen
1920 x 1200 552 x 414 480 x 360
1920 x 1080 552 x 414 480 x 360
1440 x 900 414 x 310 360 x 270
1366 x 768 392 x 294 340 x 254
1280 x 1024 368 x 276 320 x 240
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.19
< 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
< 4.3.2 > Picture By Picture ( PBP )
Mode
Display the Sub screen next to the Main screen.
OSD Menu → MISC → PIP Mode → PBP
Sub screenMain screen
Size
LCD Monitor Main / Sub screen
1920 x 1200 955 x 716
1920 x 1080 955 x 716
1440 x 900 715 x 536
1366 x 768 678 x 508
1280 x 1024 635 x 476
< 4.3.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen.
OSD Menu → MISC → PIP Source → HDMI / SDI
The PIP / PBP is operable in the following table :
Sub
Main
HDMI
SDI
HDMI SDI
xo
ox
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.20
< Part 5 > Options
< 5.1 > Option Table
Options AP / NAP DP OP
Remote controller
SDI
MCS multi-screen control
Touchscreen
MIL-type / lockable connector
DC Power
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.21
< 5.2 > Remote Controller ( RC-2 )
23” 4K LCD Display
20
21
1
PIP
MUTEINPUT
3
6
-/--
EXIT
POSITION
VOL
CH
FREEZE
ASPECT
SLEEP
PIP
PIP
AUDIO
2
1
3
4
7
4
5
6
7
AUTO
MENU SELECT
BACK
SOURCE
2
5
8 9
0
ENTER
SWAP
8
9
10
11
12
13
14
15
16
17
18
19
W
INPUT Select the source
1
2
3
0 - 9
4
AUTO Auto adjust
MENU Display the menu on the screen or go to the previous menu
5
6
▲ / ▼ / ◄ / ► / ENTER
7
BACK Back to previous value
8
MUTE Turn on or off the speaker
9
Vol + / - Increase or decrease the speaker volume
10
CH + / - For TV model only, increase or decrease the channel number
11
FREEZE Reserve for OEM model
12
- / -- For setting input single or double digits
13
ASPECT Adjust the screen size
14
SELECT To select the existing item
15
SLEEP Select the sleeping time
16
EXIT Exit the menu or cancel
Switches on or off the TV
Only use in TV mode. Select channels. For channel numbers 10
and above, enter the second digit within two seconds.
Go to the upper menu or select the previous value /
Go to the next menu or select the next value /
Decrease the setting value /
Increase the setting value or enter to the select item setting
Enter to the select item settings or excude the setting
f
a
o
t
o
e
r
r
p
PIP functions
17
PIP
18
PIP AUDIO To set the audio of in PIP mode
19
POSITION To set the screen position in PIP mode
20
SOURCE PIP Source
21
SWAP Swap screen in PIP mode
Picture in picture
UM-UV-621-K23-Q318V1 www.austin-hughes.comP.22
< 5.3 > Options : 3G / HD / SD-SDI input
Crystal Image SDI input is an ideal solution for the broadcastgrade video and high resolution CCTV market.
Designed for use with Crystal Image displays, a SDI input
module can support up to 1080p @60Hz resolution without
using additional space or power and it comes standard with a
2-year warranty.
SDI
HDMI 2.0HDMI 1.4 DP
in - out
Audio
out
23” 4K LCD Display
Power
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
HD-SDI 1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.23
< 5.4 > Options : MCS
MCS
( Multi-display Control )
MCS
ou
outinLink set
More control is always good. Especially when it is necessary and
easy . Crystal Image provides MCS solution to control the OSD of
various Crystal Image LCD display up to 64 units.
The RS-232C is used for the communication between the PC and
the fi rst display via a 15 feet serial cable while the CAN bus is
used for the various LCD displays cascade together via CAT 5/6
cable, and daisy chain up to 1,000 meters.
Designed for use with Crystal Image LCD displays, CIT
provides a MCS input module without using additional space or
power and it comes standard with a 2-year warranty.
HDMI 2.0HDMI 1.4 DP
Audio
out
Power
RS-232C
15 feet serial cable
( over 15 feet, extender required )
LINK
OUT
IN OUT
Set switch
For the 1st and last display,
push the set switch upward
For other daisy chain displays,
push the set switch downward
IN OUT IN OUT
Cat5 / 6 cable
max. 300 meters
RJ-45 jack
Daisy chain up to 1,000
meters and 64 displays
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.24
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
up to 64 displays
< 5.5 > Options : Touchscreen & driver
K23" USB Touchscreen Specifi cation
23” 4K LCD Display
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
TPC-10 Multi-touch
Projected Capacitive 5-Wire Resistive Infrared
10 Single 6
Finger or Capacitive Stylus Finger or Stylus
4096 x 4096 2048 x 2048 -
± 2 mm - ± 2 mm
< 5 ms 15 ms ≤ 8ms
< 5 g ≤ 50 g
6H 3H -
> 85% 80% ± 3% -
3% ↓ 8% ± 3%
50 million touches 10 million touches Unlimited
3 mm Glass ITO Film
0.7 mm Sensor Glass ITO Glass
3.9 ± 0.1 mm 2.2 ± 0.2 mm 2 mm
USB USB Type A USB T
Linux / Android / Windows / Mac
TRB e-Resistive
Windows 7 / XP
Vista, Linux
/
Pen, Finger
gloved hand activation
No minimum touch
Windows 7 / Windows
10
IR-06 Infrared
, Finger of
activation force
-
Glass
ype A
■
Dimension will be changed if Multi-touch required
■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ For detailed information, please refer to the attached CD disc
■ As the touchscreen unit is not made of toughened glass, please handle it carefully
USB Touchscreen
K23-IR06 Driver
Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports
easy Plug-and-Play operations. There is no need to install additional drivers on the computer.
Power
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.25
< 5.5 > Options : Touchscreen & driver
TPC-06 Driver
Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports
easy Plug-and-Play operations. There is no need to install additional drivers on the computer.
TPC-10 / TRB Driver
Please follow the below steps to setup the touch screen:-
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.eeti.com.tw/drivers_Win.html
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to fi nish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please do the initial calibration
after the fi rst setup
< 5.6 > Options : DC Power
Model 12V 24V 48V 125V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V
Input current
- No load 50 mA 50 mA 50 mA 35 mA
- Full load 7183 mA 3551 mA 1755 mA 749 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 6.25A 6.25A 6.25A 6.25A
Effi ciency 87% 88% 89% 91%
***
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.26
For DC power option :
( 1 ) If the unit with LCD, earthing may be required
< 5.7 > Options : MIL-type or Lockable Connector
Input Part no. MIL Standard
MIL - type
Connector
DC Power
( Male )
***
MS3470W8-33P MIL - DTL - 26482
23” 4K LCD Display
Lockable
Connector
VGA
***
( Male )
MS3470W14-15P MIL - DTL - 26482
*** There are several additional MIL DC and VGA connector types with varying design
characteristics to meet cost considerations and to provide users with the most
design fl exibility possible. For more information, please contact us.
Input Part no. Standard
DC Power
( Male )
USB LUSB - A111 - 00 -
YM-Ext-461CP001 D-type 3W3
*** MIL - type or Lockable connectors above can be integrated with our LCD displays.
Sale service just for connectors not provided.
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.27
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
UM-UV-621-K23-Q318V1 www.rackmountsales.comP.28
Loading...
