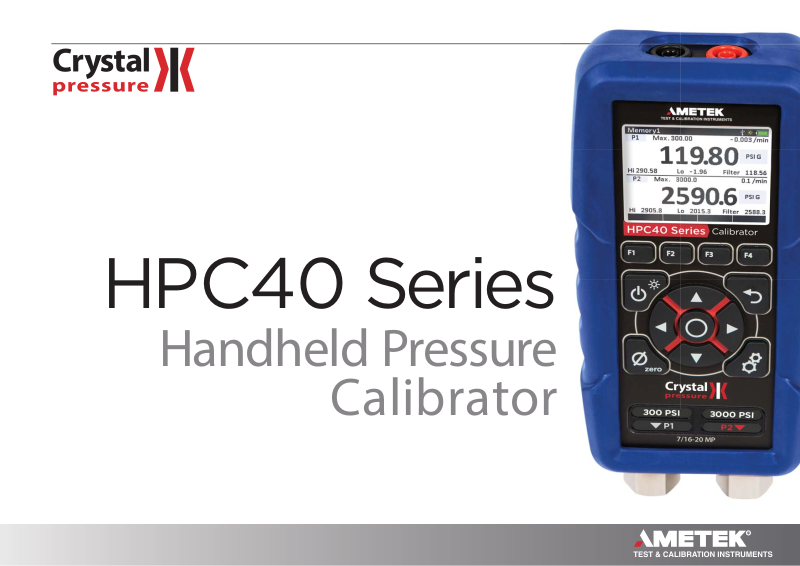

Crystal Engineering HPC40 User Manual

HPC40 Series
Handheld Pressure
Calibrator
Advanced
Simplicity
display combined with the
“Wireless” Keypad
APM and Temperature Connection
Connect to an external APM module to expand the pressure options, plus a high accuracy RTD to read temperature.
All input and output connectors are placed away from the display and keypad to give maximum freedom to operate.
Mini-USB Port
Customize the set-up through free CrystalControl software.
Function Buttons
The function of each button is clearly explained in the bottom of the display.
Color Display
The new large full-color
advanced simplicity of the new user interface, makes the HPC40 Series the easiest-to-use pressure calibrator available.
Cursor Keys
Cursor keys help you to navigate through the display to perform set up functions and ne tune values.
Unique “Non-Menu” User Interface
structure! Operate and set up the HPC40 Series to perform
your tasks quickly and intuitively.
CPF Pressure Connections
Includes patented, leak-free, nger-tight CPF connection ttings.
Pressure Your Way
With multiple pressure options the HPC40 Series  ts into any pressure calibration job.
Sensors
Choose between a single sensor or a wide range dual sensor version.
Pressure Ranges
Choose your pressure range from vacuum to 15 000 psi /1000 bar. Order any
combination of pressure ranges without limitations. Because the accuracy is 0.035%
of reading, one HPC40 Series can typically replace several gauges or calibrators.
Absolute Pressure
Add the BARO option to toggle between gauge and absolute pressure on all ranges.
APM Pressure Module
Add an external APM CPF Series pressure module to read up to three pressures using a single device.
Di erential Pressure
Read di erential pressure between
any of the three available sensors (including the
external APM CPF Series module). A special tare
feature allows you to normalize both readings
at elevated static pressures, resulting in a more
accurate di erential pressure.
More T
ha
ure
n Press
Current, Voltage, Switch Test
Full 0 to 24 mA loop calibrator. Measure and source
(including step & ramp) with external loop power or
internal 24 VDC loop power supply. On top of that it
also measures 0 to 55 mA. Use the high speed switch
mode screen to detect switch open and closures.
Thermometer
Use HPC40 Series as a high accuracy thermometer.
Works with RTD´s and CvD equations, to obtain
true temperature, based on “true ohm” technology!
Intelligent Memory Slots
The HPC40 Series can store up to 5 screens (both
upper and lower windows). The next time you
need to perform your test, simply recall the previ-
ous stored settings and the HPC40 Series is ready
to use.
More Useful Features
Scaling: When testing a transmitter, it can be bene cial to
view the input in units other than mA. For example, if measuring
a 4-20 signal on a 0 to 30 psi
transmitter, the upper dis-
play will show 12 mA when
15 psi is applied. The HPC40
Series will perform this calcu-
lation for you, displaying the
mA
value as psi. % Error Calculation: The HPC40 Series
can calculate pressure vs. mA error as a percentage of the 4-20
psi pressure span, and it will calculate and display the percent
error in addition to the mA reading. This eliminates the need to
manually calculate the error percentage.
testing a pulsating pressure signal, use the dampening feature
to smooth out the measurements, making them easier to read.
Min/Max: With an update rate of 10 readings per second,
the HPC40 Series is perfect for pressure safety valve testing.
Leak Rate: The HPC40 Series o ers continuous measure-
ment of rate / stability.
mA loop span. For example,
if you are testing a 30 psi full
scale pressure transmitter
with a corresponding 4-20
mA signal, you can program
into the calibrator a 0 to 30
Dampening: If
Lab Accuracy in the Field
Active Temperature Compensation
The HPC40 Series is the world’s rst combined pressure and mA loop
calibrator to be fully temperature compensated from -20 to 50° C. You can
count on the same accuracy whether measuring pressure, current, volt-
age, or temperature.
Calibrate with Confidence Anywhere
Take measurements with up to 0.035% of reading accuracy.
Every HPC40 Series includes an ISO 17025 calibration report - NIST trace-
able, A2LA accredited (#2601.01), internationally recognized by ILAC - with
test data at 5 temperatures, proving our calibrators meet specications
throughout their full temperature range. Other manufacturers charge
extra for a report with data only at room temperature.
Fittings for Life
Pump Systems
Combine the HPC40 Series with any of our
ready to use AMETEK pump systems, to provide a
complete calibration kit. Our line of pressure gen-
eration products includes everything from small
pneumatic hand pumps to a precision, hydraulic
pressure comparator capable of generating up to
15 000 psi/1000 bar.
Crystal Pressure Fittings are machined in high-strength
316 Stainless Steel to operate at 10 000 psi/700 bar. Remov-
able CPF adapters shift everyday thread wear away from the HPC40 Series’
ports, while a self-venting weep hole alerts you before you disconnect
from a pressurized system.
U.S. Patent No. 8,794,677
5484.A
Singapore
Tel +65 6484 2388 jofra@ametek.com
United Kingdom
Tel +44 (0) 1243 833 302 jofra@ametek.co.uk
USA, Florida Tel +1 (800) 527 9999 cal.info@ametek.com
USA, California Tel +1 (800) 444 1850 crystal@ametek.com
India
Tel +91 22 2836 4750 jofra@ametek.com
ISO 17025 accredited calibration lab, (A2LA #2601.01). **DIN EN ISO / IEC 17025 accredited calibration lab.
*
*
China, Shanghai Tel +86 21 5868 5111 jofra.sales@ametek.com.cn
China, Beijing Tel +86 10 8526 2111 jofra.sales@ametek.com.cn
China, Guangzhou Tel +86 20 8363 4768 jofra.sales@ametek.com.cn
France
Tel +33 (0) 30 68 89 40 general.lloyd-instruments@ametek.fr
**
Germany
Tel +49 (0) 2159 9136 510 info.mct-de@ametek.de
***
Denmark
Tel +45 4816 8000 jofra@ametek.com
DANAK EN ISO/IEC 17025 accredited calibration lab.
***
For detailed specications go to the Data Sheet at crystalengineering.net/HPC40
