RE0813 Rugged Embedded Computer User Guide
The most trusted provider for operational, deployable, and high reliability computing applications.
CRYSTAL GROUP INC.
©2015 BY CRYSTAL GROUP INC. ALL RIGHTS RESERVED.
ISO 9001:2008 &
AS9100C:2009 CERTIFIED QMS
DOC-00355 REV B
Page 2
Page 3
RE0813 Rugged Embedded Computer
After selecting a hyperlink, choose ALT and to jump back to original cursor position.
Table of Contents
We Thank You ................................................................................................................................. 3
Safety .............................................................................................................................................. 4
Advisories .................................................................................................................................................. 4
Electrostatic Discharge (ESD) .................................................................................................................... 5
Battery Disposal ........................................................................................................................................ 5
A. Contact Information ................................................................................................................ 6
Customer Service ....................................................................................................................................... 6
Technical Support ...................................................................................................................................... 6
B. Product Information ................................................................................................................ 7
Overview ................................................................................................................................................... 7
Identifying the Server Type ....................................................................................................................... 7
Specifications ............................................................................................................................................. 7
C. Installing the Product ............................................................................................................ 10
Grounding ................................................................................................................................................ 10
Rack Mounting Precautions .................................................................................................................... 10
Installing the Product in an Equipment Rack .......................................................................................... 11
Installing the Product on a Panel ............................................................................................................ 12
D. Operating the Product .......................................................................................................... 13
Connecting to a Power Source ................................................................................................................ 13
RE0813 User Guide Page 1 of 26
Page 4
RE0813 Rugged Embedded Computer
Powering the Server On .......................................................................................................................... 13
E. Maintaining the Product ....................................................................................................... 14
Driver Updates ........................................................................................................................................ 14
Chassis Access ......................................................................................................................................... 14

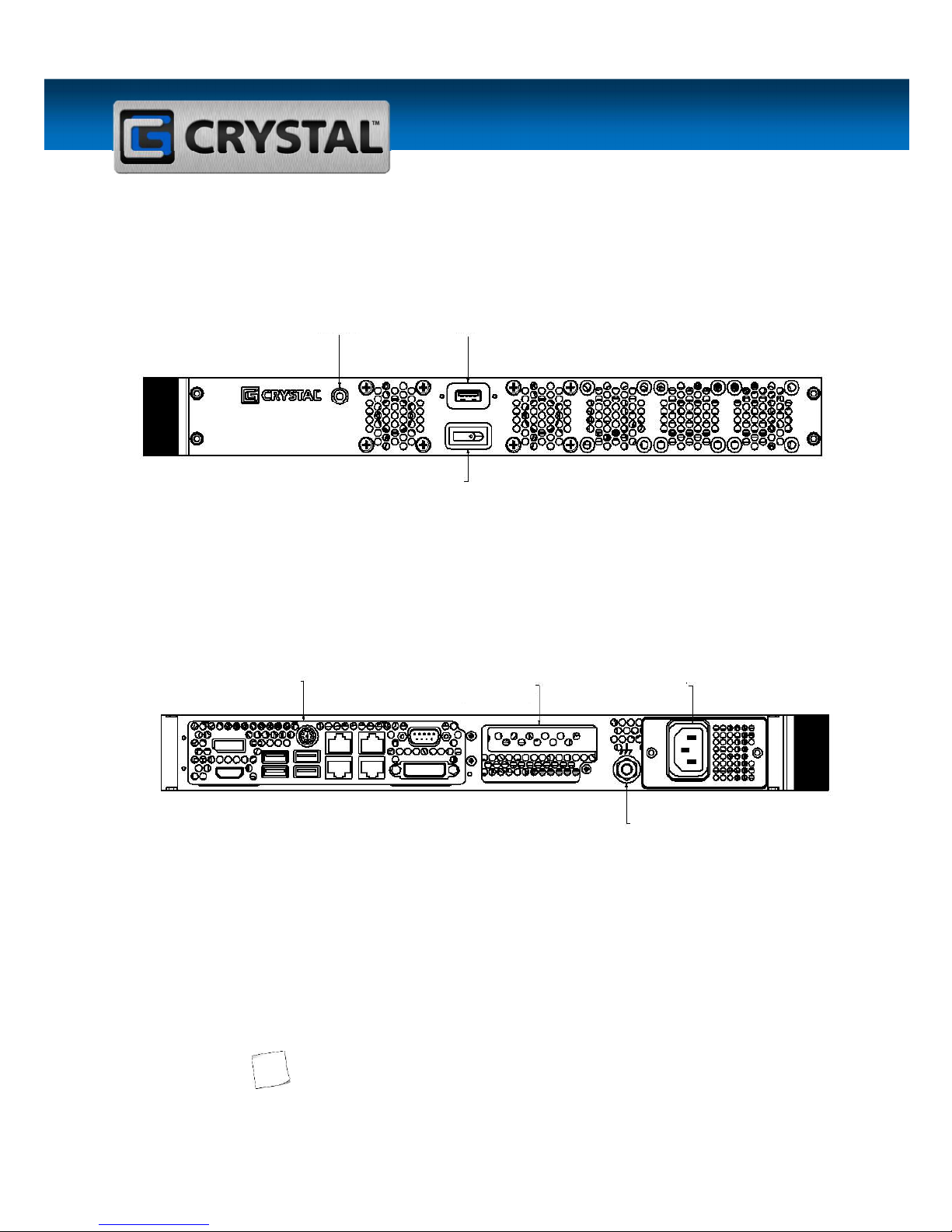

Chassis Views ........................................................................................................................................... 15

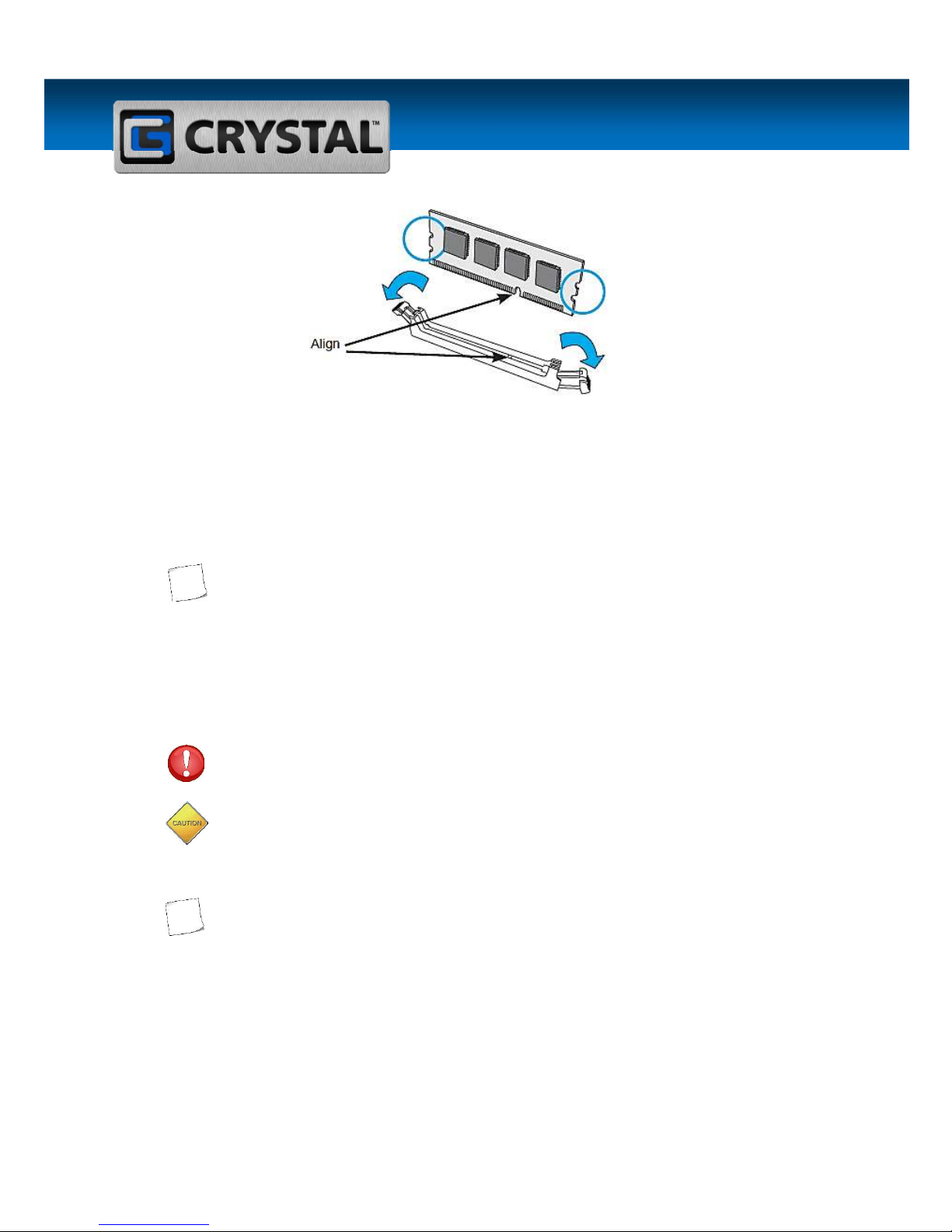

Memory Removal and Replacement ....................................................................................................... 18
Hard drive Removal and Replacement .................................................................................................... 19
Expansion card Removal and Replacement ............................................................................................ 19
F. Troubleshooting ................................................................................................................... 22
Available Warranty ....................................................................................................................... 23
Legal Information .......................................................................................................................... 24
Disclaimers .................................................................................................................................... 25
Certifications and Licenses............................................................................................................ 25
RE0813 User Guide Page 2 of 26
Page 5
RE0813 Rugged Embedded Computer
We Thank You!
From all of us at Crystal Group Inc., THANK YOU for your purchase of the RE0813. Our
customers are the lifeline that keeps Crystal going. That is why it is extremely important to us
that our customers are 100% satisfied with their product choice.
Crystal products are designed to provide superior performance and reliability in the harshest
environments. Our company is ISO 9001:2008 and AS9100C:2009 certified QMS to show that
we are dedicated to providing high quality products to our customers.
We are confident that this server will meet or exceed your expectations for what a high
reliability server should be. If you have any questions or concerns, please contact us at one of
the options listed in the Contact Information section on page 6.
RE0813 User Guide Page 3 of 26
Page 6
Safety
Any service should be performed by qualified service personnel. Carefully follow all advisories
and instructions in this guide to avoid causing any bodily injury or damage to the unit. This
product does not contain any user serviceable parts.
Advisories
Three types of advisories are used throughout this guide to emphasize important information or
to warn of potential hazards to the user or equipment. These advisories each have a specific
icon that will stand for one of the following: Note, Warning, or Caution. An example of each is
shown below:
RE0813 Rugged Embedded Computer
NOTE
A note indicates important information that helps make better use of the equipment.
WARNING
A warning indicates a potential for property damage, personal injury, or death.
CAUTION
Caution indicates potential damage to hardware or loss of data if instructions are not
followed.
RE0813 User Guide Page 4 of 26
Page 7
RE0813 Rugged Embedded Computer
Handling Precautions
This product has components that may be damaged by electrostatic discharge (ESD).
Electrostatic Discharge (ESD)
To protect the equipment from electrostatic discharge, observe the following precautions when
handling or storing the equipment or its components:
1. Always use a grounded wrist strap at the workstation or ground frequently by touching
the metal chassis of the system before handling any components. The chassis must be
connected to an earth ground.
2. Use antistatic padding on all work surfaces.
3. Avoid static-inducing carpet areas.
4. Keep the electronic components in its static shield bag until ready to perform
installation or after removing it from the server.
5. Always handle the memory or expansion cards by the edges.
6. Do not touch the input/output connector pins.
Battery Disposal
The following applies to any battery that might be on any board installed in the RE0813
equipment:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the m
RE0813 User Guide Page 5 of 26
Page 8
A. Contact Information
Our technical personnel are acutely aware that downtime experienced by a
customer is a mission critical event. They excel at providing timely and effective responses to
any technical issues encountered in the field. Please contact us with any questions or concerns
by using one of the options below:
Customer Service
HOURS OF OPERATION:
8:00 AM - 5:00 PM Monday through Friday Central Time.
Technical Support
RE0813 Rugged Embedded Computer
support of
ASSISTANCE AVAILABILITY:
7/24/365- 7 days a week; 24 hours a day; 365 days a year.
After hours messaging service is available with a less than 30-minutes response time.
Within the United States: 800-378-1636
International Number: 1+319-378-1636
Email Address: support@crystalrugged.com
Request a Form Under Tech Support:
http://www.crystalrugged.com
For Up-to-the-minute Crystal Products Information: http://www.crystalrugged.com
RE0813 User Guide Page 6 of 26
Page 9
RE0813 Rugged Embedded Computer
Rugged
Embedd
# of
# of
B. Product Information
Overview
The Crystal RE0813 is a compact embedded computer in a 1.75 15 wide by 11
deep chassis that is designed for (see section Installing the
Product for more information) or used as a stand-alone unit. The RE0813 consists of an
aluminum chassis/enclosure, a power supply, an active motherboard, processor(s), memory,
and storage).
Identifying the Server Type
Table 1. Server Identification
Mechanical 1U)
Height 4.4 cm)
Width
Depth
Weight 7.3 lbs. (3.3 kg) 7.8 lbs. (3.5 kg)
Electromagnetic Interference (EMI)
Environmental kits available for shock,
vibration, EMI and humidity.
RE 8 1 3
Embedded
The actual number of expansion slots is motherboard dependent.
Specifications
And Environmental Compliance
ed family
number
expansion
slots in chassis
Hard drives
RE0813
RE0813 User Guide Page 7 of 26
Page 10
RE0813 Rugged Embedded Computer
Mounting Options
Option 1 (standard)
Option 2 Vertical panel mount
Power Supply Options
Option 1 (standard) 90-250 VAC 50/60 Hz with locking power cord
Option 2 18-36 VDC
Option 3 48 VDC
Option 4 125 VDC
System Board
RE0813 (Options)
X9SPV-LN4F-3LE, FCBGA1023, i7-3555LE CPU, 2 16 GB ECC DDR3, 2-USB 2.0, 4-GBLAN, On-board
SATA2 & SATA3
X9SPV-LN4F-3QE, FCBGA1023, i7-3612QE CPU
2-16 GB ECC DDR3, 2-USB 2.0, 4-GBLAN, On board SATA2 & SATA3
X9SPV-F-3610ME, FCBGA1023, i5-3610ME CPU,
2-16 GB ECC DDR3, 2-USB 2.0, 2-GBLAN, On board SATA2 & SATA3
X9SPV-F-3217UE, FCBGA1023, i3-3217UE CPU,
2-16 GB ECC DDR3, 2-USB 2.0, 2-GBLAN, On board SATA2 & SATA3
X9SPV-M4-3QE, FCBGA1023, i7-3612QE CPU, 2 16 GB ECC DDR3, 2-USB 3.0, 2-USB 2.0, 4 GBLAN, On-board SATA2 & SATA3
X9SPV-M4, FCBGA1023, i7-3555LE CPU, 2-16 GB
ECC DDR3, 2-USB 3.0, 2-USB 2.0, 4-GBLAN, On board SATA2 & SATA3
X9SPV-M4-3UE, FCBGA1023, i7-3517UE CPU, 2 16 GB ECC DDR3, 2-USB 3.0, 2-USB 2.0, 4 GBLAN, On-board SATA2 & SATA3
RE0813 User Guide Page 8 of 26
Page 11
RE0813 Rugged Embedded Computer
Military Standards)
For a complete list of Military Standards visit the Crystal Group website at:
https://www.crystalrugged.com/military-standards/
Commercial Standards
Commercial standards are based on the National Electric Code (NFPA70- National Fire
Protection Association). Please visit the following link to learn more about the National Electric
Code standards:
http://www.nfpa.org
RE0813 User Guide Page 9 of 26
Page 12
C. Installing the Product
Grounding
AC Version - to ensure a good earth ground, the RE0813 should be used with a UL-listed
three-conductor power cord connected to a three-conductor grounded power source.
DC Version - input installations - use only approved copper connectors.
Reliable Grounding - reliable grounding of rack mounted equipment should be
maintained. Particular attention should be given to supply connections other than
direct connections to the branch circuit (e.g., use of power strips). Please see Figure 5

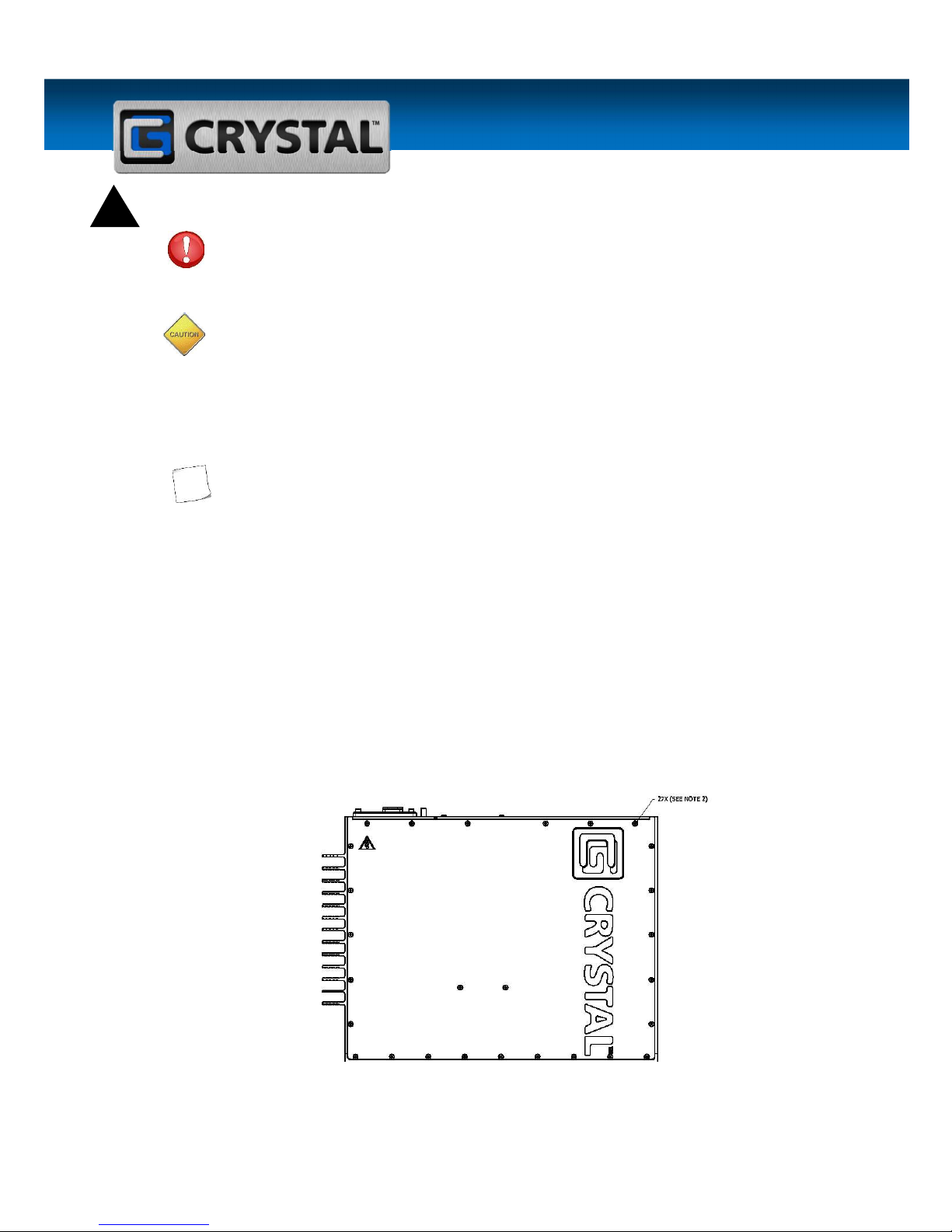

on page 15 for an example image of a ground stud.
Rack Mounting Precautions
RE0813 Rugged Embedded Computer
To prevent bodily injury when mounting or servicing this unit in a rack, special
precautions must be taken to ensure that the system remains stable. The following
guidelines are provided to ensure personal safety:
If using an equipment rack, make sure to securely bolt the rack frame to the floor or
vehicle.
Elevated Operating Ambient Temperature - if installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack contents may be greater than
room ambient. Therefore, consideration should be given to installing the equipment in
an environmentally compatible rack with the manufacturer's maximum rated ambient
temperature.
Reduced Air Flow - installation of the equipment in a rack should be such that the air
flow is not restricted.
Mechanical Loading - mounting of the equipment in the rack should be such that a
hazardous condition is not created due to uneven mechanical loading.
Circuit Overloading - consideration should be given to how the equipment will be
connected to a supply circuit and the effect that the loading of circuits might have on
overcurrent protection and supply wiring. Appropriate consideration of the equipment
ratings should be used when addressing this concern.
All electrical wiring should be in accordance with the National Electric Code, or
prevailing Military Standards.
RE0813 User Guide Page 10 of 26
Page 13
RE0813 Rugged Embedded Computer

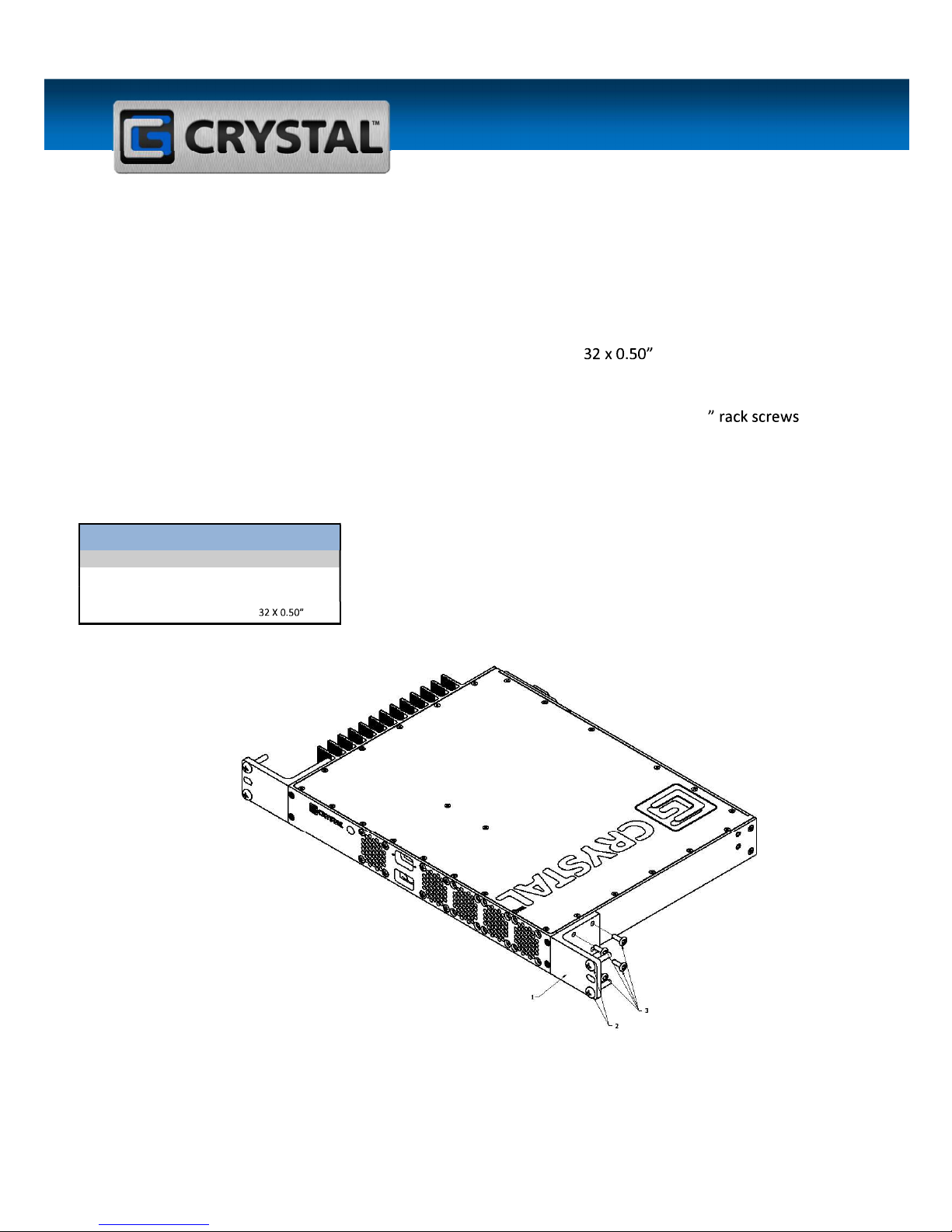

Figure
1
. Fixed Mounting Brackets
Table 2. Fixed Mounting Hardware
Figure 1
Figure 1
Installing the Product in an Equipment Rack
Using Fixed Mounting Brackets
To install RE0813 with fixed mounting brackets in an equipment rack, complete the steps and
see Figure 1 below:
1. Attach the two mounting ears to chassis with four (4) 8- screws provided (see #3
in Figure 1).
2. Line up four (4) holes on the front mounting ears at the desired level on the front of the
equipment rack, and attach to the rack using four (two per side) 10-32 x 1
provided (see #2 in Figure 1)
Fixed Mounting Brackets Parts List
ITEM DESCRIPTION
1 MOUNTING EAR
2 SCREW, PHIL TRUSS HEAD 10-32 X 1"
3 SCREW, PHIL TRUSS HEAD 10-
RE0813 User Guide Page 11 of 26
Page 14
RE0813 Rugged Embedded Computer

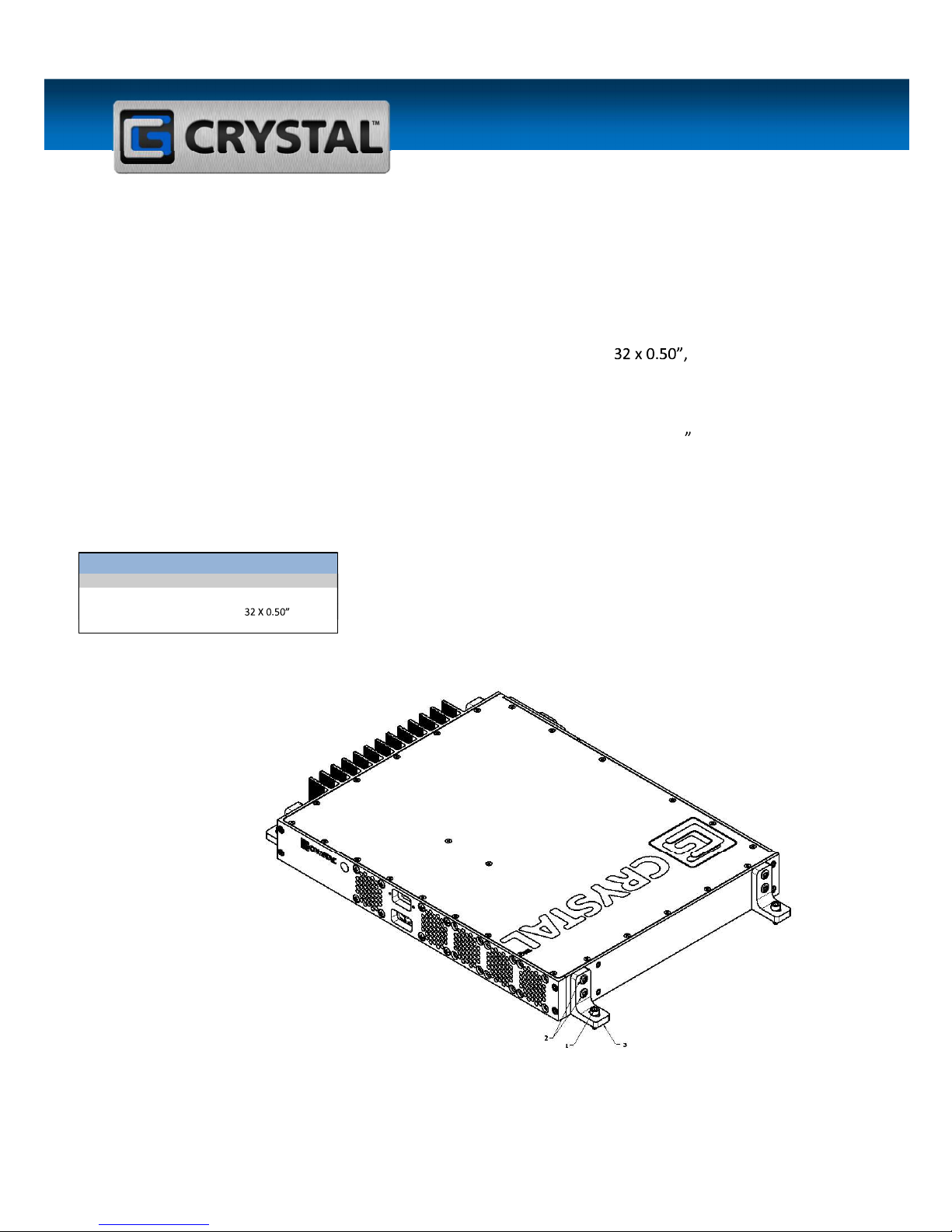

Figure
2.
Panel Mounting Feet
Table 3. Panel Mounting Feet
Figure 2
Installing the Product on a Panel
Using Panel Mounting Feet
To install RE0813 with fixed mounting brackets vertically on a panel or wall, complete the steps
and see Figure 2 below:
1. Attach four (4) panel mount feet to chassis using eight (8) 8- screws provided (see
#2 in Figure 2).
2. Line up four (4) holes on the panel mounting feet at the desired location on the equipment
panel, and attach to the panel using four (4) (two per side) 10-24 x 5/8 , screws provided
(see #1 in Figure 2).
Fixed Mounting Brackets Parts List
ITEM DESCRIPTION
1 SCREW, CAP 10-24 X 5/8, SOC HD, PENCOM
2 SCREW, PHIL PAN HEAD 8-
3 MOUNTING FOOT
RE0813 User Guide Page 12 of 26
Page 15
RE0813 Rugged Embedded Computer
D. Operating the Product
If the RE0813 is part of a rack configuration, refer to the rack guide for more
information on connecting to a power source.
Connecting to a Power Source
Please see Section C - Installing the Product on page 10 for more information.
Powering the Server On
After securely attaching the power connection, press the Power On/Off switch which will be
located on either the front or the back of the chassis depending on the specific configuration. A
blue LED will illuminate when power is applied (see Figure 4, page 15 for location of power
switch and more information about the RE0813 chassis).
RE0813 User Guide Page 13 of 26
Page 16
RE0813 Rugged Embedded Computer
Figure 3
. Removing Top Cover
E. Maintaining the Product
Only qualified service personnel should attempt to open the RE0813 chassis. There
are no user serviceable parts inside.
To protect the equipment from Electrostatic Damage (ESD), follow the proper
precautions at all times when handling the unit and its components. Please see
Electrostatic Discharge section on Page 5.
Driver Updates
Contact Technical Support at one of the options listed on page 6.
Chassis Access
Removing the Cover
1. Make sure the RE0813 is powered off and the unit is disconnected from the power source.
2. Remove the screws connecting the top cover to the chassis using a Phillips screw driver.
3. Lift the cover to expose the interior of the chassis.
RE0813 User Guide Page 14 of 26
Page 17
Chassis Views:
Figure 5
Figure 4
POWER
LED USB 1
POWER SWITCH
(LOW PROFILE ONLY)
CHASSIS GROUND
RE0813 Rugged Embedded Computer
Figure 4. Front View RE0813
MOTHERBOARD I/O
1X EXPANSION SLOT
Figure 5. Rear View RE0813
POWER INPUT
The images above may not depict the product received.
RE0813 User Guide Page 15 of 26
Page 18

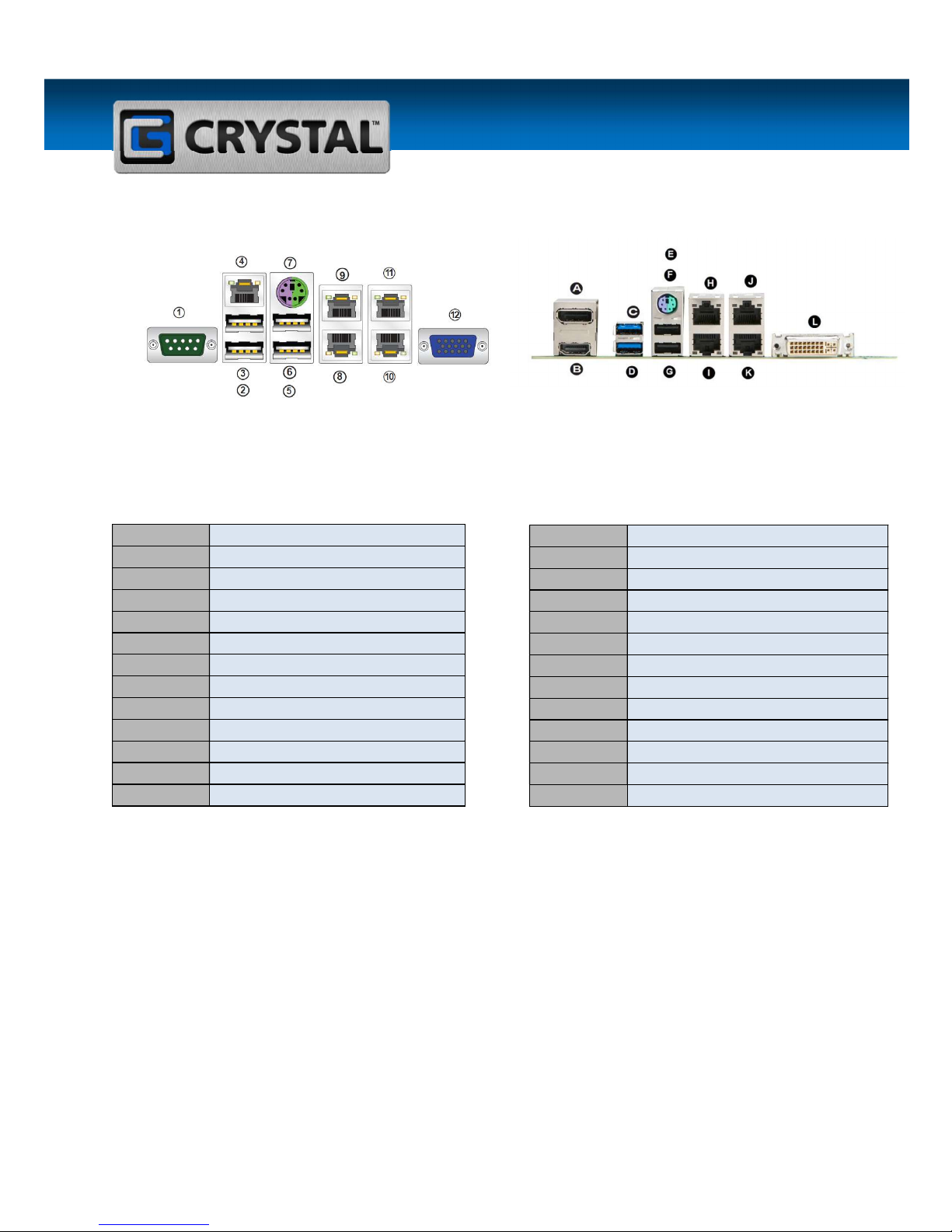

Input/Output (I/O) Ports:
NUMBER
FUNCTION
1
COM1
2
USB5
3
USB4
4
IPMI LAN
5
USB9
6
USB8
7
PS/2 Keyboard/Mouse
8
LAN2
9
LAN1
10
LAN4 (X9SPV
-
LN4F Only)
11
LAN3 (X9SPV
-
LN4F Only)
12
VGA LETTER
FUNCTION
A
VESA Display Port
B
HDMI Port
C
USB0 (3.0)
D
USB1 (3.0)
E
PS/2 KB/MS
F
USB4 (2.0)
G
USB5 (2.0)
H
LAN1
I
LAN3
J
LAN2
K
LAN4
L
DVI-I Port
Table
5. I/O Labeling
Figure 6.
X9SPV
-F/X9SPV
-
LN4F
Table
5. I/O Labeling
Table
6. I/O Labeling
Figure 7
. X9SPV
-M4
RE0813 Rugged Embedded Computer
RE0813 User Guide Page 16 of 26
Page 19
RE0813 Rugged Embedded Computer
For detailed information about the X9 motherboard option included in the product, please
review the motherboard guide at the following link:
X9SPV-LN4F-3LE Motherboard Guide
X9SPV-LN4F-3QE Motherboard Guide
X9SPV-F-3610ME Motherboard Guide
X9SPV-F-3217UE Motherboard Guide
X9SPV-M4-3QE Motherboard Guide
X9SPV-M4 Motherboard Guide
X9SPV-M4-3UE Motherboard Guide
RE0813 User Guide Page 17 of 26
Page 20
Memory Removal and Replacement
Removing and Replacing the Memory
Contact Crystal Technical Support before performing a memory upgrade. Use only
Crystal- approved memory for upgrades.
Do not force the DIMM. Forcing the DIMM may result in equipment damage. Check the
alignment and keying before installing.
For population order see the motherboard guide received or contact Technical Support.
Steps:
RE0813 Rugged Embedded Computer
1. Open up chassis cover (see Removing the Cover in the Chassis Access section on page
14).
2. If removal is required, locate the memory card area and open both DIMM release levers
by placing one finger on each lever and pushing outward. See Figure 8 on next page.
3. The DIMM will lightly pop out of the slot. Remove the old DIMM.
4. Check the orientation or key when adding new DIMM.
5. Press the DIMM into its slot evenly on both ends until it clicks into place. The DIMM
release levers will snap into place.
6. The DIMM is properly seated when the release levers have fully engaged.
RE0813 User Guide Page 18 of 26
Page 21
RE0813 Rugged Embedded Computer
Figure 8. Installing DIMM
Hard drive Removal and Replacement
This product contains internal hard drives. Please contact Technical Support for
assistance.
Expansion card Removal and Replacement
Removing and Replacing the Plug-in Expansion Card
Disconnect power source to prevent injury.
Do not force the card. Forcing the card may result in equipment damage. If it does not
slide into place, check the alignment and try again.
If installation of a new expansion card is required, please contact Technical Support.
RE0813 User Guide Page 19 of 26
Page 22
RE0813 Rugged Embedded Computer

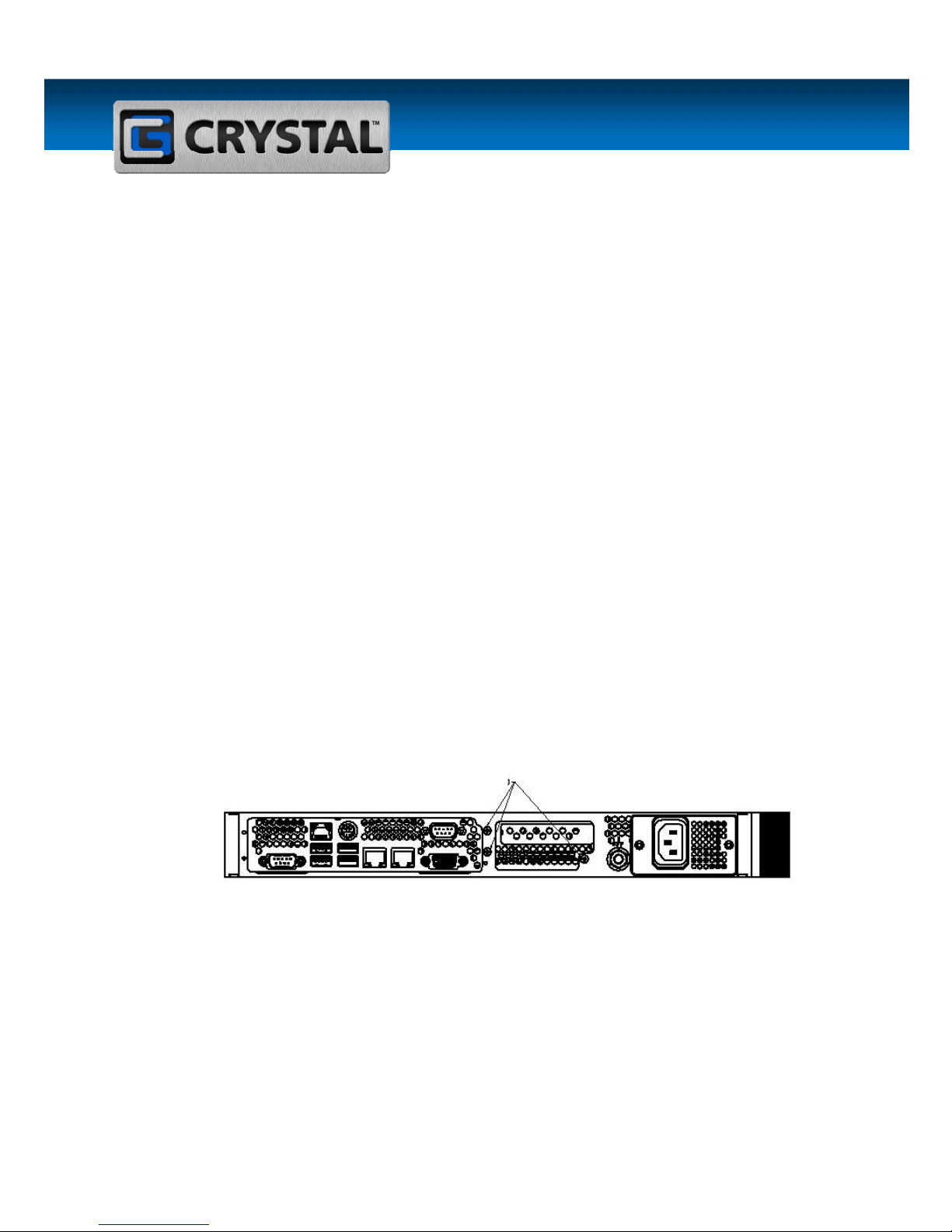

Figure 9
. Removing Screws from Rear of Chassis
Figure 9
3X (SEE NOTE 3)
Steps:
1. Turn the unit OFF and disconnect the unit from the power source.
2. Remove the chassis cover (see Removing the Cover in the Chassis Access section on
page 14).
3. Remove three (3) Phillips head screws from the rear of the chassis (see Figure 9 below).
4. Remove four (4) Phillips head screws from the bottom of the chassis. Omit this step if
there is not a card installed (see Figure 10).
5. Remove expansion card assembly from chassis.
6. Remove one (1) Phillips head screw from expansion card bracket (see Figure 11).
7. Remove expansion slot filler bracket if installed or remove card.
8. Align the expansion card with the slot and press the expansion card in firmly.
9. With the expansion card in place within the slot, install the bracket retention screw and
tighten to hold card in place. Install card retention brackets with four (4) socket head
screws and four (4) Keps nuts (see Figure 12).
10. Reinstall expansion card assembly and tighten all screws securely.
11. Replace chassis cover.
RE0813 User Guide Page 20 of 26
Page 23
RE0813 Rugged Embedded Computer

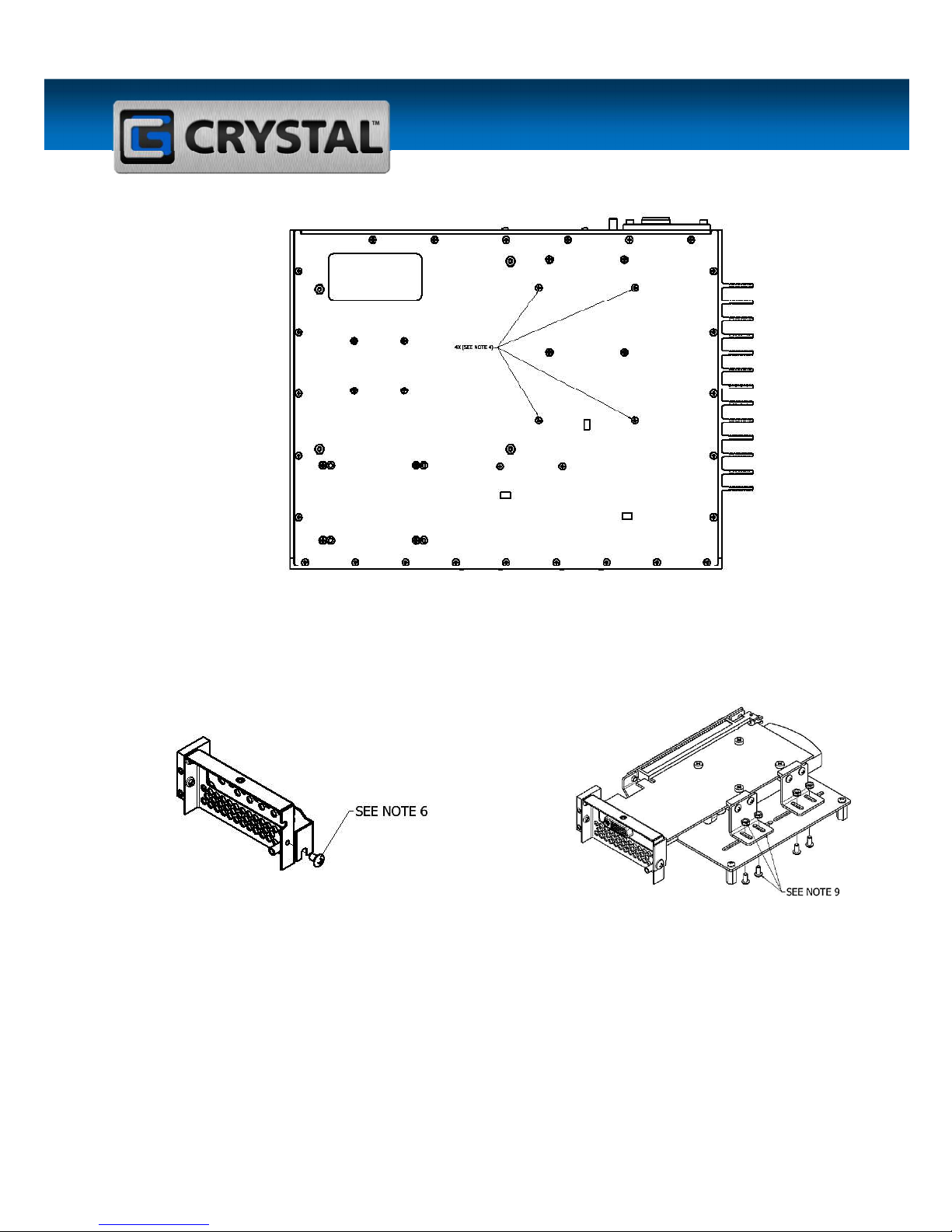

Figure 10
.
Removing screws from bottom of chassis
Figure 11.
Removing E
xpan
sion Bracket Figure 12.
Installing Expansio
n Card Figure 11
Figure 10
Figure 12
RE0813 User Guide Page 21 of 26
Page 24
F. Troubleshooting
CONTACT TECHNICAL SUPPORT
If any problems arise when using the product, please contact Technical Support at one of the
options listed on page 6. Before calling, please have the following information available to help
expedite assistance:
1. Unit serial number
2. Brief description of the problem
3. Brief explanation of the steps already taken to isolate and resolve the problem
RE0813 Rugged Embedded Computer
RE0813 User Guide Page 22 of 26
Page 25
RE0813 Rugged Embedded Computer
Available Warranty
Crystal Group Limited Warranty
Seller warrants to the Buyer that the products manufactured by it will be free from defects in material and
workmanship under normal use and service for the time period specified herein. under this
warranty shall be the repair or replacement of any part or parts which prove to be defective under normal use and
service within five (5) years from the date of delivery to the Buyer. To receive the benefits of this warranty, the
Buyer must return said allegedly defective part or parts to Iowa, or other location
specified by Seller, within the time period set forth above. A warranty extension contract is available if purchased,
potentially extending the coverage to ten (10) years. Terms and Conditions of the extension period are dictated in a
separate agreement. Customer bears the risk of loss or damage of equipment in transit from Buyer to Seller. The
Buyer shall also pay the costs of shipping and handling for any service other than Standard Ground or Air
Transport Correction by Seller of the defects in the
manner provided above shall constitute a fulfillment of all liabilities of Seller with respect to this warranty. Buyer
shall pay all costs of removal of any part or parts and reinstallation thereof. this warranty
shall be either (a) to above
procedure, or (b) if Seller reasonably determines that it is unable to resolve the defect by repair or replacement, to
refund the purchase price upon return of the defective item. The warranty period for repaired or replaced
components shall be the remainder of the original warranty period for the repaired or replaced item. Specifically
excluded from this warranty are any products not provided by Seller. Seller will however provide the labor to
y (or a facility authorized by Seller) to the extent that the
Buyer agrees to purchase replacement parts or to the extent that an applicable warranty replacement is available
from the OEM of the part. Under no circumstances will this warranty apply to any software products or preventative
maintenance service.
THIS WARRANTY IS EXPRESSLY IN LIEU OF, AND BUYER EXPRESSLY WAIVES, ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED BY STATUTE, USAGE, CUSTOM OF THE TRADE OR OTHERWISE, INCLUDING THE WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS HEREBY
EXPRESSLY EXCLUDED AND DISCLAIMED. SELLER NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO
ASSUME FOR IT, ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THE SALE OF THIS COMPUTER
PRODUCT. APPLY TO THIS COMPUTER PRODUCT OR ANY PART THEREOF WHICH
HAS BEEN SUBJECT TO ACCIDENT, NEGLIGENCE, ALTERATION, ABUSE, OR MISUSE. THIS WARRANTY SHALL NOT
APPLY TO ANY PRODUCT FROM WHICH THE ORIGINAL SERIAL TAG HAS BEEN REMOVED. SELLER MAKES NO
WARRANTY WHATSOEVER IN RESPECT TO ACCESSORIES OR PARTS NOT SUPPLIED BY SELLER. BUYER AGREES THAT
SELLER SHALL NOT BE LIABLE FOR ANY PROXIMATE, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INDIRECT DAMAGES
OF ANY AMOUNT DUE TO ANY CAUSE, INCLUDING, WITHOUT LIMITATION, ANY LOST PROFITS, LOSS OF USE, COSTS
OF DELAY, XCLUSIVE REMEDY AGAINST SELLER FOR ANY
CLAIM OF ANY KIND, INCLUDING BREACH OF WARRANTY, NEGLIGENCE, STRICT LIABILITY IN TORT, OR PRODUCT
LIABILITY, ANY DELAY IN MANUFACTURE OR DELIVERY OF EQUIPMENT OR PRODUCT, OR FOR ANY FAILURE OF
SELLER TO COMPLY WITH THIS AGREEMENT SHALL BE THE REPAIR OR REPLACEMENT OF THE PRODUCTS AS
PROVIDED
RE0813 User Guide Page 23 of 26
Page 26
RE0813 Rugged Embedded Computer
Legal Information
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL
STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF UNABLE TO LOCATE THE SOFTWARE LICENSE OR
LIMITED WARRANTY, CONTACT YOUR CRYSTAL REPRESENTATIVE FOR A COPY.
ALL FAULTS. CRYSTAL AND ALL NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION,
THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING,
USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CRYSTAL GROUP INC., OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE
THIS GUIDE, EVEN IF CRYSTAL OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency
energy and, if not installed and used in accordance with the instruction guide, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the
interference at their own expense.
The following information is for FCC compliance of Class B devices: The equipment described in this guide generates and may radiate radiofrequency energy. tallation instructions, it may cause interference with radio and television
reception. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications
in part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential
installation. However, there is no guarantee that interference will not occur in a particular installation.
Class A or Class B digital devices. In that event, the right to use the equipment may be limited by FCC regulations, and correction of any
interference to radio or television communications .
To determine whether the equipment is causing interference, turn off the equipment. If the interference stops, it was probably caused by the
Crystal equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the
interference by using one or more of the following measures:
equipment to one side or the other of the television or radio.
television or radio is on circuits controlled by different circuit breakers or fuses).
This user guide contains information to install, operate, and use the referenced product(s) manufactured or distributed by Crystal Group Inc.
The information contained in this document is provided for reference only. Crystal Group Inc. does not assume any liability arising out of the
application or use of the information or products described herein. This guide may contain or reference information and products protected by
copyrights or patents and it does not convey any license under the patent rights of Crystal Group Inc., nor the rights of others.
Crystal and the Crystal Logo are trademarks of Crystal Group Inc. or its affiliates in the U.S. and other countries. Third party trademarks
mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Crystal
and any other company.
s written authorization may result in the equipment no longer complying with FCC requirements for
from the television or radio (that is, making certain the equipment and the
RE0813 User Guide Page 24 of 26
Page 27
RE0813 Rugged Embedded Computer
Disclaimers
NOT ALL CHASSIS SUPPORT JONATHAN RAIL ATTACHMENTS.
NOT ALL CHASSIS SUPPORT CRYSTAL SLIDES.
ONCE CUSTOMER OPENS COVER OF CHASSIS; IF THE MEMORY SLOTS OR CARDS ARE SEALED OR HAVE ADHESIVE
ON THEM, CALL TECHNICAL SUPPORT. DO NOT ATTEMPT TO REMOVE THE HUMIDITY KITS OR RTV FROM THE
BOARD.
DUE TO SPECIFIC OR CUSTOMIZED PRODUCTS IMAGES PRESENTED IN THIS USER GUIDE MAY NOT DEPICT THE
PRODUCT THE CUSTOMER HAS RECEIVED.
Certifications and Licenses
EACH PRODUCT MANUFACTURED WITHIN CRYSTAL GROUP INC., IS MARKED WITH THE APPROPRIATE
CERTIFICATION OR LICENSE SYMBOLS THAT APPLY. IF THERE ARE ANY QUESTIONS ABOUT THE LICENSES AND/OR
CERTIFICATIONS THAT CRYSTAL OBTAINS, PLEASE CONTACT A CRYSTAL REPRESENTATIVE AT ONE OF THE OPTIONS
LISTED ON THE CONTACT INFORMATION SECTION LOCATED ON PAGE 6.
THANK YOU FOR YOUR BUSINESS.
RE0813 User Guide Page 25 of 26
Page 28
RE0813 Rugged Embedded Computer
THIS PAGE IS INTENTIONALLY LEFT BLANK.
RE0813 User Guide Page 26 of 26
Page 29
RE0813 Rugged Embedded Computer
RE0813 User Guide Page 1 of 26
Page 30
Loading...
