Crypto WF250 User Manual

Download

WWFF225500

11n Wireless 150Mbps ADSL2/2+ Modem Router

UUsseerr MMaannuuaall

Version 1.0

WF250 802.11n Wireless ADSL Modem Router

Contents

1. Introduction.................................................................................................................4

1.1 Introduction...................................................................................................4

1.2 Product Features............................................................................................4

2. Hardware Installation.................................................................................................7

2.1 System Requirements..........................................................................................7

2.2 Package Contents................................................................................................7

2.3 Front Panel Indicators and Description...............................................................7

2.4 Back Panel ..........................................................................................................8

2.5 Connect Related Devices....................................................................................9

3. Connecting the WF250 ADSL 2/2+ Router via Ethernet.........................................9

3.1 Setup Wireless ADSL 2/2+ router via Ethernet Cable......................................10

3.2 Configure TCP/IP .............................................................................................10

4 Configure the WF250 ADSL2+ Router via HTML.................................................17

4.1 Login.................................................................................................................17

4.2 Navigating the Web Configurator.....................................................................18

5. Internet Setup............................................................................................................20

5.1 Configuring your Internet Connection..............................................................20

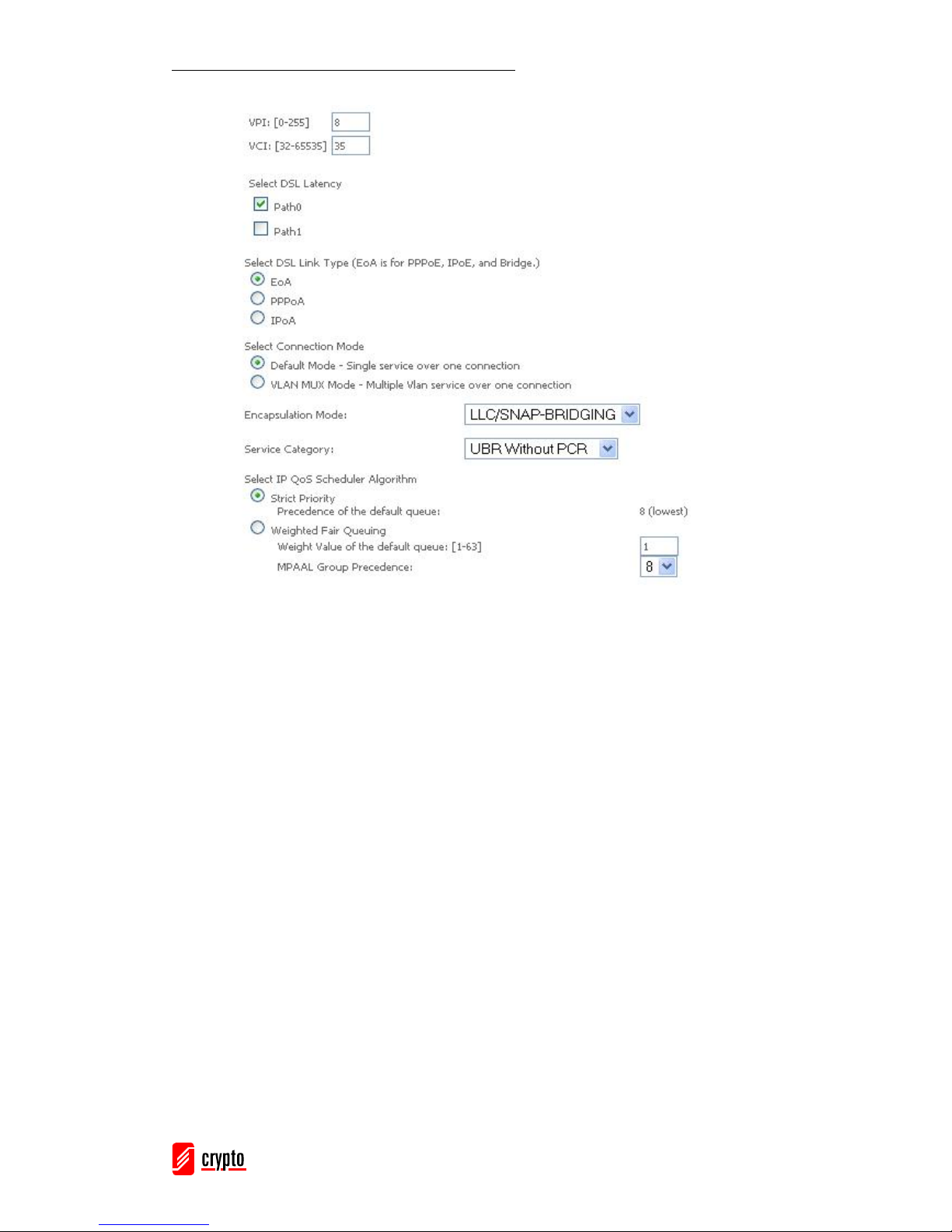

5.1.1 A TM Setup..........................................................................................21

5.1.2 WAN Setup .........................................................................................23

5.1.3 Router Mode Setup.............................................................................26

5.2 LAN ..................................................................................................................32

6. Menu Description......................................................................................................34

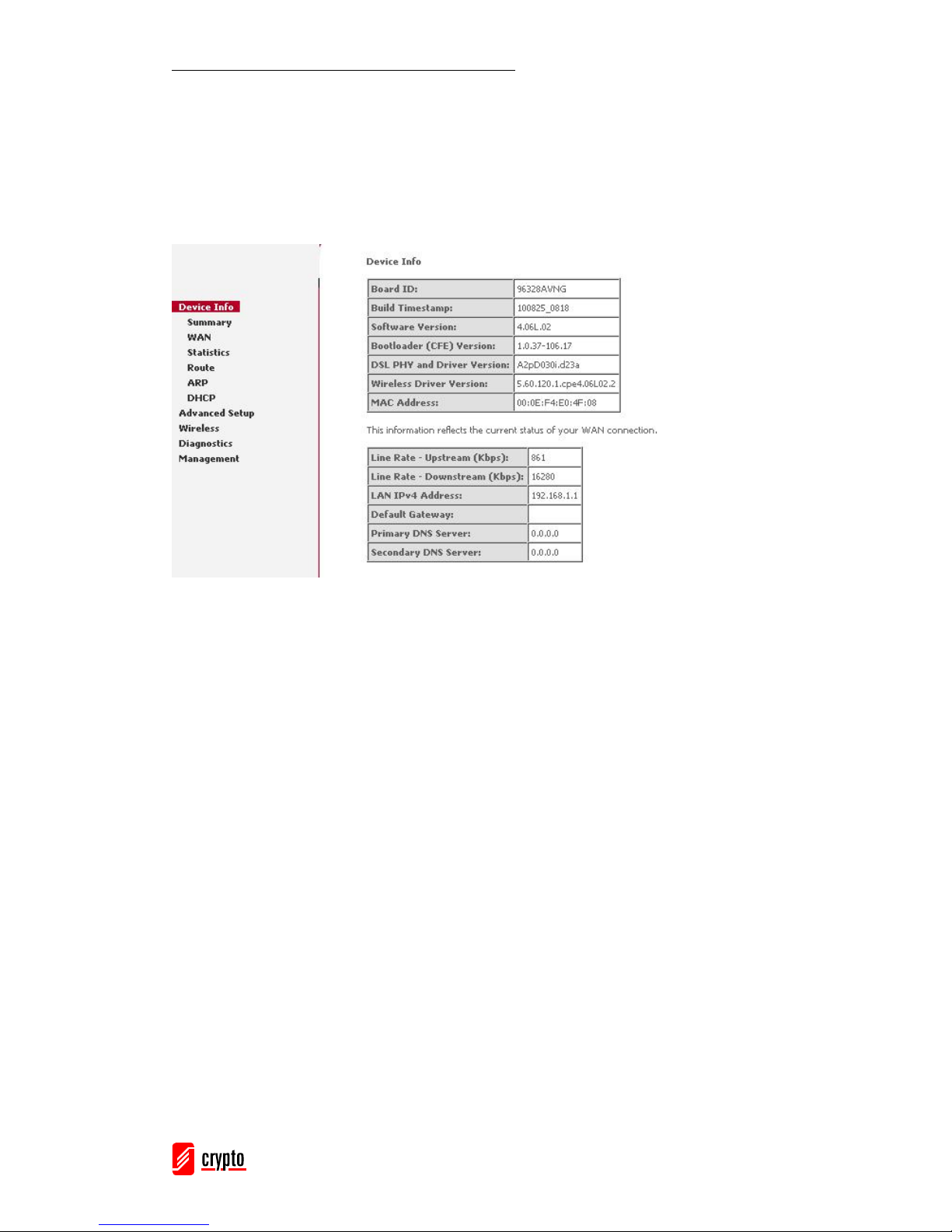

6.1 Device Info........................................................................................................34

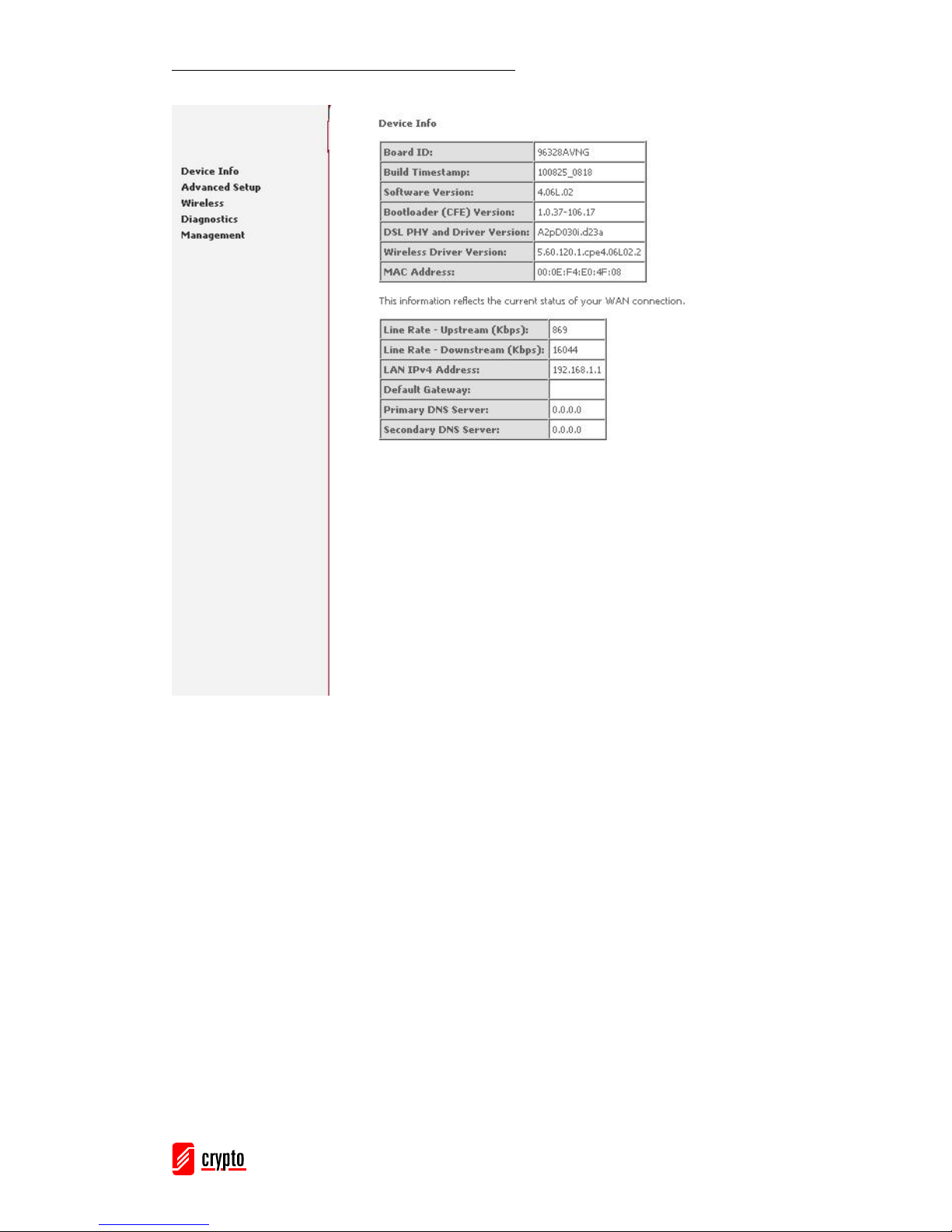

6.1.1 Summary.............................................................................................34

6.1.2 WAN....................................................................................................34

6.1.3 Statistics..............................................................................................34

6.1.4 Route...................................................................................................34

6.1.5 ARP.....................................................................................................34

6.1.6 DHCP..................................................................................................34

6.2 Advance Setup .................................................................................................. 35

6.2.1 Layer2 Interface..................................................................................35

6.2.2 WAN....................................................................................................35

6.2.3 LAN ....................................................................................................35

6.2.4 NAT.....................................................................................................36

6.2.5 Security...............................................................................................36

6.2.6 Parental Control..................................................................................38

6.2.7 Quality of service................................................................................38

6.2.8 Routing................................................................................................38

WF250 802.11n Wireless ADSL Modem Router

6.2.9 DNS.....................................................................................................38

6.2.10 DSL...................................................................................................39

6.2.11 UPNP ................................................................................................39

6.2.12 DNS Proxy........................................................................................39

6.2.13 Interface Grouping............................................................................39

6.2.14 IPSec.................................................................................................39

6.2.15 Certificate..........................................................................................39

6.2.16 Multicast ...........................................................................................39

6.3 Wireless.............................................................................................................40

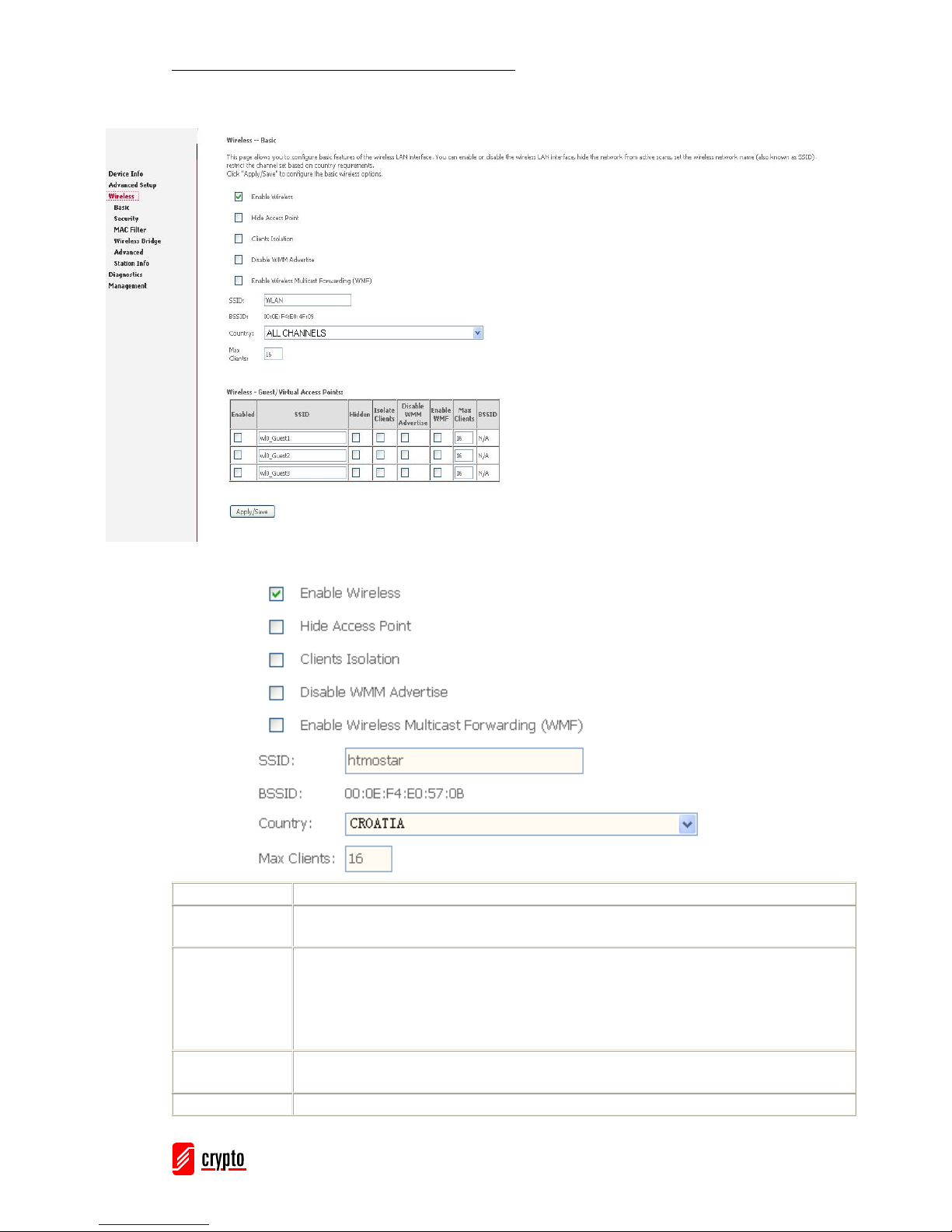

6.3.1 Basic....................................................................................................40

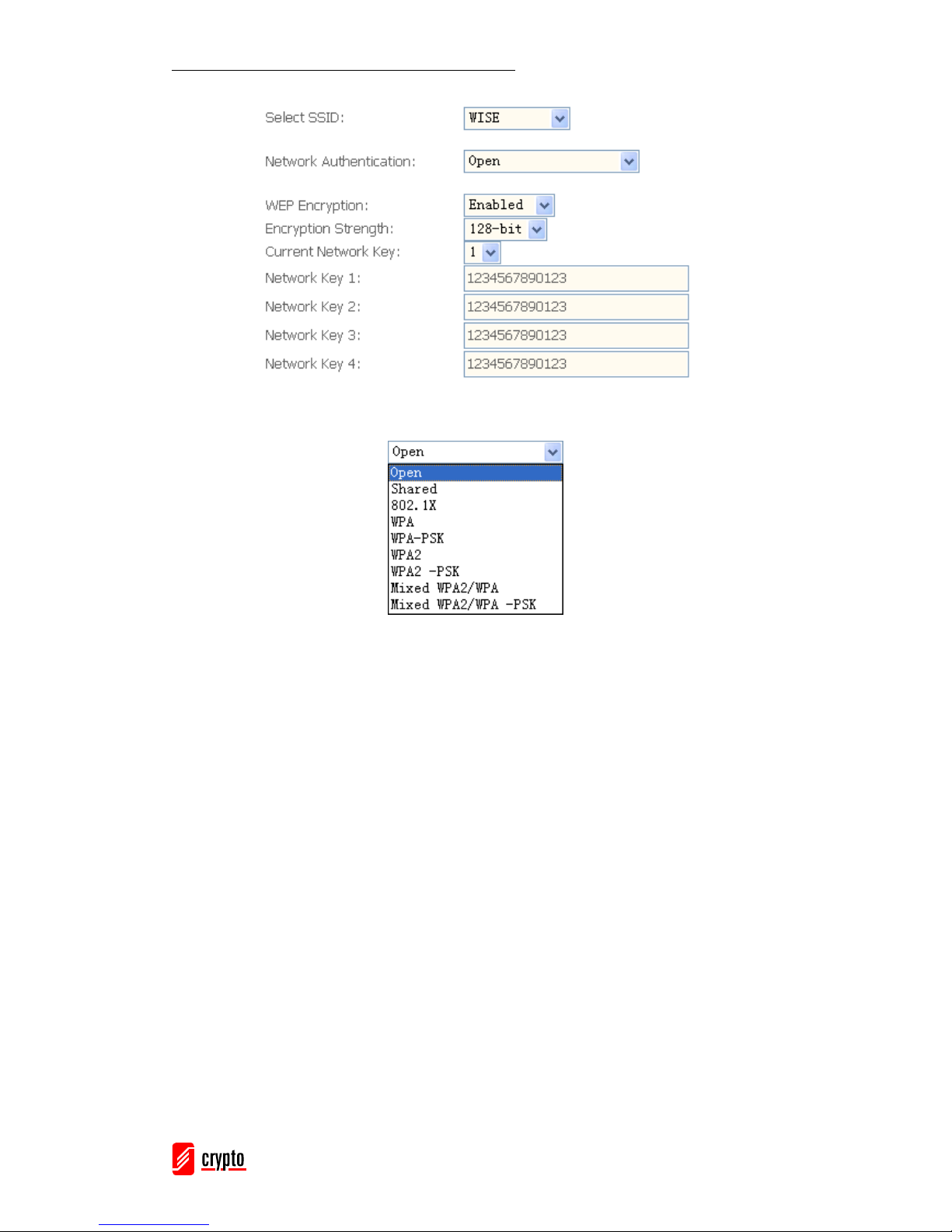

6.3.2 Security........................................................................................41

6.3.3 Mac Filter.....................................................................................44

6.3.4 Wireless Bridge............................................................................44

6.3.5 Advanced Settings .......................................................................45

6.3.6 Station Info...................................................................................47

6.4 Diagnostics........................................................................................................48

6.5 Management......................................................................................................48

6.5.1 Settings................................................................................................49

6.5.2 System Log .........................................................................................49

6.5.3 Security Log........................................................................................49

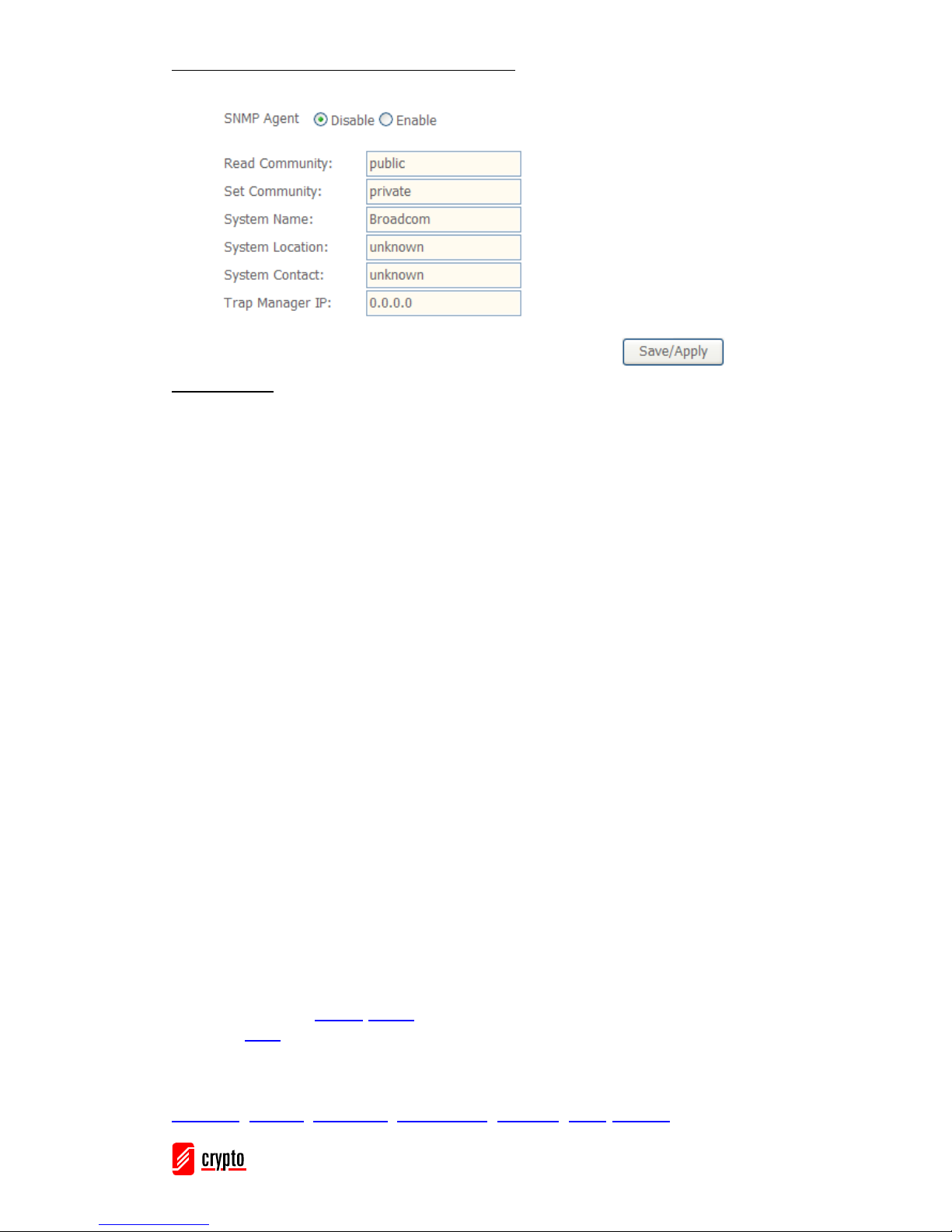

6.5.4 SNMP Agent.......................................................................................49

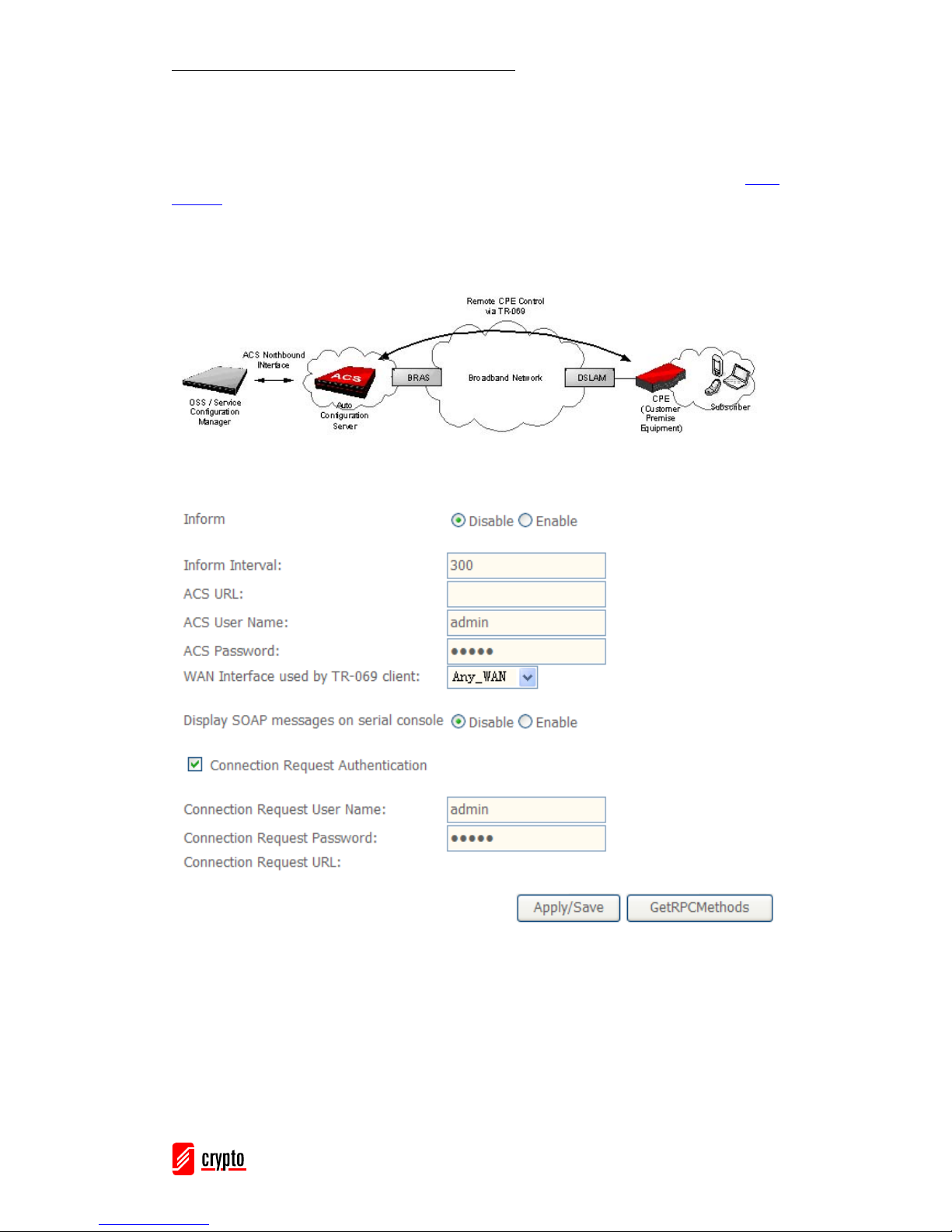

6.5.5 TR-069 Client .....................................................................................50

6.5.6 Internet Time.......................................................................................52

6.5.7 Access Control ....................................................................................52

6.5.8 Update Software..................................................................................52

6.5.9 Reboot.................................................................................................52

7. Glossary .....................................................................................................................53

8. T r oubleshooting.........................................................................................................57

9. Technical Support .....................................................................................................60

WF250 802.11n Wireless ADSL Modem Router

1. Introduction

1.1 Introduction

This full rate Wireless ADSL2/2+ router is an all-in-one gateway for Home and SOHO applications. This gateway is with full-featured ADSL router that provides high-speed Internet access, 4-port Ethernet switch direct connections to individual PCs or local area network with 10/100 Base-T Ethernet and 150Mbps IEEE 802.11n wireless connectivity. This device uses an advanced ADSL chipset solution with complete set of industry standard features for high-speed Internet access. Also the built-in 150Mbps IEEE

802.11n wireless service can provide you an easy and convenient way to connect the PCs and Internet. User can enjoy higher quality multimedia and real-time applications such as online gaming, Video-on-Demand, VoIP and other bandwidth consuming services. Also the feature-rich routing functions are seamlessly integrated to ADSL service for existing corporate or home users.

1.2 Product Features

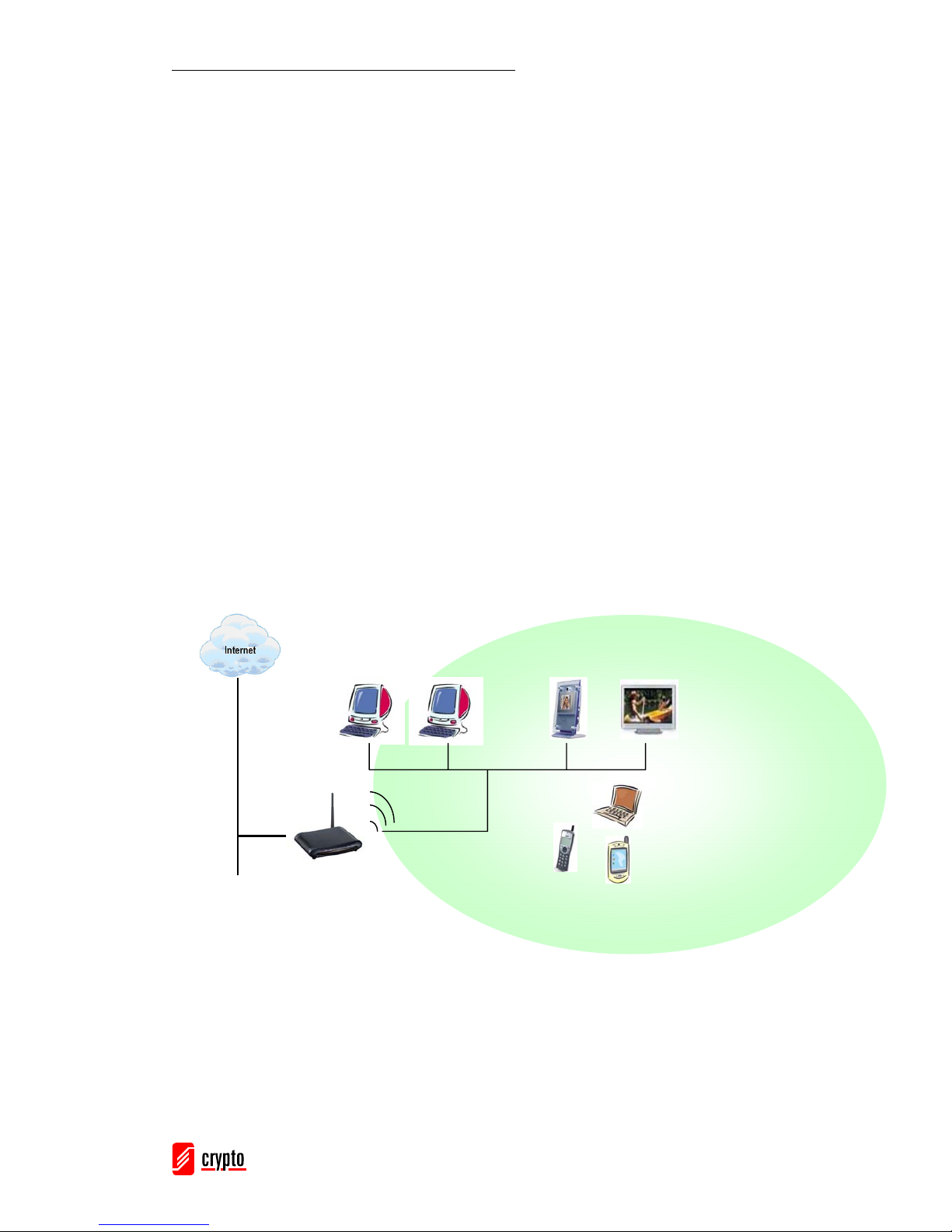

 Application Diagram

 High Speed Internet Access

This Wireless ADSL2/2+ router comply with ADSL / ADSL2 / ADSL2+ standards. It can support downstream rates of up to 24Mbps and upstream rates of up to 1Mbps. This ADSL2+ router is compliant with the following standards.

Wireless Router

IP Phone / Video Phone

IP Phone / PDA / NB

WF250 802.11n Wireless ADSL Modem Router

z ITU G.992.1 (G.DMT) z ITU G.992.2 (G.Lite) z ITU G.994.1 (G.hs) z ITU G.992.3 (G.DMT.BIS) z ITU G.992.4 (G.lite.bis) z ITU G.992.5 z Compatible with all T1.413 issue 2 (full rate DMT over analog

POTS), and CO DSLAM equipment

z TR-069 compliant with ACS

 Multi-connection protocol support

z Multi Protocol over AAL5 (RFC1483) z PPP over Ethernet (RFC 2516) z PPP over ATM (RFC 2364) z ATM Forum UNI 3.1/4.0 PVC z Support up to 16PVCs. z Traffic Shaping(ATM QoS) UBR, CBR, VBR, VBR-rt, OAM F4/F5

 Network Address Translation (NAT)

Network Address Translation (NAT) allows the translation of an Internet protocol address used within one network (for example a private IP address used in a local network) to a different IP address known within another network (for example a public IP address used on the Internet).

 Universal Plug and Play (UPnP) Universal Plug and Play is a standard that uses Internet and Web protocols to enable devices such as PCs, peripherals, intelligent appliances, and wireless devices to be plugged into a network and automatically know about each other. This protocol is used to enable simple and robust connectivity among stand-alone devices and PCs.

 Dynamic DNS Support With Dynamic DNS support, you can have a static hostname alias for a dynamic IP address, allowing the host to be more easily accessible from various locations on the Internet. You must register for this service with a Dynamic DNS client.

WF250 802.11n Wireless ADSL Modem Router

 DHCP Support DHCP (Dynamic Host Configuration Protocol) allows individual clients to obtain TCP/IP configuration at start-up from a centralized DHCP server. The ADSL router has built-in DHCP server capability enabled by default. It can assign IP addresses, an IP default gateway and DNS servers to DHCP clients. It can also act as a surrogate DHCP server (DHCP Relay) where it relays IP address assignment from the actual real DHCP server to the clients.

 Device Management

z Web-based GUI Configuration / Management z Command-line Interpreter (CLI) z Telnet z Firmware upgrade via FTP //TFTP/HTTP (Web-based GUI) z Built-in Diagnostic tool z TR-069 support

 10/100M Auto-negotiation Fast Ethernet switch

This auto-negotiation feature allows the router to detect the speed of incoming transmissions and adjust appropriately without manual intervention. It allows data transfer of either 10 Mbps or 100 Mbps in either half-duplex or full-duplex mode depending on your Ethernet network.

 Bridging / Routing support

z IP routing-RIPv2 (backward compatible with RIPv1) z Static IP routing z Routing (TCP/IP/UDP/ARP/ICMP) z Ethernet to ADSL Self-Learning Transparent Bridging z Transport Protocols z NetBEUI

z AppleTalk / EtherTalk

 Wireless

z IEEE802.11n compliance, backward compatible with 802.11b/g z 64/128 bits WEP ,WPA(TKIP, MIC), WPA-PSK,TKIP / WPA2-AES,

PSK,802.1x security

z Dynamic date rate scaling at:

802.11b/g: 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, 1Mbps

802.11n:150, 130, 117, 104, 78, 52, 39, 26, 13Mbps

z Supports Quality of Service (QoS), 802.11e, WMM z MAC Address Filtering z WPS

 Security

z DoS Protection z Stateful Packet Inspection (SPI)

WF250 802.11n Wireless ADSL Modem Router

z VPN (IPSec, PPTP, L2TP) pass through z Built-in NAT Firewall z IP-based Packet filtering z Password Protected System Management z WPS

z Parental control z DMZ

 Factory Defaults

The device is configured with the following factory defaults:

z Router User Name :admin z Router Password: adslroot z IP Address: 192.168.1.1 z Subnet Mask: 255.255.255.0 z Encapsulation: LLC/SNAP-BRIDGING or VC/MUX z VPI/VCI: According to local information

2. Hardware Installation

2.1 System Requirements

z Pentium III 266 MHz processor or higher z 128 MB RAM minimum z 20 MB of free disk space minimum z RJ45 Ethernet Port

2.2 Package Contents

z Wireless ADSL2/2+ Router z RJ-45 Ethernet cable z RJ-11 Phone cable z Power Adapter z Quick Installation Guide z 2 Years Warranty z One External Antenna

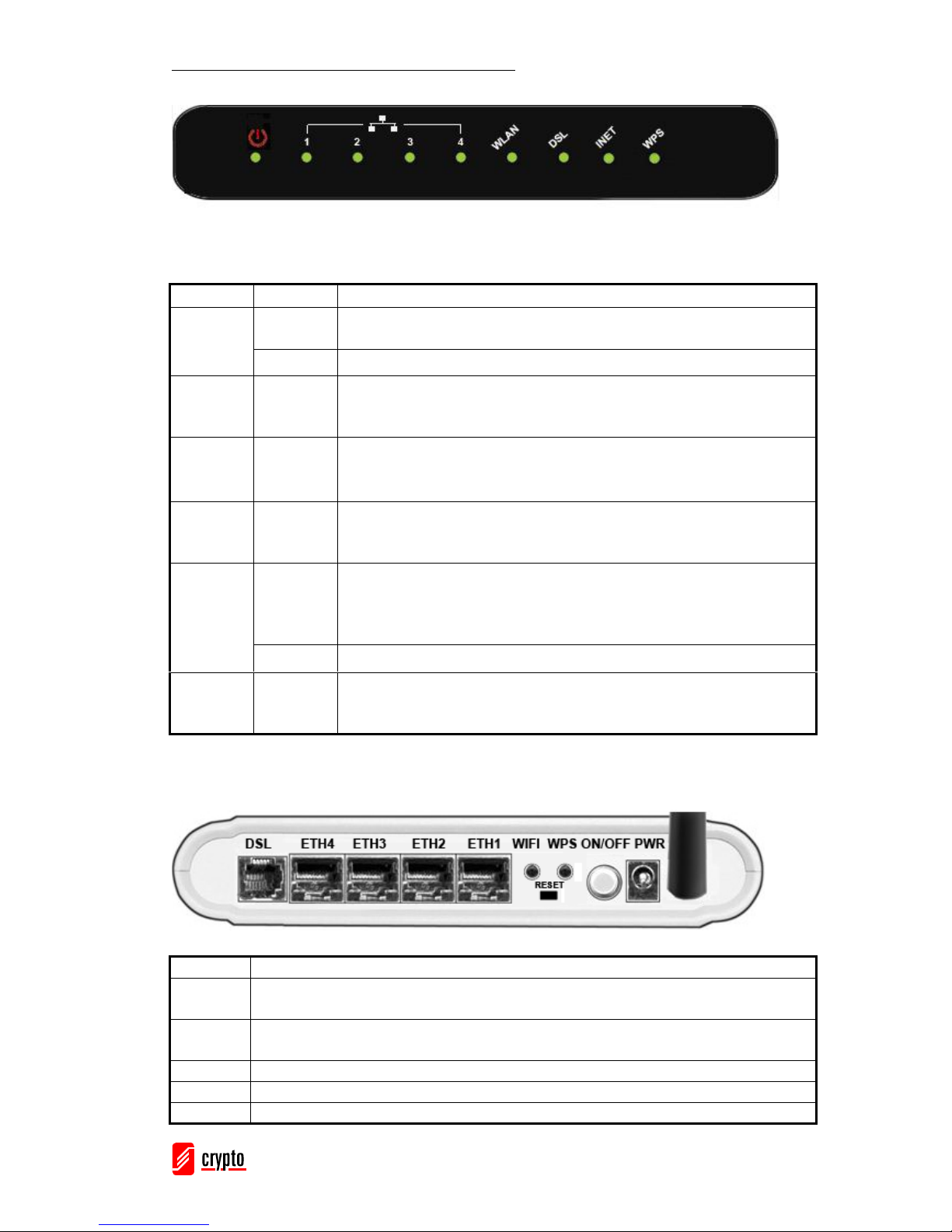

2.3 Front Panel Indicators and Description

Front panel of this Wireless ADSL2/2+ router has LED indicators to display router’s operating status.

WF250 802.11n Wireless ADSL Modem Router

Descriptions of LED status

2.4 Back Panel

LED Color Function

Green

On: Power on Off: No power

PWR

Red On: System boot failed or CFE mode

ETH1-4

Green

On: LAN link established and active via LAN port Blinking: ADSL data activity occurs Off: No LAN link via LAN port

WLAN

Green

On: The wireless module is ready and idle Blinking: Data transmitting or receiving over WLAN Off: The wireless function is off

DSL

Green

On: ADSL link established and active Quick Blinking: ADSL is trying to establish a connection Slow Blinking: No ADSL link

Green

On: IP connected Blinking: IP connected and IP traffic is passing thru the

device

Off: Modem power off or ADSL connection not present

INET

Red Modem attempted to become IP connected and failed.

WPS

Green

On: WPS connection is established Blinking: Trying to establish a WPS connection Off: WPS function is off or no WPS connection

Port Function DSL

Connect the device to an ADSL telephone jack or splitter using a RJ-11 telephone cable

ETH1-4

Connect the device to user’s PC's Ethernet port, or to the uplink port on user’s hub/switch, using a RJ-45 cable

WIFI

Switch the wireless function on or off

RESET

System reset or reset to factory defaults

WPS

A convenient way for WPS set.

WF250 802.11n Wireless ADSL Modem Router

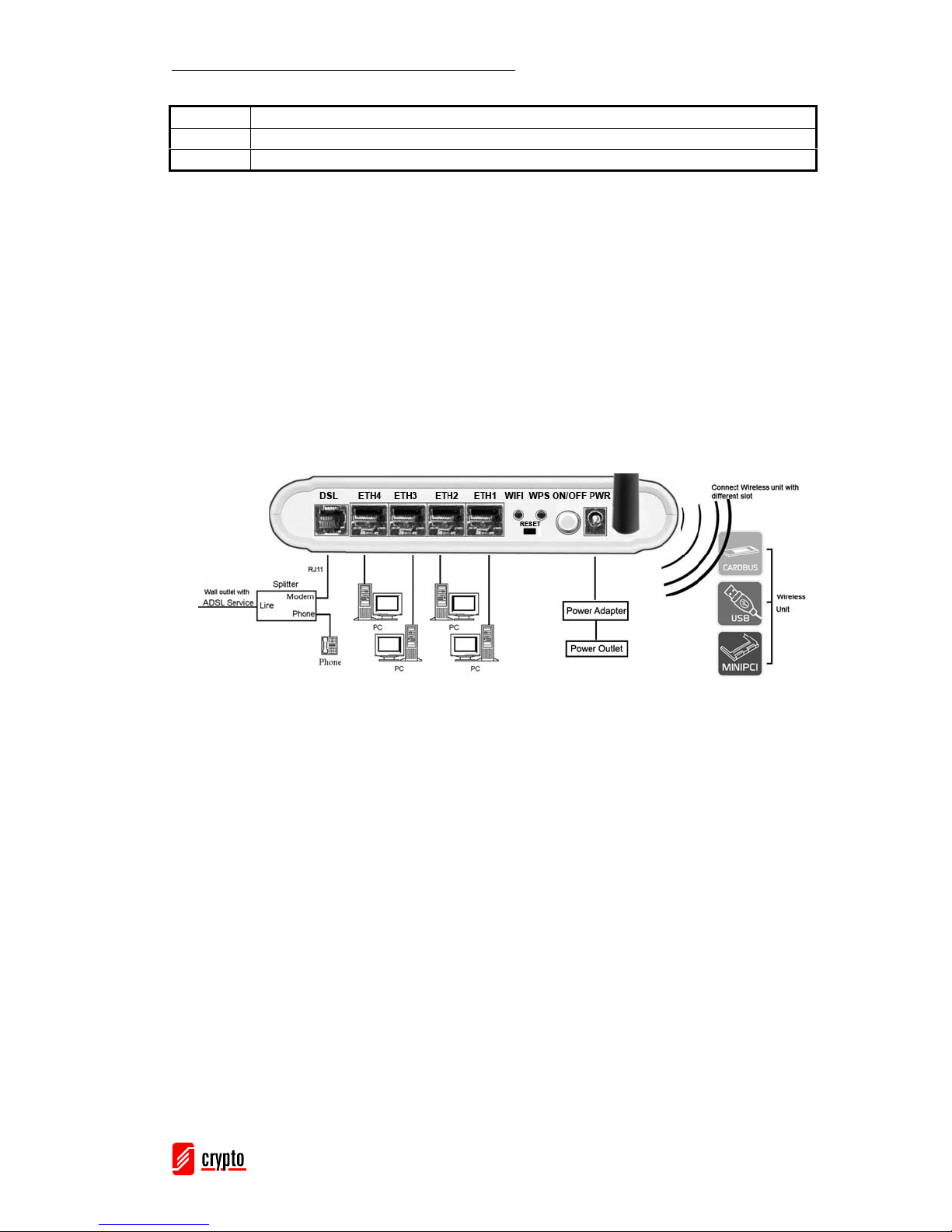

2.5 Connect Related Devices

1) Connect Router to LINE Plug the provided RJ-11 phone cable into LINE port on the back panel of the router and insert the other end into splitter or wall phone jack.

2) Connect Router to LAN Plug RJ-45 Ethernet Cable into LAN port on the back panel of the router and insert the other end of the Ethernet cable on your PC’s Ethernet port or switch / hub.

3) Connect Router to Power Adapter Plug Power Adapter to PWR port on the back panel of the router and the other end to a power outlet.

Warning! Only use the power adapter provided in the package, otherwise it may cause hardware damage. Without the splitter and certain situation, transient noise from telephone can interfere with the operation of the Router, and the Router may introduce noise to the telephone line. To prevent this from happening, a small external splitter must be connected to each telephone.

3. Connecting the WF250 ADSL 2/2+ Router via Ethernet

Your router can be managed from anywhere with the embedded Web configuration using a Web browser, such as Microsoft Internet Explorer 6.0 and later versions with JavaScript enabled should be used.

ON/OFF

Switch it on or off

POWER

Connect to the supplied power adapter

ANT

Antenna interface

WF250 802.11n Wireless ADSL Modem Router

3.1 Setup Wireless ADSL 2/2+ router via Ethernet Cable

If there is an available LAN card present on your PC, you just simply connect ADSL router and PC through the Ethernet cable. Once you establish Internet connection, you could browse the Web through the Ethernet cable.

3.2 Configure TCP/IP

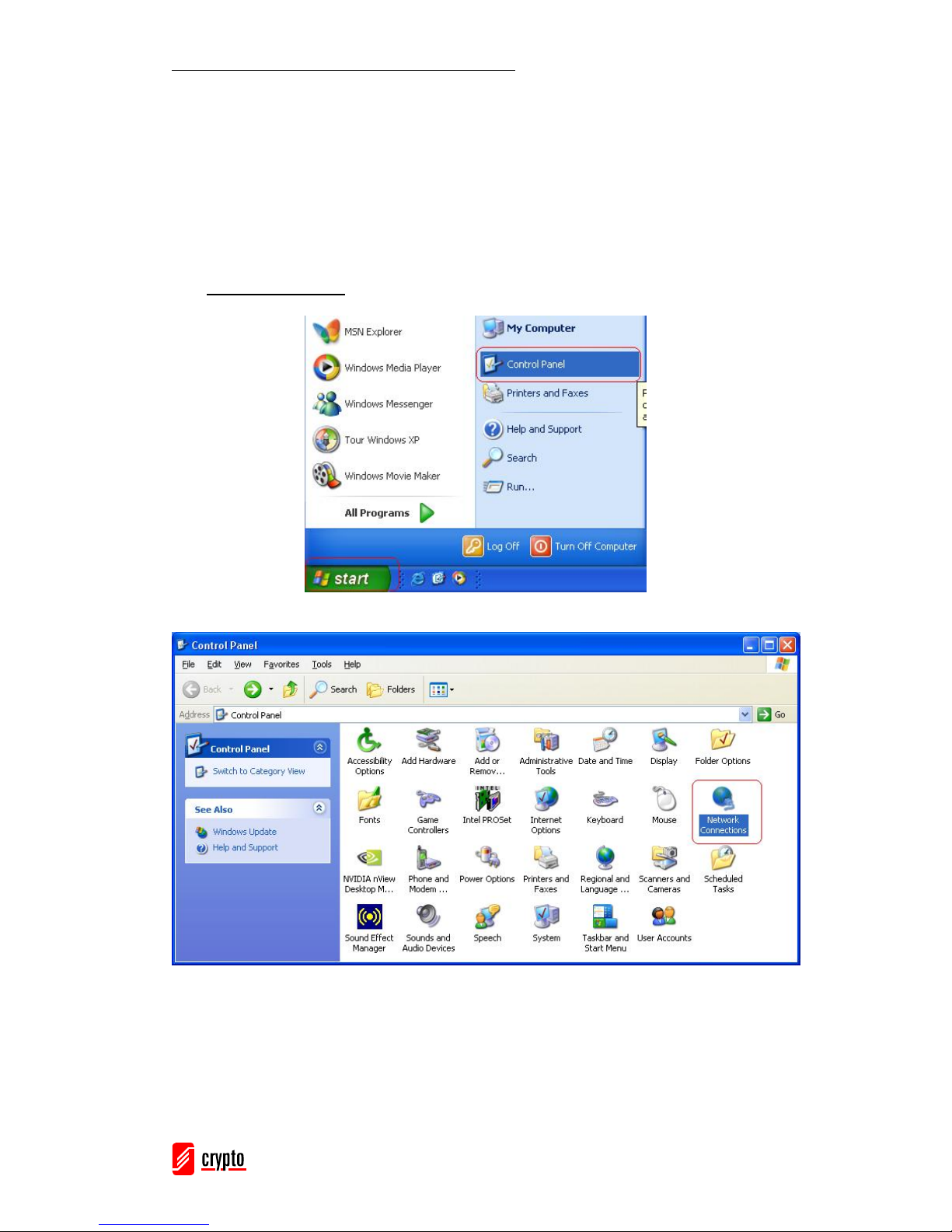

For Windows XP

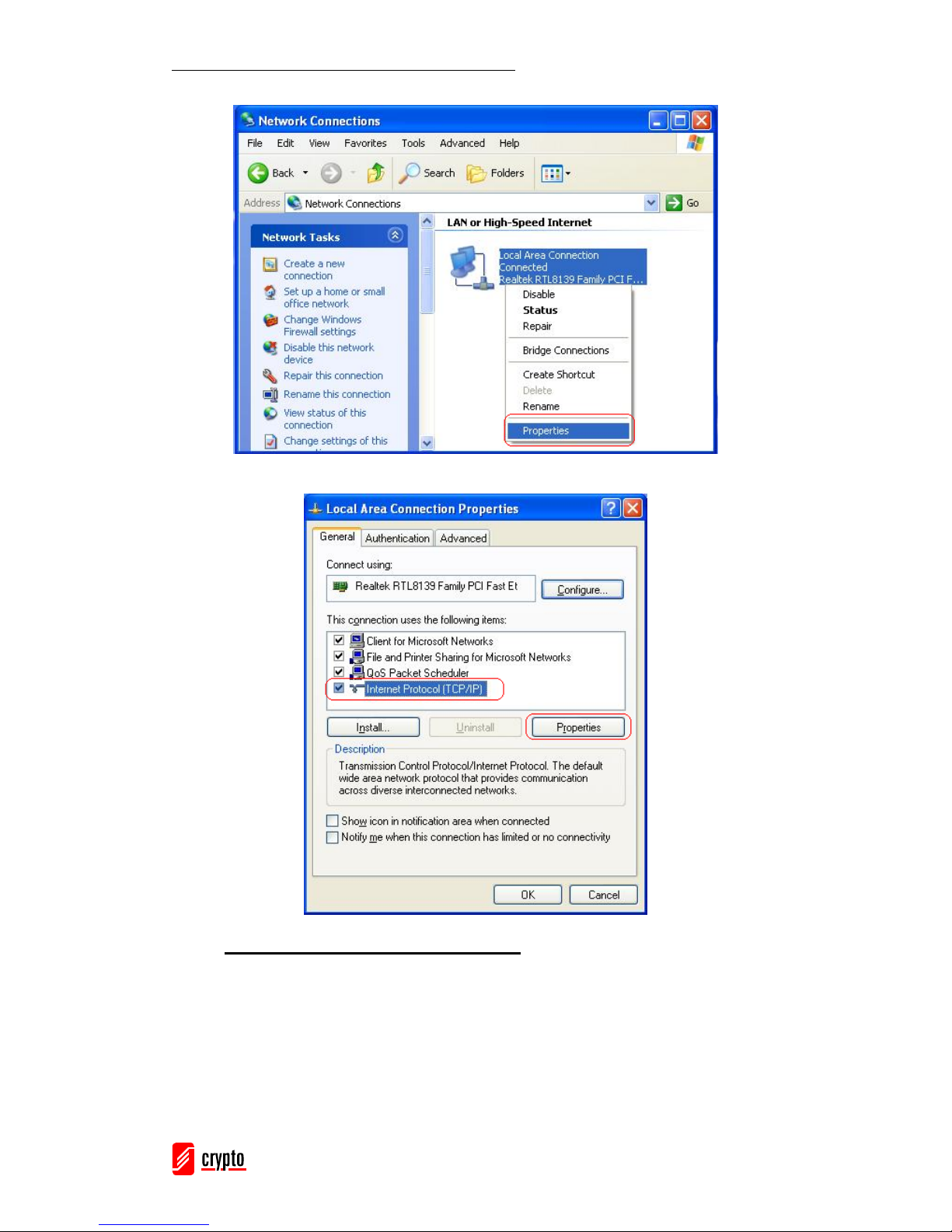

Step 1: Click Start then select Control Panel.

Step 2: Double-click Network Connections icon.

Step 3: Right-click Local Area Connection (local network your ADSL

hooked up with) and select Properties:

WF250 802.11n Wireless ADSL Modem Router

Step 4: Select Internet Protocol (TCP/IP) then click Properties:

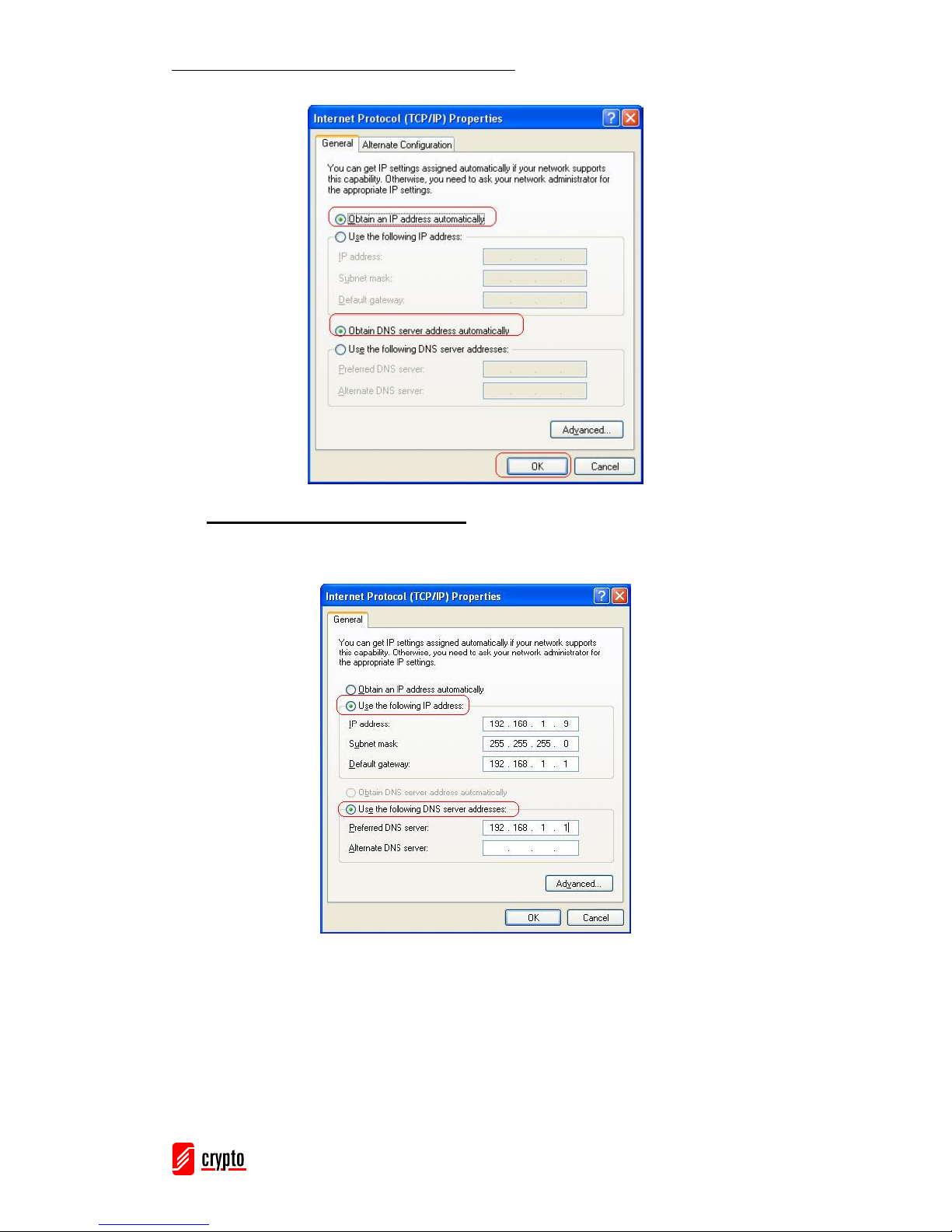

Configure IP address Automatically:

Step 5: Select Obtain an IP address automatically and Obtain DNS

server address automatically. Click OK to finish the

configuration.

WF250 802.11n Wireless ADSL Modem Router

Configure IP Address Manually:

Step 5: Select Use the following IP address and Use the following

DNS server addresses.

IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254). Subnet mask: Default value is 255.255.255.0. Default gateway: Default value is 192.168.1.1. Preferred DNS server: Fill in preferred DNS server IP address. Alternate DNS server: Fill in alternate DNS server IP address.

WF250 802.11n Wireless ADSL Modem Router

You can use ping command under DOS prompt to check if you have setup TCP/IP protocol correctly and if your computer has successfully connected to this router.

1) Type ping 192.168.1.1 under DOS prompt and the following messages will appear:

Pinging 192.168.1.1 with 32 bytes of data: Reply from 192.168.1.1: bytes=32 times<2ms TTL=64 Reply from 192.168.1.1: bytes=32 times<1ms TTL=64 Reply from 192.168.1.1: bytes=32 times<10ms TTL=64

2) If the communication link between your computer and router is not setup correctly, after you type ping 192.168.1.1 under DOS prompt following messages will appear:

Pinging 192.168.1.1 with 32 bytes of data: Request timed out. Request timed out. Request timed out.

A connection error might be responsible for the unsuccessful connection between the PC and the router.

For Windows Vista/Win7

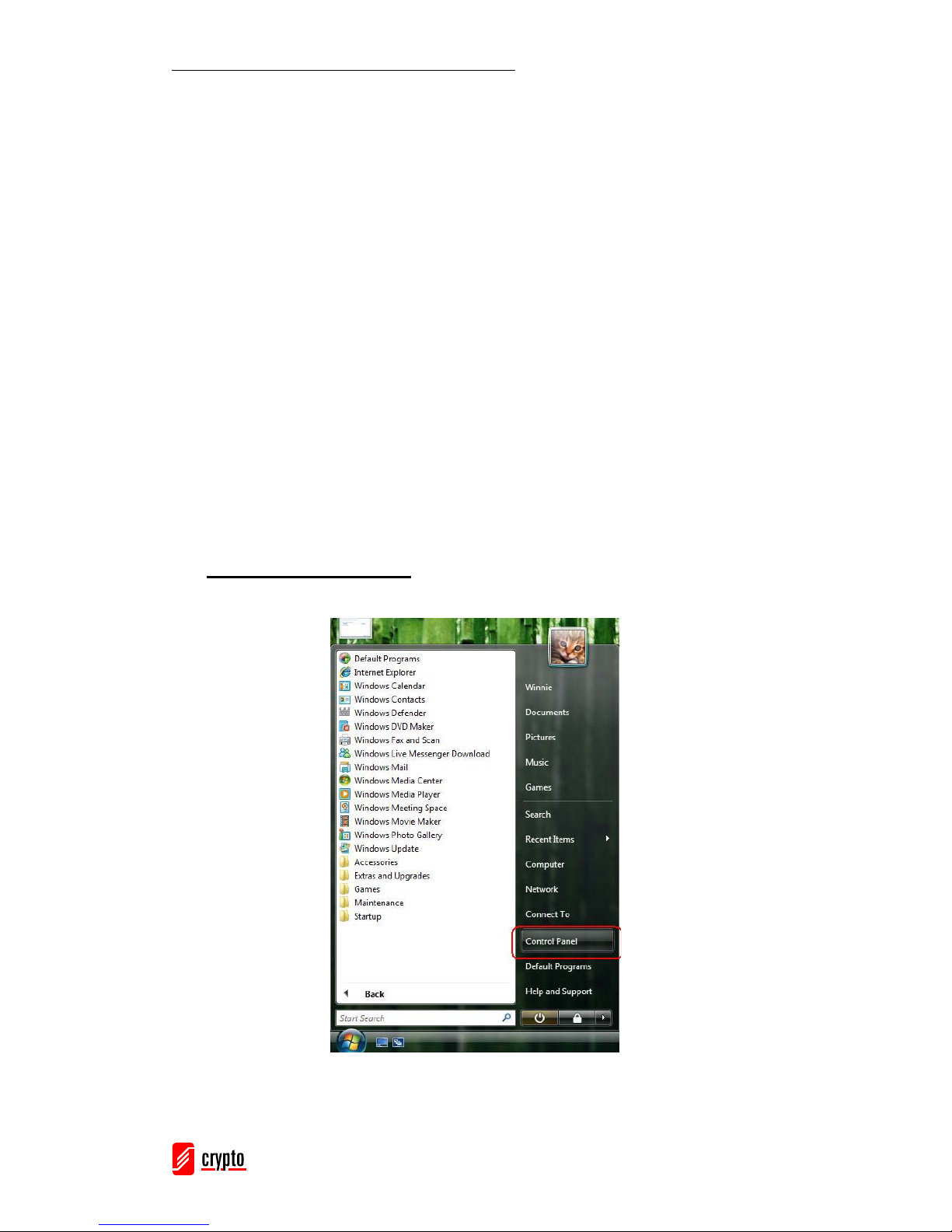

Step 1: Click Start then select Control Panel (in the Classic View).

WF250 802.11n Wireless ADSL Modem Router

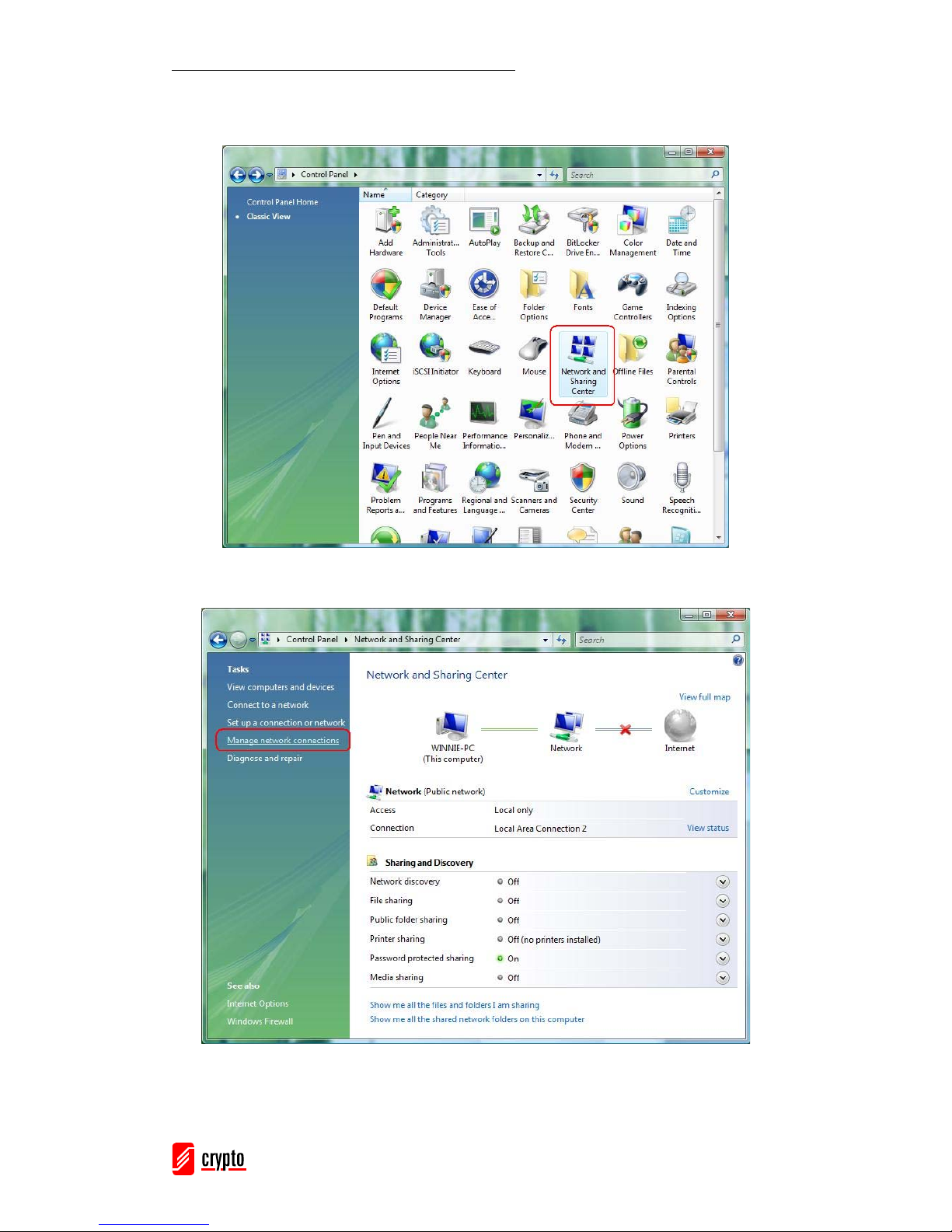

Step 2: Double-click Network and Sharing Center icon.

Step 3: Select “Manage Network connections”.

WF250 802.11n Wireless ADSL Modem Router

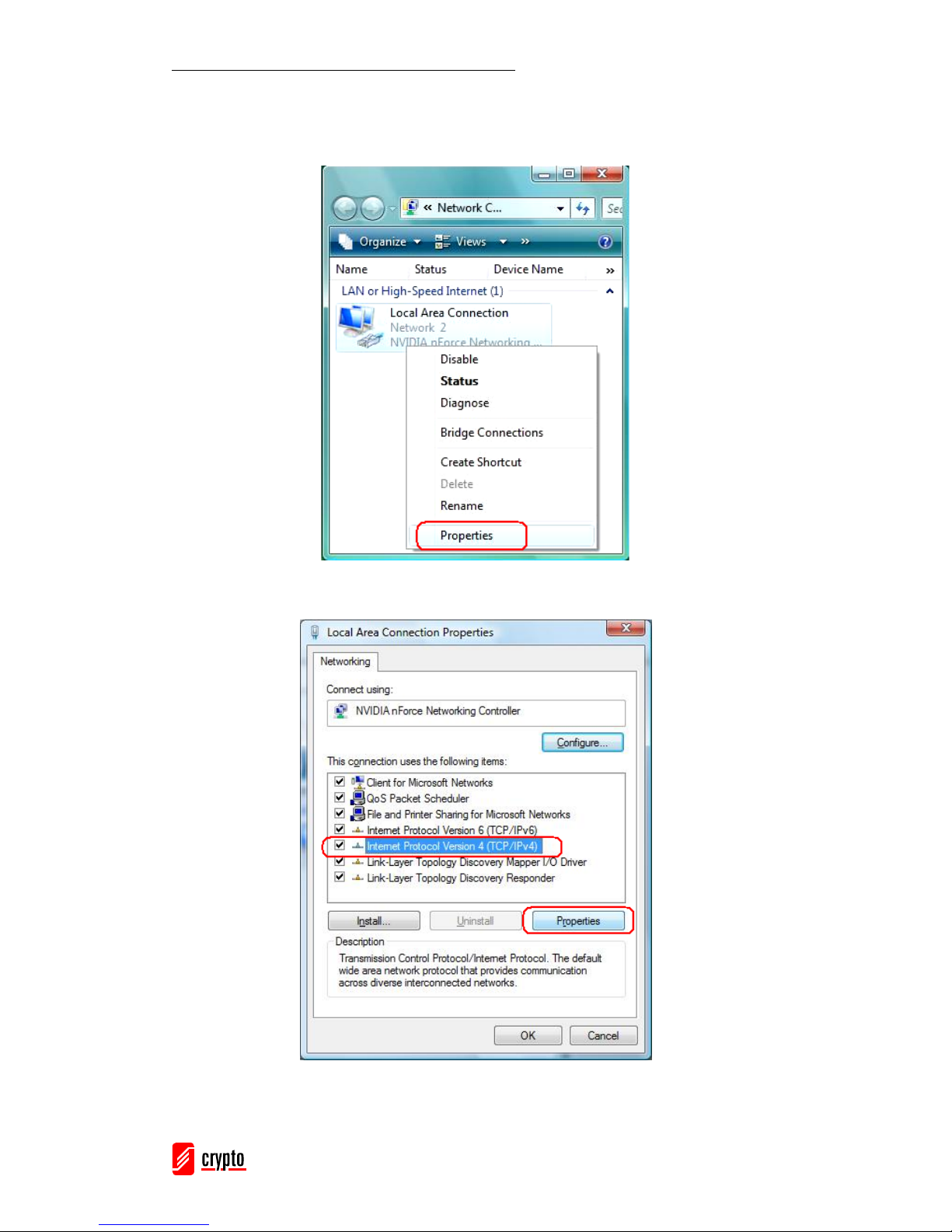

Step 4: Right-click Local Area Connection (local network your ADSL

hooked up with) and select Properties:

Step 5: Select Internet Protocol (TCP/IP) then click Properties:

WF250 802.11n Wireless ADSL Modem Router

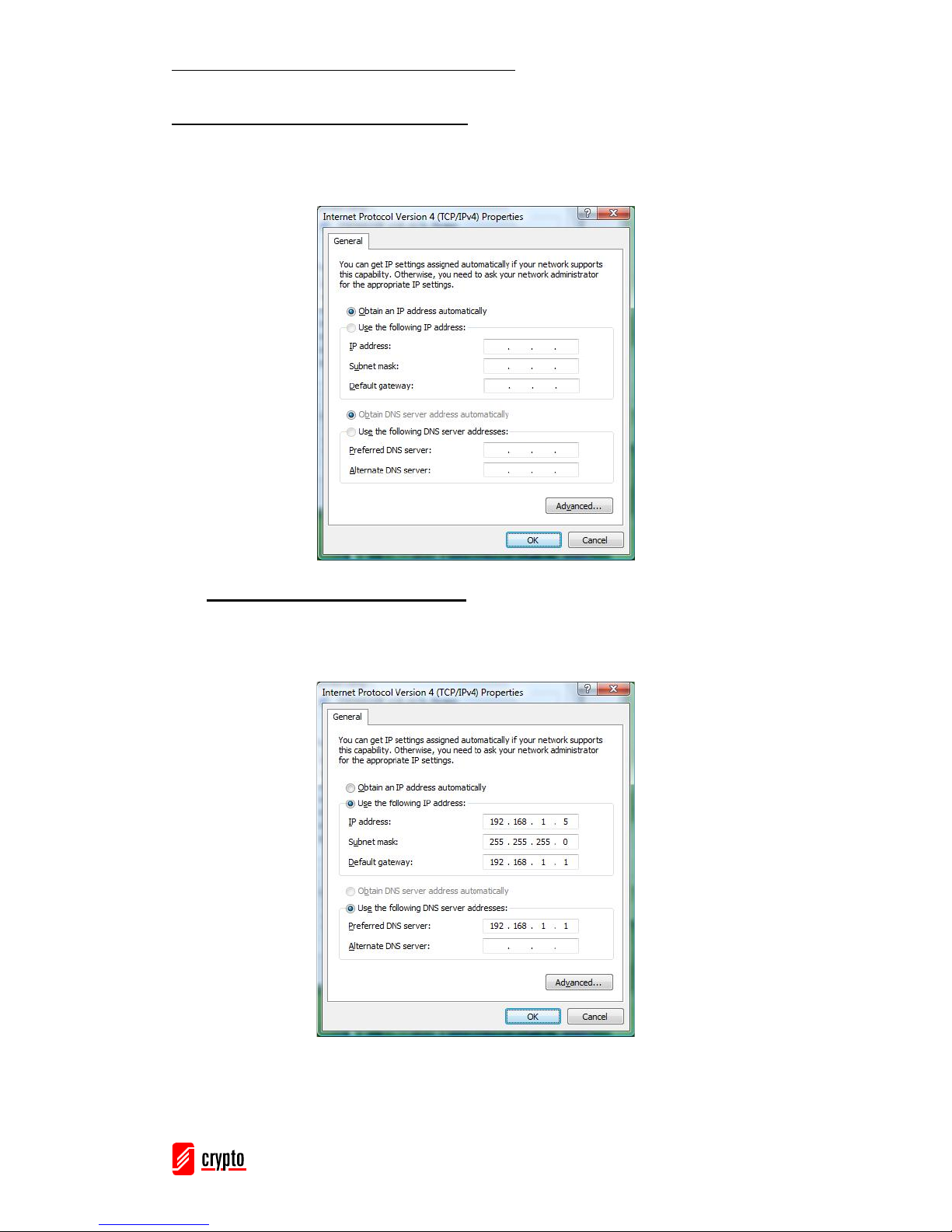

Configure IP address Automatically:

Step 6: Select Obtain an IP address automatically and Obtain DNS

server address automatically. Click OK to finish the

configuration.

Configure IP Address Manually:

Step 7: Select Use the following IP address and Use the following

DNS server addresses.

WF250 802.11n Wireless ADSL Modem Router

You can use ping command under DOS prompt to check if you have setup TCP/IP protocol correctly and if your computer has successfully connected to this router.

2) Type ping 192.168.1.1 under DOS prompt and the following messages will appear:

Pinging 192.168.1.1 with 32 bytes of data: Reply from 192.168.1.1: bytes=32 times<2ms TTL=64 Reply from 192.168.1.1: bytes=32 times<1ms TTL=64 Reply from 192.168.1.1: bytes=32 times<10ms TTL=64

If the communication link between your computer and router is not setup correctly, after you type ping 192.168.1.1 under DOS prompt following messages will appear:

Pinging 192.168.1.1 with 32 bytes of data: Request timed out. Request timed out. Request timed out.

This failure might be caused by cable issue or something wrong in configuration procedure.

4 Configure the WF250 ADSL2+ Router via HTML

This device supports a Web-based (HTML) GUI to allow users to configure Router setting via Web browser.

4.1 Login

1) Launch the Web browser.

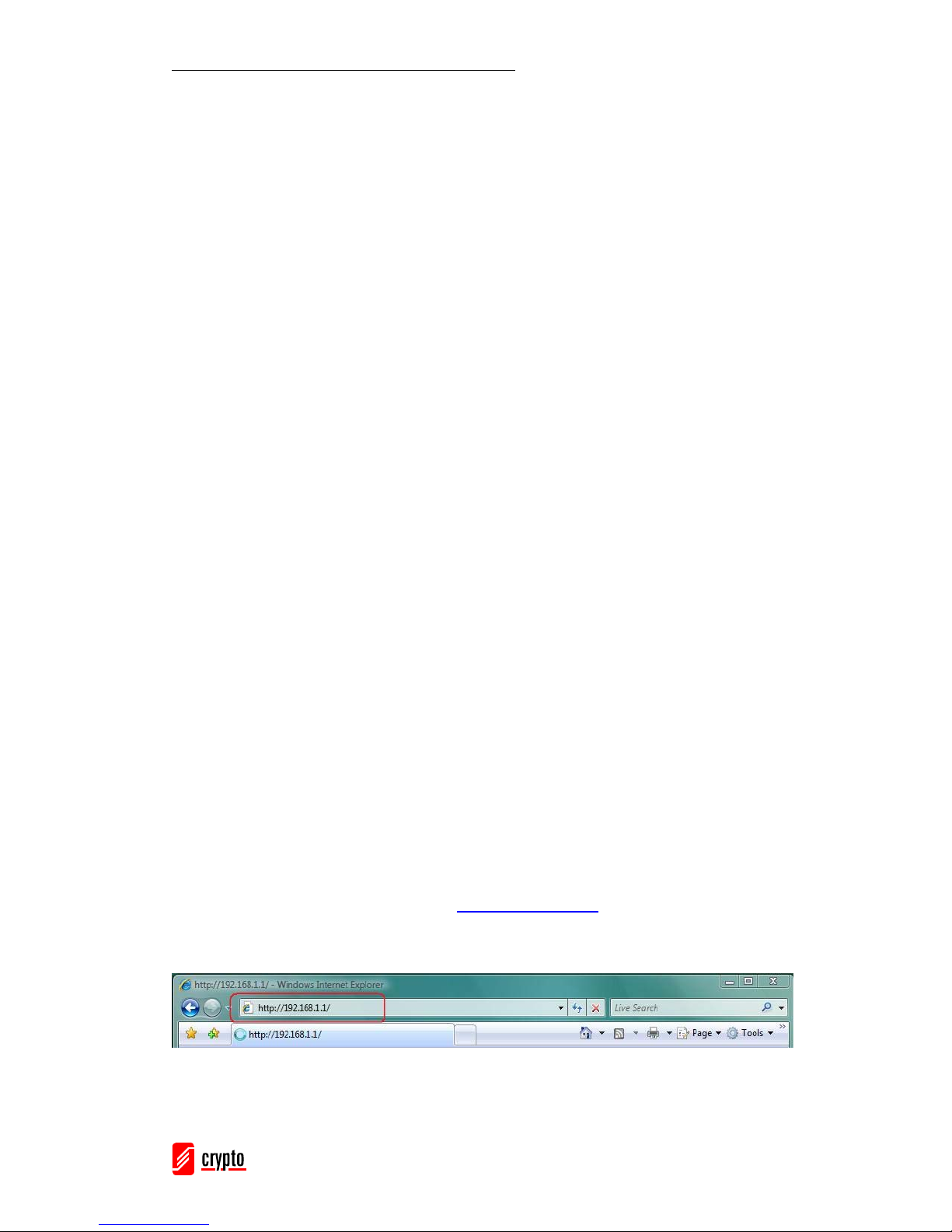

2) Enter the default IP address http://192.168.1.1

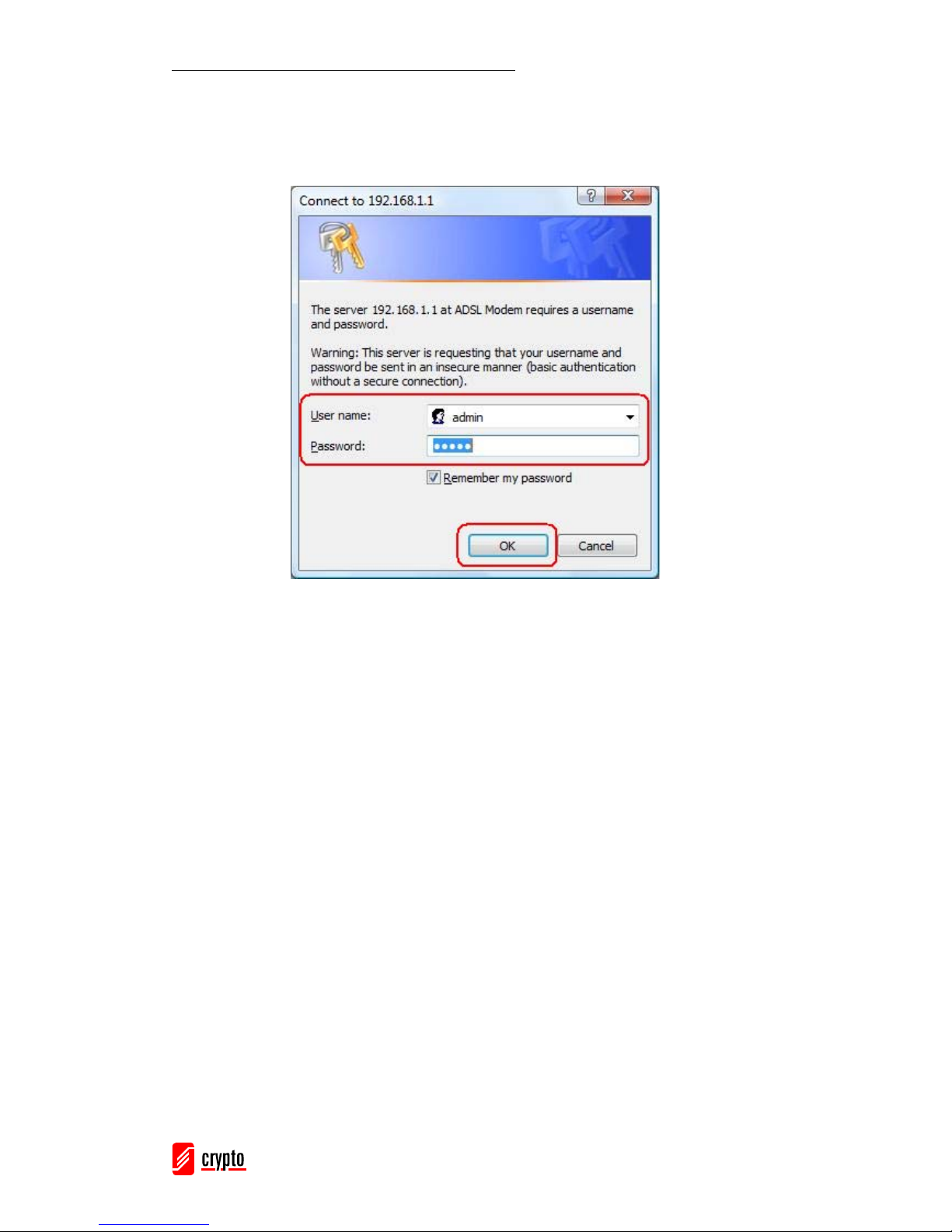

3) Entry of the username and password will be displayed. Enter the default login

WF250 802.11n Wireless ADSL Modem Router

User Name and Password:

z The default login User Name of the administrator is admin, and

the default login password is adslroot.

4.2 Navigating the Web Configurator

Steps to navigate the Web configuration from the Site Map are summarized as below.

WF250 802.11n Wireless ADSL Modem Router

¾ Click on Device Info to see router device information, and performance

statistics.

¾ Click on Advanced Setup to configure internet ADSL and LAN functions,

firewall settings, NAT settings and other advanced features.

¾ Click on Wireless to manage all wireless access options such as security

and other wireless functions.

¾ Click on Diagnostics to see and run the diagnostic tests on the router. ¾ Click on Management , to upgrade or reload firmware, reset the device

etc

WF250 802.11n Wireless ADSL Modem Router

5. Internet Setup

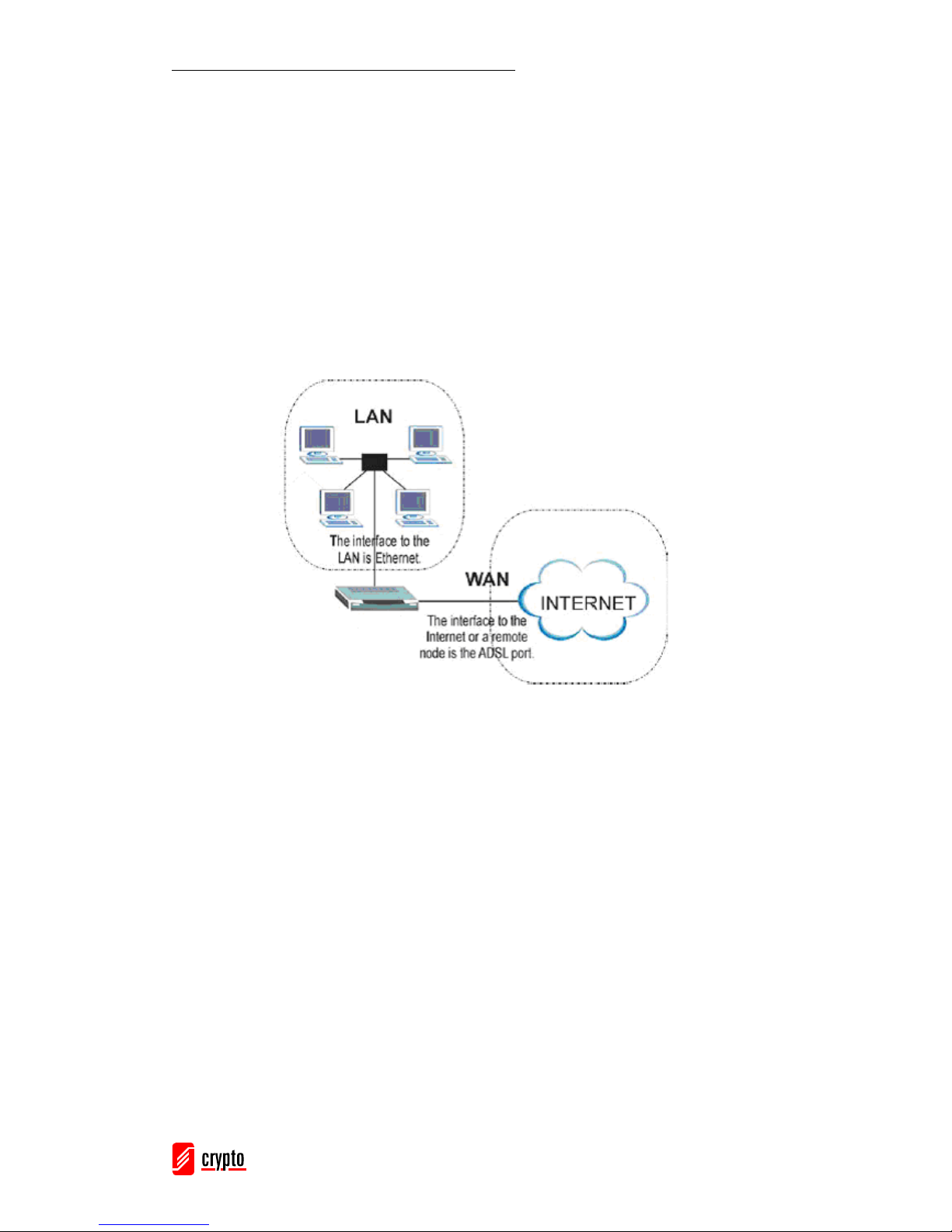

The physical connections determine whether the router ports are local area network (LAN) ports or wide area network (WAN) ports. There are two kinds of IP networks. The local, private kind is the LAN network; the global, public kind is the WAN network. The following illustration shows the relationship between the router and the two different networks.

A LAN is a shared communication system to which many computers are attached. A LAN is generally limited to the immediate area, usually the same building or floor of a building. A WAN is an outside connection to another network or to the Internet.

5.1 Configuring your Internet Connection

The advance setup screen allows you to set up how your router connects to the Internet. If you already ran the Quick Start wizard, the information you provided to the wizard should be entered into the fields already. After you finish the changes, click on the SAVE button to save your changes.

WF250 802.11n Wireless ADSL Modem Router

5.1.1 ATM Setup

ATM settings are used to connect to your ISP. Your ISP provides VPI, VCI, settings to you. In this Device, you can totally setup 16 PVCs on different encapsulations if you apply 16 different virtual circuits from your ISP.

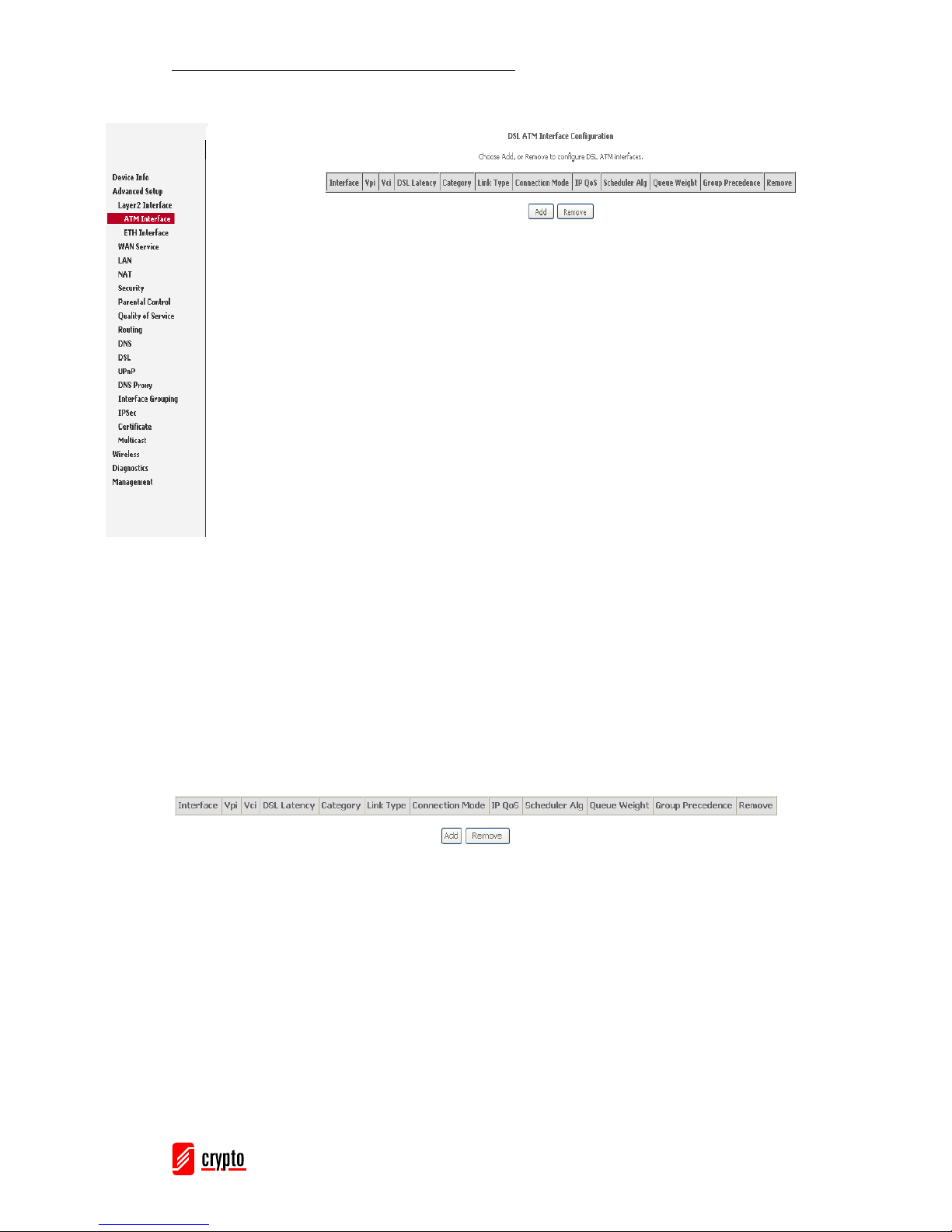

From Layer2 Interface, click ATM Interface. Choose Add, or Remove to configure DSL ATM interfaces

Click Add to configure PVC identifier, select DSL latency and select connection mode according to your local occasion. After the configuration, you need to click Apply/Save

WF250 802.11n Wireless ADSL Modem Router

VPI: Virtual Path Identifier. The valid range for the VPI is 0 to 255. The default values are 0 / 35 respectively. VCI: Virtual Channel Identifier. The valid range for the VCI is 1 to 65635 (0 to 31 is reserved for local management of ATM traffic). Select the values for VRI and VCI (Most common setting is VRI:8 and VCI:35 for Greek ISPs).

DSL Latency: Select DSL Latency to Path0 DSL Link Type: PPPoA / PPPoE: Select this option if your ISP requires you to use a

PPPoE/PPPoA connection. This option is typically used for DSL service. EoA is for PPPoE

Connection Mode: Select the default mode Encapsulation: Select VC/MUX or LLC/Snap-Bridging Service Category:

PCR: Peak Cell Rate (PCR) is the maximum rate at which the sender can send cells. This parameter may be lower (but not higher) than the maximum line speed. 1 ATM cell is 53 bytes (424 bits), so a maximum speed of 832 Kbps gives a maximum PCR of 1962 cells/sec. This rate is not guaranteed because it is dependent on the line speed. CBR is for connections that support constant rates of data transfer. The only parameter you need to worry about in CBR is PCR. UBR is for connections that have variable traffic. The only parameter you need to worry about in UBR is PCR.

WF250 802.11n Wireless ADSL Modem Router

IP QoS: Enabling QoS for PVC improves performance for selected classes of applications.

5.1.2 WAN Setup

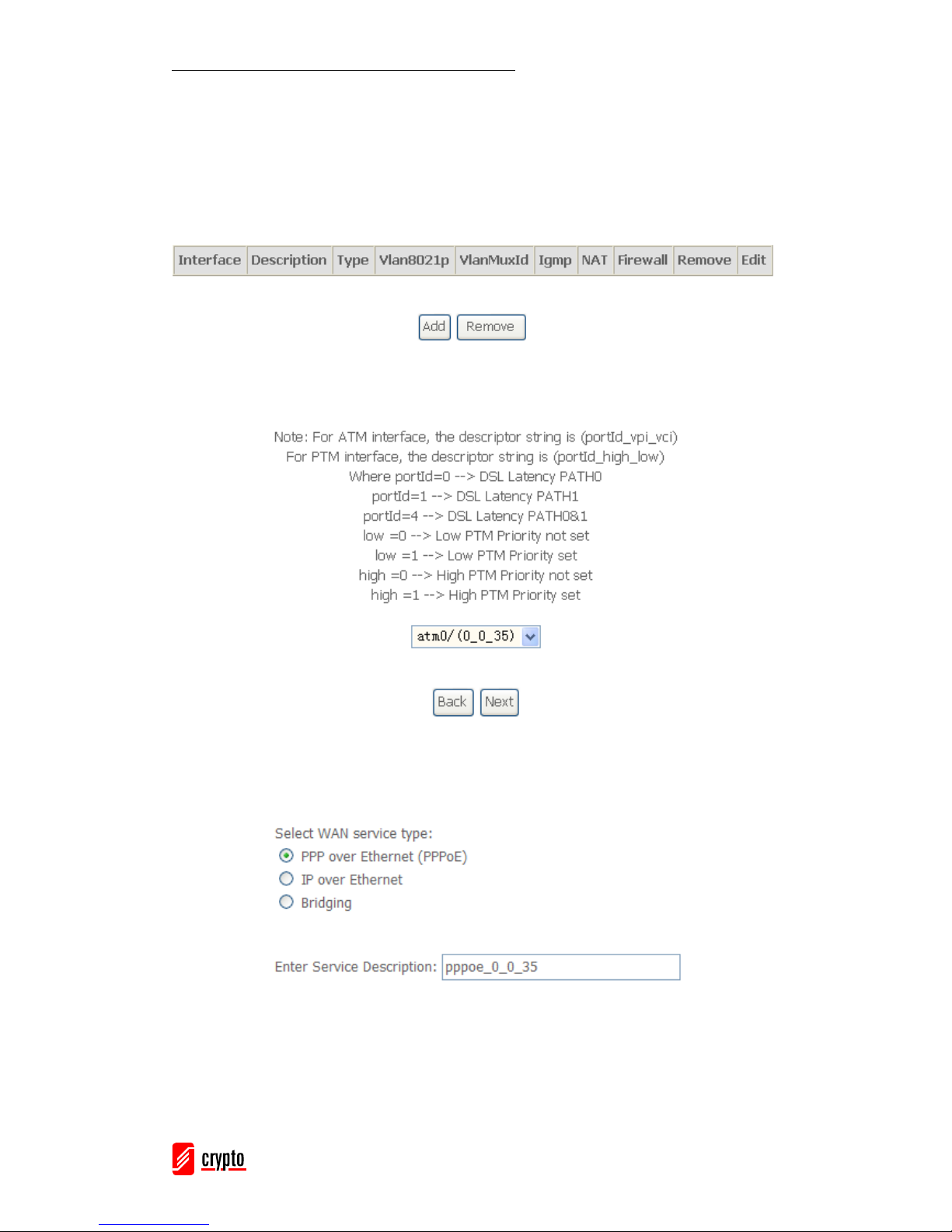

1. Click WAN Service from Advanced Setup.

2. Click Add to select a layer 2 interface(ATM Setting) for this service and then click Next

Choose WAN service type.Just choose PPPoE for example here. You can enter your own service description here if you want and then click Next.

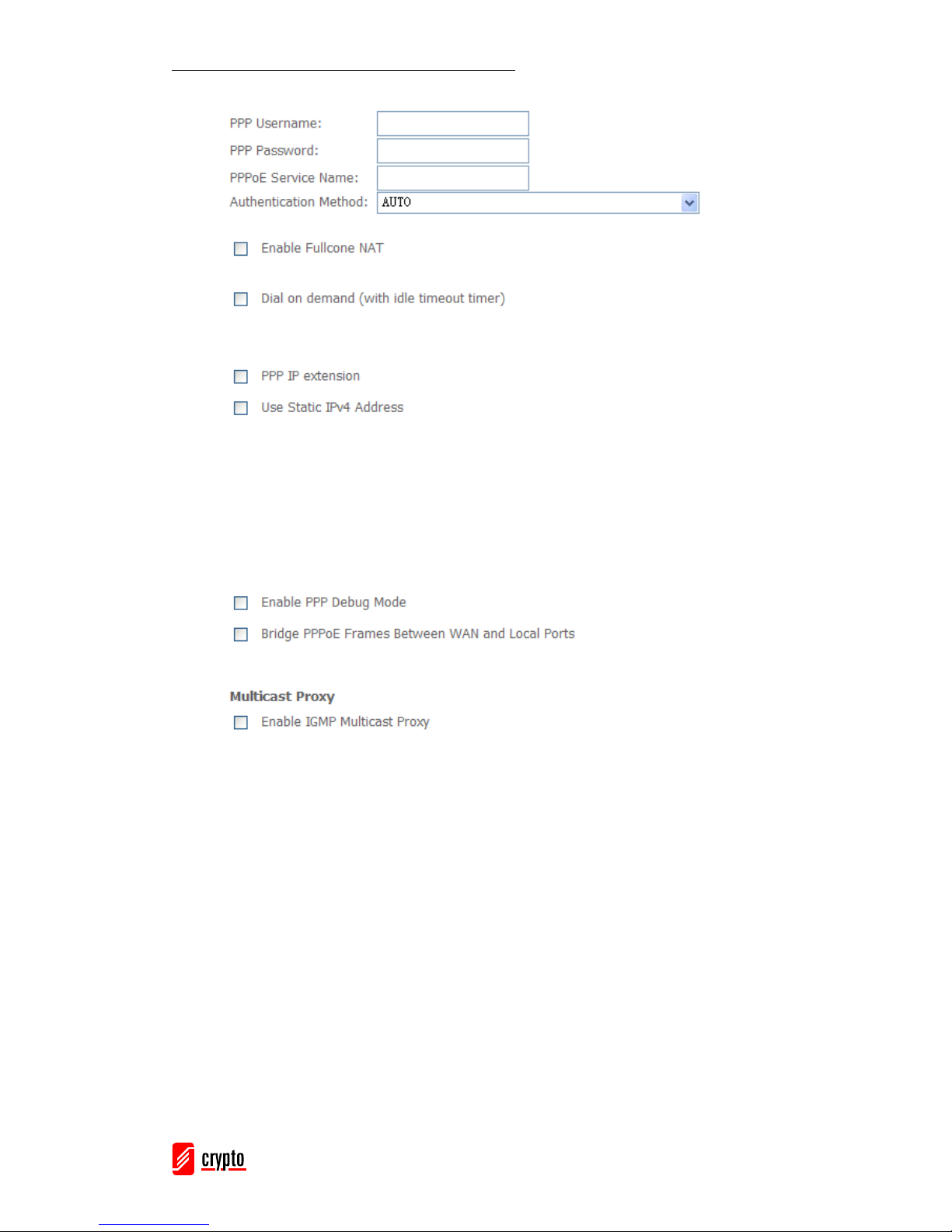

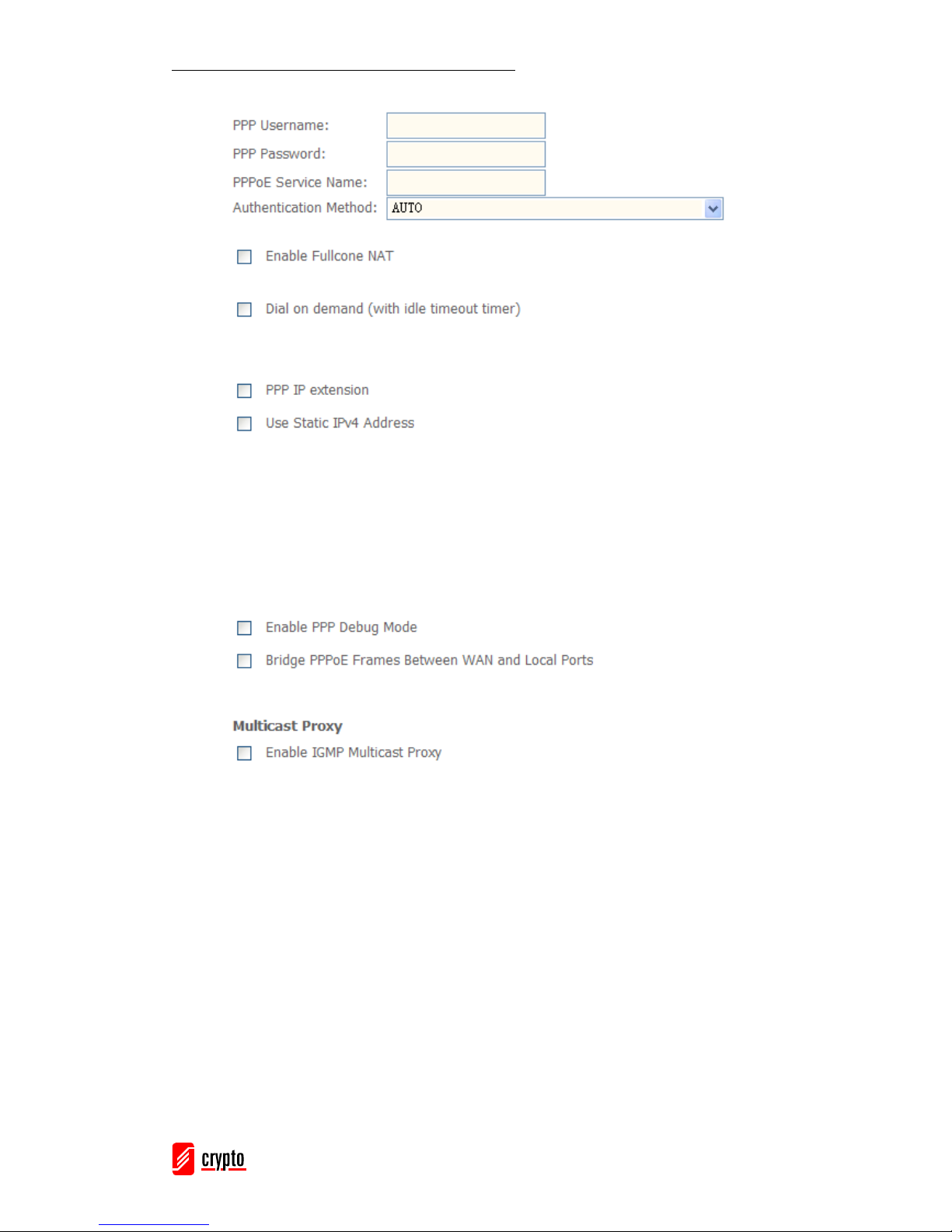

3. Input PPP Username & PPP Password and then click Next. The user interface allows a maximum of 256 characters in the user name and a maximum of 32 characters in the password.

WF250 802.11n Wireless ADSL Modem Router

PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter.

Authentication method is default to auto. It is recommended that you leave the Authentication method in Auto. However, you may select PAP or CHAP if necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you to.

Enable FullCone NAT, all requests from the same private IP address and port are mapped to the same public source IP address and port. Someone on the Internet only needs to know the mapping scheme in order to send packets to a device behind the ADSL router.

The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout. The entered value must be between 1 minute and 4320 minutes.

WF250 802.11n Wireless ADSL Modem Router

The PPP IP Extension is a special feature deployed by some service providers. Unless your service provider specifically requires this setup, do not select it. If you need to select it, the PPP IP Extension supports the following conditions:

 It allows only one computer on the LAN.  The public IP address assigned by the remote using the PPP/IPCP

protocol is actually not used on the WAN PPP interface. Instead, it is forwarded to the computer's LAN interface through DHCP. Only one system on the LAN can be connected to the remote, since the DHCP server within the ADSL gateway has only a single IP address to assign to a LAN device.

 NAPT and firewall are disabled when this option is selected.  The gateway becomes the default gateway and DNS server to the

computer through DHCP using the LAN interface IP address.

 The gateway extends the IP subnet at the remote service provider to the

LAN computer. That is, the PC becomes a host belonging to the same IP subnet.

 The ADSL gateway bridges the IP packets between WAN and LAN ports,

unless the packet is addressed to the gateway's LAN IP address.

Use static IPv4 IP address, If the ISP gave you a static IP address, select this option and enter it in the IP address field.

Bridge PPPoE Frames between WAN and Local Ports is available when you do not use PPP IP extension. If you enable this function, LAN hosts can use PPPoE client software on their computers to connect to the ISP. Each host can have a separate account and a public WAN IP address.

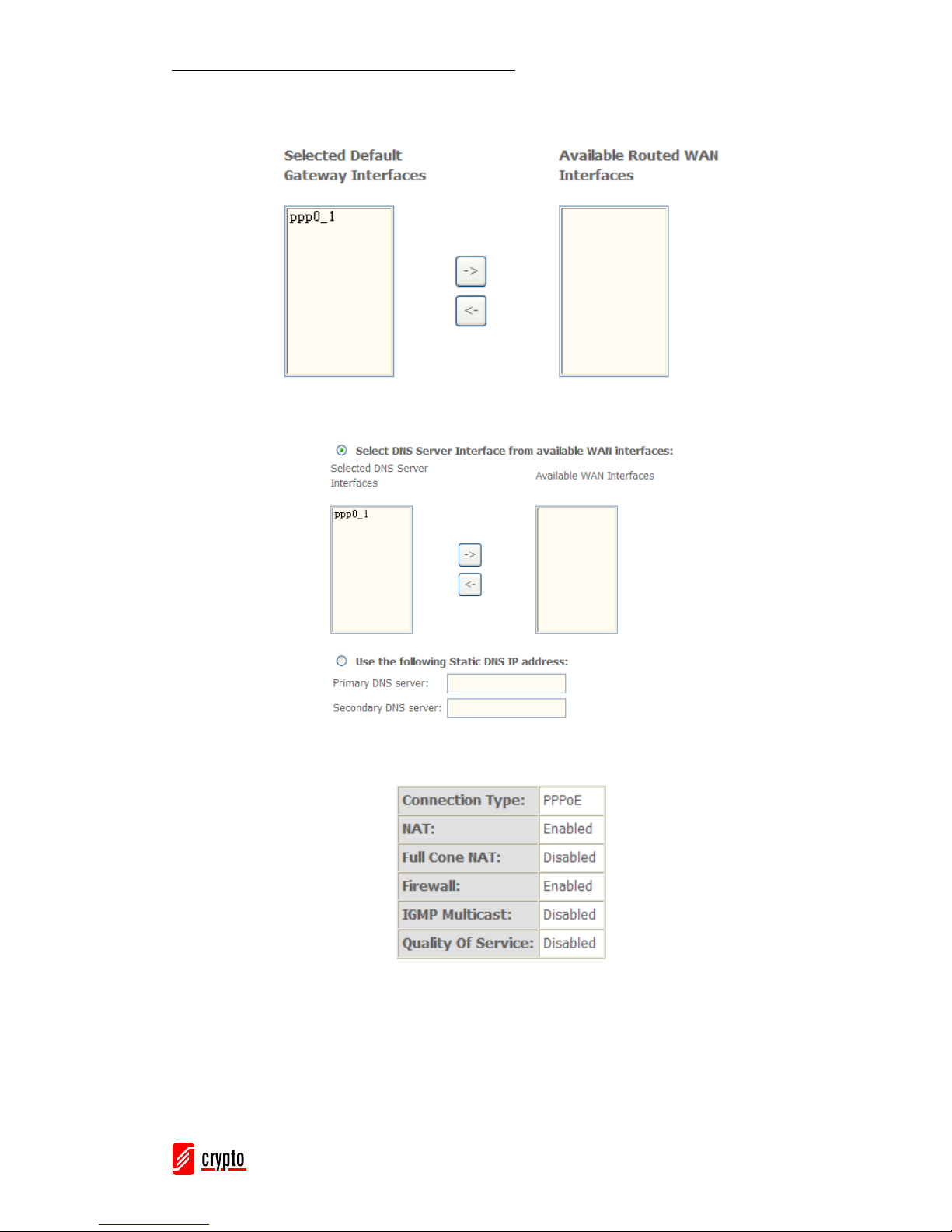

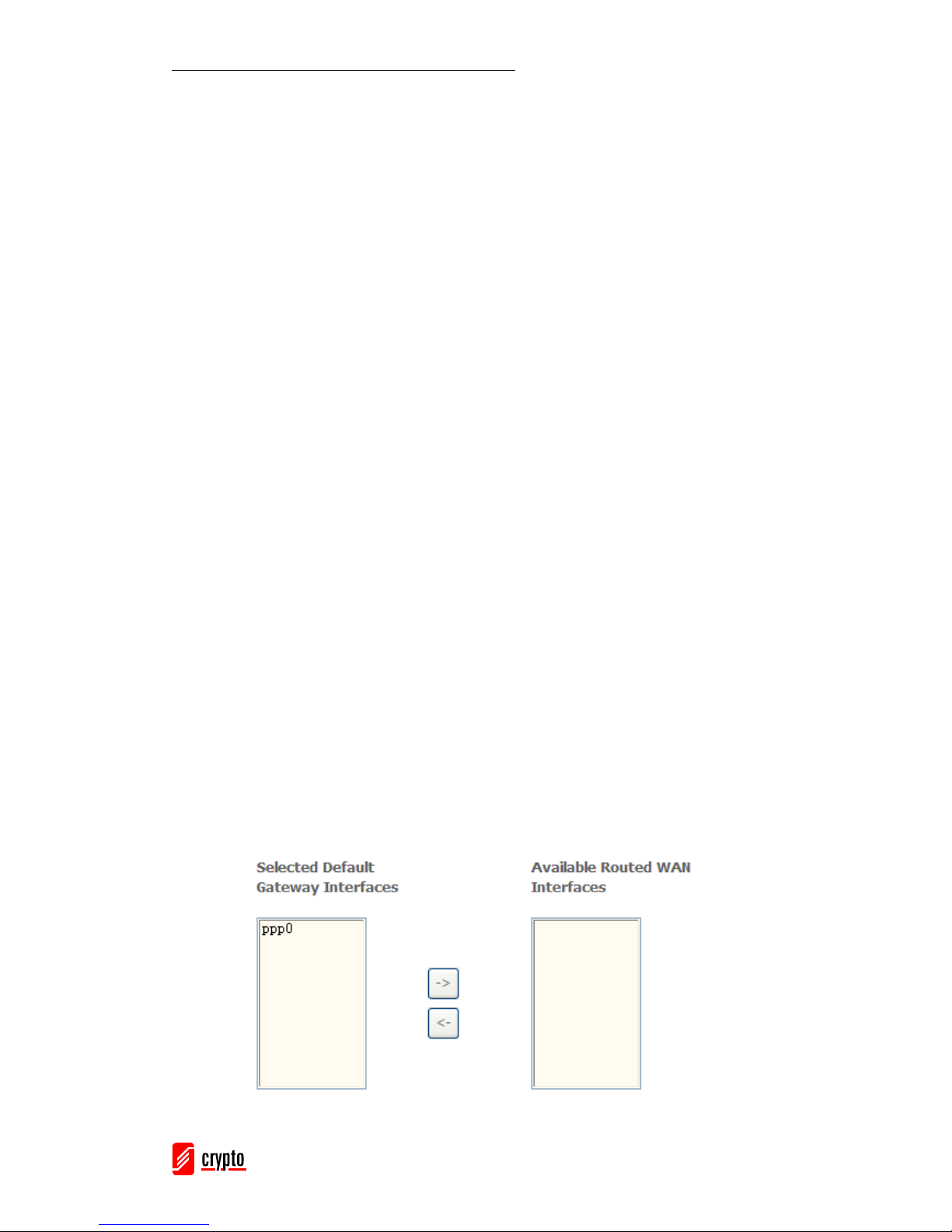

4. Select a preferred wan interface as the system default gateway.

WF250 802.11n Wireless ADSL Modem Router

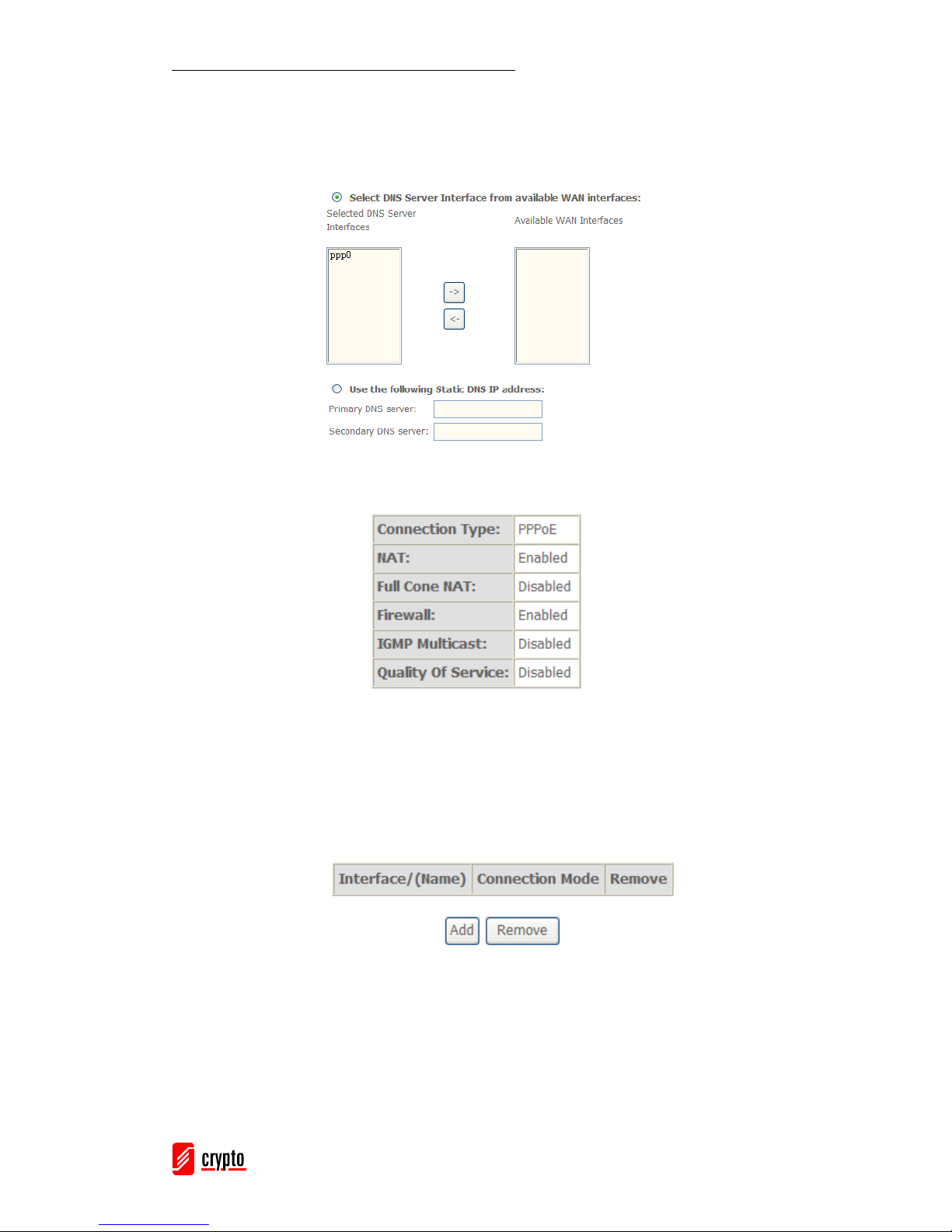

5. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. If only a single PVC with IPoA or static MER protocol is configured, you must enter static DNS server IP addresses.

Make sure that the settings above match the settings provided by your ISP.

Click on the Apply/Save button to save your configurations.

5.1.3 Router Mode Setup

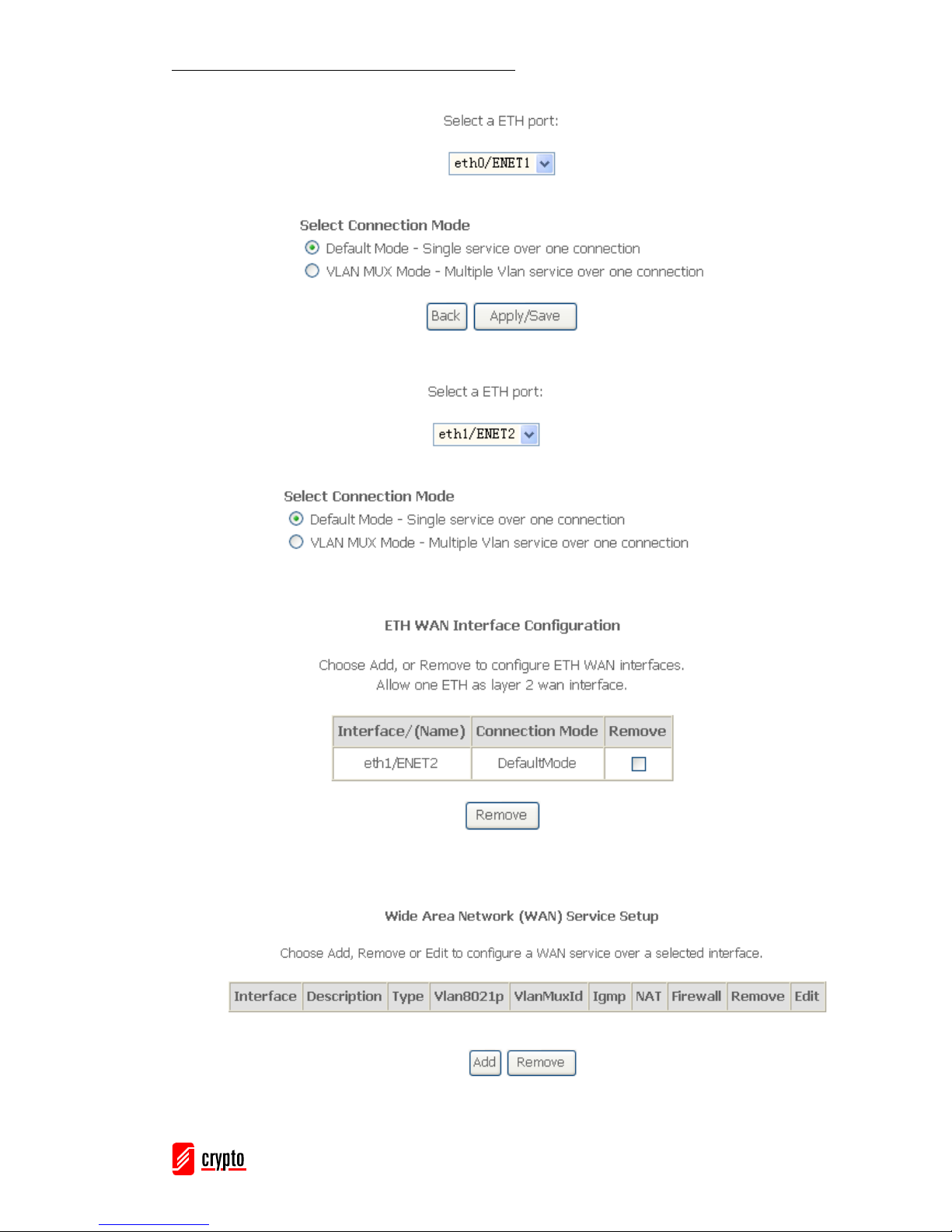

1. From Advanced Setup, click Layer2 Interface and select ETH Interface. Before you configure ETH WAN interface, you’d better remove all PVC settings from ATM interface.

2. Click Add and you’ll see the following screen.

WF250 802.11n Wireless ADSL Modem Router

3. Select an ETH port as you will. You can select ENET1, ENET2, ENET3 or ENET4 port as the WAN interface and Default Mode as connection mode.

4. Click Apply/Save and you’ll see the following screen.

5. From Advanced Setup, click WAN Service to configure a WAN service over the interface you selected.

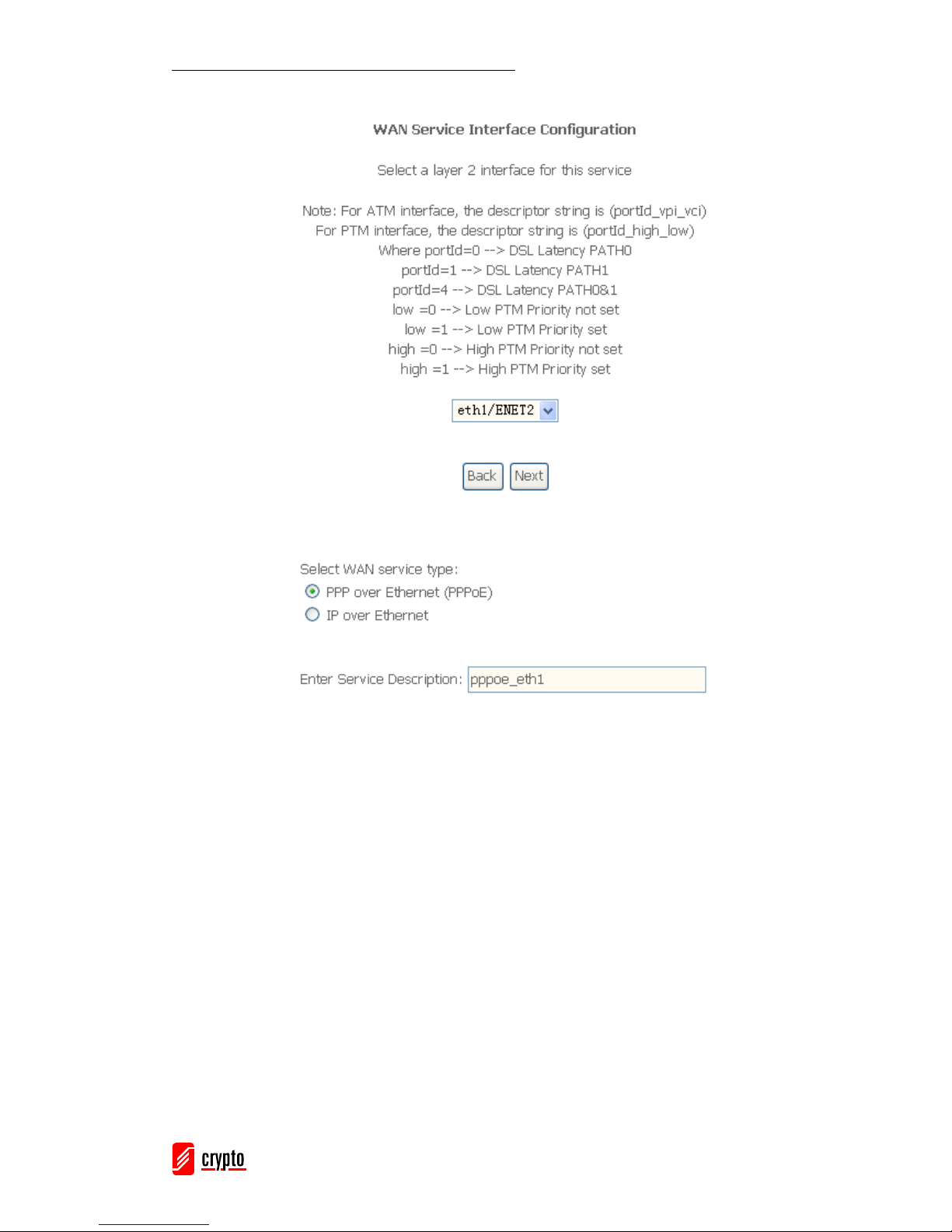

6. Click Add and you’ll see the following screen.

WF250 802.11n Wireless ADSL Modem Router

7. Click Next and you’ll see the following screen. Select PPPoE as WAN service type for example. Click Next.

8. Enter the user name and password that your ISP has provided to you. Click Next.

WF250 802.11n Wireless ADSL Modem Router

PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you to. The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout. The entered value must be between 1 minute and 4320 minutes.

WF250 802.11n Wireless ADSL Modem Router

• It allows only one computer on the LAN.

• The public IP address assigned by the remote using the PPP/IPCP

• NAPT and firewall are disabled when this option is selected.

• The gateway becomes the default gateway and DNS server to the

computer through DHCP using the LAN interface IP address.

• The gateway extends the IP subnet at the remote service provider to the

LAN computer. That is, the PC becomes a host belonging to the same IP subnet.

• The ADSL gateway bridges the IP packets between WAN and LAN ports,

unless the packet is addressed to the gateway's LAN IP address.

WF250 802.11n Wireless ADSL Modem Router

9. Select WAN interface as the system default gateway. Click Next.

10. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. Click Next.

11. Make sure that the settings above match the settings provided by your ISP.

Click on the Apply/Save button to save your configurations and reboot the ADSL router.

WF250 802.11n Wireless ADSL Modem Router

5.2 LAN

There are the IP settings of the LAN Interface for the device. These settings may be referred to as Private settings. You may change the LAN IP address if needed. The LAN IP address is provided to your internal network and cannot be seen on the Internet. From LAN you can configure the DSL Router’s IP Address and Subnet Mask for LAN interface. In this page, you can use DHCP (Dynamic Host Configuration Protocol) to control the assignment of IP addresses on your local network (LAN only).

Item Description IP address

This is the IP address that other devices on your local network will use to connect to the modem.

Subnet mask

This defines the size of your network. The default is

255.255.255.0.

Enable IGMP snooping

IGMP Snooping is a method that actually “snoops” or inspects IGMP traffic on a switch. When enabled, the switch will watch for IGMP messages passed between a host and a router, and will add the necessary ports to its multicast table, ensuring that only the ports that require a given multicast stream actually receive it. Use standard mode to flood unknown multicast traffic. Use blocking mode to discard unknown multicast traffic.

Disable / Enable DHCP server

The DHCP server assigns an IP addresses from a pre-set pool of addresses upon request from DHCP client (e.g. your computer). Do not disable the DHCP server unless you wish to let another device handle IP address issuance on the local network.

WF250 802.11n Wireless ADSL Modem Router

Start / end IP address

This is the beginning and ending range for the DHCP server addresses.

Leased time

The amount of time before the IP address is refreshed by the DHCP server.

Configure the second IP address and...

Select this option to let the device use a second IP address on the LAN interface. You can also use this second IP address to access the device for management. Enter the LAN IP address of your device in dotted decimal notation, for example, 10.0.0.1. Type the subnet mask.

Note: If you want to cancel all modification that you do on the Router, please select from “ManagementÖSettingÖRestore Default Settings” to restore factory default settings.

WF250 802.11n Wireless ADSL Modem Router

6. Menu Description

6.1 Device Info

This menu with all its submenus provides important information on the status of your WF250, the ADSL connection with your ISP and your LAN.

6.1.1 Summary

All the parameters shown in this page are the factory default settings. You can see the manufacturing identification number of the device, the current firmware version, as well as information on the device IP, gateway and DNS server.

6.1.2 WAN

You can view information on the WAN connection

6.1.3 Statistics

Click on this menu item to open the statistics submenu: “Device infoÖStatistics”: You can see Receive and Transmit statistics for the LAN, WAN, ATM and ADSL connection. Click “Reset Statistics” if you want to restart gathering information from a specific point in time.

6.1.4 Route

Click on “Device infoÖRoute” to see the rooting table used by the F360 to root the network data.

6.1.5 ARP Click on “Device infoÖARP” to see the MAC address resolution table.

6.1.6 DHCP

The “Device infoÖDHCP” submenu shows the DHCP assignments table. You can see the DHCP clients connected and the IP addresses assigned to them.

WF250 802.11n Wireless ADSL Modem Router

6.2 Advance Setup

Through the advanced setup you can configure your ADSL connection, use all the available features of the F360 and fine tune the performance of your network.

6.2.1 Layer2 Interface

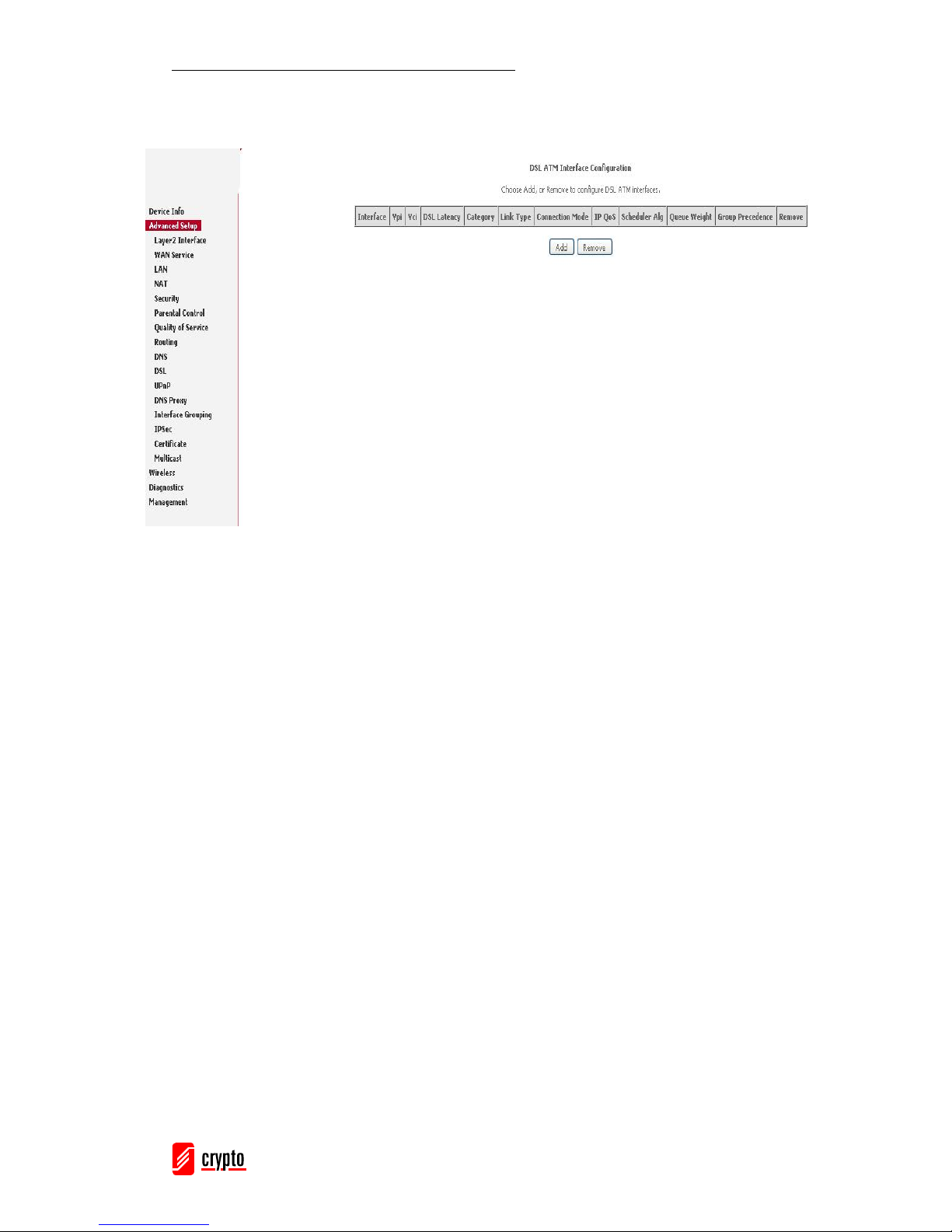

From the Layer2 interface menu you can configure the ATM interface as long as the ETH interfaces. Refer to the above chapters of this manual for more detailed information

6.2.2 WAN

You see a set of connections already created in the WAN page. Click ‘Add” to add a new connection. If you want to delete an existing connection, tick the box on the “Remove” column and press “Remove”.

6.2.3 LAN

From this page you can control all the LAN related features. You can change your routers’ IP address and Subnet Mask, you can enable or disable the DHCP server and of course specify the IP range, when the DHCP server is enabled. By default, your Gateway has DHCP server (LAN side) enabled. If you already have a DHCP server running on your network, you must disable one of the two DHCP servers.

WF250 802.11n Wireless ADSL Modem Router

6.2.4 NAT

The virtual server feature, allows you to use your WF250 in order to open ports for specific IP clients and applications. This way, you may have a PC running an ftp server and configure the router in order for this ftp server to be visible from the Internet, i.e. in order for the outside user to be able to go through the NAT and access the data or applications in a specific LAN client of the WF250. Click ‘Add” to add a new rule. If you want to delete an existing rule, tick the box on the “Remove” column and press “Remove”.

Sometimes some applications require communication through specific ports. This page lets you open these ports in order to use these applications with your WF250 Router. Click ‘Add” to add a new rule. If you want to delete an existing rule, tick the box on the “Remove” column and press “Remove”.

• DMZ

When a firewall is active, anonymous Internet traffic is blocked. Using the DMZ feature, you can redirect this traffic to a dedicated computer on your local network (DMZ). Setting a computer (on your local network) as a DMZ, forwards any network traffic that is not redirected to another computer via the port-forwarding feature to the computer's IP address. This opens the access to the DMZ computer from the Internet.

Once you finish making the changes you need, go to ManagementÖSave/Reboot” and click the “Reboot” button to restart the WF250.

6.2.5 Security

This feature allows you to configure network access based on a user's computer IP address. By default all outgoing IP traffic is enabled and all incoming IP traffic is blocked. However, you can change this setup in order to use your WF250 for specific applications. Click ‘Add” to add a new rule. If you want to delete an existing rule, tick the box on the “Remove” column and press “Remove”.

An additional security feature is called MAC filtering. Every network device has a unique identification code, called MAC address. You can specify which MAC addresses you wish to block or which addresses you need to allow access to the WF250 modem / router. This way you can add another level of security to your network. Click ‘Add” to add a new rule. If you want to delete an existing rule, tick the box on the “Remove” column and press “Remove”.

WF250 802.11n Wireless ADSL Modem Router

• Remote Access

When the firewall is enabled on a WAN or LAN interface, all incoming IP traffic is BLOCKED. However, some IP traffic can be ACCEPTED by setting up filters.

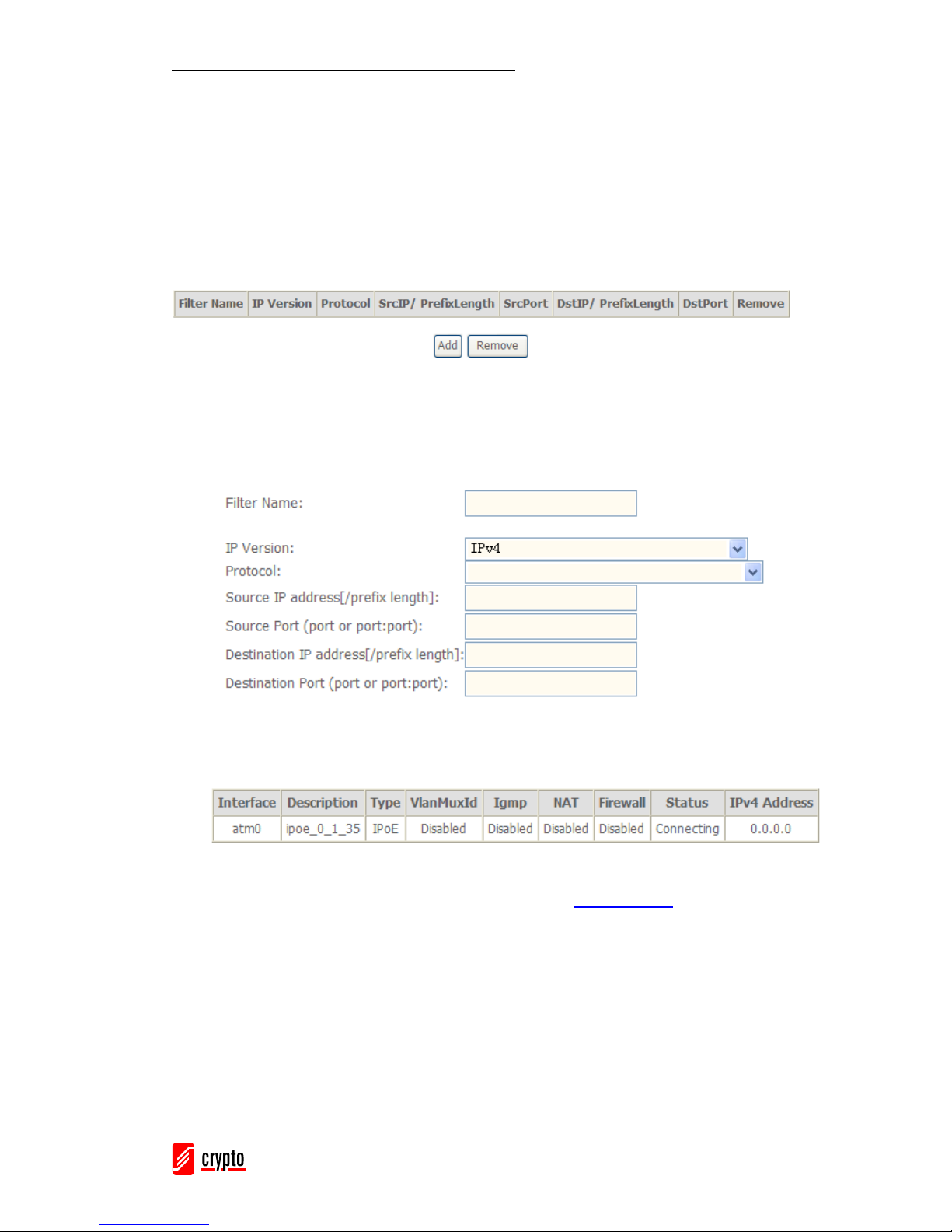

1. Select Advanced Setup=>Security=>IP Filtering=>Incoming and Choose Add or Remove to configure incoming IP filters.

2. Click Add to add rules. If you want to do remote ping test, please select protocol as ICMP; if you want to do Http or Telnet test, please select protocol as TCP/UDP. If you want only Http remote access, you can set destination port as 80; If you want only Telnet remote access, you can set destination port as 23; If you want both, you can set destination port as blank.

3. Click Apply/Save and select Device Info=>WAN. You can see the IP address of WAN interface

4.Now you can access the ADSL router remotely using username support and password support. You can input http://x.x.x.x/ for Http and input telnet x.x.x.x for Telnet.

WF250 802.11n Wireless ADSL Modem Router

6.2.6 Parental Control

The Parental Control is a unique feature of the WF250. You can restrict the access of a specific LAN client to the Internet. You can even arrange this blocking to be scheduled on a daily basis. Click ‘Add” to add a new rule. If you want to delete an existing rule, tick the box on the “Remove” column and press “Remove”.

6.2.7 Quality of service

Enable the QoS service QoS (Quality of Service). This option will provide better service of selected network traffic over various technologies. Deploying QoS management to guarantee that all application receive the service levels required and sufficient bandwidth to meet performance expectations is indeed one important aspect of modem enterprise network.

• QoS Queue Setup

In ATM mode, maximum 16 queues can be configured. In PTM mode, maximum 8 queues can be configured. For each Ethernet interface, maximum 4 queues can be configured. If you disable WMM function in Wireless Page, queues related to wireless will not take effects

• QoS Classification Setup

A maximum 32 entries can be configured. Choose Add or Remove to configure network traffic classes. If you disable WMM function in Wireless Page, classification related to wireless will not take effects

6.2.8 Routing

This page allows you to enable or disable the ‘Automatically Assigned Default Gateway” feature. In addition, you can use Static Routing if you wish (32 Entries Max).

If the Gateway is connected to more than one network, you may need to set up a static route between them. A static route is a pre-defined path that network information must take, in order to reach a specific host or network. You can use static routing to allow different IP domain users to access the Internet through the Gateway.

Click ‘Add” to add a new rule. If you want to delete an existing rule, tick the box on the “Remove” column and press “Remove”.

6.2.9 DNS

This page lets you change your DNS settings. You can choose to enable or disable the “Automatic DNS” feature, or you can enable the DDNS service for your Network.

Click ‘Add” to add a new rule. If you want to delete an existing rule, tick the box on the “Remove” column and press “Remove”.

WF250 802.11n Wireless ADSL Modem Router

6.2.10 DSL

The ADSL modem can be configured to fit the needs of any kind of ADSL link.

6.2.11 UPNP

From this menu you can enable the UPNP service. Universal Plug and Play is a standard that uses Internet and Web protocols to enable devices such as PCs, peripherals, intelligent appliances, and wireless devices to be plugged into a network and automatically know about each other. This protocol is used to enable simple and robust connectivity among stand-alone devices and PCs.

6.2.12 DNS Proxy

From this menu you can enable the DNS proxy service.

6.2.13 Interface Grouping

Interface Grouping supports multiple ports to PVC and bridging groups. Each group will perform as an independent network. To support this feature, you must create mapping groups with appropriate LAN and WAN interfaces using the Add button. The Remove button will remove the grouping and add the ungrouped interfaces to the Default group. Only the default group has IP interface.

6.2.14 IPSec

From this page you can Add, remove or enable/disable IPSec tunnel connections

6.2.15 Certificate

From this page you can Add, View or Remove certificates. Local certificates are used by peers to verify your identity. Maximum 4 certificates can be stored.

6.2.16 Multicast

Modify the IGMP protocol settings.

WF250 802.11n Wireless ADSL Modem Router

6.3 Wireless

6.3.1 Basic

Option Description Enable

wireless

A check box that enables or disables the wireless LAN interfaces. The default is to enable wireless communications.

Hide Access Point

Select Hide Access Point to protect the ADSL route access point from detection by wireless active scans. If you do not want the access point to be automatically detected by a wireless station, this checkbox should be deselected.

Clients isolation

Enable this item if you don’t want your wireless clients to communicate with each other.

Network

Enter a name for user’s wireless network here. SSID stands for Service

WF250 802.11n Wireless ADSL Modem Router

name (SSID)

Set Identifier. This name must be between 1 and 32 characters long. The default name is WLAN.All wireless clients must either detect the gateway or be configured with the correct SSID to access the Internet.

BSSID

Displays the gateway's wireless MAC address. (User may need this address if user is using WDS or multiple gateways.) Click Apply to save changes.

Country

Drop-down menu that allows selection of specific channel.

6.3.2 Security

This page allows you to configure security features of the wireless LAN interface. You may set up configuration manually or through WiFi Protected Setup(WPS)

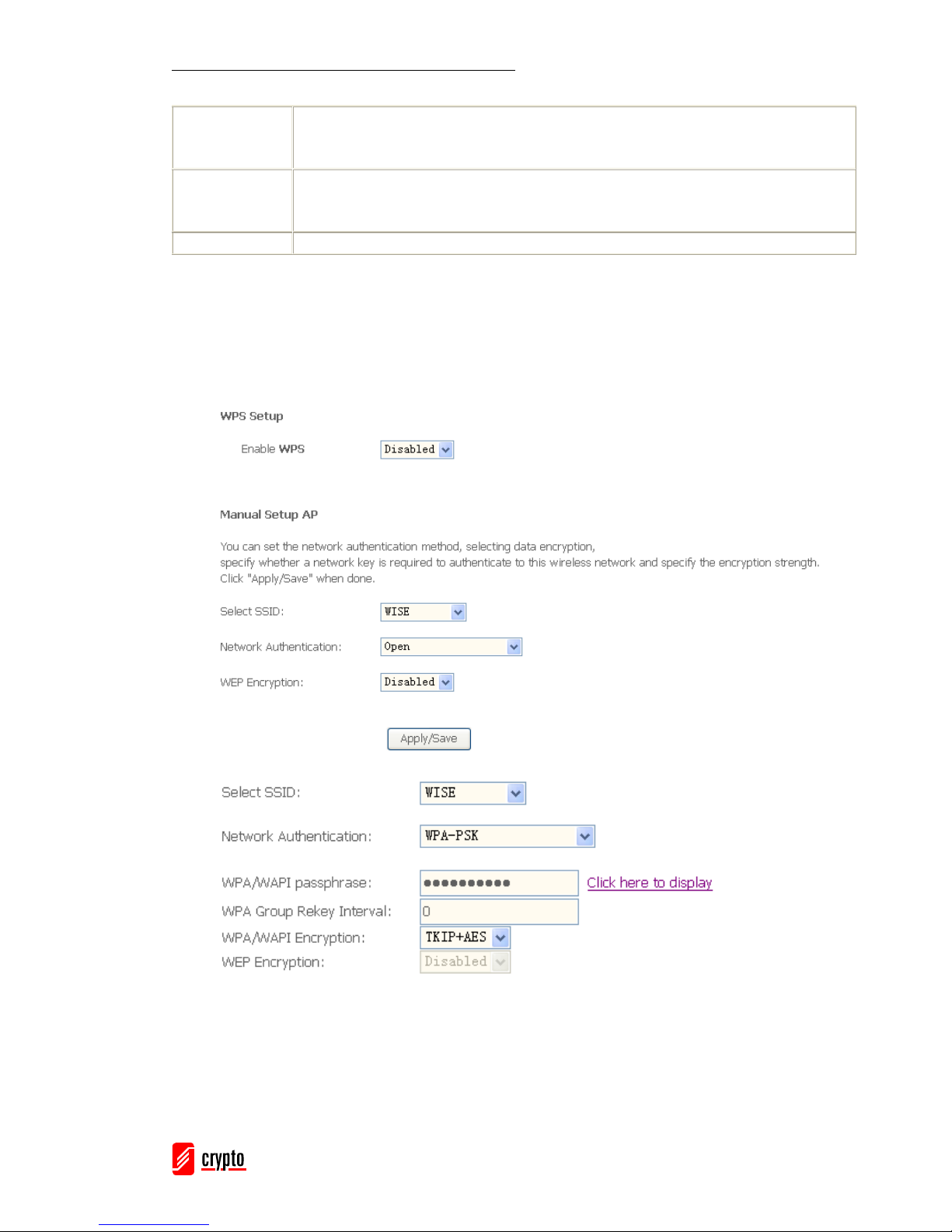

1. Click Security of Wireless item and you’ll see the following page.

2. Configure WPA Pre-shared key as below and click Apply/Save.

WF250 802.11n Wireless ADSL Modem Router

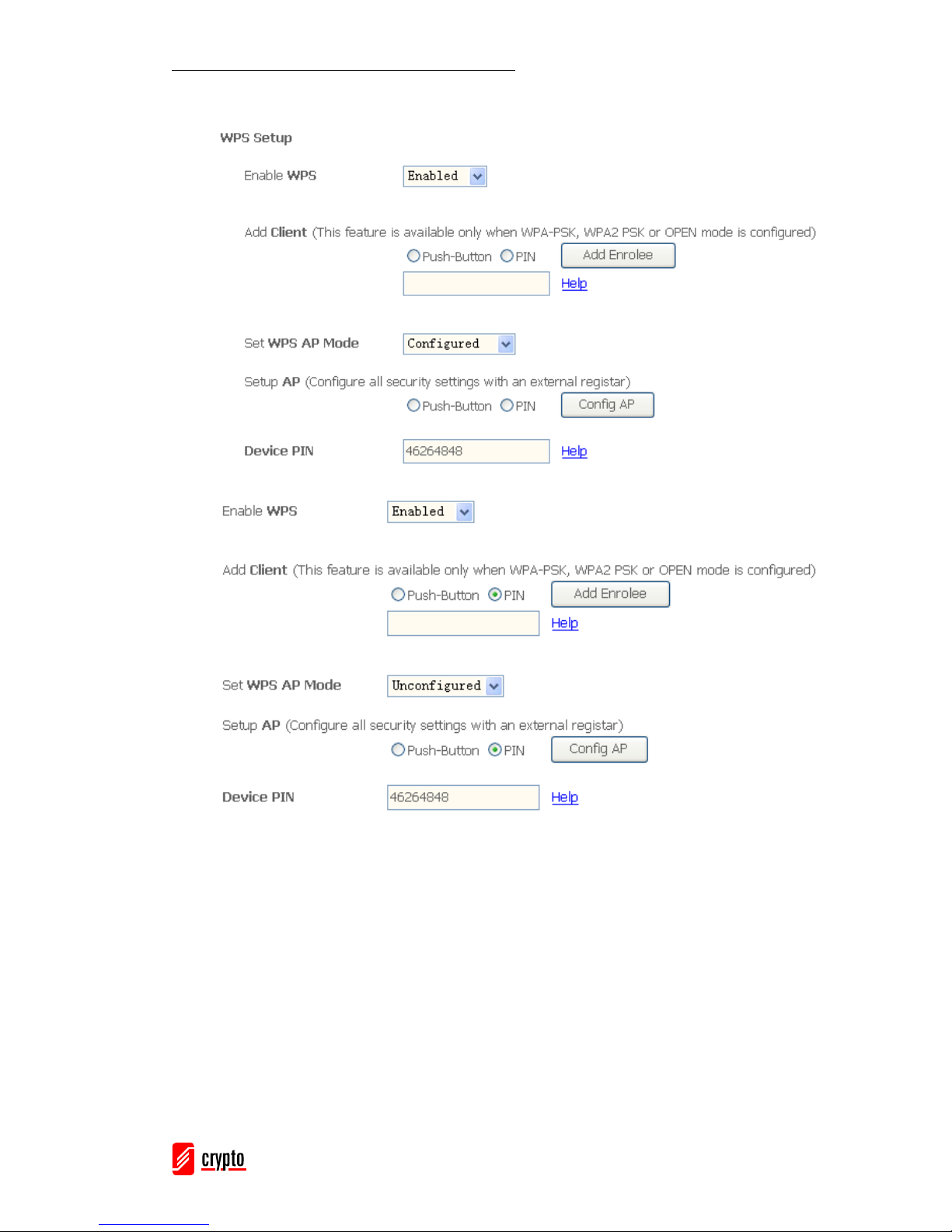

3. Enable WPS as below.

4. Set WPS AP mode as unconfigured and click Config AP.

5. Set WPS AP mode as configured and click Save/Apply.

6. Now you can use a wireless adaptor with WPS function and the WPS button to connect WF250 to access the Internet.

7. To configure security features for the Wireless interface, please open Security item from Wireless menu. This web page offers nine authentication protocols for user to secure user’s data while connecting to networks. There are four selections including Open, Shared, 802.1X, WPA, WPA-PSK, WPA2, WPA2-PSK, Mixed WPA-WPA2, Mixed WPA-WPA2-PSK.

WF250 802.11n Wireless ADSL Modem Router

There are several security methods to choose from, depending on user’s

needs and the capabilities of user’s wireless machines.

 WEP open and WEP shared —WEP is an encryption scheme that is used

to protect user’s wireless data communications. WEP uses a combination of 64-bit keys or 128-bit keys to provide access control to user’s network and encryption security for every data transmission. To decode a data transmission, each wireless client on the network must use an identical 64bit or 128-bit key. WEP is an older wireless encryption method that is not as hard to break as the more-recent WPA.

 802.1x — In 802.1x (also known as RADIUS), a separate machine called

an authentication server receives a user ID and password. It grants or denies access based on whether the ID and password match any entries in its account list. User can optionally enable WEP encryption with this option. Because it requires a separate machine acting as the authentication server, 802.1x is most often used in business environments.

 WPA — WPA is a more recent encryption method that addresses many of

the weaknesses in WEP. Any client capable of WPA encryption should use it instead of WEP.

 WPA (PSK) — This is WPA encryption combined with a pre-shared key

(PSK), which is a text string known only to the gateway and authorized

wireless clients. The gateway rejects the login if the client's PSK does not match.

WF250 802.11n Wireless ADSL Modem Router

 WPA2 — WPA2 is a more advanced encryption method than WPA.

Because it is a more recent standard, some of user’s wireless devices might not be able to use it.

 WPA2 (PSK) — This option uses WPA2 with a pre-shared key.  WPA2 and WPA — This option supports WPA2/WPA encryption for

devices capable of one or the other standard. The gateway automatically detects whether a particular device can use WPA2 or WPA.

 WPA2 AND WPA (PSK) — This has WPA2 or WPA encryption based on

client abilities, as well as a pre-shared key.

After making changes, click Apply to save.

6.3.3 Mac Filter

You can allow or deny a list of MAC addresses associated with the wireless stations access to the ADSL Router.

6.3.4 Wireless Bridge

This page allows you to configure wireless bridge features of the wireless LAN interface. You can select Wireless Bridge (also known as Wireless Distribution System) to disable access point functionality. Selecting Access Point enables access point functionality. Wireless bridge functionality will still be available and wireless stations will be able to associate to the AP. Select Disabled in Bridge Restrict which disables wireless bridge restriction. Any wireless bridge will be granted access. Selecting Enabled or Enabled (Scan) enables wireless bridge restriction. Only those bridges selected in Remote Bridges will be granted access. Click "Refresh" to update the remote bridges. Wait for few seconds to update. Click "Apply/Save" to configure the wireless bridge options.

WF250 802.11n Wireless ADSL Modem Router

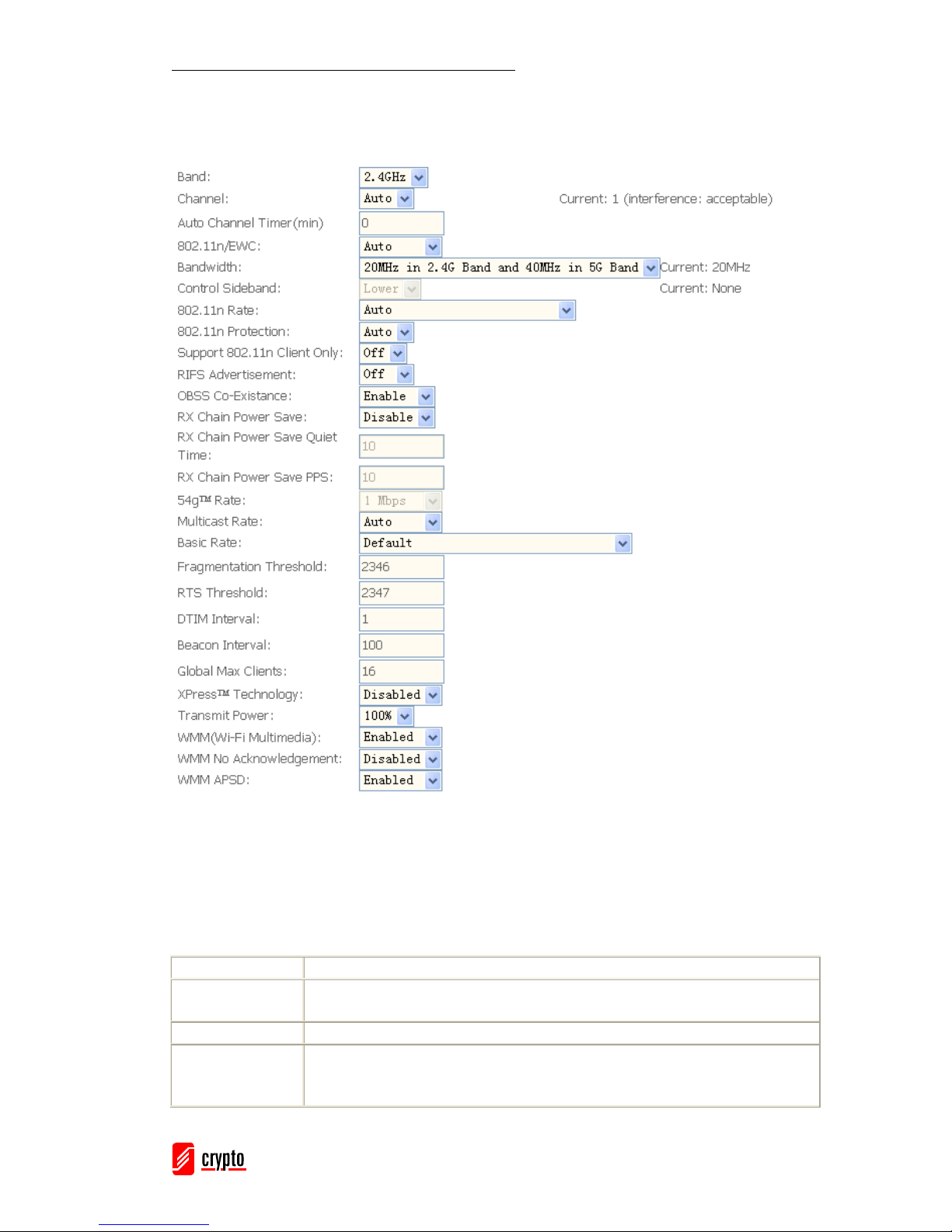

6.3.5 Advanced Settings

This page is where user specifies a number of advanced settings for wireless communications.

Note: After making any changes, click Apply to save.

Warning: The settings shown above are default settings. Changes made to

these items can cause wireless communication problems.

Field Description Band

This is the range of frequencies the gateway will use to communicate with user’s wireless devices.

Channel

Drop-down menu that allows selection of specific channel.

54g

Rate

This drop-down list lets user specify the wireless communication rate, which can be Auto (uses the highest rate when possible, or else a lower rate) or a fixed rate between 1 and 54 Mbps.

WF250 802.11n Wireless ADSL Modem Router

Multicast rate

This drop-down list lets user specify the wireless communication rate for multicast packets, which are sent to more than one destination at a time. The value can be Auto (uses the highest rate when possible, or else a lower rate) or a fixed rate between 1 and 54 Mbps.

Basic rate

User has the option of supporting all rates listed in Rate above or using the 1-, 2-Mbps rates, which support only older 802.11b implementations.

Fragmentation threshold

A threshold, specified in bytes, that determines whether packets will be fragmented and at what size. On an 802.11 connection, packets that are larger the fragmentation threshold are split into smaller units suitable for the circuit size. Packets smaller than the specified fragmentation threshold value are not fragmented.

Enter a value between 256 and 2346. If you experience a high packet error rate, try to increase this value slightly. Setting the fragmentation threshold too low may result in poor performance.

RTS threshold

This is number of bytes in the packet size beyond which the gateway invokes its RTS/CTS (request to send, clear to send) mechanism. Packets larger than this threshold trigger the RTS/CTS mechanism, while the gateway transmits smaller packets without using RTS/CTS. The default setting of 2347, which is the maximum, disables the RTS threshold mechanism.

DTIM interval

A delivery traffic indication message (DTIM), also known as a beacon, is a countdown informing wireless clients of the next window for listening to broadcast and multicast messages. When the gateway has broadcast or multicast messages for its clients, it sends its next DTIM message with this DTIM interval value. The clients hear the beacons and awaken as needed to receive the broadcast and multicast messages.

Beacon interval

The amount of time (in milliseconds) between beacon transmissions, each of which identifies the presence of an access point. By default, wireless clients passively scan all radio channels, listening for beacons coming from access points. Before a client enters power-save mode, it needs the beacon interval to determine when to wake up for the next beacon (and learn whether the access point has any messages for it). User can enter any value between 1 and 65535, but the recommended range is 1 - 1000.

XPress™ Technology

XPress™ Technology is a feature in which two of our devices

can communicate with each other at twice the normal rate. 54g+ is a technology that achieves higher throughput with frame-

bursting. With 54g+ enabled, aggregate throughput (the sum of the individual throughput of each network client) improves by up to 25% in 802.11g-only networks, and up to 75% in mixed networks containing both 802.11g and 802.11b equipment.

WF250 802.11n Wireless ADSL Modem Router

6.3.6 Station Info

This page shows authenticated wireless stations and their status.

WF250 802.11n Wireless ADSL Modem Router

Refer to section 5.3 for more information

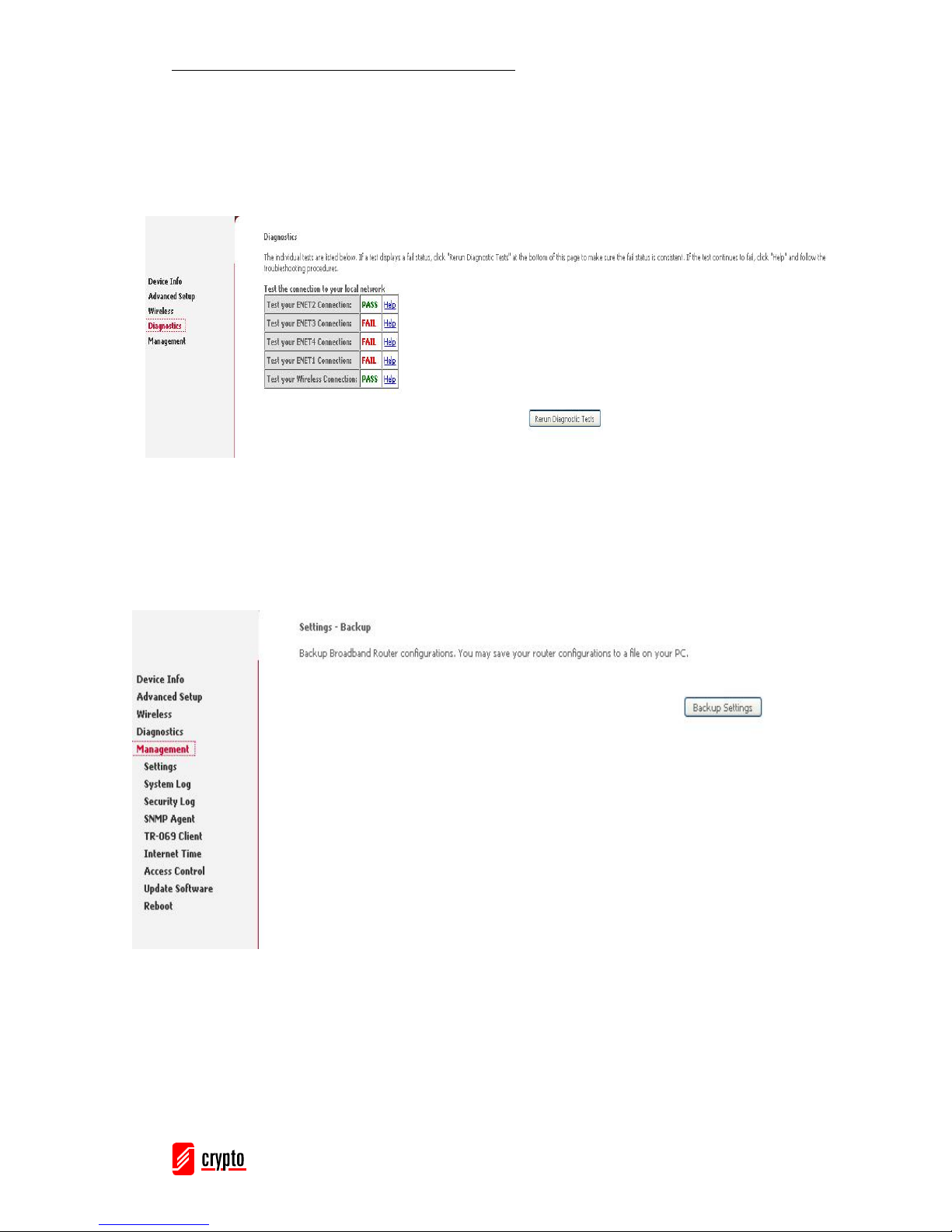

6.4 Diagnostics

Select “Diagnostics” from the menu to display the diagnostics page. WF250 will perform diagnostics tests to your local connections (Ethernet connection to PC etc) and the connection to your ISP. Results (PASS, FAIL) will be displayed.

6.5 Management

Select “Management” to enter the Management submenu. Through this submenu you can:

• backup and restore the WF250 settings

• check the system log

• SNMP agent

WF250 802.11n Wireless ADSL Modem Router

• TR-069 client

• allow or restrict access to individual users,

• update the WF250 with new firmware and reboot the WF250.

6.5.1 Settings

• Backup Settings: Select “SettingsÖBackup” to enter the Backup Page.

• Update Settings: Select “SettingsÖUpdate” to enter the Update Page.

Click “Browse" and you will be prompted to select a previous backup file.(See "Backup Settings"). Click “Update Settings” to restore the selected file.

• Restore Default Settings: Select “SettingsÖUpdate” to enter the Restore

Default Settings Page. Click the "Restore Default Settings" button to restore the F360 settings to the factory default settings.

6.5.2 System Log

Select “ManagementÖSystem Log” to enter the System Log Page. Click "View System Log" to view System Log information.

Click “Configure System Log" to configure the type of information that you want to be logged by the system. The Log Configuration Page will open

You can enable or disable system logging, as well as the log level, the display level and mode by selecting from available choices.

6.5.3 Security Log

The Security Log dialog allows you to view the Security Log and configure the Security Log options.

6.5.4 SNMP Agent

SNMP (Simple Network Management Protocol) has been widely applied in the computer networks currently, which is used for ensuring the transmission of the management information between any two nodes. In this way, network administrators can easily search and modify the information on any node on the network. Meanwhile, they can locate faults promptly and implement the fault diagnosis, capacity planning and report generating. An SNMP Agent is an application running on the Router that performs the operational role of receiving and processing SNMP messages, sending responses to the SNMP manager, and sending traps when an event occurs. So a Router contains SNMP "agent" software can be monitored and/or controlled by SNMP Manager using SNMP messages.

WF250 802.11n Wireless ADSL Modem Router

SNMP Agent You can select the checkbox to disable or enable the function. Note: SNMP Community string provides a simple method of authentication between the Router (SNMP Agent) and a remote network manager (SNMP Manager). You can specify the community string as the password to authenticate the management station to the Router.

• Read Community: This field allows you to specify the SNMP Community

string which provides read-only access to the Router that the community is only permitted to read the device configuration. The default value is “public”.

• Set Community: This field allows you to specify the SNMP Community

string which provides read and write access to the Router that the community has the authority to read and change the device configuration. The default value is “public”.

• System Name: Enter alphanumeric string to specify an SNMP community

string name. Your Router (SNMP agents) will expose management data on the managed systems as this "system name".

• System Location: The person to notify when problems occur.

• System contact: The location of the person that is identified as the

system contact.

• Trap Manager IP: Enter the IP address of the SNMP Managerwhere the

SNMP Agent forwards trap notifications. Select the desired values and click Save/Apply to configure the SNMP options

6.5.5 TR-069 Client

WAN Management Protocol (TR-069) allows a Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device. As a bidirectional SOAP

/HTTP based protocol it provides the communication between CPE and Auto Configuration Servers (ACS). It includes both a safe auto configuration and the control of other CPE management functions within an integrated framework. In the course of the boom of the broadband market, the number of different Internet access possibilities grew as well (e.g.

modems, routers, gateways, Set-top box, paddles, VoIP-phones). At the same

WF250 802.11n Wireless ADSL Modem Router

time the configuration of this equipment became more complicated -- too complicated for the end-users. For this reason the TR-069 standard was developed. It provides the possibility of auto configuration of these access types. The technical specifications are managed and published by the DSL

Forum. Using TR-069 the terminals can get in contact with the Auto

Configuration Servers (ACS) and establish the configuration automatically. Accordingly other service functions can be provided. TR-069 is the current standard for activation of terminals in the range of DSL broadband market.

• Inform: Whether or not the CPE must periodically send CPE information to

Server using the Inform method call.

• Inform Interval: The duration in seconds of the interval for which the CPE

MUST attempt to connect with the ACS and call the Inform method if Inform is enabled.

• ACS URL: URL for the CPE to connect to the ACS using the CPE WAN

Management Protocol.

• ACS User Name: Username used to authenticate an ACS making a

Connection Request to the CPE.

WF250 802.11n Wireless ADSL Modem Router

• ACS Password: Password used to authenticate an ACS making a

Connection Request to the CPE. When read, this parameter returns an empty string, regardless of the actual value.

• WAN Interface used by TR-069 client: Remember to choose the

interface of PVC used for TR069

• Connection Request User Name: Username used to authenticate the

CPE when making a connection to the ACS using the CPE WAN Management Protocol. This username is used only for authentication of the CPE.

• Connection Request Password: Password used to authenticate the CPE

when making a connection to the ACS using the CPE WAN Management Protocol. This password is used only for authentication of the CPE.

• GetRPCMethods: Used by a CPE or ACS to discover the set of methods

supported by the ACS or CPE it is in communicate with.

6.5.6 Internet Time

Select “ManagementÖInternet Time” to enter the Internet Time Page. You can enable or disable automatic time synchronization from available time servers. You can specify the primary and secondary time servers to be used for time synchronization and select the time zone of your location. Press “Save/Apply” to make your settings valid.

6.5.7 Access Control

Click “ManagementÖAccess Control” to open the page. You can enable or disable accessing to networking services from external users to your local LAN, or from your local network to external network. You can specify and change the passwords for the three available user accounts (admin, support, and user) that have access to the WF250. Click “Save/Apply” to set the given passwords.

6.5.8 Update Software

Click “ManagementÖUpdate Software” to open the Update Software page. Click "Browse" and select the path in your Local Drive where the new Software version is located. Click “Update Software" to initiate the software update process. It may take approximately 2 minutes for the process to finish.

6.5.9 Reboot

Click “ManagementÖReboot” to save current settings and reboot the WF250

WF250 802.11n Wireless ADSL Modem Router

7. Glossary

ADSL

asymmetric digital subscriber line. One of four DSL technologies.

DSL is designed to deliver more bandwidth downstream (from the central office to the customer site) than upstream. Downstream rates range from 1.5 to 9 Mbps, whereas upstream bandwidth ranges from 16 to 640 kbps. ADSL transmissions work at distances up to 18,000 feet (5,488 meters) over a single copper twisted pair.

ADSL2

standard that extends the capability of basic ADSL in data rates. The data rates can, in the best situation, be as high as 12 Mbit/s downstream and 1 Mbit/s upstream.

ADSL2+

A standard that extends the capability of basic ADSL by doubling the number of downstream bits. The data rates can, in the best situation, be as high as 24 Mbit/s downstream and 1 Mbit/s upstream.

Annex A

Part of the ADSL protocol that specifies ADSL services over Public Telephone Switched Networks.

Annex B

Part of the ADSL protocol that specifies ADSL services over ISDN Networks.

ATM

synchronous Transfer Mode. The international standard for cell relay in which multiple service types (such as voice, video, or data) are conveyed in fixed-length (53-byte) cells.

CBR

constant bit rate. QoS class defined by the ATM Forum for ATM networks. CBR is used for connections that depend on precise clocking to ensure undistorted delivery.

DDNS

Dynamic DNS. It is a system for allowing an Internet domain name to be assigned to a varying IP address. This makes it possible for other sites on the Internet to establish connections to the machine without needing to track the IP address themselves.

Default Gateway

The IP address of the device that provides access to the internet.

DHCP

Dynamic Host Configuration Protocol. Provides a mechanism for allocating IP addresses dynamically so that addresses can be reused when hosts no longer need them.

DMZ

Demilitarized Zone - A part of the network that is neither part of the internal network nor directly part of the Internet. Basically a network sitting between two networks.

DNS

Domain Name System. System used on the Internet for translating names of network nodes into addresses.

Ethernet

Baseband LAN specification invented by Xerox Corporation and developed jointly by Xerox, Intel, and Digital Equipment Corporation. Ethernet networks use CSMA/CD and run over a variety of cable types at 10 Mbps. Ethernet is similar to the IEEE 802.3 series of standards.

firewall

Router or access server, or several routers or access servers, designated as a buffer between any connected public networks and a private network. A firewall router uses access lists and other methods

WF250 802.11n Wireless ADSL Modem Router

to ensure the security of the private network.

firmware

Software set permanently or semipermanently in a device's Memory.

FTP

File Transfer Protocol. Application protocol, part of the TCP/IP protocol stack, used for transferring files between network nodes.

G.Dmt

G.DMT also known as G.992.1 is an ITU standard for ADSL using Discrete Multitone Modulation.

G.lite

G.Lite is the informal name of what is expected to be the standard way to install ADSL (Asymmetric Digital Subscriber Line) service. Also known as Universal ADSL, G.Lite makes it possible to have Internet connections to home and business computers at up to 1.5 Mbps (millions of bits per second) over regular phone lines.

GFR

Guaranteed Frame Rate.The GFR service provides the user with a Minimum Cell Rate (MCR) guarantee under the assumption of a given maximum frame size (MFS) and a given Maximum Burst Size (MBS).

HTTP

Hypertext Transfer Protocol. The protocol used by Web browsers and Web servers to transfer files, such as text and graphic files.

ICMP

Internet Control Message Protocol. Network layer Internet protocol that reports errors and provides other information relevant to IP packet processing.

IGMP

Internet Group Management Protocol. Used by IP hosts to report their multicast group memberships to an adjacent multicast router.

IP address

32-bit address assigned to hosts using TCP/IP. An IP address belongs to one of five classes (A, B, C, D, or E) and is written as 4 octets separated by periods (dotted decimal format). Each address consists of a network number, an optional subnetwork number, and a host number. The network and subnetwork numbers together are used for routing, and the host number is used to address an individual host within the network or subnetwork. A subnet mask is used to extract network and subnetwork information from the IP address.

ISP

ISP stands for Internet Service Provider. An ISP provides access to the Internet for others via some connectivity service(s).

MAC

Media Access Control. Lower of the two sublayers of the data link layer defined by the IEEE. The MAC sublayer handles access to shared media, such as whether token passing or contention will be used.

MAC address

Standardized data link layer address that is required for every port or device that connects to a LAN. Other devices in the network use these addresses to locate specific ports in the network. and to create and update routing tables and data

NAT

Network Address Translation. Mechanism for reducing the need for globally unique IP addresses. NAT allows an organization with addresses that are not globally unique to connect to the Internet by translating those addresses into globally routable address space.

WF250 802.11n Wireless ADSL Modem Router

NTP

Network Time Protocol. Protocol built on top of TCP that ensures accurate local time-keeping with reference to radio and atomic clocks located on the Internet. This protocol is capable of synchronizing distributed clocks within milliseconds over long time periods.

OAM

Operations Administration and Maintenance: A group of network management functions that provide network fault indication, performance information, and data and diagnosis functions.

PPP

Point-to-Point Protocol. Successor to SLIP that provides router-torouter and host-to-network connections over synchronous and asynchronous circuits, designed to work with several network layer protocols, such as IP, IPX, and ARA. PPP also has built-in security mechanisms, such as CHAP and PAP.

PPPoA

PPP over ATM networks.

PPPoE

PPP over Ethernet networks.

PVC

permanent virtual circuit (or connection). Virtual circuit that is permanently established. PVCs save bandwidth associated with circuit establishment and tear down in situations where certain virtual circuits must exist all the time.

QAM

quadrature amplitude modulation. Method for encoding digital data in a n analog signal in which each combination of phase and amplitude represents one of sixteen four-bit patterns.

QoS

quality of service. Measure of performance for a transmission system that reflects its transmission quality and service availability.

SRA

Secure Remote Access

Static Route

Routing information that is manually configured into either a router or host. Such information is not subject to dynamic update via routing protocols.

Subnet Mask

A mask used to determine what subnet an IP address belongs to.

T1.413

The American National Standards Institute (ANSI) standard for asymmetric digital subscriber line using discrete multi-tone modulation, which the G.dmt standard is based on.

Telnet

Standard terminal emulation protocol in the TCP/IP protocol stack. Telnet is used for remote terminal connection, enabling users to log in to remote systems and use resources as if they were connected to a local system.

TFTP

Trivial File Transfer Protocol. Simplified version of FTP that allows files to be transferred from one computer to another over a network, usually without the use of client authentication (for example, username and password).

UBR

unspecified bit rate. QoS class defined by the ATM Forum for ATM networks. UBR allows any amount of data up to a specified maximum to be sent across the network but there are no guarantees in terms of cell loss rate and delay.

UDP

User Datagram Protocol -- A transport layer protocol for the Internet. It is a datagram protocol which adds a level of reliability and multiplexing to IP datagrams.

UNI

User-Network Interface. ATM Forum specification that defines an

WF250 802.11n Wireless ADSL Modem Router

interoperability standard for the interface between ATM-based products (a router or an ATM switch) located in a private network and the ATM switches located within the public carrier networks.

UPnP

Universal Plug and Play is making home networking simple for users. UPnP offers network connectivity of PCs, intelligent appliances, and wireless devices.

VBR

variable bit rate. QoS class defined by the ATM Forum for ATM networks. VBR is subdivided into a real time (RT) class and non-real time (NRT) class. VBR (RT) is used for connections in which there is a fixed timing relationship between samples. VBR (NRT) is used for connections in which there is no fixed timing relationship between samples but that still need a guaranteed QoS.

VCI

Virtual Channel Identifier: This is the label given to an ATM VC to identify it and determine its destination. The VCI is a 16-bit number that is included in the header of an ATM cell.

Virtual Server

program or set of programs dedicated to sending web pages on request, on behalf of a particular web site. The word "virtual" implies that several such sets of programs may reside on a single machine, allowing them to serve different web sites independently, by sharing the machine resources.

VPI

(Virtual Path Identifier): A virtual path determines the way an ATM cell should be routed. The VPI is an 8-bit (in UNI) or 12-bit (in NNI) number that is included in the header of an ATM cell.

VPN

Virtual Private Network. Enables IP traffic to travel securely over a public TCP/IP network by encrypting all traffic from one network to another.

Router Reset

For convenience: shutdown your computer first.

1. Switch the ADSL router OFF.

2. On the Rear Panel of the ADSL router you will find a small ho le with the word "reset" written below it. It's just big enough for a ball-point tip. Insert a ball-point tip, press the reset switch and keep the ballpoint tip in there.

3. Switch the router ON, and hold the ball-point tip in the little hole.

You can release the ball-point after about 10 seconds. You have then completed the full-reset. Your ADSL router will now have its factory default settings. IP address will be 192.168.1.1 and the subnet mask will be

255.255.255.0. Now you can reboot your PC again.

WF250 802.11n Wireless ADSL Modem Router

8. Troubleshooting

If the router does not function properly, first check this session for simple troubleshooting before contacting your Internet service provider (ISP) for support.

Using LEDs to Diagnose Problems

The LEDs are useful aides for finding possible problem causes.

Power LED

The PWR LED on the front panel does not light up.

STEPS CORRECTIVE ACTION

1 Make sure that the power adaptor is connected to the router and

plugged in to an appropriate power source. Use only the supplied power adaptor.

2 Check that the router and the power source are both turned on

and the router is receiving sufficient power. 3 Turn the router off and on. 4 If the error persists, you may have a hardware problem. In this

case, you should contact your vendor.

LAN LED

The LAN LED on the front panel does not light up.

STEPS CORRECTIVE ACTION

1 Check the Ethernet cable connections between your router and

the computer or hub. 2 Check for faulty Ethernet cables. 3 Make sure your computer’s Ethernet card is working properly. 4 If these steps fail to correct the problem, contact your local

distributor for assistance.

ADSL LED

The ADSL LED on the front panel does not light up.

STEPS CORRECTIVE ACTION

1 Check the telephone wire and connections between the router

ADSL port and the wall jack. 2 Make sure that the telephone company has checked your phone

line and set it up for ADSL service. 3 Reset your ADSL line to reinitialize your link to the DSLAM. 4 If these steps fail to correct the problem, contact your local

distributor for assistance.

Problems with the Web Interface

I cannot access the web Interface.

STEPS CORRECTIVE ACTION

1 Make sure you are using the correct IP address of the router.

Check the IP address of the router. 2 Make sure that there is not a console session running.

WF250 802.11n Wireless ADSL Modem Router

3 Check that you have enabled web service access. If you have

configured a secured client IP address, your computer’s IP

address must match it. 4 For WAN access, you must configure remote management to

allow server access from the WAN (or all). 5 Your computer’s and the router’s IP addresses must be on the

same subnet for LAN access. 6 If you changed the router’s LAN IP address, then enter the new

one as the URL. 7 Remove any filters in LAN or WAN that block web service.

The web Interface does not display properly.

STEPS CORRECTIVE ACTION

1 Make sure you are using Internet Explorer 5.0 and later versions. 2 Delete the temporary web files and log in again.

In Internet Explorer, click Tools, Internet Options and then click

the Delete Files ... button.

When a Delete Files window displays, select Delete all offline

content and click OK. (Steps may vary depending on the version

of your Internet browser.)

Problems with the Login Username and Password

I forgot my login username and/or password.

STEPS CORRECTIVE ACTION

1 If you have changed the password and have now forgotten it, you

will need to upload the default configuration file. This will erase all

custom configurations and restore all of the factory defaults

including the password. 2 Press the RESET button, the defaults have been restored and

the router restarts. 3 The default username is “admin”. The default password is

“adslroot”. The Password and Username fields are case-

sensitive. Make sure that you enter the correct password and

username using the proper casing. 4 It is highly recommended to change the default username and

password. Make sure you store the username and password in a

save place.

Problems with LAN Interface

I cannot access the router from the LAN or ping any computer on the LAN.

STEPS CORRECTIVE ACTION

1 Check the Ethernet LEDs on the front panel. A LAN LED should

be on for a port that has a PC connected. If it is off, check the

cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting. 2 Make sure that the IP address and the subnet mask is consistent

between the router and the workstation.

WF250 802.11n Wireless ADSL Modem Router

Problems with WAN Interface

Initialization of the ADSL connection failed.

STEPS CORRECTIVE ACTION

1 Check the cable connections between the ADSL port and the

wall jack. The ADSL LED on the front panel of the router should

be on. 2 Check that your VPI, VCI, type of encapsulation and type of

multiplexing settings are the same as what you collected from

your telephone company and ISP. 3 Restart the router. If you still have problems, you may need to

verify your VPI, VCI, type of encapsulation and type of

multiplexing settings with the telephone company and ISP.

I cannot get a WAN IP address from the ISP.

STEPS CORRECTIVE ACTION

1 Ensure that all other devices connected to the same telephone

line as your router (e.g. telephones, fax machines, analogue

modems) have a line filter connected between them and the wall

socket (unless your are using a Central Splitter or Central Filter

installed by the qualified and licensed electrician), and ensure

that all line filters are correctly installed and right way around. 2 Missing line filters or line filters installed the wrong way around

can cause problems with your ADSL connection, including

causing frequent disconnects.

Frequent loss of ADSL line sync (disconnections).

STEPS CORRECTIVE ACTION

1 The ISP provides the WAN IP address after authenticating you.

Authentication may be through the user name and password, the

MAC address or the host name. 2 The username and password apply to PPPoE and PPoA

encapsulation only. Make sure that you have entered the correct

Service Type, User Name and Password (be sure to use the

correct casing).

Problems with the Internet Access

I cannot access the Internet.

STEPS CORRECTIVE ACTION

1 Make sure the router is turned on and connected to the network. 2 Verify your WAN settings. 3 Make sure you entered the correct user name and password. 4 For wireless stations, check that both the router and wireless

station(s) are using the same ESSID, channel and WEP keys (if

WEP encryption is activated).

Internet connection disconnects.

STEPS CORRECTIVE ACTION

1 Check the schedule rules. 2 If you use PPPoA or PPPoE encapsulation, check the idle time-

out setting. 3 Contact your ISP.

WF250 802.11n Wireless ADSL Modem Router

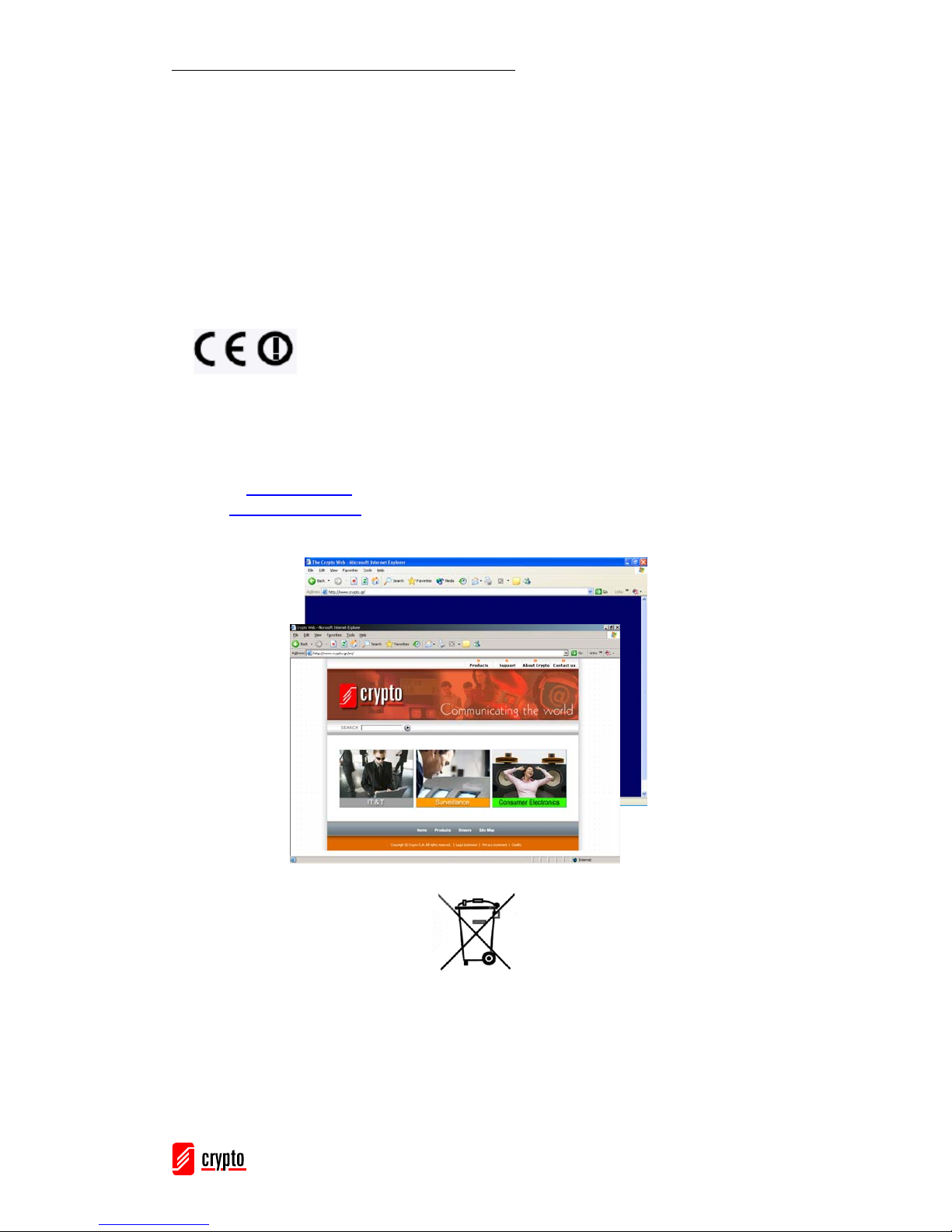

Declaration of Conformity CE

Hereby Crypto S.A declares that the WF250 11n Wireless 150Mbps Modem Router is incompliance with the essential reguirements and other relevant provisionsof directive 1999/5/EK

This equipment can be operated in the following European Countries… AT,BE,BG,CH,CY,CZ,DE,DK, EE,ES,FI,FR,GB,GR,HU,IE,IS, IT,LI,LT,LU,LV,MT,NL,NO,PL, PT,RO,SE,SK,SL,TR

9. Technical Support

For technical information and support please contact us:

Web Site: www.crypto.gr E-mail: support@crypto.gr

Disposal of old electrical and electronic equipment

If you see this symbol on the product or on its packaging, you should hand the product over to the applicable collection point for the recycling of electrical and electronic equipment. Do not throw it away with household wastes. The improper disposal of these products may have negative consequences for the environment and human health. For more information about the recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased it.

Crypto WF250 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
