SAFETY INFORMATION

This sheet lists important safety information that will help to assure proper use of the product.

Please read them carefully before operation of your product.

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE.

1. To prevent electric shock do not attempt opening or removing the covers of the device. The

device uses AC220~240V and you may be expose to dangerous voltage.

2. To clean the device always unplug the product from the wall outlet. Do not use liquid

cleaners or aerosol cleaners. Use a dry cloth for cleaning.

3. You will notice that the product has slots and openings. These are used for ventilation to

ensure reliable operation and to protect it from overheating. The openings should never be

blocked by other devices. This product should not be placed in an installation, unless proper

ventilation is provided. Do not put anything above the product because you will block the

ventilation openings causing the device to overheat.

4.The product should be situated away from heat sources such as radiators, heat registers,

stoves, or other products (including amplifiers) that produce heat.

Service

Do not attempt to service this product yourself, as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

4

This Receiver has been manufactured to satisfy international safety standards. Please

read the following recommended safety

precautions carefully.

MAINS SUPPLY:

AC220-240V ~ 50/60Hz

OVERLOADING:

Do not overload wall outlets, extension cords or adapters as this can result

in fire or electrical shock.

LIQUIDS:

Keep liquids away from the Receiver.

CLEANING:

Before cleaning, disconnect the Receiver from the wall socket.

Use a cloth lightly dampened with water(no solvents) to clean the exterior.

VENTILATION:

Do not block the Receiver ventilation holes. Ensure that free airflow is

maintained around the Receiver.

Never store the Receiver where it is exposed to direct sunlight or near

heating euipment e.g. a radiator.

Never stack other electronic equipment on top of the Receiver.

Place the Receiver at least 30mm from the wall.

ATTACHMENTS:

Do not use any attachment that is not recommended by the manufacturer;

it may cause a hazard

or damage the equipment.

CONNECTION TO

THE CABLE TV

SIGNAL AND TV:

Connect all components before plugging any power cords into the wall

outlet. Always turn off the

Receiver, TV and other components before you connect or disconnect

any cables.

SERVICING:

Do not attempt to service this product yourself. Any attempt to do so will

make the warranty invalid.

Refer all servicing to a qualified service agent.

LIGHTNING:

If the Receiver is installed in an area subject to intense lightning activity,

protection devices for the

Receiver mains connector and modem telephone line are essential.

The individual manufacturer's instruction for safeguarding other

equipment, such as TV set,

Hi-Fi, etc., connected to the Receiver must also be followed during

lightning storms.

GROUNDING:

CATV cable MUST BE EARTHED.

The grounding system must comply with SABS 061.

NOTE:

Dispose the used batteries at designated place for environment protection

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

5

1. INTRODUCTION

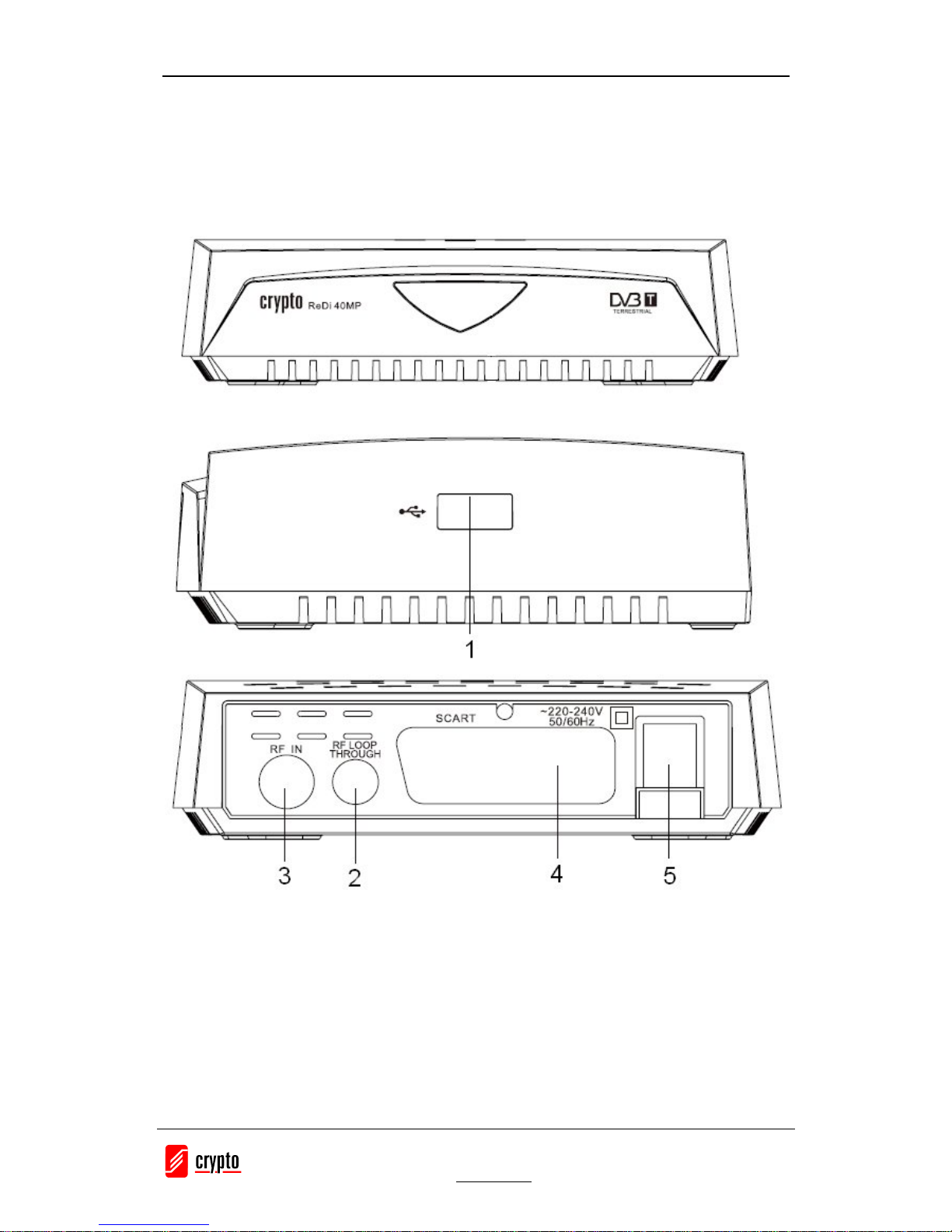

1.1 Main Unit

1. USB

2. RF OUT

3. RF IN

4. Scart

5. Power Input

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

6

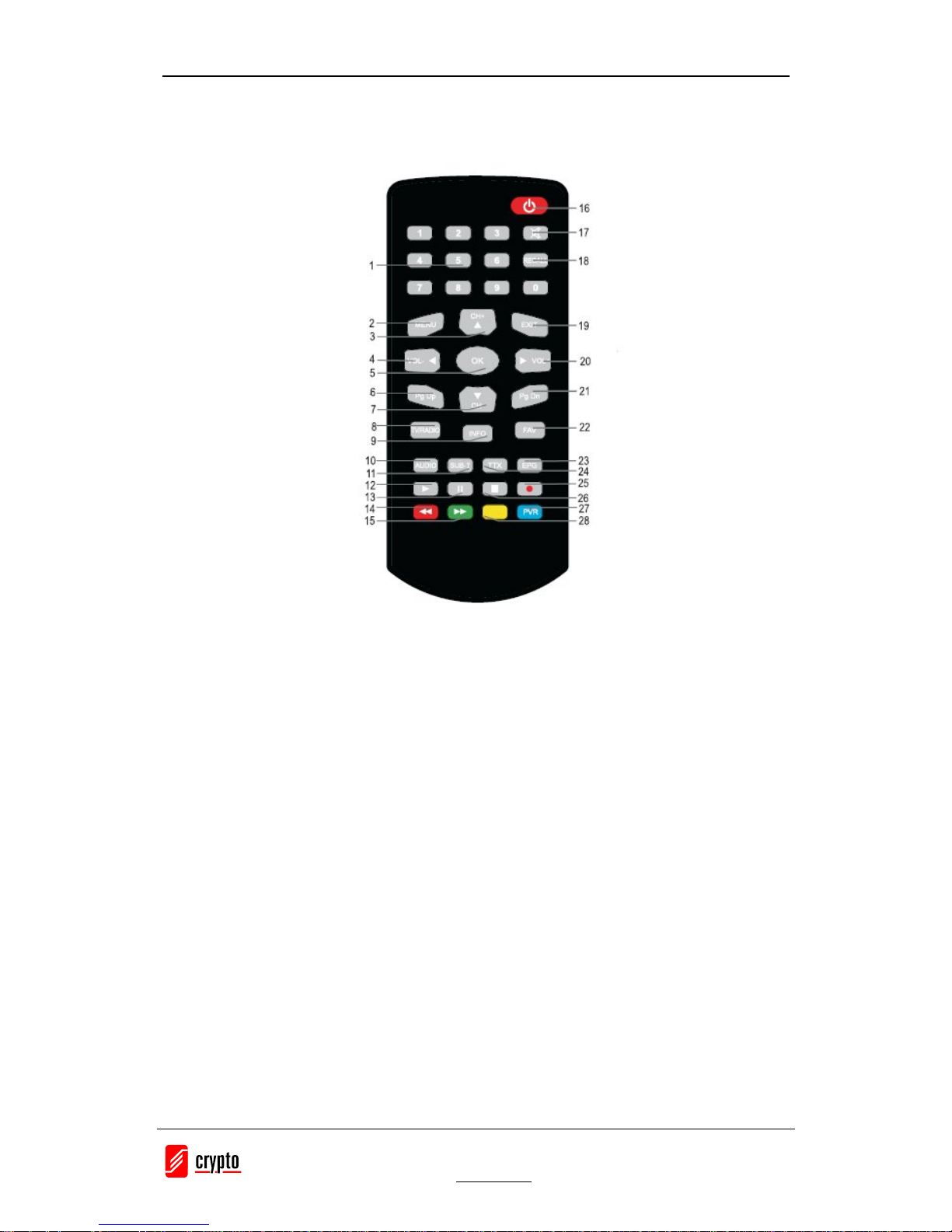

1.2 Remote control

1. NUMERIC ENTRY

2. MENU

3. CH+

4. VOL - /LEFT

5. OK

6. PAGE UP

7. CH-

8. TV/RADIO

9. INFO

10. AUDIO

11. SUB-T

12. PLAY

13. PAUSE

14. RED BUTTON/FB

15. GREEN BUTTON/FF

16. POWER

17. MUTE

18. RECALL

19. EXIT

20. VOL +/RIGHT

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

7

21. PAGE DN

22. FAV

23. EPG

24. TTX

25. RECORD

26. STOP

27. BLUE BUTTON/PVR

28. YELLOW BUTTON

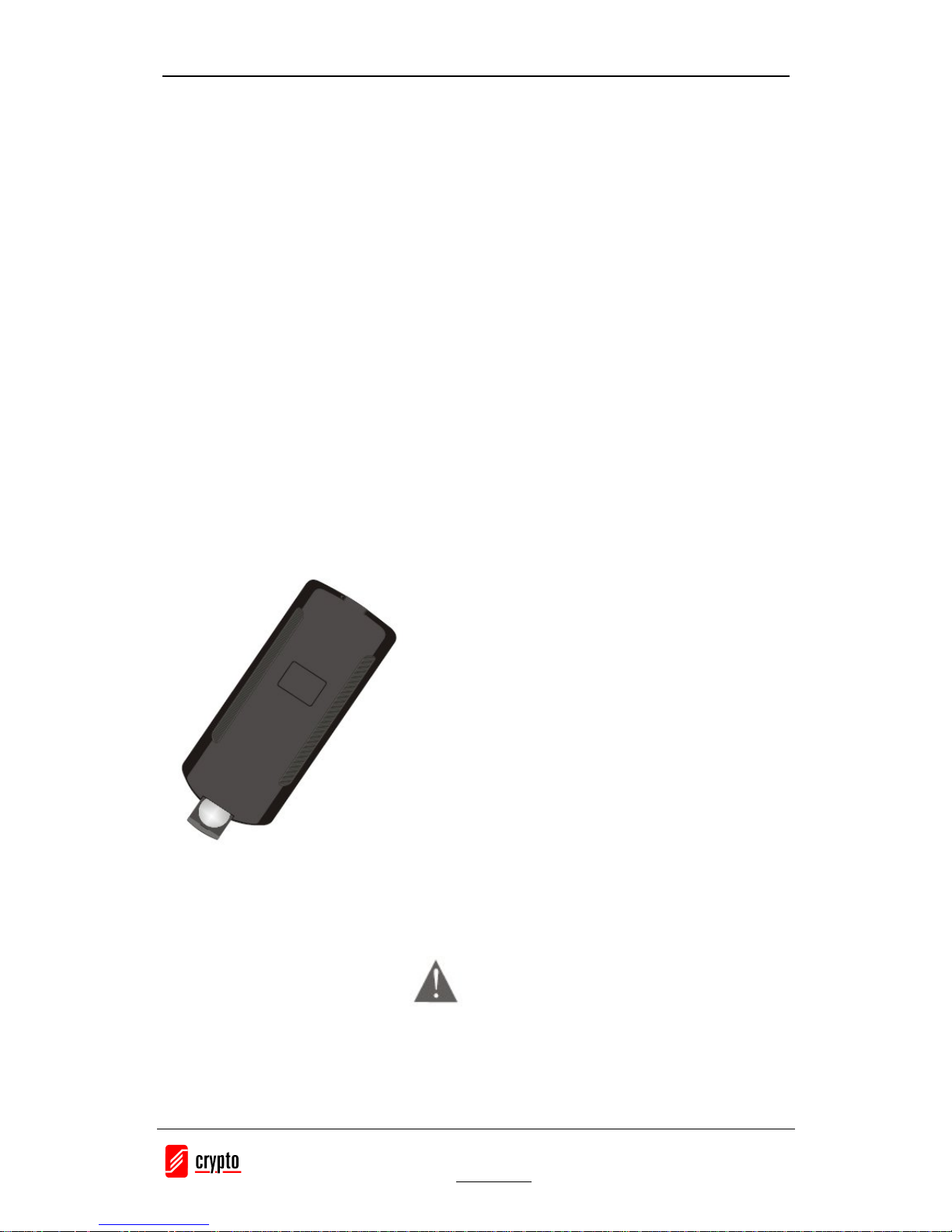

1.3 Loading batteries to the remote control

1. Pull the battery compartment stock.

2. Load one button battery into the battery compartment.

3. Make sure that the battery have been inserted in the correct polarities matching to the

symbols +, - marked in the battery compartment. Close the battery compartment cover.

4. Remove the batteries if the unit will not be used for a prolonged period of time.

BE ENVIRONMENTALLY FRIENDLY

Do not dispose batteries as normal rubbish. Be environmentally friendly,

dispose batteries following the Government's regulation.

CAUTION

LITHIUM BATTERY

Danger of explosion if battery is

incorrectly replaced. Replace only

with the same or equivalent type.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

8

The remote control transmits a directional infrared beam. Be sure to aim the remote

control directly at the infrared sensor of the unit during operation.

If the sensor has been covered or there is a large object between the remote control and

the sensor, the sensor will not respond.

The sensor may not able to receive the remote signal when it is exposed to direct sunlight

or a strong artificial light (fluorescent or strobe light). In this case, change the direction of

the light or reposition the unit to avoid direct lighting.

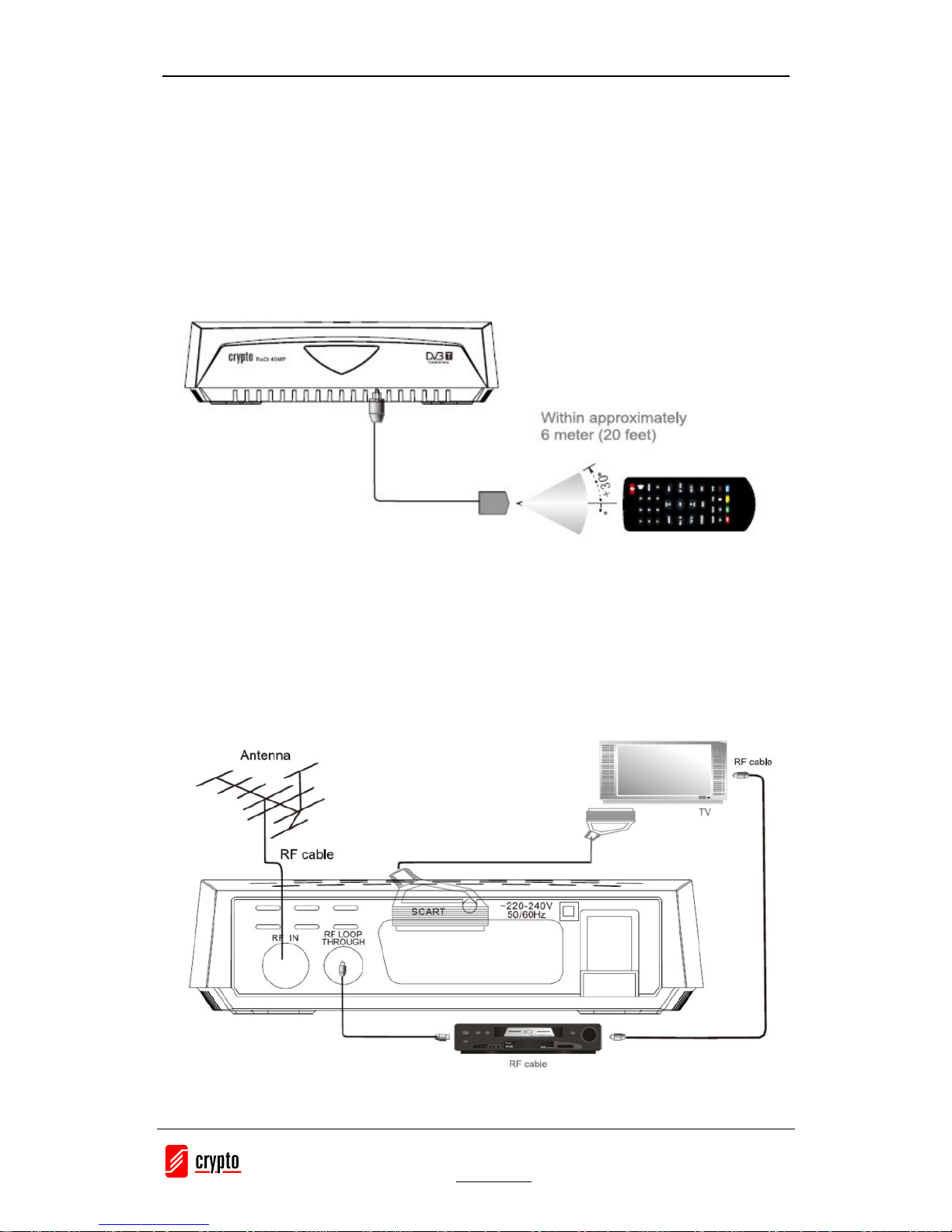

1. Remote sensor

2. Within approximately 6 meter (20 feet)

2. SYSTEM CONNECTION

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

9

3. GETTING STARTED

3.1 Welcome Srceen

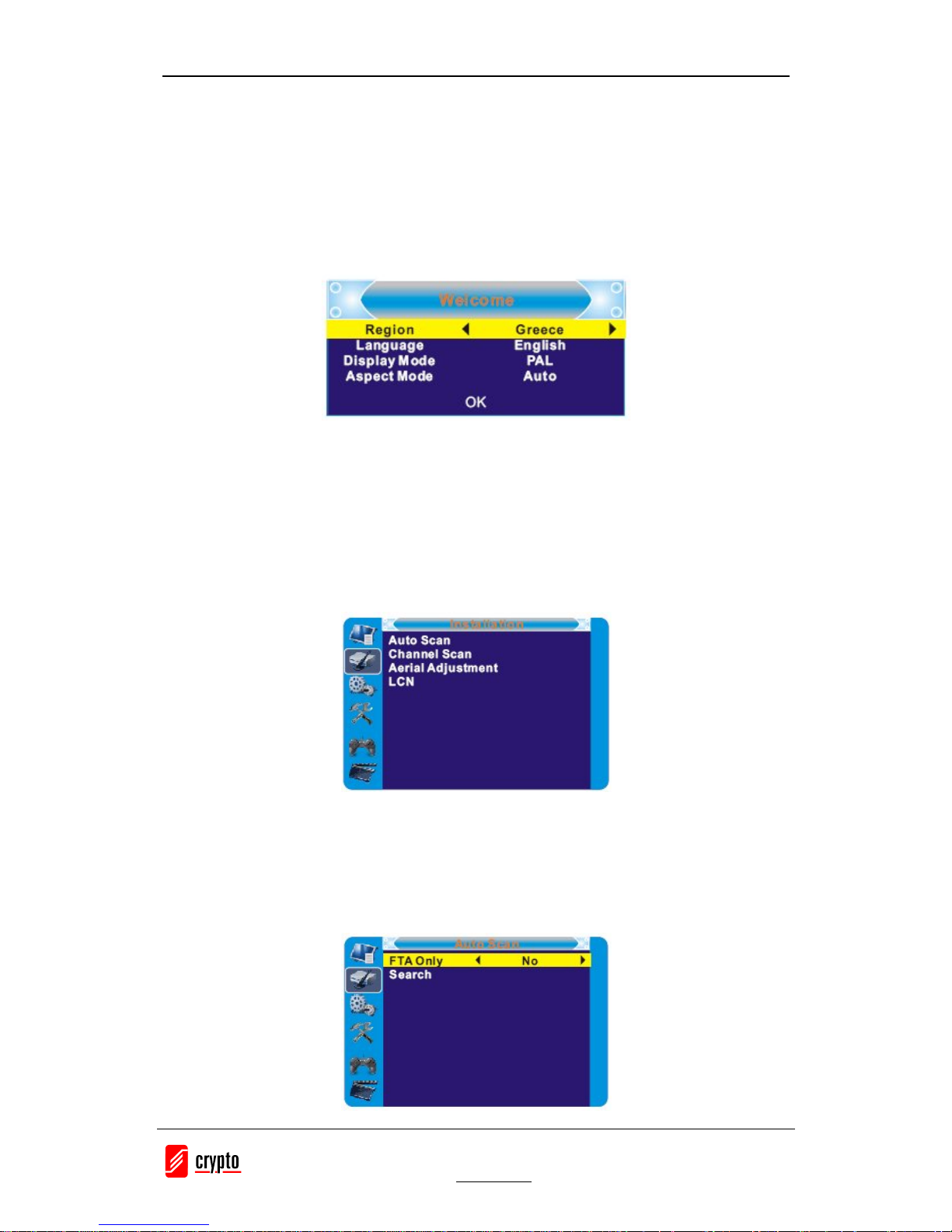

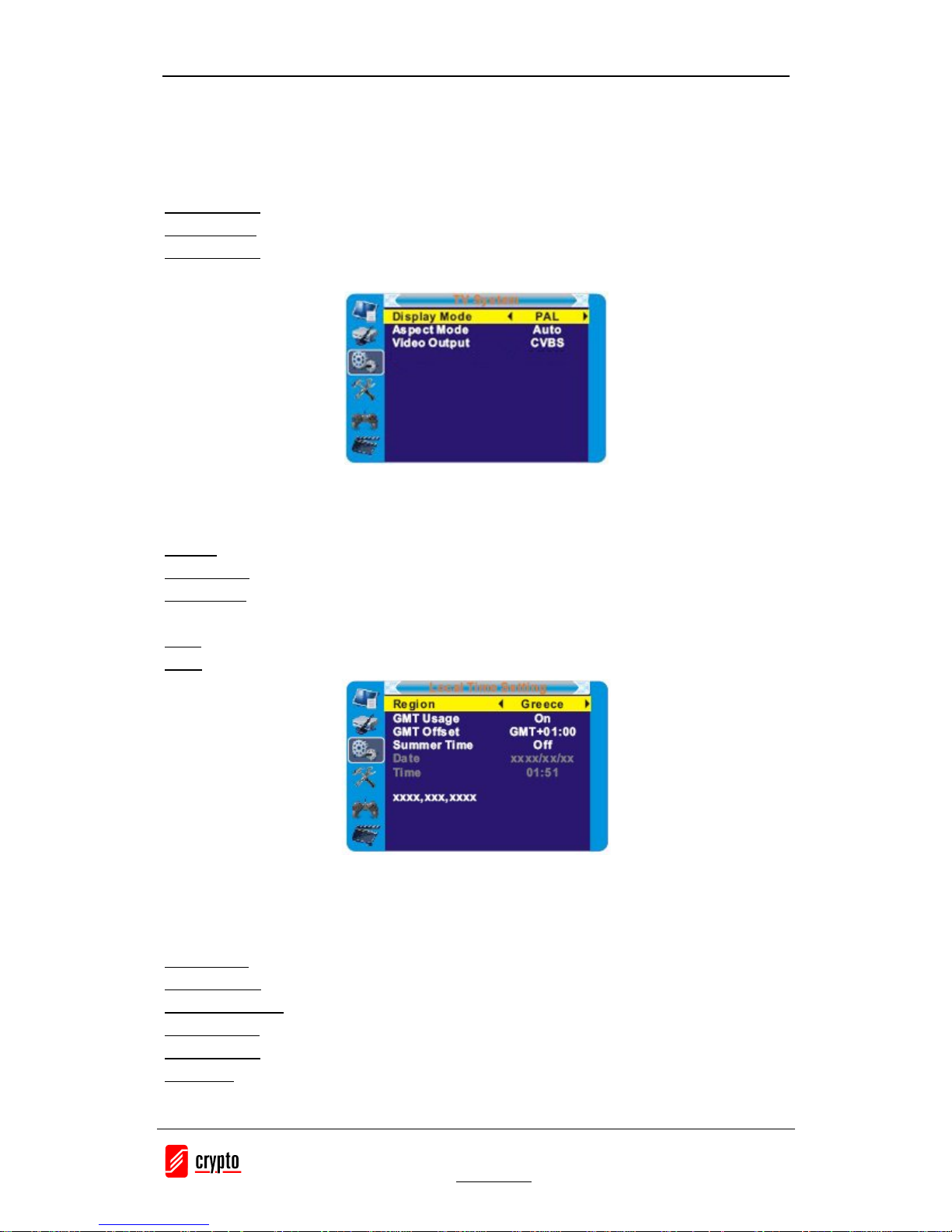

If you use ReDi 40 MP for the first time, the "Welcome" menu appears.

Press cursor button to setup the Region, Language, Display Mode and Aspect Mode.

Highlight "OK" and press the "OK" button to start channel search.

3.2 Installation

1. Press the "MENU" button to enter main menu.

2. Press "UP"or " DOWN " button to highlight "Installation", press "RIGHT" button to enter to

the Installation menu.

3. Press "UP" or "DOWN" cursor button to highlight the desired item and press "OK" button to

enter the sub-menu .

4. Press "EXIT" button to exit.

3.2.1 Channel Auto Scan

1. Select the "Auto Scan", press "OK" button to enter the Auto Scan menu.

2. Press the cursor button to set "FTA Only", select NO for free to air and pay per view

channels and YES for all free to air channels only), then press "Search" and press the "OK"

button to start auto scan.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

10

3.2.2 Channel Scan

1. Select "Channel Scan", press the "OK" button to enter the Channel Scan menu.

2. Press cursor button to set Scan mode, Scan Band, Channel No., Frequency and Bandwidth,

then highlight "Search", press "OK" button to start channel scan .

Channel Scan mode:

-By channel

-By frequency

3.2.3 Aerial Adjustment

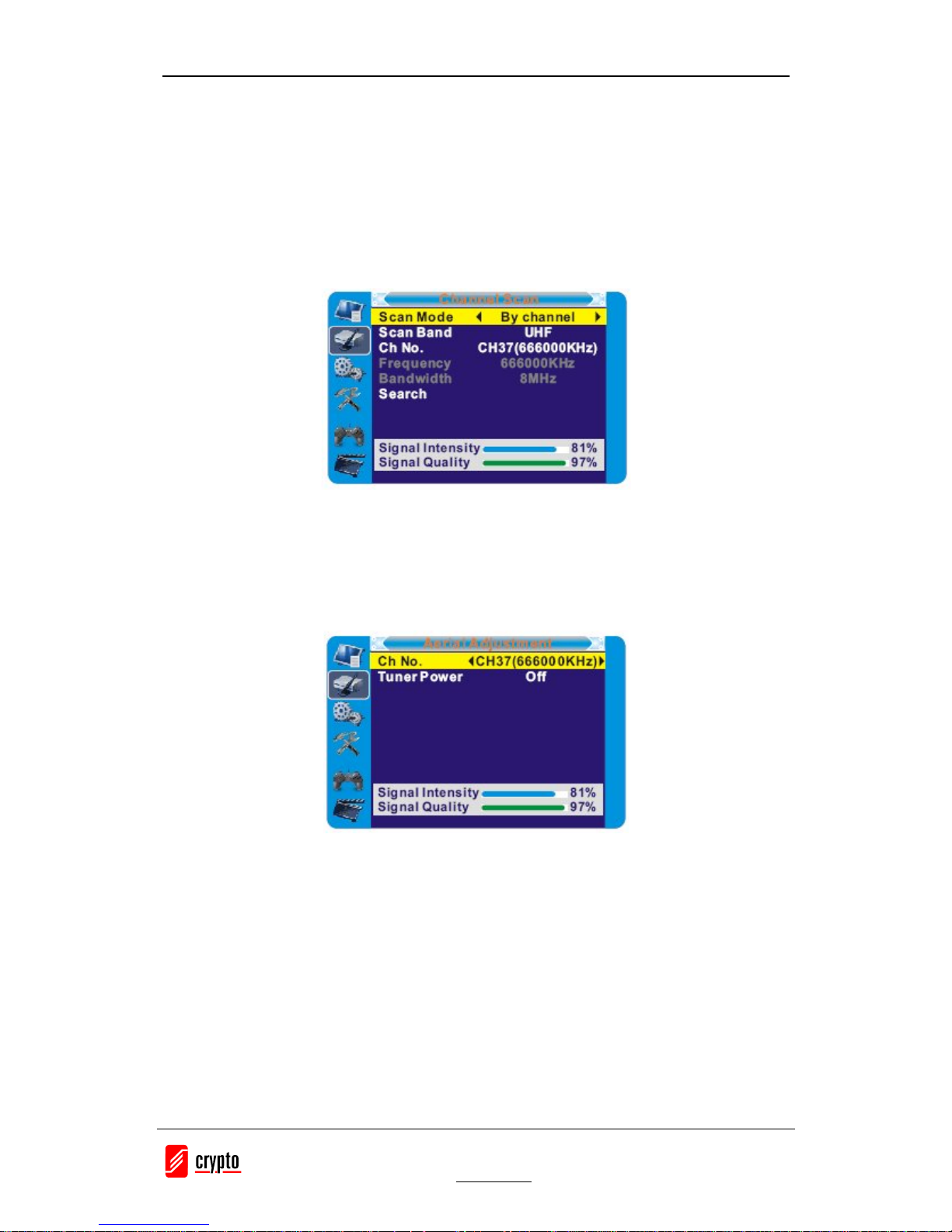

1. Select the "Tuner Power", press"OK" to enter the Aerial Adjustment.

2. Press the cursor button to set the desired setting. When "Tuner Power" is selected "On", the

STB will provide 5V power to the antenna. It will not provide anything when"Off" is

selected.

3.2.4 LCN

If LCN(Logical Channel Number) Select function is activated, you can't change the original

number of TV channels by scanning .

You ca n ac ti va te/ de ac ti va te the LCN function by setting the "LCN Mode" to on/off.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

11

4. OPERATION

4.1 Changing Channels

There are three ways of channel selection - stepping through the channel list, selection by

number and from the on-screen channel list.

1. Stepping through the channel list:

To m ove t hro u gh t he c ha nne l l ist , p re ss t he u pwa rd a rro w o r d own war d a r ro w k ey o n t he

remote control.

2. Selected by number:

Enter the channel number directly by pressing numeric buttons, and press the "OK" button to

select desired channel.

3. Selected by on-screen channels list:

You ca n al so sel ect t he r eq ui re d ch an ne l di re ctly from on -s cr ee n ch an ne l li st . Thi s is d is pl ay ed

using the device main menu. See "Edit Channel" in this manual for operation details.

4.2 Accessing the Electronic Program Guide (EPG)

With the DVB-T you can have access to program information any time you want. This feature

is displayed on-screen with functions allowing a viewer to navigate, select, and see content by

time, title, channel etc. Also you can have access to TV guide of any digital channel. To use

this function simply follow the following:

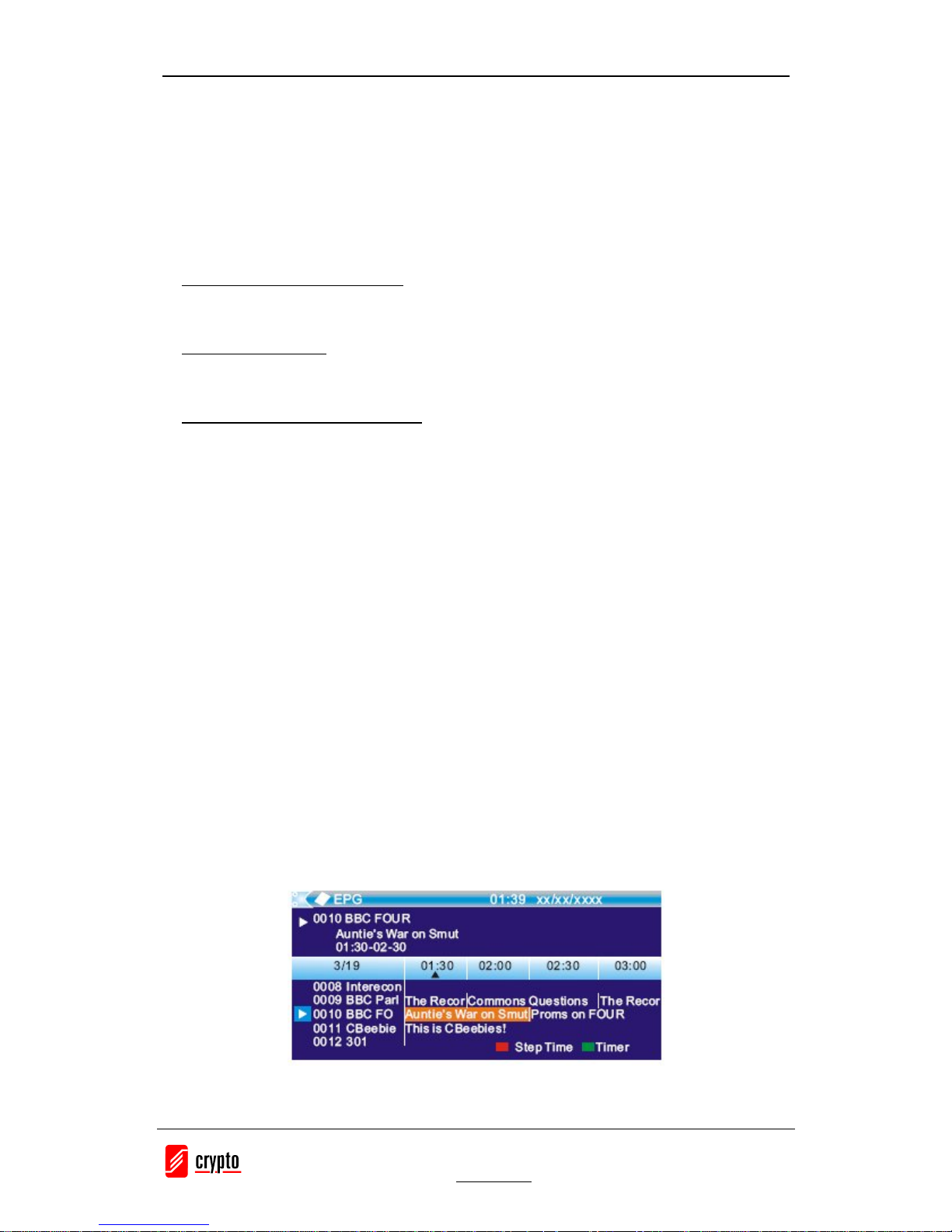

1. Press "EPG" button to enter EPG menu.

2. Press cursor button to switch between channel list, events schedule of the selected channel

and now/next events.

3. Press "Green" button to start Timer settings.

With this option you can set the device to open or close whenever you want, set a channel as

wake up channel and schedule to record any future broadcast.

4. Press "Red" button to enter the "Step time" menu.

With this option you can find information about a program of each channel, based on hours or

days. Eg you can see the program guide of a channel for 2 or 3 days later, etc.

5. If you want to go back on viewing the channel press the "EPG" button again.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

12

5. EDIT CHANNEL

5.1 Edit Channel menu

1. Press the "MENU" button to enter main menu.

2. Press "UP" or "DOWN " button to highlight "Edit Channel", press "RIGHT" button to enter

the Edit Channel menu.

3. Press "UP" or "DOWN" cursor button to highlight the desired item and press "OK" button to

enter the sub-menu .

4. Press "EXIT" button to exit.

5.2 TV Channel list

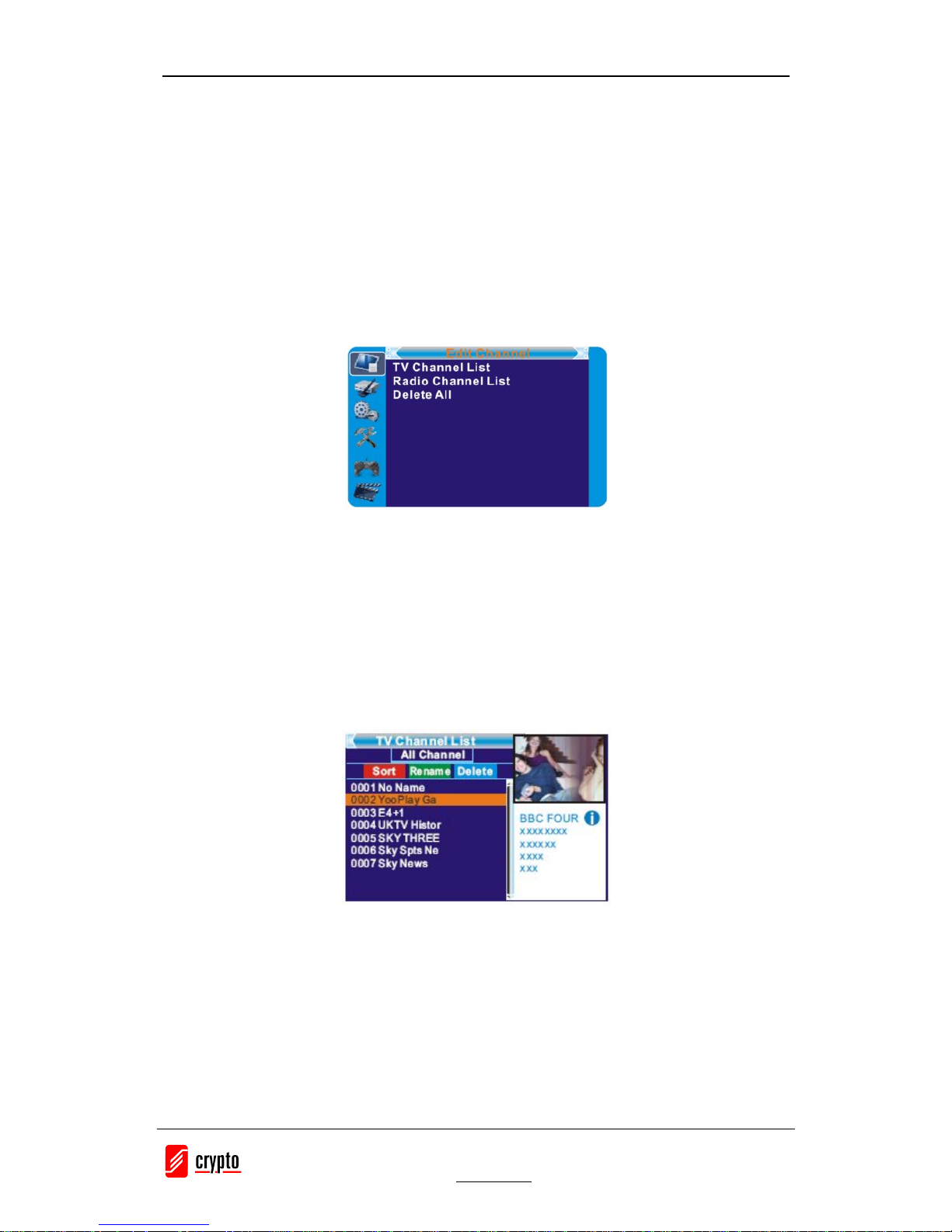

1. In the Edit Channel menu, select "TV Channel List", press "OK" button to enter TV channel

list menu.

2. Press "UP" or "DOWN» button to highlight a channel, press the "OK" button to preview the

desired TV channel.

- Use this menu to favor, lock, skip, move, sort, delete and rename a channel.

(1) Press "FAV" button, then press "OK" button to edit the FAV function.

(2) Press "color" button, then press "OK" button to edit the corresponding function.

5.3 Radio Channel list

1. In the Edit Channel menu, select "Radio Channel List", press "OK" button to enter the Radio

Channel list menu.

2. Press "UP" or "DOWN" button to highlight channel press the "OK" button to listen the

desired TV channel.

NOTE: Basically, the operation of "Radio Channel List" is the same as "TV Channel List", but

there is one point different: In "Radio Channel List" mode, there is no video information, so it

will always display Radio's logo in the right side preview window.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

13

5.4 Delete All

1. In the Edit Channel menu, select "Delete All", press "OK" button.

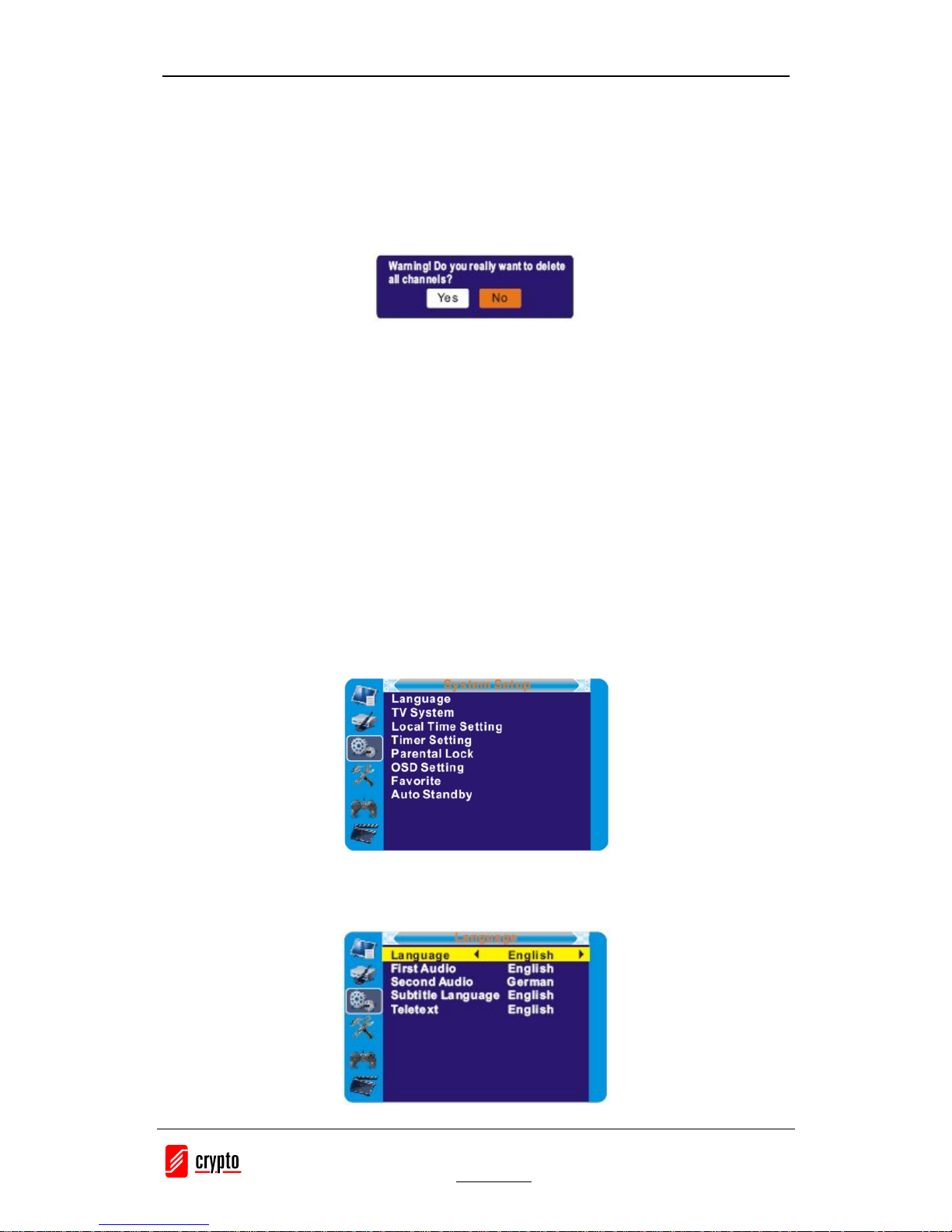

2. A warning wi ndow ap pe ar s.

Select "Yes", press "OK" button to delete all channels.

Select "No", Press "OK" button to cancel deleting.

6. SYSTEM SETUP

6.1 System setup menu

System setup menu allows us to set Language, TV System, Local Time Setting, Timer Setting,

Parental Lock, OSD Setting, Favorite and Auto Standby.

1. Press the "MENU" button to enter main menu.

2. Press "UP" or "DOWN" button to highlight "System Setup", press "RIGHT" button to enter

the System Setup menu.

3. Press "UP" or "DOWN" cursor button to highlight the desired item and press "OK" button to

enter the sub-menu.

4. Press "EXIT" button to exit

6.2 Language

This menu allows you to set Language.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

14

6.3 TV System

This menu allows us to set Display Mode, Aspect Mode, Video Output and Digital Audio

Output.

Display Mode: PAL/NTS C

Aspect Mode: Auto/4:3PS/4:3LB/16:9

Video Output:: CVBS/RGB

6.4 Local Time Setting

This menu allows you to set the region and time.

Region: This menu is used for changing the region setting.

GMT Usage: This menu is used for opening the usage of GMT. The options are: Off / On

GMT Offset: This menu is valid only when selected "Uesr Define" in GMT Usage menu.

The GMT offset range is "-11:30 ~ +12:00", increasing half hour progressively.

Date: "Date" and "Time" menus are valid only when selected "Off" in GMT Usage menu.

Time: Press "OK" then numeric button to input the time.

6.5 Timer Setting

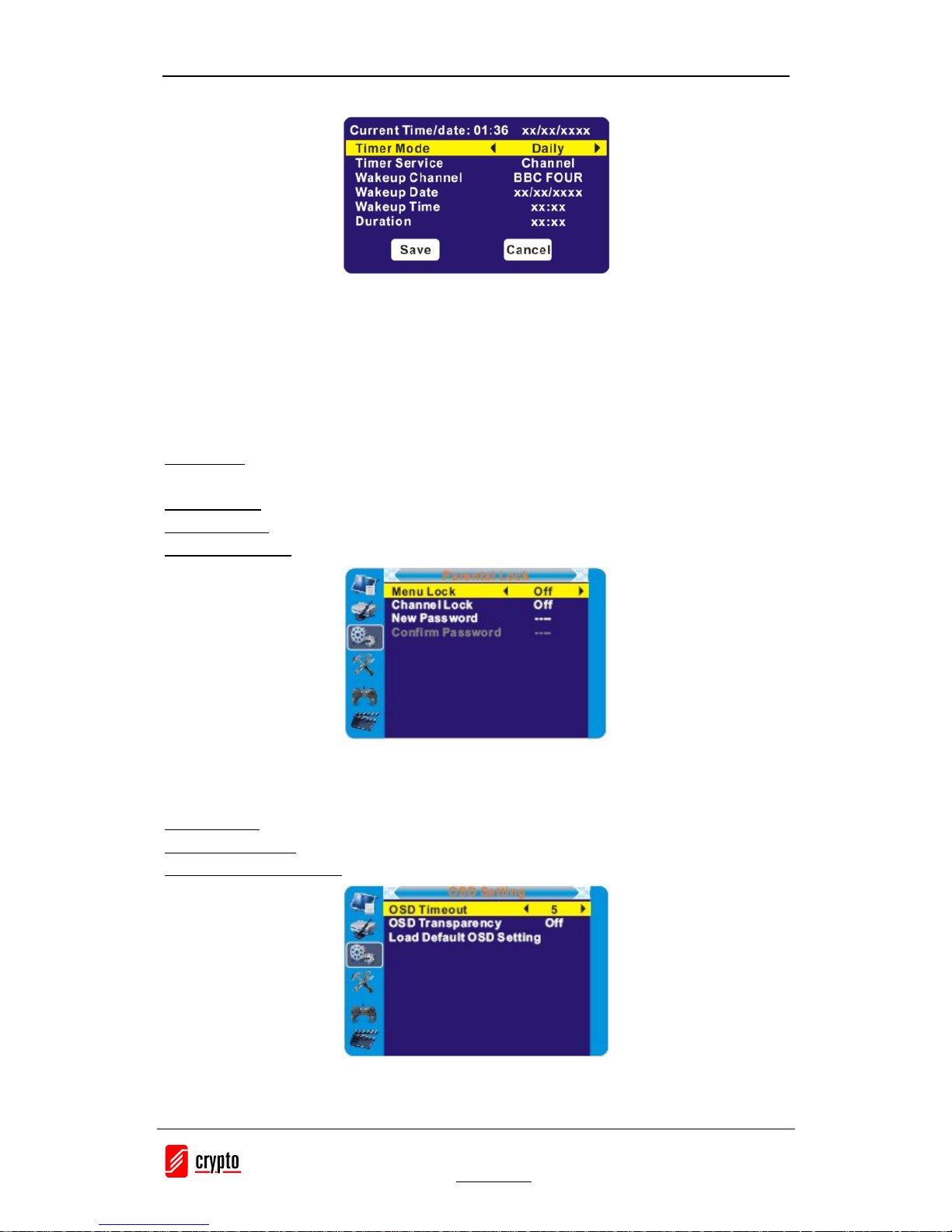

1. Program Timer: This menu allows us to set the program timer for a scheduled recording or

channel setting.

Timer Mode: Off/Once/Daily

Timer Service: Channel/Record (schedule a video recording)

Wakeup Channel: You ca n se le ct a d esire d ch an ne l as t he w ak eu p ch an nel.

Wakeup Date: Press "OK" then numeric button to input date.

Wakeup Time: Press "OK" then numeric button to input the time.

Duration: Press "OK" then press numeric button to input the duration time.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

15

6.6 Parental Lock

This menu allows you to protect the installation menu and channel, and change the Password.

1. In "System Setup" menu, select "Parental Lock" and press "OK" button, you are asked to

input a password (the default password is"0000").

2. After the input of the correct password by pressing numeric buttons, the parental lock menu

appears.

Menu Lock: To l ock t he i n st al l ati o n m e nu a nd E dit m e nu . W hen y ou w an t t o e nte r A uto

Scan/Channel Scan menu, you must input the password. You can set menu lock to on/off.

Channel Lock: Off/ AGE 10/AGE 12/AGE 16/AGE 18

New Password: To ch a ng e t h e pa s sw ord .

Confirm Password: To c o nf i rm the ne w p ass wor d.

6.7 OSD Setting

This menu allows you to set OSD Timeout, OSD Transparency and load default OSD setting.

OSD Timeout: 1-10

OSD Transparency: To se t t h e O SD tra n spar e nc y t o O ff/ 1 0% /20 %/3 0 %/ 4 0% .

Load Default OSD Setting: To cl e ar al l O S D se t ti n g a n d re set pa ram e te r s as def a ul t v alue .

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

16

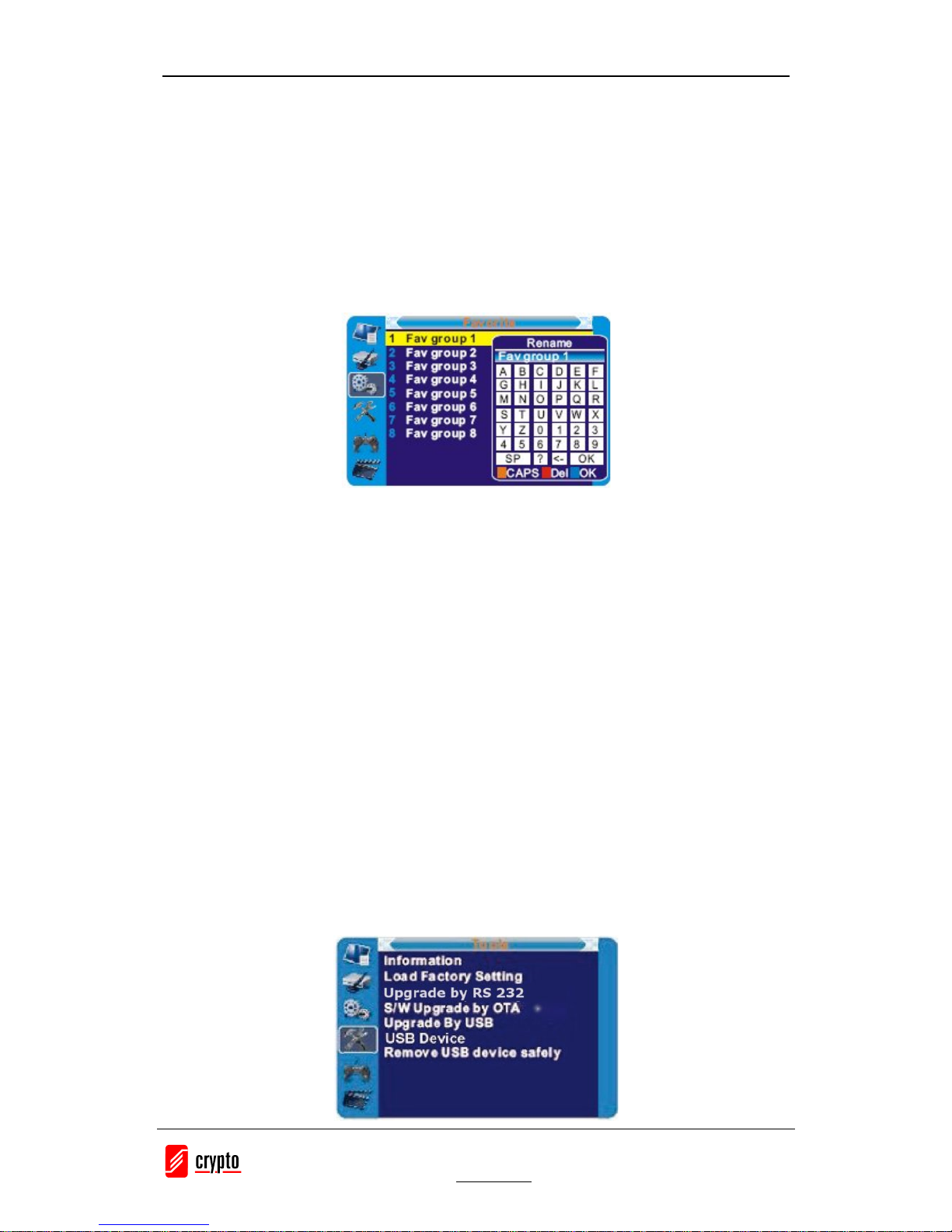

6.8 Favorite

This menu allows you to rename the favorite group.

1. In Channel menu, select "Favorite", press "OK" button to enter Favorite menu.

2. Select desired group, press "OK" button to open the screen keypad. Input a letter and a

number one by one by pressing the cursor button and press "OK" button to confirm. After

finishing, highlight "OK" on screen keypad to confirm, then you have you change Favorite

group name successfully.

3. Press "EXIT" button to quit the group rename menu.

6.9 Auto Standby

No command to receiver on front panel or Remoter in 3 hours and no timer event, the receiver

will enter standby mode automatically.

7. TOOLS

7.1 Tools mai n menu

1. Press the "MENU" button to enter main menu.

2. Press " UP" or " DOWN " button to highlight "Tools", press "RIGHT" button to enter the Tools

menu.

3. Press "UP" or "DOWN" cursor button to highlight the desired item and press "OK" button to

enter the sub-menu.

4. Press "EXIT" button to exit.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

17

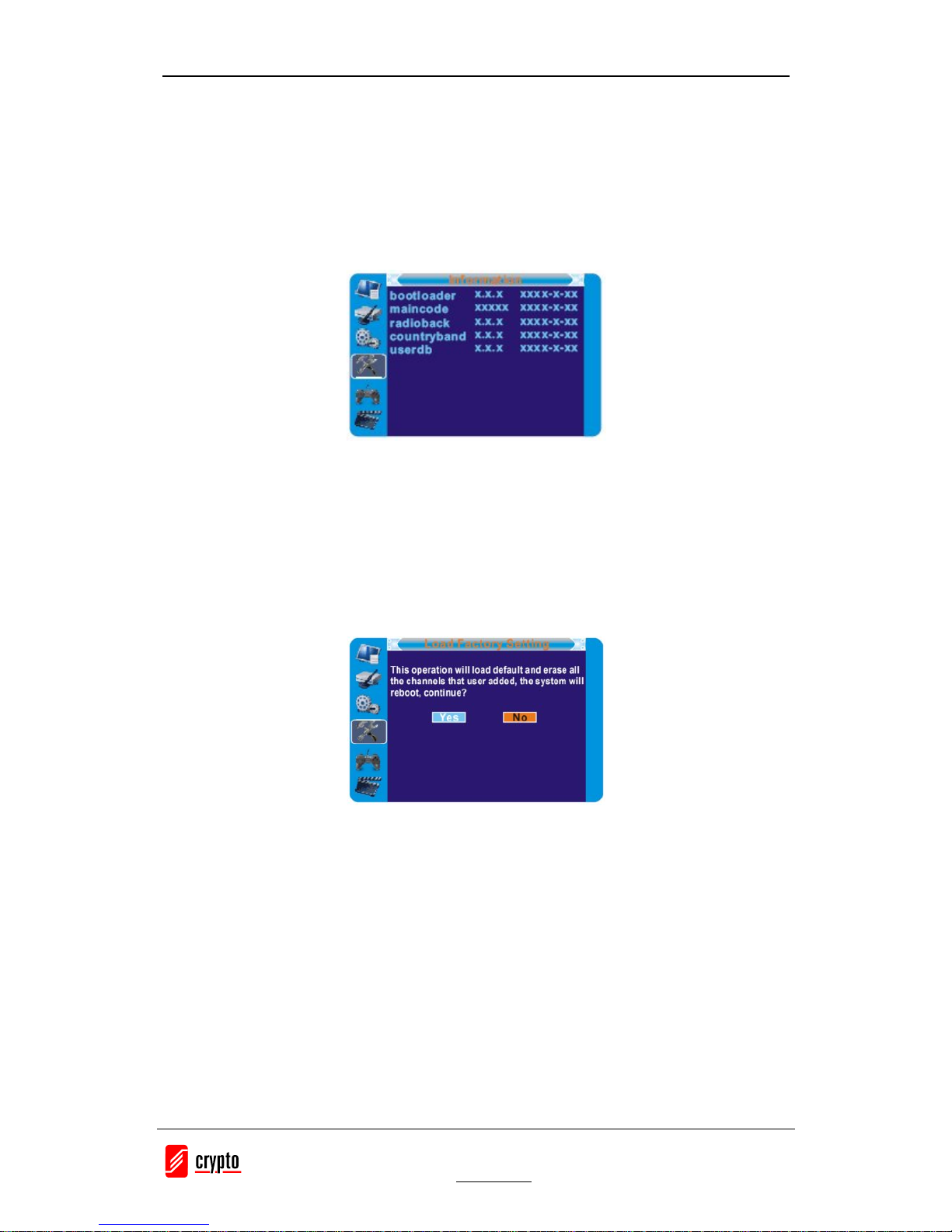

7.2 Receiver Information

This menu can display some parameters of bootloader, maincode, radioback, countryband

and userdb information.

1. In "Tools" menu, select "Receiver Information", press "OK" button to open receiver

information window.

2. Press "EXIT" button to exit.

7.3 Load Factory Default

This menu allows you to re-set the device back to factory settings and clear all existed

channels.

1. In the "Tools" menu, select "Load Factory Default" and press "OK" button.

2. A confirmation window will be displayed. Select "Yes" to activate a reset back to the factory

settings and clear all channels.

3. Select "No" to cancel. Press "EXIT" button to exit.

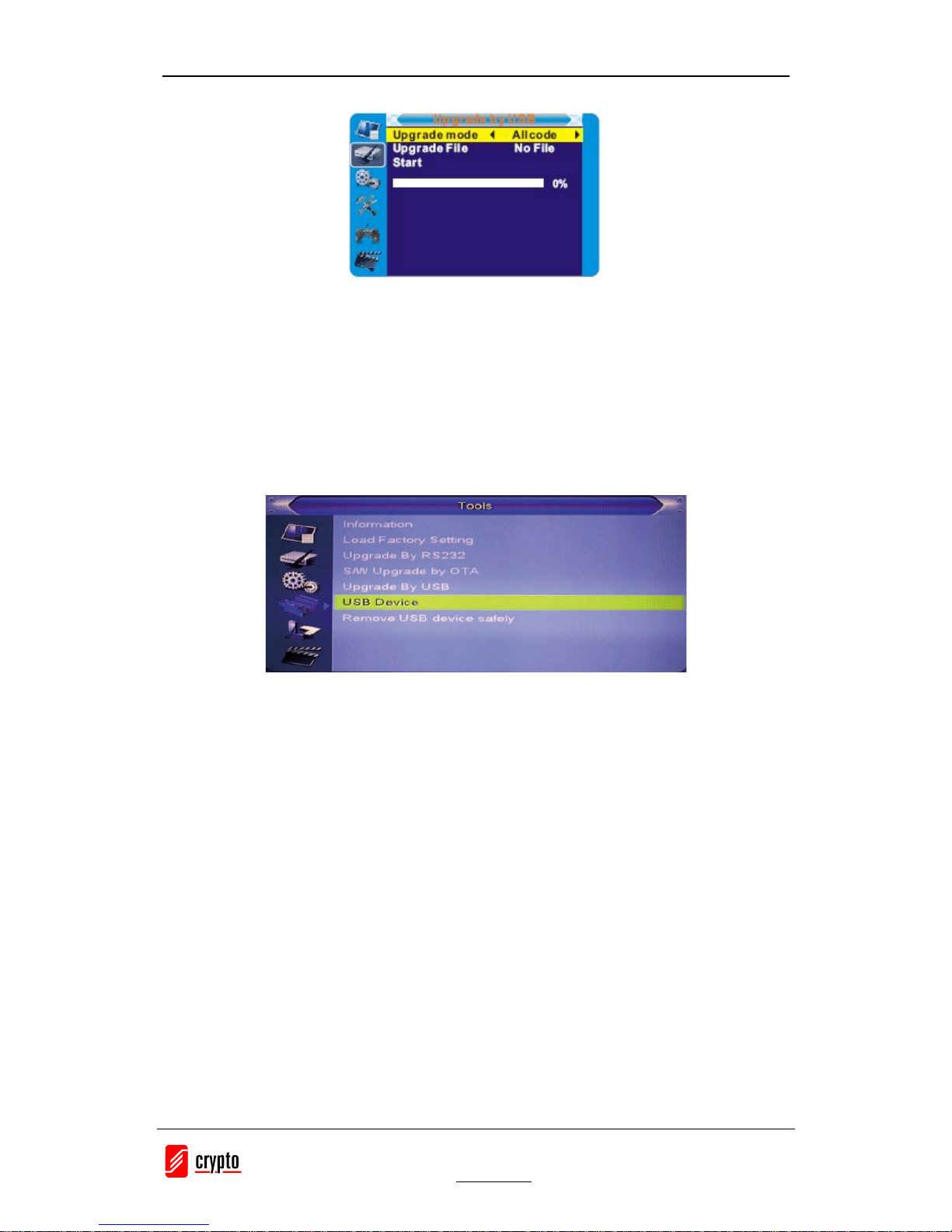

7.4 Software Upgrade

We offer the functions for user to upgrade software version by OTA or by USB.

1. Enter "Tools" menu, select "S/W Upgrade by OTA" or "Upgrade by USB", press "OK" button

and the Software Upgrade menu will be shown.

2. Press cursor button to select the desired item, then highlight "Start" and press "OK" button

to start the upgrade.

3. Press "EXIT" button to exit.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

18

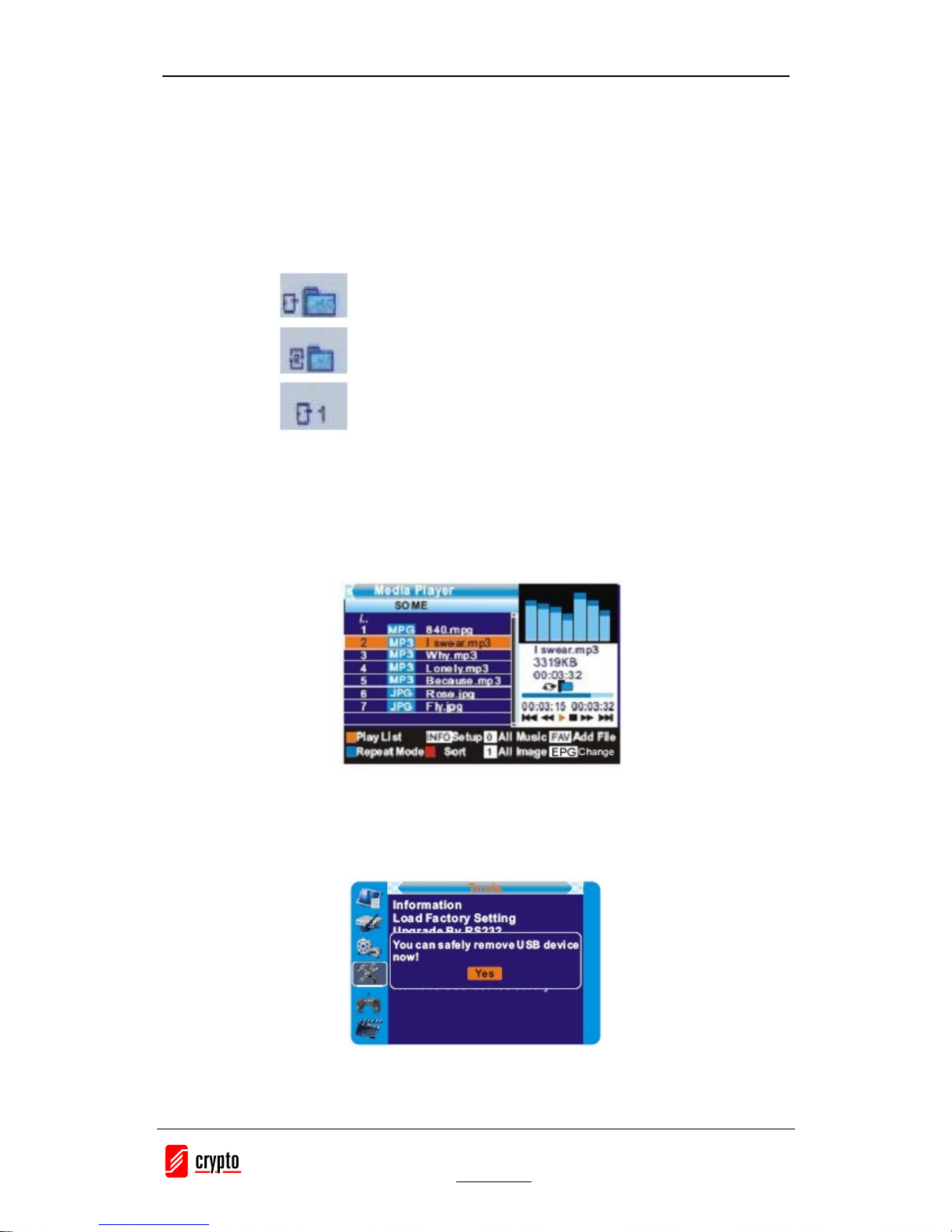

7.5 USB Device

This function allows you to play files from USB port.

1. In "Tools" menu, select "Media+", press "OK" button to enter Media Player menu.

2. Press "UP" or "DOWN" cursor button to select a desired item, and press "OK" button to play

the desired files.

3. Press "EXIT" button to exit.

Key operations

:

· FAV : Put the selected file to play list .

· 0 : All the MP3 files in current directory will be added into MP3 play list .

· 1 : All the Image files in current directory will be added into Image play list.

· 2 :There are four kinds of sorting approaches.

- Name (A-Z): Sorting in Alphabetical descending Order.

- Name (Z-A): Sorting in Alphabetical ascending Order.

- Image 1st: Sorting with image as priority

- Music1st: Sorting with Music as priority

- Lock: Collecting all locked channels and list in the bottom of TV

Channel List.

- Default: Return to original setting order.

-

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

19

· Yellow Key: The “Please select play list type” operation window will be shown by

pressing Yellow key. After that, the user can play the image or music by choosing the

files. If here is no file in the directory, an operation window “This type of play list

doesnot exist” will be shown.

· INFO: Set up slide show of images.

· Blue : To rotate among the 3 repeat modes provided as below:

Repeat Folder

The entire Random Folder

Repeat Single

· EPG : Change the different disk.

7.6 Remove USB device safely

In "Tools" menu, select "Remove USB device safely", Press "OK" button to confirm. Then a

window is displayed. Press "OK" button again.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

20

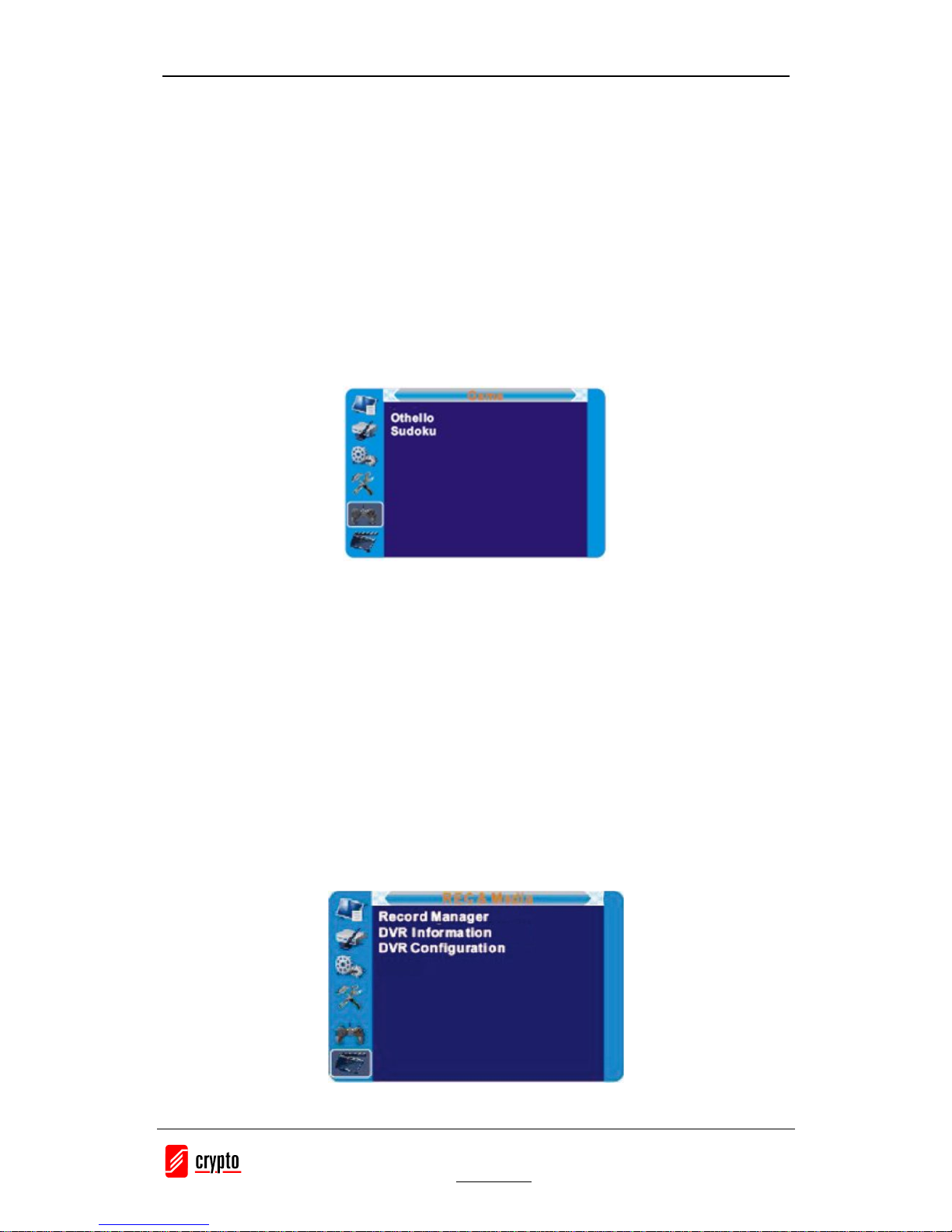

8. GAME

8.1 Game

This menu allows you to play games.

1. Press the "MENU" button to enter main menu.

2. Press "UP" or "DOWN" button to highlight "Game", press "RIGHT" button to enter the Game

menu.

3. Press "UP" or "DOWN" cursor button to highlight the desired item and press "OK" button to

enter the game.

4. Press "EXIT" button to exit.

9. REC

9.1 REC

1. Press the "MENU" button to enter main menu.

2. Press "UP" or "DOWN" button to highlight "REC", press "RIGHT" button to enter the REC &

Media menu.

3. Press "UP" or "DOWN" cursor button to highlight the desired item and press "OK" button to

enter the sub-menu.

4. Press "EXIT" button to exit.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

21

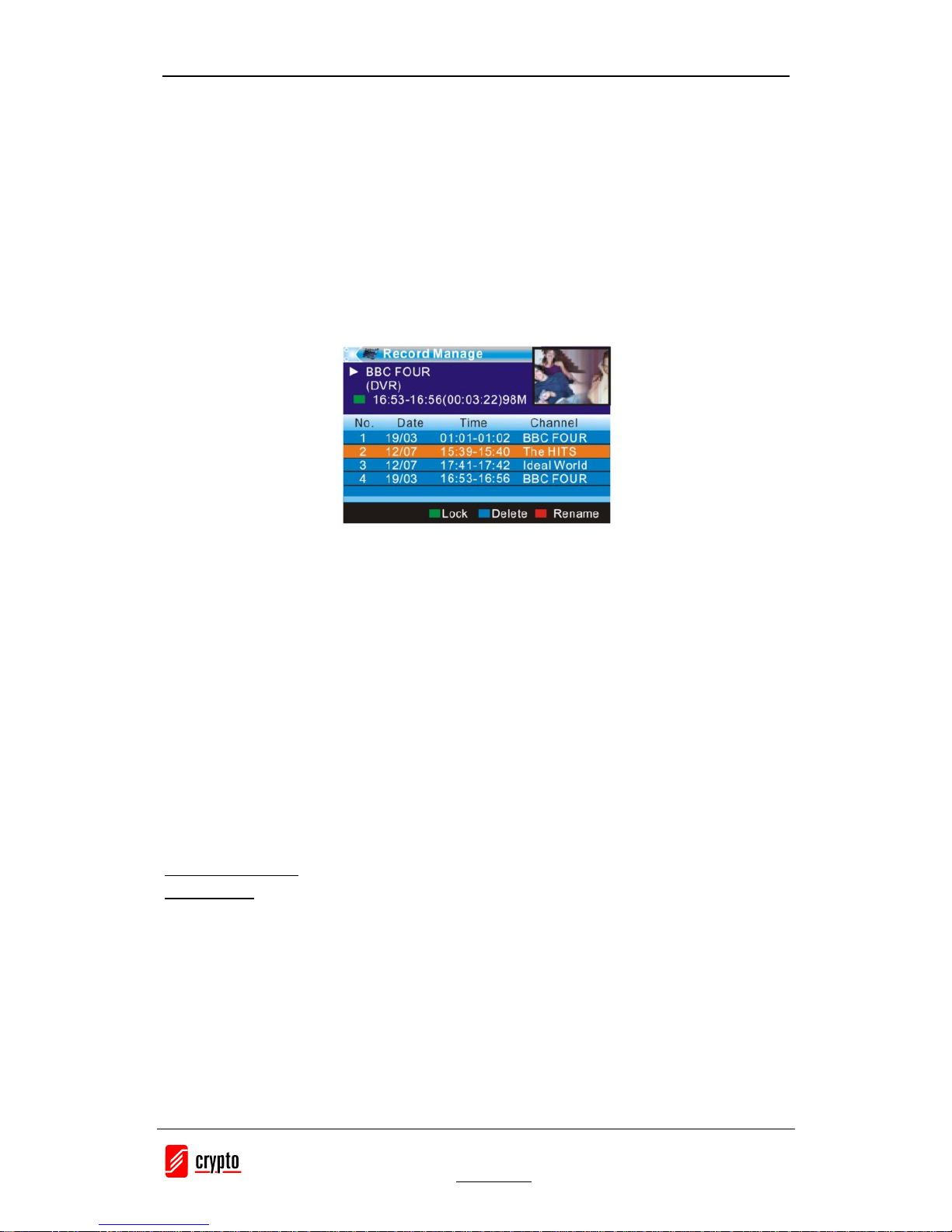

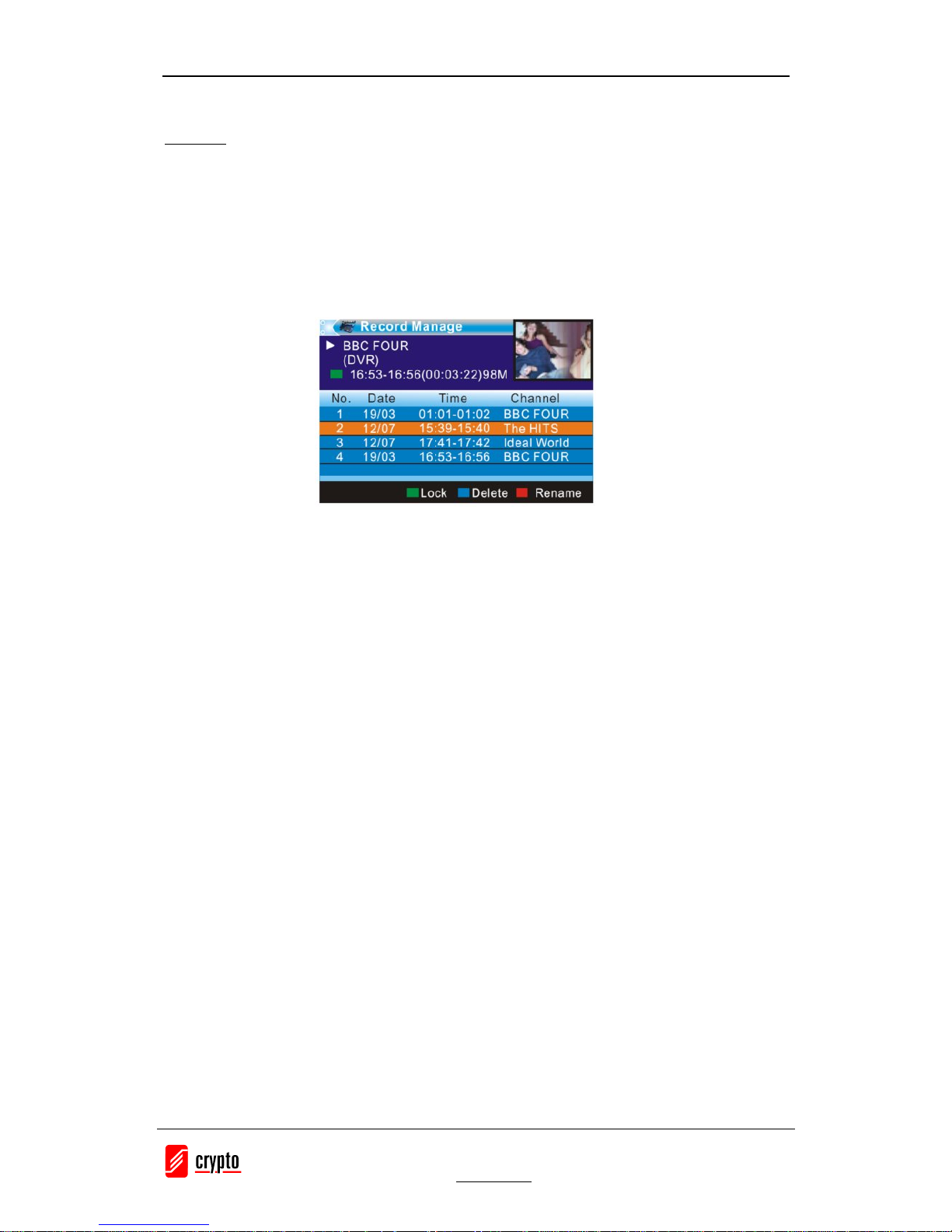

9.2 Record Manager

This menu allows you to play the recorded files.

1. In "REC&MEDIA" menu, select "Record Manager" and press "OK" button to enter Record

Manage menu.

2. Press "UP" or "DOWN" cursor button to select a desired item, and press "OK" button to play

the desired files.

3. Press "EXIT" button to exit.

9.3 DVR Information

This menu can display some parameters of the Removable Disk.

1. In "REC" menu, select "DVR Information", press "OK" button to open DVR information

window.

2. Press "EXIT" button to exit.

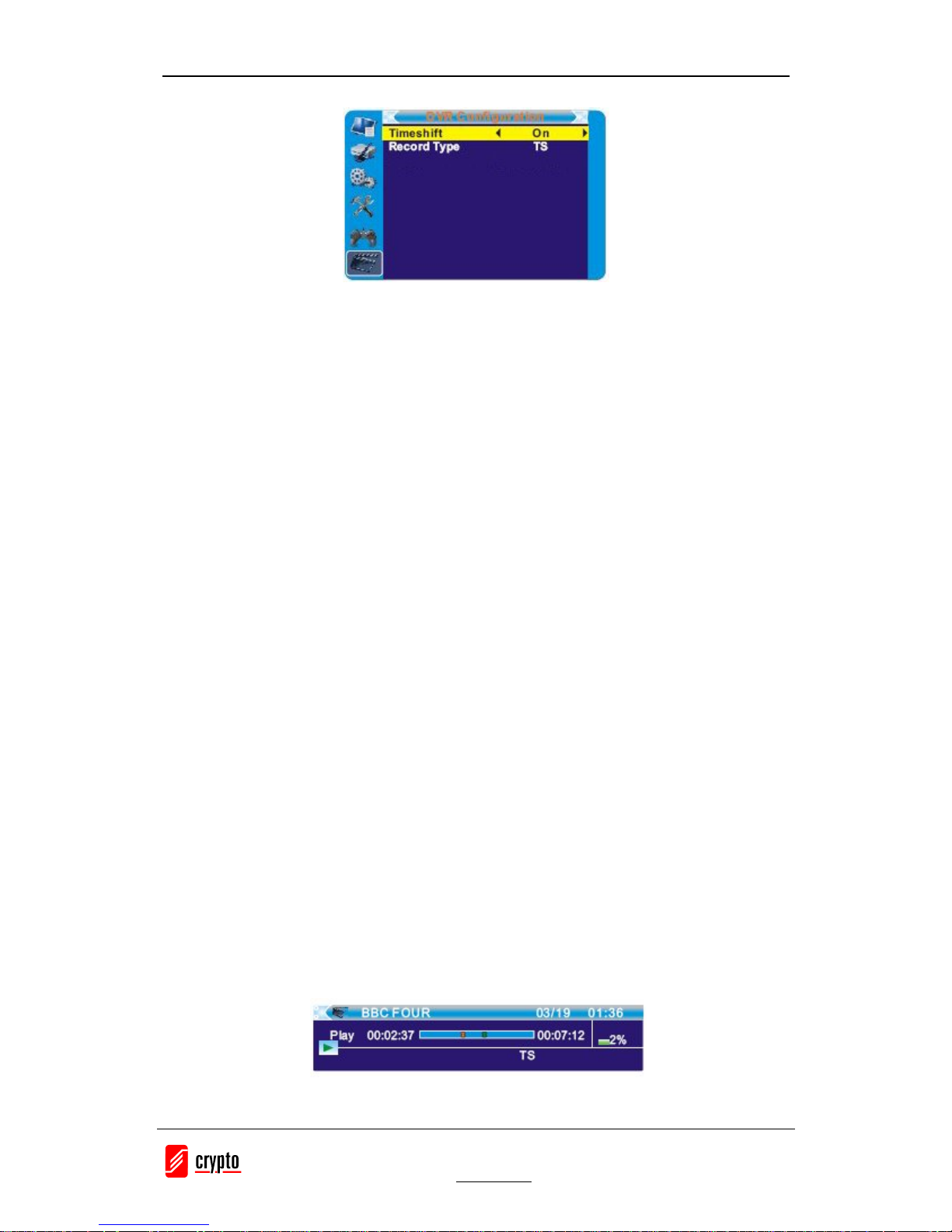

9.4 DVR Configuration

This menu allows us to set the DVR Configuration.

Press "UP" or "DOWN" cursor button to select desired item, press "LEFT" or "RIGHT" cursor

button to change the setting.

TimeShift time(min): On/Off

Record Type: TS/PS

TS: Transportation stream which includes information like teletext, subtitle, epg etc.

PS: Only video stream recording

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

22

10. TIMESHIFT/ RECORD

10.1 Time shift

The digital receiver ReDi 40 MP gives you the ability to record and watch one program

interfacing with the viewing time. All you have to do is to connect an external hard drive or a

USB stick in the usb port of the device.

With this function you can:

Pause the program and continue to see if another time.

NOTE: For proper operation of TIME SHIFT it is recommend using a storage device that

supports USB 2.0 and has high speed read /write. Also if it is possible it is recommended to

use a USB stick or HDD with high storage space. The product can support up to 2TB disks

The TIME SHIFT is a feature where you can simultaneously track, pause or to go back and

forth when you are watching a program. For example, while watching your favorite show

someone rings the door bell. No problem. Just activate the function bt pressing “Pause” button

and the press “Pause” again to freeze the image. The device then start to record the program

and when you return you can resume viewing from where you left.

• Enable TIME SHIFT

- To u se TIM E SHI FT p r es s < PA U SE > and a bar wi t h t h e t im e wh en t he r eco rdi n g i s st art e d

(right) will appear. From this moment and forth the channel program will be recorded.

Each time you wish to pause or rewind the program a new bar will appear.

Notice that now the bar has 2 times. The right is the normal time showing the on going time

from the beginning when started Time Shift and the left is the play backed time according to

the time you choose to watch of the recorded program.

During TIME SHIFT, it is possible to do the following.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

23

- Press "PAUSE" to pause the program and <PLAY> to continue watching later.

- Press "STEP FORWARD" or "FORWARD" to fast forward the recorded program at specified

time steps according to “Jump” settings(30 Mon - 30 minutes) or at 2χ, 4x, speed etc

respectively.

- Press "STEP BACKWARD" or "BACKWARD" to quickly rewind the recording at specified

time steps according to “Jump” settings (30 Mon - 30 minutes) or at 2χ, 4X, speed etc,

respectively.

This choices affect only the recorded program, and not the function of TIME SHIFT.

To r e tu r n t o the no rmal pl a yi ng t im e p r es s t he "ST OP " a nd th e n t he <E XIT > . T he TI M E SHI F T

will continue to record but you will watch the normal time of the program

• Stop TIME SHIFT

The TIME SHIFT is switch off when you change the channel or if you enter the main menu

NOTE:

• The TIME SHIFT is disabled when you activate it for a specific channel and you have

scheduled a recording (PVR) to another channel. When that recording starts the device will

take you to that channel automatically and it will deactivate Time Shift to the other

• The TIME SHIFT can be activated while recording a program, but only for that channel you

are recording.

10.2 Personal Video Recording (PVR)

· Instant Recording

With this feature, with a touch of a button you can write a program you are watching.

- Press <RECORD> button on your remote to immediately start recording the program you

are watching

- Pressing the button again <RECORD>, you can adjust the duration of the recording.

- Press <STOP> button to stop recording. A window will appear.

- Select YES to stop recording. Select NO to resume recording.

· Scheduled Recording

Apart from the operation of direct recording, the device can be scheduled to write a program in

the future.

-Press the <Menu> button and select <settings>, <Timer Settings>.

This menu lets you set the timer for a recording.

Time Mode: Off/Once/Daily

Time service: Record

Wakeup Channel: Set the channel you want to record.

Wakeup Date: Press OK and then the numbers to enter the date of recording.

Wakeup Time: Press OK and t he n the numbers to enter t im e you want the d evice to

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

24

start writing.

Duration: Press OK and then the numbers to enter the duration of the recording

To s ee all t he p ro gra ms y ou ha v e rec o rd e d pre ss :

1. Menu <Rec&Media> select “Record Manager” press OK.

2. Press the Up and Down arrow keys to select the desired entry and press the OK to play the

file.

3. Press <EXIT> on the remote to exit the menu.

Note :

· When you write a program in a particular channel you can watch another of the same

group of four digital channels, that belong in the same frequency, at the same time you

make the record.

· When you have programmed a recording for a channel and you are watching another

with the time shift activated when the recording will start the device automatically

deactivate Time Shift and takes you to the channel that is programmed to be recorded.

· During the time that a recording takes place the Time Shift function can be activated in

parallel with the recording only for that specific channel and not for anyone else.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

25

11. TROUBLESHOOTING

In some region, the digital terrestrial signal may be weak. So you'd better use an antenna with

builtin signal booster.

Problem

Possible cause

What to do

Standby light not lit

Mains lead unplugged.

Mains fuse blown.

Remote sensor not connected

correctly

Check mains lead.

Check fuse.

Ensure remote sensor plug

is fully inserted into the

remote sensor socket on

the main unit.

No signal found

Aerial is disconnected.

Aerial is damaged.

Out of digital signal area.

Check aerial lead.

Check aerial.

Check with signal provider

No picture or sound

Tuned to digital teletext

channel

Change to another channel

Scrambled channel

message

Channel is scrambled.

Select alternative channel

No response to remote

control

Receiver off.

Handset not aimed correctly.

Remote sensor obstructed.

Remote battery exhausted.

Remote sensor not connected

correctly.

Plug in and turn on plug.

Aim handset at front panel.

Check for

obstructions/reposition

remote sensor.

Replace remote battery.

Ensure remote sensor plug

is fully inserted into the

remote sensor socket on

the main unit.

Forgotten channel lock

code

Re-install channels to cancel

channel lock.

Forgotten menu lock code

Contact help line.

After moving receiver to

another room, it is no

no longer able to receive

digital signal

The signal through the aerial

may not be strong enough to

receive digital reception due

to distribution problems

Try a direct feed from the

antenna.

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

26

12. TECHNICALSPECIFICATIONS

Power Voltage

AC 100V / 240V 50-60Hz

Power Consumption

Standb y<1W, Powe r<11W

Video decoder

MPEG-1 / MPEG-2 MP ML / MPEG-4 AVC / H.264 HP L3

Audio decoder

MPEG-1 Layer 1, 2 PCM / HE-AAC V1.0

Video output ratio

16:9/4:3LB/4:3PS/Auto

Video resolution

PAL/NT SC

Recording Format

Video: ts, mpg

Media Player Format

Audio

mp3


jpg, bmp

Video

TS

File type: *.ts /*.trp

Video Cod ec: MPEG2 MP@ML H.264 MP/HP

Max Resolution: 720 x 576 x 30

Audio: MPEG layer 1/2/ AAC

MPG

File type: *.mpg

Video Cod ec: H.264 BP/MP/HP MPEG-4 AVC,Xvid

Max Resolution: 720 x 576 x 30

Audio: MPEG layer 1/2

MP4

File type: *.mp4

Video Codec: MPEG2 MP@ML, H.264 MP/HP MPEG-4

AVC ,H. 263 /Xvid

Max Resolution: 720 x 576 x 30

Audio: MPEG layer 1/2/ AAC

AVI

File type: *avi

Video Codec: MPEG2 MP@ML, H.264 MP/HP MPEG-4

AVC ,H. 263 /Xvid

Max Resolution: 720 x 576 x 30

Audio: MPEG layer 1/2/ AAC

MKV

File type: *mkv

Video Cod ec: H.264 BP/MP/HP

MPEG-4 AVC,Xvid, MP EG2 MP@ML, H.264 MP/HP,

MPEG-4 AVC,H.263 /Xvid

Max Resolution: 720 x 576 x 30

Audio: MPEG layer 1/2/ AAC

OSD Menu

Multi Language (Supports Greek)

Tele text

Multilingual

Tuner

RF Input Connector

IEC FEMALE

Loop Through

IEC Male

Receiving Channel Range

174~230MHz, 470~862MHz

ReDi 40 MP User Manual

Korinthou 11, 14451 Metamorfosi Τel: 210-8098700, Fax: [phone]

Site: www.crypto.gr, Email: [e-mail]

27

Modulation

QPSK/16QAM/64QAM

Band Width

6 / 7/ 8 MHz

I/O

1 x Scart

USB 2.0 Host Interf ace

Dimensions

W x D x H 132x 103 x 35 mm

Weight

177 gr

Te ch nic a l spe cif i cat i on s a re su bj e ct t o cha n ge wi tho u t pri o r n ot ice.

For technical information and support please contact us:

Web Site: www.crypto.gr

E-mail: [e-mail]

Disposal of old electrical and electronic equipment

If you see this symbol on the product or on its packaging, you should hand the product over to the

applicable collection point for the recycling of electrical and electronic equipment. Do not throw it

away with household wastes.

The improper disposal of these products may have negative consequences for the environment and

human health.

For more information about the recycling of this product, please contact your local city office,

your household waste disposal service or the shop where you purchased it.
