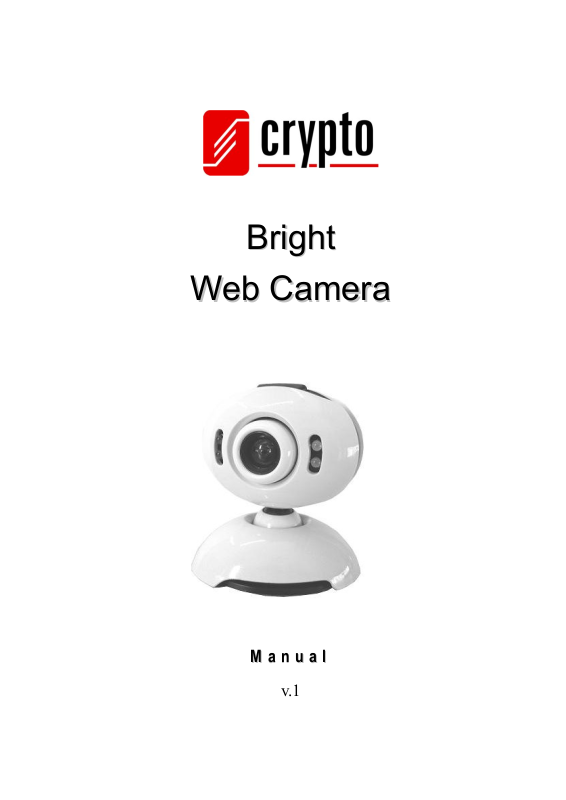

Crypto Bright User Manual

B
Brrii
g
g
h
htt
W
W
e
e
b
b
C
C
a
a
e
err
a
a
MMaannuuaall
v.1

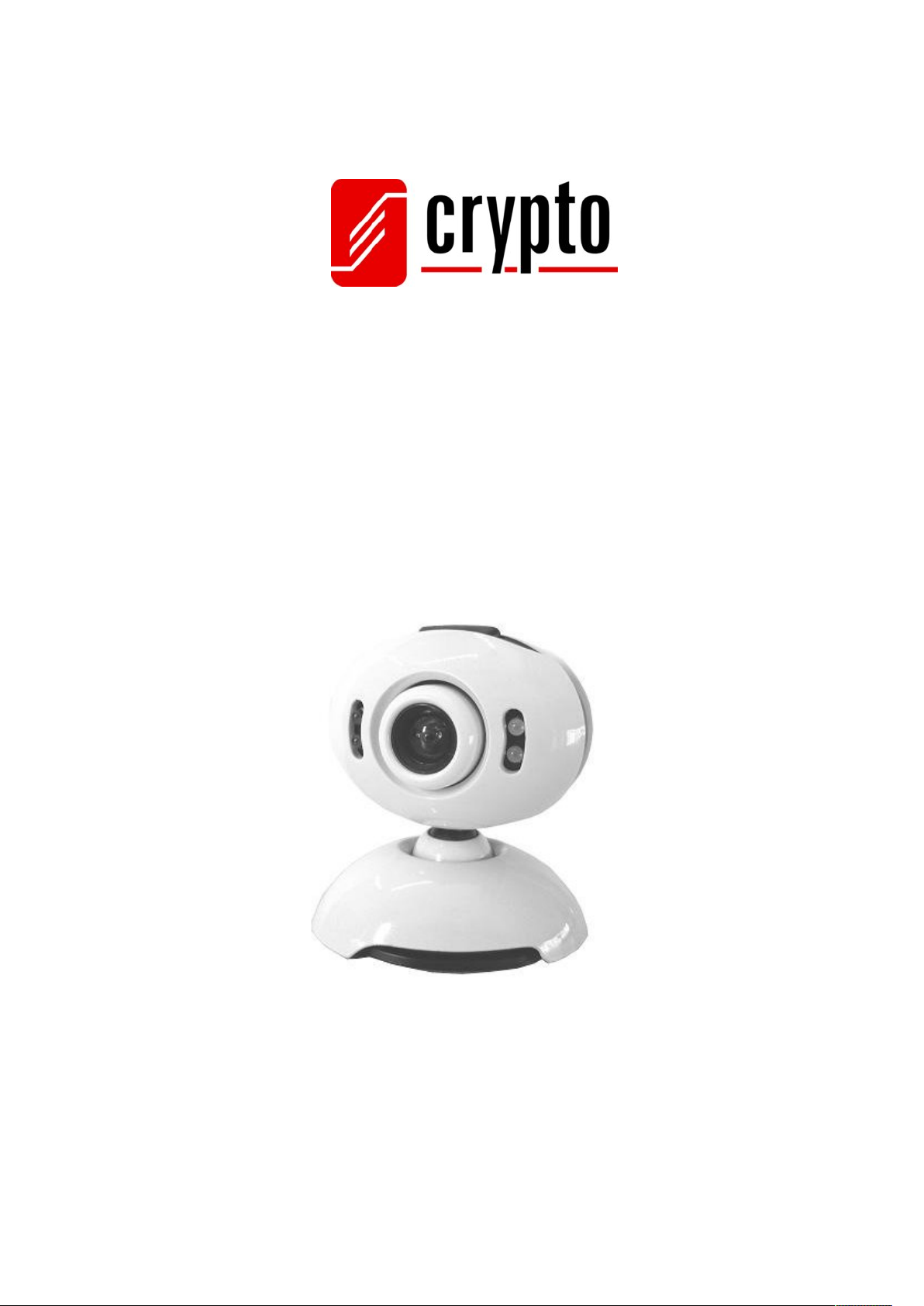

Bright Web Camera Manual
1
1.
Table of Contents
Table of Contents..................................................... 1
1. Package Contents ............................................... 2
2. Driver Installation (WINDOWS XP)..................... 3
3. Settings Menu...................................................... 4
4. Effects. ................................................................. 5
5. Technical Support............................................... 6
6. Technical Specifications .................................... 6
________________________________________________________________________
Bright Web Camera Manual
2
2.
Package Contents
1. Bright Web Camera
2. Users Manual
3. CD with drivers
4. Warranty card
NOTE: Adjust the lens of the camera to focus.
( In XP/VISTA/WIN 7 operation system, it’s
driverless. In WIN 2000 operation system, need to
install the driver and directx9.0.)
________________________________________________________________________
Bright Web Camera Manual
3
Connect webcam to PC. After hardware founded,
put “CD Driver” disk in the CD-Rom and the following
screen will appear.
Click“Next”
Click“Install”
Click“Finish”
3.
Driver Installation (WINDOWS XP)
________________________________________________________________________
Bright Web Camera Manual
4
Choose “Options”
à “Settings”
Select the Output
size you want for
video and capture
image.
Select the folder
you want to save
your captured
images.
NOTE: the output of taking picture by hardware is 300K Pixels(640*480).
4.
Settings Menu
________________________________________________________________________
Bright Web Camera Manual
5
Choose “Options” à
“ Effect”
In Frame Type choose
the frame effect you
want to use.
In “Letter Out” you can write a text that you want to
display on the webcam image.
5.
Effects.
________________________________________________________________________
Bright Web Camera Manual
6
Hardware specifications
·
Sensor type: CMOS, 300K pixels
·
Frame rate: up to 30fps
·
Color depth:RGB 24bit
·
Focus 50mm to infinity
·
Built-in Microphone
·
Snap Shot Button
·
4 LED Controlled by light sensor
System Requirements
·
Windows XP/Vista/7.
·
Pentium 2 or higher
·
128 MB RAM
·
20 MB free disk space on your hard drive
·
VGA Display card with DirectX
·
Free USB port
·
CD-ROM drive for software installation
Interface
·
USB 2.0
Video Capture
·
Video file types: AVI
·
Supported resolutions: 160x120, 176x144, 320x240, 352x288 , 640x480.)
Photo Capture
Supported resolutions: 320x240,640x480, 800x600, 1024x768, 1280x1024, 1600x1200, 2000x1600, 2592x1944, 3200x2400, 3648x2736, 4000x3000. .
Power Supply
·
DC 5V (USB-Powered)
Physical dimensions
·
Dimensions: 60*40*65mm
·
Weight: 40g
6.
Technical Support
For technical information and support please contact
us:
Web Site: www.crypto.gr
E-mail: support@crypto.gr
7.
Technical Specifications
Technical Specifications are subject to change without prior notice.
________________________________________________________________________
Bright Web Camera Manual
7
Disposal of old electrical and electronic equipment
If you see this symbol on the product or on its packaging,
you should hand the product over to the applicable
collection point for the recycling of electrical and electronic
equipment. Do not throw it away with household wastes.
The improper disposal of these products may have negative
consequences for the environment and human health.
For more information about the recycling of this product,
please contact your local city office, your household waste
disposal service or the shop where you purchased it.
