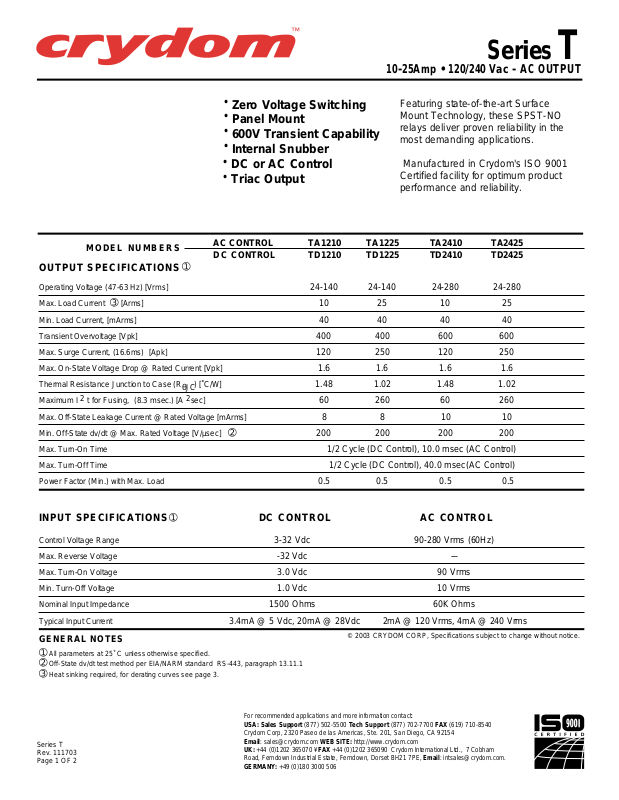

10-25
A
S
eries
m
p
•
120/240 Vac - AC OUTPU
T
T
•
Zero Voltage Switching
•
Panel Mount
•
600V Transient Capability
•
Internal Snubber
•
DC or AC Control
•
Triac Output
MODEL NUMBERS
OUTPUT SPECIFICATIONS
Operating Voltage (47-63 Hz) [Vrms] 24-140 24-140 24-280 24-280
Max. Load Current ➂ [Arms] 10 25 10 25
Min. Load Current, [mArms] 40 40 40 40
Transient Overvoltage [Vpk] 400 400 600 600
Max. Surge Current, (16.6ms) [Apk] 120 250 120 250
Max. On-State Voltage Drop @ Rated Current [Vpk] 1.6 1.6 1.6 1.6
Thermal Resistance Junction to Case (R
Maximum I2 t for Fusing, (8.3 msec.) [A2sec] 60 260 60 260
Max. Off-State Leakage Current @ Rated Voltage [mArms] 88 1010
Min. Off-State dv/dt @ Max. Rated Voltage [V/µsec] ➁ 200 200 200 200
Max. Turn-On Time 1/2 Cycle (DC Control), 10.0 msec (AC Control)
Max. Turn-Off Time 1/2 Cycle (DC Control), 40.0 msec(AC Control)
Power Factor (Min.) with Max. Load 0.5 0.5 0.5 0.5
➀
θJC
AC CONTROL TA1210 TA1225 TA2410 TA2425
D C CONTROL TD1210 TD1225 TD2410 TD2425
) [˚C/W] 1.48 1.02 1.48 1.02
Featuring state-of-the-art Surface
Mount Technology, these SPST-NO
relays deliver proven reliability in the
most demanding applications.
Manufactured in Crydom's ISO 9001
Certified facility for optimum product
performance and reliability.
INPUT SPECIFICATIONS ➀ DC CONTROL AC CONTROL
Control Voltage Range 3-32 Vdc 90-280 Vrms (60Hz)
Max. Reverse Voltage -32 Vdc ---
Max. Turn-On Voltage 3.0 Vdc 90 Vrms
Min. Turn-Off Voltage 1.0 Vdc 10 Vrms
Nominal Input Impedance 1500 Ohms 60K Ohms
Typical Input Current 3.4mA @ 5 Vdc, 20mA @ 28Vdc 2mA @ 120 Vrms, 4mA @ 240 Vrms
GENERAL NOTES
➀ All parameters at 25˚ C unless otherwise specified.
➁ Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
➂ Heat sinking required, for derating curves see page 3.
For recommended applications and more information contact:
USA: Sales Support (877) 502-5500 Tech Support (877) 702-7700 FAX (619) 710-8540
Crydom Corp, 2320 Paseo de las Americas, Ste. 201, San Diego, CA 92154
Series T
Rev. 111703
Page 1 OF 2
Email: sales@crydom.com
UK: +44 (0)1202 365070 ¥ FAX +44 (0)1202 365090 Crydom International Ltd., 7 Cobham
Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE, Email: intsales@crydom.com.
GERMANY: +49 (0)180 3000 506
© 2003 CRYDOM CORP, Specifications subject to change without notice.
WEB SITE: http://www.crydom.com
MOUNTING
HOLE/SLOT
0.17 (4.3) DIA.
S
eries
10-25
A
m
p
•
120/240 Vac - AC OUTPU
GENERAL SPECIFICATIONS
Dielectric Strength 50/60Hz
Insulation Resistance (Min.) @ 500 Vdc 10
Input/Output/Base 4000 Vrms
9
Ohm
Max. Capacitance Input/Output 8 pF
Ambient Operating Temperature Range -40 to 80˚C
Ambient Storage Temperature Range
-40 to 125˚C
MECHANICAL SPECIFICATIONS
Weight: (typical)
3.0 oz. (86.5g)
Encapsulation: Thermally Conductive Epoxy
Terminals: Screws and Saddle Clamps Furnished, Unmounted
MECHANICAL DIMENSIONS
All dimensions are in inches (millimeters)
1.10
(27.9)
.45
(11.4)
8-32 TERMINAL
(2 PLACES )
T
T
Screw Torque Requirements:
6-32 Screws - 10 in. lbs.,
8-32 Screws - 20in. lbs.
(Screws dry without grease.)
12
8
4
Power Dissipation
0
24 8106 20406080
Load Current [Arms] Max Ambient Temp. [˚C]
BASE PLATE
.125 (3.2)
10A
NO HEATSINK
1.87
(47.5)
7˚C/W
9˚C/W
OUTPUT
12
+--
34
INPUT
1.00
(25.4)
1.80
(45.7)
2.30
(58.4)
1.70
(43.2)
6-32 TERMINAL
(2 PLACES)
CURRENT DERATING CURVES
3˚C/W
110
5˚C/W
115
120
Base Plate Temp [˚C]
Power Dissipation
Crydom Heat Sinks offer excellent
thermal management and are perfectly matched to the load current ratings of Crydom panel mount relays.
Request CrydomÕs Heat Sink specifica-
tion sheet for all the details.
.78
(19.8)
.90
(22.9)
25A
30
25
20
15
10
5
0
510 202515 20 40 60 80
Load Current [Arms] Max Ambient Temp. [˚C]
3˚C/W
NO HEATSINK
2˚C/W
1˚C/W
95
100
110
Base Plate Temp [˚C]
120
APPROVALS
UL E116949
CSA LR81689
VDE 10143 UG
Series T
Rev. 111703
PAGE 2 OF 2
© 2003 CRYDOM CORP, Specifications subject to change without notice.
For recommended applications and more information contact:
USA: Sales Support (877) 502-5500 Tech Support (877) 702-7700 FAX (619) 710-8540
Crydom Corp, 2320 Paseo de las Americas, Ste. 201, San Diego, CA 92154
Email: sales@crydom.com
UK: +44 (0)1202 365070 ¥ FAX +44 (0)1202 365090 Crydom International Ltd., 7 Cobham
Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE, Email: intsales@crydom.com.
GERMANY: +49 (0)180 3000 506
WEB SITE: http://www.crydom.com
