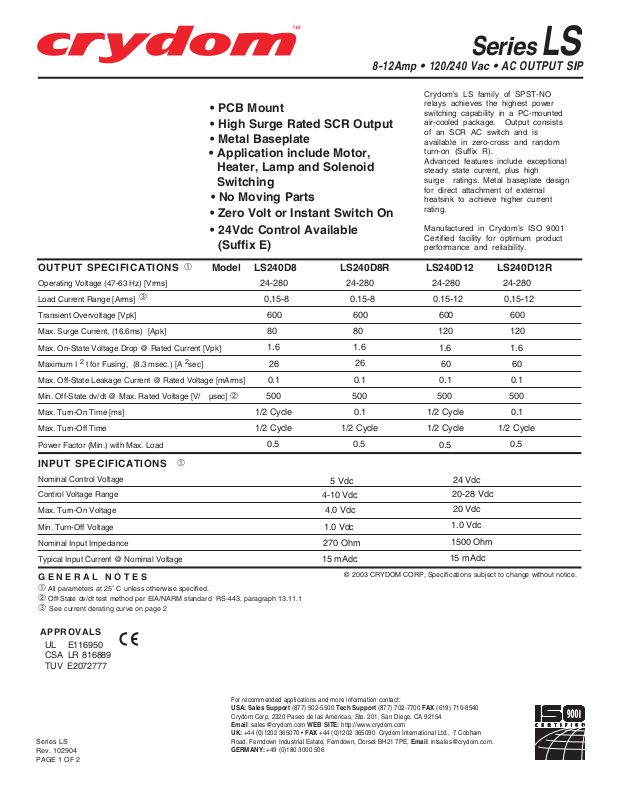

Crydom Series LS Data Sheet
8-12
• PCB Mount
• High Surge Rated SCR Output
• Metal Baseplate
• Application include Motor,
Heater, Lamp and Solenoid
Switching
• No Moving Parts
• Zero Volt or Instant Switch On
• 24Vdc Control Available
(Suffix E)
A
S
eries
m
p
•
120/240 Vac • AC OUTPUT SI
Crydom's LS family of SPST-NO
relays achieves the highest power
switching capability in a PC-mounted
air-cooled package. Output consists
of an SCR AC switch and is
available in zero-cross and random
turn-on (Suffix R).
Advanced features include exceptional
steady state current, plus high
surge ratings. Metal baseplate design
for direct attachment of external
heatsink to achieve higher current
rating.
Manufactured in Crydom’s ISO 9001
Certified facility for optimum product
performance and reliability.
L
S
P
OUTPUT SPECIFICATIONS
Operating Voltage (47-63 Hz) [Vrms] 24-280
Load Current Range [Arms] 0.15-12
Transient Overvoltage [Vpk] 600
Max. Surge Current, (16.6ms) [Apk] 120
Max. On-State Voltage Drop @ Rated Current [Vpk] 1.6
Maximum I2t for Fusing, (8.3 msec.) [A2sec] 60
Max. Off-State Leakage Current @ Rated Voltage [mArms] 0.1
Min. Off-State dv/dt @ Max. Rated Voltage [V/ µsec] ➁ 500
Max. Turn-On Time [ms] 1/2 Cycle
Max. Turn-Off Time 1/2 Cycle
Power Factor (Min.) with Max. Load 0.5
➂
INPUT SPECIFICATIONS
Nominal Control Voltage
Control Voltage Range
Max. Turn-On Voltage 4.0 Vdc
Min. Turn-Off Voltage 1.0 Vdc
Nominal Input Impedance 270 Ohm
Typical Input Current @ Nominal Voltage 15 mAdc
GENERAL NOTES
➀
Model
LS240D8
24-280
0.15-8
600
80
1.6
26
0.1
500
1/2 Cycle
1/2 Cycle
0.5
LS240D8R
24-280
0.15-8
600
80
1.6
26
0.1
500
0.1
1/2 Cycle
0.5
LS240D12
➀
5 Vdc
4-10 Vdc
© 2003 CRYDOM CORP, Specifications subject to change without notice.
24 Vdc
20-28 Vdc
20 Vdc
1.0 Vdc
1500 Ohm
15 mAdc
➀ All parameters at 25˚ C unless otherwise specified.
➁ Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
See current derating curve on page 2
➂
LS240D12R
24-280
0.15-12
600
120
1.6
60
0.1
500
0.1
1/2 Cycle
0.5
APPROVALS
UL E116950
CSA LR 816889
TUV E2072777
Series LS
Rev. 102904
PAGE 1 OF 2
For recommended applications and more information contact:
USA: Sales Support (877) 502-5500 Tech Support (877) 702-7700 FAX (619) 710-8540
Crydom Corp, 2320 Paseo de las Americas, Ste. 201, San Diego, CA 92154
Email: sales@crydom.com
UK: +44 (0)1202 365070 • FAX +44 (0)1202 365090 Crydom International Ltd., 7 Cobham
Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE, Email: intsales@crydom.com.
GERMANY: +49 (0)180 3000 506
WEB SITE: http://www.crydom.com
S
eries
8-12
A
m
p
•
120/240 Vac • AC OUTPUT SI
GENERAL SPECIFICATIONS
Dielectric Strength 50/60Hz Input/Output/Base
Insulation Resistance (Min.) @ 500 Vdc 10
Max. Capacitance Input/Output
Ambient Operating Temperature Range
2500 Vrms
9
Ohm
10 pF
-30 to 80˚C
Ambient Storage Temperature Range -30 to 125˚C
MECHANICAL SPECIFICATIONS
Weight: (typical) 0.6 oz. (17g)
Encapsulation:
Thermally Conductive Epoxy
L
S
P
AVAILABLE OPTIONS
E 24Vdc Input
Example: LSE240D12R
1.220
(31.0)
1.045
(26.5)
12
8
4
POWER DISSIPATION [W]
0
LOAD CURRENT [A]
2
0.895
(22.7)
0.16
(4.0)
46
MECHANICAL DIMENSIONS
0.45
(11.4)
LS240D12
12A 240VAC 4-10VDC
8 Amp
10˚C/W
NO
8
AMBIENT TEMPERATURE [˚C]
1
(7.6)
8
˚C/W
H
20
~
0.30
6˚C/W
EA
T
S
2
(2.9 ± 0.25)
(10.2)
1.39
(35.5)
4˚C/W
IN
K
40
C
L
0.114
0.40
60
0.515
(13.1)
∅ 0.142
(3.6)
0.16
(4.1)
+ -
3
4
0.032 (.8) SQ.
(4 PLACES)
Notes: 1.- Tolerances are ± 0.02'' (0.5 mm) unless otherwise stated.
0.20
(5.1)
2.- All pin dimensions are from center of pin.
CURRENT DERATING CURVES
20
16
90
12
100
8
110
120
80
BASE PLATE TEMPERATURE [˚C]
POWER DISSIPATION [W]
4
46810122040
2
0
LOAD CURRENT [A]
0.400
(10.2)
0.145
(3.7)
PIN 1: AC LOAD
PIN 2: AC LOAD
PIN 3: +DC CONTROL
-DC CONTROL
PIN 4:
0.032
(.8)
0.437
(11.1)
All dimensions are in inches (millimeters)
12 Amp
4˚C/W
6˚C/W
8˚C/W
10˚C/W
NO HEATSINK
80
60
AMBIENT TEMPERATURE [˚C]
90
100
110
120
BASE PLATE TEMPERATURE [˚C]
Series LS
Rev. 102904
PAGE 2 OF 2
