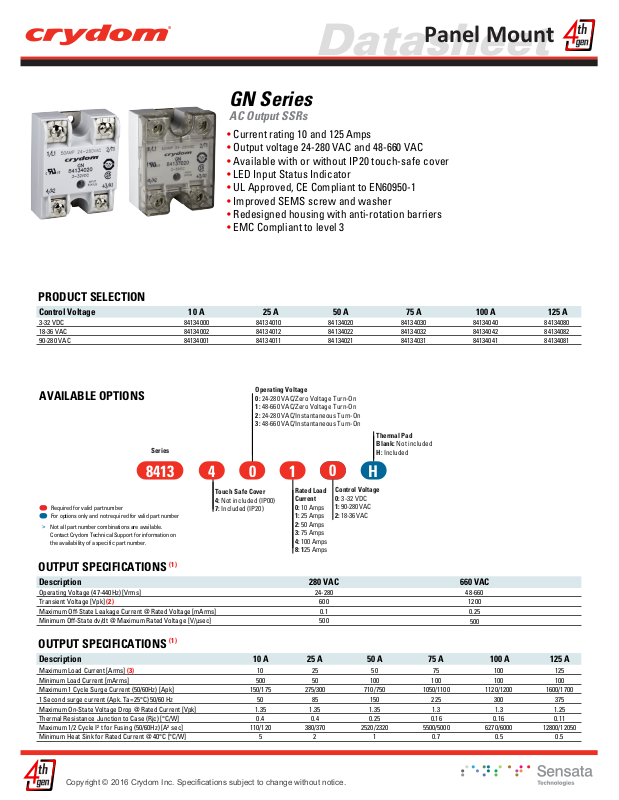

Crydom GN Series Data Sheet

Panel Mount

Datasheet

GN Series

AC Output SSRs

• Current rating 10 and 125 Amps

• Output voltage 24-280 VAC and 48-660 VAC

• Available with or without IP20 touch-safe cover

• LED Input Status Indicator

• UL Approved, CE Compliant to EN60950-1

• Improved SEMS screw and washer

• Redesigned housing with anti-rotation barriers

• EMC Compliant to level 3

PRODUCT SELECTION

Control Voltage 25 A 100 A

3-32 VDC 84134010 18-36 VAC 84134012 84134042 90-280 VAC 84134011 84134041

10 A

84134000 84134002 84134001 84134081

50 A

84134020 84134022 84134021

75 A

84134030 84134032 84134031

84134040

125 A

84134080 84134082

AVAILABLE OPTIONS

Series

8413 0 14

Required for valid part number For options only and not required for valid part number

Not all part number combinations are available.

>

Contact Crydom Technical Support for information on the availability of a specific part number.

OUTPUT SPECIFICATIONS

Touch Safe Cover 4: Not included (IP00) 7: Included (IP20)

(1)

Operating Voltage 0: 24-280 VAC/Zero Voltage Turn-On 1: 48-660 VAC/Zero Voltage Turn-On 2: 24-280 VAC/Instantaneous Turn-On 3: 48-660 VAC/Instantaneous Turn-On

U

0

Rated Load Current 0: 10 Amps 1: 25 Amps 2: 50 Amps 3: 75 Amps 4: 100 Amps 8: 125 Amps

Description 280 VAC

Operating Voltage (47-440Hz) [Vrms] 24-280 Transient Voltage [Vpk] (2) 600 Maximum Off-State Leakage Current @ Rated Voltage [mArms] 0.1 Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] 500

OUTPUT SPECIFICATIONS

Description 10 A

Maximum Load Current [Arms] Minimum Load Current [mArms] 500 Maximum 1 Cycle Surge Current (50/60Hz) [Apk] 150/175 1 Second surge current (Apk. Ta=25 Maximum On-State Voltage Drop @ Rated Current [Vpk] 1.35 Thermal Resistance Junction to Case (Rjc) [°C/W] 0.4 Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec] 110/120 Minimum Heat Sink for Rated Current @ 40°C [°C/W] 5

(3) 10

(1)

°C) 50/60 Hz 50

25 A

25 50

275/300

85

1.35

0.4

380/370

2

H

Control Voltage 0: 3-32 VDC 1: 90-280 VAC 2: 18-36 VAC

50 A

50

100

710/750

150

1.35

0.25

2520/2320

Thermal Pad Blank: Not included H: Included

1

75 A

75

100

1050/1100

225

1.3

0.16

5500/5000

0.7

660 VAC

48-660

1200

0.25 500

100 A

100 100

1120/1200

300

1.3

0.16

6270/6000

0.5

125 A

125 100

1600/1700

375

1.25

0.11

12800/12050

0.5

Panel Mount

Datasheet

INPUT SPECIFICATIONS

Description 8413xxx0

Control Voltage Range 3-32 VDC (4) Maximum Reverse Voltage -32 VDC Minimum Turn-On Voltage 3 VDC (4) Must Turn-Off Voltage 1 VDC Minimum Input Current (for on-state) [mA] 10 Maximum Input Current [mA] 15 Nominal Input Impedance [Ohms] Maximum Turn-On Time [msec] 1/2 Cycle (6) Maximum Turn-Off Time [msec] 1/2 Cycle

GENERAL SPECIFICATIONS

(1)

8413xxx2

18-36 VAC

-

18 VAC

4 VAC

13 15

Current Regulated

20 30

(1)

ParametersDescription

Dielectric Strength, Input/Output/Base (50/60Hz) 4000 Vrms Minimum Insulation Resistance (@ 500 VDC) Maximum Capacitance, Input/Output 8 pF

Ambient Operating Temperature Range (7) -40 to 80 °C Ambient Storage Temperature Range -40 to 125 °C Weight (typical) 2.53 oz (72 g) Housing Material UL94 V-0 Baseplate Material Aluminum Input Terminal Screw Torque Range (in-lb/Nm) 13-15 /1.5-1.7 Load Terminal Screw Torque Range (in-lb/Nm) 18-20 / 2-2.2 SSR Mounting Screw Torque Range (in-lb/Nm) 18-20 / 2-2.2 Humidity per IEC60068-2-78 93% non-condensing LED Input Status Indicator Green

MTBF (Mean Time Between Failures) at 40°C ambient temperature (8) MTBF (Mean Time Between Failures) at 60°C ambient temperature (8)

109 Ohms

11,641,553 hours (1,328 years)

7,210,376 hours (823 years)

8413xxx1

90-280 VAC (5)

90 VAC 10 VAC

6

10

20 30

GENERAL NOTES

All parameters at 25°C unless otherwise speciﬁed.

(1) (2) Output will self trigger between 450-600 Vpk / 900-1200 Vpk for 280 VAC/660 VAC models not suitable for capacitive loads. (3) Heat sinking required, see derating curves. (4) 4-32 VDC for 48-660 VAC models. (5) For ambient temperatures above 40°C the maximum control voltage must not exceed 250 VAC. (6) Turn-on time for Instantaneous turn-on versions is 0.1 msec. (7) AC models operating range is -20 to 80°C. (8) All parameters at 50% power rating and 100% duty cycle (contact Crydom tech support for detailed report). (9) Load can be wired to either SSR output terminal 1 or 2. (10) For single surge pulse Tc=25°C; Tj=125°C. For AC Output SSRs, AC Rms value of surge current equals the peak value divided by √2 (1.414).

For additional information or speciﬁc questions, contact Crydom Technical Support.

WIRING DIAGRAM

AC

V

Load

1 ( ) 2 ( )

INPUT

2

3

OUTPUT

1

SOLI D S T A TE R ELA Y

4

4 (– / ) 3 (+ / )

Panel Mount

Datasheet

(9)

Terminals

Input

Output

Recommended Wire Sizes

Wire Size

(Solid / Stranded)

24 AWG (0.2 mm

2 x 12 AWG (3.3 mm

20 AWG (0.5 mm

2 x 10 AWG (5.3 mm

2 x 8 AWG (8.4 mm

2

) / 0.2 [minimum]

2

) / 0.518 [minimum]

2

) / 8.4 [maximum]

2

) / 3.3 [maximum]

2

) / 5.3

Wire Pull-Out

Strength (lb)[N]

10 [44.5]

90 [400]

30 [133]

110 [490]

90 [400]

EQUIVALENT CIRCUIT BLOCK DIAGRAMS

GN Series DC Control

-DC

4

Trigger

Circuit

Trigger

Circuit

AC

+DC

INPUT

3

4

INPUT

3

Current

Limiter

AC/DC

Converter

Current

Limiter

GN Series AC Control

1

OUTPUT

2

AC

1

OUTPUT

2

AC

Input Current vs Input Voltage Standard Regulated DC Input

14

12

10

8

6

4

2

Input Current (mA)

0

0 5 10 15 20 25 30 35

DC Input Voltage

Input Current vs Input Voltage

Standard Regulated AC Input

7

6

5

4

3

2

1

Input Current (mA)

0

0 50 100 150 200 250 300

AC Input Voltage

Input Current vs Input Voltage

16 14 12 10

8 6 4

Input Current (mA)

2 0

Regulated AC Input Option E

0 5 10 15 20 25 30 35

AC Input Voltage

Panel Mount

Datasheet

MECHANICAL SPECIFICATIONS

Tolerances: ±0.02 in / 0.5 mm All dimensions are in: inches [millimeters]

Screw Termination, IP00

1.1

[27.9]

0.49

[12.4]

1.88

[47.6]

1.0

[25.4]

1.75

[44.5]

Mounting Hole/Slot

0.19 [4.9] DIA.

1.7

[43.2]

THERMAL DERATE INFORMATION

(1)

Screw Termination, IP20

0.89

[22.6]

2.25

[57.3]

1.88

[47.6]

1.7

[43.2]

1.10

[27.9]

0.49

[12.4]

1.0

[25.4]

1.75

[44.5]

Mounting Hole/Slot

0.19 [4.9] DIA.

2.32

[58.8]

2.25

[57.3]

1.22

[30.9]

10 A

3°C/W

10

8

6

4

2

Load Current (Amps)

0

20 25 30 35 40 45 50 55 60 65 70 75 80

Ambient Temperature (ºC)

5°C/W

75 A

0.5°C/W

75

60

45

30

15

Load Current (Amps)

0

20 25 30 35 40 45 50 55 60 65 70 75 80

0.7°C/W

Ambient Temperature (ºC)

1°C/W

1.5°C/W

25 A

1°C/W

25

20

15

10

5

Load Current (Amps)

0

20 25 30 35 40 45 50 55 60 65 70 75 80

1.5°C/W

Ambient Temperature (ºC)

2°C/W

100 A

0.4°C/W

100

90 80 70 60 50 40 30 20

Load Current (Amps)

10

0

20 25 30 35 40 45 50 55 60 65 70 75 80

0.5°C/W

Ambient Temperature (ºC)

0.7°C/W

3°C/W

1°C/W

0.5°C/W

0.7°C/W

50

40

30

20

10

Load Current (Amps)

0

20 25 30 35 40 45 50 55 60 65 70 75 80

Ambient Temperature (ºC)

1°C/W

1.5°C/W 2°C/W

125 A

50 A

0.4°C/W

120

100

80

60

40

20

Load Current (Amps)

0

20 25 30 35 40 45 50 55 60 65 70 75 80

0.5°C/W

Ambient Temperature (ºC)

0.7°C/W

1°C/W

SURGE CURRENT INFORMATION

Single Pulse (10)

Panel Mount

Datasheet

10 A

160

140

120

100

80

60

40

20

Surge Current (Amp) AC Peak

0

0.01 0.1 1 10

Surge Duration (secs)

50 A

700

600

500

400

300

200

100

Surge Current (Amp) AC Peak

0

0.01 0.1 1 10

Surge Duration (secs)

25 A

300

250

200

150

100

50

Surge Current (Amp) AC Peak

0

0.01 0.1 1 10

Surge Duration (secs)

75 A

1100 1000

900 800 700 600 500 400 300 200 100

Surge Current (Amp) AC Peak

0

0.01 0.1 1 10

Surge Duration (secs)

100 A

1200

1000

800

600

400

200

Surge Current (Amp) AC Peak

0

0.01 0.1 1 10

Surge Duration (secs)

125 A

1600

1400

1200

1000

800

600

400

200

Surge Current (Amp) AC Peak

0

0.01 0.1 1 10

Surge Duration (secs)

AGENCY APPROVALS

EN60950-1: Meets the requirements of sections1.5: 1,7: 2.9: 2.10.5.3: 4.2: 4.5: 4.7: Certiﬁed according to EN 62314:2006 IEC 61000-4-2 Electrostatic Discharge Level 3 IEC 61000-4-4 Electrically Fast Transients Level 3 IEC 61000-4-5 Electrical Surges Level 3

Panel Mount

Datasheet

E79183

ACCESSORIES

Cover Hardware

Kit

KS101 HK1

HK4

LR 38595

Recommended Accessories

Heat Sink

Part No.

HS501DR

HS301 / HS301DR

HS251

HS201 / HS201DR

HS202 / HS202DR

HS172

HS151 / HS151DR

HS122 / HS122DR

HS103 / HS103DR

HS101

HS073

HS072

HS053

HS033

HS023

Thermal Resistance

[ºC/W]

5.0

3.0

2.5

2.0

1.7

1.5

1.2

1.0

0.7

0.5

0.36

0.25

Lug Terminal Thermal Pad

TRM1

TRM6

HSP-1

HSP-2

Rev. 092816

Panel Mount

Datasheet

DANGER / PELIGRO / DANGER /GEFAHR / PERICOLO / 危险

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH.

• Disconnect all power before installing or working with this equipment.

• Verify all connections and replace all covers before turning on power.

Failure to follow these instructions will result in death or serious injury.

RIESGO DE DESCARGA ELECTRICA O EXPLOSION.

• Desconectar todos los suministros de energia a este equipo antes de trabajar

con este equipo.

• Verificar todas las

conexiones y colocar todas las

tapas antes de energizer el equipo.

El incumplimiento de estas instrucciones puede provocar la muerte o lesiones serias.

RISQUE DE DESCHARGE ELECTRIQUE OU EXPLOSION

• Eteindre toutes les sources d'énergie de cet appareil avant de travailler dessus de cet appareil

• Vérifier tous

connections, et

remettre tous couverts en olace avant de

mettre sous

De non-suivi de

ces instructions provoquera la mort ou des lésions sérieuses sérieuses.

GEFAHR EINES ELEKTRISCHE N SCHLAGES ODER EINER EXPLOSION.

• Stellen Sie jeglichen St

rom ab, der dieses Gerät versorgt, bevor

Sie an dem

Gerät Arbeiten durchführen

• Vor dem Drehen auf Energie alle Anschlüsse überprüfen und alle Abdeckungen ersetzen.

Unterlassung dieser Anweisungen können zum Tode oder zu

schweren Verletzungen führen.

RISCHIO DI SCOSSA ELETTRICA O DELL’ESPLOSI ONE.

• Spenga tutta l'alimentazion e che fornisce questa apparecchiatu ra prima del lavorare a questa

apparecchiatu ra

• Verificare tutti i colle

gament e sostituire tutte le coperture prima della rotazione sull'alimentazi one

L'omissione di seguire queste istruz ioni provocherà la morte o di lesioni serie

存在电击、爆炸或电弧闪烁危险

•

在操作此设备之前请先关闭电源。

若不遵守这些说明，可能会导致严重的人身伤害甚至死亡。

i

WARNING / AVERTISSEMENT / WARNUNG /ADVERTENCIA / AVVERTENZA / 警告

RISK OF MATERIAL DAMAGE AND HOT ENCLOSURE

• The product's side panels may be hot, allow

the product to cool before touching.

• Follow proper mounting instructions including torque values.

• Do not allow liquids or foreign objects to enter this product.

Failure to follow these instructions can result in serious injury, or equipment damage.

RIESGO DE DAÑOS MATERIALES Y DE SOBRECALENTAMIENTO DE LA UNIDAD

• Los paneles laterales del producto pueden

estar calientes. Esperar que el producto se enfríe antes de tocarlo.

• Respetar las instrucciones de montaje, y en particular los pares de apretado.

• No dejar que penetren líquidos o cuerpos extraños en el producto.

Si no se respetan estas precauciones pueden producirse graves lesiones, daños materiales.

RISQUE DE DOMMAGE MATERIEL ET DE SURCHAUFFE DU BOITIER

• Les panneaux latéraux du produit peuvent être

chauds. Laisser le produit refroidir avant de le toucher.

• Respecter les consignes de montage, et notamment les couples de serrage.

• Ne pas laisser pénétrer de liquide ni de corps étrangers à l'intérieur du produit.

Le non-respect de cette directive peut entraîner, des lésions corporelles graves ou des dommages matériels.

RISCHIO DI DANNI MATERIALI E D'INVOLUCRO CALDO

• I pannelli laterali dell'apparecchio possono

scottare; lasciar quindi raffreddare il prodotto prima di toccarlo.

• Seguire le istruzioni di montaggio corrette.

• Non far entrare liquidi o oggetti estranei in questo

apparecchio.

La mancata osservanza di questa precauzione può causare gravi rischi per l'incolumità personale o danni alle apparecchiature.

GEFAHR VON MATERIALSCHÄDEN UND GEHÄUSEERHITZUNG

• Die Seitenwände können heiß sein. Lassen Sie

das Produkt abkühlen, bevor Sie es berühren.

• Beachten Sie die Montageanweisungen,

• Führen Sie keine Flüssigkeiten oder

Fremdkörper in das Produkt ein.

Die Nichtbeachtung dieser Anweisung kann Körperverletzung oder Materialschäden zur Folge haben.

材料损坏和高温外壳的危险性

• 产品的一侧面板可能很热，在其冷却前请不要触碰。

• 遵照正确的安装说明，包括扭矩值。

• 请勿让液体及其他异物进入本产品。

如不能正确执行这些操作说明，极有可能造成严重人体伤害或者设备的损坏。

Panel Mount

Datasheet

ANNEX - ENVIROMENTAL INFORMATION

The environmental information disclosed in this annex including the EIP Pollution logo are in compliance with People’s Republic of China Electronic Industry Standard SJ/T11364 – 2006, Marking for Control of Pollution Caused by Electronic Information Products.

Part Name

Semiconductor die

Solder

Toxic or hazardous Substance and Elements

Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd)

Chromium (Cr (VI))

biphenyls (PBB)

diphenyl ethers (PBDE)

50

Crydom GN Series Data Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
