Crydom GNA5 Series Data Sheet

Panel Mount

Datasheet

GNA5 Series

• Current rating 10 and 25 Amps

• Output voltage 24-280 VAC

• Triac Output (Resistive Loads Only)

• Available with or without IP20 touch-safe cover

• LED Input Status Indicator

• UL Approved, CE Compliant to EN60950-1

• Improved SEMS screw and washer

• Screw or Quick Connect

• Redesigned housing with anti-rotation barriers

• EMC Compliant to level 3

PRODUCT SELECTION

Control Voltage 10 A 25 A

3-32 VDC 84134900 84134910 90-280 VAC 84134901 84134911

AVAILABLE OPTIONS

Rated Load Current 0: 10 Amps 1: 25 Amps

Series

Touch Safe Cover 4: Not included (IP00) 7: Included (IP20)

8413 9 14

Operating Voltage 9: 24-280 VAC/

Zero Voltage Turn-On

Required for valid part number For options only and not required for valid part number

OUTPUT SPECIFICATIONS

Description

Operating Voltage (47-63Hz) [Vrms] 24-280 Transient Voltage [Vdc] (2) 600 Maximum Off-State Leakage Current @ Rated Voltage [mArms] 0.1 Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] 500 Maximum Load Current [Arms] Minimum Load Current [mArms] 100 Maximum 1 Cycle Surge Current (50/60Hz) [Apk] 90/100 1 Second surge current (Apk. Ta=25 Maximum On-State Voltage Drop @ Rated Current [Vpk] 1.5 Thermal Resistance Junction to Case (Rjc) [°C/W] 2.2 Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec] 41/42 Minimum Heat Sink for Rated Current @ 40°C [°C/W] 3

(3) 10

(1)

10 A

°C) 50/60 Hz 30

Thermal Pad Blank: Not included H: Included

U

0

Control Voltage 0: 3-32 VDC 1: 90-280 VAC 4: 3-32 VDC 3/16” QC input 5: 90-280 VAC 3/16” QC input 7: 3-32 VDC 1/4” QC input 9: 90-280 VAC 1/4” QC input

H

1/4” QC output terminals (IP00 only)

25 A

24-280

600

0.1

500

25

100

239/250

75

1.3

0.8

285/259

1.5

Panel Mount

Datasheet

INPUT SPECIFICATIONS

(1)

Description DC Control

Control Voltage Range 3-32 VDC (4) Maximum Reverse Voltage -32 VDC Minimum Turn-On Voltage 3 VDC Must Turn-Off Voltage 1 VDC Minimum Input Current (for on-state) 9.5 mA Maximum Input Current [mA] 14mA Nominal Input Impedance [Ohms] Current Limited Maximum Turn-On Time [msec] 1/2 Cycle (6) Maximum Turn-Off Time [msec] 1/2 Cycle

GENERAL SPECIFICATIONS

(1)

ParametersDescription

Dielectric Strength, Input to Output (50/60Hz) 4000 Vrms Dielectric Strength, Input/Output to Ground (50/60Hz) 2500 Vrms

Minimum Insulation Resistance (@ 500 VDC) Maximum Capacitance, Input/Output 8 pF Ambient Operating Temperature Range (7) -40 to 80 °C Ambient Storage Temperature Range -40 to 100 °C Weight (typical) 2.46 oz (70 g) Housing Material UL94 V-0 Baseplate Material Aluminum Input Terminal Screw Torque Range (in-lb/Nm) 13-15 /1.5-1.7 Load Terminal Screw Torque Range (in-lb/Nm) 18-20 / 2-2.2 SSR Mounting Screw Torque Range (in-lb/Nm) 18-20 / 2-2.2 Humidity per IEC60068-2-78 93% non-condensing LED Input Status Indicator Green

MTBF (Mean Time Between Failures) at 40°C ambient temperature (8) MTBF (Mean Time Between Failures) at 60°C ambient temperature (8)

109 Ohms

11,641,553 hours (1,328 years)

7,210,376 hours (823 years)

AC Control

90-280 VAC (5)

90 VAC 10 VAC

5 mA

8.5 mA

20 30

GENERAL NOTES

All parameters at 25°C unless otherwise speciﬁed.

(1) (2) Output will self trigger between 450-600Vpk not suitable for capacitive loads. (3) Heat sinking required, see derating curves. (4) Increase minimum voltage by 1V for operations from -20 to -40°C. (5) For ambient temperatures above 40°C the maximum control voltage must not exceed 250 VAC. (6) Turn-on time for Instantaneous turn-on versions is 0.1 msec. (7) AC models operating range is -20 to 80°C. (8) All parameters at 50% power rating and 100% duty cycle (contact Crydom tech support for detailed report). (9) Load can be wired to either SSR output terminal 1 or 2. (10) For single surge pulse Tc=25°C; Tj=125°C. For AC Output SSRs, AC Rms value of surge current equals the peak value divided by √2 (1.414).

For additional information or speciﬁc questions, contact Crydom Technical Support.

WIRING DIAGRAM

AC

V

Panel Mount

Datasheet

Load

(9)

1 ( ) 2 ( )

INPUT

2

3

OUTPUT

1

SOLI D S T A TE R ELA Y

4

4 (– / ) 3 (+ / )

EQUIVALENT CIRCUIT BLOCK DIAGRAMS

GNA5 Series DC Control

4

-DC

Trigger Circuit

+DC

INPUT

3

Current

Limiter

Terminals

Input

Output

Recommended Wire Sizes

Wire Size

(Solid / Stranded)

24 AWG (0.2 mm

2 x 12 AWG (3.3 mm

20 AWG (0.5 mm

2 x 10 AWG (5.3 mm

2 x 8 AWG (8.4 mm

2

) / 0.2 [minimum]

2

) / 0.518 [minimum]

2

) / 8.4 [maximum]

AC

1

OUTPUT

AC

2

) / 3.3 [maximum]

2

) / 5.3

Wire Pull-Out

Strength (lb)[N]

10 [44.5]

90 [400]

30 [133]

110 [490]

90 [400]

Input Current vs Input Voltage Standard Regulated DC Input

14

12

10

8

6

4

2

Input Current (mA)

0

0 5 10 15 20 25 30 35

DC Input Voltage

GNA5 Series AC Control

Current

Limiter

4

AC

AC/DC

Converter

INPUT

3

AC

Trigger Circuit

AC

1

OUTPUT

2

Input Current vs Input Voltage

Standard Regulated AC Input

7

6

5

4

3

2

1

AC

Input Current (mA)

0

0 50 100 150 200 250 300

AC Input Voltage

Panel Mount

Datasheet

MECHANICAL SPECIFICATIONS

Tolerances: ±0.02 in / 0.5 mm All dimensions are in: inches [millimeters]

Screw Termination, IP00

1.1

[27.9]

0.49

[12.4]

1.88

[47.6]

1.0

[25.4]

1.75

[44.5]

Mounting Hole/Slot

0.19 [4.9] DIA.

1.7

[43.2]

(1)

0.89

[22.6]

2.25

[57.3]

1.88

[47.6]

1.7

[43.2]

Screw Termination, IP20

1.10

[27.9]

0.49

[12.4]

1.0

[25.4]

1.75

[44.5]

Mounting Hole/Slot

0.19 [4.9] DIA.

2.32

[58.8]

2.25

[57.3]

1.22

[30.9]

Mounting Hole/Slot

0.19 [4.9] DIA.

1.88

[47.6]

Quick Connect, Input 3/16”, Output 1/4” Quick Connect, Input 1/4”, Output 1/4”

1.1

[27.9]

0.49

[12.4]

1.0

[25.4]

1.75

[44.5]

Faston

Terminal

0.25 x 0.032

(2 Places)

2.22

[56.3]

Faston

Terminal

0.187x0.02

(2 Places)

1.7

[43.2]

1.32

[33.6]

1.24

[31.6]

2.25

[57.2]

Mounting Hole/Slot

0.19 [4.9] DIA.

1.88

[47.6]

1.1

[27.9]

0.49

[12.4]

[25.4]

1.75

[44.5]

1.0

Faston

Terminal

0.25 x 0.032

(4 Places)

2.34

[59.5]

1.7

[43.2]

1.32

[33.6]

1.32

[33.6]

2.25

[57.2]

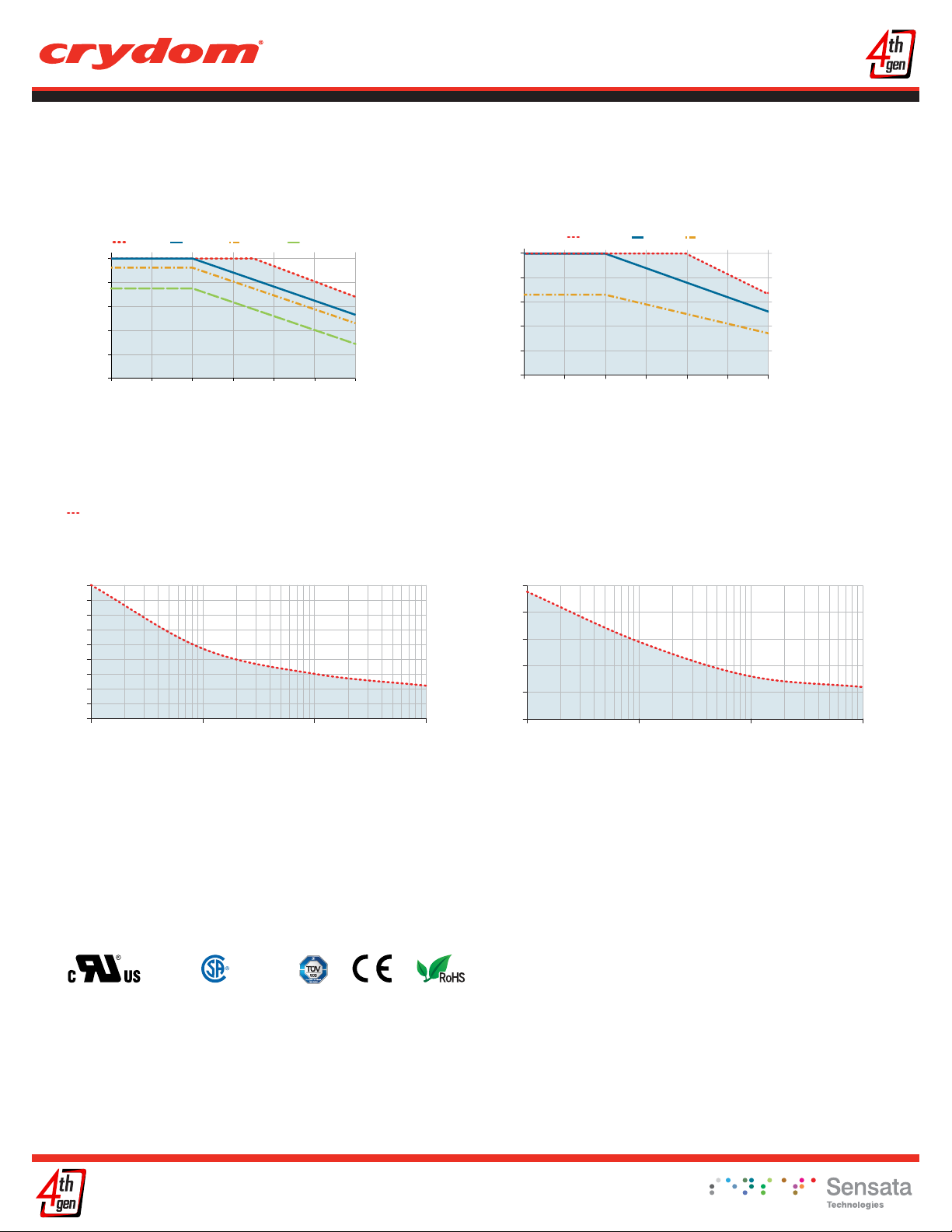

THERMAL DERATE INFORMATION

(i) SSR metal base plate acting as heat sink, it must be exposed to free ambient air.

Panel Mount

Datasheet

10 A

2°C/W

10

8

6

4

2

Load Current (Amps)

0

20 30 40 50 60 70 80

3°C/W

Ambient Temperature (ºC)

5°C/W

No Heat Sink*

SURGE CURRENT INFORMATION

Single Pulse (10)

10 A

90 80 70 60 50 40 30 20 10

Surge Current (Amp) AC Peak

0

0.01 0.1 1 10

Surge Duration (sec)

25 A

1.5ºC/W

25

20

15

10

5

Load Current (Amps)

0

20 30 40 50 60 70 80

Ambient Temperature (ºC)

2ºC/W

3ºC/W

25 A

250

200

150

100

50

0

Surge Current (Amp) AC Peak

0.01 0.1 1 10

Surge Duration (sec)

AGENCY APPROVALS

EN60950-1: Meets the requirements of sections1.5: 1,7: 2.9: 2.10.5.3: 4.2: 4.5: 4.7: IEC 61000-4-2 Electrostatic Discharge Level 3 IEC 61000-4-4 Electrically Fast Transients Level 3 IEC 61000-4-5 Electrical Surges Level 3

E46203

LR 38595

ACCESSORIES

Panel Mount

Datasheet

Recommended Accessories

Cover Hardware

Kit

KS101 HK1

HK4

Heat Sink

Part No.

HS501DR

HS301 / HS301DR

HS251

HS201 / HS201DR

HS202 / HS202DR

HS172

HS151 / HS151DR

HS122 / HS122DR

HS103 / HS103DR

HS101

HS073

HS072

HS053

HS033

HS023

Thermal Resistance

[ºC/W]

5.0

3.0

2.5

2.0

1.7

1.5

1.2

1.0

0.7

0.5

0.36

0.25

Lug Terminal Thermal Pad

TRM1

TRM6

HSP-1

HSP-2

Rev. 091916

Panel Mount

Datasheet

DANGER / PELIGRO / DANGER /GEFAHR / PERICOLO / 危险

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH.

• Disconnect all power before installing or working with this equipment.

• Verify all connections and replace all covers before turning on power.

Failure to follow these instructions will result in death or serious injury.

RIESGO DE DESCARGA ELECTRICA O EXPLOSION.

• Desconectar todos los suministros de energia a este equipo antes de trabajar

con este equipo.

• Verificar todas las

conexiones y colocar todas las

tapas antes de energizer el equipo.

El incumplimiento de estas instrucciones puede provocar la muerte o lesiones serias.

RISQUE DE DESCHARGE ELECTRIQUE OU EXPLOSION

• Eteindre toutes les sources d'énergie de cet appareil avant de travailler dessus de cet appareil

• Vérifier tous

connections, et

remettre tous couverts en olace avant de

mettre sous

De non-suivi de

ces instructions provoquera la mort ou des lésions sérieuses sérieuses.

GEFAHR EINES ELEKTRISCHE N SCHLAGES ODER EINER EXPLOSION.

• Stellen Sie jeglichen St

rom ab, der dieses Gerät versorgt, bevor

Sie an dem

Gerät Arbeiten durchführen

• Vor dem Drehen auf Energie alle Anschlüsse überprüfen und alle Abdeckungen ersetzen.

Unterlassung dieser Anweisungen können zum Tode oder zu schweren Verletzungen führen.

RISCHIO DI SCOSSA ELETTRICA O DELL’ESPLOSI ONE.

• Spenga tutta l'alimentazion e che fornisce questa apparecchiatu ra prima del lavorare a questa

apparecchiatu ra

• Verificare tutti i colle

gament e sostituire tutte le coperture prima della rotazione sull'alimentazi one

L'omissione di seguire queste istruz ioni provocherà la morte o di lesioni serie

存在电击、爆炸或电弧闪烁危险

•

在操作此设备之前请先关闭电源。

若不遵守这些说明，可能会导致严重的人身伤害甚至死亡。

i

WARNING / AVERTISSEMENT / WARNUNG /ADVERTENCIA / AVVERTENZA / 警告

RISK OF MATERIAL DAMAGE AND HOT ENCLOSURE

• The product's side panels may be hot, allow

the product to cool before touching.

• Follow proper mounting instructions including torque values.

• Do not allow liquids or foreign objects to enter this product.

Failure to follow these instructions can result in serious injury, or equipment damage.

RIESGO DE DAÑOS MATERIALES Y DE SOBRECALENTAMIENTO DE LA UNIDAD

• Los paneles laterales del producto pueden

estar calientes. Esperar que el producto se enfríe antes de tocarlo.

• Respetar las instrucciones de montaje, y en particular los pares de apretado.

• No dejar que penetren líquidos o cuerpos extraños en el producto.

Si no se respetan estas precauciones pueden producirse graves lesiones, daños materiales.

RISQUE DE DOMMAGE MATERIEL ET DE SURCHAUFFE DU BOITIER

• Les panneaux latéraux du produit peuvent être

chauds. Laisser le produit refroidir avant de le toucher.

• Respecter les consignes de montage, et notamment les couples de serrage.

• Ne pas laisser pénétrer de liquide ni de corps étrangers à l'intérieur du produit.

Le non-respect de cette directive peut entraîner, des lésions corporelles graves ou des dommages matériels.

RISCHIO DI DANNI MATERIALI E D'INVOLUCRO CALDO

• I pannelli laterali dell'apparecchio possono

scottare; lasciar quindi raffreddare il prodotto prima di toccarlo.

• Seguire le istruzioni di montaggio corrette.

• Non far entrare liquidi o oggetti estranei in questo

apparecchio.

La mancata osservanza di questa precauzione può causare gravi rischi per l'incolumità personale o danni alle apparecchiature.

GEFAHR VON MATERIALSCHÄDEN UND GEHÄUSEERHITZUNG

• Die Seitenwände können heiß sein. Lassen Sie

das Produkt abkühlen, bevor Sie es berühren.

• Beachten Sie die Montageanweisungen,

• Führen Sie keine Flüssigkeiten oder

Fremdkörper in das Produkt ein.

Die Nichtbeachtung dieser Anweisung kann Körperverletzung oder Materialschäden zur Folge haben.

材料损坏和高温外壳的危险性

• 产品的一侧面板可能很热，在其冷却前请不要触碰。

• 遵照正确的安装说明，包括扭矩值。

• 请勿让液体及其他异物进入本产品。

如不能正确执行这些操作说明，极有可能造成严重人体伤害或者设备的损坏。

Panel Mount

Datasheet

ANNEX - ENVIROMENTAL INFORMATION

The environmental information disclosed in this annex including the EIP Pollution logo are in compliance with People’s Republic of China Electronic Industry Standard SJ/T11364 – 2006, Marking for Control of Pollution Caused by Electronic Information Products.

Part Name

Semiconductor die

Solder

Toxic or hazardous Substance and Elements

Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd)

Chromium (Cr (VI))

biphenyls (PBB)

diphenyl ethers (PBDE)

50
