PRODUCT SELECTION
Control Voltage
4-30 VDC
3-12 VDC
15-30 VDC
DIN Rail Mount
DataSheet
DRSCN Series
• 6.2mm Din Rail (35mm) Mount Socket
• LED input status indicator
• Compatible with CN Series SSR
• UL & cUL recognized
• CE & RoHS Compliant
Part Number
DRSCN30
DRSCN05
DRSCN24
RELAY/SOCKET COMPATIBILITY
Relay Part Number
CN024D05
CN024D24
CN048D05
CN048D24
CN240A05
CN240A24
(1) (2)
DRSCN30 DRSCN05 DRSCN24
•
•
•
•
•
•
•
•
•
•
•
•
GENERAL NOTES
(1)
Installing a CN Series relay in a socket that does not have matching input/output specs may result in non-operation or damage to either the raly, socket or both.
(2) Maximum output rating for DRSCN socket is 250 V, 6 A regardless of chosen SSR.
MECHANICAL SPECIFICATIONS / WIRING DIAGRAMS
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
DRSCN30
3.80
[96.6]
0.24
[6.1]
3.11
[79.0]
CONTROL
A
LOAD
SUPPLY
LOAD
B
DataSheet

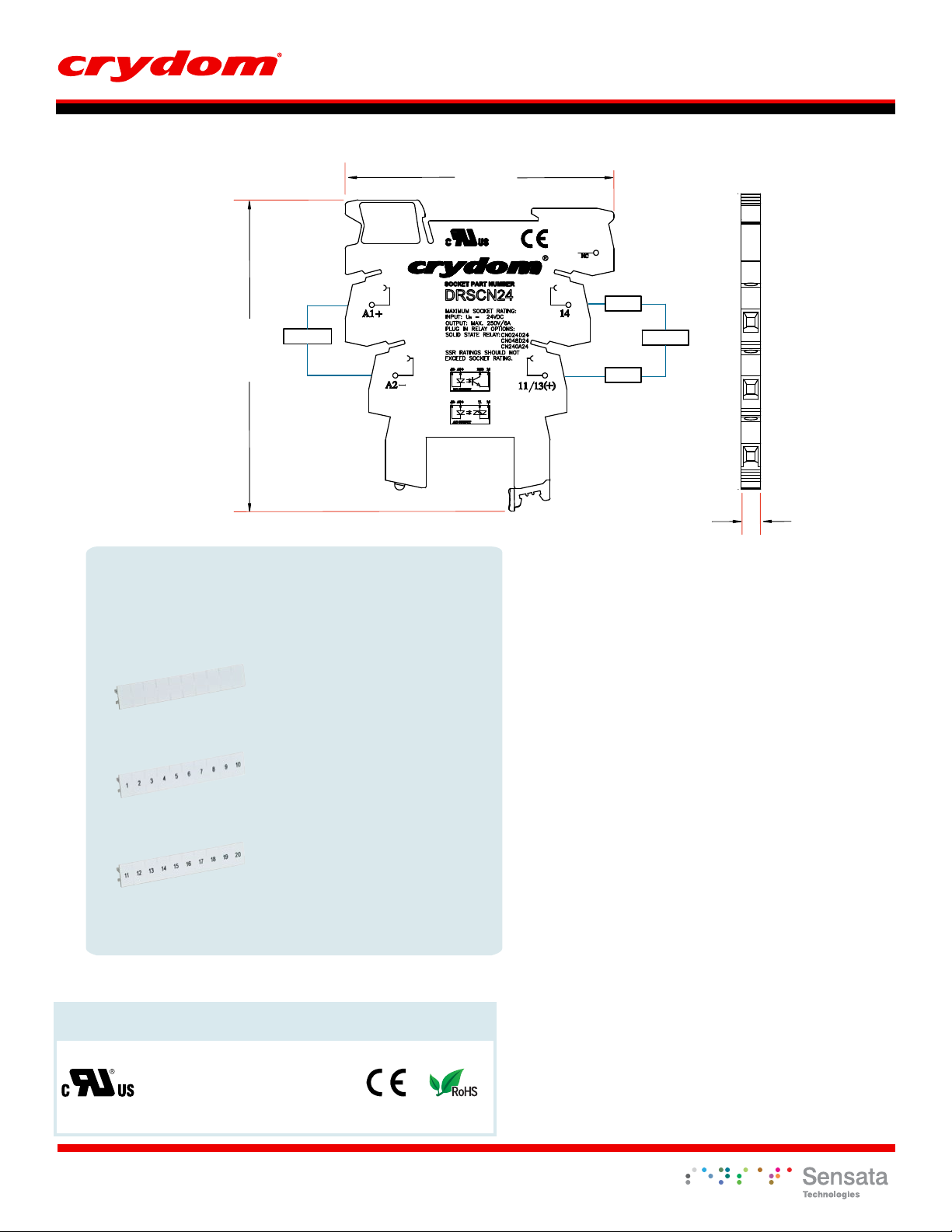

DRSCN05 & DRSCN24
3.15
[80.0]
DIN Rail Mount
A
LOAD
ACCESORIES
ID Marker Strips
CNLB, CNLN, CNL2
3.64
[92.6]
CONTROL
Blank Strips
Part no.: CNLB
A package of 10 plastic strips comprising 10
individual unprinted markers which can be placed
on sockets’ terminal block for easy identification
during the use of multiple units.
Numbered 1 to 10 Strips
Part no.: CNLN
A package of 10 plastic strips comprising 10 markers
printed individually from 1 to 10 which can be placed
on sockets’ terminal block for easy identification
during the use of multiple units.
Numbered 11 to 20 Strips
Part no.: CNL2
A package of 10 plastic strips comprising 10 markers
printed individually from 11 to 20 which can be placed
on sockets’ terminal block for easy identification
during the use of multiple units.
SUPPLY
LOAD
B
0.24
[6.1]
AGENCY APPROVALS
Agency Approvals
E334072 (DRSCN05 & DRSCN24)
E346266 (DRSCN30)
Rev. 042817
DIN Rail Mount
DataSheet
DANGER / PELIGRO / DANGER /GEFAHR / PERICOLO / 危险
HAZARD OF
ELECTRIC
SHOCK,
EXPLOSION,
OR ARC FLASH.
• Disconnect all
power before
installing or
working with
this equipment.
• Verify all
connections
and replace all
covers before
turning on
power.
Failure to follow
these
instructions will
result in death
or serious injury.
RIESGO DE
DESCARGA
ELECTRICA O
EXPLOSION.
• Desconectar
todos los
suministros de
energia a este
equipo antes
de trabajar
con este equipo.
• Verificar todas
las
conexiones
y colocar todas
las
tapas antes
de energizer
el equipo.
El
incumplimiento
de estas
instrucciones
puede provocar
la muerte o
lesiones serias.
RISQUE DE
DESCHARGE
ELECTRIQUE
OU EXPLOSION
• Eteindre
toutes les
sources
d'énergie de
cet appareil
avant de
travailler
dessus de cet
appareil
• Vérifier tous
connections, et
remettre tous
couverts en
olace avant de
mettre sous
De non-suivi de
ces instructions
provoquera la
mort ou des
lésions sérieuses
sérieuses.
GEFAHR EINES
ELEKTRISCHE
N SCHLAGES
ODER EINER
EXPLOSION.
• Stellen Sie
jeglichen
St
rom ab, der
dieses Gerät
versorgt, bevor
Sie an dem
Gerät Arbeiten
durchführen
• Vor dem
Drehen auf
Energie alle
Anschlüsse
überprüfen
und alle
Abdeckungen
ersetzen.
Unterlassung
dieser
Anweisungen
können zum
Tode oder zu
schweren
Verletzungen
führen.
RISCHIO DI
SCOSSA
ELETTRICA O
DELL’ESPLOSIONE.
• Spenga tutta
l'alimentazione
che fornisce
questa
apparecchiatura
prima di lavorare
a questa
apparecchiatura
• Verificare tutti
i collegamenti
e sostituire
utte le coperture
t
prima
dell’accensione
L'omissione di
queste istruzioni
provocherà la
morte o
lesioni serie
存在电击、
爆炸或电弧
闪烁危险
•
在操作此设
备之前请先
关闭电源。
若不遵守这些说明，
可能会导致严重的
人身伤害甚至死亡。
WARNING / AVERTISSEMENT / WARNUNG /ADVERTENCIA / AVVERTENZA / 警告
RISK OF MATERIAL DAMAGE AND HOT
ENCLOSURE
• The product's side panels may be hot, allow
the product to cool before touching.
• Follow proper mounting instructions including
torque values.
• Do not allow liquids or foreign objects to enter
this product.
Failure to follow these instructions can result in
serious injury, or equipment damage.
RIESGO DE DAÑOS MATERIALES Y DE
SOBRECALENTAMIENTO DE LA UNIDAD
• Los paneles laterales del producto pueden
estar calientes. Esperar que el producto se
enfríe antes de tocarlo.
• Respetar las instrucciones de montaje, y en
particular los pares de apretado.
• No dejar que penetren líquidos o cuerpos
extraños en el producto.
Si no se respetan estas precauciones pueden
producirse graves lesiones, daños materiales.
RISQUE DE DOMMAGE MATERIEL ET DE
SURCHAUFFE DU BOITIER
• Les panneaux latéraux du produit peuvent être
chauds. Laisser le produit refroidir avant de le
toucher.
• Respecter les consignes de montage, et
notamment les couples de serrage.
• Ne pas laisser pénétrer de liquide ni de corps
étrangers à l'intérieur du produit.
Le non-respect de cette directive peut entraîner,
des lésions corporelles graves ou des
dommages matériels.
RISCHIO DI DANNI MATERIALI E D'INVOLUCRO
CALDO
• I pannelli laterali dell'apparecchio possono
scottare; lasciar quindi raffreddare il prodotto
prima di toccarlo.
• Seguire le istruzioni di montaggio corrette.
• Non far entrare liquidi o oggetti estranei in questo
apparecchio.
La mancata osservanza di questa precauzione può
causare gravi rischi per l'incolumità personale o
danni alle apparecchiature.
GEFAHR VON MATERIALSCHÄDEN UND
GEHÄUSEERHITZUNG
• Die Seitenwände können heiß sein. Lassen Sie
das Produkt abkühlen, bevor Sie es berühren.
• Beachten Sie die Montageanweisungen,
• Führen Sie keine Flüssigkeiten oder
Fremdkörper in das Produkt ein.
Die Nichtbeachtung dieser Anweisung kann
Körperverletzung oder Materialschäden
zur Folge haben.
材料损坏和高温外壳的危险性
• 产品的一侧面板可能很热，在其冷却前请
不要触碰。
• 遵照正确的安装说明，包括扭矩值。
• 请勿让液体及其他异物进入本产品。
如不能正确执行这些操作说明，
极有可能造成严重人体伤害或者设备的损坏。
DIN Rail Mount
DataSheet
ANNEX - ENVIROMENTAL INFORMATION
The environmental information disclosed in this annex including the EIP Pollution logo are in compliance with People’s Republic of China
Electronic Industry Standard SJ/T11364 – 2006, Marking for Control of Pollution Caused by Electronic Information Products.
Part
Name
Semiconductor die
Solder
附件 - 环保信息
此附件所标示的包括电子信息产品污染图标的环保信息符合中华人民共和国电子行业标准 SJ/T11364 - 2006,
电子信息产品污染控制标识要求。
名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚
半导体芯片
焊接点
Toxic or hazardous Substance and Elements
Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated
(Pb) (Hg) (Cd)
(Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE)
Chromium
(Cr (VI))
有毒有害物质或元素件部
biphenyls
(PBB)
diphenyl ethers
(PBDE)
50
