Crydom DR OUTPUT MODULES Catalog
DR OUTPUT MODULES
• DIN-Rail Mountable Single Point Output Modules (35mm DIN)
• Plug into mounting boards for 0.6" modules
• Zero Voltage Turn-On for AC Modules
• 4kV Optical isolation with LED Indicator
• UL Recognized, CSA Certified, CE Compli ant
• Industry standard Color Coding Black (AC Output) Red (DC Output)
• Barrier Strips Accept 14 to 28 AWG Wire.
SPECIFICATIONS (1)
Input
Part Number DR-OAC DR-ODC5 DR-ODC24
Nominal Voltage VDC 5-24 5.0 24.0
Minimum Voltage VDC 3.7 3.5 18.0
Maximum Voltage VDC 32 8.0 32.0
Drop-out Voltage 1.0 1.0 1.0
Maximum Current (2) 18 18 13
Resistance (3) NA 250 2000
Output
Nominal Line Voltage 240 VAC 5-48 VDC 5-48 VDC
Minimum Line Voltage 12 VAC 3 VDC 3 VDC
Maximum Line Voltage 280 VAC 60 VDC 60 VDC
Max Off-State Voltage (4) 600 Vpeak 60 VDC 60 VDC
Max Off-State Leakage (5) 0.1mArms 10 uA 10 uA
Static Off-State dv/dt (6) 200 V/usec N/A N/A
Maximum Rated On-State Current (7) 5.0 Arms 3.0 A 3.0 A
Minimum On-State Current 50 mArms 10 m A 10 mA
Max Surge Current (8) 250 Apeak 5.0 A 5.0 A
On-State Voltage Drop or Resistance (9) 1.6 V 1.6 V 1.6 V
Horse POwer Rating (13) 1/2 H.P. N/A N/A
Maximum Turn-On Time [msec] (13) 8.33 0.1 0.1
Maximum Turn-Off Time [msec] (13) 8.33 0.75 0.75
Input/Output Isolation Voltage (14) 4000 4000 4000
Input/Output Capacitance 8 8 8
Operating Temperature Range -30 to 80°C -30 to 80°C -30 to 80°C
Storage Temperature Range -40 to 80°C -40 to 80°C -40 to 80°C
Line Frequency Range 47 to 63 DC DC
Weight 1.1 oz. (31.2g) 1.1 oz. (31.2g) 1.1 oz. (31.2g)

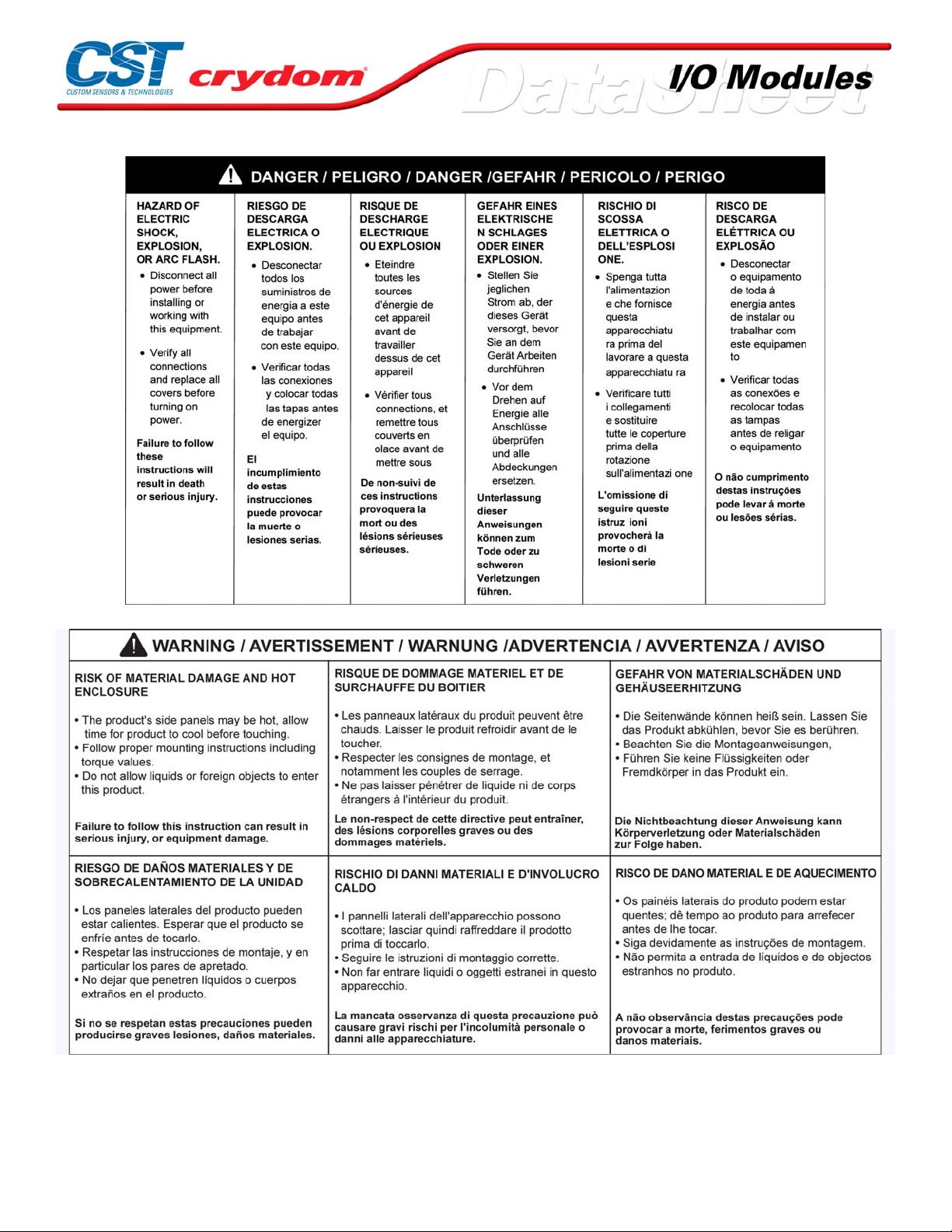

General Notes:
(1) Specifications apply to an am bient temperature of -30 to 80 °C unless otherwis e noted.
(2) At nominal input voltage, without external LED status indicator.
(3) +/-10% at 25°C.
(4) Maximum 1 minute du ration for OAC modules when applied as a DC vo ltage rather than a peek AC v ol tage.
(5) At max i mum line voltage, 25°C fo r OAC m odules, and 80°C f or ODC modules.
(6) Minimum DV/DT per EIA/NARM RS433, method RS397, DV/DT rat ings do not apply to DC ou tput models
(7) At 40°C, derate OAC modules 58 mA/°C to 80°C, derate ODC. O DCxMC and ODCxML modules 50 mA/°C
to 80°C. CSA rating of OAC m odules i s 3. 0 Ar ms at 40° C .
(8) At 25° C for 1 second maximum duration: 1 AC cycl e for AC modules, 1 second f or DC modules.
(9) At max i mum rated on-state current and 25°C.
(10) At maximum line voltage, max imum rated o utput cur r ent, nominal input voltage and 25°C. Sw itching speed
of OAC modules is ba sed upon 60 Hz line frequency.
(11) At 25°C for 1 second m aximum duration.
(12) 1/3 H.P. at 240 VAC, 1/8 H.P. at 120 VAC.
.
For Con tact in form ation visit our web
site.
www.cryd om.com
Specifications subject to change without notice.
©2008 Crydom, Inc.
MECHANICAL SPECIFICATIONS
8

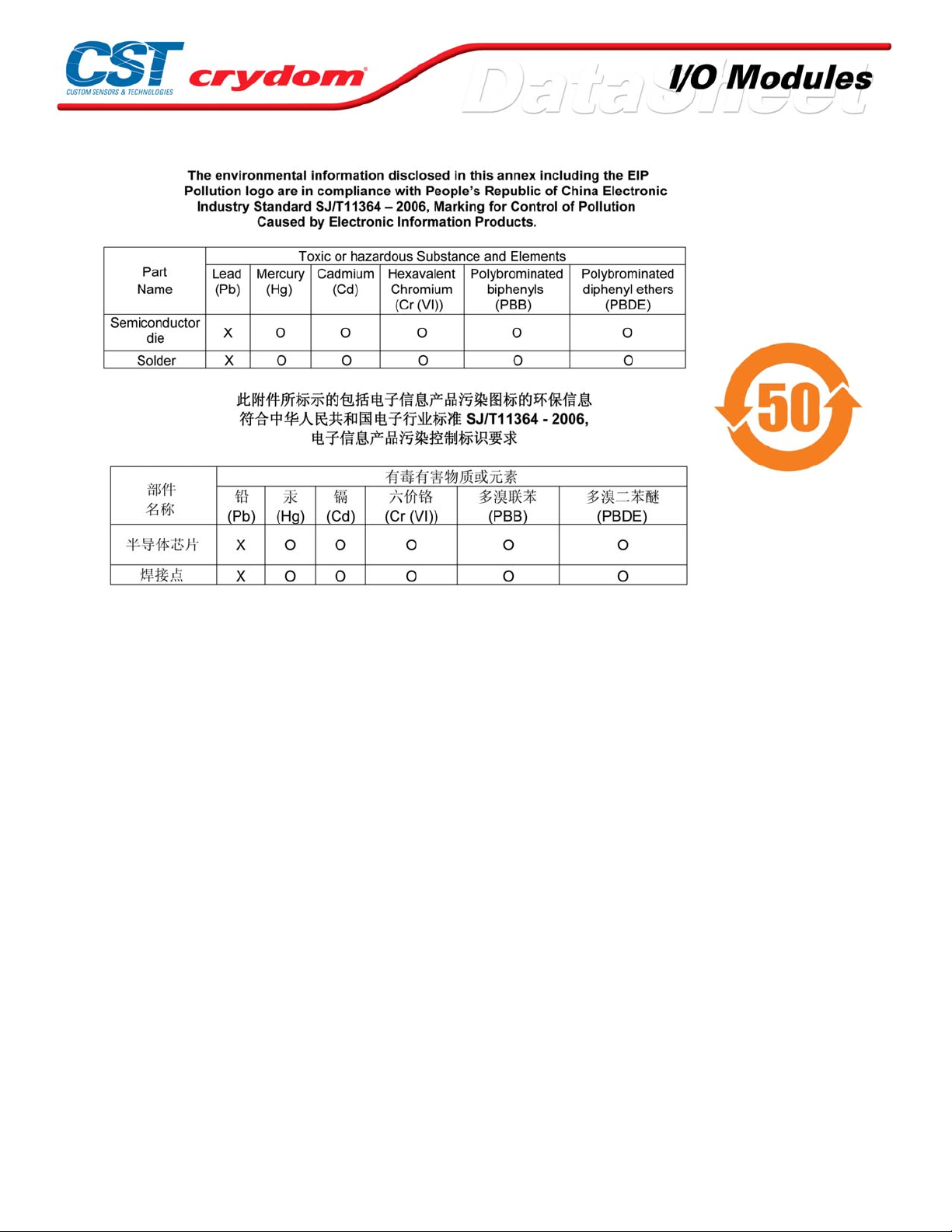

AGENCY APPROVALS
UL E462 03
CSA 38595
Rev. 07280
