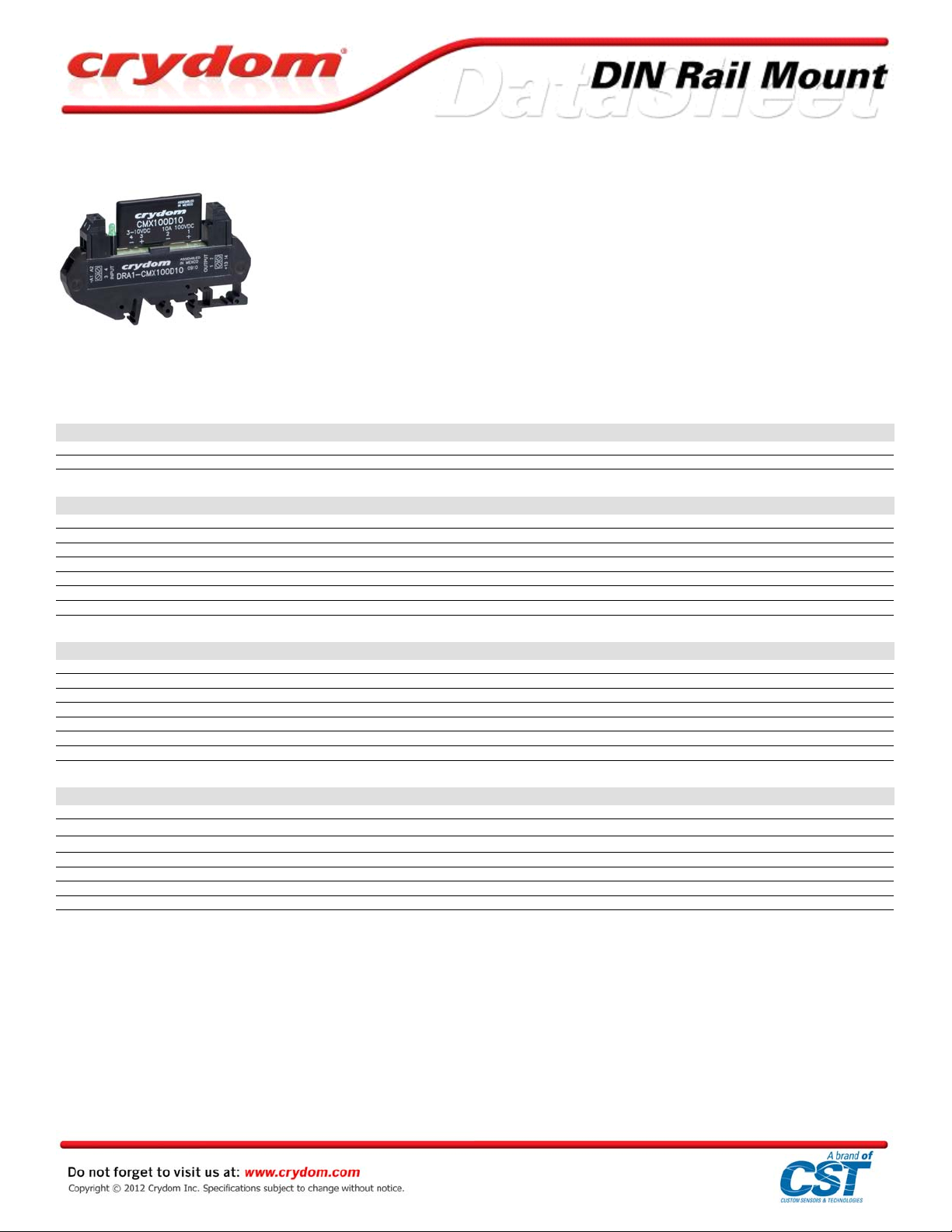

DRA1 CMX Series
• 10mm Single Channel DIN Rail Mount SSR Assembly
• DC Ratings up to 200 VDC and 10 Amps
• 3-10 and 20-28VDC control
• Cage style screw terminals for easy connection
• Fits standard 35mm DIN rail
• Includes LED Status indicator
PRODUCT SELECTION
Description 3 A 5 A 6 A 10 A (5) 10A (5)
3-10 VDC Control DRA1-CMX200D3 DRA1-CMX60D5 DRA1-CMX100D6 DRA1-CMX60D10 DRA1-CMX100D10
20-28 VDC Control DRA1-CMXE200D3 DRA1-CMXE60D5 DRA1-CMXE100D6 DRA1-CMXE60D10 DRA1-CMXE100D10
OUTPUT SPECIFICATIONS (1)
Description 3 A 5 A 6 A 10 A (5) 10 A (5)
Operating Voltage [VDC] 1-200 1-60 1-100 1-60 1-100
Maximum Off-State Leakage Current @ Rated Voltage [µAdc] 100 100 100 100 (2) 100
Maximum Load Current [A] (3) 3 5 6 10 10
Minimum Load Current [A] 0 0 0 0 0
Maximum On-State Resistence [Ohm] 0.2 0.1 0.04 0.018 0.01
Maximum Surge Current (10msec) [Apk] 30 60 100 100 100
Maximum On-State Voltage Drop @ Rated Current [VDC] 0.6 0.5 0.24 0.18 0.1
INPUT SPECIFICATIONS (1)
Description DRA1-CMX DRA1-CMXE
Control Voltage Range 3 0-10.0 VDC 20.0-28.0 VDC
Must Turn On Voltage 3.0 VDC 20.0 VDC
Must Turn Off Voltage 1 .0 VDC 1 0 VDC
Typycal Input Current 15 mAdc @ 5Vdc 12 mAdc @ 20 Vdc
Nominal Input Impedance 300 Ohm 780 Ohm
Maximum Turn-On Time [msec] 1 1
Maximum Turn-Off Time [µsec] 300 300
GENERAL SPECIFICATIONS
Description Parameters
Dielectric Strength (4) 2500 Vrms
Minimum Insulation Resistance (@ 500 VDC)(4)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range -30 to 80°C
Ambient Storage Temperature Range -30 to 125°C
Weight (typical) 0.063 oz. (28.6g)
Encapsulation Thermally Conductive Epoxy
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) At 55 Vdc
3) See derating chart on page 3
4) Dielectric and insulation resistance is measured between input and output
5) Steady state load Current exceeding 10 amps will damage socket.
109 Ohms
15 pF
