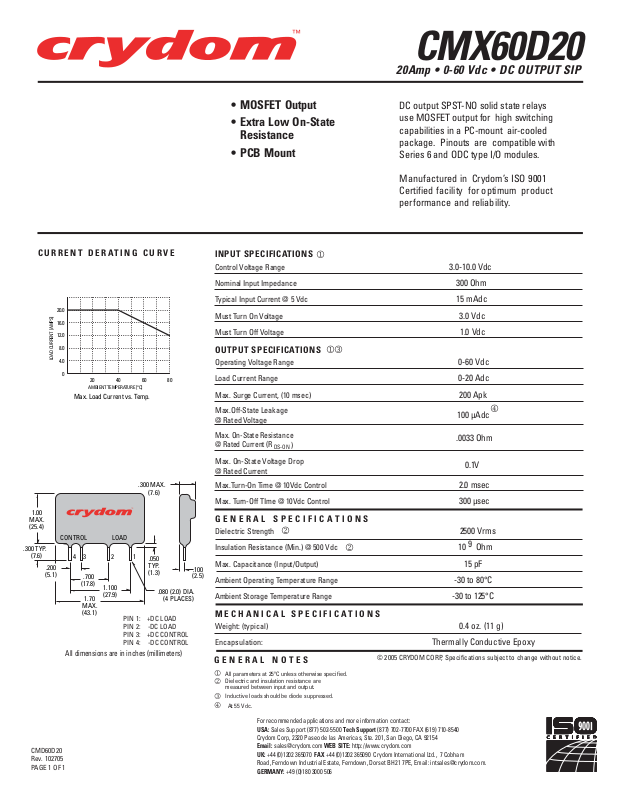

CMX60D20
20Amp • 0-60 Vdc • DC OUTPUT SIP
CURRENT DERATING CURVE
20.0
16.0
12.0
8.0
LOAD CURRENT [AMPS]
4.0
0
20 40 60 80
AMBIENT TEMPERATURE [°C]
Max. Load Current vs. Temp.
.300 MAX.
1.00
MAX.
(25.4)
CONTROL LOAD
.300 TYP.
(7.6)
CMD60D20
Rev. 102705
PAGE 1 OF 1
43 2 1
.200
(5.1)
.700
(17.8)
1.100
(27.9)
1.70
MAX.
(43.1)
All dimensions are in inches (millimeters)
PIN 1: +DC LOAD
PIN 2: -DC LOAD
PIN 3: +DC CONTROL
PIN 4: -DC CONTROL
(7.6)
.050
TYP.
(1.3)
.080 (2.0) DIA.
(4 PLACES)
• MOSFET Output
• Extra Low On-State
Resistance
• PCB Mount
DC output SPST-NO solid state relays
use MOSFET output for high switching
capabilities in a PC-mount air-cooled
package. Pinouts are compatible with
Series 6 and ODC type I/O modules.
Manufactured in Crydom’s ISO 9001
Certified facility for optimum product
performance and reliability.
INPUT SPECIFICATIONS
Control Voltage Range 3.0-10.0 Vdc
Nominal Input Impedance 300 Ohm
Typical Input Current @ 5 Vdc 15 mAdc
Must Turn On Voltage 3.0 Vdc
Must Turn Off Voltage 1.0 Vdc
OUTPUT SPECIFICATIONS 1
Operating Voltage Range 0-60 Vdc
Load Current Range 0-20 Adc
Max. Surge Current, (10 msec) 200 Apk
Max.Off-State Leakage
@ Rated Voltage
Max. On-State Resistance
@ Rated Current (R
Max. On-State Voltage Drop
@ Rated Current
Max.Turn-On Time @ 10Vdc Control 2.0 msec
Max. Turn-Off TIme @ 10Vdc Control 300 µsec
DS-ON
GENERAL SPECIFICATIONS
Dielectric Strength 2 2500 Vrms
Insulation Resistance (Min.) @ 500 Vdc
Max. Capacitance (Input/Output) 15 pF
.100
(2.5)
Ambient Operating Temperature Range -30 to 80°C
Ambient Storage Temperature Range -30 to 125°C
MECHANICAL SPECIFICATIONS
Weight: (typical) 0.4 oz. (11 g)
Encapsulation: Thermally Conductive Epoxy
GENERAL NOTES
1
All parameters at 25ºC unless otherwise specified.
Dielectric and insulation resistance are
2
measured between input and output.
Inductive loads should be diode suppressed.
3
4 At 55 Vdc.
For recommended applications and more information contact:
USA: Sales Support (877) 502-5500 Tech Support (877) 702-7700 FAX (619) 710-8540
Crydom Corp, 2320 Paseo de las Americas, Ste. 201, San Diego, CA 92154
Email: sales@crydom.com WEB SITE: http://www.crydom.com
UK: +44 (0)1202 365070 FAX +44 (0)1202 365090 Crydom International Ltd., 7 Cobham
Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE, Email: intsales@crydom.com.
GERMANY: +49 (0)180 3000 506
1
3
100 µAdc
)
2
© 2005 CRYDOM CORP, Specifications subject to change without notice.
.0033 Ohm
0.1V
109Ohm
4
