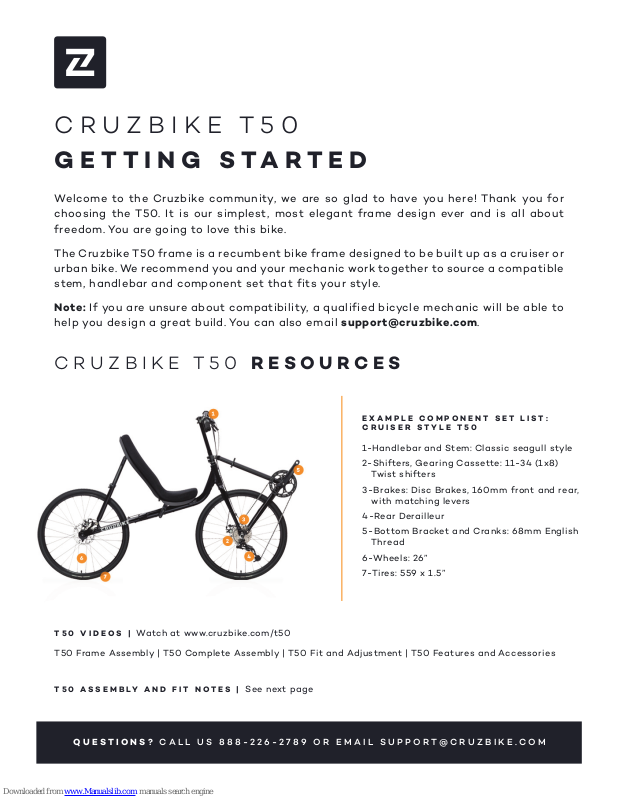

CRUZBIKE T50
GETTING STARTED
Welcome to the Cruzbike community, we are so glad to have you here! Thank you for
choosing the T50. It is our simplest, most elegant frame design ever and is all about
freedom. You are going to love this bike.
The Cruzbike T50 frame is a recumbent bike frame designed to be built up as a cruiser or
urban bike. We recommend you and your mechanic work together to source a compatible
stem, handlebar and component set that fits your style.
Note: If you are unsure about compatibility, a qualified bicycle mechanic will be able to
help you design a great build. You can also email [email protected].
CRUZBIKE T50 RESOURCES
EXAMPLE COMPONENT SET LIST:
CRUISER STYLE T50
1-Handlebar and Stem: Classic seagull style
2-Shifters, Gearing Cassette: 11-34 (1x8)
Twist shifters
3-Brakes: Disc Brakes, 160mm front and rear,
with matching levers
4-Rear Derailleur
5-Bottom Bracket and Cranks: 68mm English
Thread
6-Wheels: 26”
7-Tires: 559 x 1.5”
T50 VIDEOS | Watch at www.cruzbike.com/t50
T50 Frame Assembly | T50 Complete Assembly | T50 Fit and Adjustment | T50 Features and Accessories
T50 ASSEMBLY AND FIT NOTES | See next page
QUESTIONS? CALL US 888-226-2789 OR EMAIL [email protected]
Page 2
CRUZBIKE T50 ASSEMBLY NOTES:
Though it looks a little different from a traditional bicycle, assembly is very similar.
The T50 frame can be assembled without a stand. When installing components, a
standard bike stand can be used - just rotate the clamp to hold the front boom.
The steerer tube should be cut to between 8
top of the crown. Be sure to file the outside edges to remove any sharp burrs. The star
nut inside the steer tube can be left inside the piece of steer tube that is cut off, it is
not needed.
The wheels used are a standard 26” set with 135mm spacing and 100 mm spacing - just
reversed - placing the drive wheel up front.
The customer will need to select a stem and handlebar depending on drivetrain choice.
The BB shell is standard 68mm English thread, and all other components are standard.
When installing a rear rack, use two 15mm spacers to achieve the proper width for the
lower rack stays. The lower rear mount holes can be tapped to 6mm or you can use M5
bolts and nylock nuts/washers.
3
/
inches and 9 inches measured from the
4
CRUZBIKE T50 FIT NOTES:
General tips for a good rider fit:
1-At full pedal extension rider’s leg should be slightly bent.
2-On the pedal upstroke there should be some clearance between the top of the rider’s
knee and the handlebar.
3-The rider’s arms should have a natural bend at the elbows.
4-Once fit, the riser tube can be shortened as appropriate similar to a seat tube to
maximize the rider’s forward visibility.
QUESTIONS? CALL US 888-226-2789 OR EMAIL [email protected]
