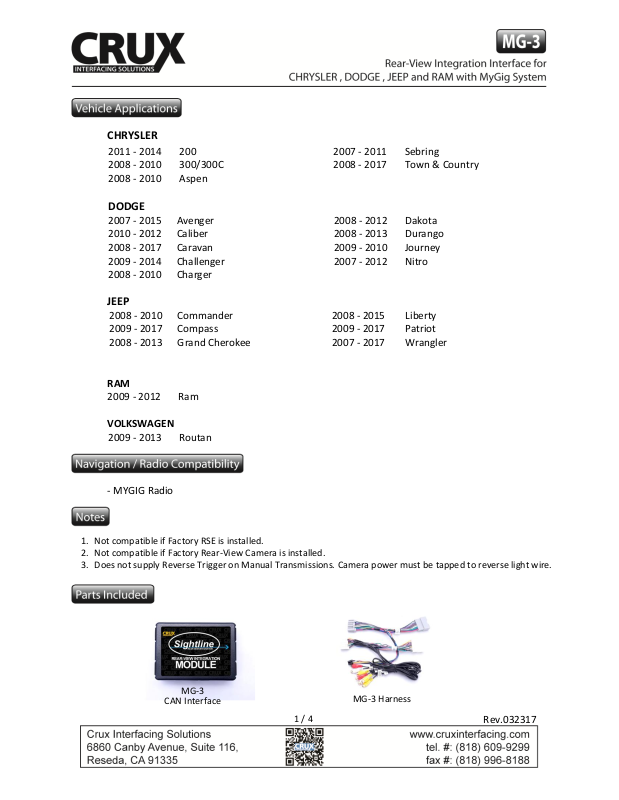

CHRYSLER
2011 - 2014 200
2008 - 2010 300/300C
2008 - 2010 Aspen
2007 - 2011 Sebring
2008 - 2017 Town & Country
DODGE
2007 - 2015 Avenger
2010 - 2012 Caliber
2008 - 2017 Caravan
2009 - 2014 Challenger
2008 - 2010 Charger
2008 - 2012 Dakota
2008 - 2013 Durango
2009 - 2010 Journey
2007 - 2012 Nitro
JEEP
2008 - 2010 Commander
2009 - 2017 Compass
2008 - 2013 Grand Cherokee
2008 - 2015 Liberty
2009 - 2017 Patriot
2007 - 2017 Wrangler
RAM
2009 - 2012 Ram
VOLKSWAGEN
2009 - 2013 Routan
- MYGIG Radio
1. Not compatible if Factory RSE is installed.
2. Not compatible if Factory Rear-View Camera is installed.
3. Does not supply Reverse Trigger on Manual Transmissions. Camera power must be tapped to reverse light wire.
MG-3 Harness
MG-3
CAN Interface
1 / 4
Rev.032317
Page 2
NOTE: Does not supply Reverse Trigger on Manual Transmissions. Camera power must be
connected to the factory +12V reverse light wire instead.
DIP Switch Setting
DIP Function
1
ON
Activate Video in Motion
2
ON
Activate rear-view camera
3
OFF
Not Used
4
OFF
Not Uses
5 & 6
OFF
CAN–Termination (Default to OFF)
Rev.032317
2 / 4
Page 3
Installation Example on a Chrysler 300C
1. Remove the front panel from the center console, which is
attached by multiple clips.
2. Remove the 4 TORX screws and pull the headunit out of the
dashboard.
3. Remove the gray 22-pin male connector from the back
of the headunit and plug it to gray 22-pin female connector
on the MG-3 T-harness . Connect the gray 22-pin male
connector of the MG-3 T-harness to the factory radio harness.
4. Remove the white 22-pin male connector from the back
of the headunit and plug it to white 22-pin female connector
on the MG-3 T-harness . Connect the white 22-pin male
connector of the MG-3 T-harness to the factory radio harness.
Rev.032317
3 / 4
Page 4
SWITCHING SOURCE INPUTS
1. Press RADIO/MEDIA button;
2. Tap VES on the screen;
3. Tap AUX IN 1 to select the interface as current AV-source.
NOTE: The VES button is only active after the interface is installed.
Note: The interface switches automatically to an installed rear-view camera when reverse gear
is engaged.
Activation of rear-view camera
The rear-view camera activate automatically whenever the reverse gear is engaged.
Activation of the video-in-motion function
The video-in-motion can be activated and deactivated by DIP 1 or alternatively by the included loose
green cable in connection with a toggle switch (not included).
Video-in-motion permanent
Set DIP 1 to ON for the video-in-motion function to be activated permanently without disrupting the
navigation performance.
Video-in-motion selective
Set DIP# 1 to OFF and use the green wire to activate the video-in-motion function.
Connect a toggle switch between a +12V ACC source and the green wire.
● +12V = Video in Motion is activated
● 0V = Video in Motion is not activated
HDD
DISC
AUX
VES
Rev.032317
4 / 4
