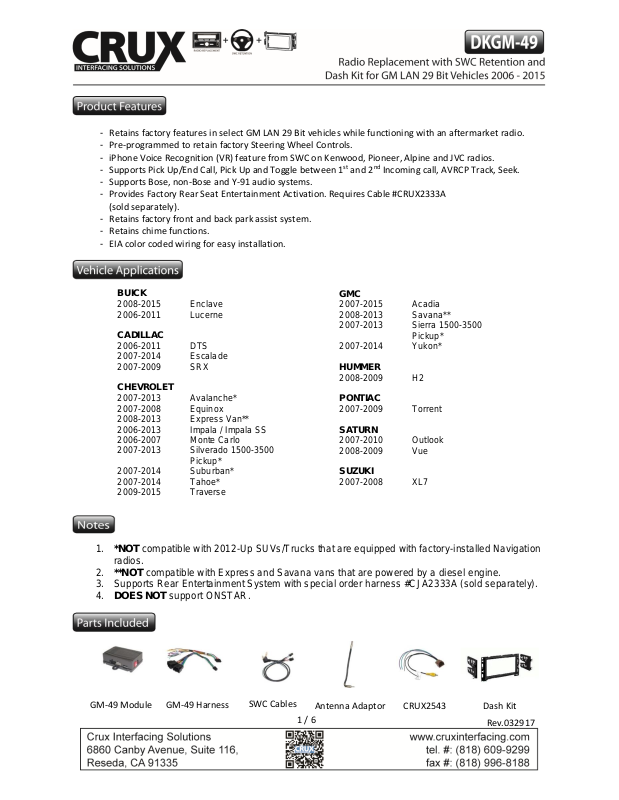

Crux DKGM-49 User Manual

- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- iPhone Voice Recognition (VR) feature from SWC on Kenwood, Pioneer, Alpine and JVC radios.

- Supports Pick Up/End Call, Pick Up and Toggle between 1

st

and 2nd Incoming call, AVRCP Track, Seek.

- Supports Bose, non-Bose and Y-91 audio systems.

- Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A

(sold separately).

- Retains factory front and back park assist system.

- Retains chime functions.

- EIA color coded wiring for easy installation.

1. *NOT compatible with 2012-Up SUVs/Trucks that are equipped with factory-installed Navigation
radios.

2. **NOT compatible with Express and Savana vans that are powered by a diesel engine.

3. Supports Rear Entertainment System with special order harness #CJA2333A (sold separately).

4. DOES NOT support ONSTAR.

GM-49 Module

GM-49 Harness

SWC Cables

Antenna Adaptor

CRUX2543

Dash Kit

Rev.032917

1 / 6

GMC

2007-2015 Acadia
2008-2013 Savana**
2007-2013 Sierra 1500-3500

Pickup*

2007-2014 Yukon*
HUMMER

2008-2009 H2

PONTIAC

2007-2009 Torrent

SATURN

2007-2010 Outlook
2008-2009 Vue

SUZUKI

2007-2008 XL7

BUICK

2008-2015 Enclave
2006-2011 Lucerne

CADILLAC

2006-2011 DTS
2007-2014 Escalade
2007-2009 SRX

CHEVROLET

2007-2013 Avalanche*
2007-2008 Equinox
2008-2013 Express Van**
2006-2013 Impala / Impala SS
2006-2007 Monte Carlo
2007-2013 Silverado 1500-3500

Pickup*
2007-2014 Suburban*
2007-2014 Tahoe*
2009-2015 Traverse

SETTING THE AFTERMARKET RADIO BRAND

With the key in the off position, set the DIP switches to the corresponding radio listed below.

3.5MM SWC CABLE

The DKGM-49 Module allows for both types of connections:

OPTION A is used for ALPINE, CLARION, JVC, and KENWOOD units (Blue/Yellow wire is attached)

OPTION B is used for BOSS, DUAL, FAHRENHEIT, JENSEN, POWER ACOUSTIK, PIONEER, SONY and

SOUND STREAM units.

NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
