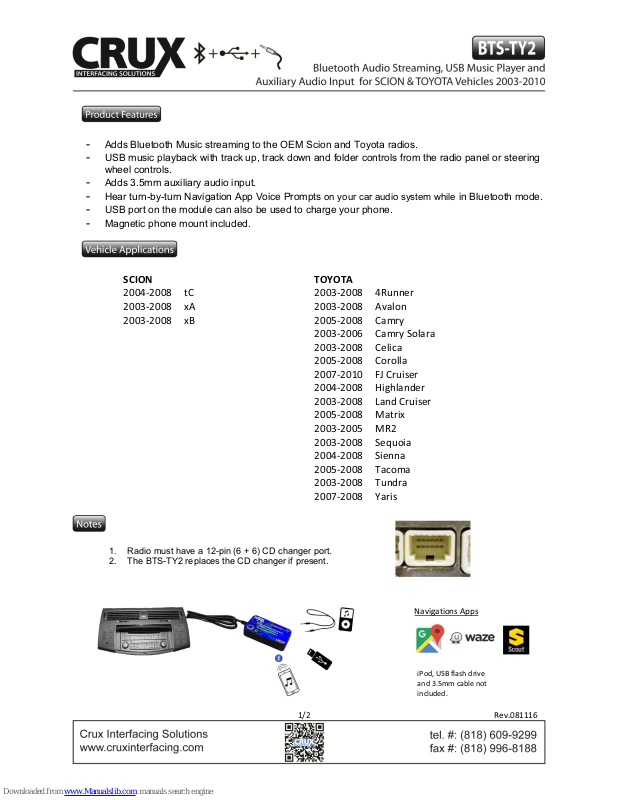

Page 1
SCION
2004
-2008 tC
2003-2008 xA
2003-2008 xB
TOYOTA
2003
-2008 4Runner
2003-2008 Avalon
2005-2008 Camry
2003-2006 Camry Solara
2003-2008 Celica
2005-2008 Corolla
2007-2010 FJ Cruiser
2004-2008 Highlander
2003-2008 Land Cruiser
2005-2008 Matrix
2003-2005 MR2
2003-2008 Sequoia
2004-2008 Sienna
2005-2008 Tacoma
2003-2008 Tundra
2007-2008 Yaris
Rev.081116
1/2
Navigations Apps
iPod, USB flash drive
included.
Adds Bluetooth Music streaming to the OEM Scion and Toyota radios.
-
- USB music playback with track up, track down and folder controls from the radio panel or steering
wheel controls.
- Adds 3.5mm auxiliary audio input.
- Hear turn-by-turn Navigation App Voice Prompts on your car audio system while in Bluetooth mode.
- USB port on the module can also be used to charge your phone.
- Magnetic phone mount included.
1. Radio must have a 12-pin (6 + 6) CD changer port.
2. The BTS-TY2 replaces the CD changer if present.
and 3.5mm cable not
Page 2
Rev.081116
2/2
1. Carefully remove the radio to gain access to the radio connectors.
2. Locate the 12-pin (6 + 6) CD changer port. If there is a connector plugged into this cavity, you
need to unplug it. The BTS-TY2 replaces the CD changer.
3. Plug the 12-pin connector of the BTS-TY2 to the CD changer port of the radio.
4. If the line-in feature will be used, plug a 3.5mm to 3.5mm cable (sold separately) to the BTS-TY2
module and run towards the desired location.
5. If a USB flash drive will be used, plug in a male to female USB cable (not included) to the
BTS-TY2 module and run to the desired location.
6. You can also mount the BTS-TY2 to an easily accessible location such as the center console or
glove box, to use the 3.5mm line-in and USB features.
7. Test the system for functionality before putting back the radio.
For Bluetooth function:
1. Turn on the radio and press the CD button. Screen will show “CD1 01”.
2. Go to the Bluetooth menu on your phone and connect to “Crux BT”.
3. BTS-TY2 will announce when the phone has been connected.
4. Play the music on your phone and audio should be heard on the factory sound system.
For USB Mode:
1. Plug in your USB flash drive to the BTS-TY2 USB port.
2. Turn on the radio and press the CD button. Screen will show “CD1 01”.
3. BTS-TY2 will announce “USB Mode”.
4. USB Audio should be heard on the factory sound system. You can use either the radio control
panel or steering wheel controls as follows:
TRACK UP & DOWN = change music track Up or Down
DISC UP & DOWN = change music folder
For Line-In Mode:
1. Plug in a 3.5mm to 3.5mm cable (sold separately) to the BTS-TY2 USB line-in jack.
2. Turn on the radio and press the CD button. Screen will show “CD1 01”.
3. BTS-TY2 will announce “Line-In Mode”.
4. Plug the other end of the 3.5MM cable to the audio player and press play. Audio should be heard
on the factory sound system.
Magnetic Phone Mount Assembly:
1. Pop-in magnetic head to base socket.
2. Tighten locking nut and adjust to desired tilt.
3. Slide into the AC vent grille.
4. Use the desired metal plate size and stick
on the back of the phone or insert behind
the phone case.
