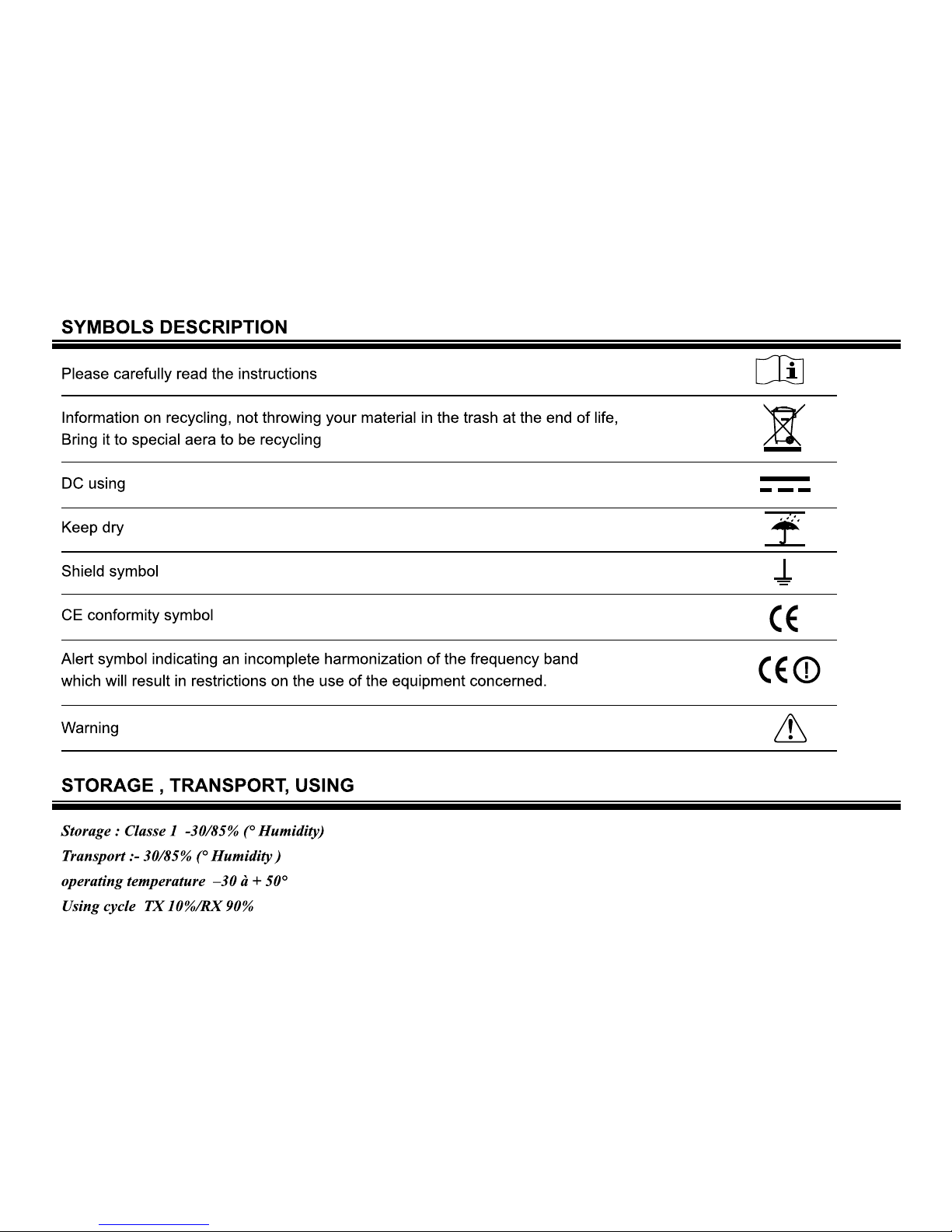

SAFETY INFORMATION FOR USER
CRT
transceiver is excellently designed with advanced technology. Please observe the following
precautions to perform your obligation, prevent personal injury and ensure the safety of transceiver usage.
1. Keep the transceiver and accessories away from children.
2. Please do not try to open or modify the transceiver without permission, non-professionals process may
also cause damage.
3. Please use assorted battery and charger to avoid damage.
4. Please use assorted antenna to ensure the communication distance.
5. Please do not expose the transceiver to long period of direct sunlight, nor place it close to heat
appliances.
6. Please do not put the transceiver in excessively dusty or humid areas.
7. Do not use harsh chemicals, cleaning solvents to clean the transceiver.
8. Do not transmit without antenna.
9. When using this transceiver, we recommend transmitting for 1 minute then receiving for 4 minutes.
Continuous transmitting for long time or working in high power will heat the back of the transceiver. Do
not place the transceiver’s hot back close to any surface of plastic.
10.If any abnormal odor or smoke detected coming from the transceiver, turn off the power and take off
the battery pack and its case. Then contact local
CRT
dealers.
NOTICE
All tips as above also apply to the standard parts of
CRT
transceiver. If any spare parts fail to work,
please contact local
CRT
dealers in time. If users use spare parts from other suppliers instead of
CRT
, the
safety and performance of the transceiver can't be guaranteed.
Page 4
THANK YOU FOR YOUR PURCHASE!
groups CTCSS encode/decode, 1 group user-dened CTCSS encode/decode, 1024 groups DCS encode/
mode at the same time, skip interfering channels while scanning and choose single or dual PTT buttons.
The frequency of named channels can be easily displayed and the scanning rate of channels is adjustable via
software. Dual standby, dual display, dual receive channel, cross-band repeater functions, frequecny hopping
functions(FHSS).
decode, plus 2Tone, 5Tone and DTMF encode/decode.
Unique features include the ability to adjust squelch level on-the-ly, display both channel mode and frequency
Features include 199 memory channels, memory banks, UV-VV-UU modes, dual PTT(programmable), 51
Page 5
TABLE OF CONTENTS
CONTENS
....................................................................................................................................................................................................01
Contents
................................................................................................................................................................................................... 01
STANDARD ACCESSORIES/ADDITIONAL ACCESSORIES
............................................................................................... 04
Standard Accessories
.......................................................................................................................................................................... 04
Additional Accessories
........................................................................................................................................................................ 04
OPERATION MODE
05
BATTERY INFORMATION
........................................................................................................................................................................ 06
How to Charge
........................................................................................................................................................................................ 06
Charging Prompt
....................................................................................................................................................................................07
GETTING ACQUAINTED
.......................................................................................................................................................................... 08
LCD Display
.............................................................................................................................................................................................08
BASIC OPERATIONS
.................................................................................................................................................................................10
Switch between Main band and Sub band
...............................................................................................................................
01
Switch between Channel mode and VFO mode
....................................................................................................................
Channel Adjusting
.................................................................................................................................................................................
Frequency Adjusting
.............................................................................................................................................................................
Frequency Input by Keypad
.............................................................................................................................................................
Channel Input by Keypad
..................................................................................................................................................................
Squelch Off Momentary / Squelch Off
.........................................................................................................................................
Receiving
...................................................................................................................................................................................................
Transmitting
..............................................................................................................................................................................................
Emergency Alarm
..................................................................................................................................................................................
Side Key [PF1] function instruction
...............................................................................................................................................
Side key [PF2] function instruction
................................................................................................................................................
Edit channel
..............................................................................................................................................................................................
.....................................................................................................................................................................................
10
10
10
10
11
11
11
12
12
13
13
14
14
Page 6
TABLE OF CONTENTS
Delete channel
........................................................................................................................................................................................ 14
Programming scan
................................................................................................................................................................................15
SHORTCUT OPERATIONS
..................................................................................................................................................................... 16
Turn On/ Off FM Radio
........................................................................................................................................................................ 16
Add/Cancel Optional signal decode function
........................................................................................................................... 16
CTCSS/DCS Scan
................................................................................................................................................................................ 17
Offset Frequency Direction Setup
................................................................................................................................................. 17
Frequency/Channel Scan
.................................................................................................................................................................. 18
Channel Scan Skip
............................................................................................................................................................................... 18
Frequency Reverse
.............................................................................................................................................................................. 19
TX Power selection
............................................................................................................................................................................... 19
Talk Around function
........................................................................................................................................................19
DTMF code Transmit and Enquiry
................................................................................................................................................ 20
02
Single-band Switching
......................................................................................................................................................................... 21
CTCSS/DCS Encode and Decode
................................................................................................................................................ 21
Cross-Band Repeater
................................................................................................................................................ 21
Function Menu Setup
...................................................................................................................................................... 22
Senior Function Operations
.................................................................................................................................................................29
Display Mode Setup
............................................................................................................................................................................. 29
Resume Factory Default
.................................................................................................................................................................... 29
Cloning Cable
..........................................................................................................................................................................................

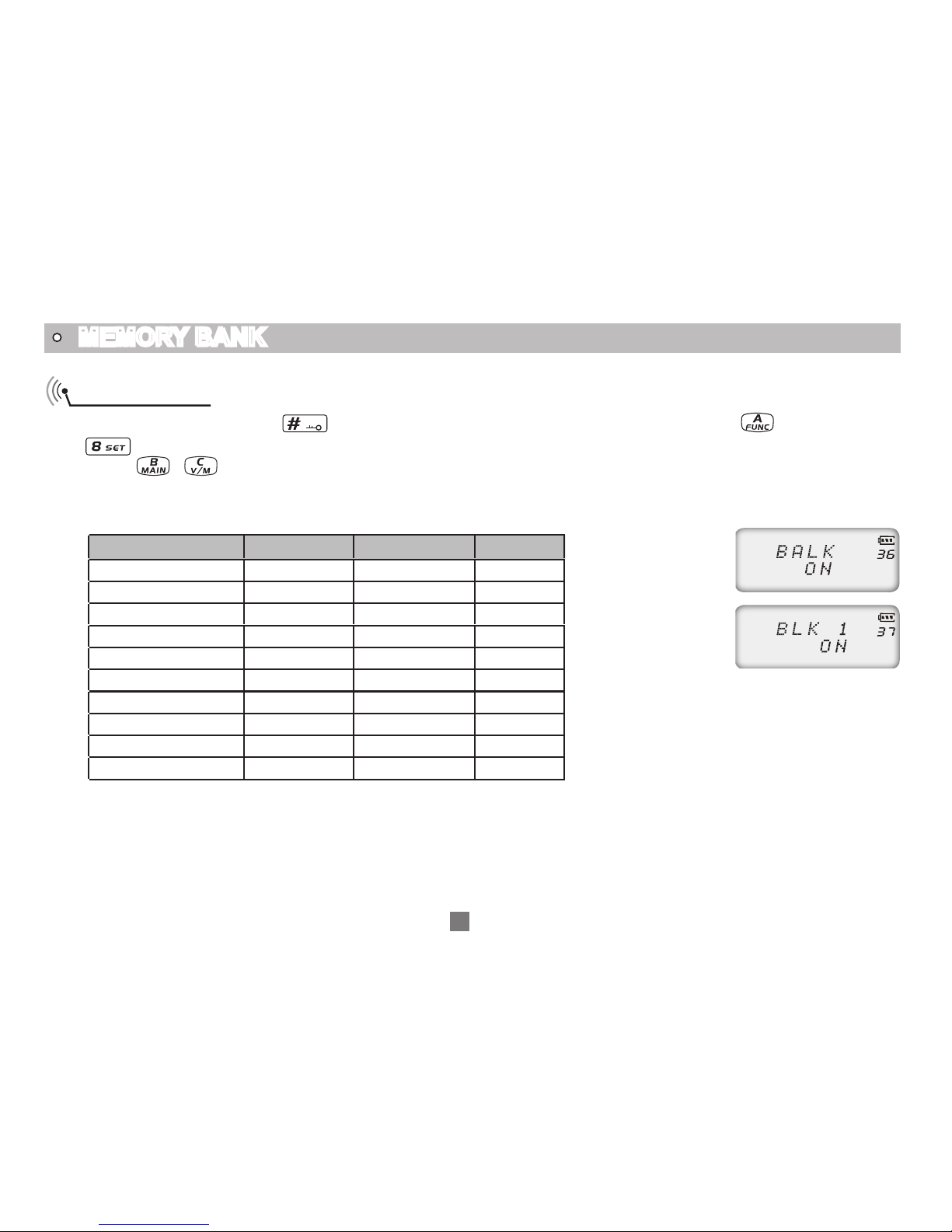

Memory Bank
....................................................................................................................................................................... 32
Memory Bank Switch
........................................................................................................................................................................... 32
Memory Bank Exit
................................................................................................................................................................................. 32
Bank Linking
.............................................................................................................................................................................................
........................
........................
........................
33
Keypad lock
.............................................................................................................................................................................................. 20
30
(Version D
)
Page 7
TABLE OF CONTENTS

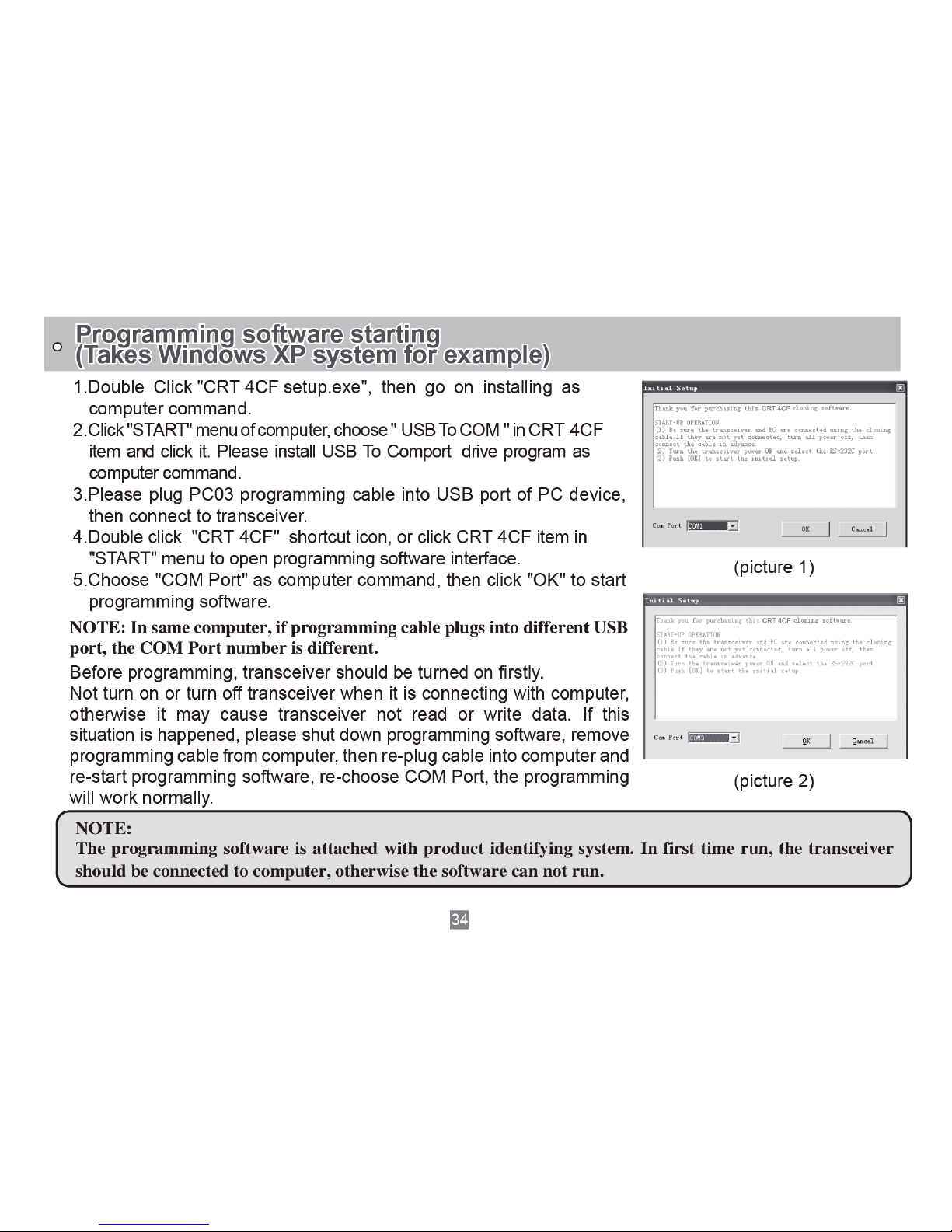

Programming software starting (Takes Windows XP system for example)
...........................................................34
TECHNICAL SPECIFICATION
...............................................................................................................................................................35
ATTACHED CHART
..................................................................................................................................................................................... 37
CTCSS Frequency Chart
................................................................................................................................................................... 37
DCS Frequency Chart
38
.......................................................................................................................................................................
03
Page 8
04
STANDARD ACCESSORIES/ADDITIONAL ACCESSORIES

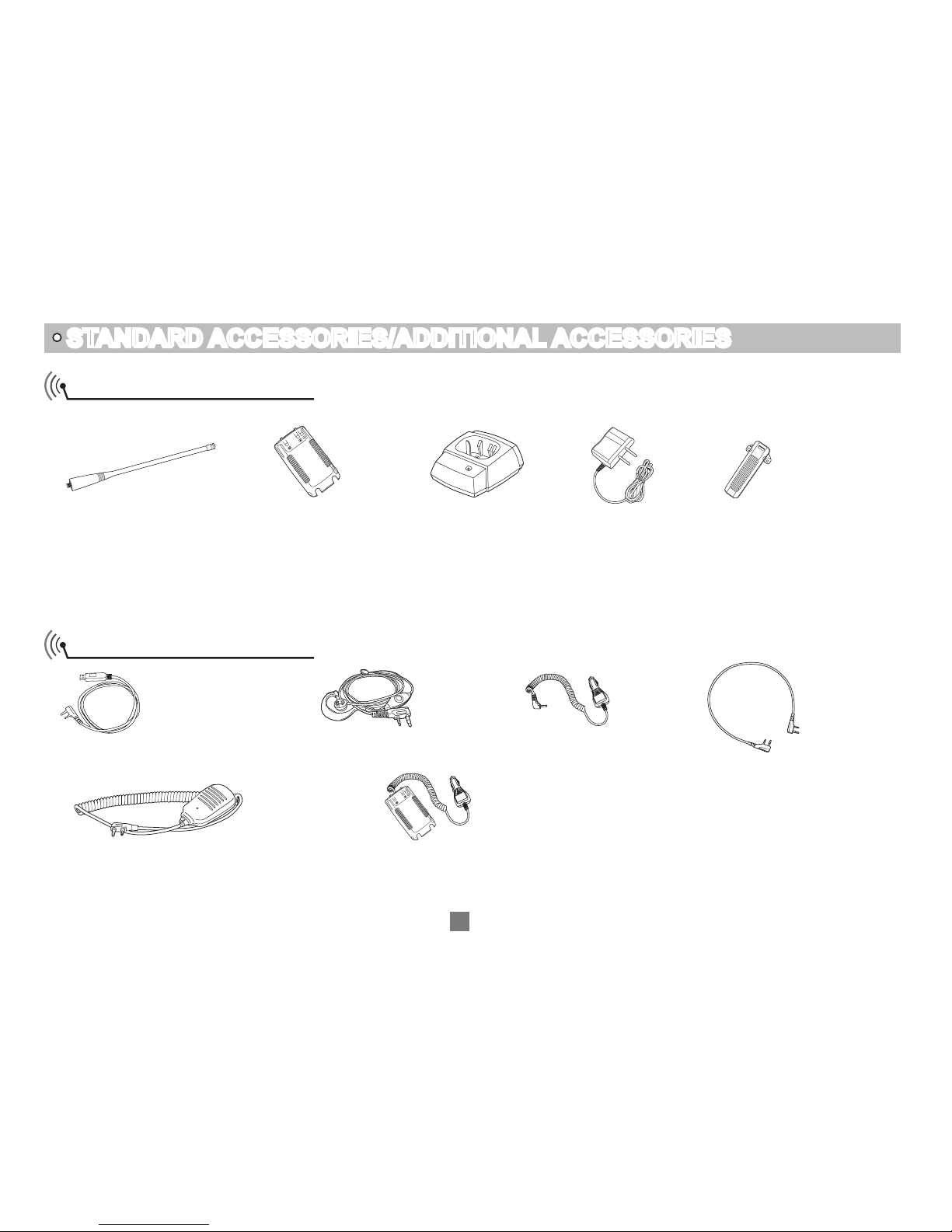

Standard Accessories
Additional Accessories
Antenna
Li-ion Battery
USB Programming
Cable
Earphone
Handheld
Microphone
Battery Charger AC Adaptor Belt Clip
Battery Pack
for Car Charger
Car
Charger
Clone cable
Page 9
05
How to choose a operation Mode:
1.
By programming software:A. In PC software's "General Setting" menu to choose "Display Mode",
channel mode works as Professional transceiver, other two modes as Amateur transceiver.
By manual setup:B. Please refer to "Display Mode" .
Amateur Mode:
2.
Under this mode, press key can switch between Channel mode and VFO mode.
Frequency + Channel mode: A.
When set display as "FREQ", the radio enters Frequency +Channel mode, new setting of channel
operation and shortcut operation can be temporarily used by user. Once the radio is turned off
or switched to another channel, the temporary setting will be erased and back to initial settings
Channel+Name Tag Mode:B.
When set display as "NAME", it enters Channel+Name Tag Mode.
the LCD will display corresponding channel name when the current channel is edited with name.
Otherwise, it will display frequency + channel.
VFO Mode(Frequency mode): C.
This mode shows only frequency on the display. Shortcut operation and Channel setting will be
changed and stored as the latest value permanently. Once the radio is turned off or changed to
new VFO frequency, the value is remained until next change.
OPERATION MODE
Professional Mode:
3.
when set as CH mode, all radio functions shall be set by PC software, besides scan, DTMF encode,
keypad lock. In CH mode, users can't return to amateur mode by menu function.
Page 10

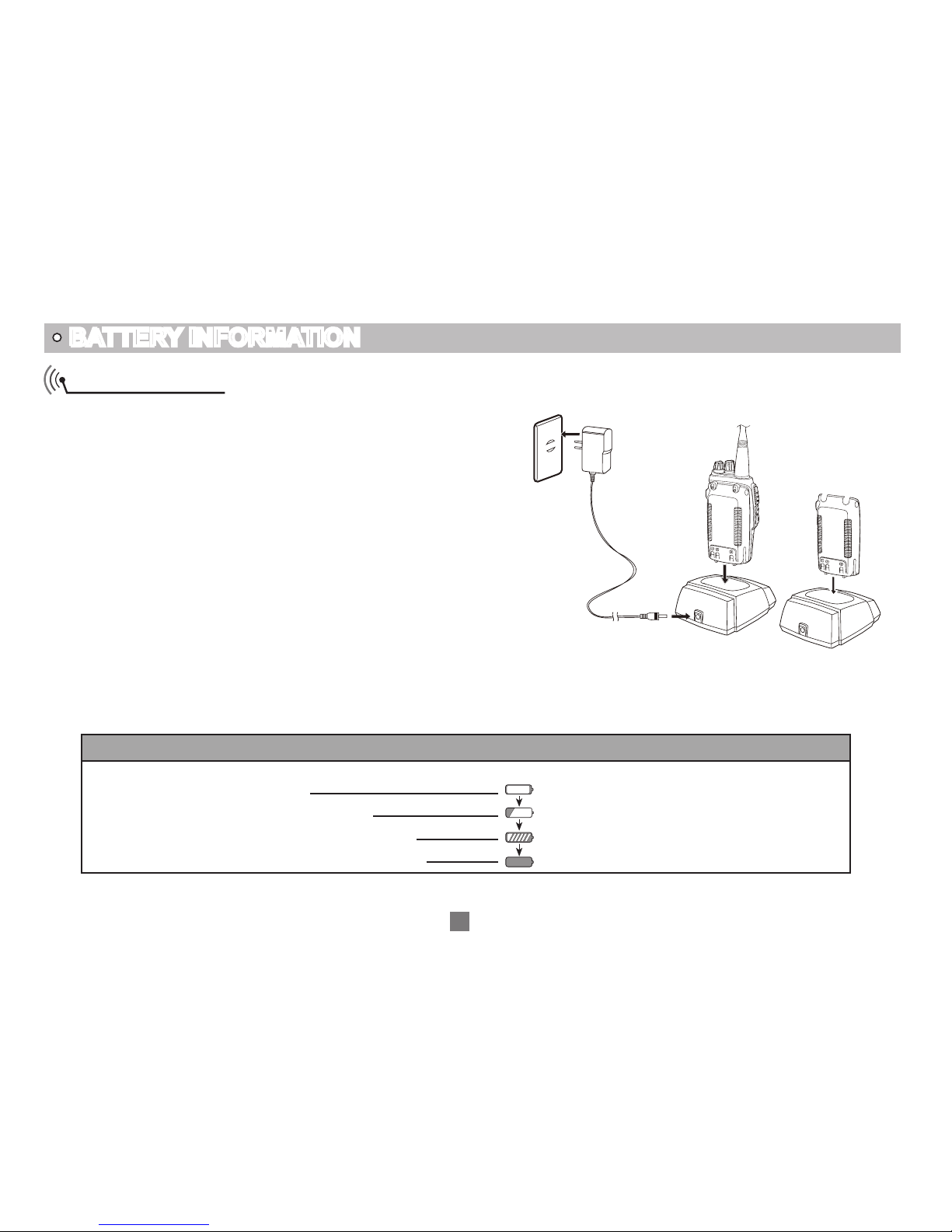

How to Charge
Plug the AC adaptor into the AC outlet, then plug the
1.
cable of AC adaptor into the DC jack, the indicator
lights orange for 1s and turns into GREEN---waits to
charge.
Slide the battery or transceiver with battery into the
2.
charger; make sure the battery terminals are in contact
with the charging terminals. LED turns into twinkling
RED---pre-charging begins.
Pre-charging for about 5 minutes, LED twinkles stop
3.
then charging begins.
It takes about 5.5 hours to fully charge the battery,
4.
when LED turns into GREEN— full charged.
BATTERY INFORMATION
Ac Input
06
Charging Process:
5.
Status LED
Standby (self-examine orange lights
1second when power on)
Pre-charging (pre-charging stage)
Charging (charge in constant currency)
Full charged (charge in constant voltage)
Green light
Red light twinkles for about 5 minutes
RED light lightens for about 5.5 hours
Green light
Page 11
BATTERY INFORMATION
STATUS
self-examine
when power on
(No battery) Pre-charging
Charge
normally
Full
Charged
Trouble
LED
Orange
(for 1 second)
Green
Red light twinkles
for 5 minutes
Red Green
Red twinkles
for a long time
LED Indicator:
6.
NOTE: Trouble means battery heating, battery short-circuit or charger short-circuit.
07
Charging Prompt
Self- examination: When charging, ORANGE light twinkles for 1 second and goes out. That means the
1.
charger has passed its self-examination and it can charge the battery normally. If the light remains orange
or the red light twinkles, it means the charger can not pass its self-examination or charge the battery.
Trickle pre-charging: When the battery has been inserted into the charger and red light twinkles, which
2.
means the remnant voltage is low, the charger trickle charges the battery (pre-charging status), until the
battery reaches a certain electric quantity, then the charger automatically turns to normal charging. If the
red light stops twinkling, it means the remnant voltage meets a certain electric quantity, and the charger
will charge the battery normally.
NOTE:The time for Trickle pre-charging should not exceed 30 min. If after 30 min, the red indicator is still
twinkling, it means it is unable to charge battery. Please kindly check battery and charger.
Page 12
GETTING ACQUAINTED

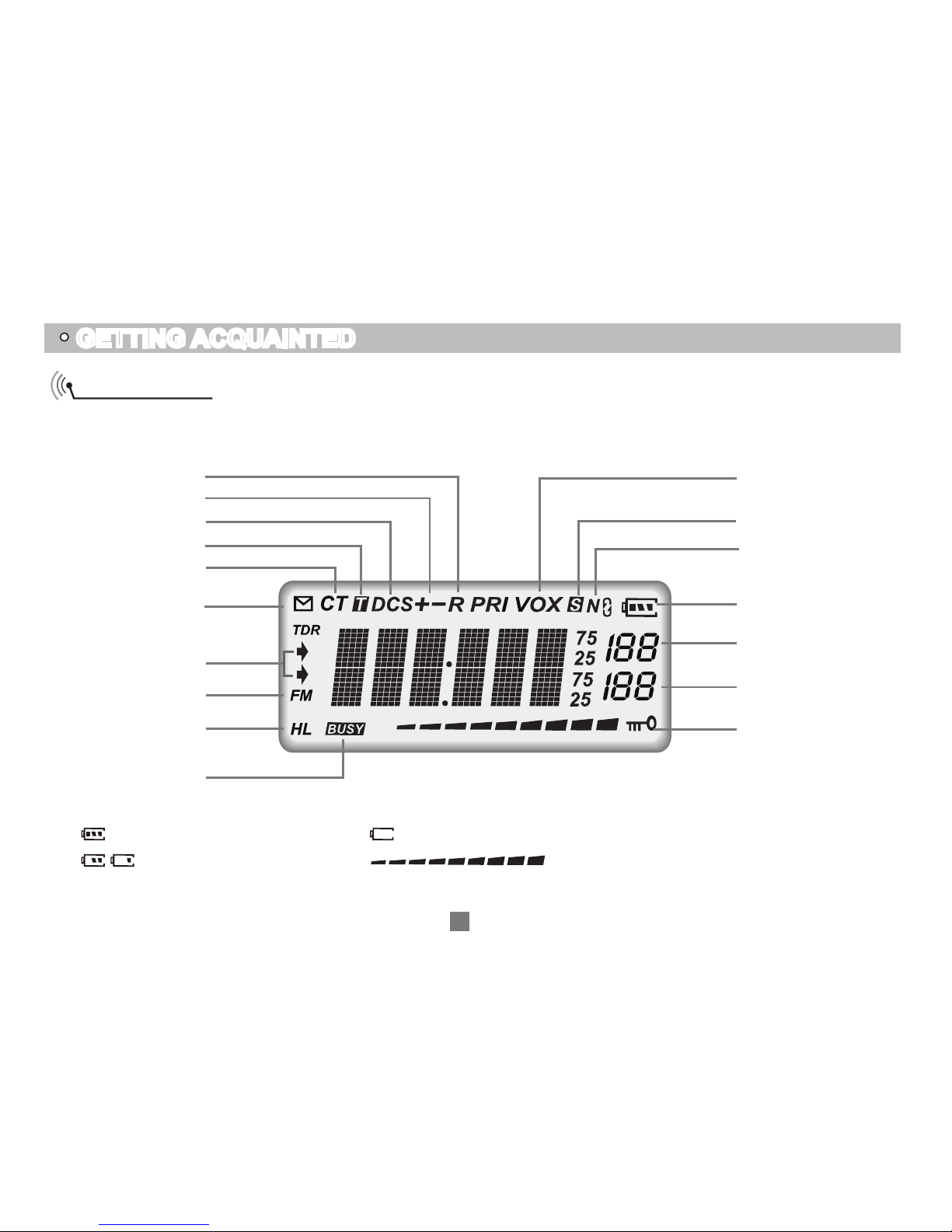

LCD Display
On LCD display screen, you will see various icons which stand for the selected functions and sometimes
you may forget the meaning of them. Here you will find the following table extremely useful.
Frequency
Reverse
Offset Frequency
DCS
Optional Signaling
CTCSS
FUNC Icon
The arrow points to
main channel
FM radio
TX Power
Busy Channel
VOX Function
Scan Skip
Narrow band
Battery Capacity
Function Menu
Number, Channel
Number
FM Channel Number
channel Number
Keypad Lock
NOTE:
Battery capacity indicator(full)
Real time display receiving signal
strength/Power Indicator
Battery capacity remnant
08
No power, replace battery pack or charge battery
Page 13
GETTING ACQUAINTED
DCIN
MIC
SP
1
3
4
8
9
10
2
5
6
7
11
12
13
14

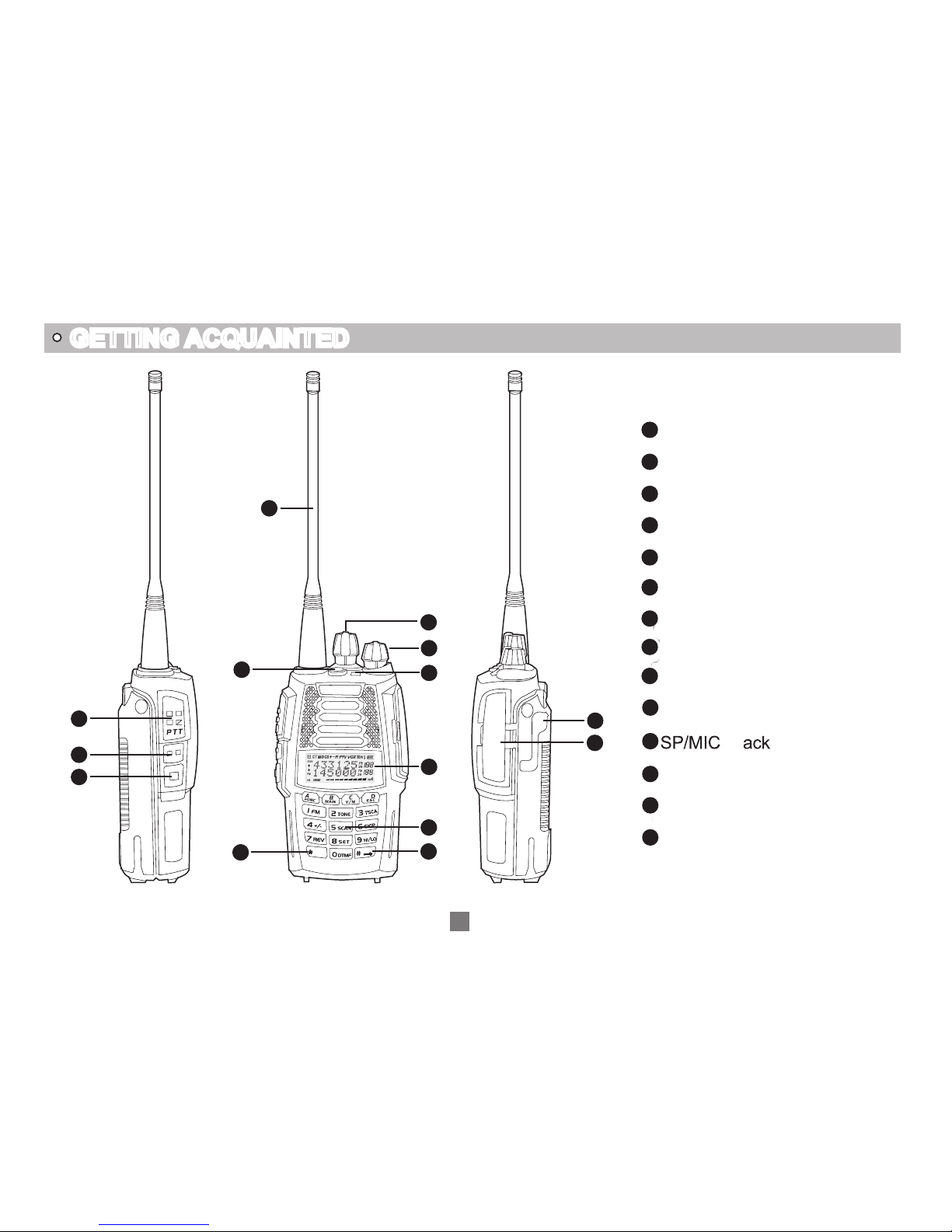

09
1
Antenna
2
Selector Knob
3
Power/Volume switch
4
TX/RX indicator
5
LCD display
6
Keypad
7
PTT key
8
PF1 key
9
PF2 key
10
11
Single-band Switching
14
Memory Bank
12
13
Car charging port
Emergency Aarm
BAND
MSK
J
Page 14

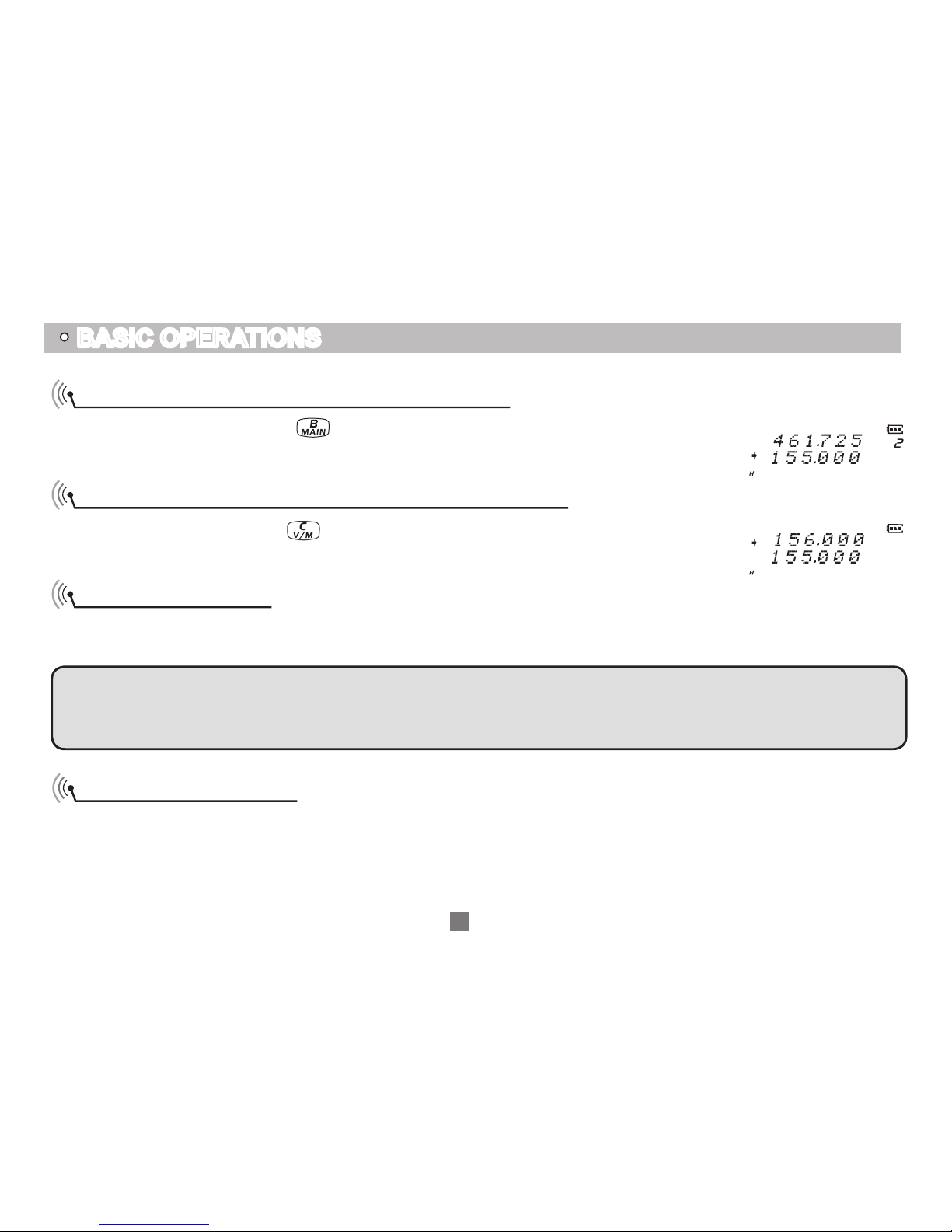

Switch between Main band and Sub band
Under standby state, press key to switch between Main band and Sub band.
Arrow indicates the Main band.
Switch between Channel mode and VFO mode
Under standby state, press key to set main band as Channel mode or frequency
mode (VFO).
NOTE: In transceiver mode, arrow directs the main band channel.
Rotating channel switch will step through only programmed (saved) channels. Unsaved channels will be
skipped.
BASIC OPERATIONS
Channel Adjusting
With transceiver in Channel mode or FM radio channel mode, rotate channel switch to adjust channel. Rotate
channel switch clockwise to increase channel number, anticlockwise to decrease channel number.
Frequency Adjusting
With transceiver in VFO mode or FM radio frequency mode, rotate channel switch to adjust frequency.
Rotate channel switch clockwise to increase frequency, anticlockwise to decrease frequency. Frequency
change depends on chosen frequency step.
10
Page 15
BASIC OPERATIONS

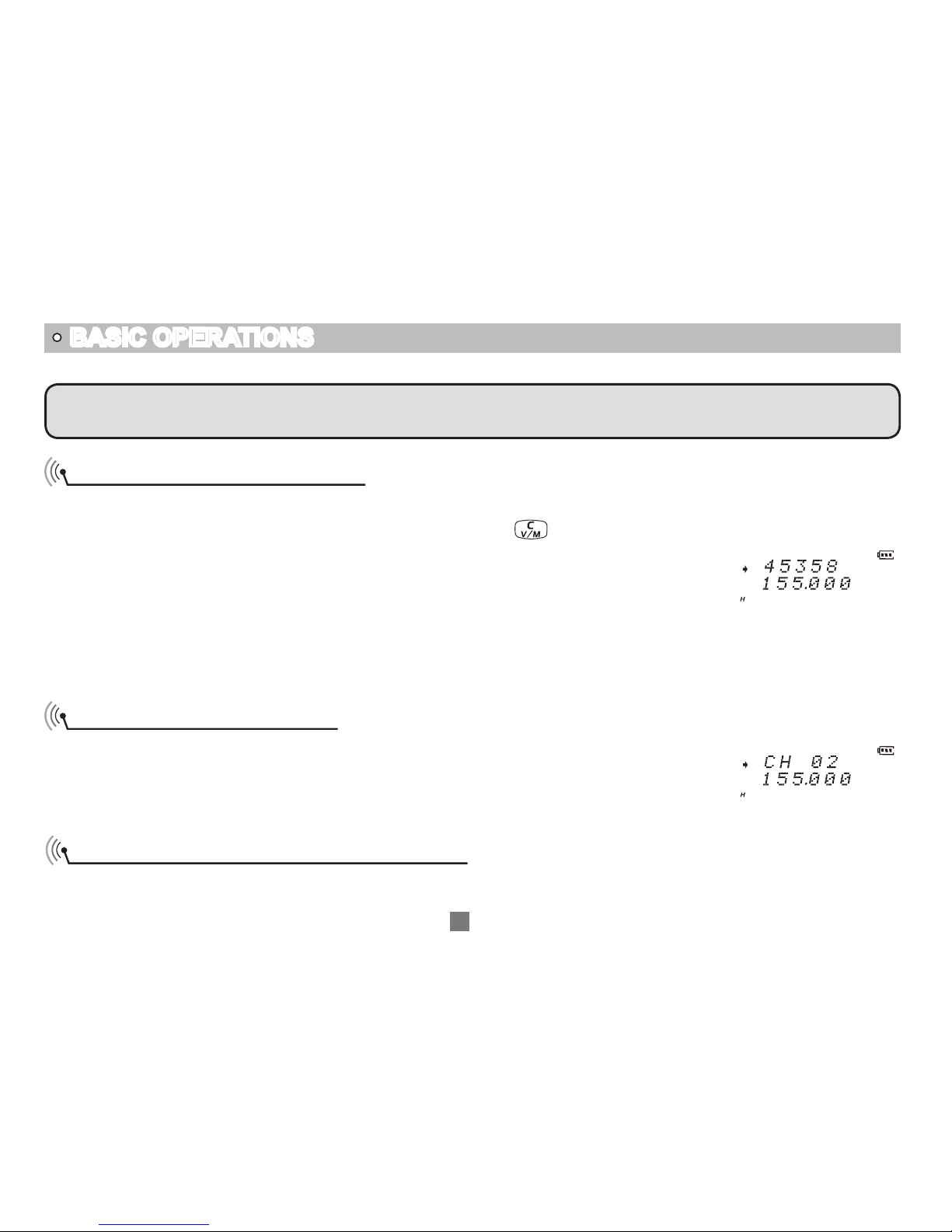

Frequency Input by Keypad
Under frequency mode or FM radio frequency mode, you can directly enter frequency through keypad.
When your transceiver is under Channel mode, press
1.
key to switch into VFO.
NOTE: When the transceiver is under Channel mode, it shows current channel
number on the right of main frequency.
Enter the desired frequency by keypad.
2.
NOTE: The frequency input of main channel or FM radio is relevant to the stepping and transceiver
frequency range. If frequency setup is beyond range or not matching with step size, the input is unavailable.
Under the FM radio mode, the frequency step size input by numeric keys is 100k.
NOTE: Channel step:2.5K, 5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K and 50KHz in total 9 for optional. FM
radio step frequency is 50K.
Channel Input by Keypad
Under channel mode of transceiver or FM radio, you can switch to desired channel
by entering three numbers (000-199). If the entered channel is not a saved channel,
the transceiver will emit beep to prompt wrong input and return to current channel.
For example, entering 001 is channel 1, 030 is channel 30, 125 is channel 125.
Squelch Off Momentary / Squelch Off
Side key [PF2] can be setup for Squelch off Momentary or Squelch off function by programming software.
11
Page 16
BASIC OPERATIONS
Transmitting
According to [PF2] key setup in programming software, hold [PF2] key to monitor the channel to ensure it
is not busy, press PTT key and talk to speaker.
Please keep the distance between mouth and speaker to be 2.5-5CM, speak in normal tone to get the best
acoustic fidelity.
Receiving
When your transceiver is called by other party, green or blue LED light will be on, LCD backlight will be on
at the same time, and the arrow icon will flash, you can hear the calling.
NOTE: You may not receive the calling when your transceiver is set at high squelch level. If current channel
is programmed with decode signal, only the same signaling call can be heard.
Squelch off: Press [PF2] key, squelch circuit is not mute, back-ground noise can be heard. Press [PF2]
1.
key again, squelch circuit is mute.
Squelch off Momentary: Press and hold [PF2] key, squelch circuit is not mute, back-ground noise can be
2.
heard. Release [PF2] key, squelch circuit is mute.
NOTE: When press and hold PTT key, transceiver is transmitting if the red LED light is on, release PTT key
to receive calls.
NOTE: The above functions are only available after [PF2] key setup in programming software.
When in channel mode, opening squelch will show the frequency of the channel.
12
Page 17
BASIC OPERATIONS
Emergency Alarm
"ALARM", Emergency alarm function is started. This transceiver has
4 Alarm modes that can be setup in programming software. Power off transceiver to exit Alarm.
Side Key [PF1] function instruction
[PF1] key can be setup in for below functions:
VOLT:
1.
Battery capacity inquiry: Under standby, press [PF1] key, LCD displays current battery capacity,
press this key again to exit.
CALL:
2.
Transmit the prestored DTMF/5TONE Encode signal in channel.
FHSS(Version D):
3.
Frequency hopping function. Press [PF1] key, turn on frequency hopping function,
LCD display "FHSS", transceiver will communicate in pre-set hopping frequency range.
Note: Receiver and Sender must have same hopping frequency, and must setup MSK decode signalling.
ALARM:
4.
Long pressing [PF1] key, LCD display "ALARM", transceiver will enable the preset alarm function.
SUBPTT:
5.
Press [PF1] key, transceiver will transmit on sub-band frequency.
Transmit tone pulse f
requency:
6.
Press and hold PTT key, then press [PF1] key to transmit selected tone
pulse frequency.
NOTE: The tone pulse frequency can be set to 1750Hz, 1450Hz, 1000Hz or 2100Hz in programming software.
Under standby state, press and hold [PF1] key (when programmed for ALARM function) or press the Emer
-gency Alarm keyuntil LCD displays
13
Page 18
BASIC OPERATIONS
Side key [PF2] function instruction
Squelch off: Press [PF2] key, squelch circuit is not mute, back-ground noise can be heard. Press [PF2]
1.
key again, squelch circuit is mute.
Squelch off Momentary: Press and hold [PF2] key, squelch circuit is not mute, back-ground noise can
2.
be heard. Release [PF2] key, squelch circuit is mute.
Transmit DTMF/5TONE/2TONE signaling: Press and hold [PTT] key, then press [PF2] key to transmit
3.
selected DTMF/5TONE/2TONE signaling.
Press and hold [PF2] key to turn on transceiver, until transceiver emits "DU" beep, transceiver enter into
4.
general functions setup.
Delete channel
Under standby state, press
1.
key, the top left corner of LCD displays " " icon, press key to
switch into channel mode, channel number ashes.
Edit channel
Under frequency mode (VFO), enter desired frequency and settings, press
1.
key, the top left corner of
LCD displays " " icon, press key to switch into channel mode, channel number ashes.
Rotate channel switch to select desired editing channel number.
2.
Press
3.
key, the top left corner of LCD displays " " icon, press and hold key until transceiver
emits "DUDU" beep, channel is stored successfully.
14
Page 19
BASIC OPERATIONS
Programming scan
Setup the frequency of L1 channel, U1 channel, L2 channel and U2 channel will realize VFO frequency
scanning border limited. L1 & L2 is starting frequency, U1 & U2 is end frequency. When VFO frequency
between L1~ U1 or L2 ~ U2, transceiver will scan frequencies between L1 ~ U1 or L2 ~ U2. When VFO
frequency is lower than L1 or L2, transceiver will scan frequencies higher than L1 or L2. When VFO
frequency is higher than U1 or U2, transceiver will scan frequencies higher than U1 or U2.
In VFO mode, enter desired frequency and relative setup, press
1.
key, the top left corner of LCD
displays " " icon, then press key switch into channel mode, channel number flashes
Rotate channel switch to choose desired channel number.
2.
Press
3.
key, the top left corner of LCD displays " " icon, then press key until transceiver emits
"DUDU" beep, channels are saved successfully.
NOTE: To make this setup, L1 and U1 must in same frequency band. L2 and U2 must in same band.
Rotate channel switch to select desired deleting channel number.
2.
Press
3.
key, the top left corner of LCD displays " " icon, press and hold key until transceiver
emits "DUDU" beep and clear up frequency information of current channel, deletion is successful.
NOTE: This process can be applied for deleting FM radio channels.
15
Page 20
SHORTCUT OPERATIONS

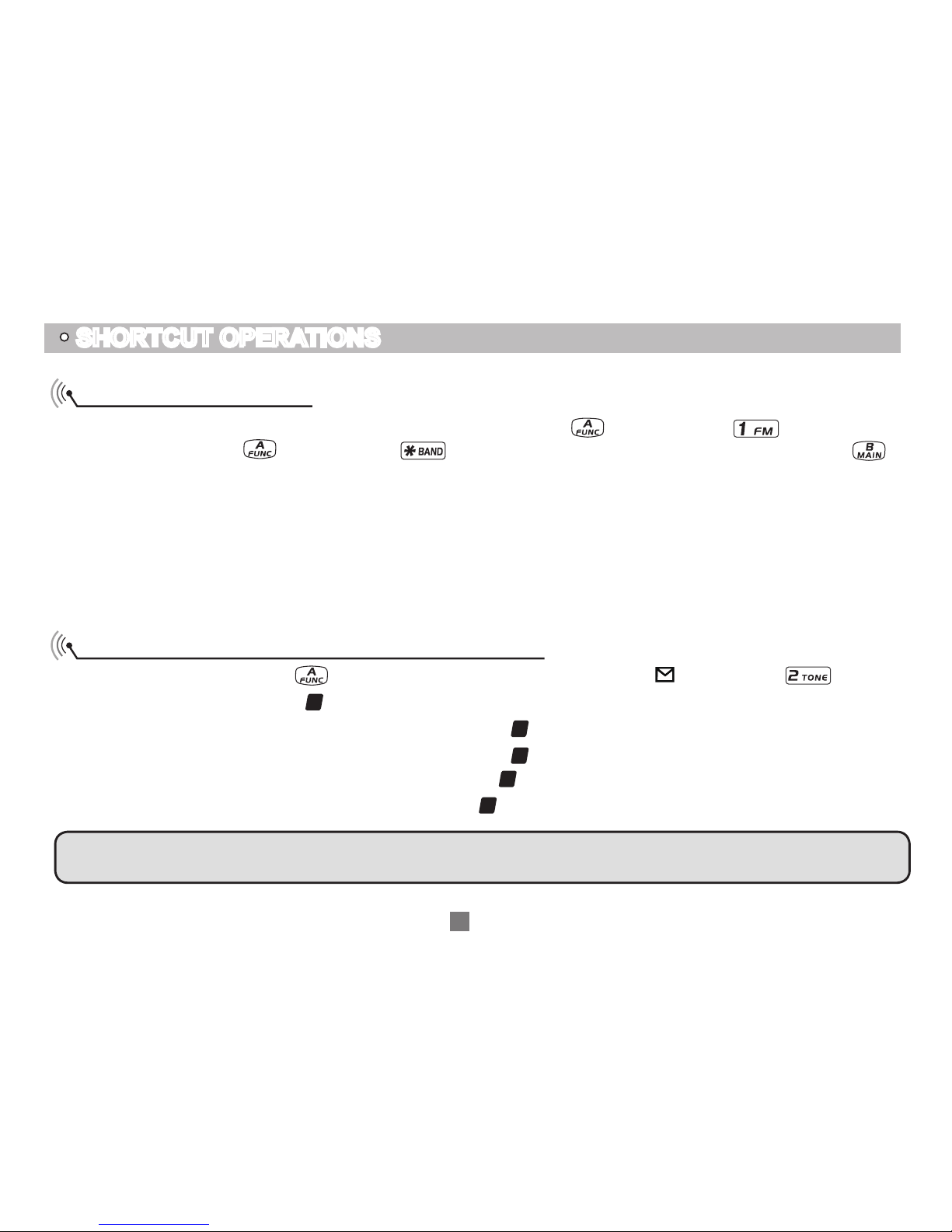

Add/Cancel Optional signal decode function
Under standby state, press key, the top left corner of LCD displays " " icon, press key.
LCD display "
1.
DTMF" and "T" icon, DTMF signal add in current channel.
Turn On/ Off FM Radio
This radio has FM/AM/SW/LW total 4 FM radio bands. Press
key then press key to turn on
FM radio, later press key then press key to switch between FM/AM/SW/LW band, press
key will mute /un-mute FM radio.
FM: 64~108MHz(RX) (100 memory channels CH00~CH99
AM: 118~136MHz(RX) (100 memory channels CH00~CH99
SW: 2.3~29.99MHz(RX)
LW: 0.52~1.71MHz(RX)
Note：AM/SW/LW require special antenna. When AM is on, the downside RX channel is occupied.
16
Repeat above operation, LCD display "2. 5TONE" and "T" icon, 5TONE signal add in current channel.
Repeat above operation, LCD display "
3.
2TONE" and "T" icon, 2TONE signal add in current channel.
Repeat above operation, LCD display "
4.
MSK" and "T" icon, MSK signal add in current channel.
Repeat above operation, LCD display "
5.
OFF", the "T" icon disappear, no optional signal in current channel.
NOTE: When this function is on, user must setup No.7 menu to be TONE option, then DTMF/5TONE/2TONE/
MSK can be used.
Page 21
SHORTCUT OPERATIONS
CTCSS/DCS Scan
Press key, the top left corner of LCD displays " " icon, press key to
enter into CTCSS/DCS scan. Under this state, rotate channel switch to change scan
direction. When scan the matching CTCSS/DCS signaling, it will stay 5seconds and
then go on scanning. Press any other keys except
, , key to exit.
NOTE: This function is invalid when transceiver works in professional mode or the arrow directed channel
no setting CTCSS/DCS signaling.
In current channel, if signaling set as CTCSS, it will scan CTCSS, if sets as DCS, it will scan DCS.
17
Offset Frequency Direction Setup
Under standby state, press key, the top left corner of LCD displays " " icon,
press
key to choose offset frequency direction. There are 3 options, Positive
offset, Minus offset, shut off offset.
(+) Positive offset:
1.
Indicates TX frequency is higher than RX frequency. When
enable reverse function, the RX frequency is higher than TX frequency.
(-) Minus offset:
2.
Indicates TX frequency is lower than RX frequency. When
enable reverse function, the RX frequency is lower than TX frequency.
None:
3.
Indicates shut offset off.
Under frequency mode (VFO) or channel mode, press
key then press key to choose positive offset
direction(+), minus offset direction (-) , shut offset off one by one (Please refer to offset frequency setup).
NOTE: This function is unavailable in professional transceiver mode.
MSK
Page 22
SHORTCUT OPERATIONS
Frequency/Channel Scan
Under corresponding mode, press key, the top left corner of LCD displays " " icon, then press
key to start frequency scan or channel scan.
Frequency Scan
1.
Under VFO mode, frequency scan is available. This function is used for monitoring signal of various
communication frequency by transceiver ‘step’ setup, press
numeric key or
key to exit.
Channel Scan
2.
Under channel mode, this function is used for monitoring signal of each channel
18
▼
▼
▼
NOTE:
Frequency scan is of all bands scan, it scans upwards as your STEPPING setting.
In channel scan, the skipped channel is not in the line of scanning. Scan upwards as per channel no.
(please refer to channel scan skip).
Frequency/channel scan can change scan direction by rotating channel switch, when find a matching carrier
wave and signaling, the transceiver will stay 5 seconds then go on scanning. (Please refer to scan setup)
If turn off radio in scan mode, when re-power on, radio will resume scanning automatically.
in this mode. Press numeric key or
key to exit.
Channel Scan Skip
Under channel mode, press key, the top left corner of LCD displays " " icon, then press key to
set current arrow directed channel as Channel scan skip. Repeat above operation
to cancel channel scan skip.
LCD displayed
1.
"S" means the current channel will not be scanned.
"
2.
S
" icon disappeared means the current channel will be scanned.
Page 23
SHORTCUT OPERATIONS

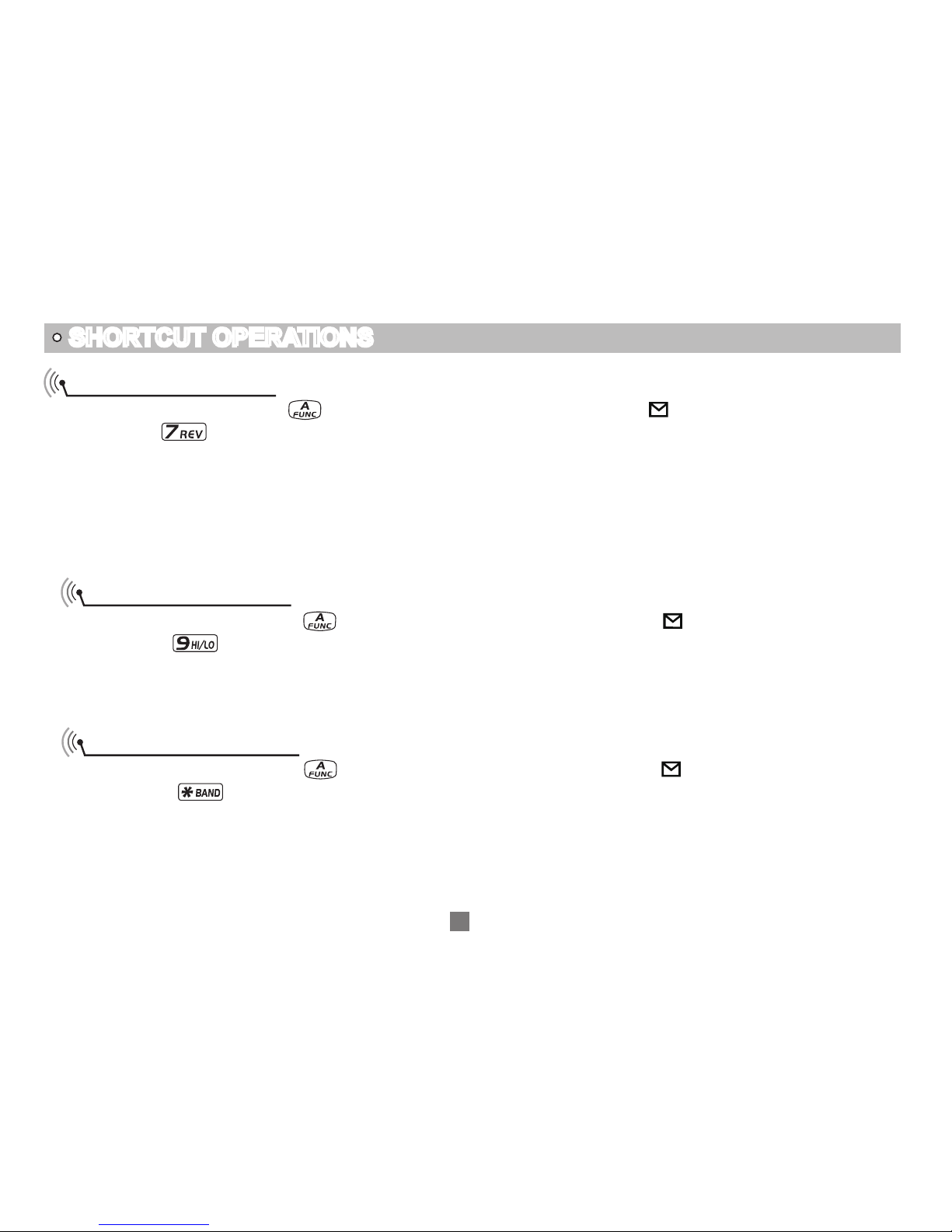

Frequency Reverse
Under standby state, press key, the top left corner of LCD displays " " icon,
then press
key to set arrow directed channel as frequency reverse, repeat
above operation to turn off frequency reverse.
When LCD displays "
1.
R" icon, it means current arrow directed channel open the
frequency reverse function, the TX frequency and RX frequency is interchanged,
19
if CTCSS/DCS signaling is set, it will also interchange.
When "
2.
R" icon disappears, it means reverse function is close.
TX Power selection
Under standby state, press key, the top left corner of LCD displays " " icon,
then press key to choose High/Low power for current arrow directed channel.
When LCD displays "
1.
L" icon, it means low power is chosen.
When LCD displays "
2.
H" icon, it means high power is chosen.
Talk Around function
Under standby state, press key, the top left corner of LCD displays " " icon,
then press , the arrow directed channel will enable talk around, repeat the
above operation to close talk around.
TX=RX:
1.
Enable talk around, current channel transmit at RX frequency, if CTCSS/
DCS signaling is set, it will interchange decoding CTCSS/DCS as encoding.
OFF:
2.
Close talk around.
Page 24
SHORTCUT OPERATIONS
Keypad lock
Keypad lock operation can be done by software programming or radio keypad.
1) Radio keypad operation
Press
key, the top left corner of LCD displays " " icon, then press and hold
key until transceiver emits "DU" beep, LCD displays
"
locked. Repeat above operation, " " icon disappears,
keypad is unlocked.
2) Software Programming
ON: Keypad lock option tick on.
OFF: Keypad lock option tick off.
Note: When keypad lock is turned on by software programming, the keypad lock operation is invalid.
displays "EMPTY".
When current group displays "
3.
EMPTY", press key, the top left corner of LCD
displays " " icon, press and hold key until transceiver emits "DU"
beep, transceiver enters into DTMF edit state, LCD displays "___________",
now you can enter desired DTMF data by keypad.
When finished editing, press side key [PF2] to save DTMF signaling.
4.
" icon, keypad is
Press
1.
key, the LCD displays " " icon, then press
key, the LCD
displays DTMF data and group number (total 16groups) of current group.
Rotate channel switch to choose desired group and DTMF data, press PTT key
2.
to transmit selected DTMF signaling. If current group not edit DTMF data, LCD
DTMF code Transmit and Enquiry
20
MSK
Page 25

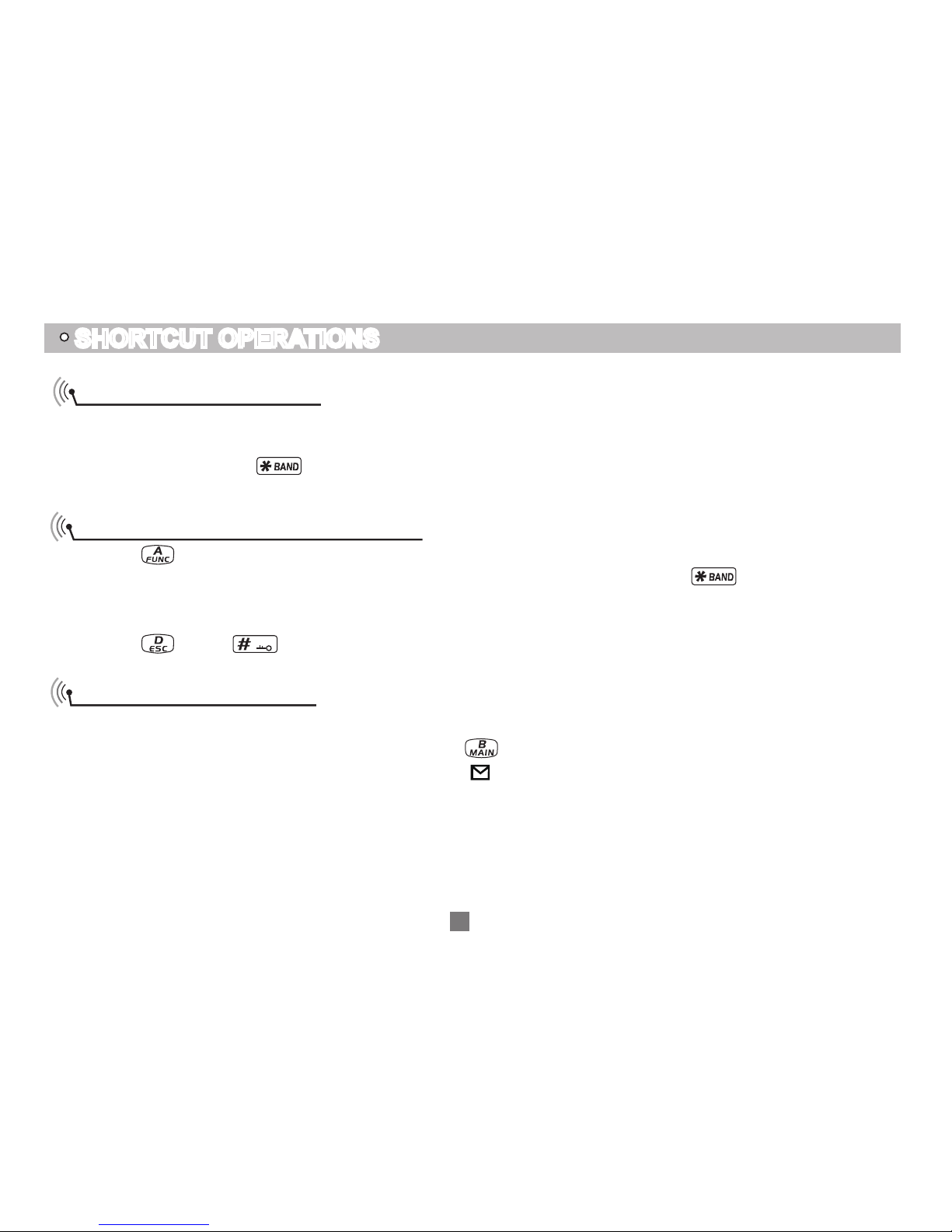

SHORTCUT OPERATIONS
Single-band Switching
CTCSS/DCS encode and decode
To reduce interference from the sub-band when only the main-band is needed. You can use the single-band
switching function to turn off the sub-band quickly.
Continuous pressing of
will cycle LCD display to show Main + Sub-Band / Sub-Band Only / Main-Band
Only.
Press
1.
key then press [PF2] to enter into setup.
Press [PF2] key to choose CTCSS, DCS or OFF, when choose DCS, press
2.
key to select positive
or negative code.
Rotate Channel selector to choose desired CTCSS/DCS encode and decode.
3.
Press
4.
key or key to confirm and exit.
Cross-Band Repeater
Set main-band and sub-band to desired VHF & UHF frequencies, then open cross band repeater function.
In power off radio, press [PF1] and then press
1.
to enter into function menu together and power on
radio until LCD shows "RPT ON". LCD shows "
" in LCD top left corner.
Repeat above operation, "
2.
RPT OFF" is turn off cross band repeater function.
21
MSK
Page 26

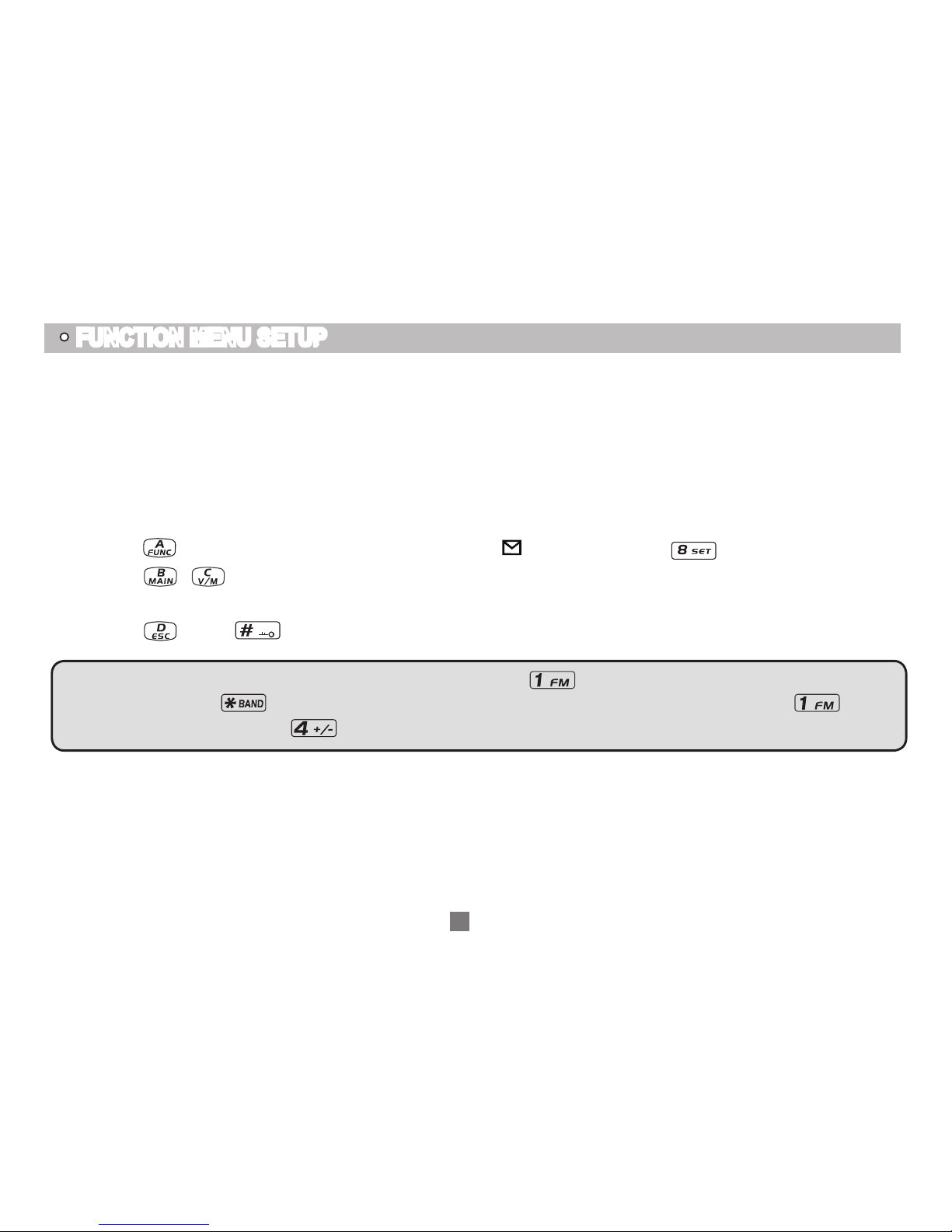

FUNCTION MENU SETUP
Menu 1-17 of this transceiver are channel operations. Channel operations temporarily changed the functions
of current channel. When power off or channel has been changed, the relevant setup will be erased. Only
under VFO mode, the channel operations will be saved until next change.
Menu 18-50 are background operations (menu 20-29 are memory bank setup), it is valid for all channels,
the relevant setup will be saved until next change.
The operating methods are as follows:
Press
1.
key, the top left corner of LCD displays " " icon, then press key to ente menu.
Press
2.
/ key to choose desired function.
Rotate channel switch to choose desired setting.
3.
Press
4.
key or key to confirm and exit.
Note: When setup CTCSS/DCS encode and decode, press
key to choose CTCSS, DCS or off, when
choose DCS, press key to switch positive and negative code. When edit the name, press key to
shift the cursor down, press
key to shift the cursor up.
22
MSK
Page 27
Menu
No.
LCD Display Function Options Description
1 T-CDC
CTCSS/DCS
Encode
OFF No CTCSS/DCS Encode
62.5HZ-254.1Hz+Self
defined
51 groups fixed CTCSS encode+1 group
selfdefined encode
000N-777I 1024 groups DCS Encode
2 R-CDC
CTCSS/DCS
Decode
OFF No CTCSS/DCS Decode
62.5HZ-254.1Hz+Self
defined
51 groups fixed CTCSS decode+1 group
selfdefined decode
000N-777I 1024 groups DCS decode
3 RT-CDC
CTCSS/DCS
Encode/Decode
Synchronous
OFF No CTCSS/DCS encode/decode
62.5HZ-254.1Hz+Self
defined
51 groups fixed CTCSS encode/decode + 1
group self-defined CTCSS encode/decode
000N-777I 1024 group DCS encode/decode
4 2T-ENC
2T ON E En co de
list
CALL00-31 32 groups 2Tone encode list
5 5T-ENC
5T ON E En co de
list
CALL00-31 32 groups 5Tone encode list
6 2T-DEC
2T O N E De c o d e
list
DEC 00-31 32 groups 2Tone decode list
7 MSKENC MSK Encode list CALL00-31 32 groups MSK encode list
8 TONDEC
Optional signaling
setup
DTMF/5TONE/2TONE/MSK
Current optional signal is DTMF/5TONE/2TONE/
MSK
FUNCTION MENU SETUP
23
Page 28
9 SIGNAL
Squelch mode
setup
SQ
When current channel received matching RF
signals, transceiver can hear the talking from the
other party.
CTCSS/DCS
When current channel received matching RF
signals and matching CTCSS/DCS signaling,
transceiver can hear the talking from the other party.
TONE
When current channel received matching RF
signals and matching optional signaling, transceiver
can hear the talking from the other party.
CT&TO
When current channel received matching RF
signals + matching optional signaling + matching
CTCSS/DCS signaling, transceiver can hear the
talking from the other party.
CT/TO
When current channel received matching RF
signals, or matching optional signaling, or
matching CTCSS/DCS signaling, transceiver can
hear the talking from the other party.
10 STEP
Frequency step
size setup
2.5K-50K 9 options in total
11 W/N
Wide / Narrow
Band Setup
25K/12.5K Wide band/Narrow band
12 REV
Frequency
Reverse
ON
Turn on Frequency reverse function, TX and RX
frequency of current channel will be interchanged.
OFF Close Frequency reverse function.
FUNCTION MENU SETUP
24
Menu
No.
LCD Display Function Options Description
Page 29
13 TALKAR Talk Around
TX=RX
Turn on Talk Around function, current channel
will transmit at RX frequency, if CTCSS/DCS
signaling is set, it will interchange decoding
CTCSS/DCS as encoding.
OFF Close Talk Around function.
14 OFFSET
Offset Frequency
setup
0-70MHz
Note: It is available to setup in Programming
software.
RX:UHF, TX:VHF or RX:VHF, TX:UHF
15 NAME
Editing Channel
name
a-Z, 0-9
In channel name display mode, will display the
edited channel name.
16 RPLOCK
Busy Channel
Lockout
BUSY
Carrier wave lock, transmitting is prohibited
when received matching carrier wave.
REPEAT
Signaling lock, transmitting is prohibited when
received matching carrier but with mismatching
CTCSS/DCS.
OFF Close BCLO function.
17 TX TX OFF ON/OFF TX function is enabled in current channel.
18 BAK -- Group Selection 0-9 Display current working group
19 BALK Group linking
OFF Turn off group linking, menu 20-29 is hide.
ON Turn on group linking, menu 20-29 display.
20 BLK 1 Link Group 1 OFF/ON Add or remove the group 1 in group linking
21 BLK 2 Link Group 2 OFF/ON Add or remove the group 2 in group linking
22 BLK 3 Link Group 3 OFF/ON Add or remove the group 3 in group linking
23 BLK 4 Link Group 4 OFF/ON Add or remove the group 4 in group linking
FUNCTION MENU SETUP
25
Menu
No.
LCD Display Function Options Description
Page 30
24 BLK 5 Link Group 5 OFF/ON Add or remove the group 5 in group linking
25 BLK 6 Link Group 6 OFF/ON Add or remove the group 6 in group linking
26 BLK 7 Link Group 7 OFF/ON Add or remove the group 7 in group linking
27 BLK 8 Link Group 8 OFF/ON Add or remove the group 8 in group linking
28 BLK 9 Link Group 9 OFF/ON Add or remove the group 9 in group linking
29 BLK 0 Link Group 0 OFF/ON Add or remove the group 0 in group linking
30 PF1
Self define PF1
key function
VOLT Displays current battery capacity.
CALL Call function
FHSS Frequency hopping
ALARM Emergency alarm function
SUBPTT Sub band PTT
OFF No function
31 BAND VFO band limit ON/OFF Turn on/off band limit function
32 DSPSUB
Sub band display
setup
FREQ Display sub band frequency or channel
VOLT Display current battery voltage
OFF Sub band display is disabled
33 BEEP
Keypad Voice
prompt setup
ON/OFF Turn on/off keypad voice prompt function
34 TOT Time-Out-Timer
OFF Turn off time-out timer
10-270S
Total 27 levels for optional, each level step
10seconds.
FUNCTION MENU SETUP
26
Menu
No.
LCD Display Function Options Description
Page 31
35 VOX
Voice Operated
Transmission
(VOX) Setup
OFF Turn off VOX function
1--10 Total 10 VOX levels for optional
36 VDELAY VOX Delay Setup 0.5S-3S Total 27 levels for optional, each interval is 0.1S
37 APO
Automatic Power
Off Setup
OFF Disable the Automatic power off function
30MIN-2HOUR 30minutes ~ 2hours: Total 3 levels for optional.
38 DTMF
DTMF
Transmitting Time
50MS-500MS
Total 5 kinds of DTMF transmitting time for
optional.
39 SQL
Squelch level
Setup
00-09
10 levels of squelch in total for optional, "00" is
minimum setup value (normally open)
40 SCAN
Scan Dwell Time
Setup
5ST-15ST
When scanning matched signal, transceiver will
stop scanning for 5-15seconds then resume.
2SP
When scanning matched signal, transceiver
will stop scanning, 2seconds after signal
disappeared, then resume.
41 SPEED Scan Speed Setup
QUICK Fast scan speed
NORMAL Normal scan speed
42 FTIME
Function Icon
Stay Time
FUNCT
When finished function setting or enter into
function menu, icon disappeared.
1SEC-3SEC
When finished function setting or enter into
function menu, icon stay 1-3seconds then
disappeared.
ALWAYS
Function icon is always display, only when
pressing function key again, the icon will
disappear.
FUNCTION MENU SETUP
27
Menu
No.
LCD Display Function Options Description
Page 32
43 LIGHT LCD Backlight
ON/OFF Always on/off
AUTO Backlight will automatic closed after a period
44 COLOR
LCD Backlight
Color
BLUE/ORG/PUR Blue/Orange/Purple
45 ID Self ID inquiry 001/12345
LCD displays radio self ID, DTMF ID is 3 digits,
5TONE ID is 5 digits.
46 TBST
Tone Pulse
Frequency
Selection
1750Hz/2100Hz /1450Hz/
1000Hz
Tone plus frequency is 1750Hz/2100Hz/
1450Hz/1000Hz
47 SAVE
Battery Save
Setup
OFF Turn off battery save function
1:2-1:8 Battery save time is 1:2-1:8
AUTO Battery save ratio is adjusting automatically.
48 RADIO FM radio ON/OFF Allow/Prohibit using FM radio.
49 SUBVOL
Sub-Radio Volume
Setting
1--8
Adjust main band receive, at the same time Sub
band output volume
50 MUTE RPT mute setup
ON
In UV or VU mode, mute the RX sub band when
main band is TX.
OFF Sub band is not mute when main band is TX.
FUNCTION MENU SETUP
28
Menu
No.
LCD Display Function Options Description
Page 33

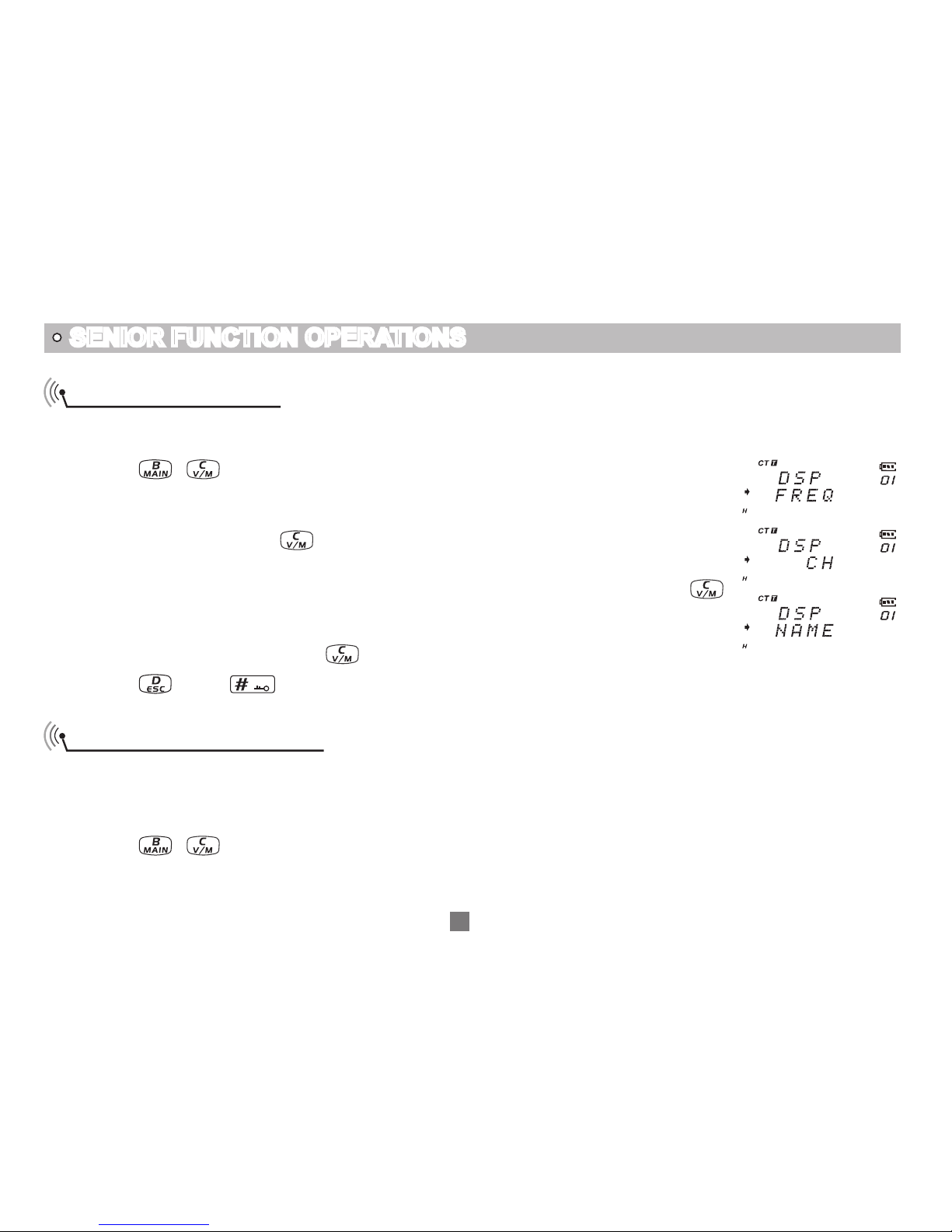

SENIOR FUNCTION OPERATIONS
Display Mode Setup
There are three kinds of display modes for optional.
Press [PF2] key to turn on radio, hold [PF2] key until transceiver emits beep.1.
Press
2.
/ key to choose No.01 function item, it shows "DSP" on LCD.
Rotate channel switch to choose desired setup.
3.
FREQ: Frequency+Channel mode, transceiver displays current channel name +
frequency, press
key to switch into VFO mode.
CH: Channel mode, 1~24 items of function menu will hide automatically, user can
only operate some functions. It is unable to switch into VFO by pressing
key. This model can be used for Amateur mode.
NAME: Channel+Name Tag mode, transceiver displays current channel number
+channel name, press
key to switch into VFO mode.
Press
4.
key or key to confirm and exit.

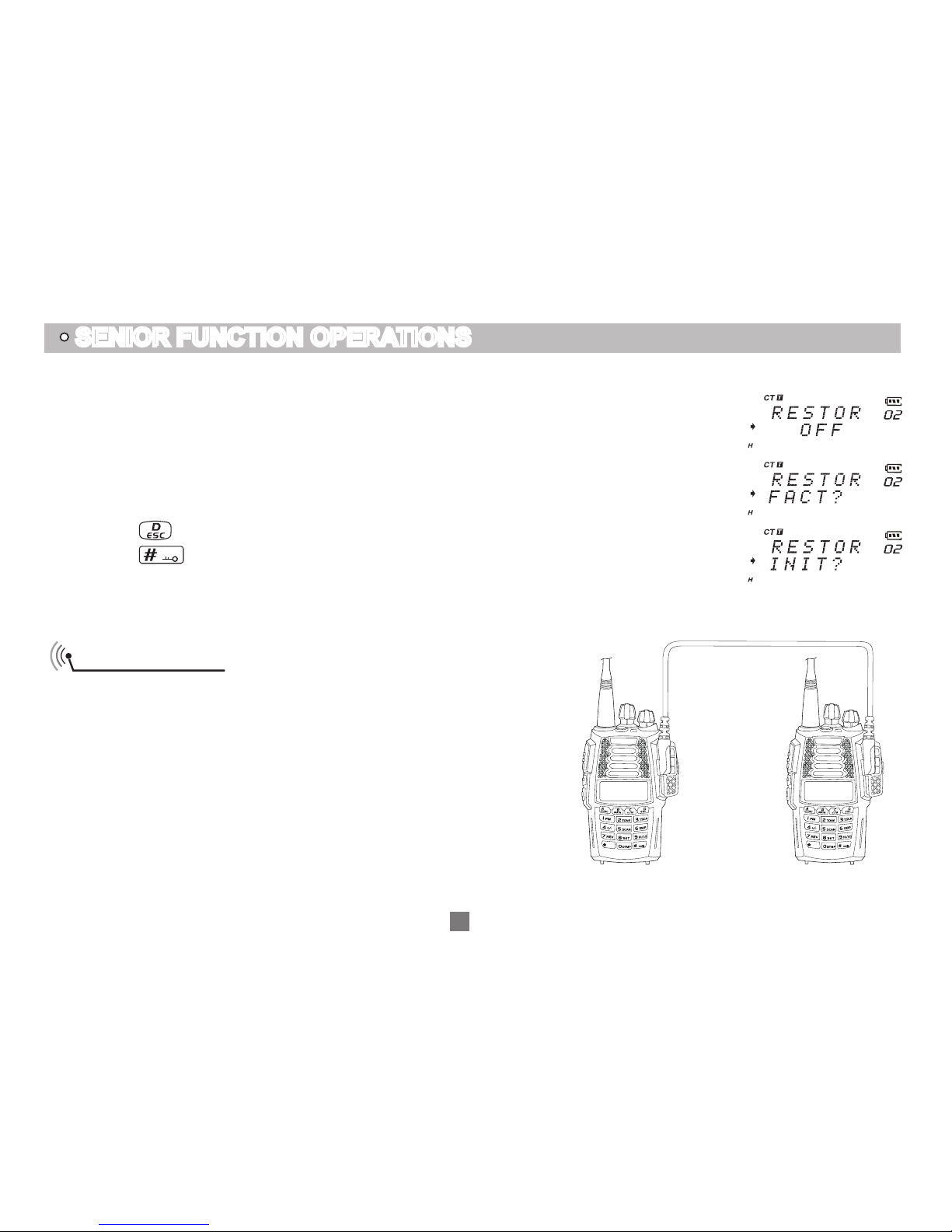

Resume Factory Default
You can make all the settings of transceiver return to the factory default settings when transceiver can not
work normally because of wrong operation or error setup.
Press [PF2] key to turn on radio, hold [PF2] key until transceiver emits beep.
1.
Press
2.
/ key to choose No.02 function item, it shows "RESTOR" on LCD.
Rotate channel switch to choose desired setup.
3.
29
MSK
Page 34
SENIOR FUNCTION OPERATIONS
OFF: No operations.
FACT: Resume all items to factory default, including channel and background
settings.
INIT: Resume background settings to factory default, channel operations are
keeping.
Press
4.
key to exit current selection.
Press
5.
key to confirm current selection.
Cloning Cable
This feature will copy the programmed data and parameters
from the master unit to slave units. It copies the parameters
and memory program settings.
Connection: Use optional CP04 cloning cable, connect
Read/write frequency port on both master and slave,
setting and programing as the requirement below.
4242
30
B
A
ND
MSK
BAND
MSK
MSK
Page 35

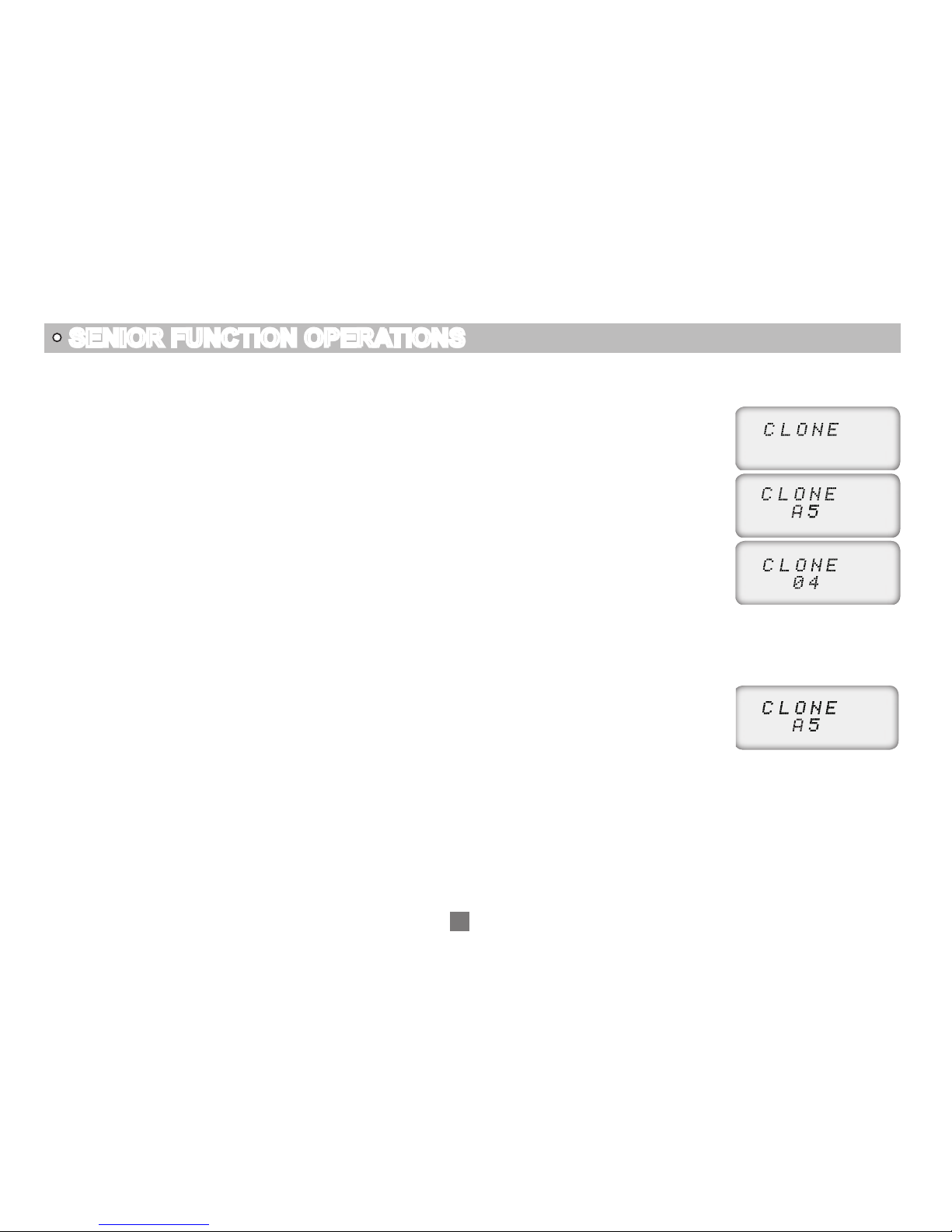

[Settings: Master side]
Press the [PF1] side key to Power on, the display shows "CLONE", the master
1.
unit enters into copy mode .
Press [PF1] key, the display appears "CLONE XX" XX stands for the data amount
2.
being cloned.
When the data transfer is completed, slave unit restarts, the master unit display
3.
appears "CLONE 04".
Master unit remain copy mode state to prepare for the next copy, if reboot the
4.
master means exit copy mode to return to normal mode.
[Settings: Slave side]
In the standby mode, when the slave receives the data, the display shows "
1.
CLONE XX" XX stands for
the data being cloned.
When data reception is complete, the slave unit returns to normal mode and
2.
restart automatically.
Turn off the slave's power, remove the cable, insert another slave which you want
3.
to copy.
If the data is not successfully transmitted, turn off the master and slave, check if the cable connections are
correct, and then repeat the whole process again.
SENIOR FUNCTION OPERATIONS
31
Page 36
Memory Bank Exit
Memory Bank Switch
10 memory banks 0-9 are available, bank 0 includes all edited channels. Bank 1-9 can be assigned
maximum 32 channels, a channel can be assigned to more groups by software or keypad.
Assign channel to memory bank:
In Memory channel mode, cho
1.
ose a memory channel, press key, bank number show in the
channel number position as "-X" twinkling.
Turn Channel selector to choose desired memory bank, press
2.
key, the
memory channel will be assigned to the bank.
If the bank already has 32 channels, the new assigned channel will replace 3.
the last channel in bank.
When transceiver in memory bank mode, press
key twice to exit and return to channel mode.
In Channel mode, press
key twice to enter memory bank mode, press key then press
key to enter into function menu.
Press
1.
/ key to choose menu 18, LCD displays
Turn Channel switch to choose bank 0--9, press
2.
key confirm
Rotate the channel switch clockwise to enter into desired memory bank.
3.
Note: When the bank linking is on, if no channel in the selected bank, radio will enter into the next linking bank.
When the bank linking is off, if no channel in the selected bank, current channel will be assigned to this bank.

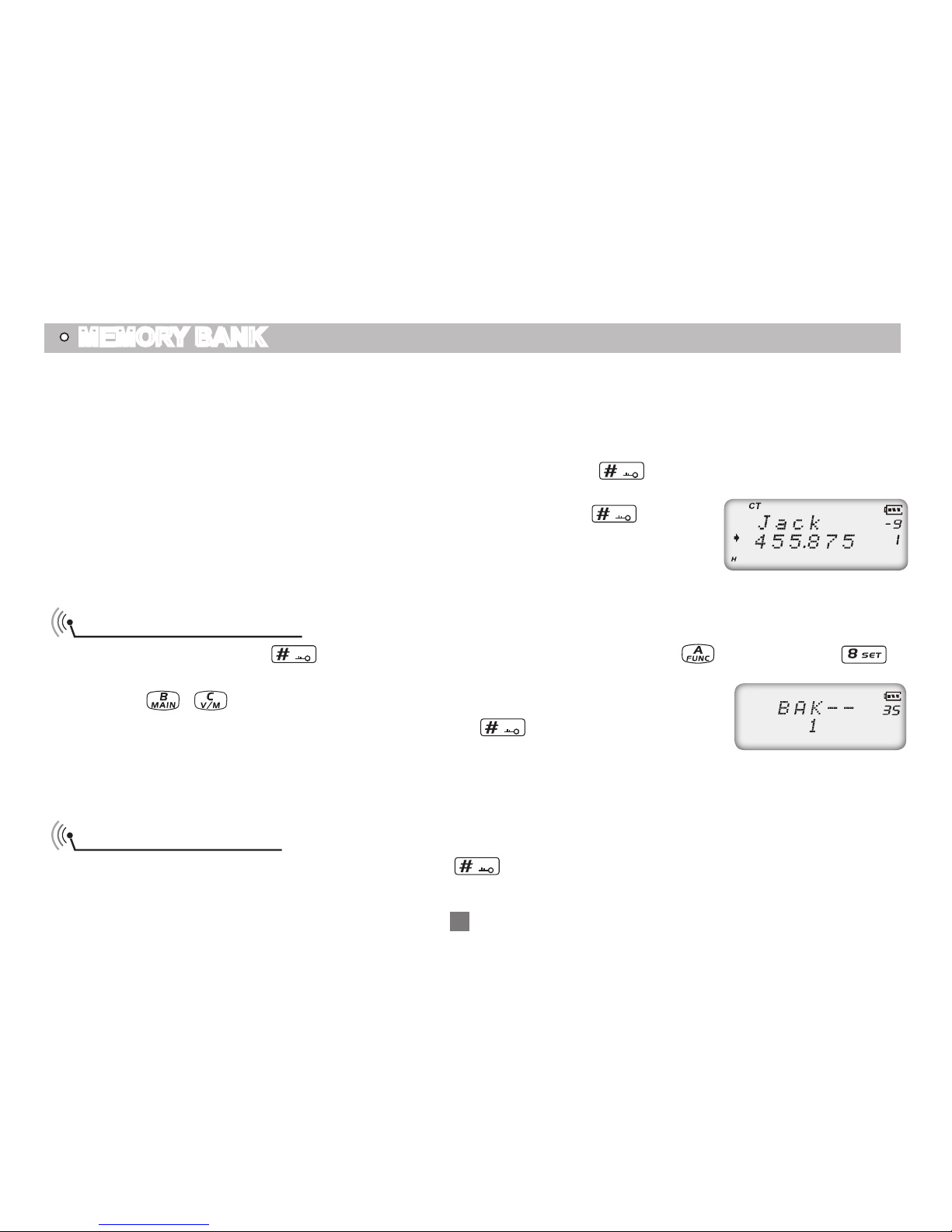

MEMORY BANK
BAK - -”
“
32
SMK
SMK
SMK
SMK
SMK
Page 37
Bank linking
In channel mode, press
1.
key twice to enter into memory bank mode, press key then press
key to enter into function menu.
Press
2.
/ key to choose menu 19, LCD show " BALK".
ON: Turn on Bank linking.
The following menus allow adding or deleting banks.
OFF: Turn off Bank linking, hide menu 20-29.
When bank linking is on, one or more banks can be added into scan list. In memory bank mode, enable the
scanning function, transceiver will scan the channels in current bank. During scanning, long pressing key
0-9 will add or delete the corresponding memory bank.
Menu No. LCD display Funtion Option
Menu20 BLK1 Link Group 1 OFF/ON
Menu21 BLK2 Link Group 2 OFF/ON
Menu22 BLK3 Link Group 3 OFF/ON
Menu23 BLK4 Link Group 4 OFF/ON
Menu24 BLK5 Link Group 5 OFF/ON
Menu25 BLK6 Link Group 6 OFF/ON
Menu26 BLK7 Link Group 7 OFF/ON
Menu27 BLK8 Link Group 8 OFF/ON
Menu28 BLK9 Link Group 9 OFF/ON
Menu29 BLK0 Link Group 10 OFF/ON
MEMORY BANK
33
SMK
Page 38
Page 39
General
Frequency Range
VHF:144~146MHz
UHF:430~440MHz
FM:64~108MHz(RX)
SW: 2.3~29.99MHz(RX)
Channel Capacity 199 channels
Channel Spacing
25KHz (wide band)
12.5KHz (narrow band)
Phase-locked Step 0.1KHz
Operation Voltage 7.4V DC ±20%
Battery Life More than 12 Hours(2200mAh), by 5-5-90 working cycle
Frequency Stability ±2.5ppm
Operation Temperature
-20℃~ +55℃
Size
( mm53x16x
2 11
with battery )
Weight 285g (with battery)
TECHNICAL SPECIFICATION
AM: 118~136M Hz(RX)
LW: 0.52~1.71MHz(RX)
35
Page 40
TECHNICAL SPECIFICATION
Receiving Part
Wide band Narrow band
Sensitivity
(12dB SINAD)
≤0.25μV ≤0.35μV
Adjacent Channel Selecitvity ≥65dB ≥60dB
Intermodulation ≥60dB ≥60dB
Spurious Rejection ≥70dB ≥70dB
Hum & Noise ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Power Output 1000mW/10%
Transimitting Part
Wide band Narrow band
Power Output VHF:6W/1W UHF:5W/1W
Modulation 16KΦF3E 11KΦF3E
Adjacent Channel Power ≥65dB ≥60dB
Hum & Noise ≥40dB ≥40dB
Spurious Emission ≤-36dB ≤-36dB
Audio Distortion ≤5%
36
Page 41
ATTACHED CHART
CTCSS Frequency Chart
1 62.5 12 94.8 23 136.5 34 177.3 45 218.1
2 67.0 13 97.4 24 141.3 35 179.9 46 225.7
3 69.3 14 100.0 25 146.2 36 183.5 47 229.1
4 71.9 15 103.5 26 151.4 37 186.2 48 233.6
5 74.4 16 107.2 27 156.7 38 189.9 49 241.8
6 77.0 17 110.9 28 159.8 39 192.8 50 250.3
7 79.7 18 114.8 29 162.2 40 196.6 51 254.1
8 82.5 19 118.8 30 165.5 41 199.5 52
user-dened
9 85.4 20 123.0 31 167.9 42 203.5
10 88.5 21 127.3 32 171.3 43 206.5
11 91.5 22 131.8 33 173.8 44 210.7
37
Page 42
ATTACHED CHART
1024 groups DCS frequency chart
000 001 002 003 004 005 006 007
010 011 012 013 014 015 016 017
020 021 022 023 024 025 026 027
030 031 032 033 034 035 036 037
040 041 042 043 044 045 046 047
050 051 052 053 054 055 056 057
060 061 062 063 064 065 066 067
070 071 072 073 074 075 076 077
100 101 102 103 104 105 106 107
110 111 112 113 114 115 116 117
120 121 122 123 124 125 126 127
130 131 132 133 134 135 136 137
140 141 142 143 144 145 146 147
150 151 152 153 154 155 156 157
160 161 162 163 164 165 166 167
170 171 172 173 174 175 176 177
200 201 202 203 204 205 206 207
210 211 212 213 214 215 216 217
220 221 222 223 224 225 226 227
230 231 232 233 234 235 236 237
240 241 242 243 244 245 246 247
38
Page 43
ATTACHED CHART
250 251 252 253 254 255 256 257
260 261 262 263 264 265 266 267
270 271 272 273 274 275 276 277
300 301 302 303 304 305 306 307
310 311 312 313 314 315 316 317
320 321 322 323 324 325 326 327
330 331 332 333 334 335 336 337
340 341 342 343 344 345 346 347
350 351 352 353 354 355 356 357
360 361 362 363 364 365 366 367
370 371 372 373 374 375 376 377
400 401 402 403 404 405 406 407
410 411 412 413 414 415 416 417
420 421 422 423 424 425 426 427
430 431 432 433 434 435 436 437
440 441 442 443 444 445 446 447
450 451 452 453 454 455 456 457
460 461 462 463 464 465 466 467
470 471 472 473 474 475 476 477
500 501 502 503 504 505 506 507
510 511 512 513 514 515 516 517
520 521 522 523 524 525 526 527
530 531 532 533 534 535 536 537
39
Page 44
540 541 542 543 544 545 546 547
550 551 552 553 554 555 556 557
560 561 562 563 564 565 566 567
570 571 572 573 574 575 576 577
600 601 602 603 604 605 606 607
610 611 612 613 614 615 616 617
620 621 622 623 624 625 626 627
630 631 632 633 634 635 636 637
640 641 642 643 644 645 646 647
650 651 652 653 654 655 656 657
660 661 662 663 664 665 666 667
670 671 672 673 674 675 676 677
700 701 702 703 704 705 706 707
710 711 712 713 714 715 716 717
720 721 722 723 724 725 726 727
730 731 732 733 734 735 736 737
740 741 742 743 744 745 746 747
750 751 752 753 754 755 756 757
760 761 762 763 764 765 766 767
770 771 772 773 774 775 776 777
ATTACHED CHART
NOTE: N stands for positive code. I stands for inverted code. 1024 groups of DCS in total.
40
Page 45
Page 46
Page 47
A1.141128
Loading...
