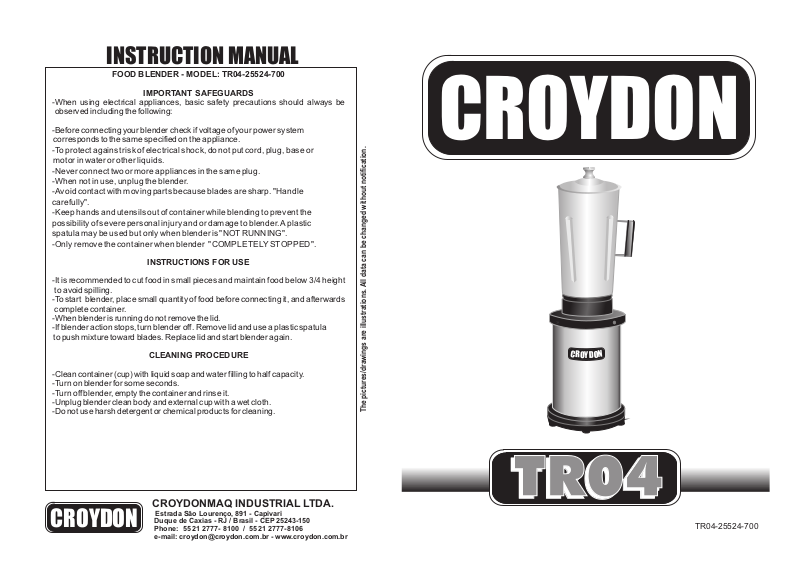

INSTRUCTION MANUAL
FOOD BLENDER - MODEL: 524-700
IMPORTANT SAFEGUARDS
-When using electrical appliances, basic safety precautions should always be
observed including the following:
TR04-25
-Before connecting your blender check if voltage of your power system
corresponds to the same specified on the appliance.
-To protect against risk of electrical shock, do not put cord, plug, base or
motor in water or other liquids.
-Never connect two or more appliances in the same plug.
-When not in use, unplug the blender.
-Avoid contact with moving parts because blades are sharp. "Handle
carefully".
-Keep hands and utensils out of container while blending to prevent the
possibility of severe personal injury and or damage to blender. A plastic
spatula may be used but only when blender is "NOT RUNNING".
-Only remove the container when blender "COMPLETELY STOPPED".
-
INSTRUCTIONS FOR USE
-It is recommended to cut food in small pieces and maintain food below 3/4 height
to avoid spilling.
-To start blender, place small quantity of food before connecting it, and afterwards
complete container.
-When blender is running do not remove the lid.
-If blender action stops, turn blender off. Remove lid and use a plastic spatula
to push mixture toward blades. Replace lid and start blender again.
CLEANING PROCEDURE
-Clean container (cup) with liquid soap and water filling to half capacity.
-Turn on blender for some seconds.
-Turn off blender, empty the container and rinse it.
-Unplug blender clean body and external cup with a wet cloth.
-Do not use harsh detergent or chemical products for cleaning.
CROYDON
C
N
R
O
O
Y
D
The pictures/drawings are illustrations. All data can be changed without notification.
CROYDON
CROYDONMAQ INDUSTRIAL LTDA.
Estrada São Lourenço, 891 - Capivari
Duque de Caxias - RJ / Brasil - CEP 25243-150
Phone: 55 21 2777- 8100 / 55 21 2777-8106
e-mail: [email protected] - www.croydon.com.br
TR04
TR04
TR04-25524-700
Page 2
CROYDON
INDUSTRIAL BLENDER 4 LITERS
CROYDON
INDUSTRIAL BLENDER 4 LITERS
17
16
20
15
26
31
25
24
22
23
12
13
18
14
21
19
28
12
11

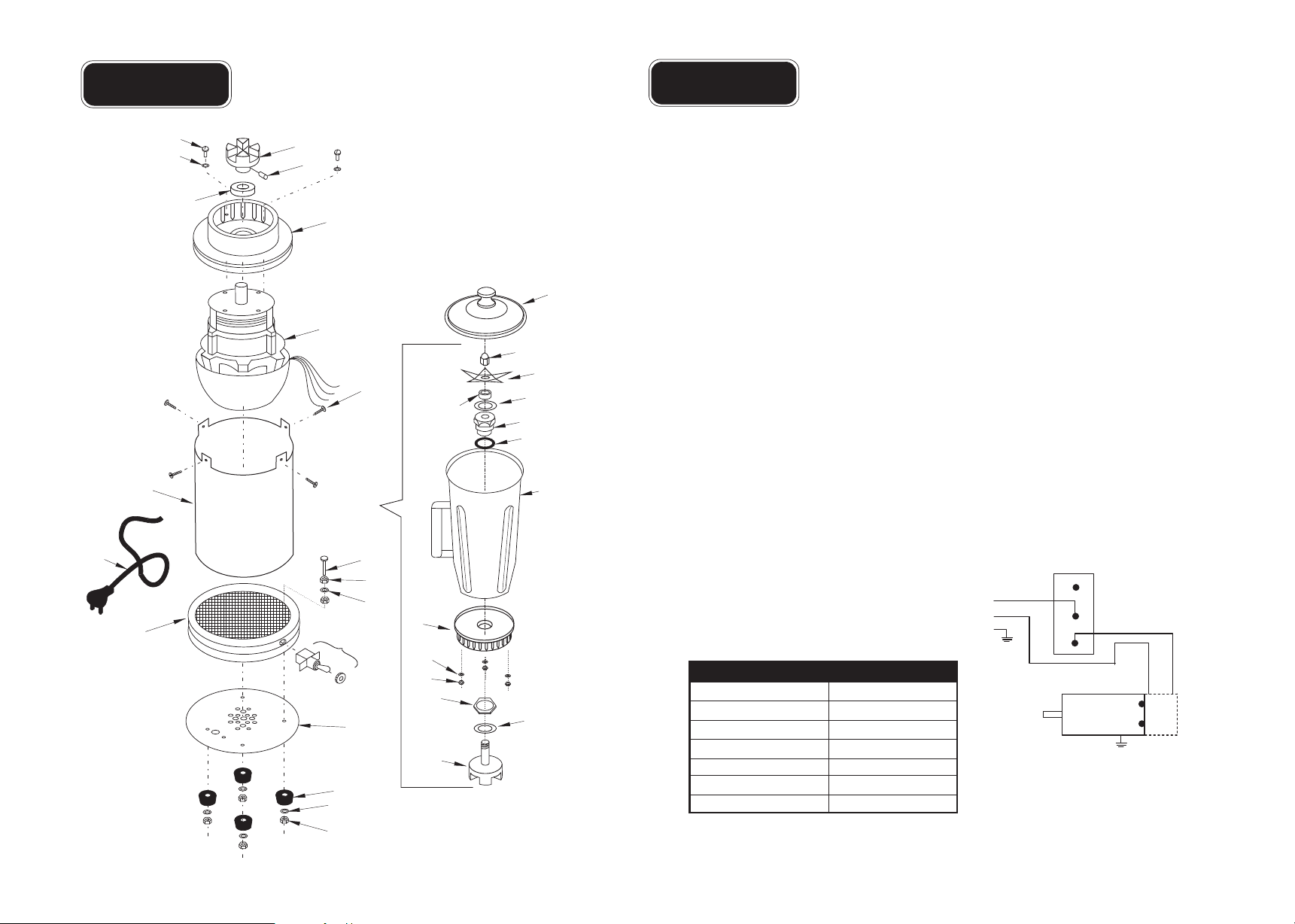

Item Code Description
1
2
3
4
5
6
7
8
9
1
2
3
4
8
29
30
9
10
27
5
6
7
27
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
37.014-3
37.543-3
37.524-3
37.566-3
37.562-3
37.565-3
37.558-3
37.316-3
37.563-3
37.561-3
604
643
3.000-3
4.063-3
381
4.044-3
2.093-3
37.116-3
359
37.325-3
567
37.000-3
37.317-3
534
37.545-3
597
37.510-3
37.584-3
635
642
9.410-3
Technical Data
TR04-25524-700
Voltage (V)
Power (HP)
Amperage (A)
Speed (rpm)
Capacity (l)
Weight (kg/lbs)
Dimensions W x H x D (cm/in)
Lid
Knife’s Nut
Knife
Retainer
Bushing
Rubber Ring
Container (4 liters)
Container’s Base
Nut
Shaft
Nut (3/16")
Washer (3/16")
Foot
Bottom Cover Plate
Screw 1/4
Base
Power Connection Cord
Switch
Screw 3/16”
Body
Screw (2.9)
Electric Motor
Container’s Support
Screw (1/4")
Shaft Adapter
Washer (1/4")
Friction Washer
Container Assembly
Nut M6
Washer(1/4")
Grease Retainer
220 (50 Hz)
1/2
4.4
3500
4
9.7/21.3
25/9.8 x 65/25.6 x 21/8.3
L2
L1
Wiring Diagram
OFF
SWITCH
G
ON
MOTOR
11
