Crown Verity RT-30 Installation Manual

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

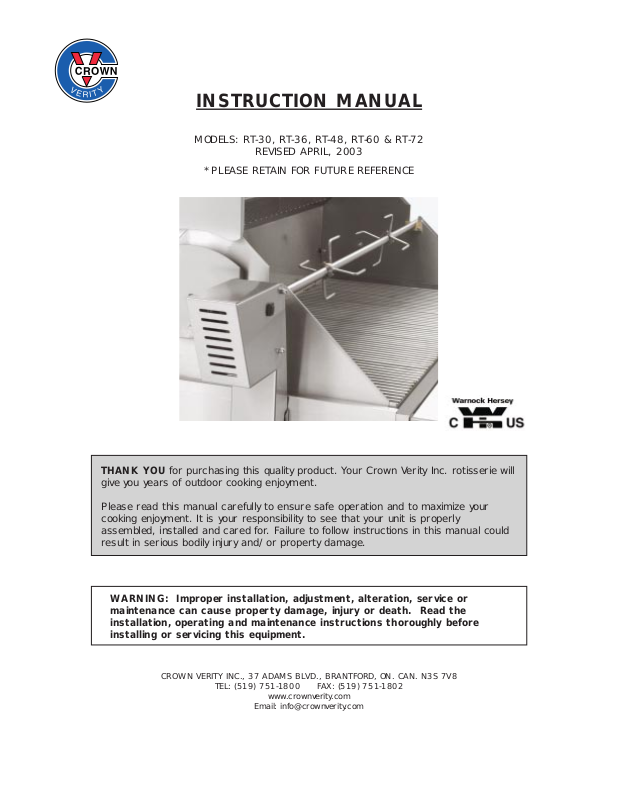

INSTRUCTION MANUAL

MODELS: RT-30, RT-36, RT-48, RT-60 & RT-72

REVISED APRIL, 2003

*PLEASE RETAIN FOR FUTURE REFERENCE

THANK YOU for purchasing this quality product. Your Crown Verity Inc. rotisserie will
give you years of outdoor cooking enjoyment.

Please read this manual carefully to ensure safe operation and to maximize your
cooking enjoyment. It is your responsibility to see that your unit is properly
assembled, installed and cared for. Failure to follow instructions in this manual could
result in serious bodily injury and/or property damage.

WARNING: Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.

1

ROTISSERIE INSTALLATION AND OPERATING INSTRUCTIONS

CONGRATULATIONS, You have purchased a Crown Verity Inc. rotisserie for use with

your MCB. These rotisseries are the finest on the market, they were developed through
months of research to ensure years of trouble free easy operation. With proper care the
RT should last a lifetime. Thank you for choosing this quality product.

The RT’s require some simple assembly, the following instructions will provide a step by
step guide to the installation of your rotisserie. You must have a roll cover with your MCB
(1 or 2 with MCB 60 & 72).

Step 1 - Bearing Installation

There are two or four bronze bearing plates with your kit; these MUST be installed on the
inner (stationary) wall of the roll top(s).

Insert the machine screws from the outside so that the nuts and lock washers are to the
inside. Also be sure to install the bearing plates to the inner side of the side panels. If
you don’t you will have difficulty closing the roll top(s).

Once all of the bearing plates are mounted, you are ready to install the mounting plate.
The screw holes in the center of the mounting plate should line up with the center line of
the bearing plate(s) and must abe mounted opposite the push handle.

Step 2 - Mounting Plate Installation

Make sure that the open end of the mounting plate is at the top and the closed end to
the bottom, this will allow the motor assembly to drop in from the top. Install machine
screws from the outside with nuts and lock washers to the inside of the unit.

Installation is complete. You are ready to use your rotisserie.

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

Rotisserie Bearing, quantity - 2

(1 per end)

Short Screw

quantity - 3

Nut & Lock Washer, quantity - 3 each

Remove grating prior to installing

Nut & Lock Washer, quantity - 4 each

(2 per end)

Long Screw, quantity - 4

(2 per end)

Assemble as shown

Nuts & Washers

this side (inside)

Bearing

A

VIEW LOOKING ON ARROW “A”

INSTALLATION OF HEAVY DUTY ROTISSERIE ON MCB 30 CHAR BROILER

Inside

Dome
