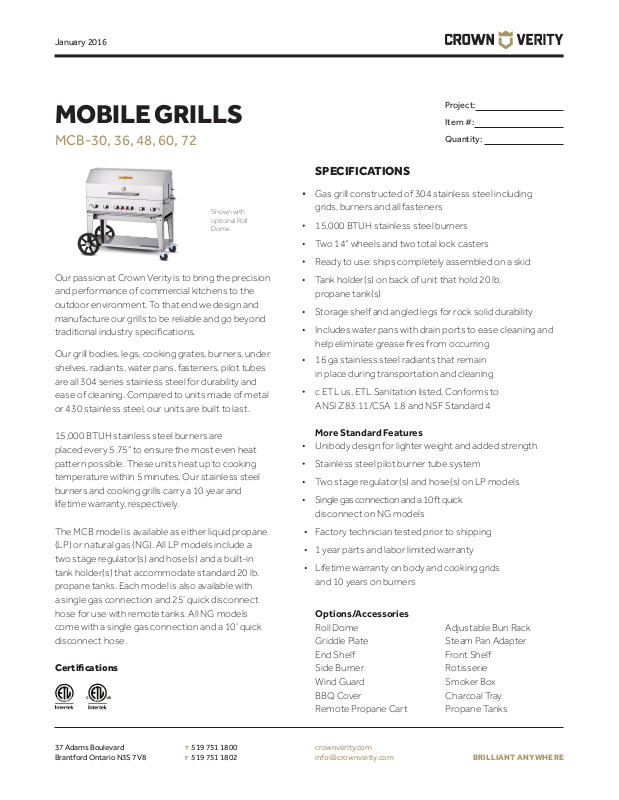

Crown Verity MCB-36, MCB-48, MCB-60, MCB-72 SPECIFICATIONS
January 2016
MOBILE GRILLS
MCB-30, 36, 48, 60, 72
Shown with
optional Roll
Dome
Our passion at Crown Verity is to bring the precision
and performance of commercial kitchens to the
outdoor environment. To that end we design and
manufacture our grills to be reliable and go beyond
traditional industry specications.
Our grill bodies, legs, cooking grates, burners, under
shelves, radiants, water pans, fasteners, pilot tubes
are all 304 series stainless steel for durability and
ease of cleaning. Compared to units made of metal
or 430 stainless steel, our units are built to last.
Project:
Item #:
Quantity:
SPECIFICATIONS
• Gas grill constructed of 304 stainless steel including
grids, burners and all fasteners
• 15,000 BTUH stainless steel burners
• Two 14” wheels and two total lock casters
• Ready to use: ships completely assembled on a skid
• Tank holder(s) on back of unit that hold 20 lb.
propane tank(s)
• Storage shelf and angled legs for rock solid durability
• Includes water pans with drain ports to ease cleaning and
help eliminate grease res from occurring
• 16 ga stainless steel radiants that remain
in place during transportation and cleaning
• c ETL us, ETL Sanitation listed, Conforms to
ANSI Z83.11/CSA 1.8 and NSF Standard 4
15,000 BTUH stainless steel burners are
placed every 5.75" to ensure the most even heat
pattern possible. These units heat up to cooking
temperature within 5 minutes. Our stainless steel
burners and cooking grills carry a 10 year and
lifetime warranty, respectively.
The MCB model is available as either liquid propane
(LP) or natural gas (NG). All LP models include a
two stage regulator(s) and hose(s) and a built-in
tank holder(s) that accommodate standard 20 lb.
propane tanks. Each model is also available with
a single gas connection and 25’ quick disconnect
hose for use with remote tanks. All NG models
come with a single gas connection and a 10’ quick
disconnect hose.
Certications
More Standard Features
• Unibody design for lighter weight and added strength
• Stainless steel pilot burner tube system
• Two stage regulator(s) and hose(s) on LP models
• Single gas connection and a 10 ft quick
disconnect on NG models
• Factory technician tested prior to shipping
• 1 year parts and labor limited warranty
• Lifetime warranty on body and cooking grids
and 10 years on burners
Options/Accessories
Roll Dome Adjustable Bun Rack
Griddle Plate Steam Pan Adapter
End Shelf Front Shelf
Side Burner Rotisserie
Wind Guard Smoker Box
BBQ Cover Charcoal Tray
Remote Propane Cart Propane Tanks
37 Adams Boulevard
Brantford Ontario N3S 7V8
T 519 751 1800
F 519 751 1802
crownverity.com
info@ crownverity.com BRILLIANT ANYWHERE
SPECIFICATIONS
Model MCB-30 MCB-36 MCB-48 MCB-60 MCB-72
Number of Burners 4 5 6 8 10
BTUH 64,500 79,500 99,000 129,000 159,000
Actu al Weight (l bs) 127 143 176 215 253
Shipping Weight (lbs) 209 225 258 313 335
Gas Connections (LP)* 1 1 2 2 2
Cooking Surface 28” x 21” 34” x 21” 46” x 21” 58" x 21" 70" x 21"
Overall Dimensions 38” L x 28” D x 36” H 44” L x 28” D x 36” H 56” L x 28” D x 36” H 69" L x 28" D x 36" H 81"L x 28" D x 36" H
* All units are available in natural gas models (MCB-NG).
MCB “X”
30 38"
36 44"
48 56"
60 69"
72 81"
