Crown Verity CVPHS4, CVPHS1, CVPHS3, CVPHS2 Specifications
August 2015

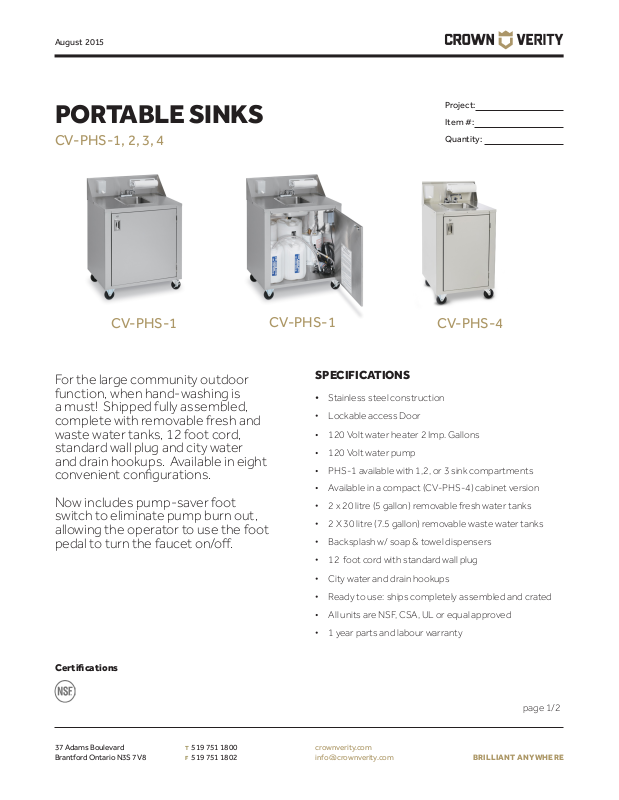

PORTABLE SINKS
CV-PHS-1, 2, 3, 4
Project:
Item #:
Quantity:
CV-PHS-1
For the large community outdoor
function, when hand-washing is
a must! Shipped fully assembled,
complete with removable fresh and
waste water tanks, 12 foot cord,
standard wall plug and city water
and drain hookups. Available in eight
convenient congurations.
Now includes pump-saver foot
switch to eliminate pump burn out,
allowing the operator to use the foot
pedal to turn the faucet on/o.
CV-PHS-1
SPECIFICATIONS
• Stainless steel construction
• Lockable access Door
• 120 Volt water heater 2 Imp. Gallons
• 120 Volt water pump
• PHS-1 available with 1,2, or 3 sink compartments
• Available in a compact (CV-PHS-4) cabinet version
• 2 x 20 litre (5 gallon) removable fresh water tanks
• 2 X 30 litre (7.5 gallon) removable waste water tanks
• Backsplash w/ soap & towel dispensers
• 12 foot cord with standard wall plug
• City water and drain hookups
• Ready to use: ships completely assembled and crated
• All units are NSF, CSA, UL or equal approved
CV-PHS-4
Certications
37 Adams Boulevard
Brantford Ontario N3S 7V8
T 519 751 1800
F 519 751 1802
• 1 year parts and labour warranty
page 1/2
crownverity.com
info@ crownverity.com BRILLIANT ANYWHERE
August 2015
SPECIFICATIONS
CV-PHS-1
CV-PHS-2
CV-PHS-3
CV-PHS-4
Model
CV-PHS-1C (COLD)
CV-PHS-2C (COLD)
CV-PHS-3C (COLD)
CV-PHS-4C (COLD)
Sink Bowl S ize 14”L x 12” W x 6” 12”L x 6”W x 5” H 12”Lx 6” W x 5” H 14”L x 12”W x 6” H
Sinks 1 2 3 4
Actu al Weight (l bs) 160 160 160 140
Shipping Weight (lbs) 218 218 218 190
Fresh water c apacity 2 x 5 Gallon 2 x 5 Gallon 2 x 5 Gallon 1 x 5 Gallon
Waste water c apacity 2 x7 Gallon 2 x 7 Gallon 2 x 7 Gallon 1 x 7 Gallon
Cabinet Size
34.375”W x 25.25”D x
38.25” H
34.375” W x 25.25” D x
38.25” H
34.375”W x 25.25” D x
38.25” H
24” W x 25.25” D x
38.25” H
37 Adams Boulevard
Brantford Ontario N3S 7V8
T 519 751 1800
F 519 751 1802
page 2/2
crownverity.com
info@ crownverity.com BRILLIANT ANYWHERE
