Crown Verity CVPCB60, CVPCB36 User Manual

OWNER’S MANUAL

MODELS: MCB30-P, MCB36-P, MCB48-P, MCB60-P & MCB72-P

REVISED DECEMBER, 2014

*PLEASE RETAIN FOR FUTURE REFERENCE

CONGRATULATIONS! You are the proud new owner of the finest commercial
portable charbroiler available. CROWN VERITY Inc. charbroilers are designed to last a
lifetime...or more! With proper care and maintenance, your charbroiler will provide
unparalleled performance and countless years of outdoor cooking.

Please read this manual carefully to ensure safe operation and to maximize your
cooking enjoyment. It is your responsibility to see that your grill is properly assembled,
installed, and cared for. Failure to follow instructions in this manual could result in
serious bodily harm and/or property damage.

WARNING: Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

Printed January 2015

TABLE OF CONTENTS

Setting-Up the MCB-P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Setting-Up Remote Propane Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Typical Remote Propane Cylinder Installation . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation & Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Clearances To Combustibles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Cylinders & Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Transportation & Storage of LP Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Hoses & Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Leak Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Prior To Use and Lighting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Operating and Shut Down Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Tips and Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Frequently Asked Questions about MCB’s . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Parts and Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

1

FOR YOUR SAFETY

IF YOU SMELL GAS:

1) Shut off gas supply to appliance.

2) Extinguish any open flame.

3) Open lid or remove storage cover(s).

4) If odour continues, immediately call your gas supplier.

DO NOT store or use gasoline or other flammable vapours and liquids in the
vicinity of this or any other appliance.

• Never check for leaks with a match or open flame.

• An LP cylinder not connected for use shall not be stored in the vicinity of this or any

other appliance.

• This appliance shall only be used in a well ventilated space and shall not be used in a
building, garage, or any other enclosed area.

WARNING! Keep any electrical supply cord and fuel supply hose(s) away from any hot
surfaces.

DO NOT use your charbroiler if there is evidence of damage (cuts, cracks, burns) or
excessive wear to the hose.

DO NOT obstruct the flow of combustion and ventilation air to the charbroiler.
DO NOT store a spare LP (propane) cylinder under or near your charbroiler.
DO NOT leave your charbroiler unattended while in operation.
DO NOT allow children to play on or near your charbroiler.
DO NOT use under the influence of alcohol or drugs.
DO NOT use this

charbroiler

until you have read and understood all of the information in

this manual.

This appliance has been tested according to

ANSI Z83.11/CSA1.8 - 2009

This outdoor cooking gas appliance is not intended to be installed in or on

recreational vehicles and/or boats.

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

2

Caution: Beware of pinch points when handling

SETTING-UP THE MCB-P

1)• Do not Transport grill units in set-up position

• Tables are designed to travel only short distances on smooth surfaces when set-up
and loaded

• Tables have a safe, static working load of 325 lbs.

• Use extreme caution when moving set-up units. Do not move while in operation or
while hot.

2) Set-up the grill in a safe location:

• 10 feet from propane cylinders larger than 20lbs., flammable materials,
buildings or dwellings, building openings, exhausts or intakes and vehicles.

• Do not set-up the grill indoors, near evacuation/emergency routes, stairways or
vehicular and pedestrian routes etc.

• Do not allow the gas hose(s) to be subjected to damage from trampling, vehicular
and mechanical movement etc.

• Observe clearances to combustibles

• Casters must be locked when connected for use

• Always level the char-broiler and fill the water pan with 1 inch of water

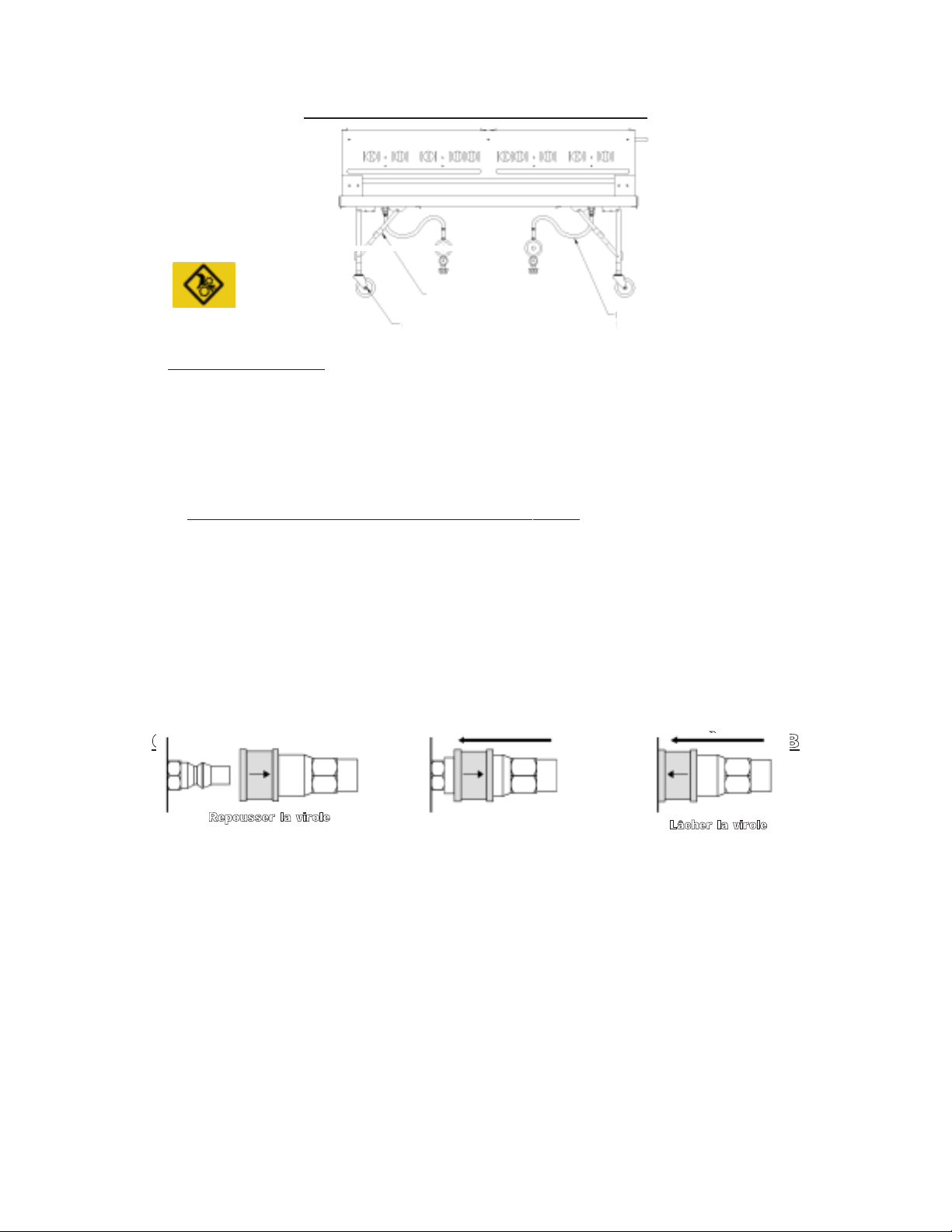

ATTACHING QUICK DISCONNECT FITTING TO MCB

Retract Sleeve

Fig. 1

To connect
retract sleeve of socket.

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

Fig. 2

Insert gas inlet Release sleeve and push

socket until sleeve snaps
forward locking gas inlet in
socket.

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

Release Sleeve

Fig. 3

3

SETTING-UP REMOTE PROPANE CYLINDERS

*MAXIMUM INDIVIDUAL CYLINDER CAPACITY: 100 LBS. PROPANE *

Cylinders installed and connected for use with an MCB-P shall be located and installed in
a safe location and in a secure manner.

Propane cylinders must be located and secured against tip-over:

• 10 feet from the char -broiler itself and any other sour ces of ignition such as
electrical equipment, vehicles and other fuel burning appliances or equipment, building
intakes and exhausts

• All propane cylinders connected for use shall be secured against accidental
tipping by attaching them to a suitable object with a rope, chain, strap or other
suitable device. Crown Verity Inc. offers a specialized cylinder retaining cart that
addresses all tipping issues. Please contact your dealer and inquire about the RPS
cart. The plastic cylinder base ring that is supplied with the MCB-P is only

suitable for cylinders with a maximum capacity of 20 lbs. LP and does not
negate the necessity to provide additional security against tip-over.

• Hose(s) connected for use to LP cylinders shall be safely routed to provide
maximum protection from contact with hot, sharp or abrasive surfaces and areas,

from vehicular, pedestrian and mechanical damage

• Crown Verity Inc. recommends cordoning-off the area of the cylinder(s), hose(s) and
the char-broiler with barricades, bright marker tape or similar. Do not route hoses
across evacuation/emergency, pedestrian or vehicle routes.

Any temporary propane supply system must be installed in accordance with local codes
or, in the absence of local codes: ANSI/NFPA 54 1999/ANSI Z 223.1 1999 National
Fuel Gas Code, or CSA B.149.2: Propane Installation code.

Consult your local propane distributor, fire prevention agency, safety authority and exhibit
officials for installation requirements. Additional requirements other than those listed in
this manual may be required.

Recommendations listed in this instruction manual are considered to be minimum
safety requirements.

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

4

PROPANE CYLINDER(S)

Building

10’-0” Minimum

10’-0” Minimum

10’-0” Minimum

Mobile Charbroiler

Vehicle

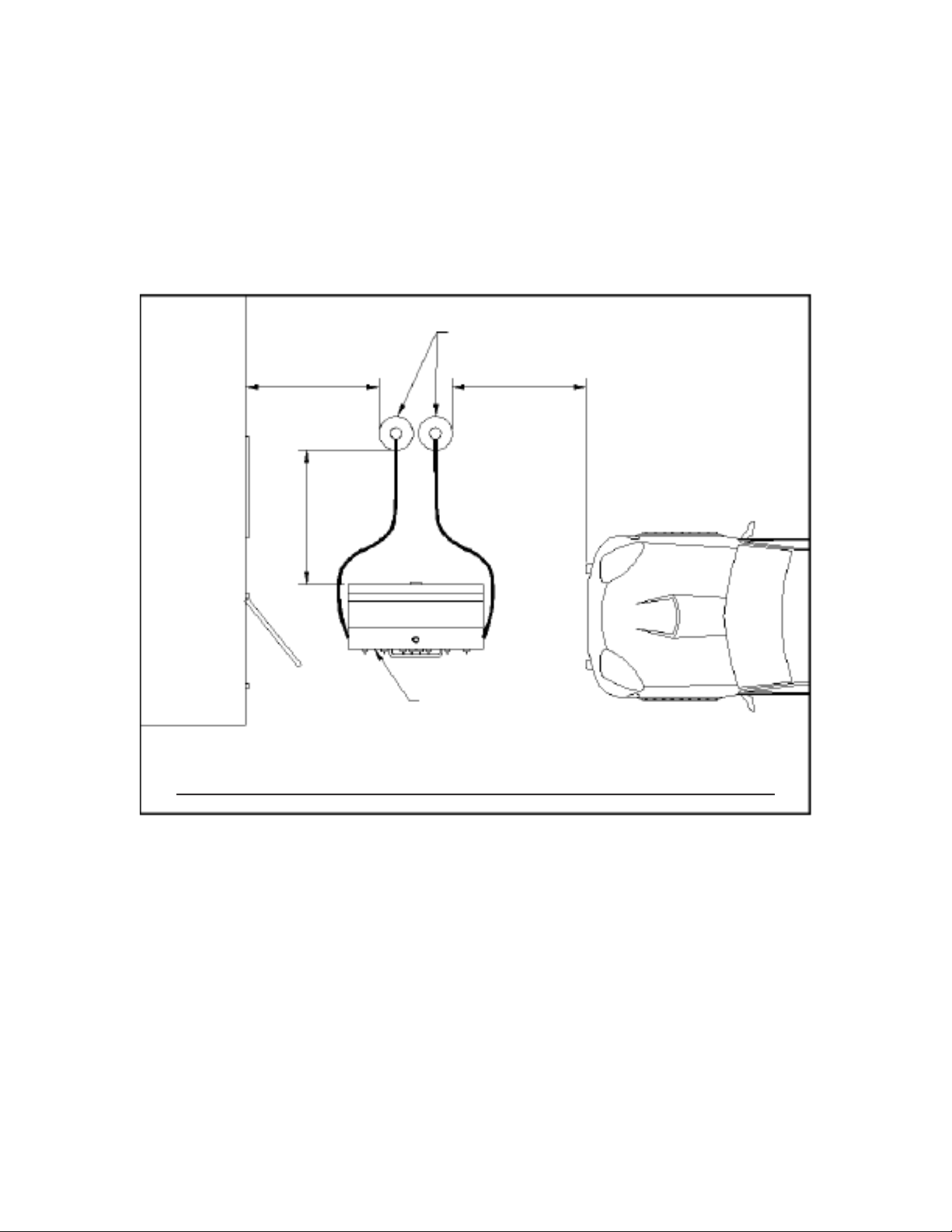

TYPICAL REMOTE PROPANE CYLINDER INSTALLATION

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

5

INSTALLATION & SET-UP

THE INSTALLATION OF THIS APPLIANCE MUST BE IN ACCORDANCE WITH:

1) All applicable local codes, or in the absence of local codes;

2) i) Canada: must conform to current National Standard CSA B149.1&.2 - natural

gas/propane installation code.

ii) U.S.A.: must conform to national Fuel Gas Code, ANSI Z223.1, 1999 or latest

edition.

WARNING!

DO NOT operate this appliance under overhead, unprotected construction. This

appliance shall be used only in a well ventilated space and shall not be used in a building,
garage, or any other enclosed area.

Minimum clearance to adjacent combustible materials:

• 12 inches from side(s)

• 24 inches from back (See Fig. 1 pg. 6.)

• This appliance is not suitable for use on combustible floors without the table unit.

• Always level your MCB front to back & side to side.

• Always keep the area surrounding your charbroiler clear of all combustible materials,
gasoline, or other flammable liquids.

• Use your charbroiler OUTDOORS in a well-ventilated space, preferably 10 ft. from
dwellings or outbuildings.

• Casters must be locked when appliance is in operation.

• Always keep 1” of water in grease trays.

• Do not transport grill units in set-up position.

• Do not overload tables. (325lb. max. static load).

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

6

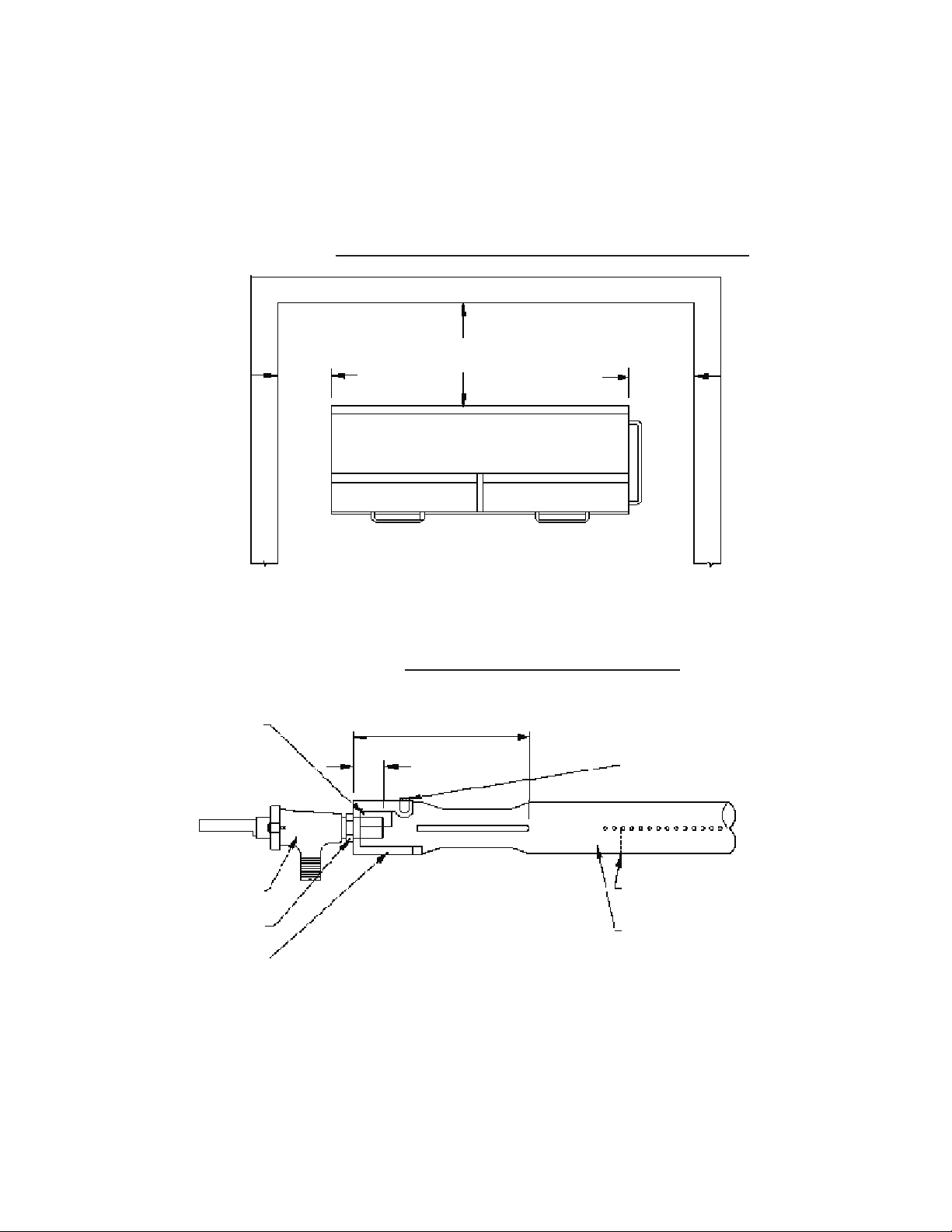

FIG 1 CLEARANCES TO COMBUSTIBLES

24”

12” 12”

AIR INLET

5/16” x 5/8”

APPROX

BURNER VALVE

ORIFICE

AIR SHUTTER

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

FIG 2 BURNER ASSEMBLY DETAIL

VENTURI

1/2”

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

SCREW

CROSS-OVER

BURNER

7

Caution: Beware of pinch points when handling

STORAGE

DAY TO DAY STORAGE:

• Always turn off the gas supply valve and disconnect supply hose.

• If you have not purchased the roll top(s) with your unit, your charbroiler is supplied with
a protective cover(s). Install the cover(s) to protect your grill from the elements. Never
attempt to light your charbroiler unless the lid(s) are open or the cover(s) are
removed.

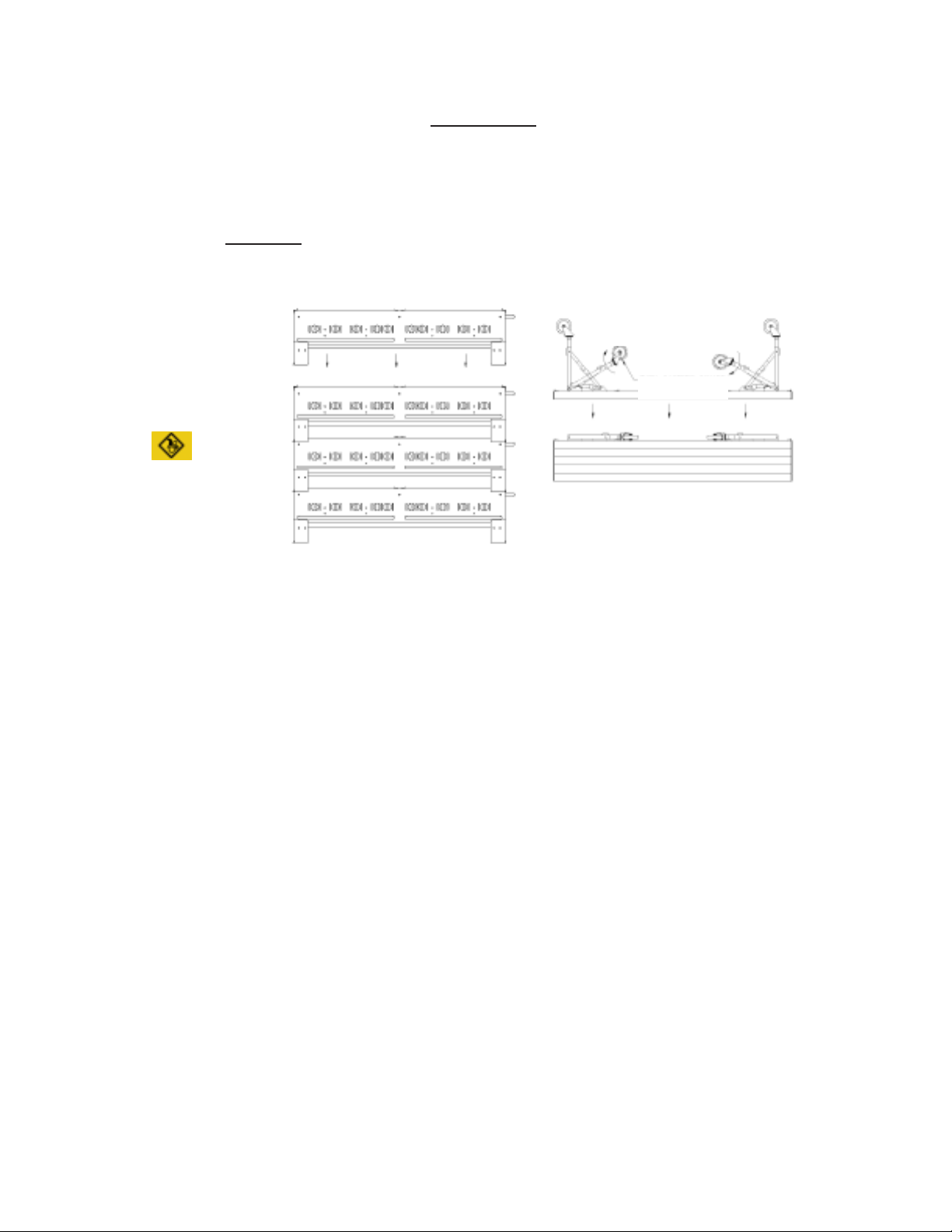

• See stacking diagrams.

LONG TERM STORAGE:

To prepare your charbroiler for long term storage, follow these steps:

Preparation:

• Clean the inside of your charbroiler.

• Clean the burner(s), then lightly oil.

• Clean the cooking grids, lightly oil, (cooking oil) store indoors.

• Store LP cylinders outdoors out of reach of children, away from sources of heat, and
sources of ignition.

• Cover the charbroiler if left outdoors.

• Cover the supply hose connection(s) with cap(s) or plastic bag and elastic.

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

8

CYLINDERS AND REGULATORS

LP GAS CYLINDER:

When purchasing a cylinder for your gas charbroiler, it must be constructed and marked
in accordance with the specifications of:
a) Canada - The Canadian Transport Commission
b) U.S.A. - The U.S. Department of Transportation

The cylinder must also be equipped with:

a) A shut-off valve terminating in a proper cylinder valve outlet specified in current

standards:

1) Canada: CAN/CGA - 1.6 - M88 - Outdoor Gas Grills - Amend. 1.

2) U.S.A.: ANSI/CGA-V-1-1977: Compressed gas cylinder valve outlet and inlet

connections.
b) A safety relief valve having direct communication with the vapour space of the cylinder.
c) A collar to protect the cylinder shut-off valve.
d) An arrangement for vapour withdrawal.
e) A bottom ring for securing to the cylinder support assembly.

WARNING!

• Always turn off the cylinder valve when your charbroiler is not in use.

• Handle cylinder valves with care.

• Never connect an unregulated LP gas cylinder to the charbroiler.

• Never store a spare cylinder under or near your charbroiler, or subject any cylinder to

excessive heat.

• Always keep cylinder(s) securely fastened in an upright position.

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

9

TRANSPORTATION AND STORAGE OF LP CYLINDERS

Although safe to use when properly handled, careless handling of a propane gas cylinder
could result in fire, explosion, and/or serious injury.

THEREFORE:

Always use the protective cap provided with your cylinder whenever it is not connected to
your charbroiler.

• Do not store in a building, garage or any other enclosed area. Store only in a well

ventilated area.

• Do not store in the vicinity of any gas burning apparatus or in any high heat area such

as a closed car or trunk.

• Do not smoke while transporting a cylinder in your vehicle.

• Do transport and store cylinder(s) in an upright position. Do not tip on its side.

• Do store out of reach of children.

WARNING!

FILLING: For safety reasons, the LP gas cylinder, if supplied with your charbroiler, has
been shipped empty. The cylinder must be purged of air and filled prior to using on your
charbroiler. When getting your cylinder filled:

• Allow only qualified LP gas dealer to fill or repair cylinder(s).

• Do not allow the cylinder to be over filled.

• Make sure the LP gas dealer checks the cylinder for leaks after filling.

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]

10

HOSES AND REGULATORS

WARNING! - Propane Gas Models: Your charbroiler is designed to operate on L.P.

(propane) gas at a pressure regulated at 11” water column. The regulator(s) supplied
with this charbroiler is/are set to this pressure and must be used.

CYLINDER CONNECTIONS:

• Never connect a propane gas grill to an unregulated propane gas supply or other gas.

Do not attempt to alter the hose or regulator in any way.

• Do not allow the hose to come in contact with any hot surfaces of the charbroiler.

• Visually inspect the entire length of the hose assembly before each use for any

evidence of damage (cuts, cracks, burns) or excessive wear. If found, replace the
assembly before using your charbroiler. Only a hose assembly as specified in the parts
list for your charbroiler should be used.

• The connection fitting must be protected when disconnected from the propane

cylinder. If the fitting is allowed to drag on the ground, damage to the fitting may occur
resulting in leaks or an incomplete connection. Dirt could also enter the small inlet
hole, blocking gas flow completely.

• Always disconnect hose at quick-connect coupling when storing charbroiler.

• The outlet pressure setting for the pressure regulator provided with the appliance is

11” water column for propane.

CROWN VERITY INC., 37 ADAMS BLVD., BRANTFORD, ON. CAN. N3S 7V8

TEL: [phone] FAX: [phone]

www.crownverity.com

Email: [e-mail]
