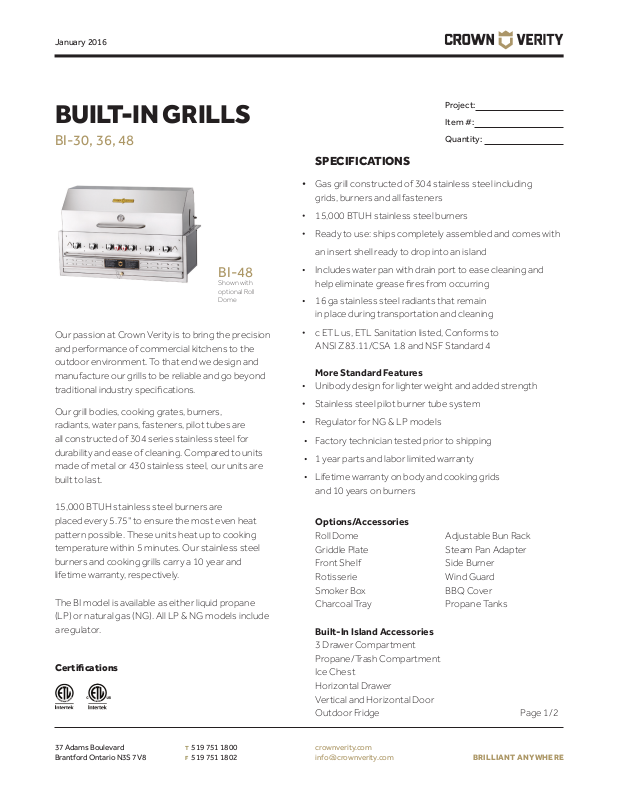

Crown Verity CVBI482NG, CVBI482PKGNG, CVBI48, CVBI48PKG, CVBI30PKG Specifications
...
January 2016
BUILT-IN GRILLS
BI-30, 36, 48
Project:
Item #:
Quantity:
SPECIFICATIONS
• Gas grill constructed of 304 stainless steel including
grids, burners and all fasteners
• 15,000 BTUH stainless steel burners
• Ready to use: ships completely assembled and comes with
an insert shell ready to drop into an island
BI-48
Shown with
optional Roll
Dome
Our passion at Crown Verity is to bring the precision
and performance of commercial kitchens to the
outdoor environment. To that end we design and
manufacture our grills to be reliable and go beyond
traditional industry specications.
Our grill bodies, cooking grates, burners,
radiants, water pans, fasteners, pilot tubes are
all constructed of 304 series stainless steel for
durability and ease of cleaning. Compared to units
made of metal or 430 stainless steel, our units are
built to last.
15,000 BTUH stainless steel burners are
placed every 5.75" to ensure the most even heat
pattern possible. These units heat up to cooking
temperature within 5 minutes. Our stainless steel
burners and cooking grills carry a 10 year and
lifetime warranty, respectively.
The BI model is available as either liquid propane
(LP) or natural gas (NG). All LP & NG models include
a regulator.
Certications
• Includes water pan with drain port to ease cleaning and
help eliminate grease res from occurring
• 16 ga stainless steel radiants that remain
in place during transportation and cleaning
• c ETL us, ETL Sanitation listed, Conforms to
ANSI Z83.11/CSA 1.8 and NSF Standard 4
More Standard Features
• Unibody design for lighter weight and added strength
• Stainless steel pilot burner tube system
• Regulator for NG & LP models
• Factory technician tested prior to shipping
• 1 year parts and labor limited warranty
• Lifetime warranty on body and cooking grids
and 10 years on burners
Options/Accessories
Roll Dome Adjustable Bun Rack
Griddle Plate Steam Pan Adapter
Front Shelf Side Burner
Rotisserie Wind Guard
Smoker Box BBQ Cover
Charcoal Tray Propane Tanks
Built-In Island Accessories
3 Drawer Compartment
Propane/Trash Compartment
Ice Chest
Horizontal Drawer
Vertical and Horizontal Door
Outdoor Fridge Page 1/2
37 Adams Boulevard
Brantford Ontario N3S 7V8
T 519 751 1800
F 519 751 1802
crownverity.com
info@ crownverity.com BRILLIANT ANYWHERE
January 2016
SPECIFICATIONS
All above shown with options
Model BI-30 BI-36 BI-48 SB-BI
Number of Burners 4 5 6 1
BTUH 64,500 79,500 99,000 15,000
Actu al Weight (l bs) 131 163 194 25
Shipping Weight (lbs) 209 243 284 25
Cooking Surface 28” x 21” 34” x 21” 46” x 21” n/a
Overall Dimensions 33.5” L x 27”D x 17.75” H 39.5” L x 27” D x 17.75” H 51.5” L x 27” D x 17.75” H 15” W x 27” D x 11.75” H
* All units are available in natural gas models (BI-NG). Please specify gas type when ordering. Above units do not
include the optional roll dome in the dimensions, height of each unit becomes 33.75” with the roll dome on the unit.
Optional side burner (SB-BI) - A side burner increases exibility, providing a convenient surface for sauteing and
keeping sauces hot.
Cut out dimensions available upon request at info@crownverity.com or go to www.crownverity.com
37 Adams Boulevard
Brantford Ontario N3S 7V8
T 519 751 1800
F 519 751 1802
page 2/2
crownverity.com
info@ crownverity.com BRILLIANT ANYWHERE
