Crown Steam DP-80 Operator’s Manual

INSTALLATION & OPERATION
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: ____________________
MANUAL
'LUHFW6WHDP6WDWLRQDU\.HWWOHV
'/ '3
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read
MANUAL 10075R3
WARNING
CROWN FOOD SERVICE EQUIPMENT
Division of Middleby Canada Company Inc.
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000 www.crownsteamgroup.com
Printed in Canada
INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES,
MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON
IMPORTANT NOTES FOR INSTALLATION AND OPERATION
It is recommended that this manual be read thoroughly and that all instructions be followed carefully.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
WARNING: Improper installation, operation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing, operating or servicing this equipment.
This manual should be retained for future reference.
Intended for commercial use only. Not for household use.
NOTICE: Contact the factory, the factory representative or local service company to perform maintenance and repairs.
Part No. 10075R3 2 2013-07-30
INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES,
MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON
TABLE OF CONTENTS
DESCRIPTION PAGE
1.0 Service Connections ....................................................4
2.0 Installation Instructions ..................................................6
3.0 Introduction ..........................................................7
4.0 Operating Instructions ..................................................8
5.0 Cleaning Procedures ...................................................9
6.0 Maintenance and Testing ...............................................10
7.0 Troubleshooting ......................................................11
Part No. 10075R3 3 2013-07-30
INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES,
MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON

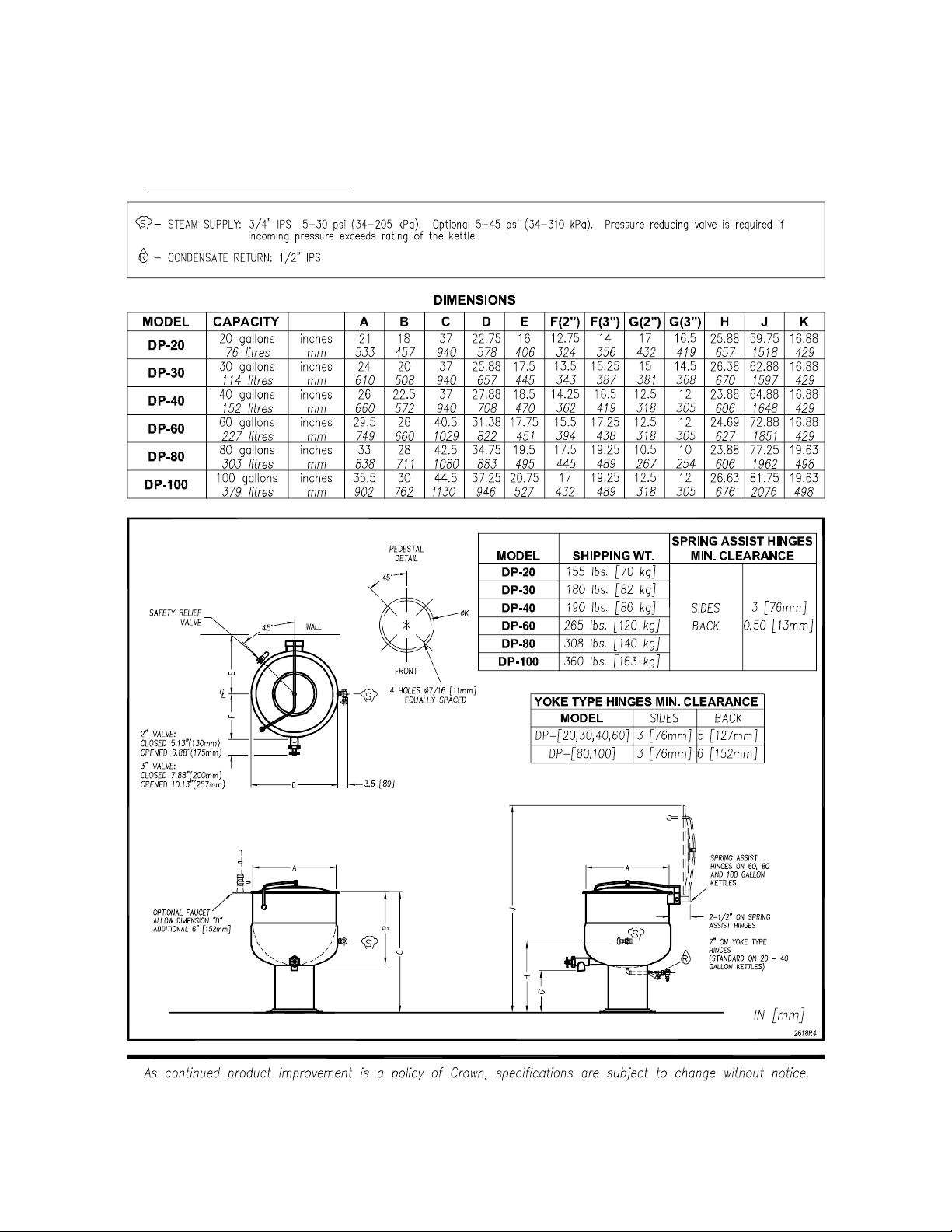

1.0 SERVICE CONNECTIONS
Part No. 10075R3 4 2013-07-30
