Crown Audio 402, XLS 202, 602 User Manual

Page 1

XLS Series

XLS 202

Operation Manual

Obtaining Other Language Versions:

local Crown Distributor. If you need assistance locating your local distributor, please contact Crown at 574-294-8000. This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible

situation which may arise during installation, operation or maintenance. The information provided in this manual was deemed accurate as of the publication date. However, updates to this information may have

occurred. To obtain the latest version of this manual, please visit the Crown website at www.crownaudio.com.

Trademark Notice:

respective owners.

Crown and Amcron are registered trademarks of Crown International. Other trademarks are the property of their

To obtain information in another language about the use of this product, please contact your

Some models may be exported under the name Amcron.

XLS 402

XLS 602

133465-4C

4/03

Page 2

XLS Series Power Amplifiers

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

TO PREVENT ELECTRIC SHOCK DO NOT REMOVE TOP OR BOTTOM COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

À PRÉVENIR LE CHOC ÉLECTRIQUE N’ENLEVEZ PAS LES COUVERCLES. IL N’Y A PAS DES PARTIES SERVICEABLE À L’INTÉRIEUR. TOUS REPARATIONS DOIT ETRE FAIRE PAR PERSONNEL QUALIFIÉ SEULMENT.

IMPORTANT

XLS Series amplifiers require Class 2 output wiring.

MAGNETIC FIELD

CAUTION! Do not locate sensitive high-gain equipment such as preamplifiers or tape decks directly above or below the unit. Because this amplifier has a high power density, it has a strong magnetic field which can induce hum into unshielded devices that are located nearby. The field is strongest just above and below the unit.

If an equipment rack is used, we recommend locating the amplifier(s) in the bottom of the rack and the preamplifier or other sensitive equipment at the top.

WATCH FOR THESE SYMBOLS:

The lightning bolt triangle is used to alert the user to the risk of electric shock.

The exclamation point triangle is used to alert the user to important operating or maintenance instructions.

FCC COMPLIANCE NOTICE

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for complicance could void the user’s authority to operate the euqipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

page 2

Operation Manual

Page 3

XLS Series Power Amplifiers

Crown International, Inc.

Issued By: Crown International, Inc.

1718 W. Mishawaka Road Elkhart, Indiana 46517 U.S.A.

European Representative’s Name and Address:

Nick Owen 19 Clos Nant Coslech Pontprennau Cardiff CF23 8ND United Kingdom

Equipment Type: Commercial Audio Power Amplifiers Family Name: XLS Amplifiers Model Names: XLS 202, XLS 402, XLS 602, XLS 402TX, XLS 602TX

EMC Standards:

EN 55103-1:1995 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions EN 55103-1:1995 Magnetic Field Emissions-Annex A @ 10 cm and 1 M EN 61000-3-2:1995+A14:2000 Limits for Harmonic Current Emissions (equipment input current 16A per phase) EN 61000-3-3:1995 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems Rated Current 16A EN 55022:1992 + A1: 1995 & A2:1997 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits; Conducted, Class B EN 55103-2:1996 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity EN 61000-4-2:1995 Electrostatic Discharge Immunity (Environment E2-Criteria B, 4k V Contact, 8k V Air Discharge) EN 61000-4-3:1996 Radiated, Radio-Frequency, Electromagnetic Immunity (Environment E2, Criteria A) EN 61000-4-4:1995 Electrical Fast Transient/Burst Immunity (Criteria B) EN 61000-4-5:1995 Surge Immunity (Criteria B) EN 61000-4-6:1996 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (Criteria A) EN 61000-4-11:1994 Voltage Dips, Short Interruptions and Voltage Variation

Safety Standard:

EN 60065: 1998 Safety Requirements - Audio Video and Similar Electronic Apparatus

DECLARATION of CONFORMITY

Sue Whitfield 574-294-8289 [email protected]

I certify that the product identified above conforms to the requirements of the EMC Council Directive 89/336/EEC as amended by 92/31/EEC, and the Low Voltage Directive 73/23/EES as amended by 93/68/EEC.

Signed

Operation Manual

Larry Colburn

Title: Senior Vice President of Manufacturing

Due to line current harmonics, we recommend that you contact your supply authority before connection.

Date of Issue: January 1, 2001

page 3

Page 4

Table of Contents

XLS Series Power Amplifiers

Important Safety Instructions ................................................2

Declaration of Conformity ............................................................3

1 Welcome ................................................................................5

1.1 Features ...........................................................................5

1.2 How to Use This Manual ..................................................5

2 Setup ......................................................................................6

2.1 Unpack Your Amplifier ....................................................6

2.2 Install Your Amplifier ......................................................6

2.3 Ensure Proper Cooling ...................................................6

2.4 Choose Input Wire and Connectors ................................7

2.5 Choose Output Wire and Connectors ..............................7

2.6 Wire Your System ...........................................................8

2.6.1 Stereo Mode Using the 5-way Binding Posts..........8

2.6.2 Stereo Mode Using the Speakon

2.6.3 Bridge-Mono Mode ...............................................10

2.7 Connect to AC Mains ......................................................11

2.8 Protecting Your Speakers ................................................11

2.9 Startup Procedure ...........................................................11

3 Operation .............................................................................12

3.1 Precautions .....................................................................12

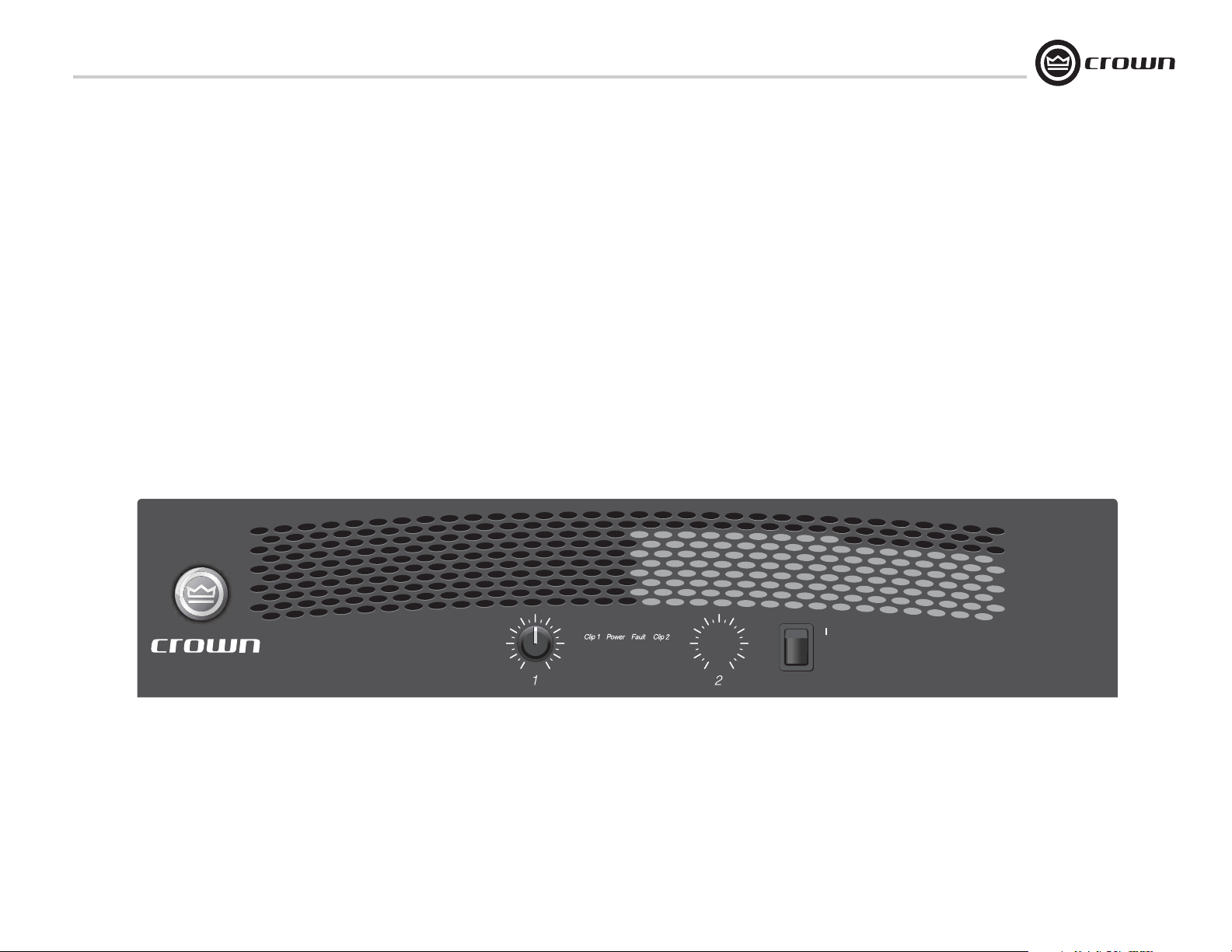

3.2 Front Panel Controls and Indicators ...............................13

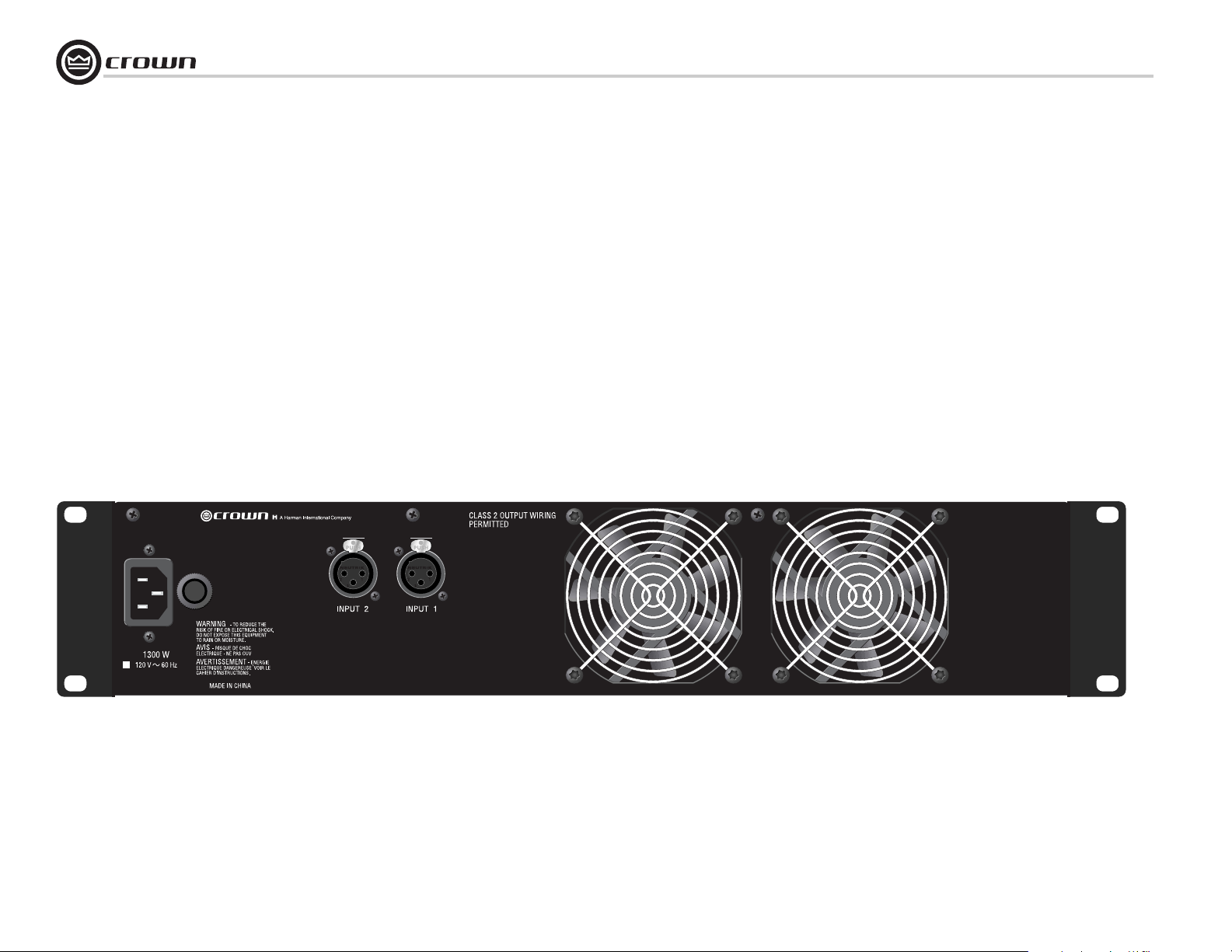

3.3 Back Panel Controls and Connectors...............................14

Connector ........9

4 Advanced Features and Options ......................................15

4.1 Protection Systems ........................................................ 15

4.1.1 Output Current Limiting......................................... 15

4.1.2. DC Protection ......................................................15

4.1.3 Circuit Breaker....................................................... 15

4.1.4 Thermal Protection ...............................................15

5 Troubleshooting ..................................................................16

6 Specifications ..................................................................... 17

7 AC Power Draw and Thermal Dissipation ..................... 19

8 Service ... .............................................................................. 22

8.1 Worldwide Service .......................................................... 22

8.2 US and Canada Service .................................................. 22

8.2.1 Service at a US or Canada Service Center ............ 22

8.2.2 Factory Service ..................................................... 22

8.2.3 Factory Service Shipping Instructions ................... 22

9 Warranty .............................................................................. 23

Crown Factory Service Information Form ...................................25

page 4

Operation Manual

Page 5

XLS Series Power Amplifiers

1 Welcome

The XLS Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. The line consists of three models in a uniform, rugged chassis, incorporating the best of tried-and-true design principles and innovative features.

Modern power amplifiers are sophisticated pieces of engineering capable of producing extremely high power levels. They must be treated with respect and correctly installed if they are to provide the many years of reliable service for which they were designed.

In addition, XLS Series amplifiers include a number of features which require some explanation before they can be used to their maximum advantage.

Please take the time to study this manual so that you can obtain the best possible service from your amplifier.

1.1 Features

•Simple, reliable design incorporates many popular features.

•Housed in a rugged, all-steel 2U chassis.

•Efficient forced-air fan prevents excessive thermal buildup.

•Electronically balanced XLR inputs. Touchproof binding post and Speakon

•Features precision detented level controls, power switch, and four LEDs which indicate clip for each channel, power and fault conditions.

outputs.

1.2 How to Use This Manual

This manual provides you with the necessary information to safely and correctly setup and operate your amplifier. It does not cover every aspect of installation, setup or operation that might occur under every condition. For additional information, please consult Crown’s Amplifier Application Guide (available online at www.crownaudio.com), Crown Technical Support, your system installer or retailer.

We strongly recommend you read all instructions, warnings and cautions contained in this manual. Also, for your protection, please send in your warranty registration card today. And save your bill of sale — it’s your official proof of purchase.

Operation Manual

page 5

Page 6

Page 7

XLS Series Power Amplifiers

2 Setup

2.4 Choose Input Wire and Connectors

Crown recommends using pre-built or professionally wired balanced line (two-conductor plus shield), 22-24 gauge cables and connectors. You should use 3-pin male XLR cable ends at the amplifier inputs. Unbalanced line may also be used but may result in noise over long cable runs.

Figure 2.3 shows connector pin assignments for balanced wiring, and Figure 2.4 shows connector pin assignments for unbalanced wiring.

NOTE: Custom wiring should only be performed by qualified personnel.

2.5 Choose Output Wire and Connectors

Crown recommends using pre-built or professionally wired, highquality, two- or four-conductor, heavy gauge speaker wire and connectors. You may use a 4-pole Speakon

2.5 and Table 1) or banana plugs, spade lugs, or bare wire for your output connectors (Figure 2.6). To prevent the possibility of short-circuits, wrap or otherwise insulate exposed loudspeaker cable connectors.

Note: Binding post outputs on European models come with safety plugs installed to prevent European powercord plugs from being inserted. The top & bottom entry positions for these connectors should therefore be used with European models.

Using the guidelines below, select the appropriate size of wire based on the distance from amplifier to speaker.

Distance Wire Size

up to 25 ft. 16 AWG 26-40 ft. 14 AWG 41-60 ft. 12 AWG 61-100 ft. 10 AWG 101-150 ft. 8 AWG 151-250 ft. 6 AWG

connector (Figure

Figure 2.3 Balanced Input Connector Wiring

Figure 2.4 Unbalanced Input Connector Wiring

CAUTION: Never use shielded cable for output wiring.

Operation Manual

page 7

Page 8

XLS Series Power Amplifiers

page 8

Operation Manual

Page 9

XLS Series Power Amplifiers

2 Setup

2.6.2 Stereo Mode Using the Speakon

There are two ways to wire two speakers in stereo to the amplifier’s Speakon

1) Wire the two speakers to the same Speakon connector as shown in Figure 2.8.

2) Wire speaker 1 to the amplifier’s Speakon connector, and wire speaker 2 to speaker 1 (Figure 2.9).

Connector

connector.

Figure 2.9 Speakon

Wire Speaker 1 to the Amplifier’s Speakon

Connector, and Wire Speaker 2 to Speaker 1

Stereo Wiring Option 2:

Figure 2.8 Speakon® Stereo Wiring Option 1:

Wire Two Speakers to One Speakon

SPEAKER 1

Connector

SPEAKER 2

AMPLIFIER

SPEAKON OUT

SPEAKON IN SPEAKON OUT

SPEAKON IN

OR THRU

Operation Manual

CABLE 1: AMPLIFIER OUT TO SPEAKER 1 IN 1+ TO 1+ 1– TO 1– 2+ TO 2+ 2– TO 2–

CABLE 2: SPEAKER 1 OUT TO SPEAKER 2 IN

2+ TO 1+ 2– TO 1–

page 9

Page 10

2 Setup

2.6.3 Bridge-Mono Mode

INPUTS: Use a custom “Y” adapter cable, wired to split the signal and invert the polarity for the Channel 2 amplifier input as shown in Figure

2.10. We recommend you label the ends of the Y adapter to help make sure to connect the correct end to each amplifier input.

Connect the Y adapter between the signal source and each amplifier input (Figure 2.11).

NOTE: Crown provides a reference of wiring pin assignments for commonly used connector types in the Crown Amplifier Application Guide available at www.crownaudio.

OUTPUTS:There are two ways to wire a speaker in Bridge-Mono mode:

1) Wire the speaker across the red binding post of each channel (Figure 2.11). Do not use the black binding posts when the amp is being operated in Bridge-Mono mode.

2) Wire the speaker to terminals 1+ and 2+ in the Speakon connector (Figure 2.12).

NOTE: The Channel 1 and 2 level controls MUST be set to identical settings when operating the XLS amplifier in BridgeMono mode.

XLS Series Power Amplifiers

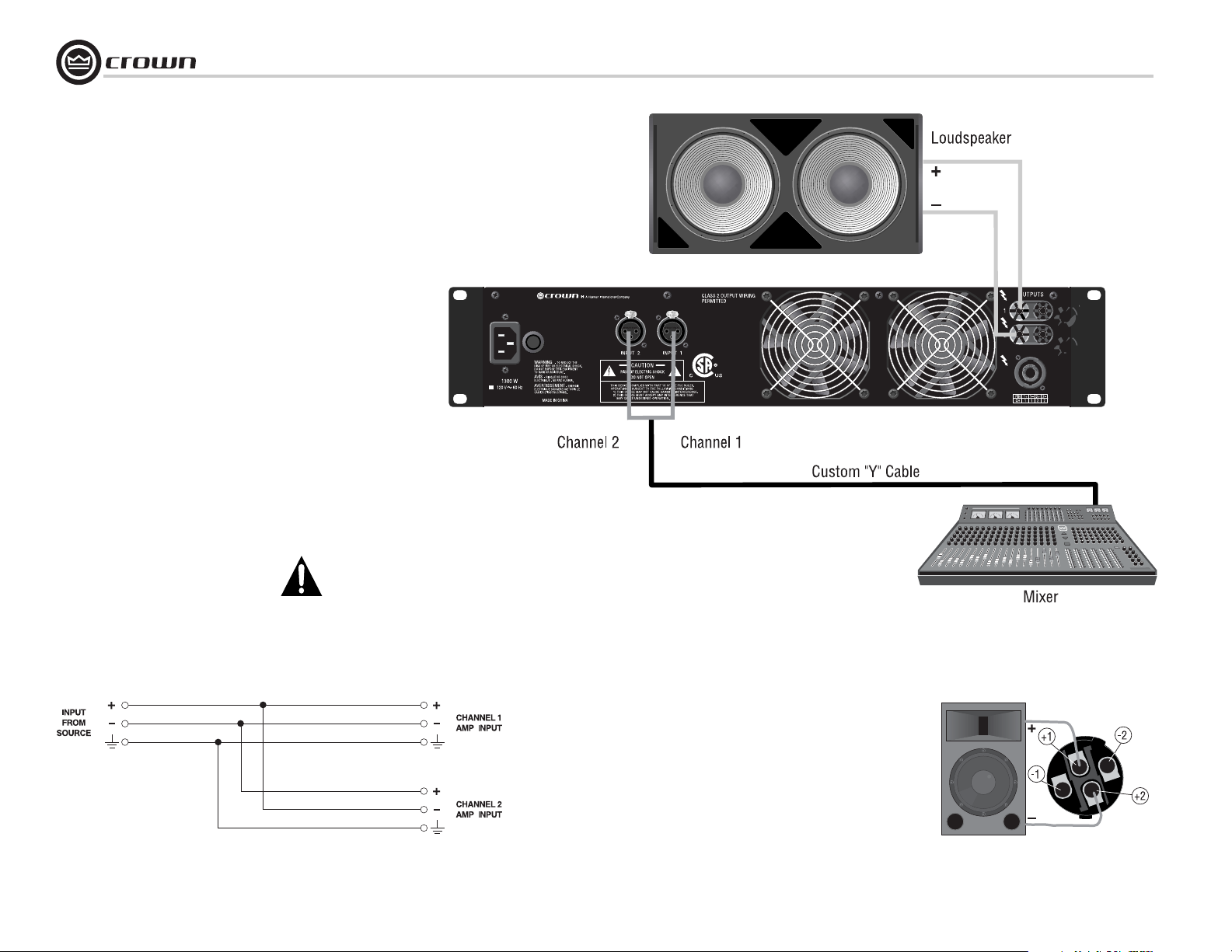

Figure 2.11 Bridge-Mono Wiring of Input and

5-Way Binding Post Output

page 10

Figure 2.10 Custom Input Cable for Bridge-Mono Mode

Figure 2.12 Alternate Bridge-Mono Wiring:

Loudspeaker Wired to Amplifier’s

Speakon

Connector

Operation Manual

Page 11

XLS Series Power Amplifiers

2 Setup

2.7 Connect to AC Mains

Connect your amplifier to the AC mains power source (power outlet) with the supplied AC power cordset. First, connect the IEC end of the cordset to the IEC connector on the amplifier; then, plug the other end of the cordset to the AC mains.

WARNING: The third prong of this connector (ground) is an important safety feature. Do not attempt to disable this ground connection by using an adapter or other methods.

Amplifiers don’t create energy. The AC mains voltage and current must be sufficient to deliver the power you expect. You must operate your amplifier from an AC mains power source with not more than a 10% variation above or a 15% variation below the amplifier’s specified line voltage and within the specfied frequency requirements (indicated on the amplifier’s back panel label). If you are unsure of the output voltage of your AC mains, please consult your electrician.

2.8 Protecting Your Speakers

It's wise to avoid clipping the amplifier signal. Not only does clipping sound bad, it can damage highfrequency drivers. To prevent clipping, insert a limiter between your mixer output and amplifier input. That way, no matter how strong a signal your mixer produces, the amplifier will not clip. Set the limiter threshold so that mixer signals above 0 on the mixer meters do not quite drive the amplifier into clipping.

Also, avoid sending strong subsonic signals to the amplifier. High-level, low-frequency signals from breath pops or dropped microphones can blow out drivers. To prevent subsonic signals, insert a highpass filter between mixer output and amplifier input (or between mixer and limiter). Alternatively, switch in highpass filters at your mixer. Set the filter to as high a frequency as possible that does not affect your program. For example, try 35 Hz for music and 75 Hz for speech. On each mixer input channel, set the filter frequency just below the lowest fundamental frequency of that channel's instrument.

2.9 Startup Procedure

Use the following procedure when first turning on your amplifier:

1. Turn down the level of your audio source.

2. Turn down the level controls of the amplifier.

3. Turn on the “Power” switch. The Power indicator should glow.

4. Turn up the level of your audio source to an optimum level.

5. Turn up the Level controls on the amplifier until the desired loudness or power level is achieved.

6. Turn down the level of your audio source to its normal range.

If you ever need to make any wiring or installation changes, don’t forget to disconnect the power cord.

For help with determining your system’s optimum gain structure (signal levels) please refer to the Crown Amplifier Application Guide, available online at www.crownaudio.com.

Operation Manual

page 11

Page 12

3 Operation

XLS Series Power Amplifiers

3.1 Precautions

Your amplifier is protected from internal and external faults, but you should still take the following precautions for optimum performance and safety:

1. Before use, your amplifier first must be configured for proper operation, including input and output wiring hookup. Improper wiring can result in serious operating difficulties. For information on wiring and configuration, please consult the Setup section of this manual or, for advanced setup techniques, consult Crown’s Amplifier Application Guide available online at www.crownaudio.com.

2. Use care when making connections, selecting signal sources and controlling the output level. The load you save may be your own!

3. Do not short the ground lead of an output cable to the input signal ground. This may form a ground loop and cause oscillations.

4. WARNING: Never connect the output to a power supply, battery or power main. Electrical shock may result.

5. Tampering with the circuitry, or making unauthorized circuit changes may be hazardous and invalidates all agency listings.

6. Do not operate the amplifier with the red Clip LEDs constantly flashing.

7. Do not overdrive the mixer, which will cause clipped signal to be sent to the amplifier. Such signals will be reproduced with extreme accuracy, and loudspeaker damage may result.

8. Do not operate the amplifier with less than the rated load impedance. Due to the amplifier’s output protection, such a configuration may result in premature clipping and speaker damage. Operating with a 2-ohm load is not

recommended, as the amplifier might shut down.

Remember: Crown is not liable for damage that results from overdriving other system components.

page 12

Operation Manual

Page 13

XLS Series Power Amplifiers

3 Operation

3.2 Front Panel Controls and Indicators

A. Cooling Vents

Front-to-rear forced airflow.

B. Level Controls

Two black rotary level controls, one for each channel.

C. Clip Indicators

Two red LEDs, one for each channel, illuminate when the channel’s output signal is being overdriven.

D. Power Indicator

Green LED indicates amplifier has been turned on and AC power is available.

E. Fault Indicator

Yellow LED illuminates when amplifier is in protect mode. Also illuminates briefly during normal power-up when amplifier is first switched on.

F. Power Switch

Amplifier is on when the switch is in the UP position.

Operation Manual

Figure 4.1 Front Panel Controls and Indicators

page 13

Page 14

3 Operation

XLS Series Power Amplifiers

3.3 Back Panel Controls and Connectors

G. Power Connector

H. Circuit Breaker

Provides overload protection.

I. Balanced XLR Inputs

Two 3-pin female XLR input connectors are provided (one per channel).

J. Fans

Provide front-to-back forced airflow for cooling.

K. 5-Way Binding Post Output Jacks

One pair per channel; accept banana plugs, spade lugs or bare wire. Note: Binding post outputs on European models come with safety plugs installed to prevent European power-cord plugs from being inserted. The top & bottom entry positions for these connectors should therefore be used with European models.

L. 4-Pole Speakon Output Connector

One connector is used for the two output channels. It accepts a 4-pole Speakon connector. See Page 6, Figure 2.5 and Table 1 for connector wiring.

page 14

Figure 4.1 Back Panel Controls and Connectors

Operation Manual

Page 15

XLS Series Power Amplifiers

4 Advanced Features and Options

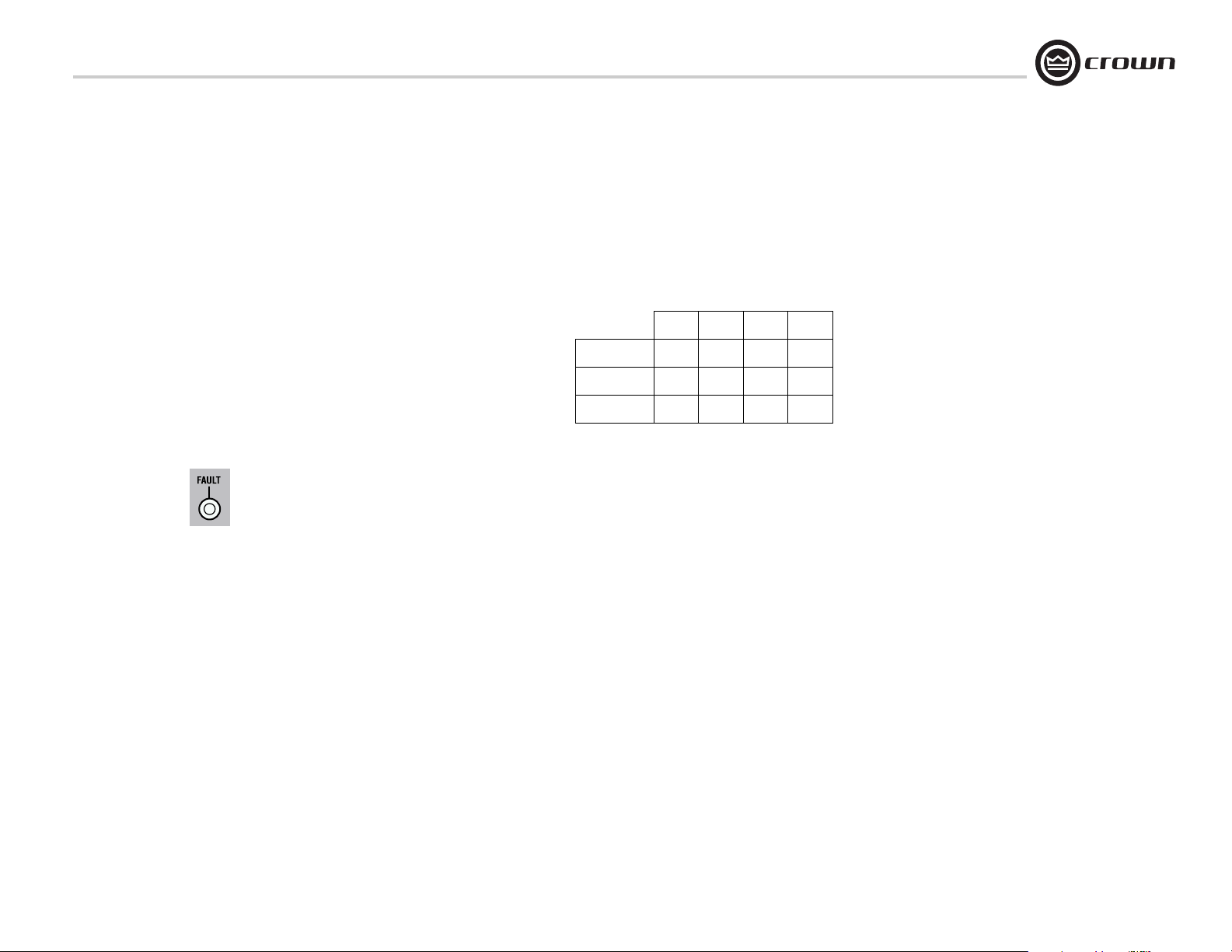

Figure 4.1

Fault Indicator

NOTE: For detailed information about these Crown amplifier features, please consult the Crown Amplifier Application Guide, available on the Crown website at www.crownaudio.com.

4.1 Protection Systems

Your Crown amplifier provides extensive protection and diagnostic capabilities, including output current limiting, DC protection, circuit breaker, and special thermal protection for the unit’s transformers.

4.1.1 Output Current Limiting

Output Current Limiting circuitry protects the amplifier output stage for damage caused by short-circuit loads.

4.1.2 DC Protection

DC Protection disconnects the loudspeaker load in the event of an output DC offset exceeding 2V. In such an event the yellow Fault LED will illuminate (see Figure 4.1) and both amplifier channels will be muted. In the majority of cases, DC protection is indicative of a faulty amplifier channel, and will be accompanied by an illuminated Clip LED, even with no input connected and level controls set at minimum. If this is the case, contact your dealer or service center.

4.1.3 Circuit Breaker

The high-voltage power supplies of your Crown amplifier are protected by a circuit breaker. The breaker rating varies depending on model and supply voltage as follows:

Table 2: Circuit-Breaker Amperage Ratings

100V 120V 220V 240V

XLS 202 7A 7A 7A 7A

XLS 402 10A 10A 7A 7A

XLS 602 10A 10A 7A 7A

4.1.4 Thermal Protection

The Thermal Protection circuit will activate if the internal heatsink temperature exceeds proper operating temperatures (194 °F, 90 °C). When the heatsink temperature has fallen to a safe level, this protection circuit will automatically be reset. Principle causes of thermal protection are:

1) Inadequate ventilation of the equipment rack

2) Incorrect load impedance

3) Output cable short circuit

4) Blocked air vent

5) Heatsinks in need of cleaning

6) Cooling fan failure. The cause of your amplifier’s thermal protection

state should be determined and corrected as soon as possible. Without correction, the Thermal Protection circuit will typically reactivate.

Operation Manual

page 15

Page 16

Page 17

XLS Series Power Amplifiers

6 Specifications

Minimum Guaranteed Power XLS 202 XLS 402 XLS 602

120 VAC, 60 Hz Units, per channel, both channels driven

1 kHz with 0.5% THD

Stereo, 2 ohms (per ch.) Stereo, 4 ohms (per ch.) Stereo, 8 ohms (per ch.) Bridge-Mono, 8 ohms Bridge-Mono, 4 ohms

240 VAC, 50 Hz Units, per channel, both channels driven

1 kHz with 0.5% THD

Stereo, 2 ohms (per ch.) Stereo, 4 ohms (per ch.) Bridge-Mono, 4 ohms

Performance XLS 202 XLS 402 XLS 602

Sensitivity (volts RMS) for full rated power at 4 ohms 0.725 1.025 1.26 Frequency Response (at 1 watt, 22Hz - 20 kHz) ± 0.75 dB ± 0.75 dB ± 0.75 dB Phase Response (at 1 watt, 10 Hz, 20 kHz) –10°, +19° –10°, +19° –10°, +19° Signal to Noise Ratio below rated power (20 Hz to 20 kHz)

A-weighted, below rated power No weighting, below rated power

Total Harmonic Distortion (THD) at 1 full bandwidth power, from 20 Hz to 1 kHz < 0.5% < 0.5% < 0.5% Intermodulation Distortion (IMD) 60 Hz and 7 kHz at 4:1,

from full rated output to –40 dB

250W 200W 145W 400W 500W

250W 225W 500W

> 100 dB

> 95 dB

< 0.3% < 0.3% < 0.3%

570W 400W 260W 800W

1,140W

610W 445W

1,120W

> 100 dB

> 95 dB

840W 600W

370W 1,200W 1,680W

880W

670W 1,760W

> 100 dB

> 95 dB

Operation Manual

page 17

Page 18

6 Specifications

Performance XLS 202 XLS 402 XLS 602

Damping Factor (8 ohm): 10 Hz to 400 Hz > 200 > 200 > 200 Crosstalk (below rated power,

at 1 kHz at 20 kHz

DC Output Offset (Shorted input) ± 10 mV ± 10 mV ± 10 mV Input Impedance (nominally balanced, nominally unbalanced) 20 kilohms, 10 kilohms 20 kilohms, 10 kilohms 20 kilohms, 10 kilohms Load Impedance (Note: Safe with all types of loads)

Stereo Bridge Mono

Voltage Gain (at maximum level setting) 31 dB 31 dB 31 dB AC Line Voltage and Frequency Configurations Available (± 10%) 120 VAC/60 Hz and 230 VAC/50 Hz 120 VAC/60 Hz and 230 VAC/50 Hz 120 VAC/60 Hz and 230 VAC/50 Hzz

Construction XLS 202 XLS 402 XLS 602

Ventilation Flow-through ventilation from front to back Flow-through ventilation from front to back Flow-through ventilation from front to back Cooling Internal heat sinks with forced-air cooling Internal heat sinks with forced-air cooling Internal heat sinks with forced-air cooling Air Volume Requirements (per minute per unit)

Dimensions: Width, Height, Depth (behind mounting surface) EIA Standard19"W (EIA RS-310-B)

Net Weight, Shipping Weight 21.0 lb (9.5 kg), 26.0 lb (11.8 kg) 25.3 lb ( 1 1 . 5 k g ) , 3 0 . 3 l b ( 1 3 . 8 k g ) 2 7 . 2 l b ( 1 2 . 3 k g ) , 3 2 . 2 l b ( 1 4 . 6 k g )

–82 dB –58 dB

2-8 ohms

8 ohms

(2.27 m3)80.15 ft

80.15 ft

x 3.5” (8.9 cm) H x14" (35.6cm) D

–82 dB –58 dB

2-8 ohms

8 ohms

(2.27 m3) 80.15 ft3 (2.27 m3)

EIA Standard19"W (EIA RS-310-B) x 3.5” (8.9 cm) H x14" (35.6cm) D

XLS Series Power Amplifiers

–82 dB –58 dB

2-8 ohms

8 ohms

EIA Standard19"W (EIA RS-310-B) x 3.5” (8.9 cm) H x14" (35.6cm) D

page 18

Operation Manual

Page 19

XLS Series Power Amplifiers

7 AC Power Draw and Thermal Dissipation

This section provides detailed information about the amount of power and current drawn from the AC mains by XLS amplifiers and the amount of heat produced under various conditions. The calculations presented here are intended to provide a realistic and reliable depiction of the amplifiers. The following assumptions or approximations were made:

• The amplifier’s available channels are loaded, and full power is being delivered.

• Efficiency at standard 1 kHz power into 4 ohms is 63% for the XLS 602, 57% for the XLS 402, and 49% for the XLS 202.

• Quiescent power draw is 26W for the XLS 602, 23W for the XLS 402, and 19W for the XLS 202.

• XLS 602 quiescent thermal dissipation equals 88 btu/hr at 0 watts with 4 and 8 ohm loads.

• The estimated duty cycles take into account the typical crest factor for each type of source material.

• Duty cycle of pink noise is 50%.

• Duty cycle of highly compressed rock ‘n’ roll midrange is 40%.

• Duty cycle of rock ‘n’ roll is 30%.

• Duty cycle of background music is 20%.

• Duty cycle of continuous speech is 10%.

• Duty cycle of infrequent, short duration paging is 1%.

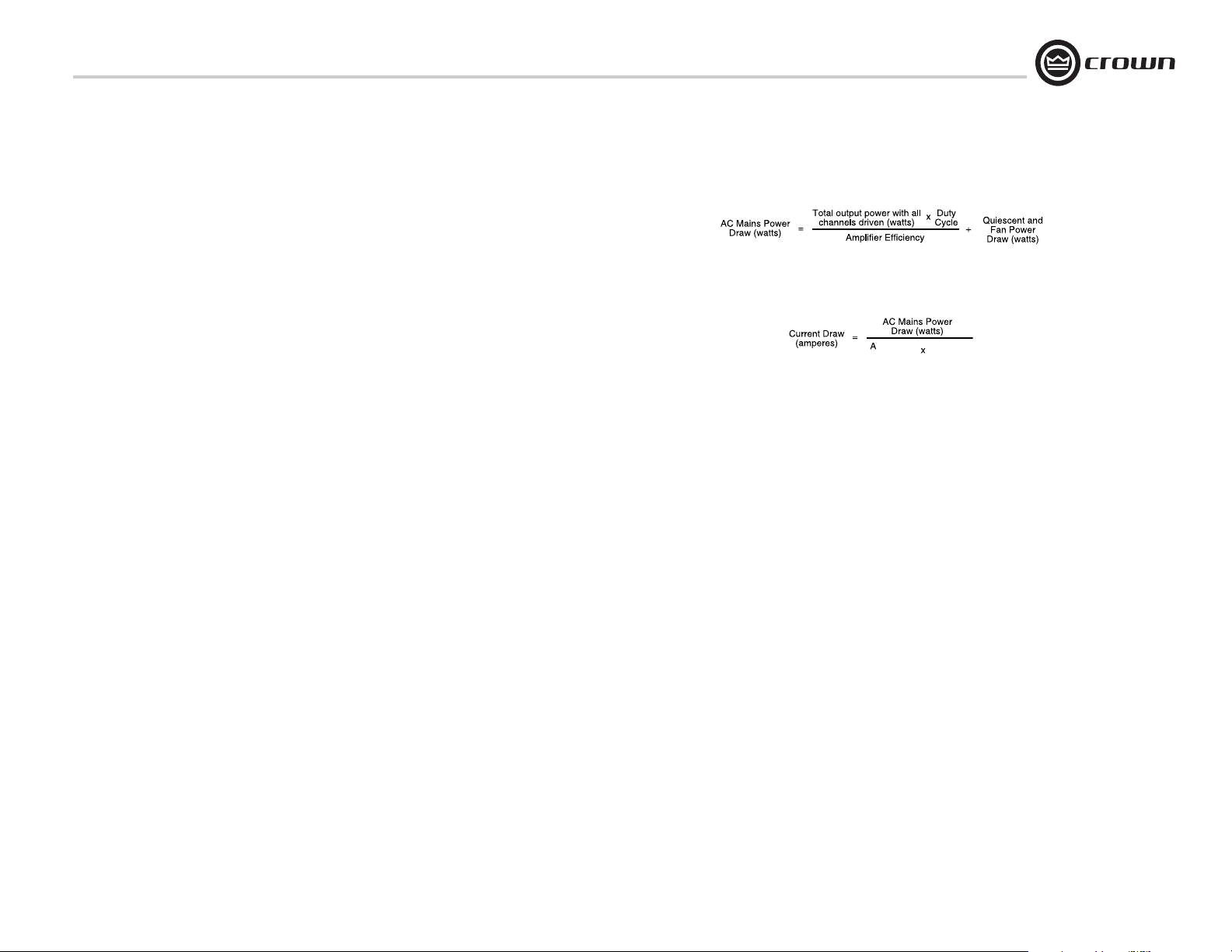

Here are the equations used to calculate the data presented in Figures

7.1, 7.2 and 7.3:

The value used for amplifier inefficiency is (1.00-Efficiency). The factor

3.415 converts watts to btu/hr. Thermal dissipation in btu is divided by the constant 3.968 to get kcal.

Operation Manual

page 19

Page 20

7 AC Power Draw and Thermal Dissipation

XLS Series Power Amplifiers

XLS 202

L O A D

2 Ohm Stereo 4 Ohm Stereo

Duty

Cycle

50% 529 5.1 2.6 953 240 427 4.1 2.1 776 196 315 3.0 1.6 580 146 40% 427 4.1 2.1 776 196 346 3.3 1.7 634 160 256 2.4 1.3 477 120 30% 325 3.1 1.6 598 151 264 2.5 1.3 491 124 197 1.9 1.0 374 94 20% 223 2.1 1.1 420 106 182 1.7 0.9 349 88 137 1.3 0.7 271 68 10% 121 1.2 0.6 243 61 101 1.0 0.5 207 52 78 0.7 0.4 168 42

Mains Power

Draw

(W)

Current Draw

(Amps)

120V 230V

Thermal

Dissipation

btu/hr kcal/hr

Power Draw, Current Draw and Thermal Dissipation at Various Duty Cycles

AC Mains Power

Draw

(W)

Current Draw

(Amps)

120V 230V

Figure 7.1 XLS 202

Thermal

Dissipation

btu/hr kcal/hr

AC Mains Power

Draw

(W)

8 Ohm Stereo

Current Draw

(Amps)

120V 230V

Thermal

Dissipation

btu/hr kcal/hr

XLS 402

L O A D

2 Ohm Stereo 4 Ohm Stereo

Duty

Cycle

50% 1023 10.0 5.2 1547 390 725 7.1 3.7 1109 279 479 4.7 2.5 748 189 40% 823 8.1 4.2 1253 316 584 5.7 3.0 903 228 388 3.8 2.0 614 155 30% 623 6.1 3.2 960 242 444 4.4 2.3 697 176 297 2.9 1.5 480 121 20% 423 4.1 2.2 666 168 304 3.0 1.6 491 124 205 2.0 1.1 346 87 10% 223 2.2 1.1 372 94 163 1.6 0.8 285 72 114 1.1 0.6 213 54

Mains Power

Draw

(W)

Current Draw

(Amps)

120V 230V

Thermal

Dissipation

btu/hr kcal/hr

AC Mains Power

Draw

(W)

Current Draw

(Amps)

120V 230V

Thermal

Dissipation

btu/hr kcal/hr

AC Mains Power

Draw

(W)

8 Ohm Stereo

Current Draw

(Amps)

120V 230V

Thermal

Dissipation

btu/hr kcal/hr

page 20

Power Draw, Current Draw and Thermal Dissipation at Varioius Duty Cycles

Figure 7.2 XLS 402

Operation Manual

Page 21

XLS Series Power Amplifiers

7 AC Power Draw and Thermal Dissipation

XLS 602

L O A D

2 Ohm Stereo 4 Ohm Stereo

Duty

Cycle

50% 1359 13.2 6.9 1774 447 978 9.5 5.0 1292 326 613 6.0 3.1 831 209 40% 1093 10.6 5.6 1437 362 788 7.7 4.0 1051 265 496 4.8 2.5 682 172 30% 826 8.1 4.2 1100 277 597 5.8 3.0 811 204 378 3.7 1.9 534 135 20% 559 5.5 2.8 763 192 407 4.0 2.1 570 144 261 2.5 1.3 386 97 10% 293 2.9 1.5 426 107 216 2.1 1.1 329 83 143 1.4 0.7 237 60

Mains

Power

Draw

(W)

Current Draw

(Amps)

120V 230V

Thermal

Dissipation

btu/hr kcal/hr

Power Draw, Current Draw and Thermal Dissipation at Various Duty Cycles

Mains

Power

Draw

(W)

Current Draw

(Amps)

120V 230V

Figure 7.3 XLS 602

Thermal

Dissipation

btu/hr kcal/hr

AC Mains Power

Draw

(W)

8 Ohm Stereo

Current Draw

(Amps)

120V 230V

Thermal

Dissipation

btu/hr kcal/hr

Operation Manual

page 21

Page 22

8 Service

XLS Series Power Amplifiers

Crown amplifiers are quality units that rarely require servicing. Before returning your unit for servicing, please contact Crown Technical Support to verify the need for servicing.

This unit has very sophisticated circuitry which should only be serviced by a fully trained technician. This is one reason why each unit bears the following label:

CAUTION: To prevent electric shock, do not remove covers. No user serviceable parts inside. Refer servicing to a qualified technician.

8.1 Worldwide Service

Service may be obtained from an authorized service center. (Contact your local Crown/ Amcron representative or our office for a list of authorized service centers.) To obtain service, simply present the bill of sale as proof of purchase along with the defective unit to an authorized service center. They will handle the necessary paperwork and repair.

Remember to transport your unit in the original factory pack.

8.2 US and Canada Service

Service may be obtained in one of two ways: from an authorized service center or from the factory. You may choose either. It is important that you have your copy of the bill of sale as your proof of purchase.

8.2.1 Service at a US or Canada Service Center

This method usually saves the most time and effort. Simply present your bill of sale along with the defective unit to an authorized service center to obtain service. They will handle the necessary paperwork and repair. Remember to transport the unit in the original factory pack. A

list of authorized service centers in your area can be obtained from the Crown website at www.crownaudio.com, or by calling Crown Customer Service.

8.2.2 Factory Service

To obtain factory service, fill out the service information page found in the back of this manual and send it along with your proof of purchase and the defective unit to the Crown factory.

For warranty service, we will pay for ground shipping both ways in the United States. Contact Crown Customer Service to obtain prepaid shipping labels prior to sending the unit. Or, if you prefer, you may prepay the cost of shipping, and Crown will reimburse you. Send copies of the shipping receipts to Crown to receive reimbursement.

Your repaired unit will be returned via UPS ground. Please contact us if other arrangements are required.

8.2.3 Factory Service Shipping Instructions:

1. Before sending a Crown product to the factory for service, first call the Crown Service Department for a return authorization (RA) number.

2. Be sure to fill out the service information form that follows and enclose it with your shipment, either inside the box or in a packing slip envelope securely attached to the outside of the shipping carton. Do not send the service information form separately. If you are sending the unit from a Shipping Center, we recommend taping the form to the product. We also recommend recording the serial number and model before shipping for your reference.

3. To ensure the safe transportation of your unit to the factory, ship it in an original factory packing container. If you don’t have the original carton, you may obtain a product service foam-in-place shipping pack from the Crown Factory Service Department at the number listed below. For nonwarranty service, you may also provide your own shipping pack, however we still recommend using a Crown Supplied Shipping Container. Minimum recommended requirements for materials are as follows: 275 P.S.I. burst test Double-Wall carton that allows for 2-inch solid Styrofoam on all six sides of unit or 3 inches of plastic bubble wrap on all six sides of unit; securely seal the package with an adequate carton sealing tape. Do not use light boxes or “peanuts.” Damage caused by poor packing cannot be covered under warranty.

4. Do not ship the unit in any kind of cabinet (wood or metal). Ignoring this warning may result in extensive damage to the unit and the cabinet. Accessories are not needed—do not send the product documentation, cables and other hardware.

If you have any questions, please contact Crown Factory Service.

Crown Factory Service

1718 W. Mishawaka Rd.,

Elkhart, Indiana 46517 U.S.A.

Telephone: 574-294-8200

800-342-6939 (North America,

Puerto Rico, and Virgin Islands only)

Facsimile:

574-294-8301 (Technical Support)

574-294-8124 (Factory Service)

Internet:

http://www.crownaudio.com

page 22

Operation Manual

Page 23

XLS Series Power Amplifiers

YEAR

9 Warranty

UNITED STATES & CANADA

SUMMARY OF WARRANTY

Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown product, for a period of three (3) years from the date of purchase by the original purchaser (the “warranty period”) that the new Crown product is free of defects in materials and workmanship. We further warrant the new Crown product regardless of the reason for failure, except as excluded in this Warranty.

ITEMS EXCLUDED FROM THIS CROWN WARRANTY

This Crown Warranty is in effect only for failure of a new Crown product which occurred within the Warranty Period. It does not cover any product which has been damaged because of any intentional misuse, accident, negligence, or loss which is covered under any of your insurance contracts. This Crown Warranty also does not extend to the new Crown product if the serial number has been defaced, altered, or removed.

WHAT THE WARRANTOR WILL DO

est, insurance, closing costs, and other finance charges less a reasonable depreciation on the product from the date of original purchase. Warranty work can only be performed at our authorized service centers or at the factory. Warranty work for some products can only be performed at our factory. We will remedy the defect and ship the product from the service center or our factory within a reasonable time after receipt of the defective product at our authorized service center or our factory. All expenses in remedying the defect, including surface shipping costs in the United States, will be borne by us. (You must bear the expense of shipping the product between any foreign country and the port of entry in the United States including the return shipment, and all taxes, duties, and other customs fees for such foreign shipments.)

HOW TO OBTAIN WARRANTY SERVICE

You must notify us of your need for warranty service within the warranty period. All components must be shipped in a factory pack, which, if needed, may be obtained from us free of charge. Corrective action will be taken within a reasonable time of the date of receipt of the defective product by us or our authorized service center. If the repairs made by us or our authorized service center are not satisfactory, notify us or our authorized service center immediately.

DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES

YOU ARE NOT ENTITLED TO RECOVER FROM US ANY INCIDENTAL DAMAGES RESULTING

FROM ANY DEFECT IN THE NEW CROWN PRODUCT. THIS INCLUDES ANY DAMAGE TO ANOTHER PRODUCT OR PRODUCTS RESULTING FROM SUCH A DEFECT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WARRANTY ALTERATIONS

No person has the authority to enlarge, amend, or modify this Crown Warranty. This Crown Warranty is not extended by the length of time which you are deprived of the use of the new Crown product. Repairs and replacement parts provided under the terms of this Crown Warranty shall carry only the unexpired portion of this Crown Warranty.

DESIGN CHANGES

We reserve the right to change the design of any product from time to time without notice and with no obligation to make corresponding changes in products previously manufactured.

LEGAL REMEDIES OF PURCHASER

THIS CROWN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No action to enforce this Crown Warranty shall be commenced after expiration of the warranty period.

THIS STATEMENT OF WARRANTY SUPERSEDES ANY OTHERS CONTAINED IN THIS MANUAL FOR CROWN PRODUCTS. 12/01

Operation Manual

page 23

Page 24

XLS Series Power Amplifiers

YEAR

9 Warranty

SUMMARY OF WARRANTY

Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown1 product, for a period of three (3) years from the date of purchase by the original purchaser (the “warranty period”) that the new Crown product is free of defects in materials and workmanship, and we further warrant the new Crown product regardless of the reason for failure, except as excluded in this Warranty.

1 Note: If your unit bears the name “Amcron,” please substitute

it for the name “Crown” in this warranty.

ITEMS EXCLUDED FROM THIS CROWNWARRANTY

WHAT THE WARRANTOR WILL DO

WORLDWIDE EXCEPT USA & CANADA

We will remedy any defect, regardless of the reason for failure (except as excluded), by repair, replacement, or refund. We may not elect refund unless you agree, or unless we are unable to provide replacement, and repair is not practical or cannot be timely made. If a refund is elected, then you must make the defective or malfunctioning product available to us free and clear of all liens or other encumbrances. The refund will be equal to the actual purchase price, not including interest, insurance, closing costs, and other finance charges less a reasonable depreciation on the product from the date of original purchase. Warranty work can only be performed at our authorized service centers. We will remedy the defect and ship the product from the service center within a reasonable time after receipt of the defective product at our authorized service center.

HOW TO OBTAIN WARRANTY SERVICE

You must notify your local Crown importer of your need for warranty service within the warranty period. All components must be shipped in the original box. Corrective action will be taken within a reasonable time of the date of receipt of the defective product by our authorized service center. If the repairs made by our authorized service center are not satisfactory, notify our authorized service center immediately.

DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES

YOU ARE NOT ENTITLED TO RECOVER FROM US ANY INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN THE NEW CROWN PRODUCT. THIS INCLUDES ANY DAMAGE TO ANOTHER PRODUCT OR PRODUCTS RESULTING FROM SUCH A DEFECT.

WARRANTY ALTERATIONS

DESIGN CHANGES

We reserve the right to change the design of any product from time to time without notice and with no obligation to make corresponding changes in products previously manufactured.

LEGAL REMEDIES OF PURCHASER

No action to enforce this Crown Warranty shall be commenced after expiration of the warranty period.

THIS STATEMENT OF WARRANTY SUPERSEDES ANY OTHERS CONTAINED IN THIS MANUAL FOR CROWN PRODUCTS. 7/01

page 24

Operation Manual

Page 25
