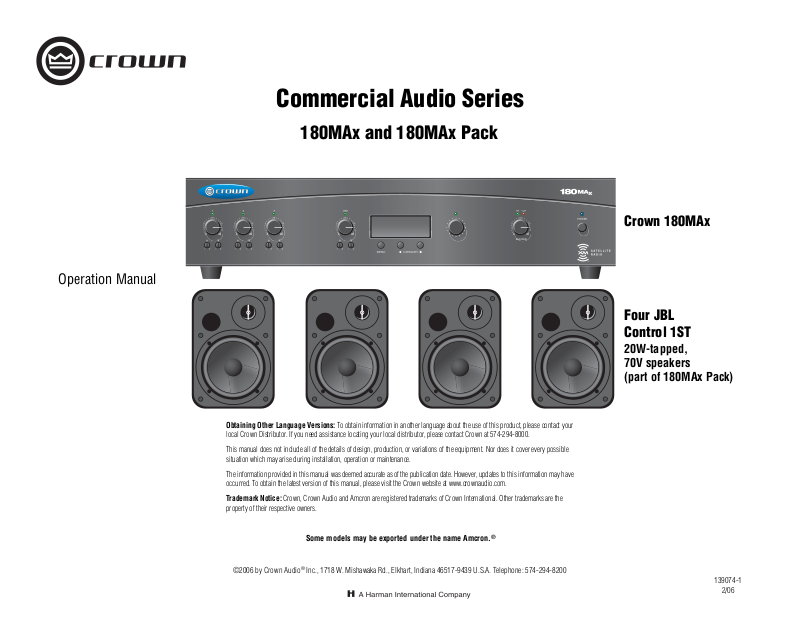

Crown Audio 180MAx User Manual

Operation Manual

Commercial Audio Series

180MAx and 180MAx Pack

Crown 180MAx

Four JBL
Control 1ST

20W-tapped,
70V speakers
(part of 180MAx Pack)

Obtaining Other Language Versions:

local Crown Distributor. If you need assistance locating your local distributor, please contact Crown at 574-294-8000.
This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible

situation which may arise during installation, operation or maintenance.
The information provided in this manual was deemed accurate as of the publication date. However, updates to this information may have

occurred. To obtain the latest version of this manual, please visit the Crown website at www.crownaudio.com.

Trademark Notice:

property of their respective owners.

©2006 by Crown Audio® Inc., 1718 W. Mishawaka Rd., Elkhart, Indiana 46517-9439 U.S.A. Telephone: [phone]

Crown, Crown Audio and Amcron are registered trademarks of Crown International. Other trademarks are the

To obtain information in another language about the use of this product, please contact your

Some models may be exported under the name Amcron.

®

139074-1

2/06

Important Safety Instructions

Commercial Audio Series Business Music System

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a dry cloth.

7) Do not block any ventilation openings. Install
in accordance with the manufacturer’s instruc­tions.

8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.

9) Do not defeat the safety purpose of the polar­ized or grounding-type plug. A polarized plug
has two blades with one wider than the other.
A grounding-type plug has two blades and a
third grounding prong. The wide blade or the
third prong is provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.

10) Protect the power cord from being walked on
or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.

11) Only use attachments/accessories specified
by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus com­bination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms
or when unused for long periods of time.

14) Refer all servicing to qualified service person­nel. Servicing is required when the apparatus
has been damaged in any way, such as power­supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally,
or has been dropped.

15) WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPARATUS TO RAIN OR MOISTURE.

16) DO NOT EXPOSE TO DRIPPING OR SPLASH­ING. DO NOT PLACE OBJECTS FILLED WITH
LIQUID, SUCH AS VASES,ON THIS APPARA­TUS.

TO COMPLETELY DISCONNECT THIS EQUIPMENT
FROM THE AC MAINS, DISCONNECT THE POWER
SUPPLY CORD PLUG FROM THE AC RECEPTA­CLE. THE MAINS PLUG OF THE POWER SUPPLY
CORD SHALL REMAIN READILY OPERABLE.

TO PREVENT ELECTRIC SHOCK DO NOT REMOVE
TOP OR BOTTOM COVERS. NO USER SERVICE­ABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

À PRÉVENIR LE CHOC ÉLECTRIQUE N’ENLEVEZ
PAS LES COUVERCLES. IL N’Y A PAS DES PAR­TIES SERVICEABLE À L’INTÉRIEUR. TOUS REPA­RATIONS DOIT ETRE FAIRE PAR PERSONNEL
QUALIFIÉ SEULMENT.

WATCH FOR THESE SYMBOLS:

The lightning bolt triangle is used to alert the user
to the risk of electric shock.

The exclamation point triangle is used to alert the
user to important operating or maintenance instruc­tions.

IMPORTANT

Commercial Audio Series tuner-mixer-amplifiers
require Class 2 output wiring.

MAGNETIC FIELD

CAUTION! Do not locate sensitive high-gain equip­ment such as preamplifiers or tape decks directly
above or below the unit. Because this amplifier has
a high power density, it has a strong magnetic field
which can induce hum into unshielded devices that
are located nearby. The field is strongest just above
and below the unit.

If an equipment rack is used, we recommend locat­ing the amplifier(s) in the bottom of the rack and the
preamplifier or other sensitive equipment at the top.

FCC COMPLIANCE NOTICE

This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or televi­sion reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

page 2

Operation Manual

Commercial Audio Series Business Music System

Crown International, Inc.

Issued By: Crown International, Inc.

1718 W. Mishawaka Road
Elkhart, Indiana 46517 U.S.A.

European Representative’s Name and Address:

Nick Owen
35, Bassets Field
Thornhill
Cardiff. South Glamorgen
CF14 9UG United Kingdom

Equipment Type: Commercial Audio Tuner-Mixer-Amplifiers
Family Name: Tuner-Mixer-Amplifiers
Model Names: 180MAx

EMC Standards:

EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions
EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 1 M
EN 61000-3-2:2001 Limits for Harmonic Current Emissions (equipment input current 16A per phase)
EN 61000-3-3:2002 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems Rated Current 16A
EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits; Conducted, Class B
EN 55103-2:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity
EN 61000-4-2:2001 Electrostatic Discharge Immunity (Environment E2-Criteria B, 4k V Contact, 8k V Air Discharge)
EN 61000-4-3:2001 Radiated, Radio-Frequency, Electromagnetic Immunity (Environment E2, Criteria A)
EN 61000-4-4:2001 Electrical Fast Transient/Burst Immunity (Criteria B)
EN 61000-4-5:2001 Surge Immunity (Criteria B)
EN 61000-4-6:2003 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (Criteria A)
EN 61000-4-11:2001 Voltage Dips, Short Interruptions and Voltage Variation

Safety Standard:
IEC 60065: 2002 7th Ed. Safety Requirements - Audio Video and Similar Electronic Apparatus
CAN/CSA-E60065-03 7th Ed. Audio, Video and Similar Electronic Apparatus-Safety Requirements
UL 60065 7th Ed. Audio /Video and Musical Instrument Apparatus for Household, Commercial and Similar General Use.

DECLARATION of CONFORMITY

FOR COMPLIANCE QUESTIONS ONLY:

Sue Whitfield
574-294-8289
[e-mail]

I certify that the product identified above conforms to the requirements of the EMC Council Directive 89/336/EEC as amended by 92/31/EEC, and the Low Voltage Directive 73/23/EES as amended by 93/68/EEC.

Signed

Operation Manual

Larry Coburn

Title: Senior Vice President of Manufacturing

Due to line current harmonics, we recommend that you contact your supply authority before connection.

Date of Issue: Feb. 1, 2006

page 3

Table of Contents

Commercial Audio Series Business Music System

Important Safety Instructions .......................................................2

Declaration of Conformity ............................................................3

1 Welcome ................................................................................5

1.1 Features ...........................................................................5

1.2 Front Panel Controls and Indicators................................6

1.3 Back Panel Controls and Connectors................................7

2 Setup ......................................................................................8

2.1 Installation........................................................................8

2.2 How to Attach Rack Ears ...................................................8

2.3 Choose Input Wire and Connectors .................................9

2.4 Choose Output Wire and Connectors ...............................10

2.5 Wire Your System ............................................................11

2.6 Phantom Power................................................................11

2.7 Link In/Out Switches.........................................................11

2.8 Remote Volume Control....................................................12

2.9 Mounting the Speakers (180MAx Pack Only) ...................12

3 Operation ....................................................13

3.1 Powering Up.....................................................................13

3.2 Priority Ducking ............................................................... 13

3.3 Music-On-Hold................................................................ 13

3.4 XM Satellite Radio Operation............................................14

4 Troubleshooting ..................................................................18

5 Specifications .....................................................................19

6 Service ... .............................................................................. 20

6.1 Worldwide Service ..........................................................20

6.2 US and Canada Service ..................................................20

6.2.1 Service at a US or Canada Service Center ............. 20

6.2.2 Factory Service ......................................................20

6.2.3 Factory Service Shipping Instructions ................... 20

6.2.4 Packing Instructions...............................................20

6.2.5 Estimate Approval...................................................20

6.2.6 Payment of Non-Warranty Repairs..........................20

7 Warranty .............................................................................. 21

Product Registration.................................................................... 23

Crown Factory Service Information Form ....................................25

page 4

Operation Manual

Commercial Audio Series Business Music System

*

1 kHz

180MAx

Minimum guaranteed power
into 4 ohms or 25V/70V output

*1 kHz Power: refers to maximum power in watts at
1 kHz with 0.5% THD.

Power

80W

1 Welcome

You have purchased the Crown® 180MAx tuner­mixer-amplifier either by itself, or as part of a sys­tem that includes loudspeakers. This manual cov­ers the system and also applies to the 180MAx.

The Crown 180MAx System is the first integrated
tuner-mixer-amplifier and loudspeaker system
designed for commercial use. It is designed for
easy installation by the user. Applications include
restaurants, retail stores, coffee shops and other
commercial establishments.

The system includes the Crown 180MAx tuner­mixer-amplifier, four JBL
loudspeakers with built-in 70V transformers, an
XM antenna and a wireless remote control.

®

Control® 1ST 2-way

Built into the 180MAx is an XM Radio that receives
satellite radio stations with digital sound quality. A
front-panel LCD screen displays XM channel data
(channel number, channel name, artist name, song
title), 16 station presets and signal strength.

The unit also accepts signals from line, telephone,
or microphone (phantom power included). Bass
and treble controls allow the user to tailor the tone
quality of the sound system. The priority ducking
feature drops the volume of the background music
when a microphone is used. A VOX threshold set­ting controls how loud the voice must be before
ducking occurs.

Units can be linked to increase the number of input
and output channels.

The built-in power amplifier provides 80 watts into
4-ohm outputs for 4-ohm or 8-ohm loudspeakers,
and 80 watts into 25V/70V outputs. Current and
thermal limiting protect the amplifier and loud­speakers from accidental overload.

1.1 Features

• Ideal for commercial use; can be installed by
the user

• 4 inputs (each with a volume control) and
one 80W amplifier output channel

• Independent bass and treble controls

• Balanced Phoenix-type mic/line input; dual
RCA stereo music inputs, touch-proof
screw-terminal speaker outputs

• Programmable XM tuner with XM channel
data display

•Priority ducking

• XM tuner Music-On-Hold output

• 180MAx System only: Four JBL Control 1ST
2-way loudspeakers with built-in 70V trans­formers, an XM antenna and a wireless
remote control included

• Three-Year, No-Fault, Fully Transferable
Warranty completely protects your invest­ment and guarantees its specifications

Operation Manual

page 5

1 Welcome

Commercial Audio Series Business Music System

1.2 Front Panel Controls and Indicators

A. Input Section

Top to bottom:
Input Signal Presence Indicator: Green LED, one for each

input channel, illuminates when input signal exceeds
–24 dBu (line) or –70 dBu (mic).

Input Volume Controls: Three detented potentiometers with
knobs. Input 1: Microphone/line (switchable); Inputs 2 and
3: Line.

Tone Controls: Bass and Treble non-detented recessed
potentiometers on each input channel. Bass ± 10 dB at 100
Hz, Treble ±10 dB at 10 kHz.

B. XM Tuner Input Section

Top to bottom:
Signal Presence Indicator (same as in Input section)
Input Volume Control (XM tuner volume)
Bass and Treble Controls (same as in Input section)

C. XM Tuner Display

LCD screen displays XM channel data (channel number,
channel name, artist name, song title), 16 station presets and
signal strength.

D. XM Tuner Scroll Knob

Lets you scroll through channels and select them.

E. Master Output Section

Top to bottom:
Output Signal Presence Indicator: Green LED illuminates

when output signal level exceeds 100 mV (45 dB below full
power) from the 4-ohm tap.

Clip Indicator: Red LED on output illuminates at threshold of
audible distortion.

Output Volume Control: Detented potentiometer with knob.

F. AC Power Section

Top to bottom:
Power Indicator: Blue LED indicates power on.

Power Switch: Pushbutton on-off switch.

G. XM Tuner Menu Controls

Left to right:
Menu Button: Selects Preset or Category mode (see Section

3.4).
Category Buttons: Scrolls through Categories (rock, classi-

cal, news, country, etc.).

page 6

Figure 1.1 Front Panel Controls and Indicators

Operation Manual

Commercial Audio Series Business Music System

1 Welcome

1.3 Back Panel Controls and Connectors

H. Reset Switch

Resets the circuit breaker that protects the power supply.

I. Amplifier Output Connector

4-position terminal strip with COM (Common), 4 ohms, 25V and
70V terminals. Use either 4-ohms or constant-voltage terminals, but
not both. Accepts up to 10 AWG crimp-on terminal forks. Non-touch
cover included.

J. Preamp Line Out Connector

3-pin balanced Phoenix-type connector. Post master, pre-VCA. Level
controlled by master volume control.

K. Link In/Out Switch

With the Link Switch IN, any signal applied to the Amp Input con­nector will be mixed with the input signal(s). With the Link Switch
OUT, only the signal from the Amp Input Connector will appear at the
amplifier output.

L. Amp Input Connector

3-pin Phoenix-type, high-impedance balanced. Used to link an
additional mixer to the mixer-amplifier. Can be used to connect an
external processor (see Section 2.9).

M. Output VCA Connector

3-pin Phoenix-type connector for one VCA control line of +10 VDC
and ground. Compatible with Crown 1-VCAP module.

N. Music On Hold Section

Top to bottom, left half:

Source Switch: Switches between Input 3 or XM, and routes the
source to MOH 1V Line Out and MOH 1W connectors.

1V Level Control and Signal Presence Indicator: Trim pot adjusts
level for Music-On-Hold 1V output. SPI flashes when MOH signal is
present.

1V Output (Isolated) Connector: 3-pin Phoenix connector, 600-ohm
transformer-isolated output, provides Music-On-Hold signal of
approximately 1 volt.

Top to bottom, right half:

1W Select Switch: Feeds 1W MOH signal either to 1 watt output or
internal speaker.

1W Level Control: Trim pot adjusts level for Music-On-hold 1W out­put.

1W Output Connector: 3-pin Phoenix connector provides Music­On-Hold signal of approximately 1 watt.

O. Input 3 Section

Input Connector: 3-pin Phoenix-type, line level, balanced, one per
input channel.

Dual RCA Input Connector:
For stereo music signals, unbalanced, summed together, two con­nectors per input for inputs 1, 2 and 3. If required, both the mic/line
and RCA inputs may be used at the same time. The mic/line gain
switch does not affect the RCA gain, which is fixed relative to mic/
line. The mic/line and RCA signals are mixed. Note: Other equip­ment connected to the RCA jacks should be connected to the same
AC power source as the mixer-amp to avoid hum.

P. Input 2 Section

Same as Input 3 Section.

Q: Input 1 Section

Top to bottom:

Phantom Power Switch: Turns phantom power on or off for Input 1.

Input Connector: 3-pin Phoenix-type, mic or line level, balanced.

Mic/line Switch: Selects mic-level or line-level signal for Input 1.

Dual RCA Input Connector: Same as Input 3 Section.

Tel Connector: Transformer-isolated 600-ohm input, summed into
Input 1 for paging from a telephone system.

R. AC Power Inlet

Detachable IEC.

S. Priority Ducking Section

Active Indicator: LED illuminates when VOX ducking is active.

VOX Threshold: Trim pot controls how loud the voice must be before
ducking occurs. Can be set for no ducking.

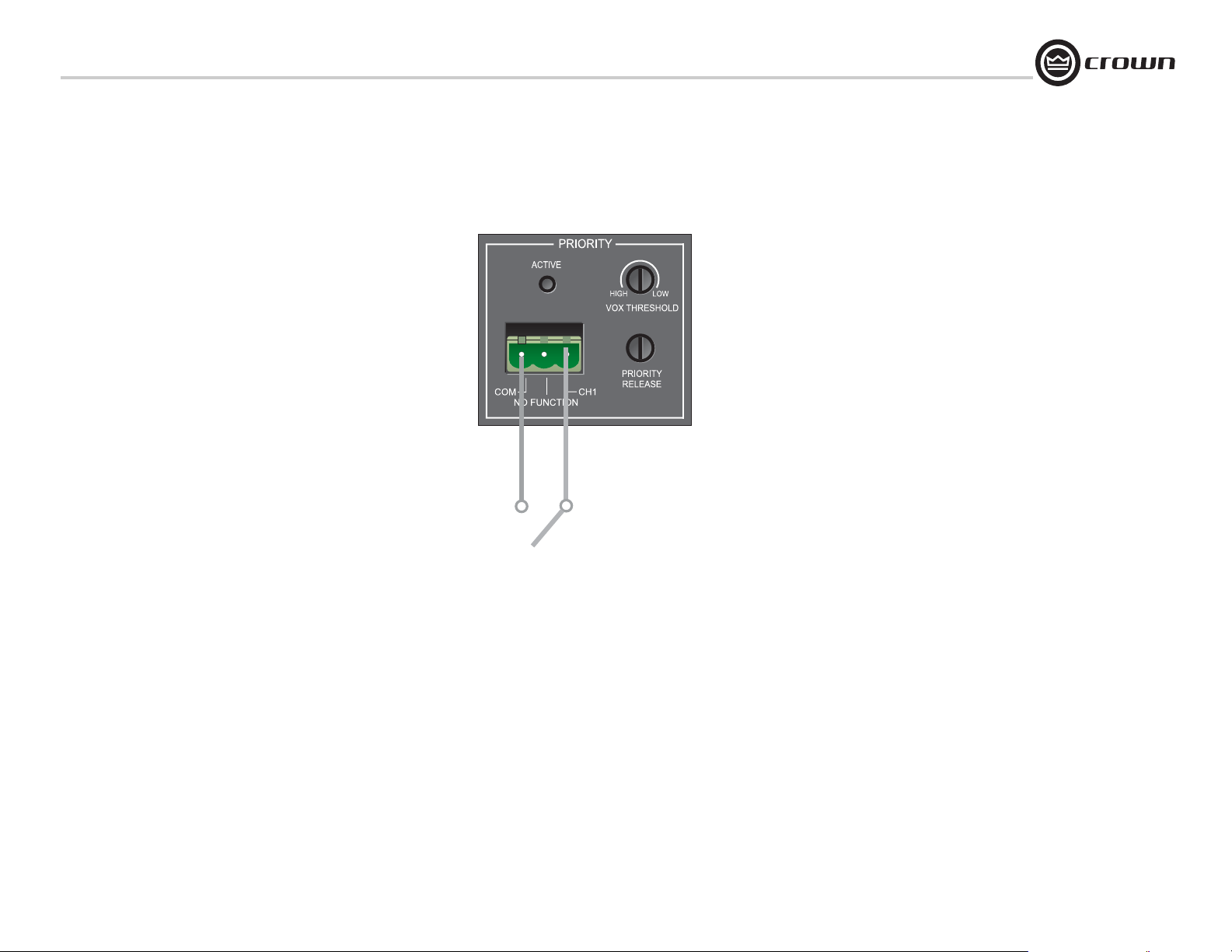

Priority Connector: 3-pin Phoenix-type connector for push-to-talk
mic switch. Contact closure activates ducking. Ducking does not
affect Music-On-Hold outputs or stereo line out.

Priority Release Control: Trim pot adjusts release time of VOX duck­ing.

T. XM Radio Stereo Line Out Connector.
Dual RCA jacks for stereo music out of XM Radio tuner.

U. XM Input Section

RS-232 Connector: Currently inactive; will be used for diagnostics.

XM Radio Antenna Input: Connects to the XM antenna cable.

Operation Manual

U

Figure 1.2 Back Panel Controls,

Connectors and Indicators

page 7

2 Setup

Commercial Audio Series Business Music System

2.1 Installation

CAUTION: Before you begin, make sure your
180MAx is disconnected from the power
source, with the power switch in the “off”
position and all level controls turned com­pletely down (counterclockwise).

Use a standard 19-inch (48.3 cm) equipment rack
(EIA RS-310B). See Figure 2.1 for amplifier dimen­sions.

You may also stack mixer-amps without using a
cabinet, or you may place a single mixer-amp on a
surface with 12 inches of air space around the unit
for convection cooling.

NOTE: When transporting in a rack, mixer-amps
should be supported at the front and back.

When using an equipment rack, do not mount units
directly on top of each other. Allow 2 rack units (3.5
inches) between units for convection cooling. The
side walls of the rack should be a minimum of two
inches (5.1 cm) away from the amplifier sides, and
the back of the rack should be a minimum of four
inches (10.2 cm) from the amplifier back panel.

2.2 How to Attach Rack Ears

1. Locate the two rack ears and two rack-ear screws
supplied.

2. See Figure 2.2. Remove the two screws from each
side of the chassis near the front.

3. Place a rack ear flush with the right front of the
chassis.

4. Insert a screw that you removed into the bottom
hole of the rack ear and chassis. Screw it in.

5. Insert a screw that you removed into the center
hole of the rack ear and chassis. Screw it in.

6. Insert one of the supplied screws into the top hole
of the rack ear and chassis. Screw it in.

7. Repeat steps 3-6 for the left side of the chassis.

Figure 2.2 How to Connect Rack Ears

page 8

Figure 2.1 Dimensions

Operation Manual

Commercial Audio Series Business Music System

2 Setup

2.3 Choose Input Wire and Connectors

Crown recommends using pre-built or professionally wired bal­anced line (two-conductor plus shield), 22-24 gauge cables and
connectors. Unbalanced line may also be used but may result in
noise over long cable runs.

The 180MAx has two types of input connectors: Phoenix-type
and RCA.

• Mic/Line Connectors and Amp Input Connectors: 3-pin
Phoenix-type, balanced, one per input channel (Figure 2.3).

• Dual RCA Input Connector: For stereo music signals,
unbalanced, summed together, two connectors per input for
inputs 1, 2 and 3 (Figure 2.4).

• Transformer-isolated 600-ohm input: 3-pin Phoenix­type. Summed into Input 1 for paging from a telephone system.
See Figure 2.5.

The 180MAx also has an XM antenna connector for use with
the supplied XM radio antenna.

MIC

+

–

To stereo

+

–

Figure 2.4 Dual RCA Input Connectors

source

line-level

-

Operation Manual

To mic or line-level source

Figure 2.3 Mic/Line Connectors

and Amp Input Connectors

To telephone system
interface/PBX output

Figure 2.5 Tel (Isolated)

Connector Wiring

to Telephone System

Interface or PBX

page 9
