Operator Manual
It’s the law, you must be trained and certified to operate this
truck.
(OSHA § 1910.178, Rev. 1999)
You Must be Trained
IT'S THE LAW, YOU MUST BE TRAINED AND CERTIFIED
Federal law states that only properly trained operators
are permitted to operate a powered industrial truck and
that your employer must train you and certify that you
are qualified to operate this powered industrial truck.
(OSHA §1910.178, Rev. 1999)
You or others around you can be seriously injured or even killed if
you don't use this truck correctly.
Read and obey all warnings and instructions in this Manual* and
on the truck.
Head, arms, hands, legs or feet outside the operator area can be
pinned or crushed whenever the truck is moving. Stay within the
operator area and
However, tipovers and falls from docks can cause serious injury
or even death.
emergencies.
You can be trapped or crushed by driving the operator area under
racks or other objects.
Inspect your truck before starting work, make sure it is in good
working order.
* Additional copies of this Operator Manual and all Truck Labels can be obtained
from Crown Equipment Corporation, New Bremen, Ohio 45869 U.S.A.
stop the truck completely before getting off.
Immediately exit and move away from the truck in these
Look where you are going.
Do not operate this truck
have been trained and certified by your employer.
You could be killed or seriously injured
adequately trained for lift truck operation!
in your work place until you
if you are not
1 Warning
All rights reserved under International
and Pan American copyright conventions
Copyright 2008 Crown Equipment Corp.
You Must be Trained 2
Protect Yourself
Know the Hazards
DRIVE CAREFULLY
• Keep your hands on the controls and feet on the
pedals/pad. Keep your entire body in the operator
area.
• Never stick a foot or any part of your body outside
the operator area, no matter how slow the truck is
moving. You cannot stop 3630 kg (8000 pounds) with
any part of your body. A foot or hand caught between
the truck and a fixed object will be crushed or even
cut off.
• Stay away from the edge of docks and ramps. Make
sure dockboards are secure. Check that trailer wheels
are chocked. You could be seriously injured or even
killed in a fall from a dock or dockboard.
• Keep your truck under control at all times. Drive at a
speed that allows you to stop safely. Be even more
careful on slippery or uneven surfaces. Do not drive
over objects on the floor.
LOOK WHERE YOU'RE DRIVING
• Always be alert to the area around you and watch
where you are driving. You could be pinned or
crushed by objects intruding or poking into the
operator area.
Know the Hazards
AVOID FALLS AND TIPOVERS
Falls from docks and tipovers are very serious accidents;
you can be crushed or even killed. Immediately exit and
move away from the truck in these emergencies.
Note:
This is not like sit-down rider trucks, where it is
recommended that the operator stay with the truck.
The best way to prevent injury is to know where you are
at all times and follow the rules of safe truck operation.
• Be extremely careful when working around docks,
dockboards and trailers.
• Travel with the load or forks close to the ground and
tilted back. Watch for overhead obstructions. Perform
all truck movements smoothly and at a speed that will
give you time to react in an emergency.
• An unloaded truck can tip over also. Be just as careful
using an unloaded truck as you are using a loaded
one.
WARNING
Stay clear of all
moving parts.
Moving parts can
cut or crush hands,
feet, arms or legs.
USE YOUR TRUCK SAFELY
• Keep your hands and feet away from all moving parts
such as masts, chains, forks or wheels. Make sure the
overhead guard and load backrest are in place.
• Never stand on or under the forks, or allow anyone
else to stand on or under them. The only way to lift
people is with an approved platform. Never allow
passengers on the truck. There is no safe place for
them.
3 Protect Yourself
• Before you leave your truck:
• Come to a complete stop and lower forks to the oor.
• Shut the truck off with the key or power disconnect.
Protect Yourself 4
Contents
Warning 1
You Must be Trained 2
Protect Yourself 3
Contents 5
What's in it for You? 6
Your Narrow-Aisle Truck 7
Lift Truck Parts 9
Capacity & Load Center 11
What's in it for You?
WHAT'S IN IT FOR YOU?
The better you understand your truck and how to use
it, the better and safer operator you can be. Here are
some guides to using this manual.
QUICK LOCATORS
In addition to the "Contents" page you
can use page headings to find topics.
Some pages also have a picture of the
truck in the corner showing features or
functions covered on that page.
Capacity Plate 13
Display Panel 15
Switch Panel 18
Power On & Off 19
Foot Brake 21
Traveling & Plugging 23
Steering & Travel 25
Two Types of Steering 26
Fork Functions 27
Daily Safety Check 31
Be a Safe Driver 33
Battery Maintenance 37
Warning Labels 42
"KNOW THE HAZARDS"
Watch for and read these special
blocks. You will find information
about possible safety hazards and
how to avoid them.
HOW-TO-DRAWINGS
On many pages you will find
pictures as well as text to help you
understand how to use your truck
safely and productively.
5 Contents
What's in it for You? 6
Your Narrow-Aisle Truck
NARROW-AISLE TRUCKS
Your narrow-aisle rider truck lifts, moves and stacks
loads. It is designed to work in warehouses built with
narrower aisles to give maximum storage.
YOUR LIFT TRUCK IS NOT AN AUTOMOBILE
With a load it may weigh as much as 3 automobiles.
• You don't steer the same.
• You don't brake the same.
• You don't accelerate the same.
FORK FUNCTIONS, STANDARD AND OPTIONAL
Raising and Lowering the forks, Tilt (up and down),
and Reach (in and out) are standard on the RR and RD
models. Your truck may also be equipped with Sideshift
(right and left), or other options such as Rack Height
Select. Your company has decided which features are
needed in your work area and should train you how to
use them.
HOW TO DRIVE YOUR TRUCK
Your truck is designed with a tilted floorboard and
padding in the operator area. You drive your truck by
standing sideways and leaning back against the pad.
This, along with your hands on the controls and feet on
the pedals/pad, gives you stability. However, controls
are located so you can vary your body position for best
comfort and visibility.
Stand
sideways
Hands on
Control
Lean back
against
cushion
BUILT TO STANDARDS
This truck was designed
and built to current
industry and government
standards and guidelines.
For more information see
the following:
• American National
Standards Institute
(ANSI/ITSDF) B56.1
• Occupational Safety
and Health Act (OSHA)
§1910.178, Rev. 1999
• Underwriters Laboratory
(UL) 583
• National Fire Prevention
Association (NFPA) 505
GIVE YOUR BODY A BREAK
Take advantage of stop time. Get off the truck and flex
your arms and legs. Staying alert will help you be a
better and safer driver.
7 Your Narrow-Aisle Truck
Feet on
pedals/pad
Your Narrow-Aisle Truck 8
Lift Truck Parts
Load Backrest
Reach Carriage
Overhead Guard
Fork
Mast
Operator Cushion
Display Panel
Switch Panel
Steering Tiller
Key Switch
Multi-Task Handle
Brake Pedal
Sensor Pad
Entry Bar
Floorboard
9 Lift Truck Parts
Battery
Outrigger
Load Wheels
Drive Wheel
Caster Wheel
Power Disconnect
Operator Cushion
Lift Truck Parts 10
Capacity & Load Center
Load
Center
Center of evenly
distributed load
600mm
(24in) Max
WHAT IS YOUR TRUCK CAPACITY?
Capacity is the load (including pallet or container)
that can be lifted to a given height at a given load
center. See the capacity plate on your truck.
Make certain you use the correct units
of measure.
WHAT IS LOAD CENTER?
Load center is the distance from the load backrest
or vertical face of the forks to the center of an
evenly distributed load.
LOADS MUST BE EVENLY DISTRIBUTED
Your truck could tip over, in any direction, if a
load is shifted to the front or side of a pallet or
container.
Know the Hazards
Load
SAMPLE
Center
Units of measure, kg/mm (lb/in)
Truck Weight with Max. Battery
Mast Collapsed Height
Attachment Data
Serial Number
Capacity with Mast Vertical
Capacity
Truck Type
KNOW YOUR LOAD
Do not exceed the capacity shown on your truck's
capacity plate. Be careful when handling long, high or
wide loads. Do not handle unstable loads.
EXCEEDING TRUCK CAPACITY CAN CAUSE AN ACCIDENT
Know the capacity of your truck as shown on your
capacity plate. Make certain you use the correct units
of measure. Pay attention to:
• Weight of load
• Load center
• Lift height
CENTER THE LOAD
Your truck could tip over if a load is shifted to the front
or side of a pallet or container. Make sure your load is
evenly distributed, stable and centered over the forks.
11 Capacity & Load Center
HYDRAULIC OPERATIONS CAN AFFECT STABILITY
Be careful when using reach, tilt, sideshift or other
operations. Remember that anytime the forks move,
the load moves also. This can affect stability. Perform
all hydraulic operations smoothly. (This also applies to
any attachments your truck may have.)
Capacity & Load Center 12
Capacity Plate
SAMPLE
CAPACITY PLATE
The information
shown on this
sample plate
does not apply
to your truck.
CAPACITY PLATE INFORMATION
The capacity plate is on a console in the
operator area. It contains:
• Serial number
• Capacity information (load, load center and lift height)
• Truck type (a re safety rating)
• Truck weight with max. battery (does not include load)
• Attachment information (if any)
• Mast collapsed height
READING YOUR CAPACITY PLATE
Capacity may be reduced as lift height increases.
For example: On the sample plate, 1590kg (3500 lb) can
be lifted to 3935mm (155 in). But above 3935 (155), to
5030 (198), capacity is reduced from 1590 (3500) to
1360 (3000).
Capacity is reduced as load center increases.
If you must handle loads with longer load centers, an
additional capacity plate will show the reduced
capacities.
Units of measure, kg/mm (lb/in)
Truck Weight with Max. Battery
Attachment Data
Serial Number
Capacity with Mast Vertical
Capacity
CAUTION
You may not increase capacity if load
center is less than shown on your
capacity plate.
Note:
ANSI/ITSDF B56.1 requires that all
data be shown first in Metric units
and then USA units.
OTHER LIFT HEIGHTS & LOAD CENTERS
Contact Crown for capacities at lift heights or load
centers not given on your capacity plate.
Know the Hazards
TRUCK WEIGHT
Dockboards, elevators and some floors have limited
capacity. Check your capacity plate for the weight of
your truck. Remember to add the weight of the load
you have on the forks.
TRUCK TYPE
Some truck types are not permitted in areas where
there are fire hazards. Watch for marked areas. For
example: You must not drive a type E or ES truck
into an area restricted to EE or EX trucks.
ATTACHMENT DATA
If an attachment on your truck does not match the
information given here on your capacity plate, don't
operate your truck. Your capacity plate may be
wrong. Report the problem to your supervisor.
MAST COLLAPSED HEIGHT
Some work areas may have overhead obstructions.
Mast Collapsed Height is the minimum height your
truck can clear, providing the backrest and load are
lowered below the top of the mast.
13 Capacity Plate
Capacity Plate 14
Display Panel
ENTER OR RETURN BUTTON
Use to navigate in and out
of menus and select inputs.
NAVIGATION BUTTONS
Up, Down, Left and Right
Arrows are used to scroll
through menus.
MESSAGE PANEL
The upper half of the message panel shows percent of charge remaining in
the battery, and indicators relating to truck operation and service.
Service required. Contact your supervisor or service department.
Operator alert. See bottom line for instructions.
Indicates that load back rest is above collapsed height of the mast.
FORKS DOWN LIGHT (see Caution)
The green fork means the mast is at its minimum collapsed height. Make certain the
load will clear overhead obstructions.
CAPACITY DATA MONITOR (see Caution)
• Fork height lights:
If any of these lights are on, it means the load backrest is higher than the collapsed
height of the mast. Make certain the load and load backrest will clear any
obstructions above you.
The yellow light will flash and alarm will "beep" if you travel faster than the load
positioning speed (2.4 km/h, 1.5 MPH) while the load backrest is above the
collapsed height of the mast.
• Max Lift height lights:
you can raise the load.
Overload warning:
"beep" and message display will read . Lower load carefully.
Caution:
Data Monitor is for reference only. You must always be alert to load center, load
distribution, load height and load weight. You must also be aware when the load or
load backrest extends above the top of the mast, and how much overhead clearance
is needed.
All information displayed by the fork position lights and/or the Capacity
A yellow fork will light to show which lift zone the forks are in.
The green bars will light to show how high, or to which lift zone
If load is too heavy for the lift zone the forks are in, the alarm will
REDUCE LIFT HEIGHT
Drive wheel direction and angle indicator.
Traction Control indicator (OnTrac™).
Indicates the level your company has programmed this truck to operate.
Indicates energy is being returned to the battery.
198 In
CENTER TRAVEL HANDLE
The bottom line of the message panel is usually blank. However if anything
requires your attention, instructions will be displayed here.
Anytime you hear a beep, or if the truck slows down or won’t work, check
message panel for instructions.
This line of the message panel shows selective truck information, when
requested using the Service & Option Buttons. See your Service Manual.
SAMPLE
MESSAGE
PANEL
15 Display Panel
Display Panel 16
Right Header
Switch Panel
This page
left blank
intentionally.
DOME LIGHT SWITCH
FAN SWITCH (optional)
WORK LIGHT SWITCH (optional)
RAISE CUTOUT OVERRIDE SWITCH (optional)
Your truck may be equipped with automatic cutout of
raise at selected lift heights.
To raise past the cutout height, push the optional Raise
Cutout Override switch while, at the same time, lifting
the multi-task control handle (see page 27).
Caution:
clear all overhead obstructions.
Make certain the load and load backrest will
17
Switch Panel 18

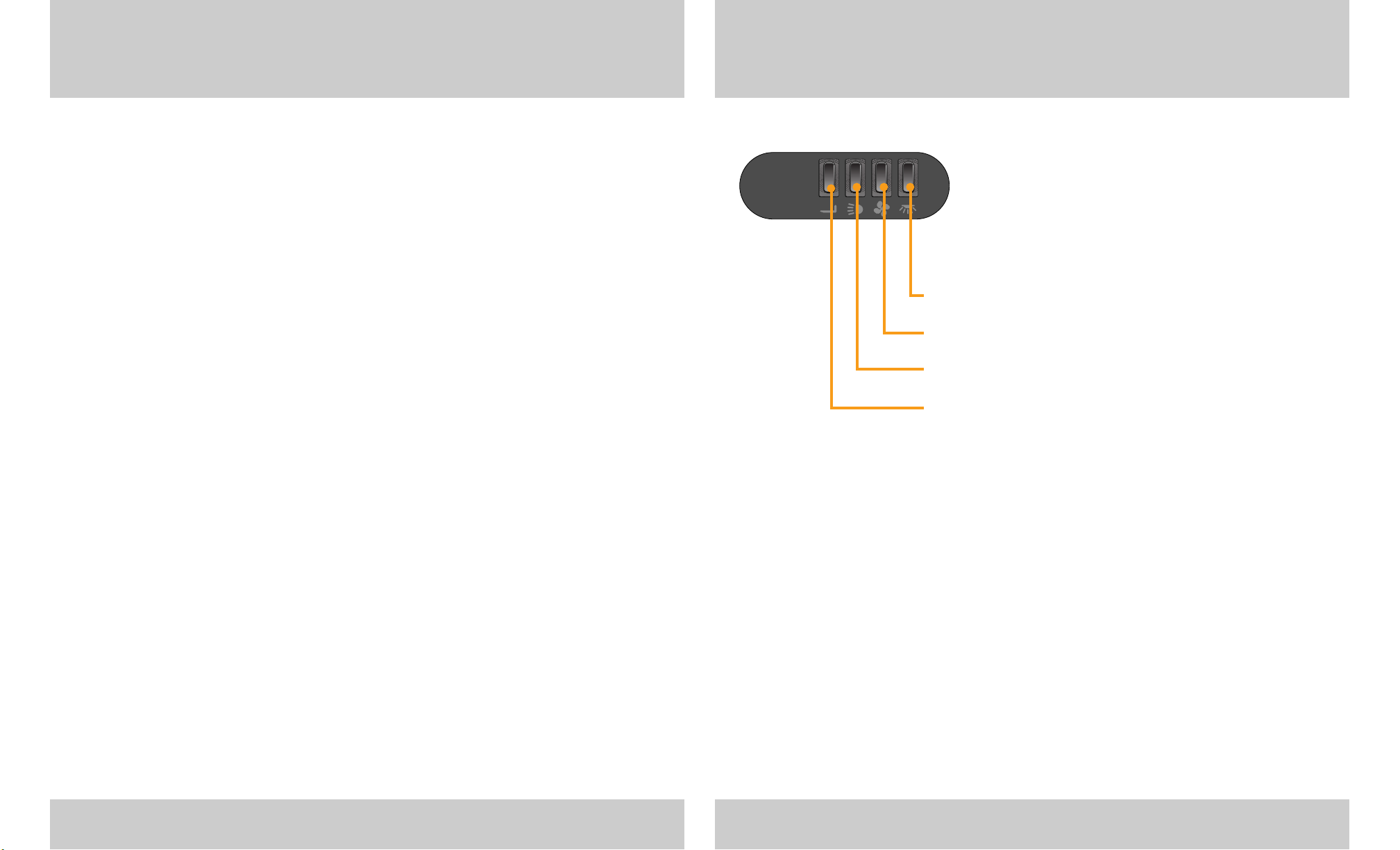

Power On & Off
POWER DISCONNECT
KEY SWITCH
• To start the truck, turn the key clockwise to TEST
(yellow dot). Check that all display lights are working.
• Let go of the key and it will return to ON (green dot).
• When leaving the truck, turn the key counterclockwise
to OFF (red dot) to shut the truck off.
USER CODE (PIN number)
You may have to enter a user code (Personal
Identification Number) before you can use the truck.
Check the message display if the truck doesn't operate.
FOOT PEDALS/PAD
Place your left foot on the brake pedal, and your right
foot on the sensor pad. Turn the key ON and lift your
left foot for a moment to cycle the brake. Return your
foot to the brake pedal.
Lift your right foot and return it to the sensor pad. The
truck is ready for operation.
ENTRY BAR
Always keep your feet in the operator area and clear of
the entry bar.
Push the Power Disconnect button to cut power to the
truck.
Use the Power Disconnect to shut the truck down any
time it isn't working right. Don't use the truck if it's not
working right. Report the problem to your supervisor.
Turn the key switch to OFF and back to ON to
reconnect the battery and reset the Power Disconnect
button.
19 Power On & Off
If you put your foot on the entry bar while traveling, the
alarm will sound and the truck will slow to a stop.
Power On & Off 20
Foot Brake
BRAKE OFF
Step all the way down on the brake pedal.
The brake is now "off".
BRAKE ON
Lift your heel or move your foot off the brake pedal
to apply the brake. Keep a part of your foot in contact
with the floorboard.

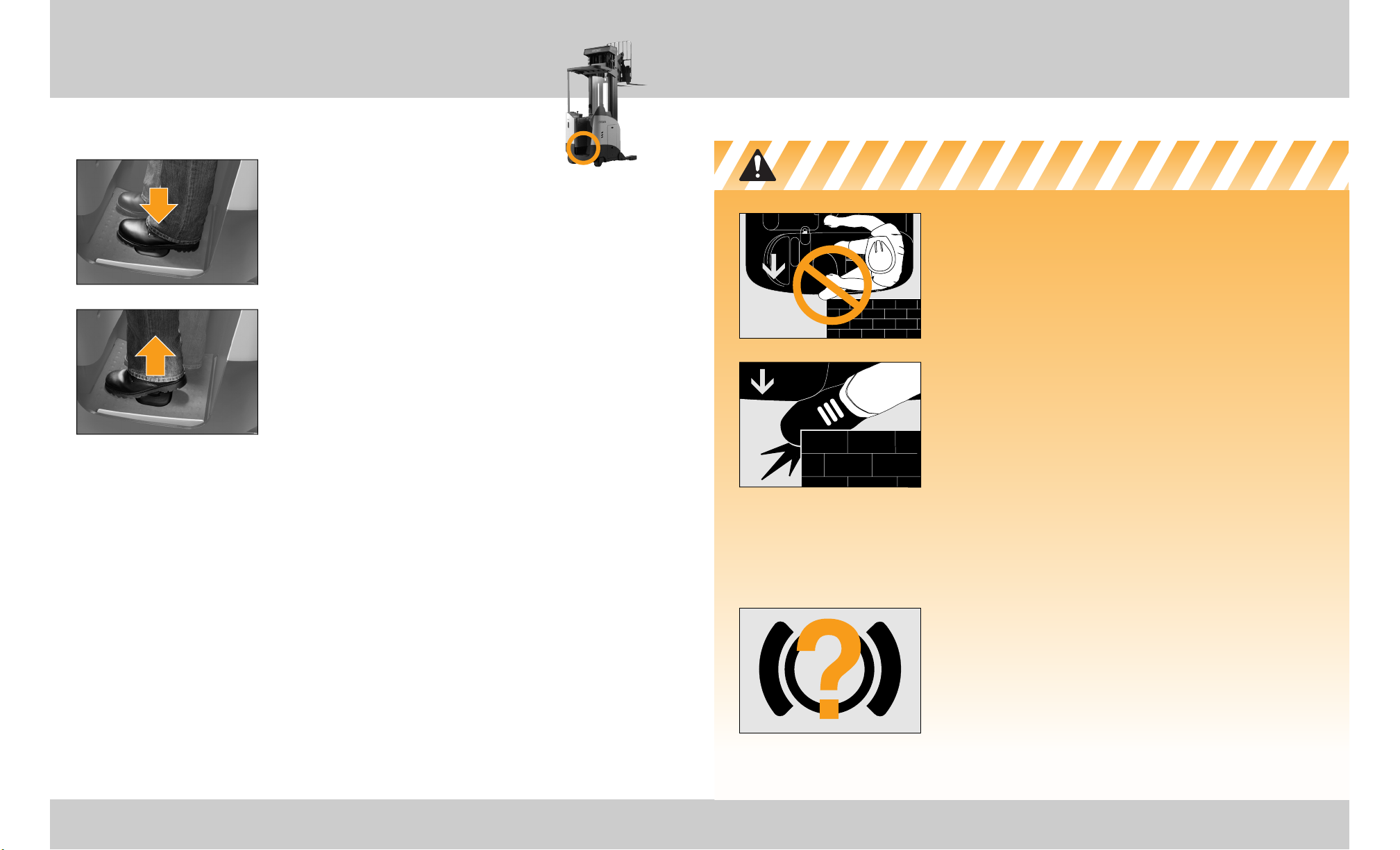

Know the Hazards
WATCH YOUR FEET
Keep your feet inside the truck and on the pedals/pad
at all times. This truck weighs about 3630 kg or (8000
pounds) without a load on the forks. You cannot stop
or even slow down that much weight with your foot or
any part of your body, no matter how slow the truck is
moving.
A foot or hand caught between the truck and a wall,
post or any fixed object will be crushed or even cut off.
KEEP YOUR BALANCE
Put your hands on the controls and keep your feet on
the floorboard. This, along with leaning back against
the cushion, gives you better stability.
21 Foot Brake
MAKE SURE YOUR BRAKE WORKS
Test the brake on your truck at the start of each shift.
Know the distance it takes to stop before you start
working.
If at any time the stopping distance is too long for
you to stop safely, don't drive the truck. Report any
problem to your supervisor.
Foot Brake 22

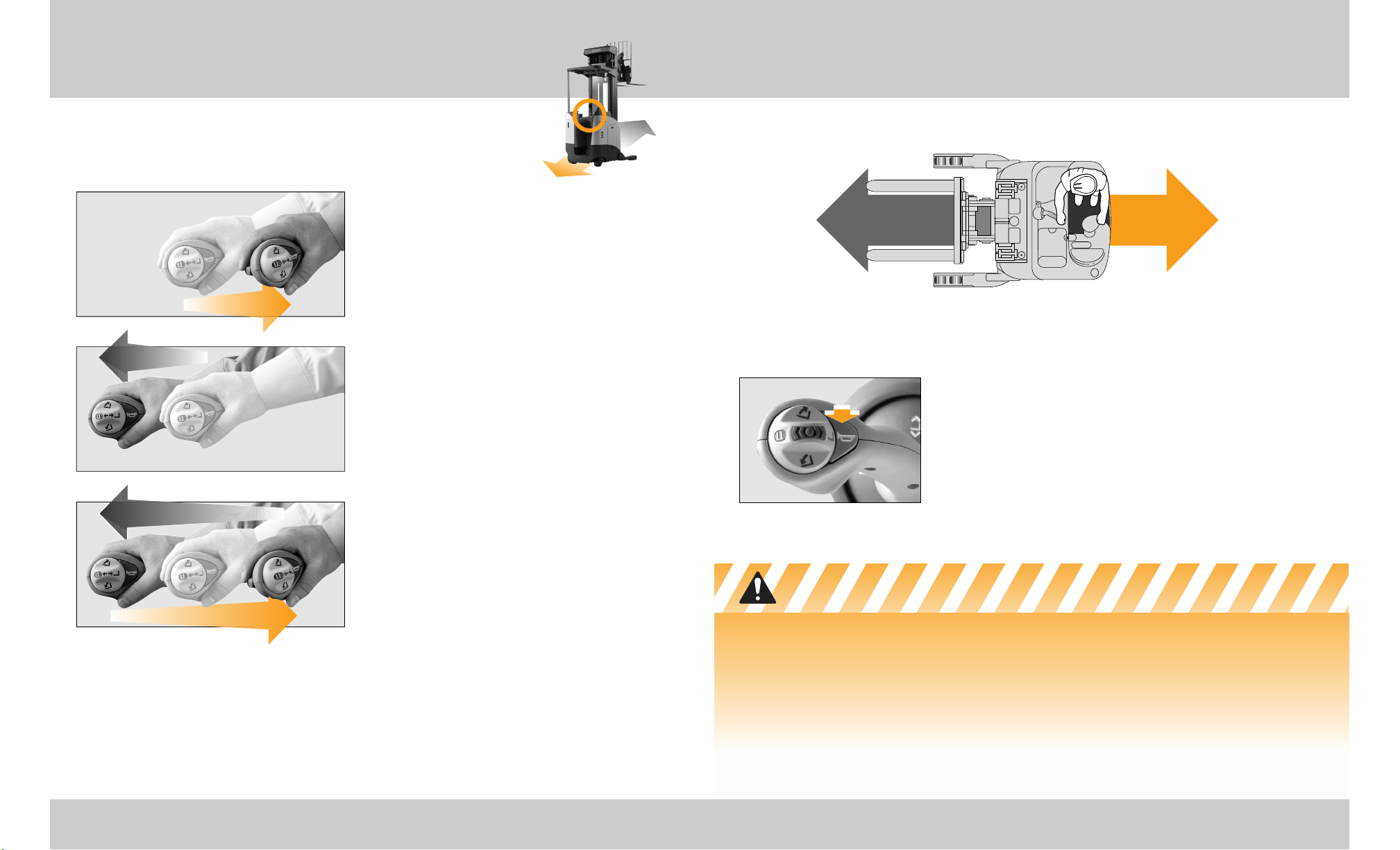

Traveling & Plugging
TRAVEL, POWER UNIT FIRST
Pull the multi-task handle toward you to
travel in the direction of the power unit
(power unit first).
The farther you pull the handle from the
neutral position, the faster the truck will
travel.
TRAVEL, FORKS FIRST
Push the multi-task handle away from you
to travel in the direction of the forks
(forks first).
The farther you push the handle from the
neutral position, the faster the truck will
travel.
Travel,
forks first
Pull the
multi-task
handle
Travel, power
unit first
Push the
multi-task
handle
HORN
Press the button on the multi-task handle to sound
the horn. Use it to warn pedestrians and other drivers.
Use your horn when you come to an intersection or a
crosswalk.
23 Traveling & Plugging
PLUGGING
Plugging is another way to slow down or
stop your truck.
While the truck is moving, in either
direction, pull or push the multi-task
handle through neutral to the opposite
direction of travel.
Plugging will not hurt your truck.
Know the Hazards
PLUGGING VS. BRAKING
Of the two, the foot brake is designed to stop the
truck in the shortest distance. Use the foot brake in an
emergency, on ramps or in busy areas.
Traveling & Plugging 24
Right Header
Steering & Travel
STEERING AND DRIVING
You will need to drive your truck in
both the direction of the forks (forks first)
and also in the direction of the power unit
(power unit first). Steering is not the same in both
directions. Be careful. Drive slowly until you get used to all
the controls.
This truck is designed to slow down when turning.
Caution:
RR Models 5200, and earlier, do not have this feature.
Two Types of Steering
REAR DIRECTIONAL STEERING (Sometimes called Reverse Steering.)
Shows direction truck will turn when steering handle is turned clockwise.
1
TRUCKS THAT LOOK ALIKE CAN BE DIFFERENT
This style truck can be built with one of two different types
of steering. Your company has selected the type which is
best for your work area.
Caution:
If you ever drive a different RR Series truck, be
careful. The steering may be different (see page 26).
Know the Hazards
POWER UNIT SWING
Be careful turning while traveling forks first. The power
unit will swing wide in the opposite direction. Make sure
you have clearance, and watch out for people in the
area.
SLOW DOWN FOR SPILLS OR WET FLOORS
Powder or liquid spills can cause slippery floors. Slow
down or you could lose control of steering and braking.
Be careful and allow for a longer stopping distance.
Travel, power
unit first
D
i
r
o
e
f
c
t
i
T
o
u
n
r
n
n
o
i
t
n
r
c
e
u
r
i
T
D
f
Travel,
o
forks first
FRONT DIRECTIONAL STEERING (Sometimes called Forward Steering.)
Shows direction truck will turn when steering handle is turned clockwise.
2
Travel, power
unit first
n
o
i
t
n
c
r
e
u
r
T
i
f
D
o
o
Travel,
D
i
r
forks first
e
c
f
t
T
i
o
u
n
r
n
25 Steering & Travel
Don't run over objects on the oor.
Two Types of Steering 26
Fork Functions
FORK FUNCTIONS
Standard fork functions include
Raising and Lowering the forks, Tilt (up and down), and
Reach (extend and retract).
Some optional fork functions your truck may be
equipped with are Sideshift (right or left), Rack Height
Select which allows the truck to be programmed so
the forks will stop at selected heights, and Tilt Position
Assist to tilt the forks to a programmed position.
RAISE/LOWER
Lift the multi-task handle up to raise the forks. Push
down on the handle to lower the forks.
The farther you move the multi-task handle from
neutral, the faster the forks will move.
RAISE CUTOUT OPTION
Your truck may be equipped with an automatic cutout
to prevent you from raising the forks into restricted
areas.
RACK HEIGHT SELECT OPTION
This option allows a truck to be programmed so the
forks will stop at a selected height.
1. Press the UP or DOWN ARROW button until the
message display shows .
2. Select the RIGHT ARROW to enter rack select mode.
3. Press the switch on the back of the multi-task handle
to scroll through the lift heights that have been
programmed into the truck. The message display will
show the height in either millimeters or inches, along
with the label number for the height.
Or, while raising or lowering, press and release the
switch to select the next programmed rack height.
4. Make certain the path of the forks is clear. Lift and
hold the multi-task handle. The forks will stop and
there will be a one second beep when they reach the
programmed height. Check to make certain the forks
are at the correct position before entering the rack or
pallet.
RACK SELECT
27 Fork Functions
If raise stops, check the message display.
will show on the display if you
CUTOUT, USE OVERRIDE
are at a raise cutout height. See page 18 for using the
optional Raise Cutout Override Switch.
Know the Hazards
CHECK THE PATH OF THE FORKS
Be just as careful raising the forks with the rack height
select option as when using manual raise. Make certain
the path of the forks is clear and free of obstacles.
Check that the forks are at the proper position to enter
the pallet, or that the pallet will clear the rack beam.
Fork Functions 28
Fork Functions continued
THUMB BALL
All hydraulic fork functions, other than
raise & lower, are controlled by the multi-task thumb
ball.
TILT UP & DOWN
Roll the thumb ball up to tilt the fork tips up. Roll the
ball down to tilt the fork tips down.
TILT POSITION ASSIST OPTION
If your truck is equipped with this option, the forks
will go to the programmed tilt position chosen by your
company for this truck.
With the thumb ball in neutral, press and hold the
switch on the back of the multi-task handle. Then roll
the thumb ball either up or down.
REACH/RETRACT
Roll the thumb ball away from you to reach (extend) the
forks. Roll the ball toward you to retract the forks.
The farther you move the ball from neutral the faster the
forks will move.
This motion of the thumb ball will have a second
function if your truck has a sideshift option.
SIDESHIFT OPTION
With the thumb ball in neutral, press and hold the
switch on the back of the multi-task handle. Then roll
the ball away from you to shift the forks to the left (away
from you). Roll the ball toward you to shift the forks to
the right (toward you).
The farther you move the ball from neutral the faster the
forks will move.
FORK POSITION WILL VARY DEPENDING ON LOAD
The tilt of the forks and raised height of the forks will
change depending on how much load is on the forks.
Always check to see that the forks are at the correct
tilt position and lift height to enter a pallet, or that the
pallet and load will clear the rack beams.
Be just as careful when using programmed functions as
when operating the truck manually.
29 Fork Functions continued
Know the Hazards
CHECK FORK AND PALLET POSITION
The fork position will vary depending on whether the
forks are loaded or unloaded.
Make certain the forks are at the correct tilt position and
lift height to enter a pallet, or that the pallet and load
will clear the rack beams.
Fork Functions continued 30
Daily Safety Check
CHECK YOUR TRUCK BEFORE STARTING WORK
You must make sure your truck is safe to use.
1. Walk around your truck and check it over.
• Check to make sure the battery is charged, water level is
OK and vent caps are in place. Don't use an open
flame to check the battery.
• Make certain the battery retainers on both sides of the
truck are properly installed and adjusted.
• See that all wheels are in good condition.
• Clean the safety glass.
• Check that both forks are secure and not bent, cracked or
badly worn.
• Inspect lift chains for damage.
• See that the load backrest and overhead guard are in place
and fastened.
• Look under the truck for signs of hydraulic leaks.
• Turn the key to TEST (yellow dot). See that all display
lights are working.
2. Test drive your truck in an uncongested area.
• Try all the hydraulic functions.
• Check that the steering is easy and smooth.
• Drive the truck slowly in both directions.
• Drive through the full speed range in both forward
and reverse.
• Check braking and plugging distances in forward
and reverse. Load size and floor conditions can
affect these distances.
• Know the distance it takes to stop before you start
working. If the braking distance is too long to stop
safely, don't drive the truck.
If anything doesn't look or feel right, don't drive the truck.
Report the problem to your supervisor.
You can get checklist forms from your Crown dealer (part no. OF-3772).
Used properly, this checklist can alert service people to needed repairs.
• Test the horn.
• Make sure the power disconnect works.
31 Daily Safety Check
Daily Safety Check 32
Be a Safe Driver
MAKE SURE YOU ARE READY TO DRIVE
• Do not use this truck unless you are trained and
certified.
• Be certain you understand how your truck works and
the hazards that go with it. Don't drive the truck if
you have any doubts.
• Know the capacity of your truck (Load Weight, Load
Center and Lift Height). Make certain you use the
correct units of measure.
• Some trucks are not allowed in areas where there are
fire hazards. Be certain your truck is the correct fire
safety type for the area.
• Make sure your hands and shoes are clean and dry,
and your clothing is proper for the job.
MAKE SURE YOUR TRUCK IS READY
• Inspect your truck before using it (see pages 31 and
32). If it's not working right, or something is broken,
report the problem to your supervisor. Don't use the
truck.
• In an open area, test the brakes and plugging. Check
at a slow travel speed rst, then a faster one. Know
the distance it takes to stop before you start work.
DRIVE CAUTIOUSLY, BE ALERT
• Never stick a foot or any part of your body outside the
operator area, no matter how slow the truck is
moving. You cannot stop 3680 kg (8000 pounds) with
any part of your body. A foot or hand caught between
the truck and a fixed object will be crushed or even
cut off.
• Stand sideways with your back against the pad.
Keep your hands on the controls and your feet on the
pedals/pad.
• Travel in the direction that gives you the best
view. Look where you are going and slow down in
congested areas.
• Slow down for wet or slippery floors. Don't run over
things.
• Travel with the forks close to the ground, retracted
and tilted up. Place the load against the load backrest
(vertical face of the forks).
• Look where you are going before you change direction
of travel.
• See that you have room to drive and turn. Always
check for overhead objects. Watch out for power unit
swing.
• Slow down when making turns.
• Avoid sudden movement of controls. Learn to use
them smoothly at a moderate, even rate.
• Check clearances before raising or lowering the forks
or load.
• Be extra careful if you must use your truck in an area
where there is a risk of falling objects.
33 Be a Safe Driver
Continued next page...
Be a Safe Driver 34
Be a Safe Driver continued
WATCH OUT FOR OTHER PEOPLE
• Slow down. Yield or stop for pedestrians.
Use your horn when you come to a crosswalk or
intersection.
• Be careful that you don't pin or crush someone.
For example: Never drive your truck toward anyone
standing in front of a xed object.
• Never allow passengers on your truck.
• Keep others away from your truck while you're
working. Don't ever allow anyone on or under the
load or forks.
• Don't let anyone use your truck unless they are trained
and certified.
• Never lift anyone with the forks unless they are
using an approved platform. Even then use extreme
caution:
• Use a securely attached and approved safety
platform.
• Make certain lifting mechanism is operating
properly.
• Have load backrest vertical (never tilt when
elevated).
• Make certain truck is in neutral and brake is applied.
• Lift and lower slowly.
• Watch for overhead obstructions.
• Be sure you can see and hear the person being
lifted.
• Never transport anyone on the platform from one
location to another.
AVOID FALLS AND TIPOVERS
• Stay away from the edge of docks and ramps.
• Check that bridgeplates and dockboards are secure.
Be certain that either the trailer wheels are chocked or
the trailer is locked to the dock. Check capacities. Be
sure your truck, with load, isn't too heavy for where
you are driving.
• Make sure the load you are moving is stable. Spread
the forks as far as you can and center the load. Insert
the forks as far under the load as you can. Be even
more careful with long, high or wide loads. They can
be less stable.
• Use minimum fork tilt to pick up or place a load.
When lifting or lowering outside a rack, keep the load
backrest vertical or tilted back slightly.
• When moving loads on grades or ramps, drive with
your forks pointed upgrade. Without a load, drive
with forks downgrade. Slow down, and don’t turn on
grades or ramps.
LEAVING YOUR TRUCK
• Stop your truck completely before getting off.
• Lower the forks to the floor. Turn the truck off or push
the Power Disconnect button.
• Avoid parking on inclines. But if you must, block the
wheels of your truck.
35 Be a Safe Driver continued
Be a Safe Driver continued 36
Battery Maintenance
Know the Hazards
TRUCK BATTERIES CAN BE DANGEROUS
DANGER
Your truck battery produces gas that can explode.
It also contains acid that could burn or disfigure you.
• Do not try to install, remove, charge or service your
truck battery unless you are trained and authorized.
• Never smoke or use an open ame around batteries.
Batteries produce explosive gas.
Do not smoke, use open flame, or
create an arc or sparks near this
battery. Ventilate well in enclosed
areas and when charging.
Batteries contain Sulfuric Acid which
causes severe burns. Do not get in
eyes, on skin, or clothing. In case of
contact, flush immediately. Get medical
attention if your eyes are affected.
• Your company should provide an area where it is safe
to work on batteries. Use that area for all battery
work.
• Use protective equipment such as gloves, eye shields,
aprons etc.
37 Battery Maintenance
Know the Hazards
BEFORE CHARGING YOUR TRUCK BATTERY
• See that the battery cells are filled to the proper level.
Never use an open flame to check the battery.
• Make certain the charger is the same voltage and
amperage as your battery.
• Read the battery charger instructions.
• Be sure the charger is turned OFF before connecting
the battery to the charger. Otherwise you might create
a spark which could cause the battery to explode.
Continued next page...
Battery Maintenance 38
Battery Maintenance continued
WHEN YOU INSTALL OR CHANGE BATTERIES
• Turn the truck OFF. Disconnect the battery. Check
that all controls are in neutral.
• Make certain you use the correct size and
weight battery. Never operate a truck that has an
underweight or undersized battery installed.
• Use a roller stand to install or remove a battery. Make
sure the roller stand is the same height as the rollers in
the truck's battery compartment. Also make sure the
roller stand is at least as long as your battery.
• Never let anything metal touch the top of the cells.
You could cause sparks or do damage to the battery.
Use an insulator (such as plywood) when necessary.
• Use an approved spreader bar to place a battery on,
or to remove it from a stand. Make sure you adjust the
spreader bar hooks to fit the battery.
AFTER INSTALLING YOUR BATTERY
• Replace the battery retainer. Make certain the
• Check that the battery retainers are properly adjusted
• Connect the battery. Turn the truck ON and check
Know the Hazards
WARNING
Minimum battery size allowed
000 mm (00.00 in.) wide
000 mm (00.00 in.) long
Undersize battery can affect truck
handling and stability. You could have
an accident.
Use U.L. classified Type EO battery.
BATTERY SIZE
• Make certain you use the correct size and
BATTERY RETAINERS
• The battery could slide out if retainers are not in place.
retainers on both sides of the truck are in place.
to prevent the battery from shifting.
truck operation.
weight battery. Never operate a truck that has an
underweight or undersized battery installed.
Check both sides of the truck.
39 Battery Maintenance continued
• Truck operation can be affected if the battery is
able to shift. Make certain the battery retainers are
properly adjusted.
Battery Maintenance continued 40
Notes
Warning Labels
EACH WARNING LABEL
ON YOUR TRUCK IS IMPORTANT
Read and obey all of them to protect
yourself and others.
41 Notes
All rights reserved under International
and Pan American copyright conventions
Copyright 2008 Crown Equipment Corp.
Warning Labels 42
T h i s o p e r a t o r m a n u a l
h a s i n f o r m a t i o n f o r
a l l m o d e l s o f s e r i e s
RR 5700 plus some options
and accessories. Some of the
illustrations and information
may not apply to your truck.
5700 SERIES
The most important component is you.
New Bremen, Ohio 45869 USA © 2009 PF18340 Rev. 5/09 Printed in U.S.A.
Loading...
