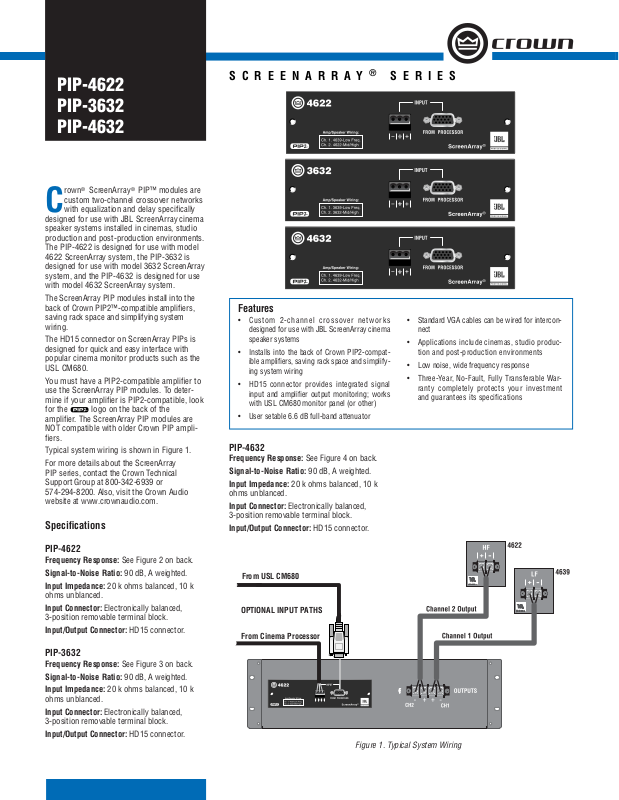

Crown PIP-3632, PIP-4622, PIP-4632 Brochure
PIP-4622
PIP-3632
PIP-4632
®
rown
ScreenArray® PIP™ modules are
custom two-channel crossover networks
C
with equalization and delay specifi cally
designed for use with JBL ScreenArray cinema
speaker systems installed in cinemas, studio
production and post-production environments.
The PIP-4622 is designed for use with model
4622 ScreenArray system, the PIP-3632 is
designed for use with model 3632 ScreenArray
system, and the PIP-4632 is designed for use
with model 4632 ScreenArray system.
The ScreenArray PIP modules install into the
back of Crown PIP2™-compatible amplifi ers,
saving rack space and simplifying system
wiring.
The HD15 connector on ScreenArray PIPs is
designed for quick and easy interface with
popular cinema monitor products such as the
USL CM680.
You must have a PIP2-compatible amplifi er to
use the ScreenArray PIP modules. To determine if your amplifi er is PIP2-compatible, look
for the logo on the back of the
amplifi er. The ScreenArray PIP modules are
NOT compatible with older Crown PIP amplifi ers.
Typical system wiring is shown in Figure 1.
For more details about the ScreenArray
PIP series, contact the Crown Technical
Support Group at 800-342-6939 or
574-294-8200. Also, visit the Crown Audio
website at www.crownaudio.com.
Specifi cations
SCREENARRAY® SERIES
Features
• Custom 2-channel crossover networks
designed for use with JBL ScreenArray cinema
speaker systems
• Installs into the back of Crown PIP2-compatible amplifi ers, saving rack space and simplifying system wiring
• HD15 connector provides integrated signal
input and amplifi er output monitoring; works
with USL CM680 monitor panel (or other)
• User setable 6.6 dB full-band attenuator
PIP-4632
Frequency Response: See Figure 4 on back.
Signal-to-Noise Ratio: 90 dB, A weighted.
Input Impedance: 20 k ohms balanced, 10 k
ohms unblanced.
Input Connector: Electronically balanced,
3-position removable terminal block.
Input/Output Connector: HD15 connector.
• Standard VGA cables can be wired for interconnect
• Applications include cinemas, studio production and post-production environments
• Low noise, wide frequency response
• Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
and guarantees its specifi cations
PIP-4622
Frequency Response: See Figure 2 on back.
Signal-to-Noise Ratio: 90 dB, A weighted.
Input Impedance: 20 k ohms balanced, 10 k
ohms unblanced.
Input Connector: Electronically balanced,
3-position removable terminal block.
Input/Output Connector: HD15 connector.
PIP-3632
Frequency Response: See Figure 3 on back.
Signal-to-Noise Ratio: 90 dB, A weighted.
Input Impedance: 20 k ohms balanced, 10 k
ohms unblanced.
Input Connector: Electronically balanced,
3-position removable terminal block.
Input/Output Connector: HD15 connector.
From USL CM680
OPTIONAL INPUT PATHS
From Cinema Processor
Figure 1. Typical System Wiring
Figure 2. PIP-4622 Frequency Response
PIP-4622
PIP-3632
PIP-4632
HD15 PINOUT
1 Inverting input (–)
2 NC
3 Ch. 1 output voltage monitor
4 NC
5 NC
6 Chassis ground
7 Non-inverting input (+)
8 NC
9 NC
10 Signal ground
11 NC
12 NC
13 Ch. 2 output voltage monitor
14 NC
15 NC
Figure 3. PIP-3632 Frequency Response
Figure 4. PIP-4632 Frequency Response
Crown’s Three-Year, No-Fault, Fully Transferable Warranty
Crown offers a Three-Year, No-Fault, Fully Transferable Warranty for every new Crown amplifi er
product—an unsurpassed industry standard. With this unprecedented No-Fault protection, your
new Crown amplifi er product is warranted to meet or exceed original specifi cations for the fi rst
three years of ownership. During this time, if your unit fails, or does not perform to original
specifi cations, it will be repaired or replaced at our expense. About the only things not covered
by this warranty are those losses normally covered by insurance and those caused by intentional
abuse. And the coverage is transferable, should you sell your unit.
See your authorized Crown dealer for full warranty disclosure and details. For customers outside
of the USA, please contact your authorized Crown distributor for warranty information or call
574-294-8200.
5
10
15
Crown International
1718 W. Mishawaka Rd.
Elkhart, IN 46517-9439
TEL: 574-294-8200
FAX: 574-294-8FAX
www.crownaudio.com
Specifi cations subject to change without prior notice. Latest
information available at www.crownaudio.com.
Crown and Crown Audio are registered trademarks of Crown
International. PIP and PIP2 are trademarks of Crown International. Other trademarks are the property of their respective
owners. Printed in U.S.A.
© 2005 Crown Audio
®
, Inc.
1
6
11
7/05 135801-1B
