Crown Pallet Truck PC 4500 Series, PC 4500-60, PC 4500-80 Specifications

Download
Page 1
C
PC 4500
Specifications
PC 4500 Series
Center Control Pallet Truck
Series
Page 2
C
PC 4500 Series
Center Control Pallet Truck
Page 3
PC 4500 Series
1 Manufacturer Crown Equipment Corporation 2 Model PC 4500 3 Load Capacity lb 6000/8000 4 Power Electric 24 Volts
General Info
5 Operator Type Stand-up Ride 8 Lift Height in 9.25
9 Lift in 6 10 Head Length in 57.31 16 Outside Fork Spread Standard Tip in 22/27
Dimensions
Extended Tip in 23/28
17 Speed Travel Power Unit First Forks First
Empty mph 9.0 6.0 4000 lb mph 7.0 5.7
Performance
PC 4500 Series Standard-Tip Forks Extended-Tip Forks
Nominal Fork Length in 36 42 48 54 60 96 84 93 96
11 Actual Fork Length in 35.75 41.75 47.75 53.75 59.75 95.75 83.75 93 95.75 12 Overall Length in 93.06 99.06 105.06 111.06 117.06 153.06 141.06 150.31 153.06 13 Wheelbase Forks Raised in 71.25 77.25 83.25 89.25 95.25 133.25 103.25 103.25 103.25
Forks
14 Grade Clearance %25 23 21 20 19 13 17 17 17 15 Turning Radius Forks Raised in 81.4 87.4 93.4 99.4 105.4 143.3 113.4 113.4 113.4
7 Truck Weight 6000 lb lb 1895 1911 1927 1943 1959 2109 2092 2173 2188
w/o battery
6000 lb mph 6.3 5.1 8000 lb mph 6.0 5.0
8000 lb lb 1914 1938 1962 1986 2010 2174 2152 2233 2248
Specifications
Model PC 4500-60 and PC 4500-80 Drive Tire in 13 x 4.5 x 8 Poly Casters in 2 - 4 x 2.5 Poly Load Wheels in 2 - 3.25 x 6.5 (-302)
-301 Moderate cut/tear resistance, high capacity. High capacity transport. Not for dock use.
Wheels and Tires
-302 Highest cut/tear resistance offered. Extremely high capacity, low rolling resistance. Docks, rough floors and floor debris.
-401 Combines good cut/tear resistance and very high capacity. Use where nothing else works.
Page 4
PC 4500 Series
Technical Information
Maximum Battery Size
13.19" wide x 31.12" long x
31.62" high
Batteries
24-volt, 750 amp hour, 15.2 Kwh Min/Max weight 975/1500 lb
Standard Equipment
1. 24-volt fused electrical system
2. Access 123®Comprehensive System Control
3. Access 123 Display - includes BDI with lift lockout (2 re-keys), hour meters, event codes, PIN-code access and three selectable performance levels
4. e-Gen™ braking system with automatic parking brake
5. Crown manufactured AC traction motor
6. Ramp hold
7. Standard handle includes urethane covered twist grips with cams and full width raise, lower and horn button
8. Molded urethane platform cushion
Anti-slip recommended with freezer
9. Padded back cushion
10. Preset lift height (adjustable)
11. 27.5” wide load backrest
12. 43.5” tall load backrest
13. InfoPoint®System with Quick Reference Guide
14. Color-coded wiring
15. Steel power unit doors
16. Lift-off left and right battery retainers
17. Polyurethane load wheels
18. Polyurethane drive tire
19. Quick adjustment casters
20. Short battery wall (use with
23.38” tall battery)
21. 175 amp battery connector
22. Key switch
23. Horn
Optional Equipment
1. “T”-type control handle includes urethane covered twist grips with cams, full width raise, lower and horn buttons with automatic park brake
2. Molded urethane leg cushion
3. Raise, lower and horn control module on load backrest
4. Storage tray and bin in load backrest
5. Storage module on battery (23.28” high battery only)
6. Torsion bar package for quick adjustment casters
7. Tall battery wall (use with
31.62” tall battery)
8. 22.5” wide load backrest
9. 60” or 72” tall load backrest
10. Battery compartment rollers
11. Battery retainer interlock switches
12. Quick battery disconnect handle (right side only)
13. Left side battery connector (facing power unit door)
14. Drive tire and load wheel options
15. Toggle switch in lieu of key
16. Positive / Negative Accessory Cable
17. InfoLink®Ready System (InfoLink module sold separately)
18. Travel alarm (requires right side battery connector)
19. Freezer conditioning
20. Skid Adapter
21. Corrosion conditioning
22. Shrink Wrap holder
23. Strobe Light
24. Second leg cushion (requires
31.62” tall battery)
25. Second level order picking platform
26. Custom paint color
27. Pallet Stop
**
Extended lead time
Operator Area and Controls
The PC 4500 Series incorporates an operator compartment designed for comfort and productivity.
The compartment features rounded edges, a large operator platform to allow quick entry/exit onto the truck and a choice of handle options. Dual twist grips with soft urethane covering and cams improve operator comfort. Full width raise, lower and horn buttons are employed for easy actuation.
In low level order picking applica­tions, where walking through the compartment is common, the larger compartment, low profile high speed pedal, rounded edges and optional load backrest widths and heights improve order picking efficiency. Preset lift height pro­vides operators with a consistent platform step height and is ad­justable to individual operator preference for improved comfort and productivity.
**
**
**
**
**
**
**
**
When the high speed pedal is engaged, it is approximately flush with the platform cushion for maximum comfort.
A large back cushion and mold­ed urethane platform cushion are standard to minimize fatigue when the operator is in transport position.
Optional leg cushions are avail­able to further reduce fatigue, increase comfort and maximize productivity.
Optional width and height load backrests can be specified for your application. Hip, shoulder and elbow clearance are maximized when this feature is customized to your operators and load sizes.
An optional control module is available to provide raise, lower and horn buttons in the load backrest.
Electrical System
Heavy-duty 24-volt electrical system for demanding ware­house, dock and transport appli­cations. Crown-manufactured AC drive motor delivers powerful performance and proven reliability for long lasting productivity in any environment.
A lift limit switch shuts the pump motor off at full fork elevation. Color coded wiring is used for ease of service.
Access 123® Comprehensive System Control with AC Traction
This system provides unmatched truck control and system perfor­mance in:
* Traction control * Operator interface * Diagnostics
Crown technology provides a closed-loop traction control system which maintains speed throughout the battery charge and provides optimum accelera­tion and speed as the load on the forks increases.
Access controller has full-time management control of traction and other system inputs and outputs. Access 123 technology simplifies the system by reducing componentry including contac­tors, relays and other hard-wired components. The Access 123
system is covered by a 3 year / 6000 hour supplemental warrant
The Access ™ display offers six hour meter readouts and odometer. The operator message mode can be programmed to display model number (default), BDI, truck hours, odometer, trip odometer or timer. Built-in PIN­code (up to 25) capability.
The Access display also includes a full featured on-board service tool. Proven Access 123 diagnostics has been extensively developed to provide superior troubleshooting and service ease. The service technician can actively view inputs and outputs during truck operation. Event code history includes the most recent event code plus the previ­ous 15 codes. No service key, laptop or handset required.
Performance tuning is accessed through the display to customize truck performance for specific applications or operator requirements.
The large Crown-manufactured AC drive motor specifically de­signed for lift truck applications, provides improved acceleration and plug reversal contributing to greater productivity.
InfoPoint
InfoPoint System allows techni­cians to troubleshoot without complicated schematics, wiring diagrams or cumbersome service manuals for over 95% of repairs. Simplicity is complete with InfoPoint Quick Reference Guide, color-coded components maps and “information nuggets” located on the truck.
Clearly labeling each component and providing an area map showing component locations helps to minimize downtime.
A Quick Reference Trouble­shooting Guide is supplied with each truck showing display operation, code definitions, and overall component ID of the entire truck.
yy..
®
Page 5
PC 4500 Series
Technical Information
Hydraulics
Heavy-duty pump, motor, reservoir and control are assembled into one unit. A centrally located lift cylinder, mounted vertically, is equipped with long-life polyurethane packings. A pressure compensating flow control valve is an integral part of the valve block and regulates lowering speed. Overload valve protects hydraulic components.
Drive Unit
All gear drive from drive motor to drive wheel axle. Crown-manu­factured gears are hard finished and dual machined for high quality. Drive tire axle is mounted in the drive unit on both sides for maxi­mum strength in rough floor or docking applications. Drive unit is top and bottom mounted. Top mount is a large, tapered roller bearing for vertical or horizontal forces. Bottom mount has four shock mounted rollers on drive unit running in a hardened steel roller race. Gear train runs in oil­filled, sealed housing.
Caster System
Standard on the PC 4500 Series are the quick adjustment casters. These casters adjust quickly to enable braking, traction, steer effort and stability to be “balanced” based on your specific application. This system can also increase drive tire life by as much as 60% by permitting more tire wear. The optional torsion bar suspension is avail­able to maximize stability on tall, unwieldy and less stable loads.
Fork Assembly
Fork width - 9.12" on standard­tip fork models, 10" on extended­tip fork models. Fork spread - 22" and 27" standard on standard-tip models. 23"- 26" spread available in one-inch increments. 23" and 28" standard on models with extended-tip models. Fork spreads from 24"- 27" available in one­inch increments. Fork lengths ­36, 42, 48, 54, 60 and 96" with standard tip; 84, 93, and 96" forks available with extended-tip design for shorter wheelbase.
To facilitate pallet entry/exit Crown has engineered several features into their fork assembly. Standard-tip forks have pallet entry rollers to lift fork over bottom board of pallet. Rollers are made of high molecular weight polyeth­ylene with .75" axle and roll pin.
Extended-tip fork design has totally enclosed tip, with full length convex bottom surface creating an entry ramp. Ramp design helps fork glide over bottom boards of pallet and keeps welded edges from touching bottom boards of pallet.
Abrasion resistant steel entry/exit slides on both sides of each fork have convex bottom surfaces to prevent snagging as forks move over bottom boards of pallet. One-piece design with radiused edges are welded away from contact point of slide.
Exit roller design prevents load wheel from dropping after cross­ing bottom board. The 4" wide, steel exit roller is positioned di­rectly behind the load wheel to keep the fork rolling. The entry/exit slide design also assists in trouble-free pallet entry/exit.
Fork adjustment is done at the toe with no need to remove a cover plate. Fork heel height adjustment is done quickly without removing battery. Quick and easy fork adjustment promotes servicing of fork assembly to keep pallet entry/exit productive.
Pull rod design incorporates a replaceable “tenon” design for fast servicing of pull rod while still in the truck.
Power Unit Structure
Heavy gage steel is used in the power unit structure and skirt. Rugged steel power unit doors protects electronic components and swing open providing excellent access. Doors also can be lifted off if desired. Door bolts have exclusive convex design that mate with concave door holes for fast reinstallation of bolts.
Crown provides an exclusive 5 year Supplemental Guarantee on the Power Unit and Fork Weldment structures.
™
e-GEN
Braking System
Variable regenerative motor braking is optimized and virtually eliminates brake maintenance.
While moving, e-GEN braking is applied if the operator moves the standard handle into the brake zone, activates brake levers on “T” handle, removes travel input request or reverses direction.
The closed loop Access 123
traction control will keep the truck static until a travel input is requested, even when operating on a grade.
Automatic electric parking brake activates when the truck has been stationary for four seconds, the truck is keyed off or the bat­tery has been disconnected.
.

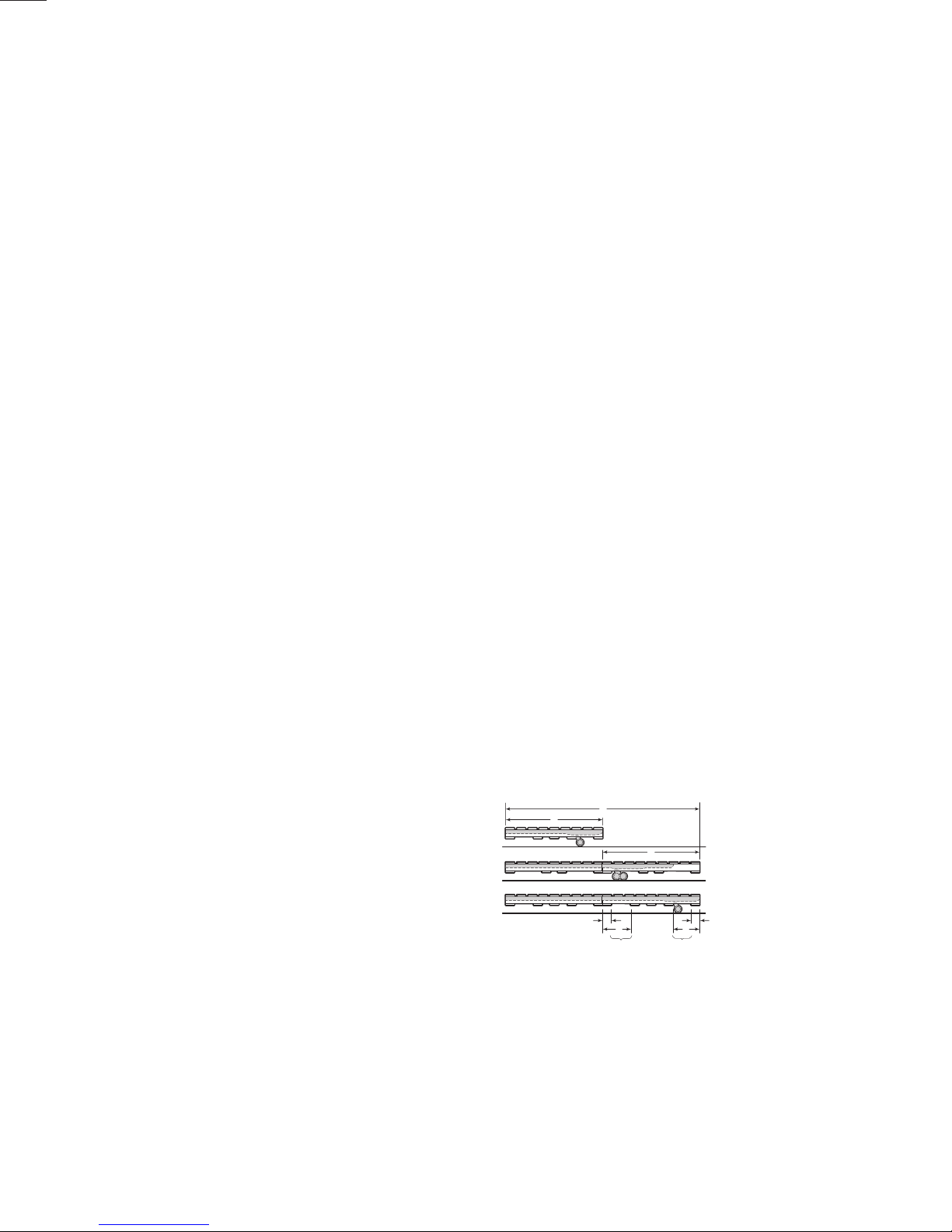

Pallet Planning Guide
On standard-tip fork models, the load wheel will drop in the second opening of the pallet when “A” or “B” dimension equals the nominal fork length. On extended-tip fork models, the load wheel will drop in the first opening of the second pallet. On models with a single load wheel, the “C” dimension should be 6" maximum and the “D” dimension should be 14" mini­mum. On models with tandem load wheels, the “C” dimension should be 6" maximum and the “D” dimension should be 17" minimum. Customers that need tandem load wheel trucks, but use pallets with smaller openings, may be accommodated if the maximum lift height of the truck is reduced. Contact your Crown dealer for details.
A
B
A
DD
First
Opening
Second
Opening
Other Options
1. Audible travel alarm
2. Flashing lights Safety considerations and dangers
associated with audible travel alarms and flashing lights include:
• Multiple alarms and/or lights can cause confusion.
• Workers ignore the alarms and/or lights after day-in and day-out exposure.
• Operator may transfer the responsibility for “looking out” to the pedestrians.
• Annoys operators and pedestrians.
Dimensions and performance data given may vary due to manu­facturing tolerances. Performance is based on an average size vehicle and is affected by weight, condi­tion of truck, how it is equipped and the conditions of the operating area. Crown products and speci­fications are subject to change without notice.
CC
Page 6
C
Crown Equipment Corporation
New Bremen, Ohio 45869 USA
Tel 419-629-2311 Fax 419-629-3796
crown.com
You can count on Crown to build lift trucks designed for safe operation, but that’s only part of the safety equation. Crown encourages safe operating practices through ongoing operator training, safety-focused supervision, maintenance and a safe working environment. Go to crown.com and view our
safety section to learn more.
Because Crown is continually improving its products, specifications are subject to change without notice.
Crown, the Crown logo, the color beige, the Momentum symbol, Access 123, e-GEN, InfoPoint, and InfoLink are trademarks of Crown Equipment Corporation.
Copyright 2008 Crown Equipment Corporation SF18004 8/08 Printed in U.S.A.
