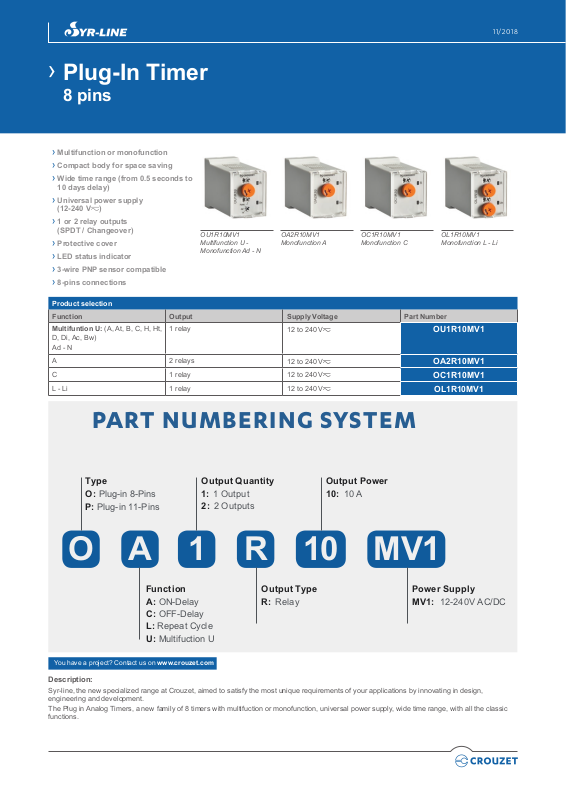

Crouzet OC1R10MV1, OA2R10MV1, OL1R10MV1 Data Sheet

›

O110 MV1

A

R

Function
A: ON-Delay
C: OFF-Delay
L: Repeat Cycle
U: Multifuction U

Output Type
R: Relay

Power Supply
MV1: 12-240V AC/DC

Output Quantity
1: 1 Output
2: 2 Outputs

Output Power
10: 10 A

Type

O: Plug-in 8-Pins
P: Plug-in 11-Pins

PART NUMBERING SYSTEM

Plug-In Timer

8 pins

› Multifunction or monofunction
› Compact body for space saving
› Wide time range (from 0.5 seconds to

10 days delay)

› Universal power supply

(12-240 Vz)

› 1 or 2 relay outputs

(SPDT / Changeover)

› Protective cover
› LED status indicator
› 3-wire PNP sensor compatible
› 8-pins connections

Product selection

Function Output Supply Voltage Part Number

Multifuntion U: (A, At, B, C, H, Ht,

D, Di, Ac, Bw)

Ad - N

A 2 relays

C 1 relay

L - Li 1 relay

1 relay

OU1R10MV1
Multifunction U -
Monofunction Ad - N

OA2R10MV1
Monofunction A

12 to 240 Vz

12 to 240 Vz
12 to 240 Vz
12 to 240 Vz

OC1R10MV1
Monofunction C

OU1R10MV1

OA2R10MV1

OC1R10MV1

OL1R10MV1

 11/2018

OL1R10MV1
Monofunction L - Li

You have a project? Contact us on www.crouzet.com

Description:

Syr-line, the new specialized range at Crouzet, aimed to satisfy the most unique requirements of your applications by innovating in design,
engineering and development.

The Plug in Analog Timers, a new family of 8 timers with multifuction or monofunction, universal power supply, wide time range, with all the classic
functions.

 2

 11/2018  Plug-In Timer

OU1R10MV1 OA2R10MV1 OC1R10MV1 OL1R10MV1

Power Supply

Rated supply voltage Un

12 to 240 Vz

Voltage supply tolerance -15 %, +10 %

AC supply voltage frequency 50 / 60 Hz ± 5%

Galvanic isolation of supply / inputs No

Power consumption @ Un Approx. 3 VA (VAC) 1.5 W (VDC)

Immunity to power micro cuts 10 ms

Timing Control

Specied time ranges (7) (IEC 1812-1) 0.5..10 s, 0.05..1 min, 0.5..10 min, 0.05.. 1h, 0.5..10 h, 0.05..1 day, 0.5..10 days

Minimum control pulse duration (IEC 1812-1)40 ms

100 ms with load

Recovery time (after by de-energisation)

120 ms

(IEC 1812-1)

Repeatability (IEC 1812-1) ≤ ± 0.5 %

Setting Accuracy (IEC 1812-1) ≤ ± 10 %

Temperature drift ≤ ± 0.05 % / °C

Voltage drift ≤ ± 0.2 % / V

Relay output

Contact arrangement 1 CO (SPDT)

(ChangeOver -Single
Pole Double Throw-)

2 CO (SPDT)
(ChangeOver -Single
Pole Double Throw-)

1 CO (SPDT) (ChangeOver -Single Pole Double
Throw-)

Maximum switching voltage

Switching current rate (resistive) NO / NC:

Minimum switching contact

250 Va/ 10 A resistive / 125 Vc / 0.3 A resistive

NO / NC:

10 A 250 Va / 10 A
30 Vc @ 40 °C

NO / NC:
8 A 250 Va / 8 A

30 Vc @ 60 °C

10 A 250 Va / 10 A
30 Vc @ 25 °C

NO / NC:
5 A 250 Va / 5 A

30 Vc @ 60 °C

10 mA / 5 Vc

NO / NC:
10 A 250 Va / 10 A 30 Vc @ 40 °C

NO / NC:
8 A 250 Va / 8 A 30 Vc @ 60 °C

Maximum switching power (resistive) 2500 VA / 300 W

Electrical life

5

10

cycles min at 250 Va/ 10 A resistive(NO only)

Maximum rate (at max switching power) 360 cycles /hour

6

Mechanical life 10 x 10

cycles

Rated impulse voltage 4 kV (1.2/50 µs)

Dielectric strength between coil / contacts

2.5 kV / 1 min / 1 mA / 50 Hz

(IEC 60664-1)

Dielectric strength between open contacts 1 kV /1 min / 1 mA / 50 Hz

Insulation

Rated Insulation voltage (IEC 60664-1) 250 V

Insulation coordination (IEC 60664-1) Overvoltage category III; pollution degree 2; up to 2 000 m above sea level

Rated impulse voltage (IEC 60664-1) 4 kV (1.2/50µs)

Clearance / Creepage distances (IEC

3 mm / 3.2 mm

60664-1)

Dielectric strength (EN-61812-1) 2.5 kV / 1 min / 1 mA / 50 Hz

Insulation Resistance (NFC 93 050)

> 500 MOhms / 250 Vc / 1 min

General specications

Status indication (LED) Un: green LED blinks when count, ash when waiting Y1, continuous ON when supplied

R: yellow LED blink when only R2 is ON (instantaneous), continuous ON when the 2 relays are ON.

Casing 35 mm

Mounting Mounting base-mounted on socket

Housing material (UL94) Enclosure plastic type V0

Degree of protection (IEC 60529) IP40
