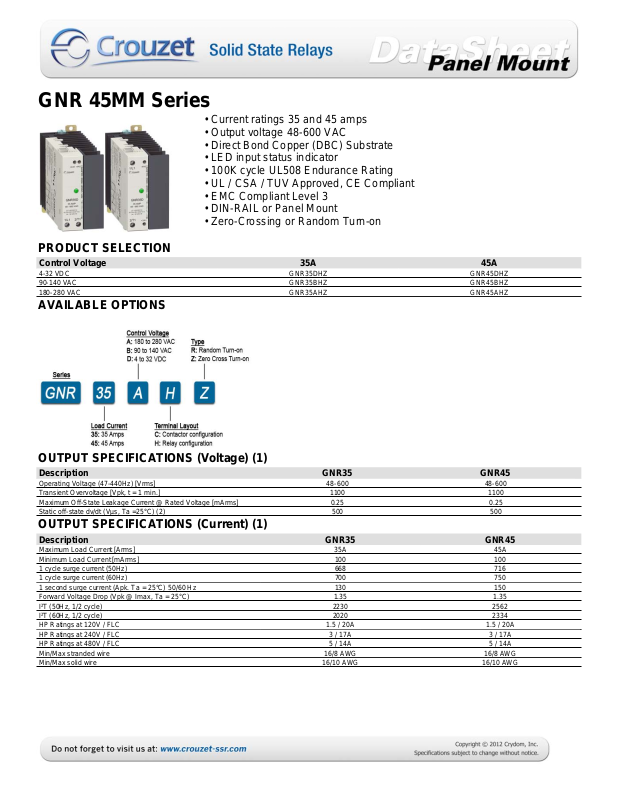

Crouzet GNR 45MM Series Data Sheet

GNR 45MM Series

• Current ratings 35 and 45 amps

• Output voltage 48-600 VAC

• Direct Bond Copper (DBC) Substrate

• LED input status indicator

• 100K cycle UL508 Endurance Rating

• UL / CSA / TUV Approved, CE Compliant

• EMC Compliant Level 3

• DIN-RAIL or Panel Mount

• Zero-Crossing or Random Turn-on

PRODUCT SELECTION

Control Voltage 35A 45A

4-32 VDC GNR35DHZ GNR45DHZ
90-140 VAC GNR35BHZ GNR45BHZ
180-280 VAC GNR35AHZ GNR45AHZ

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS (Voltage) (1)

Description GNR35 GNR45

Operating Voltage (47-440Hz) [Vrms] 48-600 48-600
Transient Overvoltage [Vpk, t = 1 min.] 1100 1100
Maximum Off-State Leakage Current @ Rated Voltage [mArms] 0.25 0.25
Static off-state dv/dt (Vµs, Ta =25°C) (2) 500 500

OUTPUT SPECIFICATIONS (Current) (1)

Description GNR35 GNR45

Maximum Load Current [Arms] 35A 45A
Minimum Load Current [mArms] 100 100
1 cycle surge current (50Hz) 668 716
1 cycle surge current (60Hz) 700 750
1 second surge current (Apk. Ta = 25°C) 50/60 Hz 130 150
Forward Voltage Drop (Vpk @ Imax, Ta = 25°C) 1.35 1.35
I²T (50Hz, 1/2 cycle) 2230 2562
I²T (60Hz, 1/2 cycle) 2020 2334
HP Ratings at 120V / FLC 1.5 / 20A 1.5 / 20A
HP Ratings at 240V / FLC 3 / 17A 3 / 17A
HP Ratings at 480V / FLC 5 / 14A 5 / 14A
Min/Max stranded wire 16/8 AWG 16/8 AWG
Min/Max solid wire 16/10 AWG 16/10 AWG

INPUT SPECIFICATIONS (1)

Description GNRxxDx GNRxxBx GNRxxAx

Input Voltage Range (3) 4-32 VDC 90-140VAC 180-280VAC
Minimum Turn-On Voltage 4.0 VDC 90 Vrms 180Vrms
Drop out Voltage 1.0 VDC 10 Vrms 10 Vrms
Maximum Input Current 19mA 5mArms 6mArms
Minimum input current (for on-state) 16mA 6mArms 8mArms
Input Resistance Current Regulated Current Regulated Current Regulated
Turn-on time (4) 8.33ms 20ms 20ms
Turn-off time 8.33ms 30ms 30ms
Min/Max stranded/solid wire 24/16AWG 24/16AWG 24/16AWG

GENERAL SPECIFICATIONS

Description Parameters

Ambient Operating Temperature Range (3) -20 to 80 °C
Ambient Storage Temperature Range -40 to 100 °C
Input to output isolation 4000 Vrms
Input/output to ground isolation 2500 Vrms
Input to output capacitance 8 pF
Housing Material UL 94V0 (self extinguishing)
Status Indicating Display Green LED
Weight (typical) 0.88lbs (400g)

GENERAL NOTES

1) All parameters at 25°C unless otherwise specified.

2) Off-State dv/dt test method per EIA/NARM standard RS-433, paragraph 13.11.1

3) For 180-280VAC control, maximum Ambient operating temperature is 60°C

4) Random turn-on time R suffix is 100µs (for DC control only).
