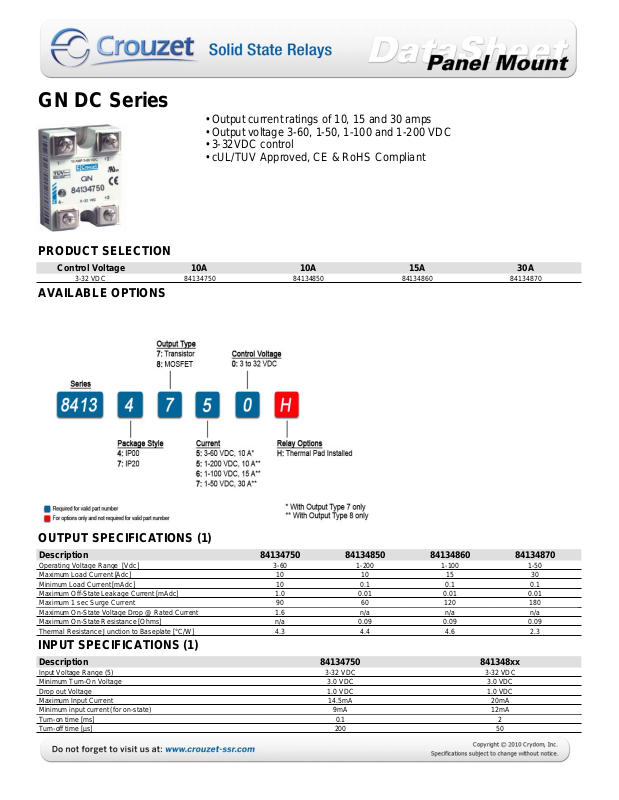

Crouzet GN DC Series Data Sheet

pp

GN DC Series

• Output current ratings of 10, 15and30amps

• Ou tp ut voltage 3-60, 1- 50, 1-1 00 and 1-20 0 VDC

• 3- 32VDC contr o l

• cUL/TUV A

PRODUCT SELECTION

Control Voltage 10A 10A 15A 30A

3-32 VDC 84134750 84134850 84134860 84134870

AVAILABLE OPTIONS

roved, CE & RoHS Compliant

OUTPUT SPECIFICATIONS (1)

Description 84134750 84134850 84134860 84134870

Operating Voltage Range [Vdc] 3-60 1-200 1-100 1-50
Maximum Load Current [Adc] 10 10 15 30
Minimum Load Current [mAdc] 10 0.1 0.1 0.1
Maximum Off-State Leakage Current [mAdc] 1.0 0.01 0.01 0.01
Maximum 1 sec Surge Current 90 60 120 180
Maximum On-State Voltage Drop @ Rated Current 1.6 n/a n/a n/a
Maximum On-State Resistance [Ohms] n/a 0.09 0.09 0.09
Thermal Resistance Junction to Baseplate [°C/W] 4.3 4.4 4.6 2.3

INPUT SPECIFICATIONS (1)

Description 84134750 841348xx

Input Voltage Range (5) 3-32 VDC 3-32 VDC
Minimum Turn-On Voltage 3.0 VDC 3.0 VDC
Drop out Voltage 1.0 VDC 1.0 VDC
Maximum Input Current 14.5mA 20mA
Minimum input current (for on-state) 9mA 12mA
Turn-on time [ms] 0.1 2
Turn-off time [µs] 200 50

GENERAL SPECIFICATIONS

Description Parameters

Ambient Operating Temperature Range (5) -40 to 80 °C
Ambient Storage Temperature Range -40 to 100 °C
Input to output isolation 4000 Vrms
Input/output to ground isolation 2500 Vrms
Input to output capacitance 8 pF
Housing Material UL 94V0 (self extinguishing)
Status Indicating Display Green
Weight (typical) 0.16 lbs (73.6 g)
Input Terminal Screw Torque (6-32 screw) [in lbs/Nm] 8-10 / 0.9-1.1
Output Terminal Screw Torque (8-32 screw) [in lbs/Nm] 15-20 / 1.7-2.2

GENERAL NOTES
MECHANICAL SPECIFICATIONS

WIRING DIAGRAM
