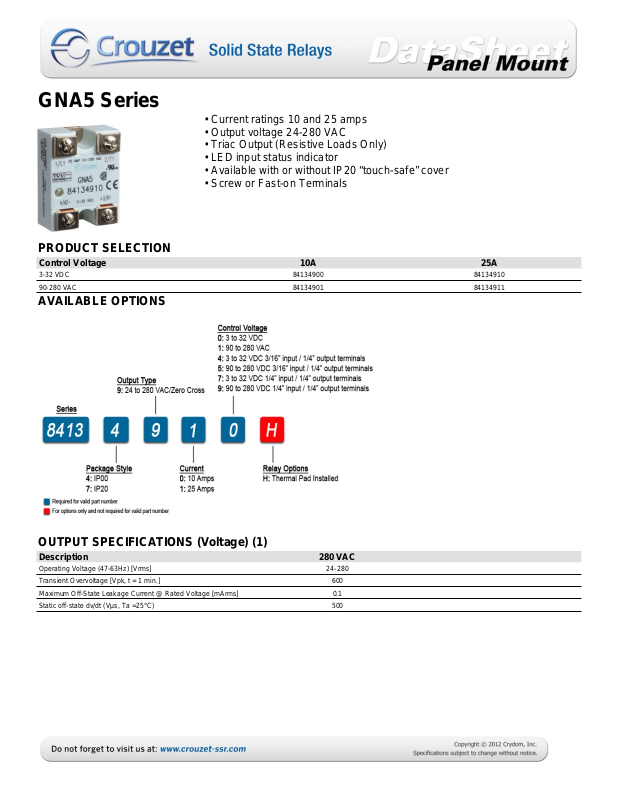

Crouzet GNA5 Series Data Sheet

GNA5 Series
• Current ratings 10 and 25 amps
• Output voltage 24-280 VAC
• Triac Output (Resistive Loads Only)
• LED input status indicator
• Available with or without IP20 “touch-safe” cover
• Screw or Fast-on Terminals
PRODUCT SELECTION
3-32 VDC 84134900 84134910 90-280 VAC 84134901 84134911
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (Voltage) (1)
Description 280 VAC
Operating Voltage (47-63Hz) [Vrms] 24-280 Transient Overvoltage [Vpk, t = 1 min.] 600 Maximum Off-State Leakage Current @ Rated Voltage [mArms] 0.1 Static off-state dv/dt (Vµs, Ta =25°C) 500
OUTPUT SPECIFICATIONS (Current) (1)
Description 10A 25A
Maximum Load Current (3) [Arms] 10A 25A Minimum Load Current [mArms] 100 100 1 cycle surge current (50Hz) 90 230 1 cycle surge current (60Hz) 100 250 1 second surge current (Apk. Ta = 25°C) 50/60 Hz 30 75 Forward Voltage Drop (Vpk @ Imax, Ta = 25°C) 1.5 1.3 I²T (50Hz, 1/2 cycle) 40 260 I²T (60Hz, 1/2 cycle) 40 250 Thermal Resistance Junction to baseplate (Rjb) [°C/W] 2.2 1.7 Minimum heat sink @ Ambient (for max current = °C/W & Ta) 3.0 @ 40°C 1.0 @ 40°C
INPUT SPECIFICATIONS (1)
Description 8413x9x0 8413x9x1
Input Voltage Range (2) 3-32 VDC 90-280 VAC Minimum Turn-On Voltage 3.0 VDC 90 Vrms Drop out Voltage 1.0 VDC 10 Vrms Maximum Input Current 14mA 8.5mArms Minimum input current (for on-state) 9.5mA 5mArms Input Resistance Cur rent Regulated Current Regulated Turn-on time 8.33ms 20ms Turn-off time 8.33ms 30ms
GENERAL SPECIFICATIONS
Description Parameters
Ambient Operating Temperature Range -20 to 80 °C Ambient Storage Temperature Range -40 to 100 °C Input to output isolation 4000 Vrms Input/output to ground isolation 2500 Vrms Input to output capacitance 8 pF Housing Material UL 94V0 (self extinguishing) Status Indicating Display Green LED Weight (typical) 3.0 oz (86.5 g)
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) For ambient temperatures above 40°C the maximum control voltage must not exceed 250Vac.
