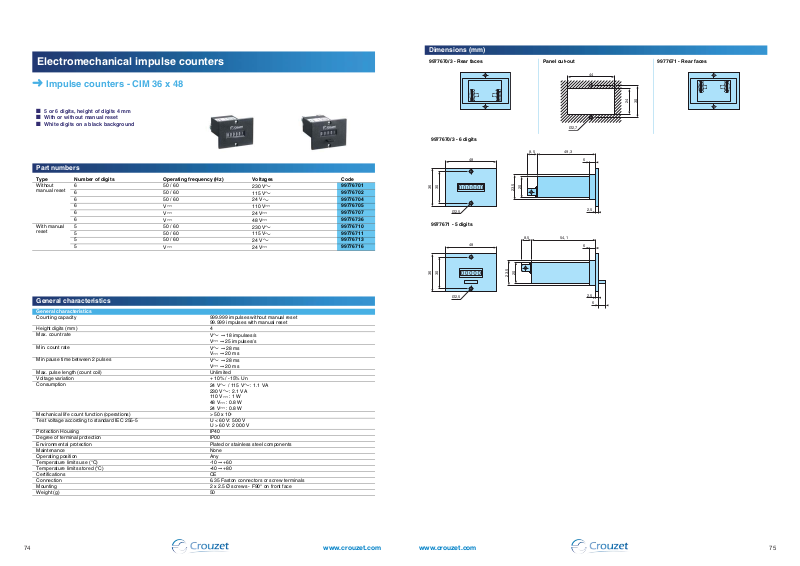

Crouzet CIM 36 x 48 Data Sheet
Electromechanical impulse counters
➜ Impulse counters - CIM 36 x 48
■ 5 or 6 digits, height of digits 4 mm
■ With or without manual reset
■ White digits on a black background
Dimensions (mm)
9977670/3 - Rear faces Panel cut-out 9977671 - Rear faces
44
24
30
Ø2,7
9977670/3 - 6 digits
Part numbers
Type Number of digits Operating frequency (Hz) Voltages Code
Without
manual reset
With manual
reset
6 50 / 60
6 50 / 60
6 50 / 60
6
6
6
c
V
c
V
c
V
5 50 / 60
5 50 / 60
5 50 / 60
5
c
V
230 V
115 V
24 V
110 V
24 V
48 V
230 V
115 V
24 V
24 V
a
a
a
c
c
c
a
a
a
c
99776701
99776702
99776704
99776705
99776707
99776736
99776710
99776711
99776713
99776716
General characteristics
General characteristics
Counting capacity 999.999 impulses without manual reset
Height digits (mm) 4
Max. count rate
Min. count rate
Min pause time between 2 pulses
Max. pulse length (count coil) Unlimited
Voltage variation + 10% / -15% Un
Consumption
Mechanical life count function (operations)
Test voltage according to standard IEC 255-5 U < 60 V: 500 V
Protection Housing IP40
Degree of terminal protection IP00
Environmental protection Plated or stainless steel components
Maintenance None
Operating position Any
Temperature limits use (°C) -10
Temperature limits stored (°C) -40
Certifications CE
Connection 6.35 Faston connectors or screw terminals
Mounting 2 x 2.5 Ø screws - F90° on front face
Weight (g) 50
99.999 impulses with manual reset
➞ 18 impulses/s
Va
Vc
➞ 25 impulses/s
➞ 28 ms
Va
Vc
➞ 20 ms
➞ 28 ms
Va
Vc
➞ 20 ms
24 Va / 115 Va: 1.1 VA
230 Va: 2.1 VA
110 Vc: 1 W
48 Vc: 0.8 W
24 Vc: 0.8 W
> 50 x 10
6
U > 60 V: 2 000 V
➞ +60
➞ +80
36
30
Ø2,5
9977671 - 5 digits
36
30
Ø2,5
8,5
48
20
23,5
8,5
48
20
23,5
49,3
6
2,5
54,1
6
2,5
6
74
