CHRONOS 2 22.5 MM

Introduction: A 22.5mm modular design

Chronos 2 Timers - 22.5mm

• The new 22.5mm is close to identical to the

profile of the 17.5mm Chronos 2:

– Same position of term inal blocks for a perf ect

alignment between the 17.5mm and 22.5mm
timer versions.

– Same appearance in design than the 17.5mm

versions.

Launch Note - Chronos 2 22.5 mm

– A 45mm “nose height” on the front of the

product to allow the mounting of the 22.5mm
versions in modular panels.

– Slightly longer than the 17.5mm versions to

allow the 2 relays SP DT 8A / 250VAC.

3

New Models’ Cross-reference

Obsolete Models

22.5 mm

Old P/N Type New P/N Type

88 865 175 TQR1 88 866 175 RQR1
88 865 176 TQR6 88 866 176 RQR6
88 865 215 TA2R1 88 866 215 RA2R1
88 865 300 TU2R4 88 866 300 RU2R4
88 865 303 TU2R3 88 866 303 RU2R3
88 865 305 TU2R1 88 866 305 RU2R1
88 865 385 TX2R1 88 866 385 RX2R1

New Models

22.5 mm

• 7 new part numbers directly replace 7 old Chronos 2 22. 5 mm models

• The nomenclature is now 88 866 instead of 88 865

Launch Note - Chronos 2 22.5 mm

4

New Chronos 2 Part Numbers

• A total of 7 redesigned timers (22.5 mm) with:

– Same rated supply voltage as old versions
– Same electrical specifi cations as old versions

• 88 865 265 (function K) will not suffer any change in nomenclature and

will remain available

Launch Note - Chronos 2 22.5 mm

5

Generic Functions

Function A:
Delay on energization

Function C: Timing after
impulse. True delay off (w it h
auxiliary pow er suppl y)

Function

energization with memory

Function

Symmetrical flashing

At: Timing on

D:

Function B: Timing on

impulse (one shot) –
Shaping (cannot be reset)

Function Di:
Symmetrical flashing

Function H: Timing on
energization – Pulse output
(adjustable)

Launch Note - Chronos 2 22.5 mm

Function Ht: Delay on
energization with memory

Function Q:
“Star-delta” starting

6

Obsolete Models

Reminder: Other Obsolete 22.5 mm Models

New Chronos 2

Timers

22.5 mm

Old P/N Type New P/N Type Power supply Function

88 865 105 TUR1 88 827 105 MUR1 24 VDC / 24 to 240 VAC A, At, H, Ht, B, C, Di, D, Ac, Bw
88 865 115 TAR1 88 827 115 MAR1 24 VDC / 24 to 240 VAC A, At
88 865 125 TBR1 88 827 125 MBR1 24 VDC / 24 to 240 VAC B
88 865 135 TCR1 88 827 135 MCR1 24 VDC / 24 to 240 VAC C
88 865 145 THR1 88 827 145 MHR1 24 VDC / 24 to 240 VAC H, Ht
88 865 155 TLR1 88 827 155 MLR1 24 VDC / 24 to 240 VAC L, Li
88 865 100 TUR4

88 827 103 MUR3 12 to 240 VAC / VDC

88 865 103 TUR3 A, At, H, Ht, B, C, Di, D, Ac, Bw

17.5 mm

A, At, H, Ht, B, C, Di, D, Ac, Bw

88 865 503 TURc3 88 827 503 MURc3 12 to 240 VAC / VDC A, At, H, Ht, B, C, Di, D, Ac, Bw

• These other obsolete 22.5 mm models have already been replaced with

more compact Chronos 2 17.5 mm Timers since April 2013.

Launch Note - Chronos 2 22.5 mm

7

Mechanical Dimensions

• The new 22.5 mm Chronos 2 timers of fer a compact and
enhanced design with same width (22.5 mm), but 27 mm less
depth than the previous version.

New Chronos 2 Previous Chronos 2

Launch Note - Chronos 2 22.5 mm

8

Mechanical Dimensions (cont.)

• Designed for modular use, the new 22.5 mm Chronos 2 timers have
a similar profile as the already redesigned 17.5 m m Chronos 2
T imers 88827.

New 17.5 mm Chronos 2

New 22.5 mm Chronos 2

Launch Note - Chronos 2 22.5 mm

9

Agency Approvals

• New 22.5 mm Chronos 2 Timers

New Timer

Commercial

Reference

88 866 175
88 866 176

• • • •

• •

Launch Note - Chronos 2 22.5 mm

88 866 215
88 866 300
88 866 303
88 866 305
88 866 385

• • • •

• • • •

• • •

• • • •

• • •

10

Good to know

• Input & output terminals are the same for Q function.

Old P/N

88 865 175

New P/N

88 866 175

Old P/N

88 865 176

New P/N

88 866 176

Launch Note - Chronos 2 22.5 mm

11

Good to know (cont.)

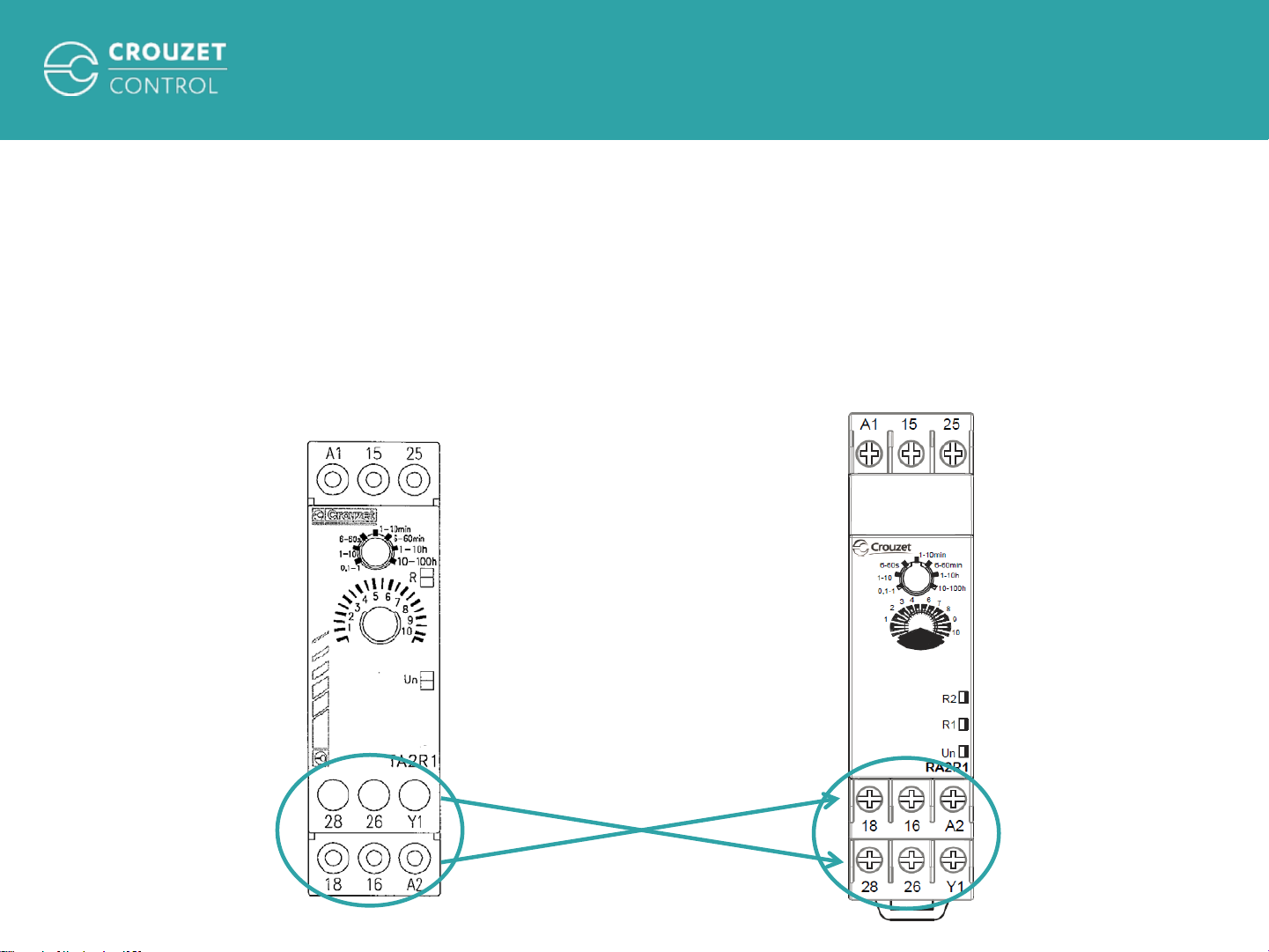

• For other functions, Input & output terminals have a slight

change in position, but remain on the same side of the timer.

Old P/N 88 865 215

/300/303/305/385

New P/N 88 866 215

/300/303/305/385

Launch Note - Chronos 2 22.5 mm

12

Good to know (cont.)

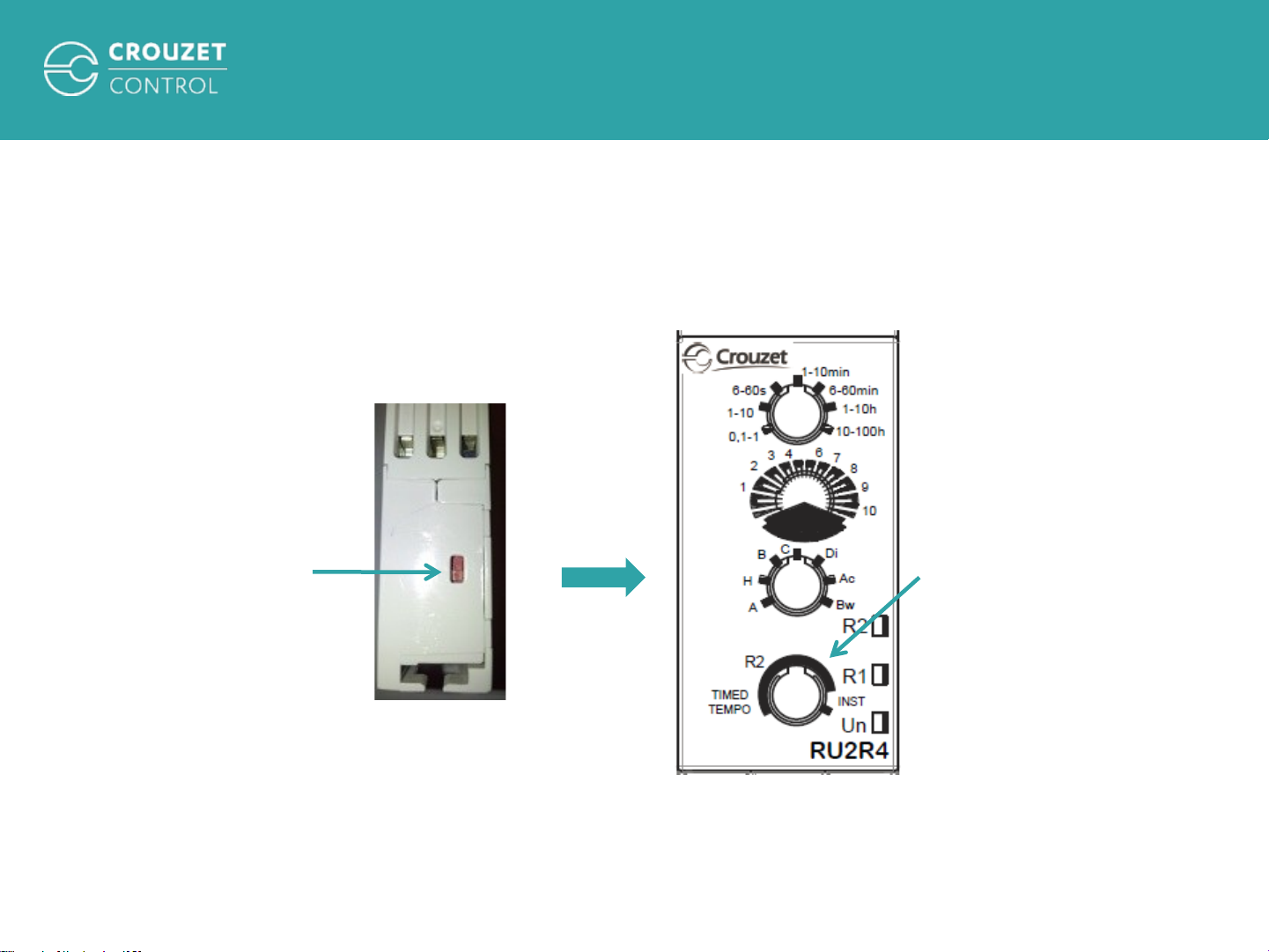

• Instantaneous switch is now on the front face instead of

the side

Current

New rotary switch

slide

on front face (same

switch on

function as the slide

the side

switch)

Launch Note - Chronos 2 22.5 mm

13

Applications
