 WWW.CROUZETAUTOMATION.COM  1  SELECTION GUIDE

WWW.CROUZETAUTOMATION.COM

CROUZET AUTOMATION

SELECTION GUIDE

LEVEL 2
KARBON BOLD
18 PTS

 2  WWW.CROUZETAUTOMATION.COM  SELECTION GUIDE

ABOUT
CROUZET AUTOMATION

Supported by an experienced technical
team, Crouzet Automation is a pioneer in
the simplication of programming.
The brand offers the easiest-to-use and
most adaptable alternative automation
solution for specialized and demanding
needs.

Crouzet Automation is a brand of
InnoVista Sensor s™.

InnoVista Sensors™: your trusted
partner of choice to face industrial
challenges of today and tomorrow.

InnoVista Sensors™ is a worldwide
industrial specialist of sensors,
controllers and actuators for automated
systems.

Through its brands, Crouzet Aerospace,
Crouzet Automation, Crouzet Control,
Crouzet Motors, Crouzet Switches and
Systron Donner Inertial,
InnoVista Sensors™ offers a wide range

of reliable, efcient and customizable

components dedicated to the Aerospace
& Defence, Transportation and Industrial
market and segments.

Thanks to the recognized expertise of
its teams and a strong innovation policy,
InnoVista Sensors™ brings performance
enhancing solutions to its customers
worldwide.

www.innovistasensors.com

Designs & Manufactures

For

Aerospace

& Defense

Transportation Industry

With commercial brands

 WWW.CROUZETAUTOMATION.COM  3  SELECTION GUIDE

*

To meet market expectations and provide customers

ADAPTATION

with the right solutions within the shortest
timeframes, Crouzet Automation has structured
its processes around different types of products:

WHEEL

standard products, adapted products and products
specially developed for a customer. Introducing the
adaptation wheel...

1

2

4

3

STANDARD

1 2 3 4

COMPONENTS

A complete range of logic

controllers immediately

available to create your

automation application.

COMPONENTS

WITH ADDED
VALUE

Standard products

complemented by factory-

mounted auxiliaries or

accessories (connectors,

wire outputs, cables, etc.) in

order to assist integration into

your equipment, simplify your

logistics and maximize the

reliability of your installation.

ADAPTED

PRODUCTS

Dened jointly with our

technical sales teams, these

adapted products offer the

exact performance and

functions you need for your

application.

SPECIFIC

PRODUCTS

All our design and

industrialization expertise in

automation systems at your

service, to design and create

specic products dedicated

to your application.

 WWW.CROUZETAUTOMATION.COM  4  SELECTION GUIDE

WHICH SOLUTION DO YOU NEED?

em4 is more than just a nano-PLC: it is a leading edge device supported by best-in-class tools that enables you to
create and implement the smartest automation applications with em4 soft.

em4 remote

Remotely manage your

equipment and

application programs

The first all-in-one solution to

bring your application into the

Internet of Things

Remotely display or

control data values

with an app/web

platform

Periodically receive

data log reports

by email or FTP

FTP

Receive and manage
notifications when an

event occurs in your

em4 alert

NANOPLCLOGIC CONTROLLER

The PLC which sends alerts

via SMS, stores data logs in

.csv (Excel) and sends them

by email or FTP

em4 local

The em4 for stand alone use

or local area network

The Millenium 3 Smart logic controller is the easiest programmable module to use on the market. Easy to program
thanks to M3 Soft, it enables the control and monitoring of machines and automation installations with up to 50 I/Os.

Remotely display or

control data values

with SMS

26 - 46

I/Os

Powerful & up to

24 analog inputs

included

Embedded configurable
0-10V/4-20mA accurate

analog inputs

0-10V

4-20mA

Receive an SMS or an

email when an event

occurs in your application

Modbus RS485 slave interface

option for connection to MTP

application

Touch HMI

Smart Expandable

Offers a large variety of

expansions (digital, analog

I/Os…), up to 50 I/Os

Smart Compact

The easiest logic controller to

implement, to program and to

use on the market

Essential

The right product to tackle

simple applications that still

require a powerful

logic controller

Essential

Smart

Compact

Application

example

Smart

Expandable

Access

Control

Millenium 3 offers both

standard and customized

product solutions for a range of

applications, including automatic

barriers, automatic doors,

turnstiles, sectional doors and

disabled access ramps.

 WWW.CROUZETAUTOMATION.COM  5  SELECTION GUIDE

soft

The most intuitive

programming software

on the market

em4 soft

em4 soft

em4 soft

web

Provides powerful

application and device

management

app

The ultimate way to
control and monitor
your em4 from your

smartphone

em4 alert

*

Application

example

*

*

em4 remote

Water

treatment

With the capability to manage

pump circulation, monitor

liquid levels, and measure the

temperature and conductivity

of water, em4 can help you
take your application to the

next level.

em4 local

* The 3G and Ethernet versions will be available in 2016.

50

I/Os

Additional application

specific functions (autotuning

PID, astronomical clock, ...)

Enhanced visibility on the
display with high contrast,

blue back lit LCD screen

Digital expansions

(up to 50 I/Os) & analog
(0-10V, 4-20mA, Pt100)

50 I/Os

0-10V

4-20mA

Direct connection of NTC

temperature probes and LDR

luminosity sensors

Extended temperature

range (-20 °C to +70 °C)

M3

soft

The M3 Soft is a high-performance

software platform used to program

the Millenium 3 logic controller and

optimize design times.

M3 soft

Modbus RTU and

Modbus TCP/IP

expansions

M3 soft

Powerful and
cost effective

M3 soft

Bluetooth® connection

accessory for all the range for

applications that are complex

in terms of access

 WWW.CROUZETAUTOMATION.COM  6  SELECTION GUIDE

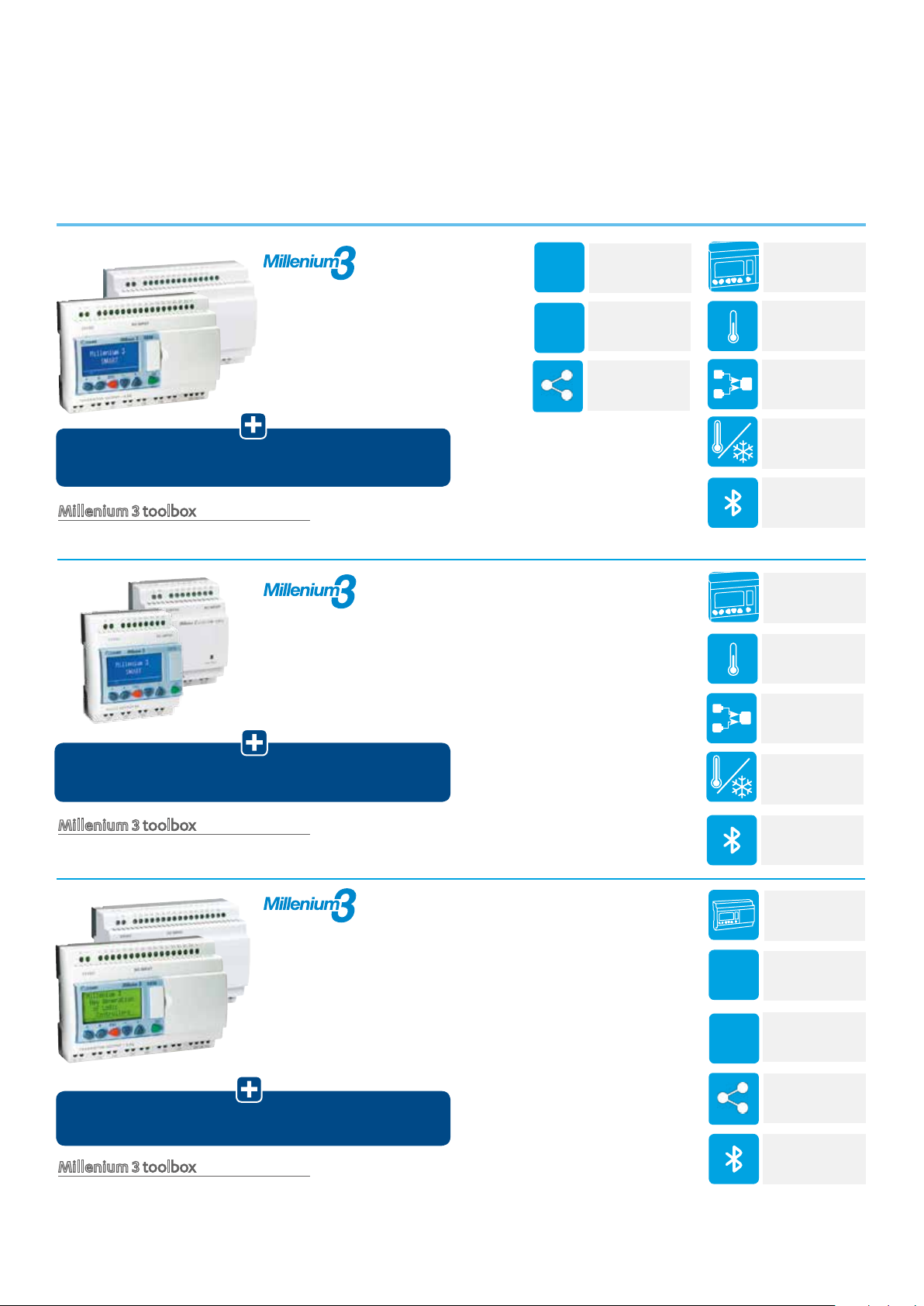

WHICH SOLUTION DO YOU NEED?

The Millenium 3 logic controller and the em4 nano-PLC are the easiest to use programmable modules for various
applications. With simple and intuitive software, controlling and monitoring of machines and automation installations is
incredibly simple.

Offers a large variety of expansions
(digital, analog I/Os…), up to 50 I/Os

› Expandable versions: 10 I/Os and 26 I/Os

› With or without display, in 24 Vc,

12 Vc, 24 Va and 100 → 240 Va
versions

Multiple conguration options derived from

an extensive product range with numerous accessories

Millenium 3 toolbox

M3 soft

The easiest logic controller to implement, to
program and to use on the market

› Compact versions: 12 I/Os and 20 I/Os

› With or without display, in 24 Vc, 12 Vc,

24 Va and 100 → 240 Va versions

Application-specic solutions thanks to dedicated and

easy to use specic function blocks

Smart Expandable

Smart Compact

50

I/Os

0-10V

4-20mA

Digital expansions
up to 50 I/Os

Analog 0-10V,
4-20 mA,
Pt100 expansions

Modbus RTU and
Modbus TCP/IP
expansions

Highly visible blue
LCD

Direct connection
of NTC temperature
probes

Additional
application
specific functions

Extended
temperature range
(-20 °C to +70 °C)

Bluetooth
connection
accessory

Highly visible blue
LCD

Direct connection
of NTC temperature
probes

Additional
application
specific functions

Extended
temperature range
(-20 °C to +70 °C)

®

Millenium 3 toolbox

M3 soft

The Millenium 3 Essential range is

the cost effective solution for simple applications

Millenium 3 toolbox

M3 soft

Essential

The right product to tackle simple
applications that still require a powerful logic
controller

› Compact versions: 12 I/Os and 20 I/Os

› Expandable versions: 10 I/Os and 26 I/Os

› With or without display, in 24 Vc, 12 Vc

versions

50

I/Os

0-10V

4-20mA

Bluetooth®
connection
accessory

Powerful and cost
effective

Digital expansions
up to 50 I/Os

Analog 0-10 V,
4-20 mA,
Pt100 expansions

Modbus RTU and
Modbus TCP/IP
expansions

Simplified
Bluetooth
connectivity

®

 WWW.CROUZETAUTOMATION.COM  7  SELECTION GUIDE

em4 remote

The first all-in-one solution to bring your
application into the Internet of Things

› First PLC capable of fleet management

including map localisation

› Highly secured solution, using e-banking

*

SIM card (2G & 3G versions) & remote management

subscription included for one year (em4 web, em4 app)

*

practices and infrastructure

› Expandable from: 26 I/Os up to 46 I/Os

em4 toolbox

soft web app

em4 alert

Nano-PLC that can alert you via SMS and
email

› Needs only GSM network to operate

(SMS)

› Secured solution, only users identified in

the PLC can interact

› Expandable from: 26 I/Os up to 46 I/Os

FTP

FTP

Machine /
Equipment
fleet management

Secured platform
and connections

Device
maintenance
& management

Map localization

Automatic clock
synchronization

Event management
via SMS and email

Data report via SMS
and datalogs

via email or FTP

Remote
application
program update

Advanced event
management

Advanced data
history

Advanced
monitoring and
control functions

Advanced remote
services for
your customers

Customizable
web interface

Monitoring and
control functions
via SMS

PLC to PLC SMS
communication

Remote directory
management

No need to perform complicated

integration between the PLC and a modem/gateway

em4 toolbox

soft

em4 local

The em4 for stand alone use or local area
network

› The most compact and powerful of its category

› Includes highly accurate 4-20 mA analog inputs

for industrial sensors

*

Easily swap from one version to another version

(remote and alert), enabling the upgrade of the equipment

em4 toolbox

soft

* The 3G and Ethernet versions will be available in 2016.

› Expandable from: 26 I/Os up to 46 I/Os

0-10V

4-20mA

Modbus

TCP/IP

PLC with local
functions only

Embedded
configurable 0-10V/
4-20 mA accurate
analog inputs

Modbus TCP/IP
client and server

Modbus RS485
slave option
interface

em4 soft

The most intuitive
graphical function
block language

*

 WWW.CROUZETAUTOMATION.COM  8  SELECTION GUIDE

SELECT YOUR CONTROLLER

Our products are specically suited for integration in a wide range of applications.

› Highly visible blue LCD with 4 lines of 18 characters

and congurable backlighting

› Allow the use of the entire library of specic function blocks in

the software workshop

› Extended temperature range (-20 °C to +70 °C)

› Analog inputs 0-10 Vc, Potentiometer, NTC, LDR

(0-20 mA/Pt100 with converters)

Smart Essential

Millenium 3 range em4 range

Power Supply

Highly Visible

HMI

Versions

Inputs on

the base

Outputs

on the base

12 Vc, 24 Vc 24 Vc
24 Va, 100 → 240 Va

Blue (Smart) or Green (Essential) Black on white / white on black

Compact versions: 12 and 20 I/Os
Expandable versions: 10 and 26 I/Os up to 50 I/Os

Digital, High speed 6kHZ Digital, High speed 60kHz

Analog 0-10V 5%, Potentiometer, NTC, LDR Analog 0-10 V, 4-20 mA 1%, Potentiometer, NTC, LDR
Relays 8 A or 5 A Relays 8 A or 6 A

Static Digital or PWM Static Digital or PWM

Digital Digital

Inputs on

expansions

Analog 0-10V 2% Analog 0-10 V 1%

4-20 mA 1% 4-20 mA 1%

PT100 1,5°C

Relay 8 A or 5 A Relay 8 A or 6 A

Outputs on

expansions

0-10V 5% 0-10 V 1%

Static Digital or PWM 4-20 mA 1%

USB cable USB interface

Programming

interface

Ethernet

/Com

Ethernet Modbus TCP/IP (server)

Modbus RS485 (slave) on expansion Wireless 2G and 3G versions

› Save time designing your application and remote functions

using the most intuitive graphical function block language on the
market

› Accurately measure your high end industrial sensors with the

embedded congurable analog inputs (including 4-20 mA)

› Easily integrate one of our three high tech designs in your

machine

› Adapt your application during its lifecycle thanks to

the enhanced controlling performances

Glossy black

4 rows of 18 characters

Expandable version: 26 I/Os up to 46 I/Os

Static Digital or PWM

Ethernet port

Remote download

Ethernet version: on base
(Modbus TCP/IP server & client)

Interface

Programming

language

Temperature

range

Real time

clock backup

USB, Bluetooth, memory, RS232 USB, Modbus RS485 (slave)

FBD/SFC or LD FBD/SFC

400 Function Blocks 1000 Function Blocks

200 Ladder lines

-20 °C +55 °C (Essential range) -20 °C +60 °C

-20 °C +70 °C (Smart range)

10 years

 WWW.CROUZETAUTOMATION.COM  9  SELECTION GUIDE

COMPLETE YOUR EXPERIENCE!

Sensors, power supplies, converters, remote screens and communication accessories offer solutions to control your automation
systems with the greatest ease of use.

Memory
cartridge

®

interface

Power supplies
from 7.5 to 240 W

5, 12 or 24 V

Potentiometer

Bluetooth

USB
cable

Light

sensor

WIDE

RANGE OF

ACCESSORIES

c

FOR BOTH

Temperature and

current/voltage

converters

Temperature

probes

Ventilation duct

temperature sensor

Ambient

temperature

sensor

Programmable

touchpanels

USB interface

Modbus RS485

slave interface

Wireless

antennas

 WWW.CROUZETAUTOMATION.COM  10  SELECTION GUIDE

MOST INTUITIVE
PROGRAMMING
SOFTWARE ON THE
MARKET

Simple

› Quick, simple and intuitive programming which

does not require specialist knowledge

› Self-teaching made easier thanks to a user-

friendly online help guide and programming
examples

› A simulation mode that consistently represents

controller operation

Powerful

› A complete range of more than

100 function blocks

› All basic functions: counting, timing,

comparison, display, logic, gain, sin/cos, etc.
are also available

› A wide range of dedicated functions: pump

rotation, PID regulation, movement, pressure,

level, water ratio, solar tracking, and flow

M3 SOFT

M3 Soft is the easiest programming software to use on the market. It is also
incredibly powerful and user-friendly. Thanks to the most comprehensive
library of application-specific function blocks in the industry, it allows you to
customise your applications.

M3 soft
Function blocks

SL In / SL Out

Allows easy monitoring

of your application using

a MTP Touch Panel

Pump management

No more time involved to write

extensive programs to set up

auto pump rotation

Level

Easy set up for tank level

readings and control

User-friendly and
ergonomic

› Software available in 5 languages: English,

French, Italian, German and Spanish

› Function block programming is fun and very

visual

› Programming langages:

- FBD (Function Bloc Diagram)

- SFC (Sequential Function Chart/Grafcet)

- LD (Ladder Diagram) only on M3 soft

User-definable and
effective

› Possibility of creating and saving custom

macros allowing the user to simplify programs

› Possibility of locking macros with a password

for greater security

Download your
software:

Filtration

Allows for automatic

filtration time based

on water temperatures

M3 soft

Flow

Quickly calculate

flow and control

with set thresholds

Gain

Easy analog calculation

to convert analog values

(scale, offset)

PWM Output

Proportional output for

easy valve control

Download

M3 soft

Download
em4 soft

Time Prog

Easily schedule time

events based on

calendar

 WWW.CROUZETAUTOMATION.COM  11  SELECTION GUIDE

SOFT

em4 soft integrates all the remote management features in a single tool.
Based on our strong experience in Millenium programming software
development, em4 soft is the new easy-to-use programming tool dedicated
to em4.

em4 soft

Function blocks

Event

Allows up to 24 events
SMS/email messages including 2
attached analog values

Data Logging

Allows up to 3 blocks of 8 values
to be logged at a specified time
interval or on command signal

Monitoring

Allows easy remote
monitoring and control of
your application

WEB

With em4 remote, your equipment gets the
simplest access to the Internet of Things

› The em4 web provides you with a powerful

device management web-based platform.

› There is no need to configure the

communication: log on, identify your em4
remote and instantly get connected!

› It allows you to easily manage your em4 fleet

on demand:

- manage your access rights, as well as

your customers

- download your application program or

firmware

- monitor and control your devices

- locate them on a map

- display your data history

- receive event notifications by email

and SMS

Last but not least, it implements the latest

security systems and protocols.

Map localisation

em4 soft

32 bit function blocks

Allows high speed
count, tachometer,
power management,
calculation with
32 bit values

Display

Large 4x18 character

display allows user to
visualize text, status,
times and control values in
the program

PID Regulator

Will interface with water
booster drives for pressure
needs based on demand

Google

Your em4 fleet available anywhere, anytime

APP

The em4 simply enters your smartphone

› Mobile complement to the em4 web, the em4

app is the ultimate way to control and monitor

your em4 from your smartphone.

› It uses a fully secured and optimized

infrastructure to ensure total protection of your

data.

› Simply log in, scan the QR code on the

product,and instantly begin monitoring and

controlling your device.

Sunset / Sunrise

Calculate the sunrise and

sunset time

 WWW.CROUZETAUTOMATION.COM  12  SELECTION GUIDE

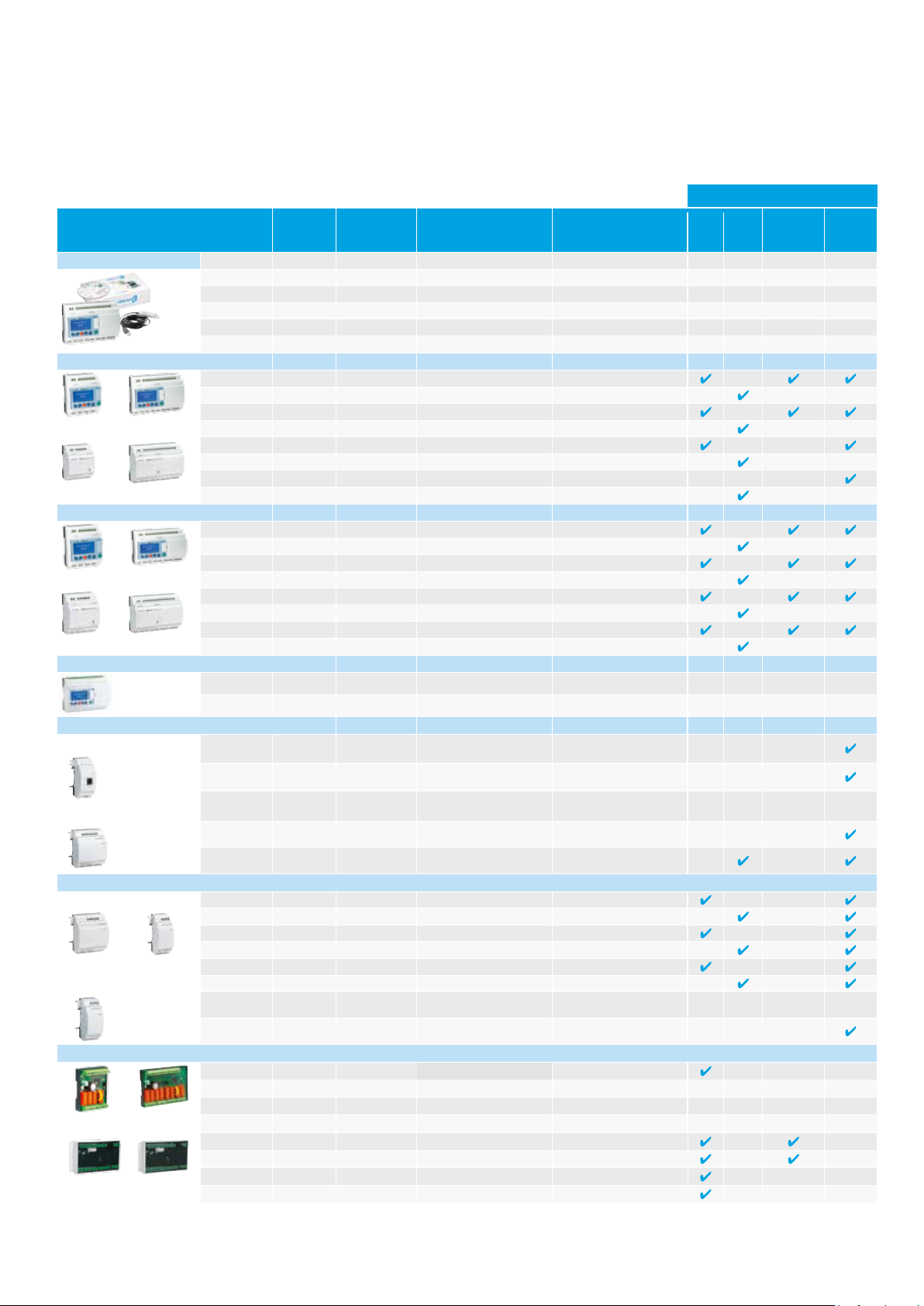

MAKE UP YOUR OWN SOLUTION

MILLENIUM 3 RANGE

Type

M3 Smart kits

Compact versions

With display

Without display

Kit 12 Smart* 88 974 080

Kit 12 Smart* 88 974 081

Kit 20 Smart* 88 974 082

Kit 20 Smart* 88 974 083

Kit 26 Smart* 88 974 084

Kit 26 Smart* 88 974 085

CD12 Smart* 88 974 041

CD12 Smart* 88 974 043

CD20 Smart* 88 974 051

CD20 Smart* 88 974 053

CB12 Smart* 88 974 021

CB12 Smart* 88 974 023

CB20 Smart* 88 974 031

CB20 Smart* 88 974 033

Expandable versions

XD10 Smart* 88 974 141

XD10 Smart* 88 974 143

XD26 Smart* 88 974 161

With display

Without display

XD26 Smart* 88 974 163

XB10 Smart* 88 974 131

XB10 Smart* 88 974 133

XB26 Smart* 88 974 151

XB26 Smart* 88 974 153

With Removable Terminal Blocks

CD12 RBT

Smart*

XD26 RBT

Smart*

Sandwich extensions

XN05 Modbus

TCP/IP

Communication

Digital

XN06 Modbus

RS485

XN07 Master

RS485

XE10 88 970 321

XE10 88 970 323

Termination Extensions

XR06 88 970 211

XR06 88 970 213

XR10 88 970 221

XR10 88 970 223

XR14 88 970 231

Digital

Analog

XR14 88 970 233

XA03

3xPt100

XA04
2AI/2AO

Bare board and resin board versions

NB12 88 970 001

NB12 88 970 003

NB20 88 970 011

Bare board

Resin board

* Millenium 3 Smart: backlit blue LCD display. Extended operating temperature range and function block library

**Millenium 3 Essential: Logic Controller with green screen and industrial temperature range

NB20 88 970 013

NBR12 88 973 001

NBR26 88 973 061

NBR32 88 973 211

NBR40 88 973 231

Part

number

88 974 441

88 974 561

88 970 270

88 972 250

88 974 250

88 970 800

88 970 241

Supply Inputs Outputs

24 Vc
100 → 240 Va
24 Vc
100 → 240 Va
24 Vc
100 → 240 Va

24 Vc
100 → 240 Va
24 Vc
100 → 240 Va
24 Vc
100 → 240 Va
24 Vc
100 → 240 Va

24 Vc
100 → 240 Va
24 Vc
100 → 240 Va
24 Vc
100 → 240 Va
24 Vc
100 → 240 Va

24 Vc

24 Vc

24 Vc

24 Vc

24 Vc

24 Vc

100 → 240 Va

24 Vc
100 → 240 Va
24 Vc
100 → 240 Va
24 Vc
100 → 240 Va

24 Vc

24 Vc

24 Vc
100 → 240 Va
24 Vc
100 → 240 Va
24 Vc
24 Vc
24 Vc
24 Vc

8 (4 congurable as analog) 4 relays 8 A

8 4 relays 8 A

12 (6 congurable as analog) 8 relays 8 A

12 8 relays 8 A

16 (6 congurable as analog)

16 8 relays 8 A and 2 relays 5 A

8 (4 congurable as analog)

8 4 relays 8 A

12 (6 congurable as analog)

12 8 relays 8 A

8 (4 congurable as analog)

8 4 relays 8 A

12 (6 congurable as analog)

12 8 relays 8 A

6 (4 congurable as analog)

6 4 relays 8 A

16 (6 congurable as analog)

16 8 relays 8 A and 2 relays 5 A

6 (4 congurable as analog)

6 4 relays 8 A

16 (6 congurable as analog)

16 8 relays 8 A and 2 relays 5 A

8 (4 congurable as analog)

16 (6 congurable as analog)

6 4 relays 5 A

6 4 relays 5 A

4 2 relays 8 A

4 2 relays 8 A

6 4 relays 8 A

6 4 relays 8 A

8 4 relays 8 A and 2 relays 5 A

8 4 relays 8 A and 2 relays 5 A

3 analog (Pt100)

2 analog 0-10 V/0-20 mA

(1 Pt100)

8 (4 congurable as analog)

8

12 (6 congurable as analog)

12 8 relays 8 A

8 (4 congurable as analog)

16 (6 congurable as analog)

20 (6 congurable as analog)

24 (6 congurable as analog)

8 relays 8 A and 2 relays 5 A

4 relays 8 A

8 relays 8 A

4 relays 8 A

8 relays 8 A

4 relays 8 A

8 relays 8 A and 2 relays 5 A

4 relays 8 A

8 relays 8 A and 2 relays 5 A

4 relays 8 A

8 relays 8 A and 2 relays 5 A

2 analog 0-10V/PWM

4 relays 8 A

4 relays 8 A

8 relays 8 A

4 relays 8 A

10 relays 8 A

12 relays 8 A

16 relays 8 A

Availability/Compatibility

Solid State

12 Vc 24 Vc

0.5 A/PWM

Output

Essential
version **

 WWW.CROUZETAUTOMATION.COM  13  SELECTION GUIDE

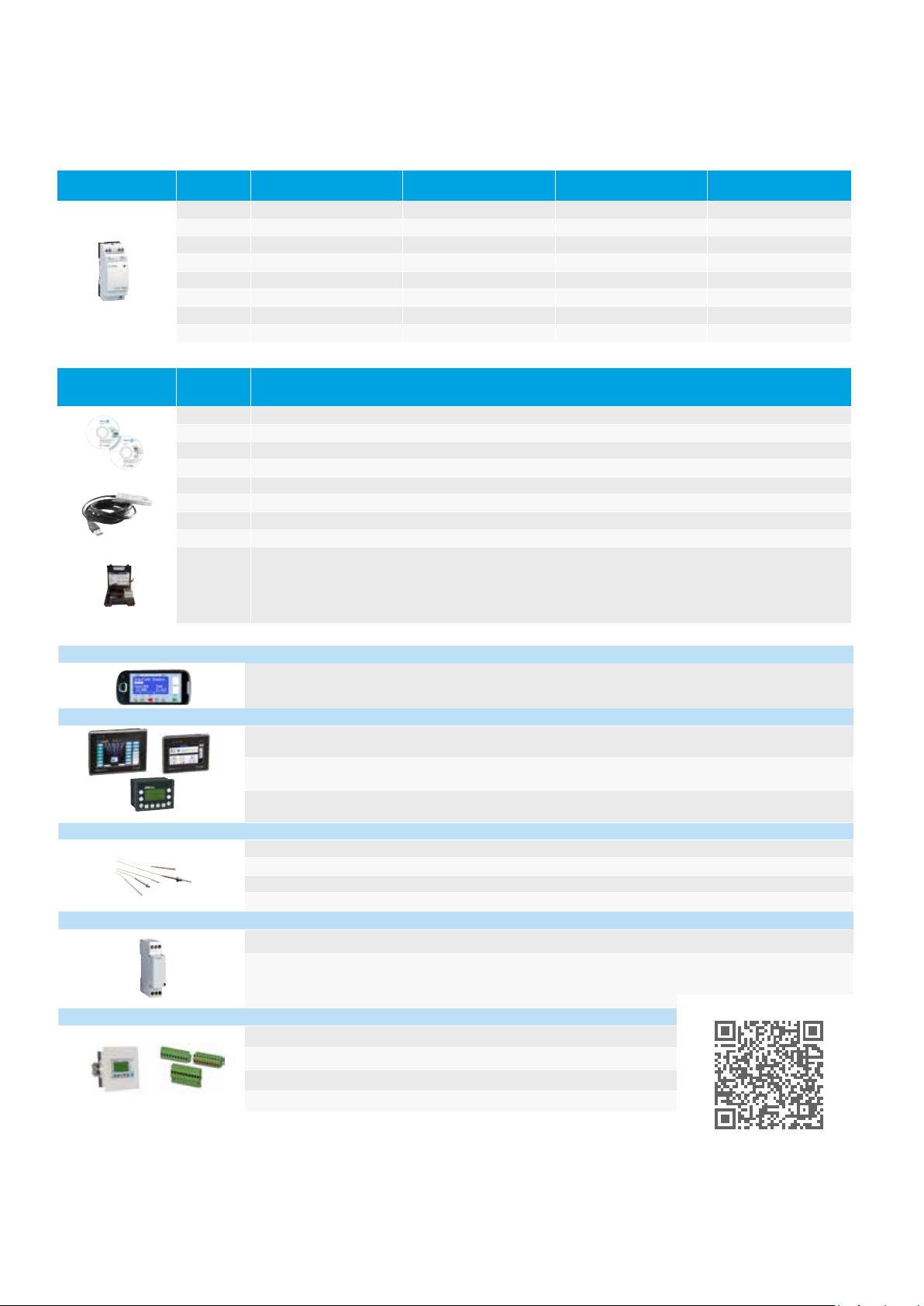

MILLENIUM 3 ACCESSORIES

Power supplies and DC/DC converters in modular casings

Part number Input Voltage

88 950 303

88 950 304

88 950 307

88 950 302

88 950 305

88 950 306

88 950 320

88 950 321

100 → 240 Va
100 → 240 Va 24 Vc
100 → 240 Va 24 Vc
100 → 240 Va 24 Vc
100 → 240 Va 5 Vc
100 → 240 Va 12 Vc
9,2 → 18 Va 12 Vc
9,2 → 36 Va 24 Vc 6 → 10 W

Connection accessories, tools and programming software

Part number Description

Output voltage

24 Vc

Nominal power Output current

7.5 W 0.3 A

15 W 0.6 A

30 W 1.2 A

60 W 2.5 A

20 W 4 A

24 W 2 A

10 W 0.8 A

0.4 A

88 970 111

88 970 108 Memory cartridge for transfer and saving of programs

88 970 102 3 m serial link cable: PC DB9 F

88 974 104 Millenium 3

88 970 109 3 m USB link cable: PC

88 970 110 Bluetooth

88 970 123 1.80 m serial link cable: DB9 M/DB9 F

88 970 510 0.5 m serial link cable: Millenium 3

88 974 106

Millenium 3 Virtual Display

Man/Machine interface

Temperature probes and light sensors

Temperature and signal converters

M3 Soft: Millenium 3 programming software (CD-ROM)

→ Millenium 3

→ Bluetooth

®

adaptor → USB (class A 10 m)

Ready to use Millenium 3 Smart democase including:

- a CD12 Smart, a CTN probe, a LDR probe, an I/O simulator

- a 3 m USB link cable: PC

- a power supply

Android smartphone and tablet as well as Windows XP/7 PC application

TFT-LCD compact 4.3" and 7" resistive touch panels - MTP6/50, MTP8/50 & MTP8/70

Plug & Play remote LCD displays/keypads

Remote LED display - Input 0-10 V

NTC Temperature probes

LDR Light sensors

0-10 V Temperature sensors

Temperature probes Pt100 & Thermocouple

Thermocouple Pt100/Pt1000 → 0-10 V

®

interface (class A 10 m)

→ Millenium 3

→ Millenium 3, a M3 Soft CD

110-230 Va

→ DB9 M

Other accessories and kits

PWM to 0-10 V/4-20 mA to 0-10 V

Standard Smart and Essential product kits

Removable connectors

Potentiometer Ø 22 mm

Faceplates

Check out the

Millenium 3 datasheets!

 WWW.CROUZETAUTOMATION.COM  14  SELECTION GUIDE

RANGE

Connection type

Product description

Bases

em4 remote 2G* 88 981 153

em4 remote 3G*

em4 remote Ethernet*

em4 alert 2G

em4 alert 3G

em4 local

em4 local Ethernet

Starter kits

Starter kit em4 remote 2G* 88 981 156

Starter kit em4 remote 3G*

Starter kit em4 remote Ethernet*

Starter kit em4 alert 2G

Starter kit em4 alert 3G

Starter kit em4 local

Starter kit em4 local Ethernet

Evaluation cases

Evaluation case em4 remote 2G* 88 980 185

Evaluation case em4 remote 3G*

Evaluation case em4 remote Ethernet*

Evaluation case em4 alert 2G

Evaluation case em4 alert 3G

Evaluation case em4 local

Evaluation case em4 local Ethernet

* em4 remote 2G, 3G and Ethernet include the rst year of subscription to em4 remote access (em4 web & em4 app), with a SIM card for the 2G and 3G versions.
** The 3G and Ethernet versions will be available in 2016.

Glossy

black

Details

Common characteristics:

-

- Supply: 24Vc

-

88 981 113

88 981 123

88 981 103

88 981 133**

- Inputs: 16 digital inputs (including 4 high speed,
8 analog 0-10 V / potentiometers and 4 analog 0-10 V / 4-20 mA)

- Outputs: 10 digital outputs (including 2 static 0.5 A PWM,

2 relays 6 A and 6 relays 8 A)

An em4 starter kit includes:

- The em4 remote nano-PLC

- The standard 3 m antenna

-

- - The em4 remote nano-PLC - The Ethernet cable

88 981 116

88 981 126

88 981 106

88 981 136** - The Ethernet cable

- The em4 alert nano-PLC

- The standard 3 m antenna

- The em4 local nano-PLC

- The USB interface

- The USB programming cable

- The USB interface

- The USB programming cable

The ready-to-use evaluation case includes:

88 980 186**

- The starter kit (description above)

-

- The power supply 110-230 Va with Europe and US adaptor

88 980 181

88 980 182

88 980 180

- The simulator PCB for the 16 Inputs with switches, potentiometers

and terminals to connect your sensor for evaluation

- The simulator PCB for the 10 Outputs with 11 LEDs and terminals

to connect the 2 static outputs to a device for evaluation

-

- The
em4
soft
(USB
key)

Product description Inputs Outputs Glossy black

Expansions

em4 digital expansion E10R

em4 analog expansion E10A 6 digital inputs (congurable as analog 0-10 V / 4-20 mA)

Product description Part number

em4 USB interface black 88 980 110

em4 interface RS485 Modbus slave black 88 980 120

Interfaces

em4 Set of I/O simulator for bases 88 980 150

Antenna 3 m standard 88 980 160

Antenna 3 m int/ext at 88 980 161

Antenna 10 m ext 88 980 162

Accessories

USB cable 3 m B type 88 980 170

em4 soft (USB key) 88 980 140

Modular power supply 24 Vc 7.5 W 88 950 303

Modular power supply 24 Vc 15 W 88 950 304

Modular power supply 24 Vc 30 W 88 950 307

Modular power supply 24 Vc 60 W 88 950 302

Power supplies

6 digital inputs (congurable as analog 0-10 V or potentiometer)

Description Key features Part number

Programmable touch panels

MTP6/50 user kit*

MTP8/50 user kit*

Cable em4-MTP6/50 & MTP8/50

MTP8/70 user kit*

Cable em4-MTP8/70

MTP6/50 - MTP8/70 programming kit

(USB)

MTP8/50 - MTP8/70
programming kit (Ethernet)

* em4 cable not included in User Kit

4 digital outputs (2 relays 6 A and 2 relays 8 A) 88 982 113

4 outputs (2 static 0.5 A PWM and 2 analog 0-10 V)

- 4.3’’ color touch panel

- Modbus RS232/RS485 serial port

- USB port

- 4.3’’ color touch panel

- Modbus RS232/RS485 serial port

- Ethernet TCP/IP port

For use with em4 interface RS485 Modbus
interface (88 980 120)

- 7’’ color touch panel

- 2x Modbus RS232/RS485 serial port

- USB port, Ethernet TCP/IP port

For use with em4 interface RS485 Modbus
(88 980 120)

- USB - Mini USB cable

- EB Software (CD)

- Ethernet crossover cable

- EB Software (CD)

88 982 213

88 970 492

88 970 494

88 980 171

88 970 496

88 980 172

88 970 501

88 970 502

 WWW.CROUZETAUTOMATION.COM  15  SELECTION GUIDE

PERFECTLY MATCH ALL OF
YOUR REQUIREMENTS

Crouzet Automation has identied six major applications for which Millenium 3 and em4 are particularly

suitable:

ACCESS CONTROL

Control opening and closing of doors. Allow or restrict access with

automatic detection, on a timer, or on certain days/time.

WATER TREATMENT

Managing circulation pumps, monitoring levels, temperature and
conductivity of the water. Irrigation control based on temperature,
humidity, and day/night cycle

TE M PERATURES

Management of various parameters such as heating, cooling, uid

temperatures, operation, calendar-based function, frost protection
mode, alarm management, etc.

SMALL INDUSTRIAL MACHINES

Controlling the motor that unrolls the packing lm. Controls
cutting of the lm after heat sealing and monitors the duration of
the motor cycles. Controlling heat sealing times on blister packs,

packaging bags, etc.

SOLAR WATER H E ATI N G

Automation of operation and heating regulation, remote
management of the installation.

LIGHTING

Managing ashing on illuminated signs
