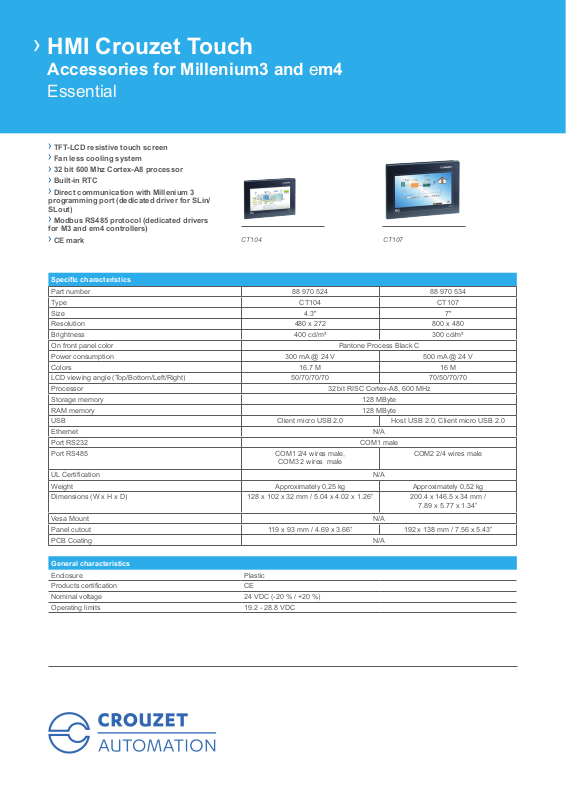

HMI Crouzet Touch
Accessories for Millenium3 and em4
Essential
›
T FT-LCD resistive touch screen
›
Fan less cooling system
›
32 bit 600 Mhz Cortex-A8 processor
›
Built-in RTC
›
Direct communication with Millenium 3
programming port (dedicated driver for SLin/
SLout)
›
Modbus RS485 protocol (dedicated drivers
for M3 and em4 controllers)
›
CE mark
Specic characteristics
Part number 88 970 524 88 970 534
Type CT104 CT107
Size 4.3" 7"
Resolution 480 x 272 800 x 480
Brightness 400 cd/m² 300 cd/m²
On front panel color Pantone Process Black C
Power consumption 300 mA @ 24 V 500 mA @ 24 V
Colors 16.7 M 16 M
LCD viewing angle (Top/Bottom/Left/Right) 50/70/70/70 70/50/70/70
Processor 32 bit RISC Cortex-A8, 600 MHz
Storage memory 128 MByte
RAM memory 128 MByte
USB Client micro USB 2.0 Host USB 2.0, Client micro USB 2.0
Ethernet N/A
Port RS232 COM1 male
Port RS485 COM1 2/4 wires male,
UL Certication N/A
Weight Approximately 0,25 kg Approximately 0,52 kg
Dimensions (W x H x D) 128 x 102 x 32 mm / 5.04 x 4.02 x 1.26” 200.4 x 146.5 x 34 mm /
Vesa Mount N/A
Panel cutout 119 x 93 mm / 4.69 x 3.66” 192 x 138 mm / 7.56 x 5.43”
PCB Coating N/A
CT104
COM3 2 wires male
CT107
COM2 2/4 wires male
7.89 x 5.77 x 1.34”
General characteristics
Enclosure Plastic
Products certication CE
Nominal voltage 24 VDC (-20 % / +20 %)
Operating limits 19.2 - 28.8 VDC
102mm [4.016"]
I
WWW.CROUZET-AUTOMATION.COM I 02 I Millenium 3 & em4 accessories
Power isolation Yes
Power supply earthing Yes
Voltage resistance 500 VAC (1 minute)
Isolation resistance > 50 Mohms at 500 VDC
Vibration endurance
Conducted and radiated emissions EN 55022: 2010 +AC: 2011 classe A
Electro-Magnetic Interference, harmonic current EN 61000-3-2: 2014
Electro-Magnetic Interference, voltage icker EN 61000-3-3: 2013
Resistance to electrostatic discharge Immunity to ESD IEC/EN 61000-4-2: 2008
Resistance to HF interference
(Immunity) (EN55024: 2010)
Voltage dip, interruption IEC/EN 61000-4-11: 2004
Protection against electric shock Classe I equipment
Mount
Connection Removable 3-pin screw terminal block (supplied)
Protection rating NEMA4 / IP 65 Compliant front panel
Operation temperature
Storage temperature
Relative humidity
10 25 Hz (X,Y,Z direction 2G 30 minutes)
CISPR 22: 2008
Immunity to radiated electrostatic elds IEC/EN 61000-4-3: 2010
Immunity to fast transients (burst immunity) IEC/EN 61000-4-4: 2012
Immunity to shock waves IEC/EN 61000-4-5: 2014
Radio frequency in common mode IEC/EN 61000-4-6: 2013
Immunity to magnetic eld IEC/EN 61000-4-8: 2009
IEC/EN 61000-4-11: 2004 Ed 2.0
Built-in, xing by screw clamps (supplied) for 1 6 mm panel
0 (32 °F) +50 °C (122 °F)
-20 (-4 °F) +60 °C (140 °F)
10 90% max. (no condensation or dripping water)
Display
Type TFT LCD
Contrast ratio 500:1
Backlight type Led
Backlight life time > 30.000 Hours
Touch panel: type 4 wires resistive, with user-denable layout
Touch panel: key life 1 million operations minimum
Accuracy Active Area Length (X) ± 2 %, Width (Y) ± 2 %
Driver Millenium 3 SLIN/SLOUT 24 VDC, XN06
Driver em4 Modbus RS485
Driver Modbus IDA ASCII, RTU
RTC Use Millenium 3, em4 or build-in clock
RTC battery CR2032
RTC time life battery > 5 years, not rechargeable
Schemes
Dimensions
CT104
118mm [4.646"]
128mm [5.039"]
92mm [3.622"]
4" ]
93mm [3.661"]
135.6mm [5.34"
I
WWW.CROUZET-AUTOMATION.COM I 03 I Millenium 3 & em4 accessories
6.7mm [ 0.26
mm [ 1.260" ]
Panel cutout
119mm [4.685"]
≤ R2mm [R0.079"]
CT107
]
189.5mm [7.46"]
6.7mm [ 0.264" ]
34mm [1. 34"]
138mm [5.43"
32mm [1.260"]
34mm [1.34"]
I
WWW.CROUZET-AUTOMATION.COM I 04 I Millenium 3 & em4 accessories
Panel cutout
192mm [7.56"]
≤ R2mm [R0.08"]
]
Connections
CT104
a
b
c
a Power Connector
b COM1 RS232, RS485. COM3 RS485
c µUSB
CT107
a
b
c
d
a Power Connector
b COM2 RS485. COM3 RS485
c USB Host
d µUSB
