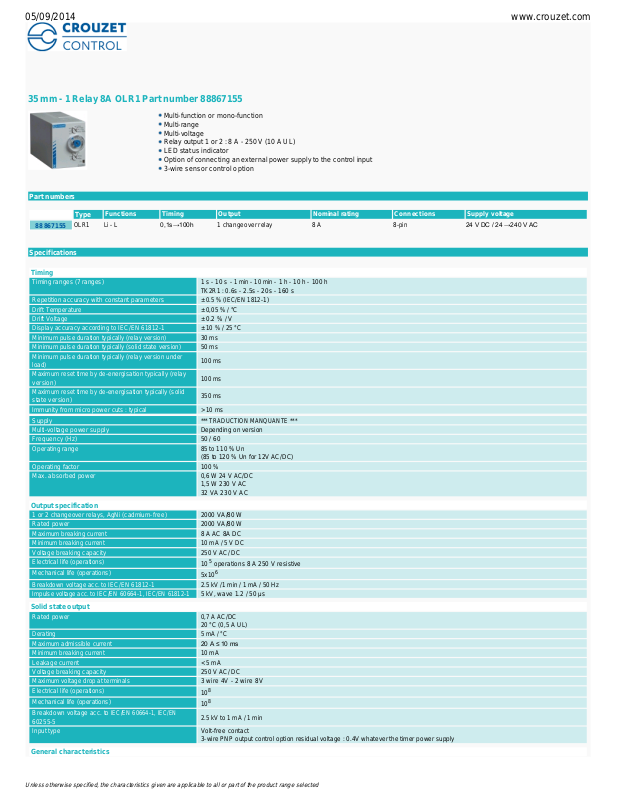

35 mm - 1 Relay 8A OLR1 Part number 88867155
Multi
-function or mono-function
Multi
-range
Multi
-voltage
Relay output 1 or 2 : 8 A - 250 V (10 A UL)
LED status indicator
Option of connecting an external power supply to the control input
3-wire sensor control option
Part numbers
Specifications
Type
Functions
Timing
Output
Nominal rating
Connections
Supply voltage
88 867 155
OLR1
Li
- L
0,1s→100h
1 changeover relay
8 A8-pin
24VDC/24→240VAC
Timing
Timing ranges (7 ranges)
1 s - 10 s -
1 min - 10 min
- 1 h - 10 h - 100 h
TK2R1 : 0.6s
- 2.5s - 20s - 160 s
Repetition accuracy with constant parameters
± 0.5 % (IEC/EN 1812
-1)
Drift Temperature
± 0,05 % / °C
Drift Voltage
±
0.2 % / V
Display accuracy according to IEC/EN 61812
-1
± 10 % / 25 °C
Minimum pulse duration typically (relay version)
30 ms Minimum pulse duration typically (solid state version)
50 ms
Minimum pulse duration typically (relay version under
load)
100 ms
Maximum reset time by de
-energisation typically (relay
version)
100 ms
Maximum reset time by de
-energisation typically (solid
state version)
350 ms
Immunity from micro power cuts : typical
> 10 ms
Supply
*** TRADUCTION MANQUANTE ***
Multi
-voltage power supply
Depending on version
Frequency (Hz)
50 / 60
Operating range
85 to 110 % Un
(85 to 120 % Un for 12V AC/DC)
Operating factor
100 %
Max. absorbed power
0,6 W 24 V AC/DC
1,5 W 230 V AC
32 VA 230 V AC
Output specification
1 or 2 changeover relays, AgNi (cadmium-free)
2000 VA/80 W
Rated power
2000 VA/80 W
Maximum breaking current
8 A AC 8A DC
Minimum breaking current
10 mA / 5 V DC
Voltage breaking capacity
250 V AC/ DC
Electrical life (operations)
10 5 operations 8 A 250 V resistive
Mechanical life (operations)
5x106Breakdown voltage acc. to IEC/EN 61812
-1
2.5 kV /1 min / 1 mA / 50 Hz
Impulse voltage acc. to IEC/EN 60664-1, IEC/EN 61812
-1
5 kV, wave 1.2 / 50 μs
Solid state output
Rated power
0,7 A AC/DC
20 °C (0,5 A UL)
Derating
5 mA / °C
Maximum admissible current
20A≤10ms
Minimum breaking current
10 mA Leakage current
< 5 mA
Voltage breaking capacity
250 V AC/ DC
Maximum voltage drop at terminals
3 wire 4V - 2 wire 8V
Electrical life (operations)
10
8
Mechanical life (operations)
10
8
Breakdown voltage acc. to
IEC/EN 60664-1, IEC/EN
60255-5
2.5 kV to 1 mA / 1 min
Input type
Volt-free contact
3-wire PNP output control option residual voltage : 0.4V whatever the timer power supply
General characteristics
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
Accessories
Conformity to standards
IEC/EN 61812
-1
IEC/EN 61000
-6-1
IEC/EN 61000
-6-2
IEC/EN 61000
-6-3
IEC/EN 61000
-6-4
Certifications
CE, UL, cUL, CSA, GL
Temperature limits use (°C)
-
20→+60
Temperature limits stored (°C)
-
30→+60
Installation category
(acc. to IEC/EN 60664
-1)
Voltage surge category
Creepage distance and clearance acc. to IEC/EN 60664
-1
4 kV / 3
Protection (IEC/EN 60529)
IP 20 IP 40
Degree of protection acc. to IEC/EN 60529 Front face
(except Tk2R1)
IP 50
Vibration resistance
acc. to IEC/EN 60068
-2-6
f = 10
55 Hz
A = 0,35 mm
Relative humidity
no condensation acc. to IEC/EN 60068
-
2-30
93 % sans condensation
Electromagnetic compatibility - Immunity to electrostatic
discharges acc to IEC/EN 61000
-4-2
Level III (Air 8 KV / Contact 6 KV)
Immunity to radiated, radio
-frequency, electromagnetic
field acc. IEC/EN 61000
-4-3
Level III 10V/m (80 M Hz to 1 G Hz)
Immunity to rapid transient bursts acc. to IEC/EN 61000
-4-
4
Level III (direct 2kV / Capacitive coupling clamp 1 KV)
Immunity to shock waves on power supply acc. to IEC/EN
61000-4-5
Level III (2 KV / common mode 2 KV/residual current mode 1KV)
Immunity to radio frequency in common mode acc. to
IEC/EN 61000
-4-6
Level III (10V rms : 0.15 M Hz to 80 M Hz)
Immunity to voltage dips and breaks acc. to IEC/EN 61000
-
4-11
30 %/10 ms
60 %/100 ms >
95 %/5 s
Mains-borne and radiated emissions acc. to EN 55022
(CISPR22), EN55011 (CISPR11)
Class B
Fixing : Symmetrical DIN rail
35 mm
Connection capacity - without ferrule
2 x 2,5 mm
2
Connection capacity - with ferrule
2 x 1,5 mm
2
Spring terminals, 2 terminals per connection point
-
flexible wire
1,5 mm
2
Spring terminals, 2 terminals per connection point - rigid
wire
2,5 mm
2
Housing material
Self-extinguishing
Weight : casing 17,5 mm
60 g
Weight : casing 22,5 mm
90 g
Weight : plug
-in casing
80 g
80
Accessories
Code
8-pin connector base
25 622 128
Display
State displayed by 1 LED
- Flashing green when on
Green LED operation indicator
Pulsing :
- timer on, no timing in progress (except functions Di-
D and Li
-L)
Flashing :
-
timing in progress
Permanently lit :
- Relay waiting, no timing in progress
Dimensions (mm)
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
Dimensions (mm)
Accessories
Curves
Function L
Function L
Asymmetrical recycler 1 relay Pause start
Curves
Function Li
Function Li
Asymemetrical recycler 1 relay Pulse start
Connections
8-pin 1 relay output
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
Functions
Functions Li
- L
