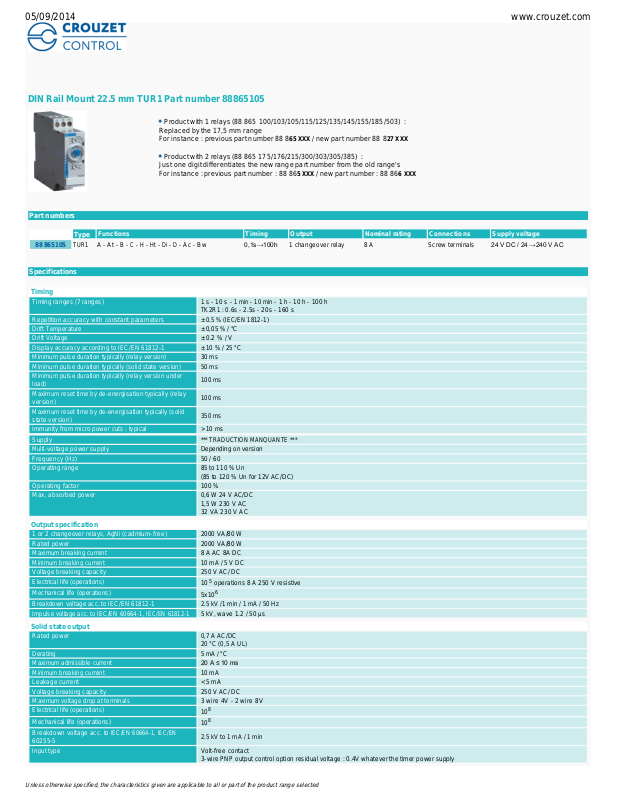

Crouzet 88865105 Data Sheet
DIN Rail Mount 22.5 mm TUR1 Part number 88865105
Product with 1 relays (88 865 100/103/105/115/125/135/145/155/185/503) :
Replaced by the 17,5 mm range
For instance : previous part number 88 8
65 XXX
/ new part number 88 8
27 XXX
Product with 2 relays (88 865 175/176/215/300/303/305/385) :
Just one digit differentiates the new range part number from the old range's
For instance : previous part number : 88 86
5 XXX
/ new part number : 88 86
6 XXX
Part numbers
Specifications
Type
Functions
Timing
Output
Nominal rating
Connections
Supply voltage
88 865 105
TUR1
A - At - B - C - H -
Ht - Di - D
- Ac - Bw
0,1s→100h
1 changeover relay
8 A
Screw terminals
24VDC/24→240VAC
Timing
Timing ranges (7 ranges)
1 s - 10 s -
1 min - 10 min
- 1 h - 10 h - 100 h
TK2R1 : 0.6s
- 2.5s - 20s - 160 s
Repetition accuracy with constant parameters
± 0.5 % (IEC/EN 1812
-1)
Drift Temperature
± 0,05 % / °C
Drift Voltage
±
0.2 % / V
Display accuracy according to IEC/EN 61812
-1
± 10 % / 25 °C
Minimum pulse duration typically (relay version)
30 ms Minimum pulse duration typically (solid state version)
50 ms
Minimum pulse duration typically (relay version under
load)
100 ms
Maximum reset time by de
-energisation typically (relay
version)
100 ms
Maximum reset time by de
-energisation typically (solid
state version)
350 ms
Immunity from micro power cuts : typical
> 10 ms
Supply
*** TRADUCTION MANQUANTE ***
Multi
-voltage power supply
Depending on version
Frequency (Hz)
50 / 60
Operating range
85 to 110 % Un
(85 to 120 % Un for 12V AC/DC)
Operating factor
100 %
Max. absorbed power
0,6 W 24 V AC/DC
1,5 W 230 V AC
32 VA 230 V AC
Output specification
1 or 2 changeover relays, AgNi (cadmium-free)
2000 VA/80 W
Rated power
2000 VA/80 W
Maximum breaking current
8 A AC 8A DC
Minimum breaking current
10 mA / 5 V DC
Voltage breaking capacity
250 V AC/ DC
Electrical life (operations)
10 5 operations 8 A 250 V resistive
Mechanical life (operations)
5x106Breakdown voltage acc. to IEC/EN 61812
-1
2.5 kV /1 min / 1 mA / 50 Hz
Impulse voltage acc. to IEC/EN 60664-1, IEC/EN 61812
-1
5 kV, wave 1.2 / 50 μs
Solid state output
Rated power
0,7 A AC/DC
20 °C (0,5 A UL)
Derating
5 mA / °C
Maximum admissible current
20A≤10ms
Minimum breaking current
10 mA Leakage current
< 5 mA
Voltage breaking capacity
250 V AC/ DC
Maximum voltage drop at terminals
3 wire 4V - 2 wire 8V
Electrical life (operations)
10
8
Mechanical life (operations)
10
8
Breakdown voltage acc. to
IEC/EN 60664-1, IEC/EN
60255-5
2.5 kV to 1 mA / 1 min
Input type
Volt-free contact
3-wire PNP output control option residual voltage : 0.4V whatever the timer power supply
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
General characteristics
Conformity to standards
IEC/EN 61812
-1
IEC/EN 61000
-6-1
IEC/EN 61000
-6-2
IEC/EN 61000
-6-3
IEC/EN 61000
-6-4
Certifications
CE, UL, cUL, CSA, GL
Temperature limits use (°C)
-
20→+60
Temperature limits stored (°C)
-
30→+60
Installation category
(acc. to IEC/EN 60664
-1)
Voltage surge category
Creepage distance and clearance acc. to IEC/EN 60664
-1
4 kV / 3
Protection (IEC/EN 60529)
IP 20 IP 40
Degree of protection acc. to IEC/EN 60529 Front face
(except Tk2R1)
IP 50
Vibration resistance
acc. to IEC/EN 60068
-2-6
f = 10
55 Hz
A = 0,35 mm
Relative humidity
no condensation acc. to IEC/EN 60068
-
2-30
93 % sans condensation
Electromagnetic compatibility - Immunity to electrostatic
discharges acc to IEC/EN 61000
-4-2
Level III (Air 8 KV / Contact 6 KV)
Immunity to radiated, radio
-frequency, electromagnetic
field acc. IEC/EN 61000
-4-3
Level III 10V/m (80 M Hz to 1 G Hz)
Immunity to rapid transient bursts acc. to IEC/EN 61000
-4-
4
Level III (direct 2kV / Capacitive coupling clamp 1 KV)
Immunity to shock waves on power supply acc. to IEC/EN
61000-4-5
Level III (2 KV / common mode 2 KV/residual current mode 1KV)
Immunity to radio frequency in common mode acc. to
IEC/EN 61000
-4-6
Level III (10V rms : 0.15 M Hz to 80 M Hz)
Immunity to voltage dips and breaks acc. to IEC/EN 61000
-
4-11
30 %/10 ms
60 %/100 ms >
95 %/5 s
Mains-borne and radiated emissions acc. to EN 55022
(CISPR22), EN55011 (CISPR11)
Class B
Fixing : Symmetrical DIN rail
35 mm
Connection capacity - without ferrule
2 x 2,5 mm
2
Connection capacity - with ferrule
2 x 1,5 mm
2
Spring terminals, 2 terminals per connection point
-
flexible wire
1,5 mm
2
Spring terminals, 2 terminals per connection point - rigid
wire
2,5 mm
2
Housing material
Self-extinguishing
Weight : casing 17,5 mm
60 g
Weight : casing 22,5 mm
90 g
Weight : plug
-in casing
80 g
90
Display
State displayed by 2 LEDs
- Flashing green when on
-
Relay LED yellow during timing
Green LED operation indicator
Pulsing :
-
Timer on, no timing in process
Permanently lit :
- Relay waiting, no timing in process
Dimensions (mm)
