DIN Rail Mount 17.5 mm MUR4 Part number 88826100
DIN Rail Mount 17.5 mm MUR4 Part number 88826100
Just one digit differentiates the new range part number from the old range's
Previous part number : 88 82
6 XXX
/ new part number : 88 82
7 XXX
Part numbers
Specifications
Type
Functions
Timing
Output
Nominal rating
Connections
Supply voltage
88 826 100
MUR4
A - At - B - C - H -
Ht - Di - D
- Ac - Bw
0,1s→100h
1 changeover relay
8 A
Screw terminals
12 V AC / DC
Timing
Timing ranges (7 ranges)
1 s - 10 s -
1 min - 10 min
- 1 h - 10 h - 100 h
TK2R1 : 0.6s
- 2.5s - 20s - 160 s
Repetition accuracy with constant parameters
± 0.5 % (IEC/EN 1812
-1)
Drift Temperature
± 0,05 % / °C
Drift Voltage
±
0.2 % / V
Display accuracy according to IEC/EN 61812
-1
± 10 % / 25 °C
Minimum pulse duration typically (relay version)
30 ms Minimum pulse duration typically (solid state version)
50 ms
Minimum pulse duration typically (relay version under
load)
100 ms
Maximum reset time by de
-energisation typically (relay
version)
100 ms
Maximum reset time by de
-energisation typically (solid
state version)
350 ms
Immunity from micro power cuts : typical
> 10 ms
Supply
*** TRADUCTION MANQUANTE ***
Multi
-voltage power supply
Depending on version
Frequency (Hz)
50 / 60
Operating range
85 to 110 % Un
(85 to 120 % Un for 12V AC/DC)
Operating factor
100 %
Max. absorbed power
0,6 W 24 V AC/DC
1,5 W 230 V AC
32 VA 230 V AC
Output specification
1 or 2 changeover relays, AgNi (cadmium-free)
2000 VA/80 W
Rated power
2000 VA/80 W
Maximum breaking current
8 A AC 8A DC
Minimum breaking current
10 mA / 5 V DC
Voltage breaking capacity
250 V AC/ DC
Electrical life (operations)
10 5 operations 8 A 250 V resistive
Mechanical life (operations)
5x106Breakdown voltage acc. to IEC/EN 61812
-1
2.5 kV /1 min / 1 mA / 50 Hz
Impulse voltage acc. to IEC/EN 60664-1, IEC/EN 61812
-1
5 kV, wave 1.2 / 50 μs
Solid state output
Rated power
0,7 A AC/DC
20 °C (0,5 A UL)
Derating
5 mA / °C
Maximum admissible current
20A≤10ms
Minimum breaking current
10 mA Leakage current
< 5 mA
Voltage breaking capacity
250 V AC/ DC
Maximum voltage drop at terminals
3 wire 4V - 2 wire 8V
Electrical life (operations)
10
8
Mechanical life (operations)
10
8
Breakdown voltage acc. to
IEC/EN 60664-1, IEC/EN
60255-5
2.5 kV to 1 mA / 1 min
Input type
Volt-free contact
3-wire PNP output control option residual voltage : 0.4V whatever the timer power supply
General characteristics
Conformity to standards
IEC/EN 61812
-1
IEC/EN 61000
-6-1
IEC/EN 61000
-6-2
IEC/EN 61000
-6-3
IEC/EN 61000
-6-4
Certifications
CE, UL, cUL, CSA, GL
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
Temperature limits use (°C)
-
20→+60
Temperature limits stored (°C)
-
30→+60
Installation category
(acc. to IEC/EN 60664
-1)
Voltage surge category
Creepage distance and clearance acc. to IEC/EN 60664
-1
4 kV / 3
Protection (IEC/EN 60529)
IP 20 IP 40
Degree of protection acc. to IEC/EN 60529 Front face
(except Tk2R1)
IP 50
Vibration resistance
acc. to IEC/EN 60068
-2-6
f = 10
55 Hz
A = 0,35 mm
Relative humidity
no condensation acc. to IEC/EN 60068
-
2-30
93 % sans condensation
Electromagnetic compatibility - Immunity to electrostatic
discharges acc to IEC/EN 61000
-4-2
Level III (Air 8 KV / Contact 6 KV)
Immunity to radiated, radio
-frequency, electromagnetic
field acc. IEC/EN 61000
-4-3
Level III 10V/m (80 M Hz to 1 G Hz)
Immunity to rapid transient bursts acc. to IEC/EN 61000
-4-
4
Level III (direct 2kV / Capacitive coupling clamp 1 KV)
Immunity to shock waves on power supply acc. to IEC/EN
61000-4-5
Level III (2 KV / common mode 2 KV/residual current mode 1KV)
Immunity to radio frequency in common mode acc. to
IEC/EN 61000
-4-6
Level III (10V rms : 0.15 M Hz to 80 M Hz)
Immunity to voltage dips and breaks acc. to IEC/EN 61000
-
4-11
30 %/10 ms
60 %/100 ms >
95 %/5 s
Mains-borne and radiated emissions acc. to EN 55022
(CISPR22), EN55011 (CISPR11)
Class B
Fixing : Symmetrical DIN rail
35 mm
Connection capacity - without ferrule
2 x 2,5 mm
2
Connection capacity - with ferrule
2 x 1,5 mm
2
Spring terminals, 2 terminals per connection point
-
flexible wire
1,5 mm
2
Spring terminals, 2 terminals per connection point - rigid
wire
2,5 mm
2
Housing material
Self-extinguishing
Weight : casing 17,5 mm
60 g
Weight : casing 22,5 mm
90 g
Weight : plug
-in casing
80 g
60
Display
Visualisation des états par 1 LED
- Verte clignotante sous tension
Indication du fonctionnement LED verte
Flashs brefs :
- minuterie sous tension, pas de temporisation en cours (sauf Di-
D et Li
-L) *
Clignotement :
- temporisation en cours
Allumage permanent :
- relais enclenché, pas de temporisation en cours

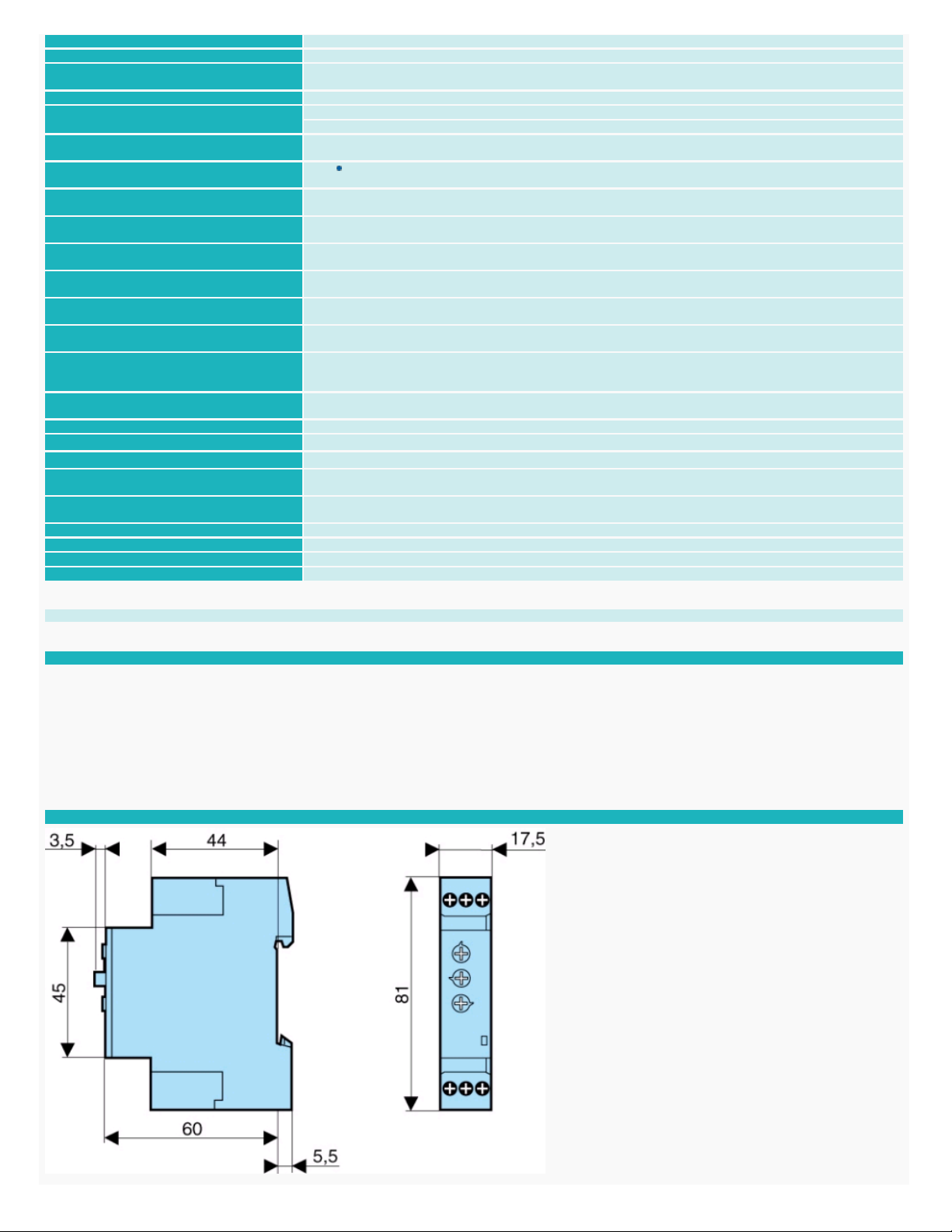

Dimensions (mm)
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected

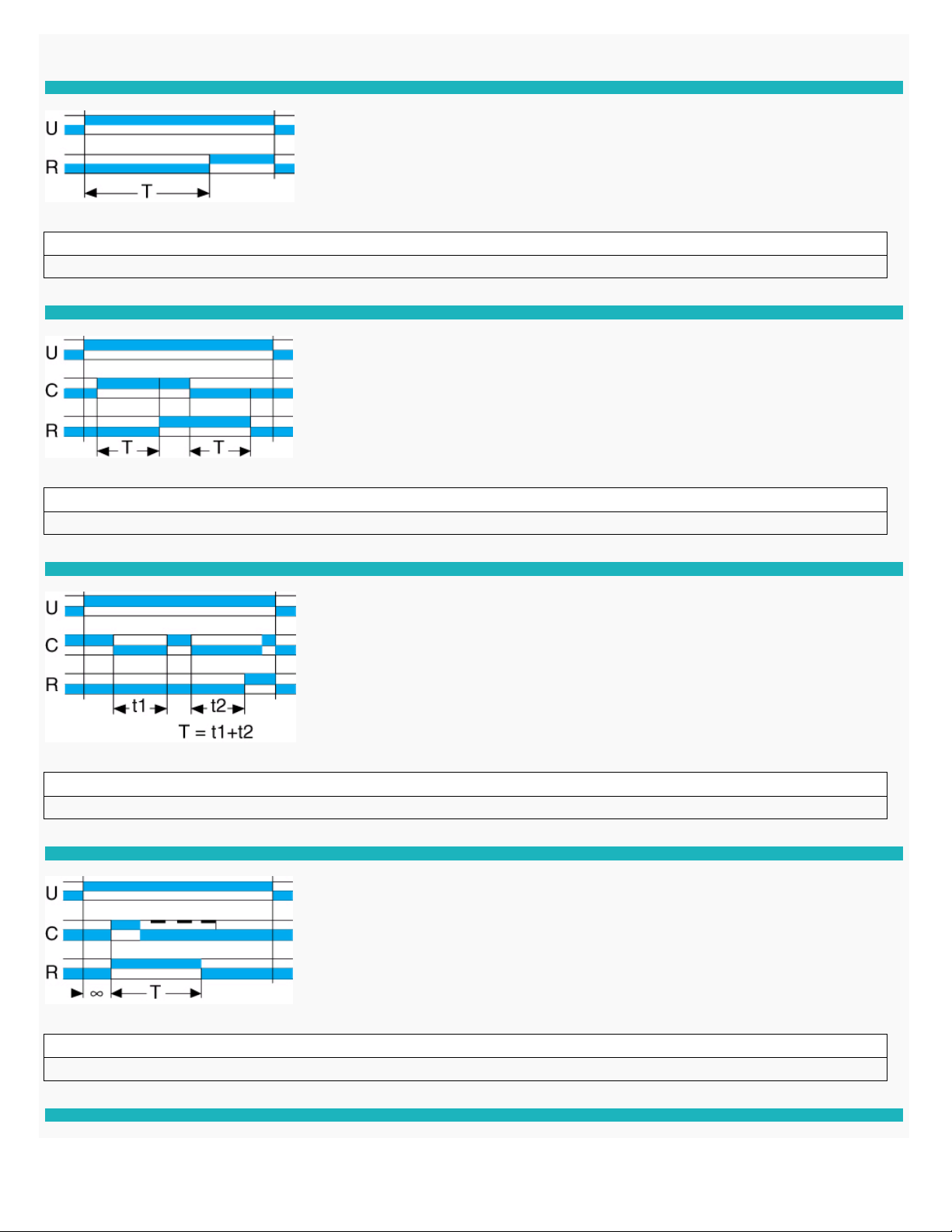

Curves
Function A
Function A
Delay on energisation
Curves
Function Ac
Function Ac
Timing after closing and opening of control contact 1 relay
Curves
Function At
Function At
Timing on energisation with memory 1 relay
Curves
Function B
Function B
Timing on impulse one shot 1 relay
Curves
Function Bw
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
Function Bw
Pulse output (adjustable) 1 relay
Curves
Function C
Function C
Timing after impulse 1 timer
Curves
Function D
Function D
Flip
-flop 1 relay Pause start
Curves
Function Di
Function Di
Flip
-flop 1 relay Pulse start
Curves
Function H
Function H
Timing on energisation 1 relay
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected

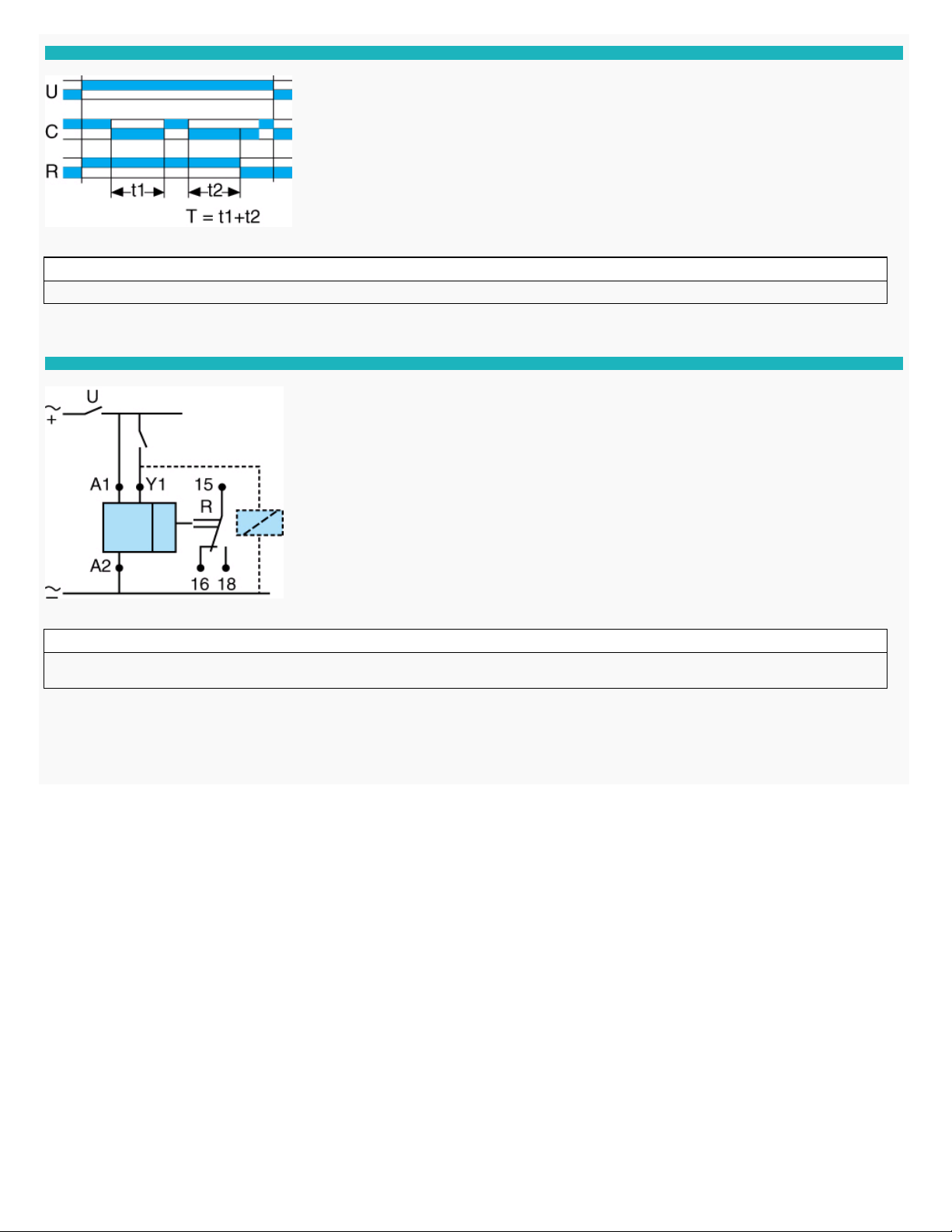

Curves
Function Ht
Function Ht
Delay on energisation with memory 1 relay
Connections
1 changeover relay output
Functions
A-At / H-
Ht / B / C / Di
-D / Ac / BW
Ad - Ah -
N - O - P - Pt - Tl - Tt - W
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
