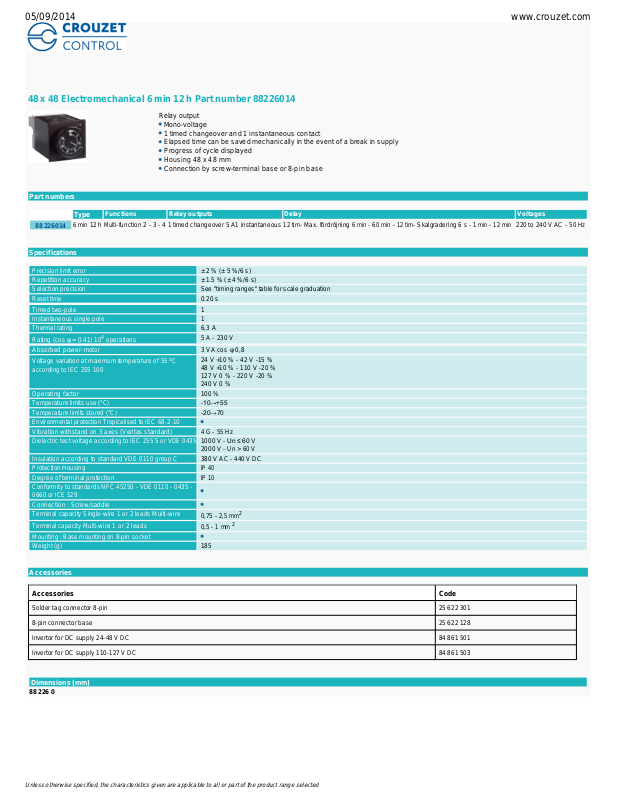

Crouzet 88226014 Data Sheet

48 x 48 Electromechanical 6 min 12 h Part number 88226014
Relay output
Mono-voltage 1 timed changeover and 1 instantaneous contact Elapsed time can be saved mechanically in the event of a break in supply Progress of cycle displayed Housing 48 x 48 mm Connection by screw-terminal base or 8-pin base
Part numbers
Specifications
Accessories
Type
Functions
Relay outputs
Delay
Voltages
88 226 014
6 min
12 h
Multi
-function 2 - 3 - 4
1 timed changeover 5 A1 instantaneous
12 tim
- Max. fördröjning
6 min - 60 min - 12 tim
- Skalgradering 6 s -
1 min - 12 min
220 to 240 V AC -
50 Hz
Precision limit error
±
2 % (± 5 %/6 s)
Repetition accuracy
±
1.5 % (± 4 %/6 s)
Selection precision
See "timing ranges" table for scale graduation
Reset time
0.20 s
Timed two-
pole
1
Instantaneous single pole
1
Thermal rating
6,3 A
Rating (cos φ= 0.41) 104 operations
5 A - 230 V
Absorbed power-
motor
3 VA cos φ0,8
Voltage variation at maximum temperature of 55 oC according to IEC 255 100
24 V +10 % - 42 V -15 % 48 V +10 % - 110 V -20 % 127 V 0 % - 220 V -20 % 240 V 0 %
Operating factor
100 %
Temperature limits use (°C)
-
10→+55
Temperature limits stored (°C)
-20→70
Environmental protection Tropicalised to IEC 68
-2-10
Vibration withstand on 3 axes (Veritas standard)
4 G - 55 Hz
Dielectric test voltage according to IEC 255 5 or VDE 0435
1000 V -Un≤60V 2000 V -
Un > 60 V
Insulation according to standard VDE 0110 group C
380 V AC -
440 V DC
Protection Housing
IP 40 Degree of terminal protection
IP 10
Conformity to standards NFC 45250 - VDE 0110
- 0435 -
0660 or ICE 529
Connection : Screw/saddle
Terminal capacity Single
-wire 1 or 2 leads Multi-wire
0,75 -
2,5 mm
2
Terminal capacity Multi
-wire 1 or 2 leads
0,5 -
1 mm
2
Mounting : Base mounting on 8
-pin socket
Weight (g)
185
Accessories
Code
Solder tag connector 8-
pin
25 622 301
8-pin connector base
25 622 128
Invertor for DC supply 24-
48 V DC
84 861 501
Invertor for DC supply 110-
127 V DC
84 861 503
Dimensions (mm)
88 226 0
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
N
o
Legend
Panel depth 10 mm max
M3 screw
Dimensions (mm)
88 226 5
N
o
Legend
Panel depth 10 mm max
Dimensions (mm)
Panel cut-out
Dimensions (mm)
Solder tag connector 25 622 301 - 8-pin
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
Dimensions (mm)
Inverter for DC supply 84 861 501 : 24
48 V DC
84 861 503 : 110
127 V DC
Weight 150 g
48 V DC 84 861 503 : 110
127 V DC
Weight 150 g" class="link_produits thickbox"> Zoom
N
o
Legend
Fixing holes ø 5
Dimensions (mm)
Screw terminal or connector socket 26 622 128 - 8-pin
Curves
CO F2_TOP2000_N01
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
