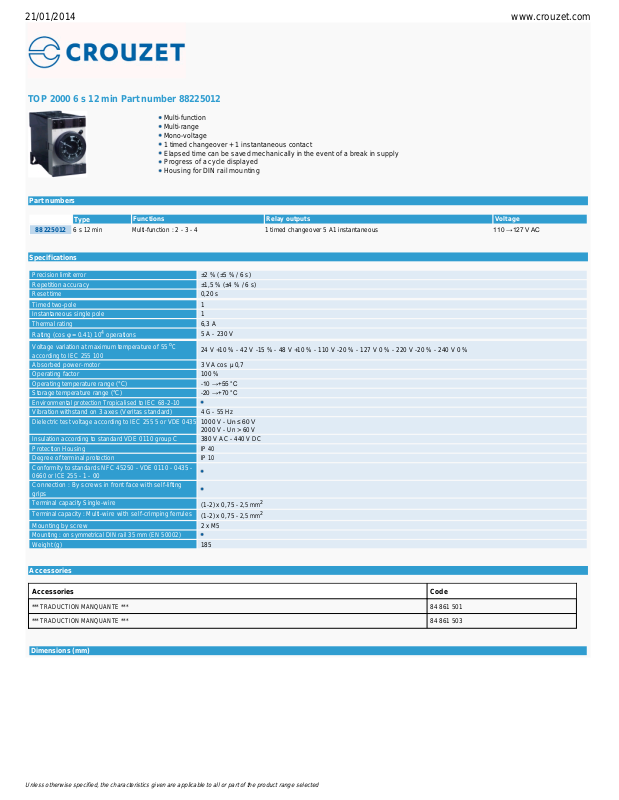

TOP 2000 6 s 12 min Part number 88225012
Multi
-function
Multi
-range
Mono-voltage
1 timed changeover + 1 instantaneous contact
Elapsed time can be saved mechanically in the event of a break in supply
Progress of a cycle displayed
Housing for DIN rail mounting
Part numbers
Specifications
Accessories
Type
Functions
Relay outputs
Voltage
88 225 012
6 s
12 min
Multi
-function : 2 - 3 - 4
1 timed changeover 5 A1 instantaneous
110→127VAC
Precision limit error
±
2 % (±5 % / 6 s)
Repetition accuracy
±
1,5 % (±4 % / 6 s)
Reset time
0,20 s
Timed two-
pole
1
Instantaneous single pole
1
Thermal rating
6,3 A
Rating (cos φ= 0.41) 104 operations
5 A - 230 V
Voltage variation at maximum temperature of 55 oC
according to IEC 255 100
24 V +10 % - 42 V -15 % - 48 V +10 % - 110 V -20 % - 127 V 0 % - 220 V -20 % - 240 V 0 %
Absorbed power-
motor
3 VA cos μ0,7
Operating factor
100 %
Operating temperature range (°C)
-
10→+55°C
Storage temperature range (°C)
-
20→+70°C
Environmental protection Tropicalised to IEC 68
-2-10
Vibration withstand on 3 axes (Veritas standard)
4 G - 55 Hz
Dielectric test voltage according to IEC 255 5 or VDE 0435
1000 V -Un≤60V
2000 V -
Un > 60 V
Insulation according to standard VDE 0110 group C
380 V AC -
440 V DC
Protection Housing
IP 40 Degree of terminal protection
IP 10
Conformity to standards NFC 45250 - VDE 0110
- 0435 -
0660 or ICE 255
- 1 - 00
Connection : By screws in front face with self-
lifting
grips
Terminal capacity Single
-wire
(1-2) x 0,75 -
2,5 mm
2
Terminal capacity : Multi
-wire with self-crimping ferrules
(1-2) x 0,75 -
2,5 mm
2
Mounting by screw
2 x M5 Mounting : on symmetrical DIN rail 35 mm (EN 50002)
Weight (g)
185
Accessories
Code
*** TRADUCTION MANQUANTE ***
84 861 501
*** TRADUCTION MANQUANTE ***
84 861 503
Dimensions (mm)
21/01/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
N
o
Legend
With memory
Without memory
Dimensions (mm)
N
o
Legend
Fixing holes Ø 5
Curves
Function 2
Function n°2
Curves
Function 3
21/01/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
Function n°3
Curves
Function 4
Function n°4
Connections
Function 2
Connections
Function 3
Connections
Function 4
21/01/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
On energisation, chance of contact bounce on instantaneous contact for 250 ms
On energisation, chance of contact bounce on instantaneous contact for 250 ms
TRADOS Empty Field
Connections
Internal layout
Connections
Terminal identification
N
o
Legend
A1 - A2 Supply
Timed contact
Instantaneous contact
21/01/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
