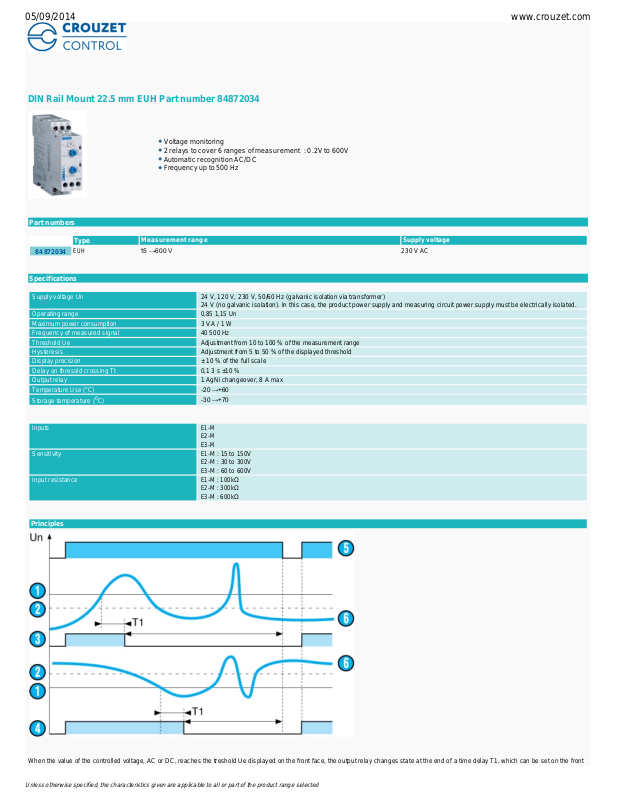

Crouzet 84872034 Data Sheet
DIN Rail Mount 22.5 mm EUH Part number 84872034
Voltage monitoring
2 relays to cover 6 ranges of measurement : 0.2V to 600V
Automatic recognition AC/DC
Frequency up to 500 Hz
Part numbers
Specifications
When the value of the controlled voltage, AC or DC, reaches the treshold Ue displayed on the front face, the output relay changes state at the end of a time delay T1, which can be set on the front
Type
Measurement range
Supply voltage
84 872 034
EUH
15→600V
230 V AC
Supply voltage Un
24 V, 120 V, 230 V, 50/60 Hz (galvanic isolation via transformer)
24 V (no galvanic isolation). In this case, the product power supply and measuring circuit power supply must be electrically isolated.
Operating range
0,85 1,15 Un
Maximum power consumption
3 VA
/ 1 W
Frequency of measured signal
40 500 Hz
Threshold Ue
Adjustment from 10 to 100 % of the measurement range
Hysteresis
Adjustment from 5 to 50 % of the displayed threshold
Display precision
±
10 % of the full scale
Delay on thresold crossing Tt
0,1 3 s ±10 %
Output relay
1 AgNi changeover, 8 A
max
Temperature Use (°C)
-
20→+60
Storage temperature (0C)
-
30→+70
InputsE1-M
E2-M
E3-M
Sensitivity
E1-M : 15 to 150V
E2-M : 30 to 300V
E3-M : 60 to 600V
Input resistance
E1-M : 100kΩ
E2-M : 300k
Ω
E3-M : 600k
Ω
Principles
05/09/2014 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
face at between 0.1 and 3s.
Once the voltage drops below 5 to 50 % of the treshold (hysteresis), the output relay changes state again instantly. Changing the hysteresis onthe front face does not therefore modify the value of
the preset treshold.
When the value of the controlled voltage, AC or DC, reaches the treshold Ue displayed on the front face, the output relay changes state at the end of a time delay T1, which can be set on the front
face at between 0.1 and 3s and remains latched in this position.
N
o
Legend
Treshold Ue
Hysteresis
UPPER function
UNDER function
Unit power-up
Controlled voltage
*** TRADUCTION MANQUANTE ***
Principles
N
o
Legend
Treshold Ue
Hysteresis
UPPER function
UNDER function
Unit power-up
Controlled voltage
Dimensions (mm)
EUL / EUH
