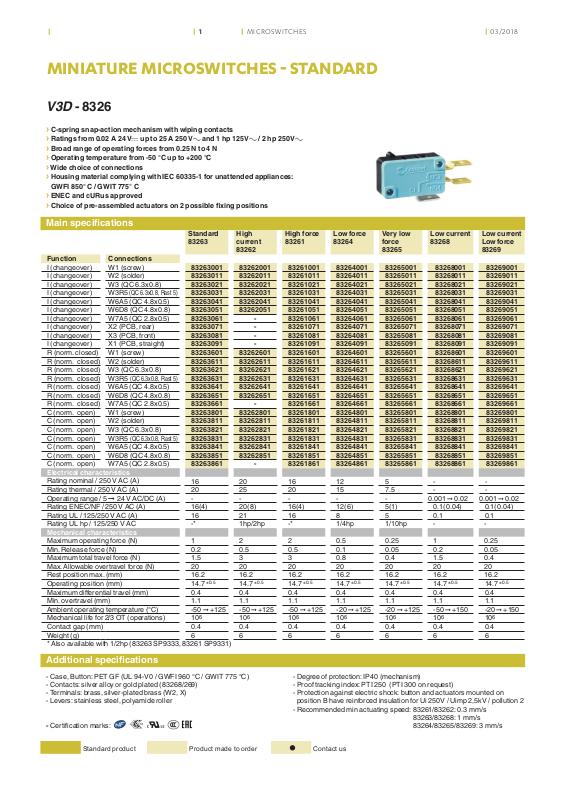

| MICROSWITCHES | 1
|
MINIATURE MICROSWITCHES - STANDARD
V3D - 8326
› C-spring snap-action mechanism with wiping contacts
› Ratings from 0.02 A 24 Vc up to 25 A 250 Va and 1 hp 125Va / 2 hp 250 Va
› Broad range of operating forces from 0.25 N to 4 N
› Operating temperature from -50 °C up to +200 °C
› Wide choice of connections
› Housing material complying with IEC 60335-1 for unattended appliances:
GWFI 850° C / GWIT 775° C
› ENEC and cURus approved
› Choice of pre-assembled actuators on 2 possible fixing positions
| 03/2018
Standard
83263
High
current
83262
High force
83261
Low force
83264
Very low
force
83265
Low current
83268
Low current
Low force
83269
Function Connections
I (changeover) W1 (screw) 83263001 83262001 83261001 83264001 83265001 83268001 83269001
I (changeover) W2 (solder) 83263011 83262011 83261011 83264011 83265011 83268011 83269011
I (changeover) W3 (QC 6.3x0.8) 83263021 83262021 83261021 83264021 83265021 83268021 83269021
I (changeover) W3R5
(QC 6.3x0.8, Rast 5)
83263031 83262031 83261031 83264031 83265031 83268031 83269031
I (changeover) W6A5 (QC 4.8x0.5) 83263041 83262041 83261041 83264041 83265041 83268041 83269041
I (changeover) W6D8 (QC 4.8x0.8) 83263051 83262051 83261051 83264051 83265051 83268051 83269051
I (changeover) W7A5 (QC 2.8x0.5) 83263061 - 83261061 83264061 83265061 83268061 83269061
I (changeover) X2 (PCB, rear) 83263071 - 83261071 83264071 83265071 83268071 83269071
I (changeover) X3 (PCB, front) 83263081 - 83261081 83264081 83265081 83268081 83269081
I (changeover) X1 (PCB, straight) 83263091 - 83261091 83264091 83265091 83268091 83269091
R (norm. closed) W1 (screw) 83263601 83262601 83261601 83264601 83265601 83268601 83269601
R (norm. closed) W2 (solder) 83263611 83262611 83261611 83264611 83265611 83268611 83269611
R (norm. closed) W3 (QC 6.3x0.8) 83263621 83262621 83261621 83264621 83265621 83268621 83269621
R (norm. closed) W3R5
(QC 6.3x0.8, Rast 5)
83263631 83262631 83261631 83264631 83265631 83268631 83269631
R (norm. closed) W6A5 (QC 4.8x0.5) 83263641 83262641 83261641 83264641 83265641 83268641 83269641
R (norm. closed) W6D8 (QC 4.8x0.8) 83263651 83262651 83261651 83264651 83265651 83268651 83269651
R (norm. closed) W7A5 (QC 2.8x0.5) 83263661 - 83261661 83264661 83265661 83268661 83269661
C (norm. open) W1 (screw) 83263801 83262801 83261801 83264801 83265801 83268801 83269801
C (norm. open) W2 (solder) 83263811 83262811 83261811 83264811 83265811 83268811 83269811
C (norm. open) W3 (QC 6.3x0.8) 83263821 83262821 83261821 83264821 83265821 83268821 83269821
C (norm. open) W3R5
(QC 6.3x0.8, Rast 5)
83263831 83262831 83261831 83264831 83265831 83268831 83269831
C (norm. open) W6A5 (QC 4.8x0.5) 83263841 83262841 83261841 83264841 83265841 83268841 83269841
C (norm. open) W6D8 (QC 4.8x0.8) 83263851 83262851 83261851 83264851 83265851 83268851 83269851
C (norm. open) W7A5 (QC 2.8x0.5) 83263861 - 83261861 83264861 83265861 83268861 83269861
Electrical characteristics
Rating nominal / 250 V AC (A)
Rating thermal / 250 V AC (A)
Operating range / 5 ➞ 24 V AC/DC (A)
Rating ENEC/NF / 250 V AC (A)
Rating UL / 125/250 V AC (A)
Rating UL hp / 125/250 V AC
16 20 16 12 5 - 20 25 20 15 7.5 - -
- - - - - 0.001
➞ 0.02 0.001 ➞ 0.02
16(4) 20(8) 16(4) 12(6) 5(1) 0.1(0.04) 0.1(0.04)
16 21 16 8 5 0.1 0.1
-* 1hp/2hp -* 1/4hp 1/10hp - -
Mechanical characteristics
Maximum operating force (N) 1 2 2 0.5 0.25 1 0.25
Min. Release force (N) 0.2 0.5 0.5 0.1 0.05 0.2 0.05
Maximum total travel force (N) 1.5 3 3 0.8 0.4 1.5 0.4
Max. Allowable overtravel force (N) 20 20 20 20 20 20 20
Rest position max. (mm) 16.2 16.2 16.2 16.2 16.2 16.2 16.2
Operating position (mm) 14.7
±0.5
14.7
±0.5
14.7
±0.5
14.7
±0.5
14.7
±0.5
14.7
±0.5
14.7
±0.5
Maximum differential travel (mm) 0.4 0.4 0.4 0.4 0.4 0.4 0.4
Min. overtravel (mm) 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Ambient operating temperature (°C) -50 ➞ +125 -50 ➞ +125 -50 ➞ +125 -20 ➞ +125 -20 ➞ +125 -50 ➞ +150 -20 ➞ +150
Mechanical life for 2/3 OT (operations) 10
6
10
6
10
6
10
6
10
6
10
6
10
6
Contact gap (mm) 0.4 0.4 0.4 0.4 0.4 0.4 0.4
Weight (g) 6 6 6 6 6 6 6
* Also available with 1/2hp (83263 SP9333, 83261 SP9331)
- Case, Button: PET GF (UL 94-V0 / GWFI 960 °C / GWIT 775 °C)
- Contacts: silver alloy or gold plated (83268/269)
- Terminals: brass, silver-plated brass (W2, X)
- Levers: stainless steel, polyamide roller
- Certification marks:
Standard product Product made to order Contact us
- Degree of protection: IP40 (mechanism)
- Proof tracking index: PTI 250 (PTI 300 on request)
- Protection against electric shock: button and actuators mounted on
position B have reinforced insulation for Ui 250V / Uimp 2,5kV / pollution 2
- Recommended min actuating speed: 83261/83262: 0.3 mm/s
83263/83268: 1 mm/s
83264/83265/83269: 3 mm/s
