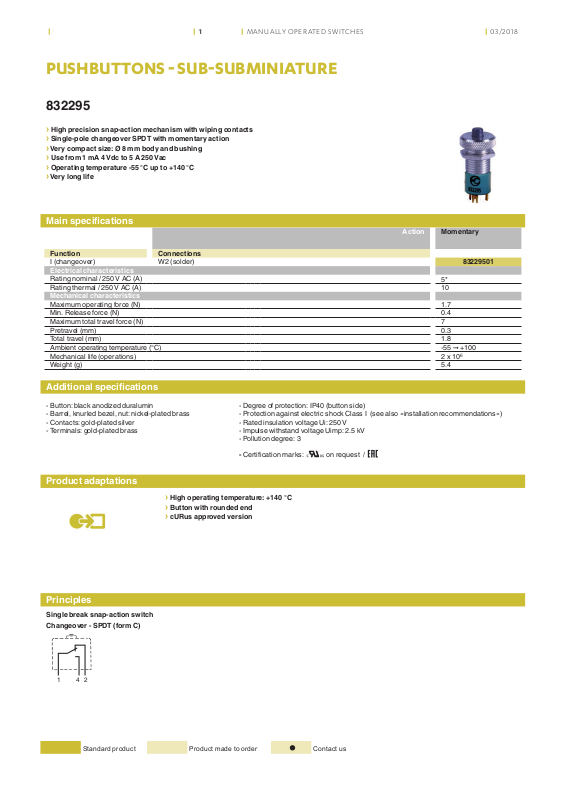

Crouzet 832295 Data Sheet

142

Main specifications

Additional specifications

Principles

| MANUALLY OPERATED SWITCHES | 1

|

PUSHBUTTONS - SUB-SUBMINIATURE

832295

› High precision snap-action mechanism with wiping contacts
› Single-pole changeover SPDT with momentary action
› Very compact size: Ø 8 mm body and bushing
› Use from 1 mA 4 Vdc to 5 A 250 Vac
› Operating temperature -55 °C up to +140 °C
› Very long life

| 03/2018

Action

Function Connections
I (changeover) W2 (solder) 83229501

Electrical characteristics

Rating nominal / 250 V AC (A)
Rating thermal / 250 V AC (A)

Mechanical characteristics

Maximum operating force (N) 1.7
Min. Release force (N) 0.4
Maximum total travel force (N) 7
Pretravel (mm) 0.3
Total travel (mm) 1.8
Ambient operating temperature (°C) -55
Mechanical life (operations) 2 x 10
Weight (g) 5.4

- Button: black anodized duralumin

- Barrel, knurled bezel, nut: nickel-plated brass

- Contacts: gold-plated silver

- Terminals: gold-plated brass

- Degree of protection: IP40 (button side)

- Protection against electric shock Class I (see also «installation recommendations»)

- Rated insulation voltage Ui: 250 V

- Impulse withstand voltage Uimp: 2.5 kV

- Pollution degree: 3

- Certification marks:

on request /

Momentary

5*
10

➞ +100

6

Product adaptations

› High operating temperature: +140 °C
› Button with rounded end
› cURus approved version

Single break snap-action switch

Changeover - SPDT (form C)

Standard product Product made to order Contact us
